PR Lighting XL 1500 User manual

XL 1500
PR-2815/PR-2815M
This product manual contains important information about the safe installation and use of this
projector. Please read and follow these instructions carefully and keep this manual in a safe place
for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

2/26
INDEX
SAFE USAGE OF THE PROJECTOR 3
INSTALLING THE PROJECTOR 4
FITTING THE LAMP 4
POWER SUPPLY – MAINS 5
CONTROL CONNECTIONS 5
DMX TERMINATOR 6
SETUP OPTIONS-PROJECTOR CONFIGURATION 6
TO SET THE DMX START ADDRESS 6
OPERATION MENU 8
ERROR MESSAGES 11
REPLACING GOBOS 11
DMX PROTOCOL 12
LED INDICATION 17
MAINTENANCE 17
LUBRICATION 17
KEEPING THE PROJECTOR CLEAN 17
TROUBLESHOOTING 18
TECHNICAL DATA 19
ELECTRICAL DIAGRAM 22
COMPONENT ORDER CODES 24
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without
notice. Whilst every care is taken in the preparation of this manual we reserve the right to change specifications in the course of
product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any consequence
arising from them.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good
condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the
unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.
ACCESSORIES
These items are packed together with the projector:
Name Quantity Unit Remark
G clamps 2 Pcs
XLR cable 1 Pc 5-pin plug
Safety cord 2 Pcs
Spare gobos 4 Pcs
This manual 1 Pc
Ωclamps 2 Pcs Options

3/26
SAFE USAGE OF THE PROJECTOR
When unpacking and before disposing of the carton check there is no transportation damage before using the projector.
Should there be any damage caused by transportation, consult your dealer and do not use the apparatus.
The projector is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain and moisture,
excessive heat, humidity and dust. Do not allow contact with water or any other liquids.
The projector is not designed or intended to be mounted directly on to inflammable surfaces.
The projector is only intended for installation, operation and maintenance by qualified personnel.
The projector must be installed in a location with adequate ventilation, at least 50cm from adjacent wall surfaces. Be sure
that no ventilation slots are blocked.
Do not project the beam onto inflammable surfaces, minimum distance is 5m. 5m
Avoid direct exposure to the light from the lamp. The light is harmful to the eye.
Do not attempt to dismantle and/or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power requirements of the projector.
It is essential that each projector is correctly earthed and that electrical installation conforms to all relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the power-cord come into contact
with other cables. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.
Keep the lamp clean. Do not touch the lamp glass with bare hand.
The projector should always be installed with a secondary safety fixing. A safety cord is supplied for this; it should be
attached as shown in “installing the projector” section.
The lamp used in this projector is a discharge lamp. After switching off don’t attempt to restart the projector until lamp has
cooled, this will require approx 15 minutes. Switching the lamp on and off at short intervals will reduce the life of both the
lamp and the projector. But occasional breaks will prolong the life of the lamp and projector.
Never run the projector without a lamp.
The lamp shall be changed if it has become damaged or thermally deformed.
Shields and lens shall be changed if they have become visibly damaged to such an extent than their effectiveness is
impaired, for example by cracks or deep scratches.
Exterior surface temperatures of the luminaire after 5 minutes operation is 80℃, when steady state is achieved 120℃,
There is no user serviceable parts inside the projector, do not open the housing and never operate the projector with the
covers removed.
Always disconnect from the mains, when the device is not in use or before cleaning it or
before attempting any maintenance work !
If you have any questions, don’t hesitate to consult your dealer or manufacturer.

4/26

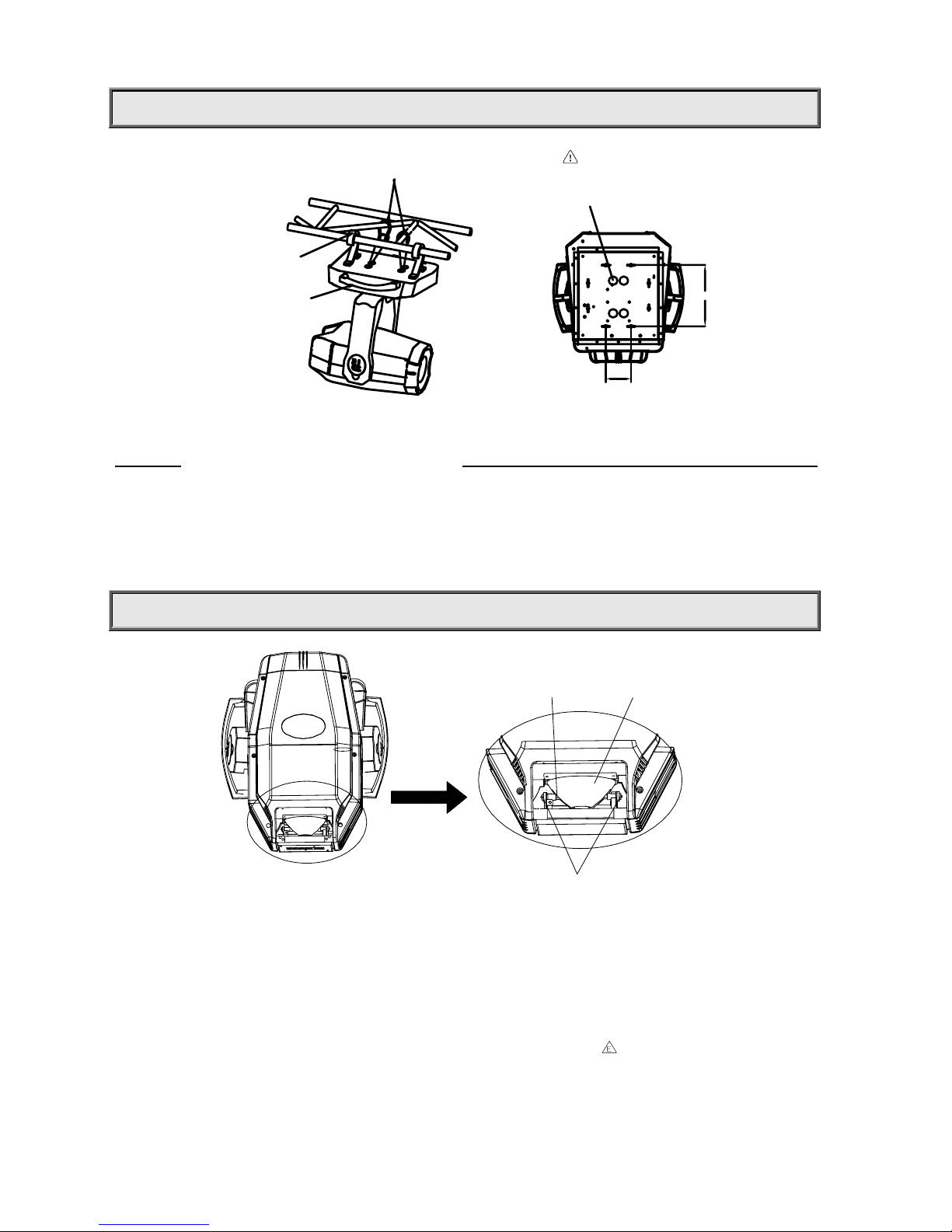

INSTALL THE PROJECTOR
(2PCS)
(2PCS)
HANDLES
(2PCS)
SAFETY CORD
CLAMPS
To pass 2 SAFETY CORDS
through 4 HOLES for safety!
WARNING
257
106
Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers
attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the
WARNING on the underside of the base as shown above) To pass 2 SAFETY CORDS through 4 HOLES for safety!
Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. Always ensure that
the structure that you are going to mount the projector is secure and is strong enough to support a weight of XL 1500.
WARNING:
1. Unlock the PAN and TILT before the 1st application of projector for safety.
2. The projector MUST be lifted or carried by the HANDLES instead of clamps.
3. For safety the safety cord should afford 10 times of the unit’s weight.
FITTING THE LAMP
NUT
LAMP REFLECTER
Lock the yoke before fitting/replacing the lamp.
Loosen 4 screws and open the back covers, you can see the structure as shown in the figure above.
Loosen 2 nuts at the both ends of lamp and take out the worn-out lamp. Suggest to free one end after another.
Fit new lamp and fasten 2 screws at the both ends of lamp. Note: don’t touch the bulb of the new lamp with bare hand so
as not to influence the beam output; the PST (pumping stem tip off) on the bulb facing the rear cover with fans
perpendicularly and being not in the beam’s way is a must and aids cooling.
Close the rear cover and fasten 4 screws.
NOTE: The convex of the nuts should face to the side when fitting the lamp.
WARNING: The MSR series are high-pressure lamps with external igniters ( ). Care should always be taken
when handling these lamps.Always read the manufacturers "Instructions for use" enclosed with the lamp.

5/26
POWER SUPPLY-MAINS
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked
on the panel of the projector. It is recommended that each projector be supplied separately so that they may be
individually switched on and off.
IMPORTANT
It is essential that each projector is correctly earthed and the electrical installation conforms to all relevant
standards.

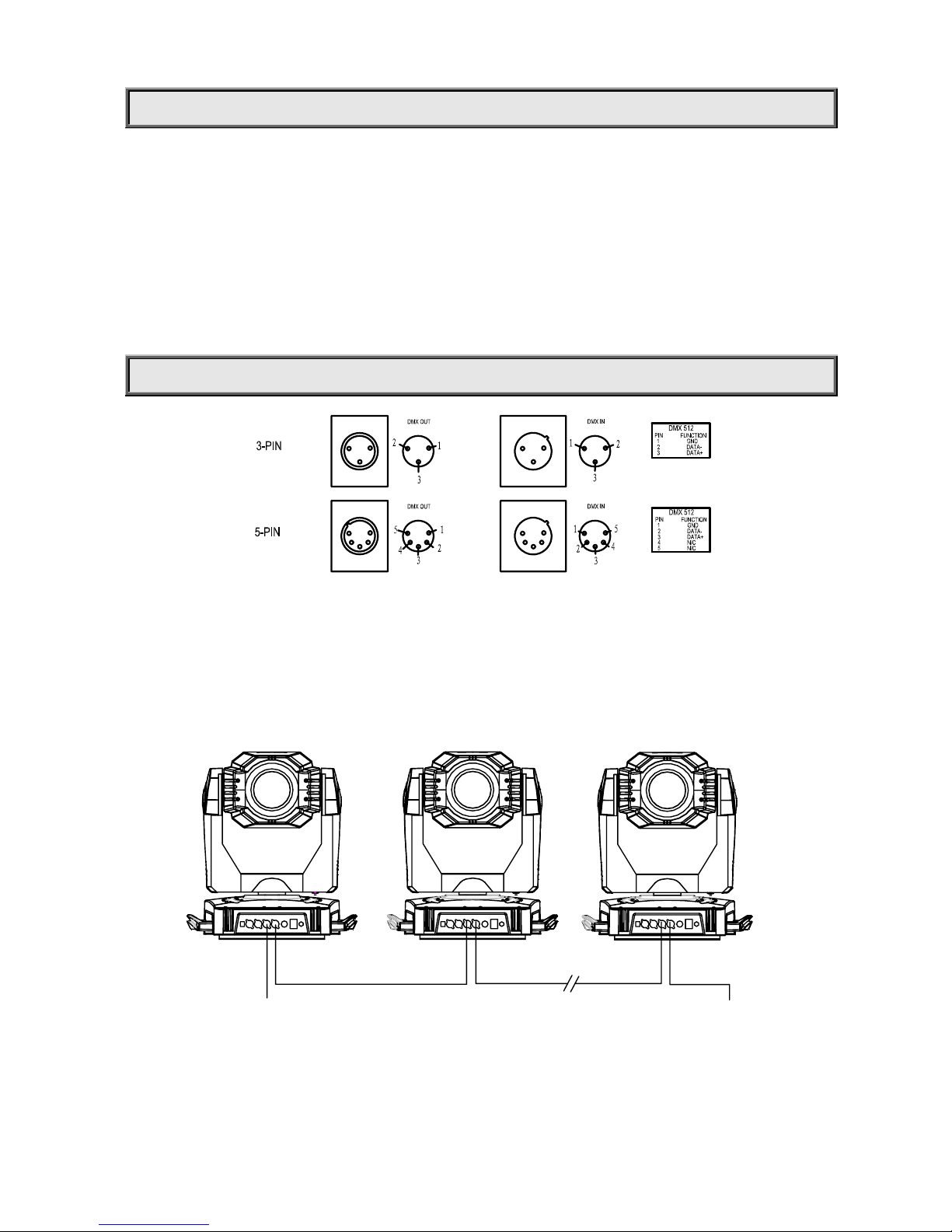

CONTROL CONNECTION
Connection between controller and projector and between one projector and another must be made with a 2
core-screened cable, with each core having at least a 0.5mm diameter. Connection to and from the projector is via
cannon 3 pin (which are included with the projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown
in the figure above.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of
the plug is not connected in any way. The XL 1500 accepts digital control signals in protocol DMX512 (1990).
Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the second fixture’s input
and connect the rest fixtures in the same way. Eventually connect the last fixture’s output to a DMX terminator as shown
in the figure below.
DMX OUTDMX IN
DMX IN FROM TERMINATER
DMX IN DMX OUT DMX IN DMX OUT
CONTROLLER

6/26
DMX TERMINATOR
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This
prevents electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120Ω(ohm) resistor connected across pins 2 and 3, which is
then plugged into the output socket on the last projector in the chain. The connections are illustrated below.
21
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain.
PIN 3
PIN 2
SETUP OPTIONS-PROJECTOR CONFIGURATION
UP
UP
CODER BUTTON
Projector configuration can be set conveniently via pressbutton switch and LCD display. Turn the projector on and the
LCD display will show DMX address you set and save last time and it can be reset and saved again as you please.
Launch the projector. Press button ENTER more than 5 seconds to unlock panel.
Press button UP or DOWN if you want to browse through the various Setup Options. There are 8 option codes
from DMX Address to Lamp Manual Control, and each code has a specific function. If you turn the coder
knob clockwise, the function like as button UP . On the contrary, the function like as button DOWN .
Press button ENTER to save your settings or enter the next menu. There is same function if you push the coder knob.
Press button UP or DOWN to shift.
Press button FUNC, it will return to the upper menu one by one. If you stay for minutes defaulted will show display status
automatically.
TO SET THE DMX START ADDRESS
Each XL 1500 must be given a DMX start address so that the correct projector responds to the correct control signals.
This DMX start address is the channel number from which the projector starts to “listen” to the digital control information
being sent out from the controller. The XL 1500 has 3 DMX modes. There are standard mode, extended mode and short
mode. For example standard mode has 29 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address
030, No. 3 projector’s address 059, No. 4 projector’s address 088, and so on.
Launch the projector. Press button ENTER or coder knob more than 5 seconds to unlock panel.
Press button FUNC to display DMXAddress;

7/26
Press button UP and DOWN, you can set the address;
Press button ENTER to confirm; In the same time. The GREEN LED will flash one time. It means the setting has
been enabled.
Press button FUNC, it will return to the upper menu one by one.

8/26
OPERATION MENU
1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL
PR LIGHTING
XL SERIES
XL 1500
DMX Address=001
DMX Address
DMX Addres
s
001-489 in short mode
001-484 in stand mode
001-476 in
e
xtended mod
e
Reset Rese
t
Are You Sure?
Config Settings
DMX Mode
DMX Mod
e
Standard 1
6
DM
X
Mod
e
Extended 1
6
DMX Mod
e
Short
8
Lamp Control
Lamp Control By
Control Channel
Lamp Control B
y
Power On
Lamp Control B
y
DMX Presen
t
Loss of DMX
When DMX is Los
t
Normal Time Ou
t
When DMX is Los
t
Hold Last Valu
e
Factory Settings
(Press button
DOWN/UP/ENTER at the same
time to enter the sub-menu)
Fixture type
(WARNING：Never change
the fixture type or the
system will be damaged!)
Fixture type=
XL 120
0
Fixture type=
XL 70
0
Fixture type=
XL 57
5
Fixture type=
XL 120
0
F
S
Fixture type=
XL 120
0
Wash
Fixture type=
XL 700 Wash
Fixture type=
XL 1800
Fixture type=
XL 1500
Fixture type=
XL 1500 Wash
Fixture type=
XS 1200
Option Settings
Colour Positions
Colou
r
Position
s
STEPPED
Colou
r
Position
s
LINEA
R
F-Gobo Positions
F-Gobo Position
s
STEPPED
F-Gobo Position
s
LINEA
R
Pan DMX Invert
Pan DMX Invert
OFF
Pan DMX Inver
t
ON
Tilt DMX Invert
Tilt DMX Inver
t
OFF
Tilt DMX Inver
t
ON
Pan Tilt Swap
Pan Tilt Swa
p
OFF
Pan Tilt Swa
p
ON
Dimmer Invert Dimmer Inver
t
OFF

9/26
Dimmer Inver
t
ON
Iris Invert
Iris Inver
t
OFF
Iris Inver
t
ON
Zoom Invert
Zoom Inver
t
OFF
Zoom Inver
t
ON
CMY Invert
CMY Invert
OFF
CMY Inver
t
ON
CTO Invert
C
TO Inver
t
OFF
C
TO Inver
t
ON
Defaults
Default
s
OFF
Default
s
Restore Defaults
Display Options
Display Mode
Displa
y
On Always
Displa
y
Off After Delay
Display Invert
Displa
y
Inver
t
OFF
Displa
y
Inver
t
ON
Display Dimming
Disp Dim Level
Min
Disp Dim Level
1
Disp Dim Level
2
Disp Dim Level
3
Disp Dim Level
4
Disp Dim Level
5
Disp Dim Level
6
Disp Dim Level
7
Disp Dim Level
8
Disp Dim Level
9
Disp Dim Level
Full
Display Contrast Display Contras
t
XXX(1~36, Default is 16)
Display Language
Language =
En
g
lish
Language =
Chines
e
Information
Lamp Hours Lamp Hours =
X
X
Reset Lamp Hour
s
Are You Sure?
Total Hours Total Hours =
X
X
Temperature
Display Board Display Board =
X
X
℃
Driver Board 1 Driver Board 1 =
X
X
℃
Driver Board 2 Driver Board 2 =
X
X
℃
Driver Board 3 Driver Board 3 =
X
X
℃
Driver Board 4 Driver Board
4
=
X
X
℃

10/26
Pan and Tilt Pan and Tilt =
X
X
℃
Head Sensor Head Sensor=
X
X
℃
Software Version
Display Board Display Board =
X.X.
X
Driver Board 1 Driver Board 1 =
X.X.
X
Driver Board 2 Driver Board 2 =
X.X.
X
Driver Board 3 Driver Board 3 =
X.X.
X
Driver Board 4 Driver Board
4
=
X.X.
X
Pan and Tilt Pan and Tilt =
X.X.
X
Power Board Power B
o
ard =
X.X.
X
View DMX values DMX Channel
1=
0
Test Modes
Factory Setup
Factory Setu
p
OFF
Factory Setu
p
ON
Self Test
Self Tes
t
OFF
self tes
t
ON
Lamp Manual
Control
Lamp Status Status = XX
X
Control =
X
Turn Lamp On
Turn Lamp Off

11/26
ERROR MESSAGES
In the course of launch, XL 1500 examines automatically whether there are errors and if there are, it will display
information as follows:
Display Message
Sensor Err S1-M1 Colour wheel (1# drive board motor 1) error
Sensor Err S1-M2 CTO (1# drive board motor 2) error
Sensor Err S1-M3 CYM-cyan (1# drive board motor 3) error
Sensor Err S1-M4 CYM-yellow (1# drive board motor 4) error
Sensor Err S1-M5 CYM-magenta (1# drive board motor 5) error
Sensor Err S2-M3 Fixed Gobo wheel (2# drive board motor 3) error
Sensor Err S2-M4 Rotating Gobo wheel 1 (2# drive board motor 4) error
Sensor Err S2-M5 Gobo rotation 1 (2# drive board motor 5) error
Sensor Err S3-M1 Rotating Gobo wheel 2 (3# drive board motor 1) error
Sensor Err S3-M2 Gobo rotation 2 (3# drive board motor 2) error
Sensor Err S3-M3 Prism (3# drive board motor 3) error
Sensor Err S3-M4 Prism rotation (3# drive board motor 4) error
Sensor Err S3-M5 Focus (3# drive board motor 5) error
Sensor Err S3-M6 Zoom (3# drive board motor 6) error
Sensor Err S4-M1 Effects wheel (4# drive board motor 1) error
REPLACING GOBOS
ROTATING GOBO
WHEEL 2
FROST
FIXED GOBO WHEEL
ROTATING GOBO
WHEEL 1
EFFECT WHEEL
Disconnect the fixture from power. Lock Tilt. Carefully lift off the cover by undoing the 6 screws.
For gobos replacement on the fixed gobo: Remove the gobo and insert the new one into the position by hands.
For gobos replacement on the rotating gobo wheel: Remove the gobo holder with gobo from gobo wheel by
hands.
Pull out the spring and drop the old gobo out of the holder.
Insert the new gobo into the holder, and then insert the spring with the narrow end against the gobo.
Push the end of the spring in under lip of the holder.
Pick the spring clip up and put the gobo holder back into the position, if necessary, a small screwdriver will be
helped.
Note: If the gobo is a glass one, it should be touched with glabrous, clean and soft tissue or cloth matted between hand
and glass instead of with bare hand.
Close the rear cover and fasten 6 screws.

12/26
DMX PROTOCOL
Short
mode Standard mode Extended mode FUNCTION DMX DESCRIPTION
1 1 1 Strobe
000-010 Black
011-025 Open
026-225 Strobe speed from slow to fast
226-255 Open
2 2 2 Dimmer
000-007 Black
008-255 Dimming from dark to light (0-100%)
3 Dimmer Fine 000-255 Dimmer in 16 Bit precision
3 3 4 CYM Macro
000-01
6
White
01
7
-03
5
Yellow+ Magenta=Red
03
6
-054 Yellow
05
5
-07
3
Yellow+ Cyan=Green
074-092 Cyan
09
3
-110 Cyan+ Magenta=Blue
111-12
8
Magenta
12
9
-25
5
CYM colour mixing from slow to fas
t
4 4 5 CYM-Cyan 000-255 Cyan (Linear 0-100%)
6
CYM-Cyan
Fine 000-255 Cyan in 16 Bit precision
5 5 7 CYM-Yellow 000-255 Yellow (Linear 0-100%)
8
CYM-Yellow
Fine 000-255 Yellow in 16 Bit precision
6 6 9 CYM-Magenta 000-255 Magenta (Linear 0-100%)
10
CYM-Magenta
Fine 000-255 Magenta in 16 Bit precision
7 7 11 CTO 000-255 Linear adjust from high to low
12 CTO Fine 000-255 CTO in 16 Bit precision
8 8 13 Colour Wheel
000-016 White
017-024 White/colour 1
025-032 Colour 1
033-040 Colour 1/colour 2
041-048 Colour 2
049-056 Colour 2/colour 3
057-064 Colour 3
065-072 Colour 3/colour 4
073-080 Colour 4
081-088 Colour 4/colour 5
089-096 Colour 5
097-104 Colour 5/colour 6
105-112 Colour 6
113-120 Colour 6/ white
121-127 white
128-133 Rainbow rotation speed 1 (slowest)
134-139 Rainbow rotation speed 2
140-145 Rainbow rotation speed 3
146-151 Rainbow rotation speed 4

13/26
152-157 Rainbow rotation speed 5
158-163 Rainbow rotation speed 6
164-169 Rainbow rotation speed 7
170-175 Rainbow rotation speed 8
176-181 Rainbow rotation speed 9
182-187 Rainbow rotation speed 10
188-195 Stop in current position
196-201 Rainbow reverse rotation speed
1(slowest)
202-207 Rainbow reverse rotation speed 2
208-213 Rainbow reverse rotation speed 3
214-219 Rainbow reverse rotation speed 4
220-225 Rainbow reverse rotation speed 5
226-231 Rainbow reverse rotation speed 6
232-237 Rainbow reverse rotation speed 7
238-243 Rainbow reverse rotation speed 8
244-249 Rainbow reverse rotation speed 9
250-255 Rainbow reverse rotation speed 10
9 9 14 Iris
000-135 Iris from large to small (0-100%)
136-231 Macro
232-255 Minimal
1
5
Iris Fine 000-25
5
Iris n 16 Bit precision
10 10 16
Fixed Gobo
Wheel
000-01
6
Clear
01
7
-032 Gobo1
03
3
-04
8
Gobo 2
04
9
-064 Gobo
3
06
5
-080 Gobo 4
081-09
6
Gobo
5
09
7
-112 Gobo
6
11
3
-12
7
Gobo
7
12
8
-132 Reverse rotation speed 1 (slowest)
13
3
-13
5
Reverse rotation speed 2
13
6
-13
8
Reverse rotation speed
3
13
9
-141 Reverse rotation speed 4
142-144 Reverse rotation speed
5
14
5
-14
7
Reverse rotation speed
6
14
8
-150 Reverse rotation speed 7(fastest)
151-15
3
Rotation speed 1 (slowest)
154-15
6
Rotation speed 2
15
7
-15
9
Rotation speed
3
160-162 Rotation speed 4
16
3
-16
5
Rotation speed
5
16
6
-16
8
Rotation speed
6
16
9
-1
7
1 Rotation speed 7(fastest)
172-174 Gobo 1 shake 1(slowest)
17
5
-17
7
Gobo 1 shake 2
17
8
-180 Gobo 1 shake
3
181-18
3
Gobo 1 shake 4（fastes
t
）
184-18
6
Gobo 2 shake 1(slowest)
18
7
-18
9
Gobo 2 shake 2
190-192 Gobo 2 shake
3
19
3
-19
5
Gobo 2 shake 4（fastes
t
）
19
6
-19
8
Gobo 3 shake 1(slowest)
19
9
-201 Gobo 3 shake 2
202-204 Gobo 3 shake
3
20
5
-20
7
Gobo 3 shake 4（fastes
t
）

14/26
20
8
-210 Gobo 4 shake 1(slowest)
211-21
3
Gobo 4 shake 2
214-21
6
Gobo 4 shake
3
21
7
-21
9
Gobo 4 shake 4（fastes
t
）
220-222 Gobo 5 shake 1(slowest)
22
3
-22
5
Gobo 5 shake 2
22
6
-22
8
Gobo 5 shake
3
22
9
-231 Gobo 5 shake 4（fastes
t
）
232-234 Gobo 6 shake 1(slowest)
23
5
-23
7
Gobo 6 shake 2
23
8
-240 Gobo 6 shake
3
241-24
3
Gobo 6 shake 4（fastes
t
）
244-24
6
Gobo 7 shake 1(slowest)
24
7
-24
9
Gobo 7 shake 2
250-252 Gobo 7 shake
3
25
3
-25
5
Gobo 7 shake 4（fastes
t
）
11 11 17
Rotating Gobo
Wheel 1
000-021 white
022-042 Gobo1
04
3
-064 Gobo 2
06
5
-08
5
Gobo
3
08
6
-10
6
Gobo 4
10
7
-12
7
Gobo
5
12
8
-134 Rotation speed 1 (slowest)
13
5
-142 Rotation speed 2
14
3
-14
9
Rotation speed
3
150-15
6
Rotation speed 4 (fastest)
15
7
-16
3
Reverse rotation speed 1 (slowest)
164-170 Reverse rotation speed 2
171-17
7
Reverse rotation speed
3
17
8
-184 Reverse rotation speed 4(fastest)
18
5
-191 Gobo 1 shake slow
192-19
8
Gobo 1 shake fas
t
19
9
-20
5
Gobo 2 shake slow
20
6
-212 Gobo 2 shake fas
t
21
3
-21
9
Gobo 3 shake slow
220-22
6
Gobo 3 shake fas
t
22
7
-23
3
Gobo 4 shake slow
234-240 Gobo 4 shake fas
t
241-24
7
Gobo 5 shake slow
24
8
-25
5
Gobo 5 shake fas
t
12 12 18 Gobo rotation 1
000-120 0~540°inde
x
121-12
7
Rotation speed 1 (slowest)
12
8
-13
5
Rotation speed 2
13
6
-14
3
Rotation speed
3
144-151 Rotation speed 4
152-15
9
Rotation speed
5
160-16
7
R
o
tation speed
6
16
8
-17
5
Rotation speed
7
17
6
-18
3
Rotation speed 8 (fastest)
184-191 Stop rotating
192-19
9
Reverse rotation speed 1 (slowest)
200-20
7
Reverse rotation speed 2
20
8
-21
5
Reverse rotation speed
3
21
6
-22
3
Reverse rotation speed 4
224-231 Reverse rotation speed
5
232-23
9
Reverse rotation speed
6
240-24
7
Reverse rotation speed
7
24
8
-25
5
Reverse rotation speed 8 (fastest)
13 19
Gobo rotation 1
Fine 000-255 Gobo rotation in 16 Bit precision
13 14 20
Rotating Gobo
Wheel 2
000-021 white
022-042 Gobo1

13/26
152-157 Rainbow rotation speed 5
158-163 Rainbow rotation speed 6
164-169 Rainbow rotation speed 7
170-175 Rainbow rotation speed 8
176-181 Rainbow rotation speed 9
182-187 Rainbow rotation speed 10
188-195 Stop in current position
196-201 Rainbow reverse rotation speed
1(slowest)
202-207 Rainbow reverse rotation speed 2
208-213 Rainbow reverse rotation speed 3
214-219 Rainbow reverse rotation speed 4
220-225 Rainbow reverse rotation speed 5
226-231 Rainbow reverse rotation speed 6
232-237 Rainbow reverse rotation speed 7
238-243 Rainbow reverse rotation speed 8
244-249 Rainbow reverse rotation speed 9
250-255 Rainbow reverse rotation speed 10
9 9 14 Iris 000-135 Iris from large to small (0-100%) 136-231 Macro
232-255 Minimal
1
5
Iris Fine 000-25
5
Iris in 16 Bit precision
10 10 16 Fixed Gobo
Wheel
000-01
6
Clear
01
7
-032 Gobo1
03
3
-04
8
Gobo 2
04
9
-064 Gobo
3
06
5
-080 Gobo 4
081-09
6
Gobo
5
09
7
-112 Gobo
6
11
3
-12
7
Gobo
7
12
8
-132 Reverse rotation speed 1 (slowest)
13
3
-13
5
Reverse rotation speed 2
13
6
-13
8
Reverse rotation speed
3
13
9
-141 Reverse rotation speed 4
142-144 Reverse rotation speed
5
14
5
-14
7
Reverse rotation speed
6
14
8
-150 Reverse rotation speed 7(fastest)
151-15
3
Rotation speed 1 (slowest)
154-15
6
Rotation speed 2
15
7
-15
9
Rotation speed
3
160-162 Rotation speed 4
16
3
-16
5
Rotation speed
5
16
6
-16
8
Rotation speed
6
16
9
-1
7
1 Rotation speed 7(fastest)
172-174 Gobo 1 shake 1(slowest)
17
5
-17
7
Gobo 1 shake 2
17
8
-180 Gobo 1 shake
3
181-18
3
Gobo 1 shake 4（fastes
t
）
184-18
6
Gobo 2 shake 1(slowest)
18
7
-18
9
Gobo 2 shake 2
190-192 Gobo 2 shake
3
19
3
-19
5
Gobo 2 shake 4（fastes
t
）
19
6
-19
8
Gobo 3 shake 1(slowest)
19
9
-201 Gobo 3 shake 2
202-204 Gobo 3 shake
3
20
5
-20
7
Gobo 3 shake 4（fastes
t
）

16/26
24
8
-25
5
Rotation speed 8 (fastest)
17 19 25 Effect Wheel
000-020 White
021-255 Wheel full into beam gradually
18 20 26
Effect Wheel
Rotation
000-12
5
Rotation speed from slow to fas
t
12
6
-141 Stop in current position
142-255 Reverse rotation speed from slow to
fast
1
9
21 2
7
Focus 000-25
5
Linearly focusing
2
8
Focus Fine 000-25
5
Focus in 16 precision
20 22 2
9
Zoom 000-25
5
From large to small
30 Zoom Fine 000-25
5
Zoom in 16 precision
21 23 31
Beam Angle
Lens 000-255 Wide Beam angle lens insert
22 24 32 Pan 000-25
5
Pan rotation 450°
2
5
3
3
Pan Fine 000-25
5
Pan rotation in 16 precision
2
3
2
6
34 Til
t
000-25
5
Tilt rotation 270°
2
7
3
5
Tilt Fine 000-2
5
5
Tilt rotation in 16 precision
28 36
Pan & Tilt
speed 000-255 Pan&Tilt speed from fast to slow
24 29 37 Control
000-04
8
Reserved
04
9
-080 Rese
t
081-112 Reserved
11
3
-144 Lamp off ( stop in DMX value for 10 s)
14
5
-16
8
Reserved
16
9
-200 Lamp power reduced to 50%
201-22
3
Reserved
224-25
5
Lamp on (See remark below)
Remark:
If you intend to turn on/off the lamp via the last channel of the controller, don’t attempt to push the channel to value
224-255 immediately after turning it off, or push the slide bar to value 224-255 to wait it cooling. Under these 2
circumstances, the lamp can not be turned on. The right operation is: turn it off---cool down---push the slide bar to turn it
on.

17/26
LED INDICATION
Green
On DMX signal OK
Off No DMX signal
Flash DMX signal error
Yellow On
Setting the panel
Blue On Power
Red/Green Red Running self test mode
Green Reserved
MAINTENANCE
If the projector’s lens becomes damaged or broken it should be replaced. If the lamp becomes damaged or deformed in
any way it must be replaced. If the light from the lamp appears dim this would normally indicate that it is reaching the end
of its life and it should be changed at once, aged lamps run to the extremity of their life might explode. If the projector
does not function, check the fuses on the power socket of the projector, they should only be replaced by fuses of the
same specification. Should these be damaged call a qualified technician before replacement. The projector has thermal
protection device that will switch off the projector in case of overheating, should either of these operate, check that the
fans are not blocked, and if they are dirty clean them before switching on the projector again. Check that the fans are
operational, if not call a qualified technician.
Any maintenancework should only be carried out by qualified technicians.
LUBRICATION
To ensure the continuous rotation of the rotating gobos and linear motion of the lens for focusing, it is recommended that
the bearings for the rotating gobos and the 2 shafts for the focusing lens holder be lubricated periodically, preferably
every two months. Use only high quality, high-temperature resistant grease instead of any type of oil. When lubricating
the bearings, a syringe with a fine needle is the easiest way to introduce the grease to the bearings around each gobo.
KEEPING THE PROJECTOR CLEAN
To ensure the reliability of the projector it should be kept clean. It is recommended that the fans should be cleaned every
15 days. The lens and dichroic colour filters should also be regularly cleaned to maintain an optimum light output. Do
NOT use any type of solvent on dichroic colour filters.
Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or particularly dirty
surroundings can cause greater accumulation of dirt on the unit’s optics. A soft cloth and typical glass cleaning products
should be used in cleaning. It is recommended to clean the external optics at least once every 20 days and clean the
internal optics at least once every 30 / 60 days.
Do not use any organic solvent, e.g. alcohol, to clean the reflector mirror, dichroic colour filters or housing of
the apparatus.

18/26
TROUBLESHOOTING
PROBLEM ACTION
The projector doesn’t switch on
¾Check the fuse on the power socket.
¾Replace the lamp.
The lamp comes on but the projector
doesn’t respond to the controller
¾Make sure that the projector is correctly configurated.
¾Replace or repair the DMX cable.
The projector only functions intermittently ¾Make sure the fan is working and not dirty.
Defective projection
¾Check the lenses are not broken.
¾Remove dust or grease from the lenses.
The project image appears to have a halo
¾Make sure the lamp is installed correctly.
¾Carefully clean the optical group lenses and the projector
components.
The beam appears dim
¾Check the optics is clean.
¾Replace with a new lamp of the specified type and rating.

19/26
TECHNICAL DATA
VOLTAGES:
Electronical ballast（PR-2815）： 200V/220V/230V/240V AC，50/60Hz
Options：100/120V AC，50/60Hz
Magnetic ballast（PR-2815M）：220V AC，50/60Hz
Options：200/230/240V AC，50/60Hz
POWER CONSUMPTION:
Electronical ballast（PR-2815）： 1800W@220V
Magnetic ballast（PR-2815 M）： 19000W@220V
LAMP:
OSRAM HTI 1500 W/D7/60
Colour Temperature 6000°K
Socket SFc10-4，double ended
Manufacturers Rated Lamp Life 750 Hours replacement
Or
PHILIPS MSRGold1510SADE
Colour Temperature 5800°K
Socket SFc10-4，double ended
Manufacturers Rated Lamp Life 750 Hours replacement
COLOURS:
Smooth CYM colour mixing system with macros
1 wheel with 6 dichroic colour filters plus white
With variable speed bi-directional rainbow effect
Step/linear colour changing is available
COLOUR TEMPERATURE CORRECTION:
Linearly colour temperature correction
GOBOS:
2Rotating gobo wheels:
5 interchangeable gobos+ white, glass or metal gobos can be fixed
Indexable, bi-directionally rotatable at variable speeds
1 Fixed gobo wheel :
7 interchangeable gobos+ white
bi-directional wheel scrolling at variable speeds
Gobo diameter: Φ36.3mm
Gobo image diameter: Φ31.5mm
PRISM/ FROST:

20/26
1x linear lens, 1x3 facet prism, indexable, bi-directionally rotatable at variable speeds. linearly frost effect
Frost linearly adjustable 0-100%
EFFECT FILTERS:
1 interchangeable gobo effect wheel scrolling at variable speeds
FOCUS:
DMX controlled focus
DIMMER:
0-100% linearly adjustable
SHUTTER:
Double shutter blades, 0.3~12 F.P.S
Macros
HEAD MOVEMENT:
Pan 450º, Tilt 270º with auto position correction
BEAMANGLE:
12°～40°
CONTROL:
DMX512, 3 pin, 5 pin interfaces
24 channels in short mode, 29 channels in standard mode, and 37 channels in extended mode.
Self-test mode
OTHER FUNCTIONS:
Adjustable Pan & Tilt speed
Fixture and lamp usage time display
LCD display in English and Chinese language menu
Energy saving function of the ballast
Built-in analyzer for easy fault finding, error messages
Built-in demo sequences
Setup options by chargeable battery inside without power connection.
Input signal isolating protection
Network interface (Reserved)
HOUSING:
Composite plastic, IP20
WEIGHT:
Electronical ballast（PR-2815）：35kg
Magnetic ballast（PR-2815 M）：47kg
