PR Lighting AQUA 380 BEAM User manual

1
AQUA 380 BEAM
PR-2369
This product manual contains important information about the safe installation and use of this projector.
Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

2
INDEX
1.
SAFETYAND WARNINGS…………………………………………………………………………………………
3
2.
INSTUCTIONS………………………………………………………………………………………………………
4
3.
APPEARANCE………………………………………………………………………………………………………
5
4.
INSTALLATION……………………………………………………………………………………………………
5
5.
SETUPAND CONFIGURATION …………………………………………………………………………………
9
6.
OPERATION MENU ………………………………………………………………………………………………
10
7.
DMX PROTOCOL…………………………………………………………………………………………………
15
8.
ERROR MESSAGES……………… ……………………………………………………………………………
19
9.
TECHNICAL DATA ………………………………………………………………………………………………
20
10.
CIRCUIT DIAGRAM………………………………………………………………………………………………
23
11.
COMPONENT ORDER CODES……………………………………………………………………………………
25
APPENDIX………………………………………………………………………………………………………
…
26
ACCESSORIES
The following items are supplied with the projector and please check:
Name
Quantity
Unit
Remark
G clamp
2
Pcs
XLR connector
1
Set
Male and female
Safety cord
1
Pc
This manual
1
Pc
Ω clamp
2
Pcs
Optional
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change
without notice. Whilst every care is taken in the preparation of the manual we reserve the right to change specifications in the
course of product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any
consequence arising from them.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are
in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer and
do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.
Any future technical changes are not subject to further notice.
Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from
the delivery date but the light source is not within the warranty.

3
-
1. SAFETYAND WARNINGS
NOTE
Before a projector’s installation, power-on, operation and maintenance, please carefully read
the safety information hereinafter!
The following safety signs are used in the user manual.
Warning
User
Manual
Electrical
shock
Goggles
Protective
Gloves
Flames
High
Temperature
●When unpacking , check if there is transportation damage before using the projector. Should there be any
damage caused by transportation, consult your dealer and do not use it.
●The manufacture is not responsible for loss caused by the user not following the manual or changing the projector
as he/she likes
●Please be noted that the damage caused by changing the projector at will is not warranted.
●Do not hesitate to contact the dealer or the manufacturer if any questions or advice.
●The projector is for indoor and outdoor use, IP66.
●It can be used in humid and dusty areas.And it can contact water and other non-corrosive liquids.
●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while
being operated
●The projector is only intended for installation, operation and maintenance by qualified personnel. And the
operation must strictly follow the procedures in the manual
●No repairable parts in the projector and do not open covers for maintenance by yourself.
●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.
●Do not connect this device to any type of dimmer pack
●If there are visible damages on the lamp, lens and protective cover for the screen, i.e., to the extent which affects
its performance like cracking or deformation, please stop using it and contact the manufacture for their
replacement with original parts, otherwise its performance will be compromised
.
●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a
projector while covers(housing)are off
●Keep the lamp clean and do not touch it with bare hands.
●While operating it, wear protective items.
●Any electrical connection must be carried out by a qualified person .
●Before installation, please confirm the voltage supplied matches what is required for the projector
●Each projector must be properly earthed and installed as per related electrical standards.
●Do not use power cord with its insulator damaged and connect the power cord with other cables.
●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully or
by pulling the power cable.
●All power cords must conform to related safety and regulations
●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other

4
electrical parts’ life will be shortened .
●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety
cord supplied through the safety cord holes for safety support.
●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from
power mains.
●While a lighting fixture works properly under normal ambient temperature, the maximum temperature of the
external surface of the control device(The integrated control device means the external surface of the housing
of the lighting fixtures electric chamber)allowed is 80 Celsius degrees.
●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not
mean the projector has some defects.
●Don’t touch the covers of the working projector(They are very hot!)
●Do not mount the projector directly on inflammable surface.
●Do not project the beam straightly on combustible items and the minimum distance between the projector and
illuminated items is 18m.
●A projector should be installed with good ventilation and the minimum distance between the projector and
walls is 50cm.At the same time, please ensure the fans and air inlets and outlets are workable.
2. INSTRUCTIONS
●CLEANINGAND MAINTENANCE
The projector’s protective devices should be periodically checked. For example, check if the fuse is blown or not. If true, replace
it with a new fuse with same rating. Please be advised they be of same rating.
Please periodically check the cooling devices with the projector having protective unit for over-temperature（If over-temperature
occurs, the protective unit will trigger power-off automatically）. The cooling devices include cooling fan, heat sink and other
cooling components. Please check if the fan runs normally and the fan and the air-inlet and outlet are blocked by dust. Please
ensure that the air inlet and outlet are clean and clear. The cooling fan must be cleaned once every 15 days.
For those projector with optical lens, reflector and coated Color filters, it is necessary to make it clean for reliable operation because
of easy accumulation of smoke, oil and dust on the lens, thus decreasing the light output. Then internal optical lens, flat glass,
reflector and coated Color filters must be periodically cleaned for optimal light output.
For the projector with some IP rating, unless approved by professional service people and internal parts requiring to be replaced,
it’s prohibited to dismantle it. For this type of projector, if without any fan, please keep it clean; if yes, please refer the above
mentioned method for cleaning.
The cleaning intervals depend on how often it’s used and its running environment. Use soft clothing and normal glass detergent
for cleaning. It’s advised the external optical system be cleaned once every 20days, internal optical system once every 30/60 days
at least. For the projector with higher IP rating, if there is no damage inside, just clean the projector’s surface in principle. Keep
the lens clean and don’t touch the optical parts with bare hands.
Special note:
It’s normal phenomena that there will be mild watermist on the lens while the waterproof product is in use.
●Before any maintenance and cleaning, please ensure the project is off the power
●Only qualified person is allowed to do maintenance
●During maintenance and before maintenance, the projector must be off power.

5
●To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens
whether it runs or not
●Do not use alcohol or other organic solvent to clean the housing to avoid damage.
●Do not use any solvent with chemical elements to clean Color filters or hot mirror.
●LUBRICATION
To ensure smooth movement of gobos and focus lens, it’s advised rotators’bearings and 2 sliding bars for focus lens be lubricated
every 2 months. High quality and high temperature lubricant/grease is advised..
●TROUBLESHOOTING
PROBLEM
ACTION
The projector doesn’t switch on
Check the fuse on the power socket.
Check the lamp.
The lamp is on but the projector doesn’t respond
to the controller
Make sure that the fixture’s start address is right
Replace or repair the XLR signal cable.
The projector functions intermittently
Make sure the fan is working wellor fans and their shields are not blocked
Beam appears dim, Low in brightness
Make sure the lamp is within its lifespan
Remove dust or grease from the lenses.
The project image appears to have a halo
Carefully clean the lamp, optical lenses and other components.
Heavily Defective Beam
Check if lens are in good condition(not cracked)
Clean dust or grease on the lens.

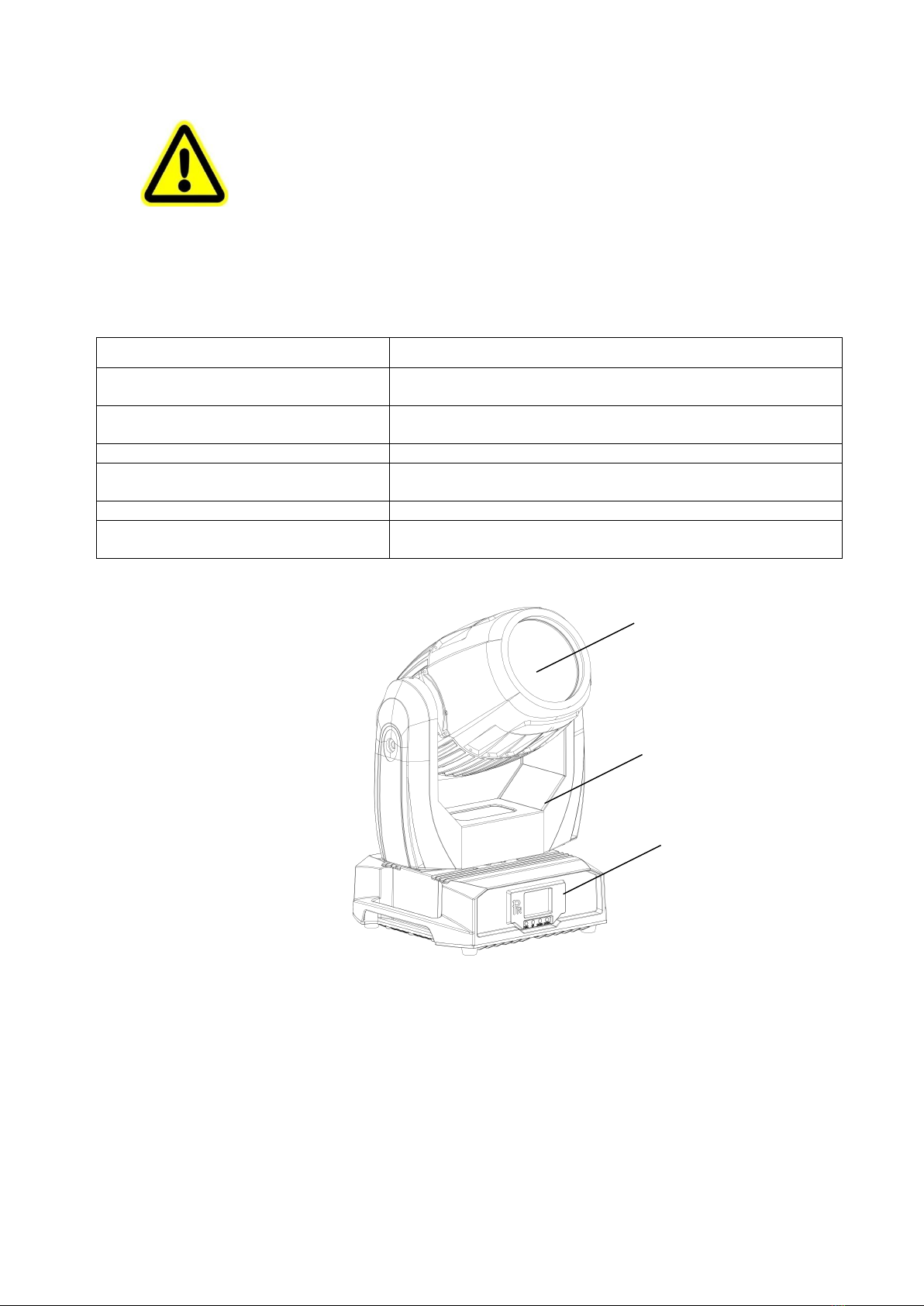

3. APPEARANCE
4. INSTALLATION
●RIGGING
Body
Arm
Base

6

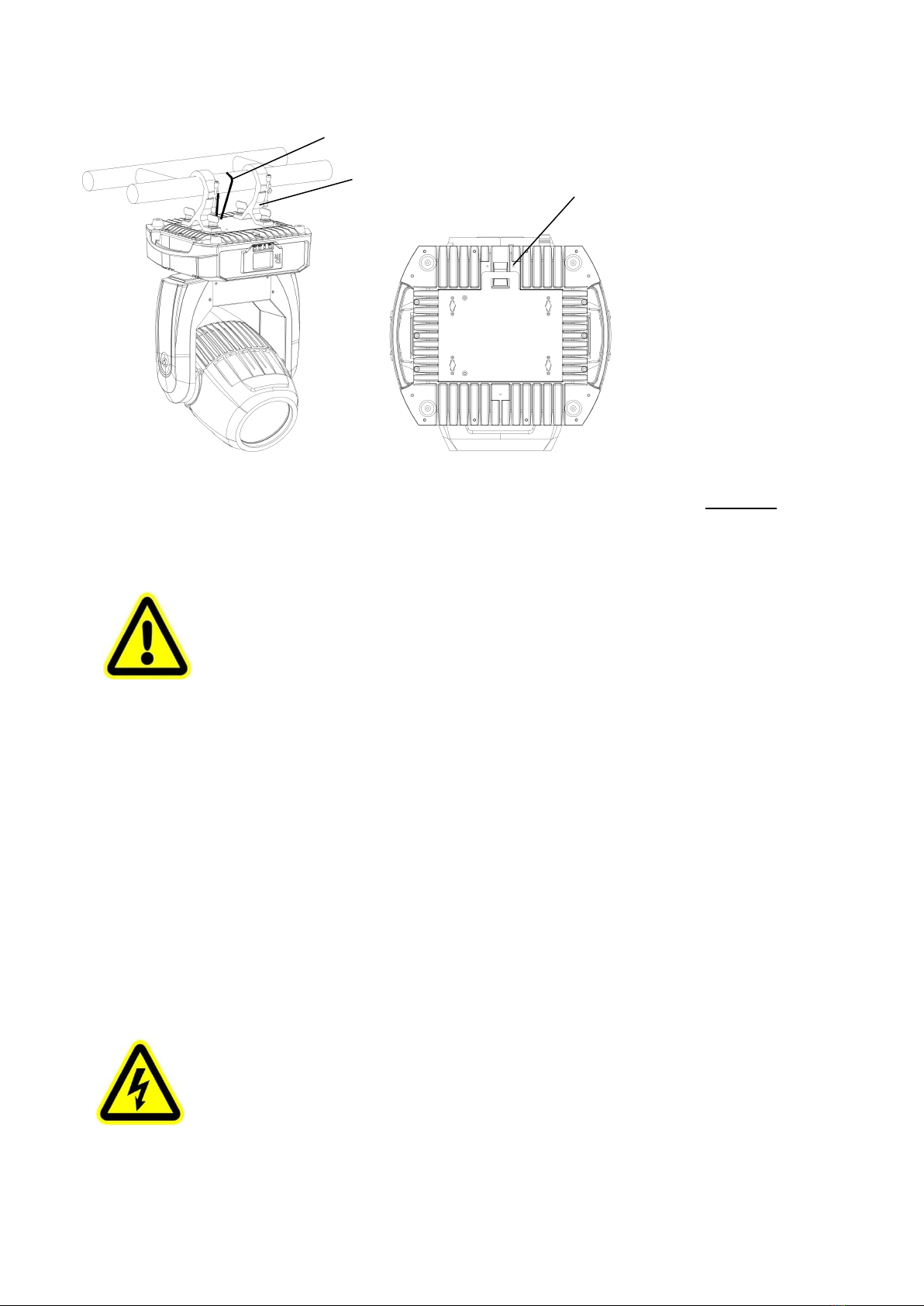

Take 2 clamps and 1 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached
to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the
underside of the base as shown above) Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst
functioning. Always ensure that the structure that you are going to mount the projector is secure and is strong enough to support
the weight of the fixture.
WARNING:
●The projector MUST be lifted or carried by the HANDLES instead of clamps.
●.For safety the safety cord should afford 10 times the Projector’s weight.
●POWER CONNECTION
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each
projector be connected with power separately so that they may be individually switched on and off.
Note: If projectors are connected in series, please connect POWERIN port of the 1st projector with the Power Mains, then
connect its POWER OUT with POWER IN of the 2nd projector, and so on till all fixtures are connected. If the voltage supplied
is 200V-240V, the maximum projectors connected is 8pcs, if it is 100V-120V, the maximum is 4pcs. The diameter of the cores
of the wires for the Power in/out cables must be equal or bigger than 2.5mm2 .
●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in
accordance with the standards concerned.
●If any questions about the electrical installation, do not continue but consult a qualified electrician.
Please run the safety cord through
safety cord hole for safety
Safety Cord
Clamp

7
●DMX CONTROLCONNECTION
Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with
each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the
projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets
mustn’t be connected in any way other than mentioned in the above figure. The projector accepts digital control signals in protocol
DMX512 (1990).
Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second
fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX
terminator as shown in the figure below.
●DMX TERMINATOR
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents
electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120(ohm) resistor connected across pins 2 and 3, which is then plugged
into the output socket on the last projector in the chain. The connections are illustrated below.
21
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain.
PIN 3
PIN 2

8
●ALIGNMENT/INSTALLATION/REPLACEMENT OFA LAMP
Lock the yoke before fitting/replacing the lamp.
Just as Shown by Figure 1, after Opening the airflow cover as shown by loosening 4 tightening screws, the structure like figure 2 will
be seen.
Just as shown by the figure 2, loosen the 4 tightening screws of the bob-weight block, take it down and the structure like figure 3 will
be seen.
Just as shown by figure 3, loosen the 8 tightening screws of lamp cover , open the cover and structure like the figure 4 will be seen.
Unplug the lamp with power wires, hold the bottom of the lamp by hand and move it as directed by the arrow using force to make the
other end of the lamp off the holder. At last take the lamp out of the bottom of the head. Before placing a new lamp inside , plug the
lamp with power wires tightly. Lamp placement and its removal are in opposite orders
Note: Don’t touch the internal surface of the reflector and the burner of the lamp with bare hands so as not to impair the beam output.
While lamp’s installation, do not damage the metal wire around the burner.
Put back thelamp cover, bob-weight block, airflow cover and tighten all screws.
Important: Please read "Instructions " enclosed with the lamp carefully before its use.
Lamp
8 screws for Lamp
cover
4 screws for
Airflow cover
4 screws for
Bob-weight block

9
5. SETUPAND CONFIGURATION
●Front Panel Operation
Projector configuration can be set conveniently via push button and LCD display.
Launch the projector and press button ENTER for more than 3 seconds to unlock the panel, the LCD will show the function menu of
the projector, each main menu has its submenus and each submenu has a specific function. For details, please see the
“OPERATION MENU” section.
Press button UP or DOWN if you want to browse through the various Setup Options.
Press button ENTER to save your settings or enter the submenu.
Press button UP or DOWN to change values(plus or minus)
Press button FUNC, it will return to the upper menu. If button FUNC not pressed, the default will show display status automatically.
●DMX STARTADDRESS
Each projector must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start
address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the
controller. The projector has 3 DMX modes. There are short mode ,standard mode and extended mode. For example standard mode
has 20 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 021, No. 3 projector’s address 041, No. 4
projector’s address061, and so on.
Launch the projector. Press button ENTER more than 3seconds to unlock panel.
Press button ENTER to display DMX address;
Press button UP and DOWN, you can set the address;
Press button ENTER to confirm; after powered on next time, the default will be last value saved
Press button FUNC, it will return to the upper menu
.
●DMX WIRELESS CONTROL
The projector has wireless control function with wireless receiver module and antenna for remote control.
The setup of it is below:
1. Enter into the projector’s menu. Select the menu “Config Settigns” via the bottoms of UP and DOWN
2. Select DMX control Mode---- Wireless First (Note: Do not select XLR ONLY),then wireless indication in the
front panel will be on, meaning wireless control function is activated.
Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it, Press
“Enter” for the menu of Unlink Wireless under the upper level menu of Config Settigns.

10
●STAND-ALONE MODE
Operate the projector without connecting with a controller, enable the master mode through the operation panel, the
projector will run in Stand-Alone mode automatically.
DMX address can be set at any number within 512.
●MASTER/SLAVE MODE
Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,
connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second
fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the
last fixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.
Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’and Slaves’operation mode can
be set accordingly.
After Powered on, the group will run in Master/Slave Mode
6. OPERATION MENU
1st
LEVEL
2nd LEVEL
3rd LEVEL
4th LEVEL
5th LEVEL
Address
DMX Address
1-497（Short Mode）
1-493（Standard Mode）
1-492（Extended Mode）
IP 地址
IP Address
Default IPAddress
Custom IPAddress
SubNet Mask
X.X.X.X
ArtNet Universe
0-255
sACN Universe
1-63999
Reset
Total Reset
Really Reset?
Confirm or Cancel
Pan&Tilt Reset
Really Reset?
Confirm or Cancel
Colour System Reset
Really Reset?
Confirm or Cancel

11
Gobo Reset
Really Reset?
Confirm or Cancel
Dimmer/Strobe reset
Really Reset?
Confirm or Cancel
Fo. Ef. Pr. Reset
Really Reset?
Confirm or Cancel
Config
Settings
DMX Channel Mode
Short Mode 16CH
Standard Mode 20CH
Extended Mode 21CH
View Selected Mode
Ch.01 Dimmer
Ch.02 Strobe
….
Ch XX Control Function
Lamp Control
Lamp Control
OFF/ ON
On By Power On
OFF/ ON
Control By DMX
OFF/ ON
ECO Power
OFF/ ON
Signal Select
(Only for the projectors with
wireless receiver assembly)
XLR Only
XLR First
Wireless Only
Wireless First
Wireless In/XLR Out
ArtNet Only
ArtNet In/XLR Out
sACN Only
sACN In/XLR Out
Loss of DMX
Normal time out
Hold Last Value
Display Config
Display Mode
Off After Delay
OnAlways

12
Display Invert
Invert OFF
Invert ON
InvertAuto
Language Setting
English\Chinese
Temperature Unit
Celsius Degree
Fahrenheit Degree
Un-LinkWireless
(Only for the projectors with
wireless receiver assembly)
Really Un-Link?
Confirm or Cancel
Factory defaults
Restore Defaults?
Confirm or Cancel
Option
Settings
Pan/Tilt Settings
Pan DMX Invert
OFF/ ON
Tilt DMX Invert
OFF/ ON
PanTilt Swap
OFF/ ON
XYFeedback
OFF/ ON
Pan/Tilt mode
Speed/Time
Note: "Speed Mode" means
Pan and Tilt will move from
Point A to Point B at their
respective maximum
speeds."Time Mode" means
both Pan and Tilt will arrive at
designated point at the same
time. It's advised Time Mode
be used if the projector runs
circles or in oblique lines.
Invert Settings
Dimmer Invert
OFF/ ON
Information
View DMX Values
Channel Value
Strobe XXX
Dimmer XXX
Dimmer Fine XXX
Color Wheel XXX
Color Wheel Fine XXX
Fixed Gobo Wheel XXX
Rot. Gobo Wheel1 XXX
Rot. Gobo1 Rotation XXX
Rot. Gobo1 Rotation Fine
XXX
Effect Wheel XXX
Effect Wheel Rotation XXX
Prism XXX
Prism Rotation XXX
Focus XXX
Pan XXX
Pan Fine XXX
Tilt XXX
Tilt Fine XXX

13
Pan/Tilt Speed& Time
XXX.
Power/Special Fun XXX
Lamp Hours
Lamp Hours=XXX H
Reset Lamp Hours
Total Hours
Total Hour =××××H
Temperature
Display Board=×××C
Pan Board=×××C
Tilt Board=×××C
Driver Board1=×××C
Driver Board 2=×××C
Head sensor=XXXX
Software Version
PCB Sys Boot
Display Board xxx xxx
Pan Board xxx xxx
Tilt Board xxx xxx
Driver Board1 xxx xxx
Driver Board 2 xxx xxx
Electronic SN
XXXXXX
RDM Device Label
AQUA380 BEAM
ANSI E1.20 RDM
Fan Status
Fan Speed Status
Lamp Fan xxx on/off
Color Fan xxx on/off
Head Fan xxx on/off
Acceleration Sensor
X Axis: XXX
Y Axis: XXX
Z Axis: XXX
Posion: XXX XXX
Lamp fan Error
Fan Error Count
Lamp Fan XXX
Color Fan XXX
Head Fan XXX
Service
Manual Effect Control
Channel Value
Strobe XXX
Dimmer XXX
Dimmer Fine XXX
Color Wheel XXX
Color Wheel Fine XXX
Fixed Gobo Wheel XXX
Rot. Gobo Wheel1 XXX
Rot. Gobo1 Rotation XXX
Rot. Gobo1 Rotation Fine
XXX
Effect Wheel XXX
Effect Wheel Rotation XXX
Prism XXX
Prism Rotation XXX
Focus XXX
Focus Fine XXX
Pan XXX
Pan Fine XXX
Tilt XXX
Tilt Fine XXX
Pan/Tilt Speed& Time
XXX.

14
Factory mode
XXX
…
Operation
Mode
DMX Mode
Change Operation Mode?
Confirm or Cancel
Master Mode
Preset Memory
Change Operation Mode?
Confirm or Cancel
User Memory 1
Change Operation Mode?
Confirm or Cancel
User Memory 2
Change Operation Mode?
Confirm or Cancel
Stand-Alone Mode
Preset Memory
Change Operation Mode?
Confirm or Cancel
User Memory 1
Change Operation Mode?
Confirm or Cancel
User Memory 2
Change Operation Mode?
Confirm or Cancel
Static Scene
Change Operation Mode?
Confirm or Cancel
User
Memories
Edit User Memory
Edit User Memory 1
/
Edit User Memory 2
Scene （1~200）
Paste ?
Confirm
Cancel
Channel Value
Strobe XXX
Dimmer XXX
Dimmer Fine XXX
Color Wheel XXX
Color Wheel Fine XXX
Fixed Gobo Wheel XXX
Rot. Gobo Wheel1 XXX
Rot. Gobo1 Rotation XXX
Rot. Gobo1 Rotation Fine
XXX
Effect Wheel XXX
Effect Wheel Rotation XXX
Prism XXX
Prism Rotation XXX
Focus XXX
Pan XXX
Pan Fine XXX
Tilt XXX
Tilt Fine XXX
Pan/Tilt Speed& Time
XXX.
Fade Time XXX
Hold Time XXX
Delay Time XXX
Link To Step XXX

15
Edit Static Scene
Paste ?
Confirm Cancel
Channel Value
Strobe XXX
Dimmer XXX
Dimmer Fine XXX
Color Wheel XXX
Color Wheel Fine XXX
Fixed Gobo Wheel XXX
Rot. Gobo Wheel1 XXX
Rot. Gobo1 Rotation XXX
Rot. Gobo1 Rotation Fine
XXX
Effect Wheel XXX
Effect Wheel Rotation XXX
Prism XXX
Prism Rotation XXX
Focus XXX
Focus Fine XXX
Pan XXX
Pan Fine XXX
Tilt XXX
Tilt Fine XXX
Pan/Tilt Speed& Time
XXX.
Init User Memory
Reset User Memory 1
Reset User Memory?
Confirm or Cancel
Reset User Memory 2
Reset User Memory?
Confirm or Cancel
Reset Static Scene
Reset Static Scene?
Confirm or Cancel
Remark:
1. In the synchronous control of multiple projectors parameters can be transmitted from the master including: DMX mode,
display setting, operation mode(user memory);
2. all projectorsAccepting parameters will automatically be set to slave mode.
7. DMX PROTOCOL
Short
mode
Standard
mode
Extended
Mode
FUNCTION
DMX
DESCRIPTION
1
1
1
Strobe
000-010
Close
011-025
Open
026-225
Strobe speed from slow to fast
226-246
Random strobe from slow to fast
247-255
Open
2
2
2
Dimmer
000-010
Close
011-255
Linear dimming（0-100%）
3
3
Dimmer Fine
000-255
Dimmer in 16 bit
3
4
4
Color Wheel
000-063
Indexing(0-360degrees)
064-073
White
074-075
White/Color1
076-077
Color1
078-079
Color1/Color2

16
080-081
Color2
082-083
Color2/Color3
084-085
Color3
086-087
Color3/Color4
088-089
Color4
090-091
Color4/Color5
092-093
Color5
094-095
Color5/Color6
096-097
Color6
098-099
Color6/Color7
100-101
Color7
102-103
Color7/Color8
104-105
Color8
106-107
Color8/Color9
108-109
Color9
110-111
Color9/Color10
112-113
Color10
114-115
Color10/Color11
116-117
Color11
118-119
Color11/CTO
120-121
CTO
122-123
CTO/Color12
124-125
Color12
126-127
Color12/white
128-191
Rotation ,Clockwise from slow to fast
192-255
Rotation ,Anti-Clockwise from slow to fast
5
5
Color wheel Fine
0-255
Color Wheel in 16 Bit
4
6
6
Fixed Gobo
Wheel
000-008
White
009-015
Gobo1
016-022
Gobo2
023-029
Gobo3
030-036
Gobo4
037-043
Gobo5
044-050
Gobo6
051-057
Gobo7
058-064
Gobo8
065-071
Gobo9
072-078
Gobo10
079-085
Gobo11
086-092
Gobo12
093-099
Gobo13
100-106
Gobo14
107-113
Gobo15

17
114-120
Gobo16
121-127
White
128-159
Clockwise rotation from slow to fast
160-191
Anti Clockwise rotation from slow to fast
192-195
Gobo 1 shake effect from slow to fast
196-199
Gobo 2 shake effect from slow to fast
200-203
Gobo 3 shake effect from slow to fast
204-207
Gobo 4 shake effect from slow to fast
208-211
Gobo 5 shake effect from slow to fast
212-215
Gobo 6 shake effect from slow to fast
216-219
Gobo7 shake effect from slow to fast
220-223
Gobo 8 shake effect from slow to fast
224-227
Gobo9 shake effect from f slow to fast
228-231
Gobo 10 shake effect from slow to fast
232-235
Gobo 11 shake effect from slow to fast
236-239
Gobo 12 shake effect from slow to fast
240-243
Gobo 12 shake effect from slow to fast
244-247
Gobo 14shake effect from slow to fast
248-251
Gobo 15 shake effect from slow to fast
252-255
Gobo 16shake effect from slow to fast
5
7
7
Rotating Gobo
Wheel
000-007
White
008-017
Gobo 1
018-027
Gobo 2
028-037
Gobo 3
038-047
Gobo 4
048-057
Gobo 5
058-067
Gobo 6
068-077
Gobo 7
078-087
Gobo 8
088-097
Gobo 9
098-107
Gobo 10
108-117
Gobo 11
118-127
Gobo 12
128-143
Rotation （clockwise From slow to Fast）
144-159
Reverse Rotation（anti-clockwise From slow
to Fast）
160-167
Shake of Gobo 1 from slow to fast
168-175
Shake of Gobo 2 from slow to fast
176-183
Shake of Gobo 3 from slow to fast
184-191
Shake of Gobo 4 from slow to fast
192-199
Shake of Gobo 5 from slow to fast
200-207
Shake of Gobo 6 from slow to fast
208-215
Shake of Gobo 7 from slow to fast

18
216-223
Shake of Gobo 8 from slow to fast
224-231
Shake of Gobo 9 from slow to fast
232-239
Shake of Gobo 10 from slow to fast
240-247
Shake of Gobo 11 from slow to fast
248-255
Shake of Gobo 12 from slow to fast
6
8
8
Gobo Rotation
000-128
Gobo Indexing(0~360degrees)
129-188
Rotation （Clockwise From slow to Fast）
189-195
Stop
196-255
Rotation （Anti-ClockwiseFromslowtoFast）
9
9
Gobo Rotation
Fine
000-255
Gobo Rotation in 16 Bit
7
10
10
Effect Wheel
000-063
No
064-127
Linear prism
128-191
Frost
192-255
Circular prism
8
11
11
Effect Wheel
Rotation
000-127
Circular prism indexing
128
Stop rotating
129-191
Clockwise rotation from slow to fast
192
Stop rotating
193-255
Anti-Clockwise rotation from slow to fast
9
12
12
Prism
000-016
Open
017-255
Prism
10
13
13
Prism Rotation
000-127
Prism Indexing
128
Stop
129-191
Rotation(Clockwise from slow to fast)
192
Stop
193-255
Rotation(Anti- Clockwise from slow to fast)
021-255
Wheel goes back and forth from slow to fast
11
14
14
Focus
000-255
Linear frost
15
Focus Fine
000-255
Focus in 16 bit precision
12
15
16
Pan
000-255
Pan(0°~540°)
13
16
17
Pan Fine
000-255
Pan in 16 bit precision
14
17
18
Tilt
000-255
Tilt(0°~270°)
15
18
19
Tilt Fine
000-255
Tilt in 16 bit precision
19
20
Pan & Tilt Speeds
000-255
Pan & Tilt Speed from Fast to Slow
16
20
21
Control
000-019
Reserved
The following functions will be activated after the DMX value
has been held for more than 5s.
020-024
Display On
025-029
Display Off
030-034
Reserved
035-039
Lamp Half Power
040-044
Lamp Full Power

19
045-089
Reserved
090-094
Pan & Tilt Speed Mode
095-099
Pan & Tilt Time Mode
100-129
Reserved
130-139
Lamp On
140-149
Pan & Tilt Reset
150-159
Color System Reset
160-169
Gobo Wheels Reset
170-179
Dimmer/Shutter Reset
180-189
Frost/Focus/Prism Reset
190-199
Reserved
200-209
Total Reset
210-229
Reserved
230-239
Lamp Off
240-255
Reserved
Note:
1. The projector can’t be turned on within 1 minute after the lamp-off.
2. Fan error can cause lamp-off.
3. Note: "Speed Mode" means Pan and Tilt will move from Point A to Point B at their respective maximum speeds."Time Mode"
means both Pan and Tilt will arrive at designated point at the same time. It's advised Time Mode be used if the projector runs circles or
in oblique lines.
4.If both prism and frost are to be used, prism is prior to frost.
.
8. ERROR INFORMATION
The system can detect some errors during the reset, if displayed, touch the logo to view the error.
The error messages are as follows:
Name
Type
Correction
Pan
Timeout/magnet Sensor/Encoder
Check if wiring, positioning parts and motors are normal
Tilt
Timeout/magnet Sensor/Encoder
Check if wiring, positioning parts and motors are normal
Color Wheel
Timeout
Check if wiring, positioning parts and motors are normal
Fixed gobo wheel
Timeout
Check if wiring, positioning parts and motors are normal
Rot. Gobo Wheel
Timeout
Check if wiring, positioning parts and motors are normal
Rot. Gobo1Rotation
Timeout
Check if wiring, positioning parts and motors are normal
Dimmer
Timeout
Check if wiring, positioning parts and motors are normal
Prism
Timeout
Check if wiring, positioning parts and motors are normal
Prism Rotation
Timeout
Check if wiring, positioning parts and motors are normal
Effect wheel
Timeout
Check if wiring, positioning parts and motors are normal
Effect wheel Rotation
Timeout
Check if wiring, positioning parts and motors are normal
Focus
Timeout
Check if wiring, positioning parts and motors are normal
Lamp Fan
Error
Check if fan and its wiring are normal
Color Fan
Error
Check if fan and its wiring are normal

20
Head Fan
Error
Check if fan and its wiring are normal
Pan and Tilt Board
Error
Check signal wire
Driver Board 1
Error
Check signal wire
Driver Board2
Error
Check signal wire
Acceleration Sensor
Error
Check signal wire
Lamp on
Timeout
Check if he lamp is damaged
Lamp Life
Timeout Warning
Lamp Off[Fan Error]
Error
Check if all fans are normal
Time IC
Error
9. TECHNICALDATA
ELECTRICALPARAMETERS
Input voltage: 100V-240VAC，50/60Hz
Input power: 600W @ 100V
570W @ 220V
Power factor: PF>0.9
SPECIFICATIONS OF LIGHT SOURCE
PHILIPS MSD Platinum Flex 300S
Colour Temperature 7800K +/-300K
Manufacturers Rated Lamp Life 6000hrs
MSD Platinum 11R
COLOR S
1 Color Wheel
12Dichroic colour filters +CTO+ white
Variable speed and bi-directional rainbow effect
Linear colour changing is available
