PR Lighting XLED 4007 BEAM User manual

XLED 4007 BEAM
PR-8126
This product manual contains important information about the safe installation and use of this product. Please
read and follow these instructions carefully before installing and using the product and keep this manual in a
safe place for future reference.
PR LIGHTING LT .
http://www.pr-lighting.com

INDEX
1. SAFETY AN WARNINGS
2. INSTUCTIONS
● CLEANING AN MAINTENANCE
● TROUBLESHOOTING
3. APPEARANCE
4. INSTALLATION
● RIGGING
● POWER CONNECTIONS
● MX CONTROL CONNECTION
● MX TERMINATOR
5. SETUP AN CONFIGURATION
● FRONT PANEL OPERATION
● MX START A RESS
● MX WIRELSESS CONTROL
● STAN -ALONE MO E
● MASTER/SLAVE MO E
● SOUN OPERATION
6.OPERATION MENU
7. MX PROTOCOL
8. LE IN ICATION
9. TECHNICAL ATA
10.CIRCUIT IAGRAM AN PCB CONNECTIONS
● CIRCUIT IAGRAM
● PCB CONNECTIONS
11.COMPONENT OR ER CO ES
1
2
2
2
3
4
4
4
5
6
6
7
7
7
7
7
8
8
11
13
14
17
17
28
20
ACCESSORIES
The following items are supplied with the projector and please check:
Name Quantity Unit Remark
XLR Cable 1 Pc With plug and socket
Safety cord 1 Pc
User Manual 1 Pc
Ω Clamp 1 Pc (Optional)
G Clamp
1 Pc Standard
Wireless Receiver Accessory 1 Pc Standard
Please note that as art of our ongoing commitment to continuous roduct develo ment, s ecifications are subject to
change without notice. Whilst every care is taken in the re aration of the manual we reserve the right to change
s ecifications in the course of roduct im rovement. The ublishers cannot be held res onsible for the accuracy of the
information herein, or any consequence arising from them.
Every unit is tested com letely and acked ro erly by the manufacturer. Please make sure the acking and / or the unit
are in good condition before installation and use. Should there be any damage caused by trans ortation, consult your
dealer and do not use the unit. Any damage caused by im ro er use will not be assumed by the manufacturer and / or
dealer.
Note: For the roducts made by Guangzhou PR lighting Ltd, the warranty for the whole roduct is one year starting from the delivery date
but the light source is not within the warranty.

1
1. SAFETY AND WARNINGS
NOTE
Before a rojector’s installation, ower-on, o eration and maintenance, lease carefully read
the safety information hereinafter!
The following safety signs are used in the user manual.
Warning
User
Manual
Electrical
shock
Goggles
Protective
Gloves
Flames
High
Tem erature
● When un acking , check if there is trans ortation damage before using the rojector. Should there be any
damage caused by trans ortation, consult your dealer and do not use it.
● The manufacture is not responsible for loss caused by the user not following the manual or changing the projector
as he/she likes
● Please be noted that the damage caused by changing the projector at will is not warranted.
● o not hesitate to contact the dealer or the manufacturer if any questions or advice.
● The projector is for indoor use only, IP20.
● Use only in dry locations. Keep this unit away from rain and moisture, excessive heat, humidity and dust. o not
allow contact with water or any other liquids.
● The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while
being operated
● The projector is only intended for installation, operation and maintenance by qualified personnel. And the
operation must strictly follow the procedures in the manual
● No repairable parts in the projector and do not open covers for maintenance by yourself.
● on’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.
● o not connect this device to any type of dimmer pack
● After lamp switched on, the minimum distance between the projector and illuminated surface is 10m
● lens and other optical parts shall be replaced immediately if they have deformed or been damaged, otherwise the
light output will be compromised.
● Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a
projector while covers(housing)are off
● Keep the lamp clean and do not touch it with bare hands.
● While operating it, wear protective items.
● Any electrical connection must be carried out by a qualified person .
● Before installation, please confirm the voltage supplied matches what is required for the projector
● Each projector must be properly earthed and installed as per related electrical standards.
● o not use power cord with its insulator damaged and connect the power cord with other cables.
● If the projector is not used or under cleaning,, please hold the plug and unplug it. o not unplug it forcefully
or by pulling the power cable.
● All power cords must conform to related safety and regulations
● While being operated, the projector should not be under rains or in humidity.
● o not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other
electrical parts’ life will be shortened .
● There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety
n the projector and illuminated surface is 1.5m

2
cord supplied through the safety cord holes for safety support.
● Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from
power mains.
● After running for 30minutes, the temperature of the housing of the projector is 45 .After stable operation , ℃
its temperature is 60 . ℃
● While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not
mean the projector has some defects.
● o not mount the projector directly on inflammable surface.
● o not project the beam straightly on combustible items and the minimum distance between the
projector and illuminated items is 10m.
● A projector should be installed with good ventilation and the minimum distance between the projector
and walls is 50cm. At the same time, please ensure the fans and air inlets and outlets are workable.
2. INSTRUCTIONS
● CLEANING AND MAINTENANCE
If a projector can’t start. Please check if the fuse is blown up. If it does, replace it with a new fuse with same ratings. And the
projector has over-temperature protective device. If the temperature is too high, the protective device will be triggered to shut the
projector off. When it happens, please check if the fans run normally or fan shield is blocked by dust. After the issue is solved,
restart the projector.
The accumulation of oil, smoke and dust on the lens will compromise the light output. Cleaning a projector is very necessary to
ensure a reliable use of it. Cooling fans need to be cleaned every 15days. Internal lens, reflector and hot mirror need to be cleaned
periodically to optimize light output.
Cleaning frequency is to be decided by operations and its environment. Use soft cloth and normal detergent for glass for cleaning
work. It’s advised external optical system be cleaned every 20days and internal optical systems every 30/60days. Keep lens clean
and do not touch optical parts with bare hands.
● Before any maintenance and cleaning, please ensure the project is off the power
● Only qualified person is allowed to do maintenance
● uring maintenance and before maintenance, the projector must be off power.
● To avoid internal damage, sun light or other light mustn’t penetrate into the projector via
front lens whether it runs or not
● o not use alcohol or other organic solvent to clean the housing to avoid damage.
● o not use any solvent with chemical elements to clean color filters or hot mirror.
● TROUBLESHOOTING
PROBLEM ACTION
The projector doesn’t switch on  Check the fuse on the power socket.
 Check the lamp.
The lamp is on but the projector doesn’t respond
to the controller
 Make sure that the fixture’s start address is right
 Replace or repair the XLR signal cable.
The projector functions intermittently  Make sure the fan is working well or fans and their shields are not blocked
Beam appears dim, Low in brightness  Make sure the lamp is within its lifespan
 Remove dust or grease from the lenses.
The project image appears to have a halo  Carefully clean the lamp, optical lenses and other components.
Heavily efective Beam  Check if lens are in good condition(not cracked)
 Clean dust or grease on the lens.

3
3. APPEARANCE
No. Name Remark
1 Head
2 Yoke
3 Base
4 Control Panel
5 Power Cable
6
Wireless Antenna Transparent Waterproof Panel installed of the accessory package
If used underwater or in dusty or other harsh areas.

4
4. INSTALLATION
● RIGGING

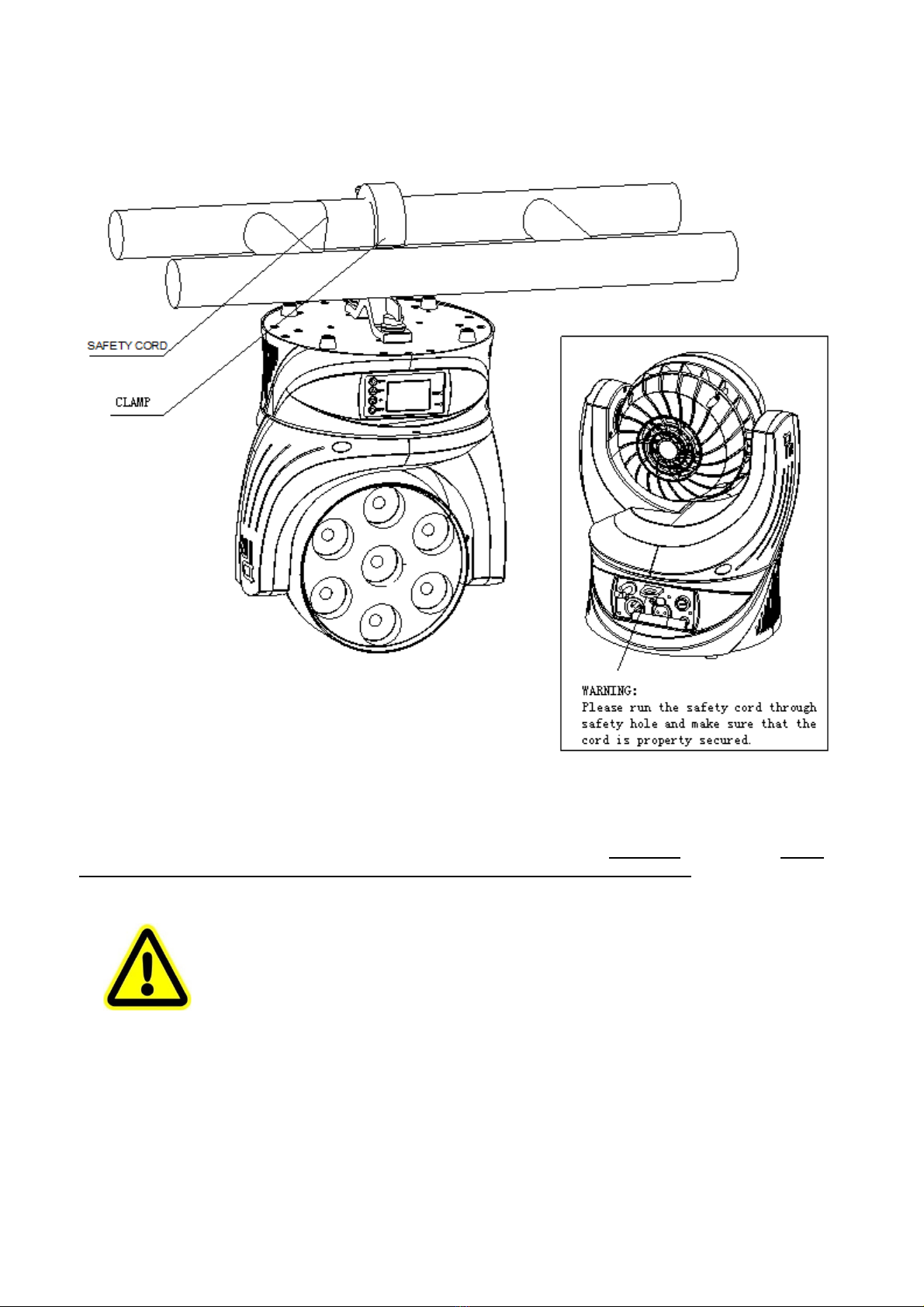

Take 1 clamp and 1 the safety cord out from the package and mount 1 clamp on the BOTTOM of fixture with 2 retainers attached to
the clamp. Hang the fixture on the steel truss and fasten the retainers attached to the clamp. Always ensure that the location that you are
going to mount the unit is secure and is strong enough to support the weight of the unit (See the WARNING as shown above) To ass
SAFETY CORD through the SAFETY HOLE on the back cover of the base of the fixture for safety! Always ensure that the
unit is firmly anchored to avoid vibration and slipping whilst functioning.
WARNING:
● The projector MUST be lifted or carried by the HAN LES instead of clamps.
● .For safety the safety cord should afford 10 times the Projector’s weight.
● POWER CONNECTION
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each
projector be connected with power separately so that they may be individually switched on and off.

5
Note: If projectors are connected in series, please connect POWERIN port of the 1
st
projector with the Power Mains, then
connect its POWER OUT with POWER IN of the 2
nd
projector, and so on till all fixtures are connected. If the voltage supplied
is 200V-240V, the maximum projectors connected is 8pcs, if it is 100V-120V, the maximum is 4pcs. The diameter of the cores
of the wires for the Power in/out cables must be equal or bigger than 2.5mm
2 .
● The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in
accordance with the standards concerned.
● If any questions about the electrical installation, do not continue but consult a qualified electrician.

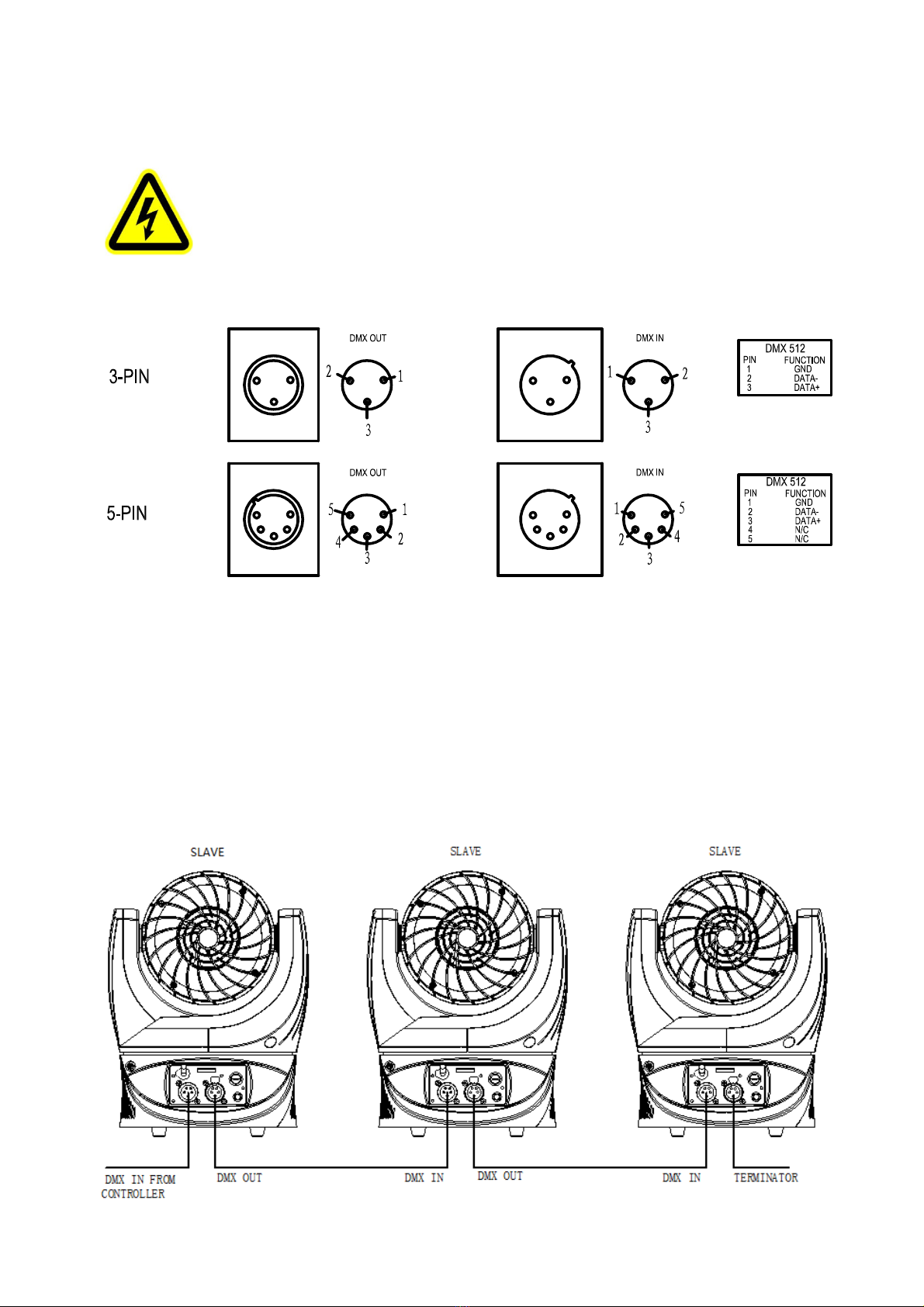

● DMX CONTROL CONNECTION
Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with
each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the
projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets
mustn’t be connected in any way other than mentioned in the above figure. The projector accepts digital control signals in protocol
MX512 (1990).
Connect the controller’s MX output to the first fixture’s MX input, and connect the first fixture’s MX output to the second
fixture’s MX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s MX output to a MX
terminator as shown in the figure below.

6
● DMX TERMINATOR
In the Controller mode, at the last fixture in the chain, the MX output has to be connected with a MX terminator. This prevents
electrical noise from disturbing and corrupting the MX control signals.
The MX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged
into the output socket on the last projector in the chain. The connections are illustrated below.
5. SETUP AND CONFIGURATION
● Front Panel Operation
Control panel with wireless function:
Control panel without wireless function:
Fixture’s address and function code configuration can be set conveniently via Touch Key and LC display. Press button ENTER
more than 3 seconds to unlock panel. LE display shows the fixture’s function menu. Each Option of the main menu has its own
sub-menu. Each menu stands for specified function of the fixture, please see the details in the following:
Press button UP or OWN if you want to set or browse through the various Setup Options.
21
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (O M) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain.
PIN 3
PIN 2

7
Press button ENTER to save your settings or enter the sub-menus.
Press button UP or OWN to change the parameters (increase or decrease the numbers)
Press button FUNC, it will return to the upper menu one by one. If the button not pressed, the system will go back to display status
automatically.
● DMX START ADDRESS
If many fixtures are controlled by the controller, each fixture should be set with a start address to receive signals sent by the controller
and respond to it. The fixture have 2 MX modes. There are standard mode and extended mode, For example standard mode has 18
channels, so set the No. 1 Fixture’s address 001, No. 2 Fixture’s address 019, No. 3 Fixture’s address 037 and so on.
Switch on the Fixture. Press button ENTER more than 2 seconds to unlock panel.
Press either buttons of UP and OWN, under 1st level menu to locate the menu of MX A RESS, press ENTER to set MX
address.
Press button UP and OWN, you can set the address;
Press button ENTER to confirm; when powered on next time, it will show the latest number you saved.
Press button FUNC, it will return to the upper menu one by one.
● DMX WIRELESS CONTROL (If the projector has the function)
The projector has wireless control function with wireless receiver module and antenna for remote control.
The setup of it is below:
1. Enter into the projector’s menu. Select the menu “Config Settigns” via the bottoms of UP and OWN
2. Select DMX control Mode---- Wireless First (Note: do not select XLR ONLY),then wireless indication in the
front panel will be on, meaning wireless control function is activated.
Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it,
Press “Enter” for the menu of Unlink Wireless under the upper level menu of Config Settigns .
● STAND-ALONE MODE
Operate the projector without connecting with a controller, enable the master mode through the operation panel, the
projector will run in Stand-Alone mode automatically.
MX address can be set at any number within 512.
● MASTER/SLAVE MODE
Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,
connect the first fixture’s MX output to the second fixture’s MX input using XLR-XLR control cable and then connect the second
fixture’s MX output to the third fixture’s MX input, and so on until all projector are connected in this way. Eventually connect the
last fixture’s MX output to a MX terminator. Set 1
st
projector as the master and others are Slaves.
Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation mode can
be set accordingly.
After Powered on, the group will run in Master/Slave Mode

8
● Sound O eration
To select different level(1-100) of sound sensitivity based on different operating environment under sound operation under
Operation Mode. There are several different(0-8) sound effects for different operating environment under Sound
Operation.
Note: If several fixtures in series under Master/Slave mode, Only Master responds to external sound.
6. OPERATION MENU
1
st
level menu 2
nd
level menu 3
rd
level menu 4
th
level menu
MX Address
Standard 1~495
Extended 1~470
Reset Are You Sure
Config Set
MX Mode
（ efault is ： Standard 18 ）
Standard 18
Extended 43
Loss of MX
( efault: Normal Time Out)
Normal Time Out
Hold Last Value
Wireless Mode
( efault: XLR First)
XLR First
XLR Only
Wireless Only
Wireless First
Wireless to XLR
Master/Slave
( efault: Slave)
Slave
Master
isplay Mode
( efault: off After elay)
Off After elay
On Always

9
isplay Reverse
( efault: Off)
Off
On
Language
( efault: English)
English
Chinese
Sound Level
( efault:50) 1-100
isplay Contrast
XX
0-31
Unlink Wireless YES
Reset User ata YES
Reset Option Set YES
Factory Settings YES
Parameter Transm YES
Option Set
Pan MX Invert
( efault: Off)
On
Off
Tilt MX Invert
( efault: Off)
On
Off
Pan Tilt Swap
( efault: Off)
On
Off
Pan Angle Range
( efault: 360 degrees)
360 degrees
720 degrees
Information
Power On Hours XXXX
Software Version
Main Board X.X.X
Pan &Tilt X.X.X
LE river X.X.X
Temperature
Head Sensor
XX
Main Board
XX
Pan &Tilt
XX
LE river
XX
View MX Values Channel XXX=XXX
Electronic SN
SN=XXXXXXXXXXXX
R M evice Label Version X.X.X
Sensor Error View
X Opto Ok/Er
Y Opto Ok/Er

10
X Hall Ok/Er
Y Hall Ok/Er
Test Mode
Self Test YES
Lamp
OFF
Red
Green
Blue
White
R&G
G&B
R&B
R&G&B
ON
Pan Location
0-255
Pan Rotaing
0-255
0-127 Stop
128-191 anti-clockwise rotation
form slow to fast
192-255 clockwise rotation from
slow to fast
Tilt Location
0-255
Tilt Rotaing
0-255
0-127 Stop
128-191 anti-clockwise rotation
form slow to fast
192-255 clockwise rotation from
slow to fast
Pan & Tilt Speed
0-255
Operation Mode
MX Operation
Preset Memory
User Memory
Sound Operation
Static Scene 1 ～ 16
CH1 Strobe 0-255
CH2 im 0-255
CH3 im Speed 0-255
CH4 CTC 0-255
CH5 Move Effect 0-255
CH6 Color Maco 0-255
CH7 Red 0-255
CH8 Green 0-255
CH9 Blue 0-255
CH10 White 0-255
CH11 Pan Location 0-255

11
CH12 Pan Rotaing 0-255
CH13 Tilt Location 0-255
CH14 Tilt Rotaing 0-255
CH15 P&T Speed 0-255
CH16 Keep Time 0-255 X*40mS
Note:
1. There is only one projector to be set as a Master in a signal cable if Master’s functions used, Please disable MX control
signal.
2. When multiple projectors’ work together in synchronous control state, Parameters can be transmitted from the master
projector to the slave projector such as MX channel mode, isplay setting status ( Contrast setting exclude ) and
operation mode ( User memory data is include ) . Before parameters transmitted, the projector which will send
parameters should be set as a Master and others be as Slaves.
3. Mark “ * ” content applies only to the wireless receiving function effective use.
7.DMX PROTOCOL
Standard Extended Functions DMX Descri tions
1 1 Strobe
000 No Strobe
001-127
Pulse from slow to fast
128-255
Strobe from slow to fast
2 2 immer 000-255 Linear imming from dark to bright
3 imming in 16 bit 000-255 imming in 16 bit precision
3 4 imming Speed 000-255 From slow to fast
4 5
Color Temp 000 No
001-255 Linear color Temp adjustment from high to low
5 6 Animation 000 No
001-255 Animation effect
6 7
Color Macro
000 No
001-015
White Color CT 3200K
016-031
White Color CT 5600K
032-047
White Color CT 7200K
048-063
White Color CT 10000K
064-079
Red
080-095
Green
096-111
Blue
112-127
Red & Green
128-143
Green &Blue
144-159
Red& Blue
160-175
Red &White
176-191
Green & White
192-207
Blue & White
208-223
Red &Green& Blue & White
224-255
Rainbow effects (Speed from slow to fast between 224 and 255
in MX value
7 8 Area 1 Red 000-255
Linear adjustment in Red from light to dark of Area 1

12
9
Area 2 Red 000-255
Linear adjustment in Red from light to dark of Area 2
10
Area 3 Red 000-255
Linear adjustment in Red from light to dark of Area 3
11
Area 4 Red 000-255
Linear adjustment in Red from light to dark of Area 4
12
Area 5 Red 000-255
Linear adjustment in Red from light to dark of Area 5
13
Area 6 Red 000-255
Linear adjustment in Red from light to dark of Area 6
14
Area 7 Red 000-255
Linear adjustment in Red from light to dark of Area 7
8
15 Area 1 Green 000-255
Linear adjustment in Green from light to dark of Area 1
16 Area 2 Green 000-255
Linear adjustment in Green from light to dark of Area 2
17 Area 3 Green 000-255
Linear adjustment in Green from light to dark of Area 3
18 Area 4 Green 000-255
Linear adjustment in Green from light to dark of Area 4
19 Area 5 Green 000-255
Linear adjustment in Green from light to dark of Area 5
20 Area 6 Green 000-255
Linear adjustment in Green from light to dark of Area 6
21 Area 7 Green 000-255
Linear adjustment in Green from light to dark of Area 7
9
22 Area 1 Blue 000-255
Linear adjustment in Blue from light to dark of Area 1
23 Area 2 Blue 000-255
Linear adjustment in Blue from light to dark of Area 2
24 Area 3 Blue 000-255
Linear adjustment in Blue from light to dark of Area 3
25 Area 4 Blue 000-255
Linear adjustment in Blue from light to dark of Area 4
26 Area 5 Blue 000-255
Linear adjustment in Blue from light to dark of Area 5
27 Area 6 Blue 000-255
Linear adjustment in Blue from light to dark of Area 6
28 Area 7 Blue 000-255
Linear adjustment in Blue from light to dark of Area 7
10
29 Area 1 White 000-255
Linear adjustment in White from light to dark of Area 1
30 Area 2 White 000-255
Linear adjustment in White from light to dark of Area 2
31 Area 3 White 000-255
Linear adjustment in White from light to dark of Area 3
32 Area 4 White 000-255
Linear adjustment in White from light to dark of Area 4
33 Area 5 White 000-255
Linear adjustment in White from light to dark of Area 5
34 Area 6 White 000-255
Linear adjustment in White from light to dark of Area 6
35 Area 7 White 000-255
Linear adjustment in White from light to dark of Area 7
11 36 Pan Location 000-255 Pan (0~360
° )
12 37 Pan Location in 16 bit 000-255 Pan in 16 bit precision
13 38 Pan Rotation
000-127 Pan S
top
128-191 Pan Speeds in CW from slow to fast
192-255 Pan Speeds in CCW from slow to fast
14 39 Tilt Location 000-255 Tilt(0~270
° )
15 40 Tilt Location in 16 bit 000-255 Tilt in 16 bit precision
16 41 Tilt Rotation
000-127 Tilt S
top
128-191 Tilt Speeds in CW from slow to fast
192-255 Tilt Speeds in CCW from slow to fast
17 42 Pan & Tilt Speeds 000-255 Pan & Tilt Speeds from fast to slow
18 43 Control function 000-049 Reserved
050-255 Reset

13
Remarks:
1. MX Channel Priority sequence from high to low: Macro, Animation, CT, single color dimming of RGBW, Pan continuous
rotation, Tilt continuous rotation
2. Pixel control map is as follows (Based on the initial status of the unit ）
8. LED INDICATION
LE Indications ：
MX Indication ON MX Signal OK
OFF NO MX Signal
W- MX Indication
ON Wireless MX Signal available
OFF Not linked to any transmitter
Flash Lose link with a transmitter or being linked with one
SOUN Indication ON Sound Operation on
OFF Sound Operation off
Explanations for logo on top-right of the LC display ：
S Slave
M Master
MX512 Mode
P Preset Memory
V Sound Operation
U User’s Memory
T Test Memory
Lock Logo Buttons are Locked, buttons are unlocked and lock logo disappears after “Enter” button
pressed more than 3 seconds
Area1
Area7
Area2 Area4
Area6
Area5
Area3

14
9. TECHNICAL DATA
VOLTAGES:
100V~240V AC,50/60Hz
POWER CONSUMPTION
320W@220V
LIGHT SOURCE:
Qty: 7pcs of RGBW LE lamp
Average life: 50000hrs
Power: 40W
COLORS:
Red/Green/Blue/White, with color macros
Color temperature linearly adjustable
DIMMER
0-100% linearly adjustable
STROBE:
Electronic strobe:0-25 F.P.S.
LENS ANGLE:
Beam Angle(1/2 peak) θ
1/2
: 7°
Field Angle( 1/10 Peak) θ: 13°
CONTROL:
International Standard MX512 signal, 5 pin MX512 interfaces
18channels in standard mode, and 43 channels in extended mode.
Master/slave mode
Stand-alone mode, Preset mode, Self test mode, Single Scene mode
OTHER FUNCTIONS:
Pan: 72 0°or 360° + continuous rotation, Tilt : 270° +continuous rotation
Pixel control
Touch Key ,LC display, brightness and contrast adjustable
Sound operation
Wireless control (optional)
Pan & Tilt speeds adjustable
Firmware upgradable via MX512 Interface
Over temperature protection
Fixture time and MX512 Channel Value displayed , Software Version displayed , isplay Invert
HOUSING:

15
High temperature engineering-plastic, IP20
WEIGHT:
5.7 Kg
AMBIENT TEMPERATURE
-20 °C ～ 40 °C
SIZES:
LIGHT OUTPUT :
7° Beam Angle(1/2 peak) θ
1/2
DIAMETER (m)
DISTANCE (m)
5m
6m
5m
6m 7m
4m
2m
4m
2m
0m 1m
1m
3m
3m
7m
0 2.5 5 7.5 10 12.5 15
0.31 0.61 0.92 1.23 1.53 1.84
7 °lux 45456 11364 5051 2841 1818 12630
0

16
13° Field Angle( 1/10 Peak) θ
DIAMETER (m)
DISTANCE (m)
5m
6m
5m
6m 7m
4m
2m
4m
2m
0m 1m
1m
3m
3m
7m
0 2.5 5 7.5 10 12.5 15
0.56 1.12 1.68 2.24 2.80 3.36
13 °lux 42684 10671 4743 2668 1707 11860
0

17
10. CIRCUIT DIAGRAM AND PCB CONNECTIONS
● CIRCUIT DIAGRAM

18
● PCB CONNECTIONS
PR-8126 Master Board: P/N 220020265
PR-8126 XY Board: P/N:220020266
1 Power
2 Signal In
3 Signal Out
4 Wireless
5 isplay
6 Power
7 Signal
8 Optical Coupler
9 Magnet Sensor
