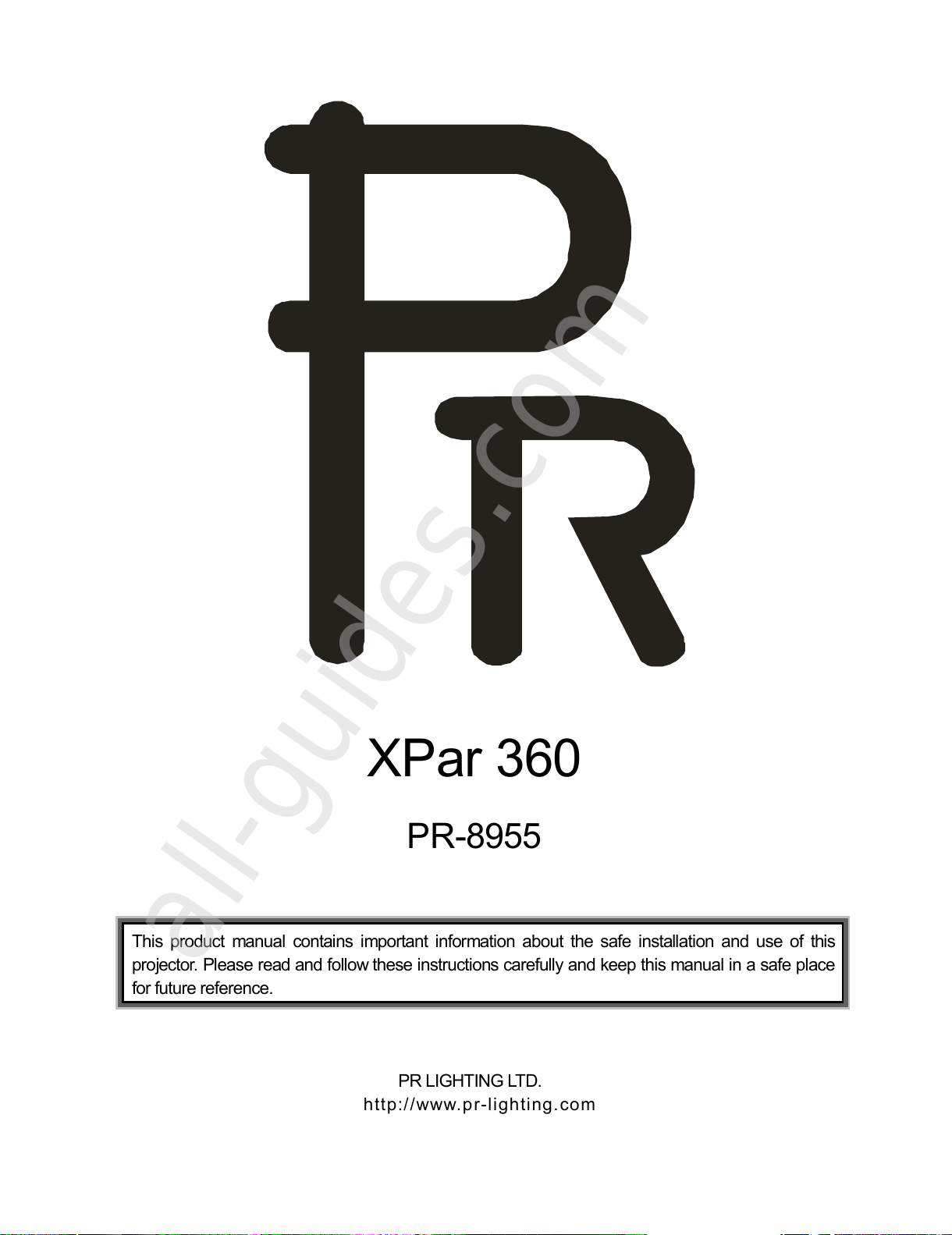

PR Lighting XPar 360 User manual

XPar 360
PR-8955
This product manual contains important information about the safe installation and use of this
projector. Please read and follow these instructions carefully and keep this manual in a safe place
for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
All manuals and user guides at all-guides.com
all-guides.com

2/17

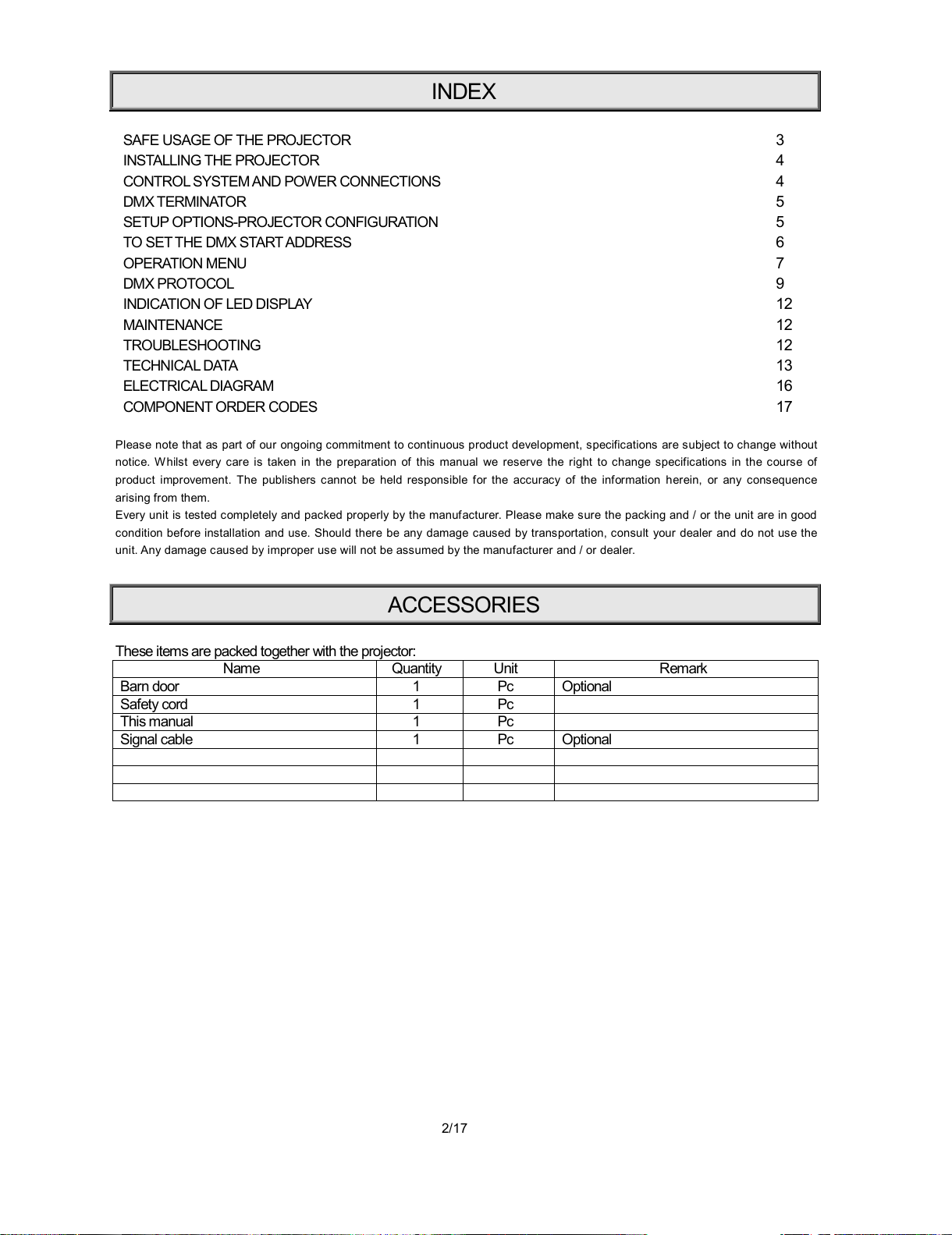

INDEX
SAFE USAGE OF THE PROJECTOR 3
INSTALLING THE PROJECTOR 4
CONTROL SYSTEM AND POWER CONNECTIONS 4
DMX TERMINATOR 5
SETUP OPTIONS-PROJECTOR CONFIGURATION 5
TO SET THE DMX START ADDRESS 6
OPERATION MENU 7
DMX PROTOCOL 9
INDICATION OF LED DISPLAY 12
MAINTENANCE 12
TROUBLESHOOTING 12
TECHNICAL DATA 13
ELECTRICAL DIAGRAM 16
COMPONENT ORDER CODES 17
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without
notice. Whilst every care is taken in the preparation of this manual we reserve the right to change specifications in the course of
product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any consequence
arising from them.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good
condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the
unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.
ACCESSORIES
These items are packed together with the projector:
Name Quantity Unit Remark
Barn door 1 Pc Optional
Safety cord 1 Pc
This manual 1 Pc
Signal cable 1 Pc Optional
All manuals and user guides at all-guides.com

3/17
SAFE USAGE OF THE PROJECTOR
When unpacking and before disposing of the carton, check there is no transportation damage before using the projector.
Should there be any damage caused by transportation, consult your dealer and do not use the apparatus.
The projector can be used indoors and outdoors, IP20.
The projector is not designed or intended to be mounted directly on to inflammable surfaces.
The projector is only intended for installation, operation and maintenance by qualified personnel.
Do not project the beam onto inflammable surfaces, minimum distance is 5m. 5m
Avoid direct exposure to the light from the lamp. The light is harmful to eyes.
Do not attempt to dismantle and/or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power requirements of the projector.
It is essential that each projector is correctly earthed and that electrical installation conforms to all relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the power-cord come into contact
with other cables. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.
Keep the optical system clean. Do not touch the LED lens with bare hands.
When the projector is hanged to a high place, please use a safety cord provided to pass through the projector handles as
a secondary safety fixing for safety seasons. For details, refer to “INSTALL THE PROJECTOR “section.
LED lens shall be changed if they have become visibly damaged to such an extent that their effectiveness is impaired,
for example by cracks or deep scratches.
Exterior surface temperatures of the projector after 5 minutes operation is 45℃, when achieving steady state it is50℃.
There is no user serviceable parts inside the projector, do not open the housing and never operate the projector with the
covers removed.
Always disconnect from the mains, when the device is not in use or before cleaning it or
before attempting any maintenance work !
If you have any questions, don’t hesitate to consult your dealer or manufacturer.
All manuals and user guides at all-guides.com

4/17

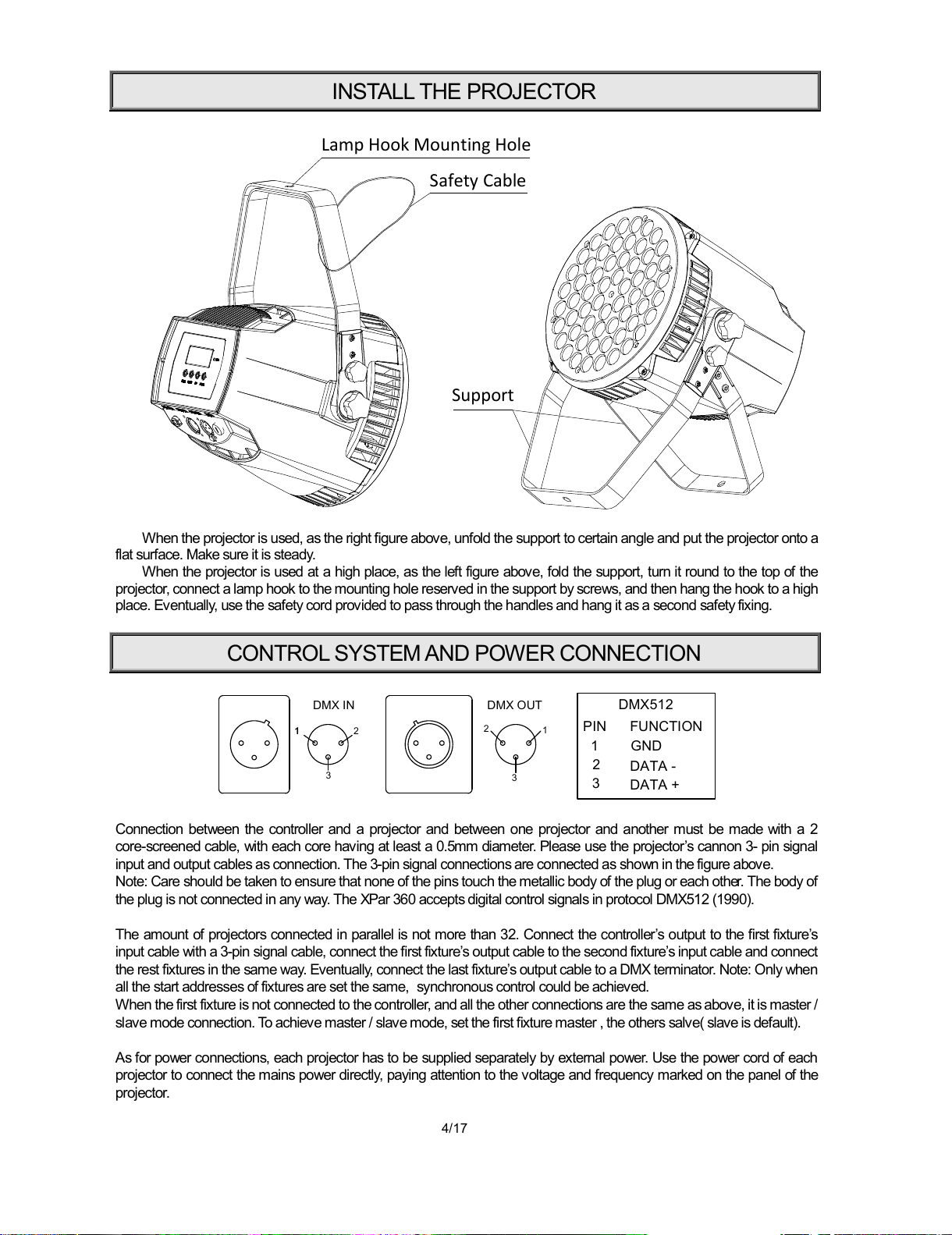

INSTALL THE PROJECTOR
When the projector is used, as the right figure above, unfold the support to certain angle and put the projector onto a
flat surface. Make sure it is steady.
When the projector is used at a high place, as the left figure above, fold the support, turn it round to the top of the
projector, connect a lamp hook to the mounting hole reserved in the support by screws, and then hang the hook to a high
place. Eventually, use the safety cord provided to pass through the handles and hang it as a second safety fixing.
CONTROL SYSTEM AND POWER CONNECTION
Connection between the controller and a projector and between one projector and another must be made with a 2
core-screened cable, with each core having at least a 0.5mm diameter. Please use the projector’s cannon 3- pin signal
input and output cables as connection. The 3-pin signal connections are connected as shown in the figure above.
Note: Care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of
the plug is not connected in any way. The XPar 360 accepts digital control signals in protocol DMX512 (1990).
The amount of projectors connected in parallel is not more than 32. Connect the controller’s output to the first fixture’s
input cable with a 3-pin signal cable, connect the first fixture’s output cable to the second fixture’s input cable and connect
the rest fixtures in the same way. Eventually, connect the last fixture’s output cable to a DMX terminator. Note: Only when
all the start addresses of fixtures are set the same, synchronous control could be achieved.
When the first fixture is not connected to the controller, and all the other connections are the same as above, it is master /
slave mode connection. To achieve master / slave mode, set the first fixture master , the others salve( slave is default).
As for power connections, each projector has to be supplied separately by external power. Use the power cord of each
projector to connect the mains power directly, paying attention to the voltage and frequency marked on the panel of the
projector.
Lamp Hook Mounting Hole
Safety Cable
Support
FUNCTION
DMX IN
3
11
DMX OUT
3
22
3
2
PIN
1
1
GND
DATA +
DATA -
DMX512
All manuals and user guides at all-guides.com

5/17
All of the connections are as the figure below.
DMX TERMINATOR
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This
prevents electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is
then plugged into the output socket on the last projector in the chain. The connections are illustrated below.
SETUP OPTIONS-PROJECTOR CONFIGURATION
Projector configuration can be set conveniently via push-button switch and LED display.
Launch the projector and press button ENTER for more than 5 seconds to unlock the panel, the LCD will show the
function menu of the projector, each main menu has its submenus and each submenu has a specific function. For
details, please see the “OPERATION MENU” section.
Press button UP or DOWN if you want to browse through the various Setup Options. Press button ENTER to save your
settings or enter the next menu. Press button UP or DOWN to change values(add or subtract)
Press button FUNC, it will return to the upper menu one by one or browse through the main menu.
DMX Controller
Power IN Power IN Power IN
DMX OUT DMX IN DMX OUT DMX IN XLR terminator
21
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain.
PIN 3
PIN 2
ENTERUP DOWN
FUNC
All manuals and user guides at all-guides.com

6/17
TO SET THE DMX START ADDRESS
Each Xpar360must be given a DMX start address so that the correct projector responds to the correct control signals.
This DMX start address is the channel number from which the projector starts to “listen” to the digital control information
being sent out from the controller. The Xpar360 have 3 DMX modes, which are standard mode，extended mode and
short mode. For example, the standard mode has 12 channels, so set the No. 1 projector’s address 001, No. 2
projector’s address 13, No. 3 projector’s address 25, No. 4 projector’s address 37, and so on.
Launch the projector. Press button ENTER for more than 5 seconds to unlock the panel.
Press button FUNC, UP or DOWN to find “AddR” menu.
Then press ENTER to show DMX address and press UP or DOWN to set DMX address.
At this time, the address will flash continuously. Press button ENTER to confirm and it means the setting has been
enabled.
Press button FUNC, it will return to the upper menu one by one.
All manuals and user guides at all-guides.com
all-guides.com

7/17

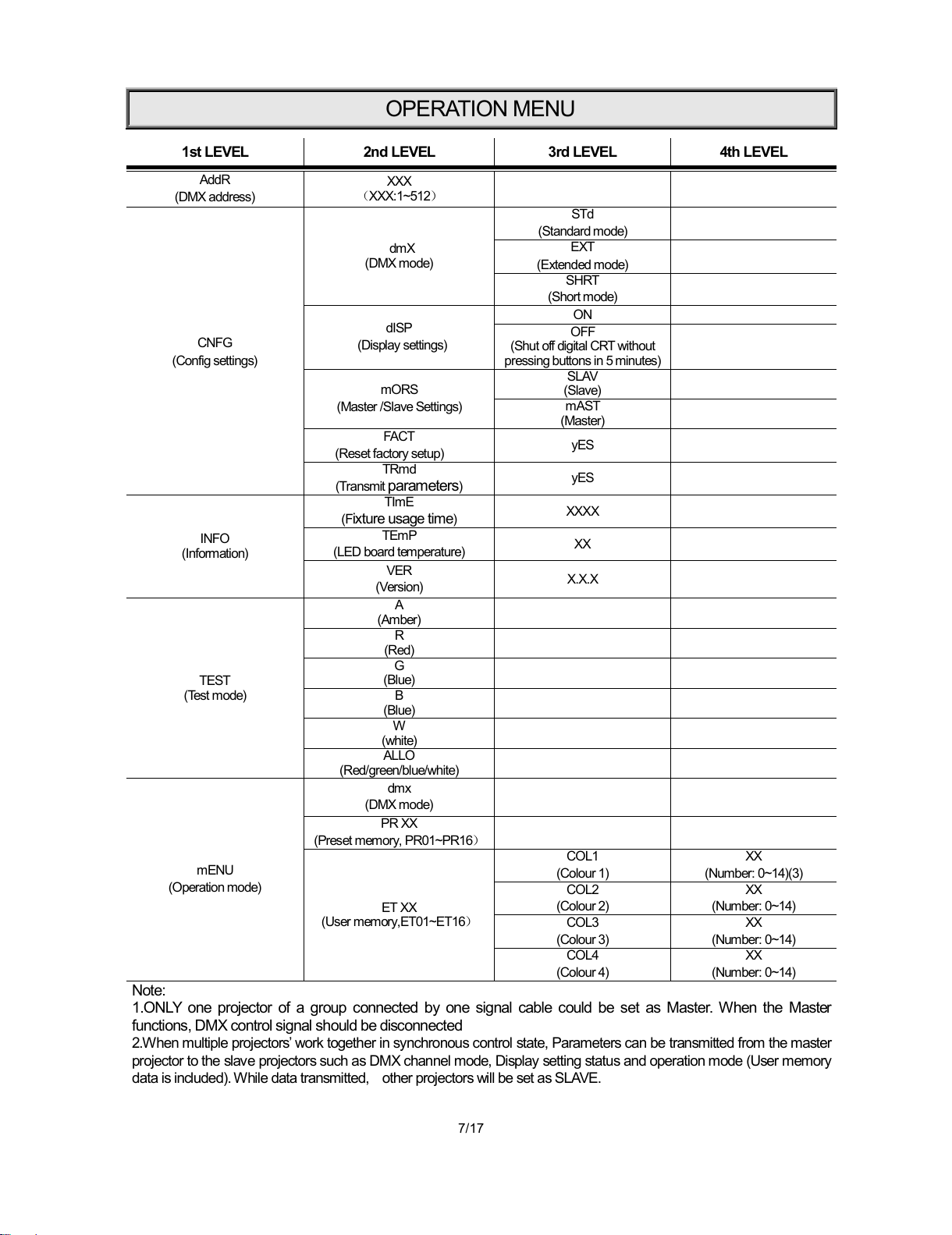

OPERATION MENU
1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL
AddR
(DMX address)
XXX
（XXX:1~512）
CNFG
(Config settings)
dmX
(DMX mode)
STd
(Standard mode)
EXT
(Extended mode)
SHRT
(Short mode)
dISP
(Display settings)
ON
OFF
(Shut off digital CRT without
pressing buttons in 5 minutes)
mORS
(Master /Slave Settings)
SLAV
(Slave)
mAST
(Master)
FACT
(Reset factory setup) yES
TRmd
(Transmit parameters) yES
INFO
(Information)
TImE
(Fixture usage time) XXXX
TEmP
(LED board temperature) XX
VER
(Version) X.X.X
TEST
(Test mode)
A
(Amber)
R
(
Red
)
G
(Blue)
B
(Blue)
W
(white)
ALLO
(Red/green/blue/white)
mENU
(Operation mode)
dmx
(DMX mode)
PR XX
(Preset memory, PR01~PR16）
ET XX
(User memory,ET01~ET16）
COL1
(Colour 1)
XX
(Number: 0~14)(3)
COL2
(Colour 2)
XX
(Number: 0~14)
COL3
(Colour 3)
XX
(Number: 0~14)
COL4
(Colour 4)
XX
(Number: 0~14)
Note:
1.ONLY one projector of a group connected by one signal cable could be set as Master. When the Master
functions, DMX control signal should be disconnected
2.When multiple projectors’ work together in synchronous control state, Parameters can be transmitted from the master
projector to the slave projectors such as DMX channel mode, Display setting status and operation mode (User memory
data is included). While data transmitted, other projectors will be set as SLAVE.
All manuals and user guides at all-guides.com

8/17

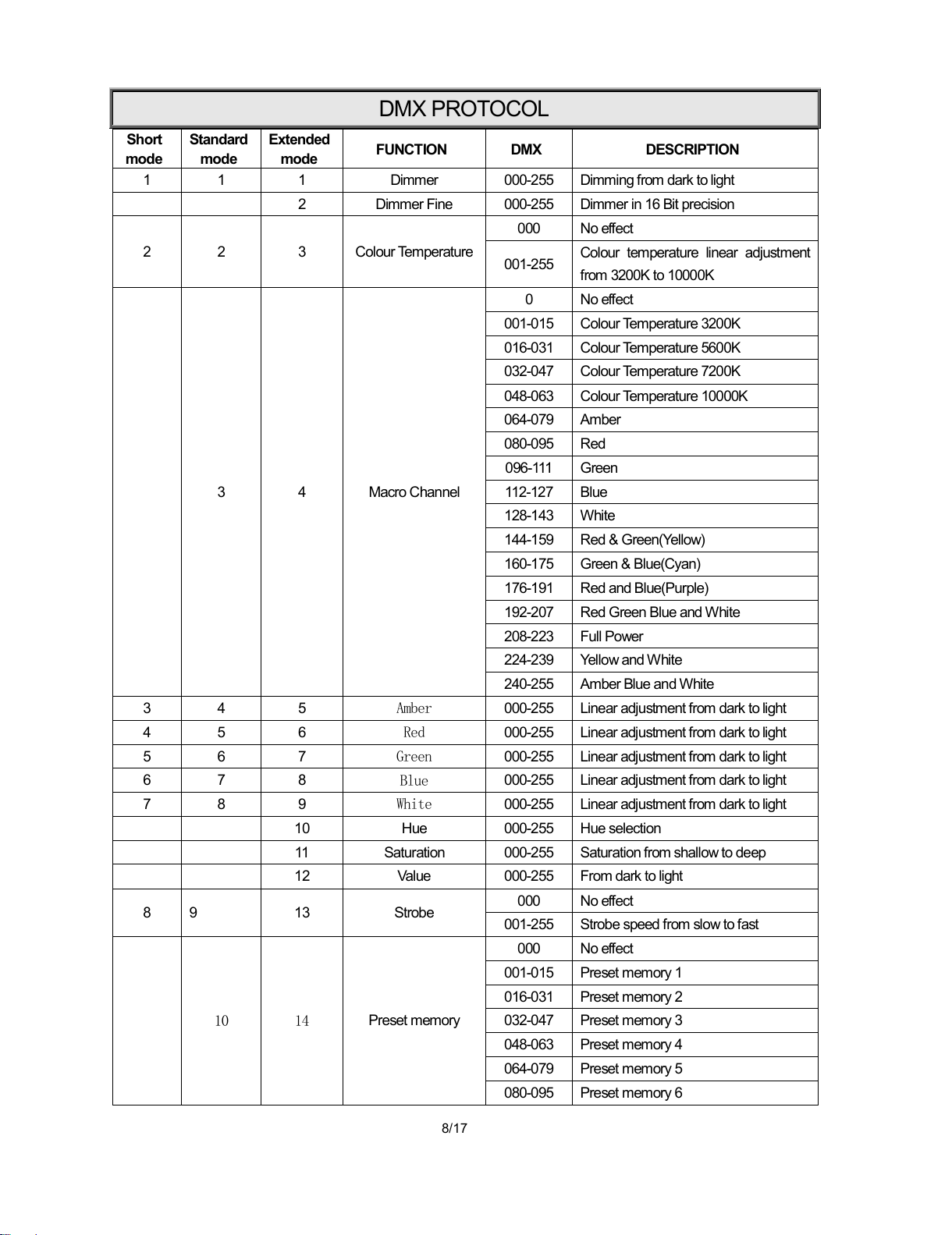

DMX PROTOCOL
Short
mode
Standard
mode
Extended
mode FUNCTION DMX DESCRIPTION
1 1 1 Dimmer 000-255 Dimming from dark to light
2 Dimmer Fine 000-255 Dimmer in 16 Bit precision
2 2 3 Colour Temperature
000 No effect
001-255 Colour temperature linear adjustment
from 3200K to 10000K
3 4 Macro Channel
0 No effect
001-015 Colour Temperature 3200K
016-031 Colour Temperature 5600K
032-047 Colour Temperature 7200K
048-063 Colour Temperature 10000K
064-079 Amber
080-095 Red
096-111 Green
112-127 Blue
128-143 White
144-159 Red & Green(Yellow)
160-175 Green & Blue(Cyan)
176-191 Red and Blue(Purple)
192-207 Red Green Blue and White
208-223 Full Power
224-239 Yellow and White
240-255 Amber Blue and White
3 4 5 Amber 000-255 Linear adjustment from dark to light
4 5 6 Red 000-255 Linear adjustment from dark to light
5 6 7 Green 000-255 Linear adjustment from dark to light
6 7 8 Blue 000-255 Linear adjustment from dark to light
7 8 9 White 000-255 Linear adjustment from dark to light
10 Hue 000-255 Hue selection
11 Saturation 000-255 Saturation from shallow to deep
12 Value 000-255 From dark to light
8 9 13 Strobe 000 No effect
001-255 Strobe speed from slow to fast
10 14 Preset memory
000 No effect
001-015 Preset memory 1
016-031 Preset memory 2
032-047 Preset memory 3
048-063 Preset memory 4
064-079 Preset memory 5
080-095 Preset memory 6
All manuals and user guides at all-guides.com

9/17

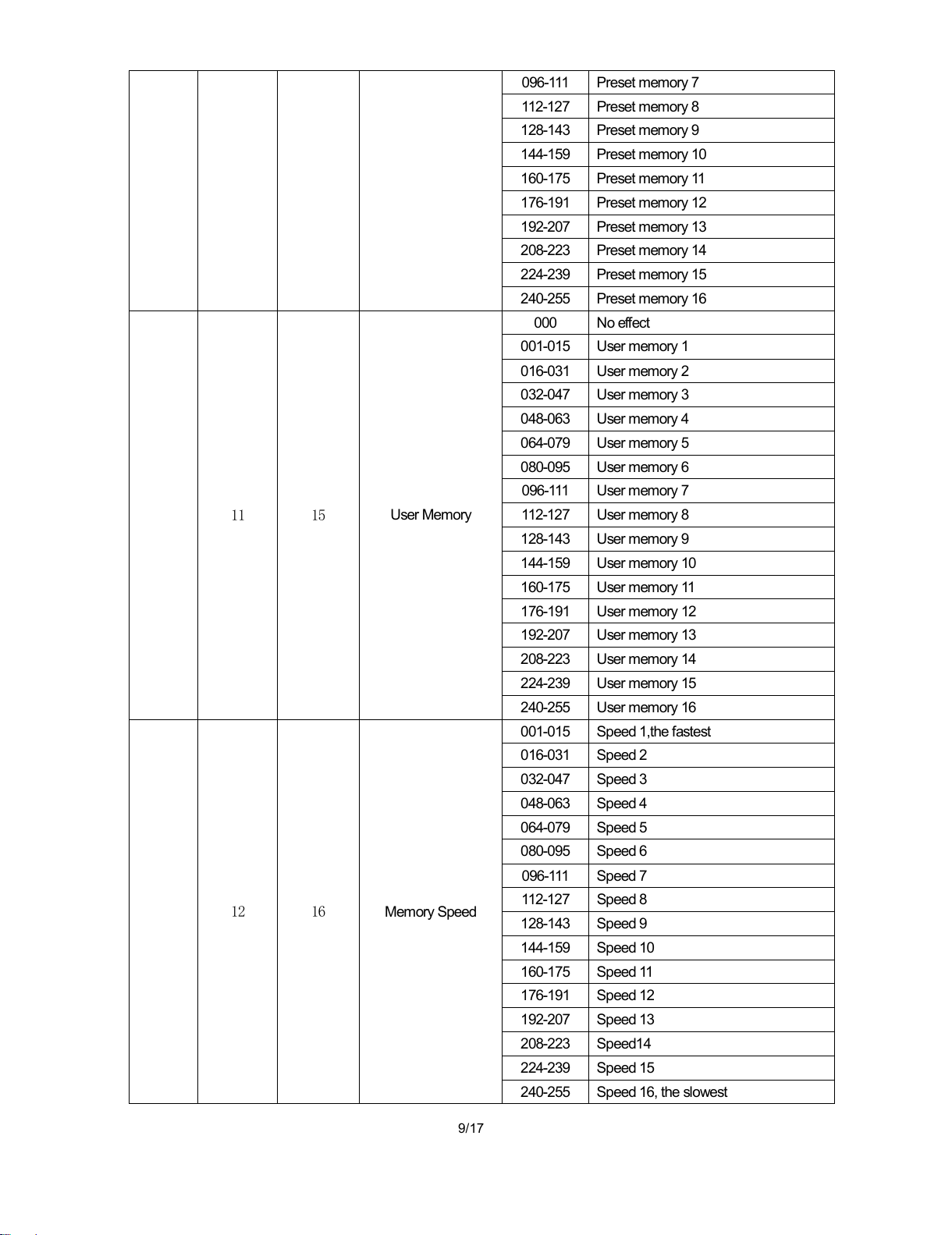

096-111 Preset memory 7
112-127 Preset memory 8
128-143 Preset memory 9
144-159 Preset memory 10
160-175 Preset memory 11
176-191 Preset memory 12
192-207 Preset memory 13
208-223 Preset memory 14
224-239 Preset memory 15
240-255 Preset memory 16
11 15 User Memory
000 No effect
001-015 User memory 1
016-031 User memory 2
032-047 User memory 3
048-063 User memory 4
064-079 User memory 5
080-095 User memory 6
096-111 User memory 7
112-127 User memory 8
128-143 User memory 9
144-159 User memory 10
160-175 User memory 11
176-191 User memory 12
192-207 User memory 13
208-223 User memory 14
224-239 User memory 15
240-255 User memory 16
12 16 Memory Speed
001-015 Speed 1,the fastest
016-031 Speed 2
032-047 Speed 3
048-063 Speed 4
064-079 Speed 5
080-095 Speed 6
096-111 Speed 7
112-127 Speed 8
128-143 Speed 9
144-159 Speed 10
160-175 Speed 11
176-191 Speed 12
192-207 Speed 13
208-223 Speed14
224-239 Speed 15
240-255 Speed 16, the slowest
All manuals and user guides at all-guides.com

10/17

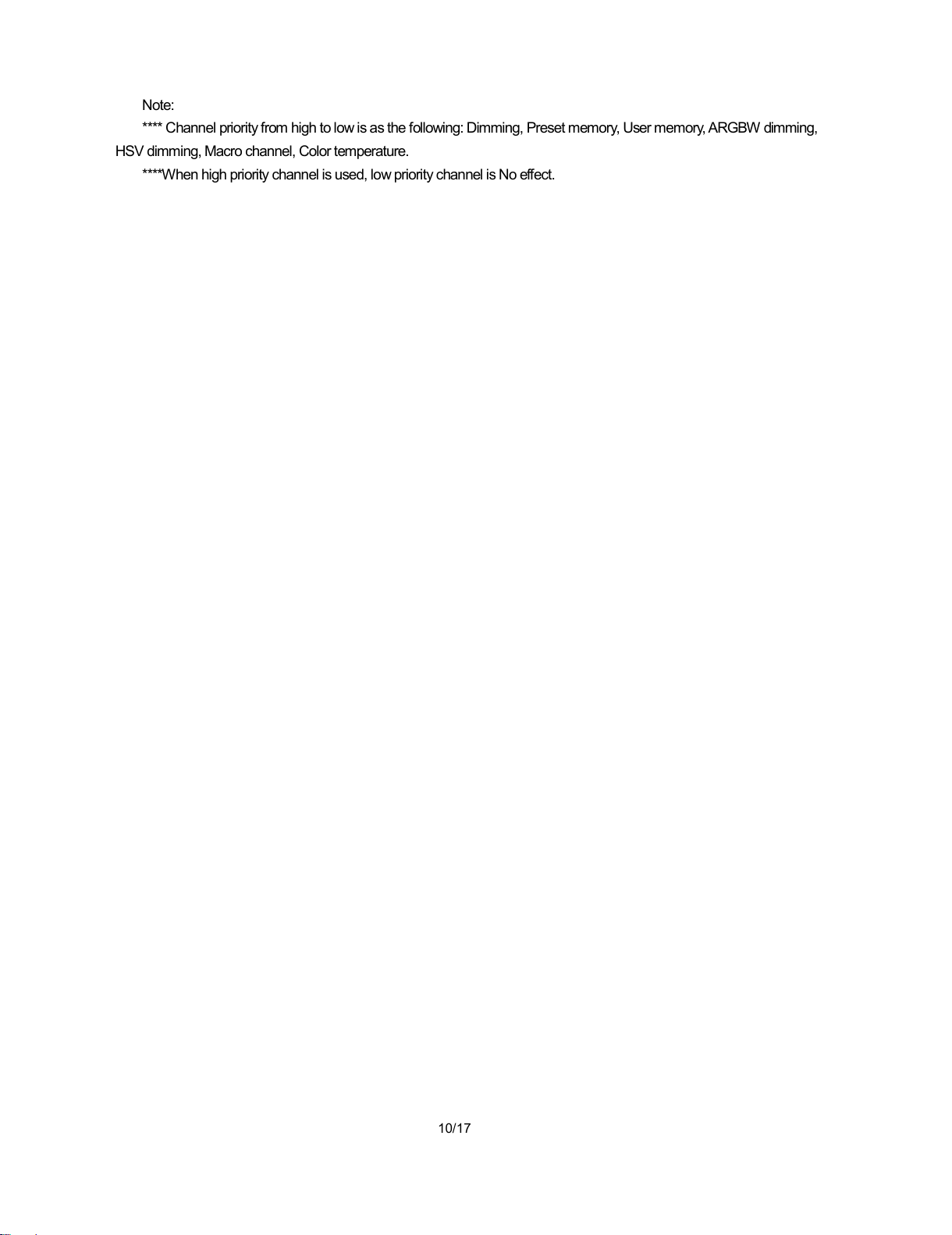

Note:
**** Channel priority from high to low is as the following: Dimming, Preset memory, User memory, ARGBW dimming,
HSV dimming, Macro channel, Color temperature.
****When high priority channel is used, low priority channel is No effect.
All manuals and user guides at all-guides.com

11/17
INDICATION OF LED CHARACTER
Decimal point of the first character On DMX signal OK
Off No DMX signal
Decimal point of the third character On Master / slave signal is OK
Off No master / slave signal
Decimal point of the fourth character On When setting master mode
Off When setting slave mode
Parameters that LED characters display Flash Parameters not saved, press “ENTER” to save them
MAINTENANCE
To prolong the life of the projector, it is very important to do the maintenance work. Cooling fans must be cleaned once
every 15days and external lens cleaned periodically for an optimum light output. DO NOT USE ANY SOLVENT
CONTAINING CHEMICAL ELEMENT.
Cleaning frequency depends on the environment in which the fixture operates. Soft cloth and typical glass cleaning
products should be used for cleaning with care. It is recommended to clean projector at least once every 20 days.
Do not use any organic solvent, e.g. alcohol, to clean housing of the apparatus.
TROUBLESHOOTING
PROBLEM ACTION
The projector doesn’t switch on
 Power connection is not correct.
 Power supply is damaged or abnormal. Call a qualified personnel
to fix it.
 Connection of control board is not correct. Call a qualified
personnel to fix it.
The projector can be turned on, but LEDs do
not emit light and are out of control.
 Connection of LED board is not correct. Call a qualified
personnel to fix it.
The lamp comes on but the projector
doesn’t respond to the controller
 Make sure that the projector is correctly configurated.
 Replace or repair the DMX cable.
The beam appears dim
 The projector is too hot. Take ventilation measures to make it
cool.
All manuals and user guides at all-guides.com
all-guides.com

12/17
TECHNICAL DATA
VOLTAGES:
200V/220V /230V/240V AC, 50/60Hz
Optional: 100V/120V AC, 50/60Hz
POWER CONSUMPTION:
200W@220V
LED:
Power consumption 3W
Quantity 60（13R＋13G＋13B＋12W＋9A）
Manufacturers Rated LED Life 50000 Hours
COLOURS:
RGBWA linear color mixing with Macro
COLOR TEMPERATURE CORRECTION
Linear color temperature correction from 3200K to 10000K
DIMMER:
0-100% linearly adjustable
STROBE:
Electronic Strobe 0 ~25F.P.S
LIGHT ANGLE
Field Angle(1/10 Maximum) θ 28°
Beam Angle(1/2 Maximum) θ1/2 15°
Lens Angle: 15° (Optional Lens Angle: 8°, 25 °, 45° )
CONTROL:
DMX512, 3 pin interfaces
8 channels in short mode, 12channels in standard mode, and 16 channels in extended mode
Master/Salve Synchronous Control Mode
16 preset memories
16 user memories
preset memories and user memories can be called by control channels,16 level speeds adjustable
Self Test Mode
OTHER FUNCTIONS:
LED board temperature display
Fixture usage time display
All manuals and user guides at all-guides.com

13/17

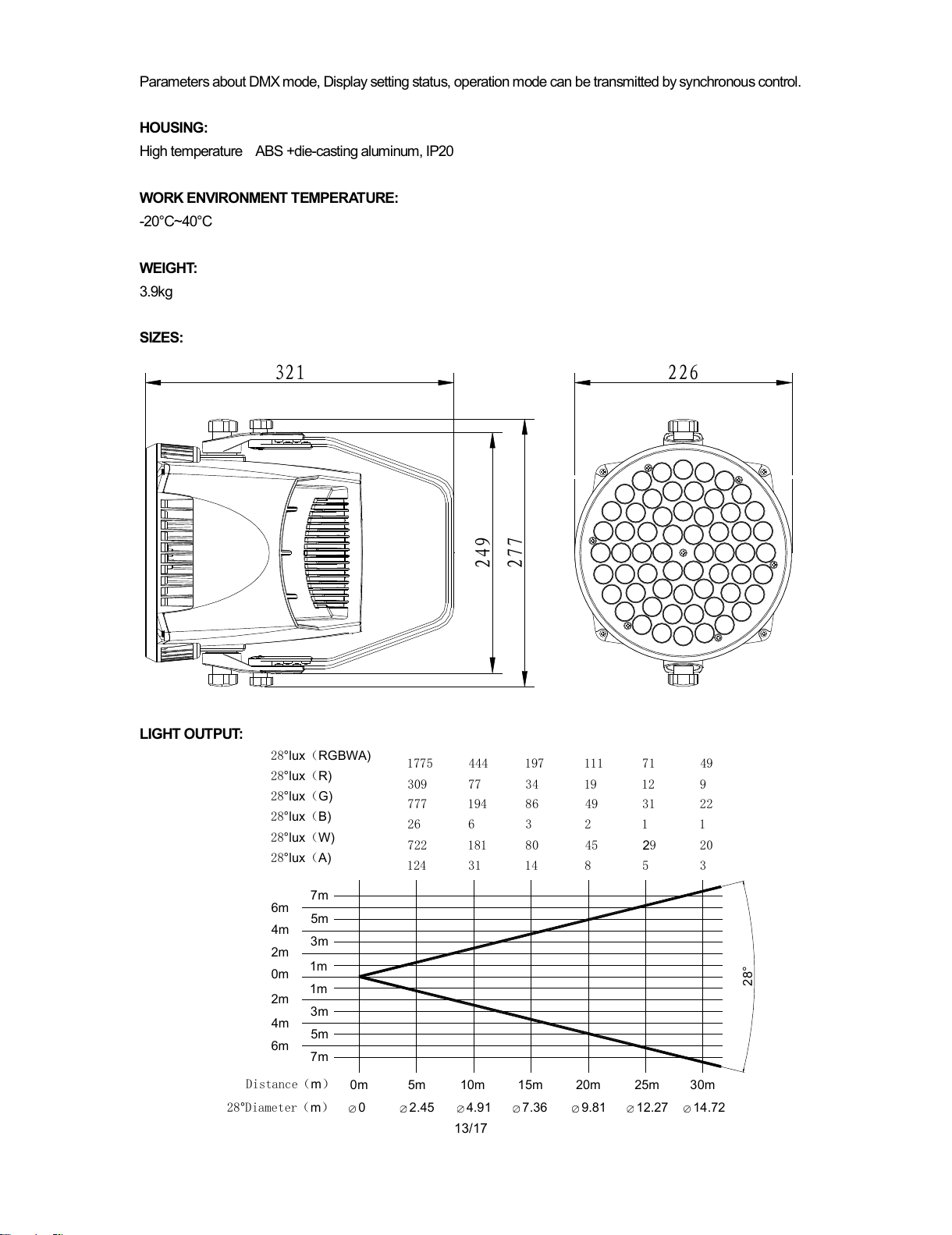

Parameters about DMX mode, Display setting status, operation mode can be transmitted by synchronous control.
HOUSING:
High temperature ABS +die-casting aluminum, IP20
WORK ENVIRONMENT TEMPERATURE:
-20°C~40°C
WEIGHT:
3.9kg
SIZES:
LIGHT OUTPUT:
321
277 249
226
28°Diameter（m）
Distance（m）
5m
6m
5m
6m 7m
4m
2m
4m
2m
0m 1m
1m
3m
3m
7m
0m 5m 10m 15m 20m 25m 30m
3581431124
722 181 80 45 29 20
22314986194777
26 6 3 2 1 1
912193477309
28°lux（RGBWA) 1775 444 197 111 71 49
28°
14.7212.279.817.364.912.450
28°lux（R)
28°lux（B)
28°lux（G)
28°lux（W)
28°lux（A)
All manuals and user guides at all-guides.com

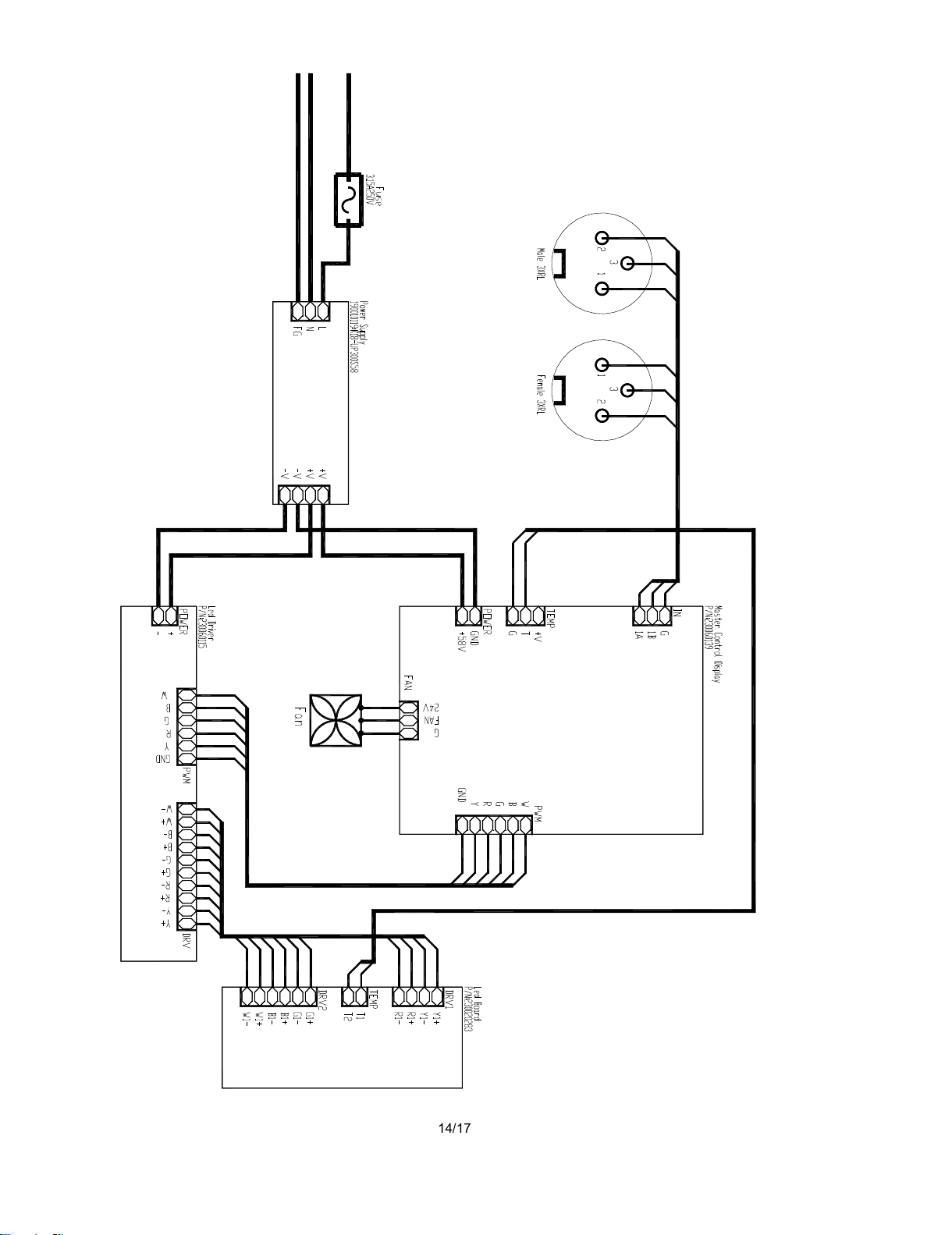

14/17
All manuals and user guides at all-guides.com

15/17
COMPONENT ORDER CODES
NAME PART NO. QUANTITY REMARK
LED LENS 070070047 60 15°
SIGNAL CABLE 230090002 1 3meters
POWER SUPPLY 190010119 1 150W58V
DRIVER BOARD 230060115 1
LED CONTROL BOARD 230060139 1
LED LAMP BOARD 230020283 1
All manuals and user guides at all-guides.com

16/17
All manuals and user guides at all-guides.com
all-guides.com

17/17

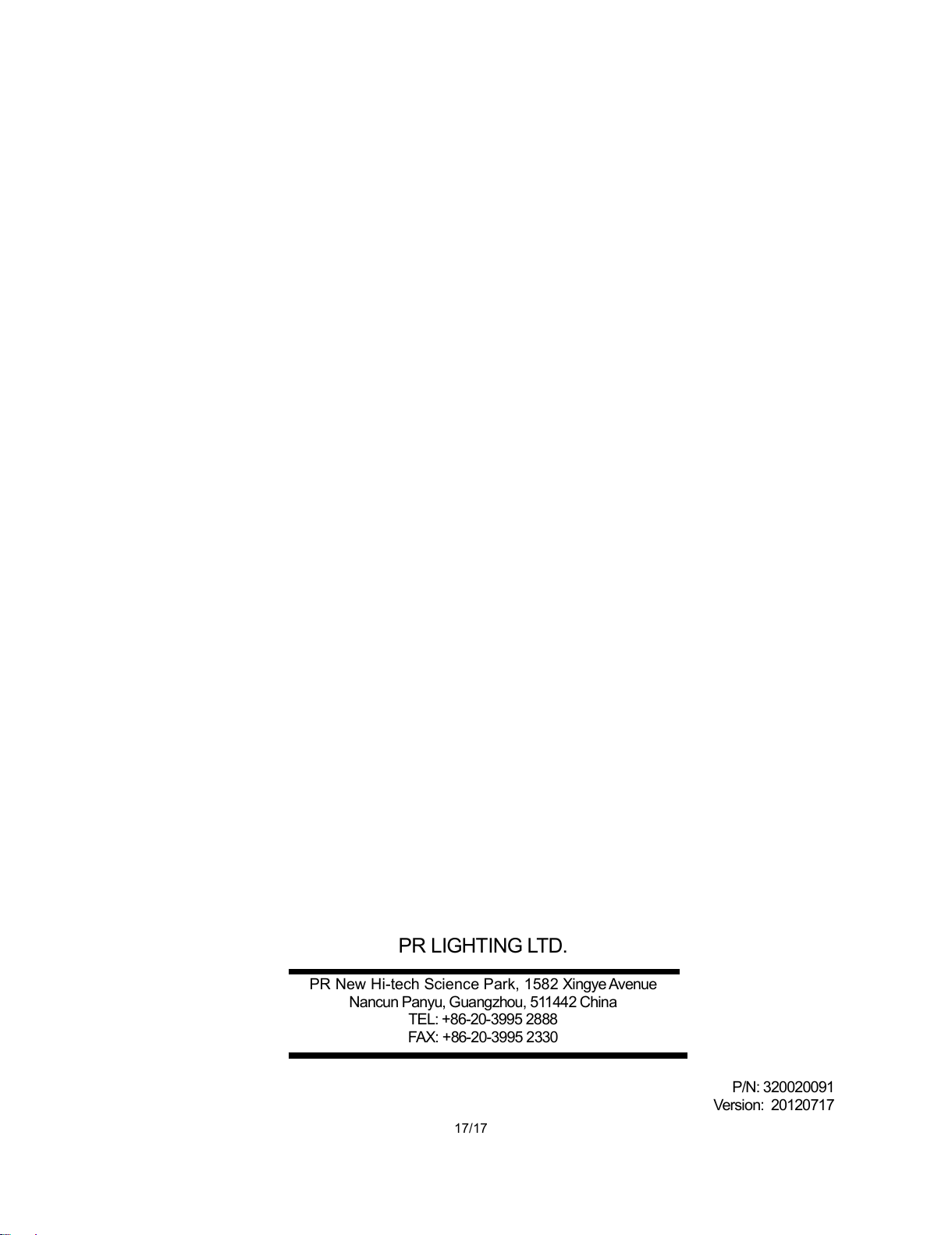

PR LIGHTING LTD.
PR New Hi-tech Science Park, 1582 Xingye Avenue
Nancun Panyu, Guangzhou, 511442 China
TEL: [phone]
FAX: [phone]
P/N: 320020091
Version: 20120717
All manuals and user guides at all-guides.com
