USER’S MANUAL
Serial
Number
Decal
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. PFEL01717.0
Serial No.
Write the serial number in the space
above for reference.
proform.com
To register your product and
activate your warranty today,
go to my.proform.com.
For service at any time, go to
proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE

2

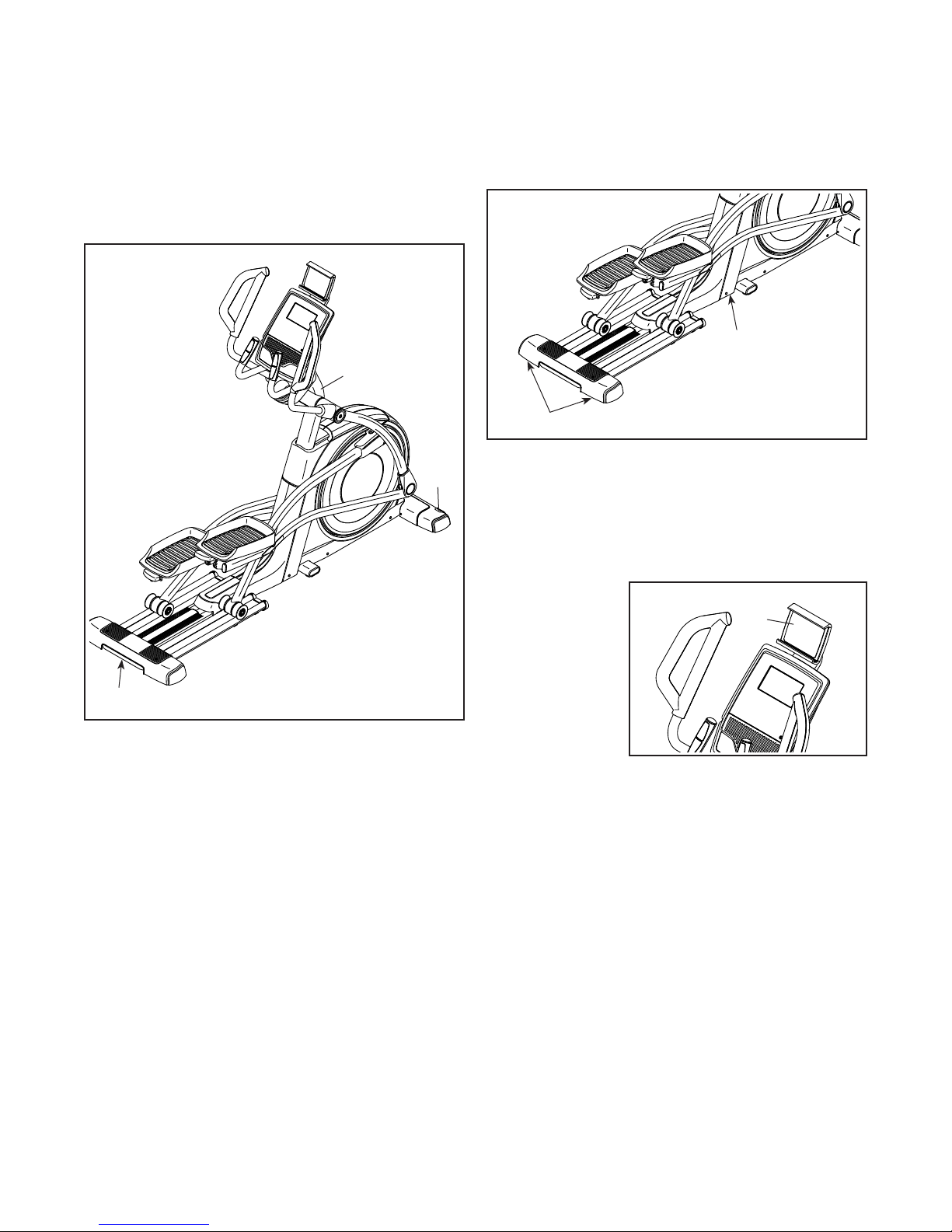

This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, see the front cover of this manual
and request a free replacement decal. Apply
the decal in the location shown. Note: The
decal(s) may not be shown at actual size.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE ELLIPTICAL ..............................................................13
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
MAINTENANCE AND TROUBLESHOOTING ....................................................25
EXERCISE GUIDELINES ....................................................................27
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of Apple
Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The
BLUETOOTH®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

3
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your elliptical before
using your elliptical. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from
moisture and dust. Do not put the elliptical in
a garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately.
9. Keep children under age 13 and pets away
from the elliptical at all times.
10. When connecting the power cord (see
page 13), plug the power cord into a
grounded circuit.
11. Do not modify the power cord or use an
adapter to connect the power cord to an
improper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
12. Do not operate the elliptical if the power cord
or plug is damaged, or if the elliptical is not
working properly.
13. DANGER: Always unplug the power
cord and switch the power switch to the off
position when the elliptical is not in use and
before cleaning the elliptical. Servicing other
than the procedures in this manual should
be performed by an authorized service repre-
sentative only.
14. The elliptical should not be used by persons
weighing more than 325 lbs. (147 kg).
15. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
16. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
IMPORTANT PRECAUTIONS

4
SAVE THESE INSTRUCTIONS
17. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
18. The elliptical does not have a freewheel;
the pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
19. Keep your back straight while using the
elliptical; do not arch your back.
20. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.

5
UTS
all
STANDARD SERVICE PLANS

6
Fan
Console
Power Cord
Tablet Holder
Upper Body Arm
Heart Rate Monitor
Wheel
Pedal
Roller
Pedal Handle
Handle
Accessory Tray
Ramp
Handlebar
Length: 6 ft. 8 in. (203 cm)
Width: 2 ft. 1 in. (64 cm)
Thank you for selecting the revolutionary PROFORM®
TRAINER 7.0 elliptical. The TRAINER 7.0 elliptical
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN

7
M10 x 75mm Screw
(142)–2
M10 Locknut
(99)–4
M10 x 20mm
Screw (144)–12
M4 x 16mm
Screw (104)–4
M10 x 45mm
Bolt (143)–4
M10 x 70mm
Screw (139)–2
Tablet Holder
Screw (52)–4
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.

8
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 7.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
1. Go to my.proform.com on your computer and
register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• allows us to notify you of upgrades and offers
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.

9
3. Orient the Rear Stabilizer Cover (2) as shown,
and press it onto the Frame (1).
Attach the Rear Stabilizer Cover (2) with two
M4 x 16mm Screws (104).
3
104
104
1
2
2. With the help of a second person, place some of
the packing materials (not shown) under the rear
of the Frame (1). Have the second person hold
the Frame to prevent it from tipping while you
complete this step.
Identify the two Rear Stabilizers (5).
Attach one of the Rear Stabilizers (5) to the
Frame (1) with three M10 x 20mm Screws (144);
start all three Screws, and then tighten them.
Attach the other Rear Stabilizer (5) in the
same way.
Then, remove the packing materials from under
the Frame (1).
2
144
144
5
1
5

10
5
104
1
8
5. Orient the Front Stabilizer Cover (8) as shown,
and route the Power Cord (not shown) over
the top of the Front Stabilizer Cover. Then,
press the Front Stabilizer Cover onto the
Frame (1).
Attach the Front Stabilizer Cover (8) with two
M4 x 16mm Screws (104).
4
4. With the help of a second person, place some
of the packing materials (not shown) under the
front of the Frame (1). Have the second per-
son hold the Frame to prevent it from tipping
while you complete this step.
Identify the Right Front Stabilizer (6) and orient it
as shown.
Attach the Right Front Stabilizer (6) to the Frame
(1) with three M10 x 20mm Screws (144); start
all the Screws, and then tighten them.
Attach the Left Front Stabilizer (not shown) in
the same way.
Then, remove the packing materials from under
the Frame (1).
144
6
1

11
7
7. Locate the Right Upper Saddle Bracket (121) on
the Right Roller Arm (45). Next, locate the Lower
Saddle Bracket (26) on the right side of the
elliptical.
Attach the Right Upper Saddle Bracket (121)
to the Lower Saddle Bracket (26) with two
M10 x 70mm Screws (139).
45
26
121
139
6
6. Raise the Upright (4) to the vertical position.
While a second person holds the Shield Cover
(56) out of the way, secure the Upright with two
M10 x 75mm Screws (142).
Then, slide the Shield Cover (56) downward onto
the Rear Shield (75).
142
56
4
75

12
10. Make sure that all parts are properly tightened before you use the elliptical. Extra parts may be included.
Place a mat beneath the elliptical to protect the floor.
9
9. Attach the Tablet Holder (50) to the Console (7)
with four Tablet Holder Screws (52); start all the
Screws, and then tighten them. 50
52
7
8
8. Identify the Right Upper Body Arm (61) and an
Upper Body Arm Cover (77). Slide the Upper
Body Arm Cover onto the Right Upper Body Arm
as shown.
Attach the Right Upper Body Arm (61) to
the Right Upper Body Leg (36) with two
M10 x 45mm Bolts (143) and two M10 Locknuts
(99); make sure that the Locknuts are in the
hexagonal holes (A).
Then, slide the Upper Body Arm Cover (77)
downward and turn it so that it is flush with the
Right Upper Body Leg (36).
Attach the Left Upper Body Arm (47) in the
same way.
61
77
47
99
A
36
143
99

13
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. The power cord has a plug with a
grounding pin.
Plug the power
cord into an
appropriate
outlet that
is properly
installed and
grounded in
accordance with
all local codes
and ordinances.
The outlet must
be on a nominal 120-volt circuit.
A temporary
adapter may be
used to con-
nect the power
cord to a 2-pole
receptacle as
shown at the
right if a prop-
erly grounded
outlet is not
available.
The lug or wire extending from the adapter must
be connected with a metal screw to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a quali-
fied electrician to determine whether the outlet
box cover is grounded before using an adapter.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualified electrician.
Grounded Outlet
Grounding Pin
HOW TO USE THE ELLIPTICAL
DANGER: Improper connection of
the power cord increases the risk of electric
shock. Do not modify the plug; if it will not fit
an outlet, have a proper outlet installed by a
qualified electrician. If you are unsure whether
the product is properly grounded, contact a
qualified electrician.
2-pole Receptacle
Adapter
Lug
Metal Screw

14
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright (A), and place one foot against one of
the wheels (B). Have a second person lift the handle
(C) on the rear of the frame until the elliptical will roll on
the wheels. Carefully move the elliptical to the desired
location, and then lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
turn one or both of the leveling feet beneath the rear
stabilizer or beneath the frame (D, E) until the rocking
motion is eliminated.
HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder is designed for use
with most full-size tablets. Do not place any other
electronic device or object in the tablet holder.
To insert a tablet
into the tablet
holder (F), set
the bottom edge
of the tablet in
the tray. Then,
pull the clip over
the top edge of
the tablet. Make
sure that the
tablet is firmly
secured in the tablet holder. Rotate the tablet holder
to the desired angle. Reverse these actions to remove
the tablet from the tablet holder.
A
C
B
D
E
F

15
HOW TO ADJUST THE POSITIONS OF THE
PEDALS
Each pedal can be adjusted to several positions. To
adjust each pedal, simply pull the pedal handle (G)
outward, move the pedal to the desired position, and
then release the pedal handle into an adjustment hole
beneath the pedal. Make sure to adjust both pedals
to the same position.
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the upper body arms (H)
or the handlebars (I) and step onto the pedal (J) that
is in the lower position. Then, step onto the other
pedal. Push the pedals until they begin to move with
a continuous motion. Note: The crank arms (K) can
turn in either direction. It is recommended that you
turn the crank arms in the direction shown by the
arrow; however, for variety, you can turn the crank
arms in the opposite direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
J
K
H
I
G

16
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the ramp with the touch of a button.
As you exercise, the console will provide continu-
ous exercise feedback. You can even measure your
heart rate using the handgrip heart rate monitor or
a compatible heart rate monitor. See page 21 for
information about purchasing an optional chest
heart rate monitor.
You can also connect your tablet to the console and
use the iFit®Bluetooth Tablet app to record and track
your workout information.
The console also offers a selection of onboard work-
outs. Each onboard workout automatically changes the
resistance of the pedals and prompts you to maintain
a target pedaling speed as it guides you through an
effective workout.
You can even listen to your favorite workout music or
audio books with the console sound system while you
exercise.
To turn on the power, see page 17. To use the
manual mode, see page 17. To use an onboard
workout, see page 20.
To use the sound system, see page 21. To
connect your tablet to the console, see page 22.
To connect your heart rate monitor to the console,
see page 22. To change console settings, see
page 23.
Note: If there is a sheet of plastic on the display,
remove the plastic.
Note: The console can display speed and distance
in either standard or metric units. To change the unit
of measurement, press the St/M button repeatedly.
For simplicity, all instructions in this section refer to
standard units.
Scott
ELPF01717
PFEL01717
CONSOLE DIAGRAM

17
HOW TO TURN ON THE POWER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.
Plug in the power cord (see HOW
TO PLUG IN THE POWER CORD
on page 13). Next, locate the
power switch on the frame near
the power cord. Press the power
switch to the reset position (A).
The display will then turn on and the console will be
ready for use.
Note: When you turn on the power for the rst time,
the incline system may calibrate automatically. The
ramp will move upward and downward as it calibrates.
When the ramp stops moving, the incline system is
calibrated.
IMPORTANT: If the incline system does not
calibrate automatically, see step 3 on page 23
and manually calibrate the incline system.
IMPORTANT: The console features a demo mode,
designed to be used if the elliptical is displayed in
a store. If the demo mode is turned on, the console
will not turn off and the display will not be reset
when you nish exercising. To turn off the demo
mode, see HOW TO CHANGE CONSOLE SETTINGS
on page 23.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected automatically.
If you have selected a workout, reselect the manual
mode by pressing any of the Workouts buttons
repeatedly until zeros appear in the display.
3. Change the resistance of the pedals and the
incline of the ramp as desired.
Press the Start button or begin pedaling to start the
manual mode.
As you pedal, you can change the resistance of the
pedals. To change the resistance, press one of the
numbered Quick Resistance buttons or press the
Quick Resistance increase and decrease buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected
resistance level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press one of the numbered Quick Ramp buttons
or press the Quick Ramp increase and decrease
buttons.
Note: After you press a button, it will take a
moment for the ramp to reach the selected incline
level.
A

18
4. Follow your progress with the displays.
The display can show the following workout
information:
Calories (CALS)—When the manual mode and
most onboard workouts are selected, the approxi-
mate number of calories you have burned. When
calorie workouts are selected, the approximate
number of calories that remain to be burned in the
workout.
Calories per Hour (CALS/HR)—The approximate
number of calories you are burning per hour.
Distance (MI or KM)—The distance that you have
pedaled in miles or kilometers. To change the unit
of measurement, press the St/M button.
Pace—Your pedaling speed in minutes per mile
or minutes per kilometer. To change the unit of
measurement, press the St/M button.
Pulse (BPM and heart symbol)—Your heart rate
when you use the handgrip heart rate monitor or a
compatible heart rate monitor (see step 5).
Ramp—The incline level of the ramp.
Resistance (RESIST)—The resistance level of the
pedals.
RPM—Your pedaling speed in revolutions per
minute (RPM).
Speed (MPH or KPH)—Your pedaling speed in
miles per hour or kilometers per hour. To change
the unit of measurement, press the St/M button.
Time—When the manual mode or a calorie
workout is selected, the elapsed time. When an
onboard workout is selected, the time remaining in
the workout.
Press the Display
button (B) repeatedly
to view the desired
workout information
in the display.
Scan mode—The console also has a scan mode
that will display workout information in a repeating
cycle. To turn on the scan mode, press the Scan
button (C); the scan indicator (E) and the word
SCAN will turn on in the display.
To manually advance the scan cycle, press the
Scan button repeatedly.
To turn off the scan mode, press the Display
button; the scan indicator and the word SCAN will
turn off.
You can also customize the scan mode to display
only the desired workout information in the
repeating cycle.
To customize the scan mode, first press the
Display button repeatedly until the workout
information that you want to add to or remove from
the scan cycle appears in the display.
Next, press the Add/Remove button (D) to add or
remove that workout information from the scan
cycle. When workout information is added, its
indicator will turn on in the display. When workout
information is removed, its indicator will turn off.
Then, press the Scan button to turn on the scan
mode.
Note: The console will show your heart rate in the
scan cycle automatically whenever it detects a
pulse from a heart rate moniter.
To change the volume
level of the console,
press the Vol increase
and decrease buttons.
BC D
E

19
To pause the console, simply stop pedaling or
press the End button. When the console is paused,
the time will flash in the display. To continue your
workout, simply resume pedaling.
To end the workout, press the End button
repeatedly.
5. Measure your heart rate if desired.
You can measure your heart rate using either the
handgrip heart rate monitor or an optional chest
heart rate monitor (see page 21 for infor-
mation about the optional chest heart rate
monitor).Note: The console is compatible with
BLUETOOTH®Smart heart rate monitors.
Note: If you use both heart rate monitors at the
same time, the BLUETOOTH Smart heart rate
monitor will have priority.
If there are sheets
of plastic on the
metal contacts (F)
on the handgrip
heart rate moni-
tor, remove the
plastic. To measure
your heart rate,
hold the handgrip
heart rate monitor
with your palms
resting against the contacts. Avoid moving your
hands or gripping the contacts tightly.
When your pulse is detected, your heart rate will be
shown in the display. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the contacts tightly. For optimal perfor-
mance, clean the contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
6. Turn on the fan if desired.
The fan has several
speed settings. Press
the Fan increase and
decrease buttons
repeatedly to select a
fan speed or to turn off
the fan.
Note: If the pedals do not move for a few minutes,
the fan will turn off automatically.
7. When you are finished exercising, unplug the
power cord.
If the pedals do not move for several seconds, the
console will pause and the display will pause.
If the pedals do not move for several minutes, the
console will turn off and the display will be reset.
When you are finished exercising, press the power
switch to the off position and unplug the power
cord. IMPORTANT: If you do not do this, the
electrical components on the elliptical may
wear prematurely.
F

20
HOW TO USE AN ONBOARD WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 17.
2. Select an onboard workout.
To select an onboard workout, press the Interval,
Calorie, Time, or Speed button repeatedly until
the name of the desired workout appears in the
display.
A few seconds after you press a button, the dura-
tion of the workout or the number of calories to be
burned will appear in the display. The maximum
resistance level may also appear.
3. Start the workout.
Press the Start button or begin pedaling to start the
workout.
Each workout is divided into one-minute segments.
One resistance level and one target speed are
programmed for each segment. Note: The same
resistance level and/or target speed may be pro-
grammed for consecutive segments.
If a different resistance level is programmed for
the next segment, the resistance level will appear
in the display for a few seconds to alert you. The
resistance of the pedals will then change.
As you exercise, you will be prompted to keep
your pedaling speed near the target speed for the
current segment. When the words TOO SLO
appear in the display, increase your pedaling
speed. When the words TOO FAST appear,
decrease your pedaling speed. When no words
appear, maintain your current pedaling speed.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual pedaling
speed may be slower than the target speed.
Make sure to pedal at a speed that is comfort-
able for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Quick Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
The workout will continue in this way until the last
segment ends. To pause the console, simply stop
pedaling or press the End button. When the con-
sole is paused, the time will flash in the display. To
continue your workout, simply resume pedaling.
To end the workout, press the End button
repeatedly.
4. Follow your progress with the displays.
See step 4 on page 18.
5. Measure your heart rate if desired.
See step 5 on page 19.
6. Turn on the fan if desired.
See step 6 on page 19.
7. When you are finished exercising, unplug the
power cord.
See step 7 on page 19.
