1. Introduction
RAK815(RAK813 BreakBoard) is a wireless remote solution based on the RAK813 +
GPS + MEMS + HT+LCD design. It integrates the latest LoRaWAN 1.0.2 protocol and the
latest Bluetooth 5.0 protocol, supports LoRaWAN working mode, supports Bluetooth
transparent transmission, Bluetooth up to 300 meters away..
RAK815(RAK813 BreakBoard) built-in GPS, acceleration, temperature and humidity
sensors, expanded I2C LCD interface. We provide case applications that can configure
LoRaWAN parameters using Bluetooth, display sensor data using LCD, and upload
sensor data to the LoRaWAN network. And all the code open source. Users can find all
the open source code in github. We also designed three customizable buttons and two
customizable LED lights for our users, allowing users to implement they idea with
open-source code.
RAK815(RAK813 BreakBoard) is also a support for battery-powered products.
Greatly expanded product application scenarios. We also designed the function to enter
the low power mode when the device is detected to be stationary to ensure battery life.
The device also supports RAK831 + Ri3 gateway to use, you can graphically display the
various data of the sensor in the Cayenne platform, but also support the real-time
observation of sensor data on the phone.

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302
2. Open Source Project
RAK815(RAK813 BreakBoard) is an open source hardware. So the user can get all
the information about the product. Includes schematics and program code. Here for
everyone a brief introduction to the structure and basic use of open source code.
About the open source project, we can download it here:
https://github.com/RAKWireless/RAK813-BreakBoard
This open source project is based on the official code LoRaWAN1.0.2 and Nordic
nRF5 SDK 14.0.0 modified to support IAR8.11 and Keil5. The project mainly provides how
to read the sensor data and turn on the Bluetooth transparent transmission function to
receive the LoRaWAN configuration data. After the LoRaWAN connection is successful,
the sensor data is uploaded to the LoRaWAN server.
2.1 Project Structure
Because of the similar project structure of IAR8.11 and Keil5, we introduce the project
structure of IAR8.11 as an example.

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302
Apps
-main.c application code
-Commissioning.h LoRaWAN parameter configuration file
-sdk_config.h nRF52832 chip configuration file
Board
-device
-iar_startup_nrf52.s system_nrf52.c nRF52832 startup file
-lora_board
-./* Control LoRa chip hardware related file
-peripherals
-./* Driver peripheral related file
-boards.c bsp.c… nRF52832 Hardware related files
LoRa_Lib
-mac
-LoRaMac.c LoRaMacCrypto.c lora mac driver
-region
-./* The region defined by LoRaWAN1.0.2
radio
-sx1276.c support the semtech sx1276 driver
system
-crypto
-./* lora transmit security use AES and cmac check
-gps.c Parse GPS data files
nRF_Lib
-ble
-./* Driver Bluetooth library related files
-device_nrf
-./* nRF52832 interface library files
-libraries
-./* nRF52832 function use case library files
-log
-./* nRF52832 log print information related files
-segger_RTT
-./* Use j-link RTT to print log related files
-softdevice
-./* Bluetooth protocol stack driver files

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302
2.2 Application Switch
In the open source project, there are three Demo cases. Users only need to replace
the main.c and app_lora.c files in the project to switch between different applications.
2.3 Configuration LoRaWAN Parameters
In the project, if you want to modify the way(OTAA or ABP) the device joins the
network and the parameters of joining the network, these parameters include Dev_EUI,
APP_EUI, APP_KEY, DEV_ADDR, NWKS_KEY, APPS_KEY. You can modify it in the
Commissioning.h file.
If you want to modify the way(OTAA or ABP) to join the network, please modify this
parameter:

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302
If you want to modify Dev_EUI, APP_EUI, APP_KEY, DEV_ADDR, NWKS_KEY,
APPS_KEY these parameters, please modify here:
2.4 Modify LoRaWAN Region
The open source code is based on LoRaWAN1.0.2 modified from, so the supported
regions have: EU868, US915, AS923, AU915, IN865, KR920. If you want to modify the
region, you can modify the macro definition.

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302
IAR:
Keil:

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302
3. Demo instructions
The following describes the use of open source project demo. The Demo firmware
see the open source project. How to download the open source project firmware, Please
see RAK815(RAK813 BreakBoard) Firmware download manual document.
3.1 Log Information
When you finish writing Demo firmware. You can view the Log information through the
serial port defined by Demo firmware. But first, you need to connect Pin3-> Pin5, Pin4->
Pin6 on the UART switch interface(see RAK815(RAK813 BreakBoard) Datasheet).
3.1.1 Install Serial Port Driver
This device uses USB to serial port chip CP2102, so after the device is connected to
the computer, the driver will usually be installed automatically, if you find that your
computer is not automatically installed, please go to this link to download the driver:
http://passport.rakwireless.com/stat/en/RAK811%20BreakBoard/Tool/CP210x_Windows_
Drivers.zip

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302

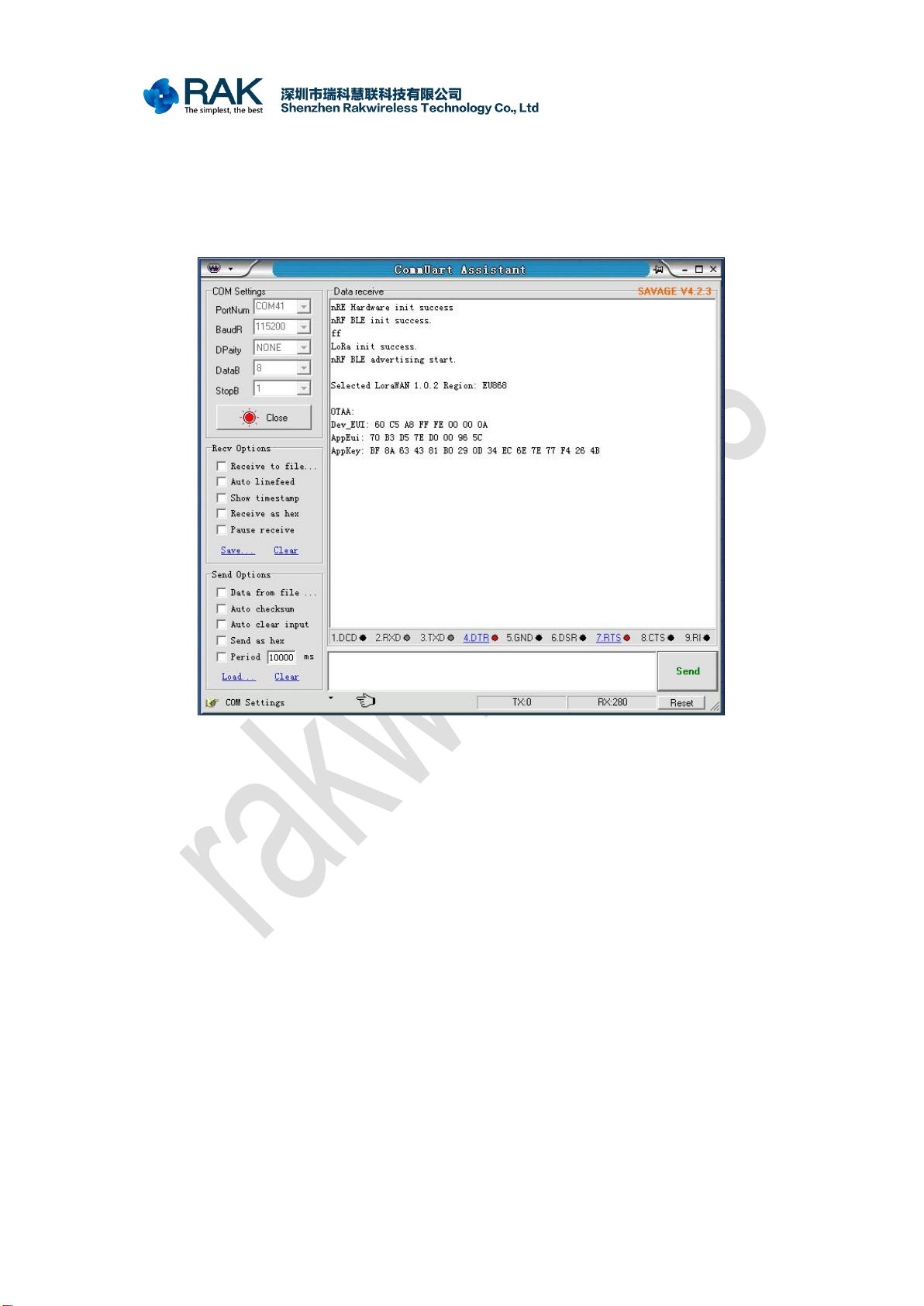

3.3.2 See Log infomation
After the driver is installed successfully, Connect the device to the PC via the Micro
USB connector. then reset(The reset Butten is defined SW3) device will see the following
log information in the serial port.

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302
3.2 LoRaWAN Demo
If you use the application LoRaWAN Demo,When the device is activated, a Bluetooth
radio with the device name "RAK815 LoRaWAN Demo" will be activated. You can view the
device via the phone's Bluetooth.
If you want to achieve Bluetooth transmission data capabilities, you need to download
Nordic official mobile APP “nRF Connect”. If you are an Apple phone, Directly search for
"nordic" at the Apple Store, if you are an Android phone, you also can search for "nordic"
from the Google Store. For details, please refer to the official website:
http://www.nordicsemi.com/eng/Products/Nordic-mobile-Apps

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302
After installing APP, open the APP, select the device's Bluetooth radio "RAK813
BreakBoard" connection. After the connection is successful, click RX Characteristic to
send the data.
Here to send 123456 as an example to demonstrate.

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302
After sending, you will see the data in the serial port of Log information of the device.
The next demonstration uses this feature to configure the LoRaWAN parameters:
The LoRaWAN web server provider selected for this case is TTN and if you do not
know how to set up a LoRa gateway device to connect to the TTN, check here:
https://www.thethingsnetwork.org/labs/story/rak831-lora-gateway-from-package-to-online
After getting OTAA or ABP parameters of LoRa device from TTN. You can write data
into the flash of RAK815(RAK813 BreakBoard) by the function of transmitting data
through Bluetooth, The format of the data you are sending must be as shown below:
lora_cfg:dev_eui=xxxxxxxxxxxxxxxx&app_eui=xxxxxxxxxxxxxxxx&app_key=xxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxx&dev_addr=xxxxxxxx&nwkskey=xxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxx&appskey=xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
(Log information serial port will not print the information of this configuration because the
information is too long.)
When the device parameters are configured successfully, You will see in the log
message serial port: “LoRaWAN parameters configured successfully”. Then reset the
device, if your LoRa gateway device is ready, then RAK815(RAK813 BreakBoard) will
send join request to LoRaWAN network server. You can in the Log information Serial to
see the success of joining the information.

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302
You can also see the data sent by the device on the TTN:

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302
3.3 Peripherals Demo
If you use the application Peripherals Demo, When the device is activated, a
Bluetooth radio with the device name "RAK815 Peripherals Demo" will be activated, and
the device's log information serial port will print the device's sensor information every five
seconds.
Through the aforementioned method, using the mobile phone APP to connect the
device Bluetooth, you can also send data to the device's serial port through the mobile
phone.

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302
If you connect the LCD to the LCD's expansion interface, you can also see the data
for each sensor on the LCD display.
3.4 Scan Demo
If you use the application Scan Demo, When the device is activated, a Bluetooth
radio with the device name "RAK815 Scan Demo" will be activated. As mentioned earlier,
you can also use the mobile phone APP nRF Connect to connect to the device's Bluetooth
and send LoRaWAN parameters to configure the device. When the device parameters are
configured successfully, You will see in the log message serial port: “LoRaWAN
parameters configured successfully”.

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302
After the configuration parameters are successful, if your LoRaWAN gateway has
been set in advance, reset the device at this time and you will receive the message that
the device OTAA has joined successfully.
Next, if you press the first button of the device, see the figure below. The device will
scan the surrounding Bluetooth device for 1s. (Note: This device's Bluetooth BLE
device ,So can only scan Bluetooth BLE devices.)

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302
If the device scans a Bluetooth BLE device, the scanned device information is printed
out from the log information serial port.
If your device is in a LoRaWAN connection state. At this point your device will send
the Bluetooth BLE device information you scanned to the LoRaWAN server.

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302
In addition, if you connect the LCD to the device LCD expansion interface, you can
view the real-time status of the device on the LCD.
4. DFU Function
DFU full name Device Firmware Upgrade, this is a way to upgrade the firmware. In
the open source project, we have created a new project specifically for the DFU project.
The following shows how to upgrade using the DFU function.

BreakBoard User Manual
COPYRIGHT ©
SHENZHEN RAKWIRELESS TECHNOLOGY CO., LTD
www.rakwireless.com ETDX1801191302
We provide users with hex files, which users can find in the open source project Doc
folder.
However, it should be noted that using the DFU function of the nRF, unlike the
previous firmware programming method, the bootloader firmware must be programmed.
Therefore, three firmwares need to be programmed to use the DFU function. They are the
Bluetooth protocol stack firmware, the DFU application firmware, and the bootload
firmware. Bootload firmware can be found in open source functions.
For details on how to program the Bluetooth protocol stack and application firmware,
see: RAK815(RAK813 BreakBoard) Firmware download manual.
The following figure shows how to program bootloader firmware:
