RAK19016 Quick Start Guide
Prerequisite
What Do You Need?
Before going through each and every step on using the RAK19016 WisBlock 5-24V Power Slot Module, make sure
to prepare the necessary items listed below:
Hardware
RAK19016 WisBlock 5-24V Power Slot Module
Your choice of WisBlock Base board with Power Slot
Your choice of WisBlock Core
Li-Ion/LiPo battery
RAK5804 (Reprogramming of the WisBlock Core via USB of RAK5804)
Software
Arduino
Download and install the Arduino IDE .
To add the RAKwireless WisBlock Core boards to your Arduino Boards Manager, install the RAKwireless
Arduino BSP .
Product Configuration
Hardware Setup
RAK19016 should be attached to the power slot connector of WisBlock Base board with power slot. The 5 V to
24 V DC input voltage must be connected to the 3-pin screw terminal connector. The LiPo/Li-Ion battery can be
connected to the standard battery connector.
⚠ WARNING
RAK19016 only supports WisBlock Base boards with power slot. It is not compatible with all WisBlock
Base boards.
For more information about RAK19016, refer to the Datasheet.
RAK19016 Connection to WisBlock Base board with
Power Slot

Documentation Center
Figure 1: RAK19016 connected to a WisBlock Base board with Power Slot
📝 NOTE
The voltage of the battery must not exceed 4.3 V.
RAK19016 Supplemented by RAK5804 to Support
WisBlock Core Reprogramming
Since there is no USB connector on RAK19016, the only way to upload the code is by using RAK5804.
3 9 9
3 9 9
3 9 9
3 9 9
3 9 9
Figure 2: RAK19016 and RAK5804 connection to WisBlock Base
Assembling and Disassembling of WisBlock Modules
Assembling Procedure
The RAK19016 module can be mounted on the power slot of the WisBlock Base board, as shown in Figure 3.
Also, always secure the connection of the WisBlock module by using compatible screws.

Documentation Center
Figure 3: RAK19016 mounting connection to WisBlock Base module
Disassembling Procedure
The procedure in disassembling any type of WisBlock module is the same.
1. First, remove the screws.
Figure 4: Removing screws from the WisBlock module
2. Once the screws are removed, check the silkscreen of the module to find the correct location where force can
be applied.
Figure 5: Detaching silkscreen on the WisBlock module
3. Apply force to the module at the position of the connector, as shown in Figure 6, to detach the module from the
baseboard.

Documentation Center
Figure 6: Applying even forces on the proper location of a WisBlock module
📝 NOTE
If you will connect other modules to the remaining WisBlock Base slots, check on the WisBlock Pin
Mapper tool for possible conflicts.
Battery Connector
Rechargeable Battery
RAK19016 supports a rechargeable Li-Ion/LiPo battery via the dedicated connector. The battery and external 5-
24 V DC input can simultaneously be connected to provide power to all WisBlock modules. The 5-24 VDC goes to
a buck converter with 4.4 VDC output which is higher than the max 4.2 of LiPo battery. 5-24DCV DC is the primary
power source and also charges the LiPo battery at the same time.
The matching connector for the rechargeable battery wires is a JST PHR-2 2 mm pitch female . A cable
assembly for the rechargeable battery connector is also available for purchase in RAK store .
⚠ WARNING
Battery can cause harm if not handled properly.
Only 3.7-4.2 V rechargeable LiPo batteries are supported. It is highly recommended not to use other
types of batteries with the system unless you know what you are doing.
Make sure the battery wires, both rechargeable and non-rechargeable, match the polarity on the
RAK19016 board. Not all batteries have the same wiring.
Software Setup
There is no software required to use RAK19016. But to control the two user LEDs and monitor the battery voltage,
it must be attached to a WisBlock Base and WisBlock Core.
WisBlock Examples Repository
To quickly build your IoT device with less hassle, example codes for WisBlock Core are provided. You can access
the codes on the WisBlock Example code repository . The example codes on folder common are compatible
with RAK4631, RAK11200, and RAK11310 WisBlock Cores. The two user LEDs of RAK19016 can be accessed
using macrodefinitions LED_GREEN / PIN_LED1 for the green LED and LED_BLUE / PIN_LED2 for the blue
LED. For the battery voltage reading, WB_A0 is used.

Last Updated: 7/18/2022, 6:55:21 AM

Documentation Center
RAK19016 WisBlock 5-24V Power Slot Module
Datasheet
Overview
Description
RAK19016 is a WisBlock 5-24 V Power Slot Module that comprises a 3-pin screw terminal connector, LiPo battery
connector with an on-board charger, LED indicator for charge status, two user-configurable LEDs, reset button,
and a power connector that can be connected with the WisBlock Base board with Power Slot.
This power module is designed to enable WisBlock to be powered by higher voltage levels up to 24 V DC. It also
has a LiPo battery connector which allows the battery as a power source or as a backup secondary supply.
Features
Supports 5 V to 24 V DC voltage supply input
Uses three-pin screw terminal connector
Compatible with LiPo rechargeable battery
On-board battery charger chip
LED for charging status and user-configurable LEDs
Applicable to industrial and enterprise setting
Module size: 30 x 20 mm
Specifications
Overview
Board Overview
Figure 1: RAK19016 WisBlock Power Module top (left) and bottom (right) view
Mounting
The RAK19016 module can be mounted on the power slot of the WisBlock Base board. Figure 2 shows the

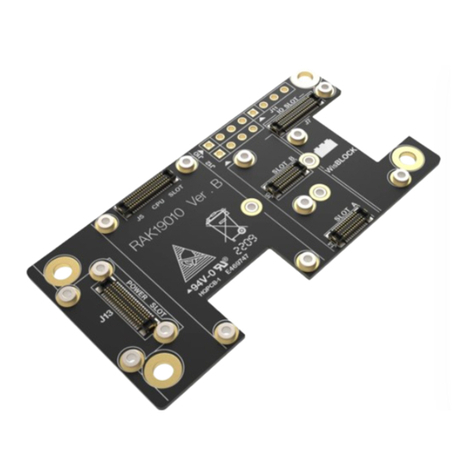

mounting mechanism of the RAK19016 on a WisBlock Base module with a power slot, such as the RAK19010.
⚠ WARNING
RAK19016 only supports WisBlock Base boards with Power Slot. It is not compatible with all WisBlock
Base boards.

Documentation Center
Figure 2: RAK19016 mounting mechanism on a WisBlock Base board with Power Slot
Hardware
The hardware specification is categorized into six parts. It discusses the interfacing, pinouts, and their
corresponding functions and diagrams of the module. It also covers the electrical, mechanical, and environmental
characteristics that include the tabular data of the functionalities and standard values of the RAK19016 WisBlock
5-24V Power Slot Module.
Interfaces
RAK19016 WisBlock 5-24V Power Slot Module provides the following interfaces:
Three-pin Screw Terminal Connector
Battery Connector
LEDs - one for charging status and two for user
Reset button
📝 NOTE
RAK19016 doesn't have a USB connector. So when RAK19016 is used together with WisBlock Base
board with power slot, it is not possible to program the core (unless via SWD pins using external tools like
Jlink and RAKDAP1). If you want to program the WisBlock Core via USB, you need the RAK5804. Then
you can use the USB connector of RAK5804 to program the WisBlock Core.
Figure 3: RAK19016 part labels

Documentation Center
5-24V DC and Battery Connector
Figure 4 shows the polarity of 5-24 V DC input and battery connector V+ (VBAT) and V- (GND).
Figure 4: 5-24V DC and Battery connector pins
📝 NOTE
The voltage of the battery must not exceed 4.3 V.
LEDs
Three LEDs are used to indicate the operating status. Below are the functions of the LEDs:
🔴 Red LED - Connected to the charger chip to indicate the charger status. When the battery is charging, this
red LED is on. When the battery is full, this LED is weak light or off.
 Green LED - Connected to the MCU module, controlled by MCU defined by the user.
🔵 Blue LED - Connected to the MCU module, controlled by MCU defined by the user.
RESET Push Button
The Reset Push Button shown in Figure 3 is connected to the MCU module. When pushed, it resets the MCU.
Pin Definition
The RAK19016 module has a 40-pin WisConnector that is compatible with the WisBlock Power Slot. The pin order
of the connector and the pinout definition is shown in Figure 5.
📝 NOTE
VBAT, 3V3, RESET, LED1, LED2, ADC_VBAT, and GND have connected to WisBlock 40-pin connector.

Documentation Center
Figure 5: RAK19016 pinout diagram
Electrical Characteristics
Absolute Maximum Ratings
The Absolute Maximum Ratings of the device are shown in the table below. The stress ratings are the functional
operation of the device.
⚠ WARNING
1. If the stress rating goes above what is listed, it may cause permanent damage to the device.
2. Exposure to maximum rating conditions may affect the device reliability.
Voltage Specifications
The RAK19016 WisBlock 5-24V Power Slot Module is suitable for external input voltage supply. The nominal input
operating voltage should be within the range shown in the following table.
The RAK19016 supported battery should have nominal operating voltage within the range shown in the following
table.
Ratings Maximum Value Unit
Input voltage in 3-pin terminal connector (VCC-IN) 5 to 24 V
Battery voltage (VBAT) –0.3 to 4.3 V
IOs of WisBlock connector –0.3 to VDD+0.3 V
Minimum Typical Maximum Unit
5 - 24 V

Documentation Center
A suitable Li-Ion battery should have the following parameters as shown in the table below:
Mechanical Characteristic
Board Dimensions
The mechanical dimensions of the RAK19016 module are shown in Figure 6 below.
Figure 6: RAK19016 mechanical dimensions
WisConnector PCB Layout
Minimum Typical Maximum Unit
3.3 3.7 4.3 V
Parameter Value
Standard Voltage 3.7 V
Charging Voltage 4.2 V
Capacity As required
Discharge current At least 500 mA

Documentation Center
Figure 7: WisConnector PCB footprint and recommendations
Environmental Characteristics
The table below lists the operation and storage temperature requirements of RAK19016:
Schematic Diagram
Figure 8 shows the schematic of the WisBlock 5-24V Power Slot Module.
Parameter Minimum Typical Maximum
Operational temperature range –35 ºC +25 ºC +75 ºC
Extended temperature range –40 ºC +25 ºC +80 ºC
Storage temperature range –40 ºC +25 ºC +80 ºC

Documentation Center
Figure 8: RAK19016 5-24V Power Slot Module schematics
