SmarTrax™ Installation Manual
Case IH Steiger and
New Holland TJ/T90X0

While every effort has been made to ensure the accuracy of this document,
Raven Industries assumes no responsibility for omissions and errors. Nor is any
liability assumed for damages resulting from the use of information contained
herein.
Raven Industries shall not be responsible or liable for incidental or consequential
damages or a loss of anticipated benefits or profits, work stoppage or loss, or
impairment of data arising out of the use, or inability to use, this system or any of
its components. Raven Industries shall not be held responsible for any
modifications or repairs made outside our facilities, nor damages resulting from
inadequate maintenance of this system.
As with all wireless and satellite signals, several factors may affect the availability
and accuracy of wireless and satellite navigation and correction services (e.g.
GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot guarantee the
accuracy, integrity, continuity, or availability of these services and cannot
guarantee the ability to use Raven systems, or products used as components of
systems, which rely upon the reception of these signals or availability of these
services. Raven Industries accepts no responsibility for the use of any of these
signals or services for other than the stated purpose.
Disclaimer
©Raven Industries, Inc. 2012

Table of Contents
Manual No. 016-5032-004 i
Chapter 1 Important Safety Information................................................. 1
Hydraulic Safety ........................................................................................................................2
Electrical Safety ........................................................................................................................2
Chapter 2 Introduction............................................................................. 3
Updates .....................................................................................................................................3
Preparing for Installation ...........................................................................................................4
Recommendations ..............................................................................................................4
Point of Reference ...............................................................................................................4
Kit Contents ...............................................................................................................................5
Chapter 3 Hydraulic System Installation................................................ 9
Install the Proportional Valve (PVE) ........................................................................................10
Install the Override Flow Switch ..............................................................................................13
Chapter 4 Cab Component Installation................................................ 17
Install the SmarTrax Node .......................................................................................................17
Mount the SmarTrax Node ................................................................................................17
Node Mounting Locations ..................................................................................................18
Route the Node Harness .........................................................................................................18
Install the Foot Switch .............................................................................................................19
Install the Valve Harness ......................................................................................................... 19
Install the Chassis Cable - SmarTrax-Only Systems (If Applicable) ........................................22
Connect SmarTrax to an Existing Chassis Cable (If Applicable) ............................................22
System Diagrams ....................................................................................................................23
Chapter 5 Startup Procedures .............................................................. 27
Verify the SmarTrax System Installation .................................................................................27
Calibrate the SmarTrax System ..............................................................................................28

Table of Contents
ii Case IH Steiger & New Holland TJ/T90X0 SmarTrax™ Installation Manual

CHAPTER
1
Manual No. 016-5032-004 1
C hapt er 1 Important Safety
Information
Read this manual and the operation and safety instructions included with your implement and/or controller
carefully before installing the SmarTrax™ system.
•Follow all safety information presented within this manual.
•If you require assistance with any portion of the installation or service of your Raven equipment, contact
your local Raven dealer for support.
•Follow all safety labels affixed to the SmarTrax system components. Be sure to keep safety labels in good
condition and replace any missing or damaged labels. To obtain replacements for missing or damaged
safety labels, contact your local Raven dealer.
When operating the machine after installing SmarTrax, observe the following safety measures:
•Be alert and aware of surroundings.
•Do not operate SmarTrax or any agricultural equipment while under the influence of alcohol or an illegal
substance.
•Remain in the operator’s position in the machine at all times when SmarTrax is engaged.
•Disable SmarTrax when exiting the operator’s seat and machine.
•Do not drive the machine with SmarTrax enabled on any public road.
•Determine and remain a safe working distance from other individuals. The operator is responsible for
disabling SmarTrax when the safe working distance has diminished.
•Ensure SmarTrax is disabled prior to starting any maintenance work on SmarTrax or the machine.
•When starting the machine for the first time after installing SmarTrax, be sure that all persons stand clear in
case a hose has not been properly tightened.
•The machine must remain stationary and switched off during SmarTrax installation or maintenance.
NOTICE
WARNING

Chapter 1
2 Case IH Steiger & New Holland TJ/T90X0 SmarTrax™ Installation Manual
Hydraulic Safety
•Raven Industries recommends that appropriate protective equipment be worn at all times when working on
the hydraulic system.
•Never attempt to open or work on a hydraulic system with the equipment running. Care should always be
taken when opening a system that has been previously pressurized.
•When disconnecting the hydraulic hoses or purging is required, be aware that the hydraulic fluid may be
extremely hot and under high pressure. Caution must be exercised.
•Any work performed on the hydraulic system must be done in accordance with the machine manufacturer’s
approved maintenance instructions.
•When installing SmarTrax hydraulics or performing diagnostics, maintenance, or routine service, ensure
that precautions are taken to prevent any foreign material or contaminants from being introduced into the
machine’s hydraulic system. Objects or materials that are able to bypass the machine’s hydraulic filtration
system will reduce performance and possibly damage the SmarTrax valve.
Electrical Safety
•Always verify that the power leads are connected to the correct polarity as marked. Reversing the power
leads could cause severe damage to the equipment.
•Ensure that the power cable is the last cable to be connected.
CAUTION

CHAPTER
2
Manual No. 016-5032-004 3
C hapt er 2 Introduction
Congratulations on your purchase of the Steering Ready system! This system is designed to provide cutting-
edge, hands-free steering of the machine via Global Positioning System (GPS) coordinates.
This manual applies to the following machines:
MAKE: Case IH
MODEL: Steiger 335/385/435/485/535 and STX 280/330/380/430/480/530
MAKE: New Holland
MODEL: TJ 280/330/380/430/480/530 and T9010/9020/9030/9040/9050/9060
FIGURE 1. New Holland T9050 and Case IH Steiger 535
Updates
Software and manual updates are available on the Raven Applied Technology website:
http://www.ravenhelp.com

Chapter 2
4 Case IH Steiger & New Holland TJ/T90X0 SmarTrax™ Installation Manual
Preparing for Installation
Before installing the SmarTrax system, park the machine where the ground is level, clean, and dry. Turn off the
machine and leave it turned off for the duration of the installation process. Bleed pressure from the hydraulic
system by loosening the hydraulic fittings slowly, where applicable.
During the installation process, follow good safety practices. Be sure to carefully read the instructions in this
manual as you complete the installation process.
Recommendations
Raven Industries recommends the following best practices when installing or operating the SmarTrax system
for the first time, at the start of the season, or when moving the SmarTrax system to another machine:
•Ensure the machine’s hydraulic filters have been recently changed and there are no issues with the
machine’s hydraulic system (e.g., pump issues, faulty hydraulic motors, fine metal deposits in the hydraulic
hoses, etc.).
•Ensure the machine’s hydraulic valve is using fresh oil and debris is flushed from the hydraulic hoses,
valves, and filters.
Raven Industries recommends the following best practices when installing the SmarTrax system:
•Use part numbers to identify the parts.
•Do not remove the plastic wrap from a part until it is necessary for installation.
•Do not remove plastic caps from a part until it is necessary for installation.
Point of Reference
The instructions in this manual assume that you are standing behind the machine, looking toward the cab.

Manual No. 016-5032-004 5
Introduction
Kit Contents
This section contains a list of the components that are included in the SmarTrax kit. Before beginning the
SmarTrax installation, compare the items in the kit with the components on this list. If you have questions about
the kit, contact your Raven dealer.
Note: The SmarTrax node (P/N 063-0173-228) is sold separately. Contact your local Raven dealer for
ordering information.
TABLE 1. SmarTrax Installation Kit (P/N 117-5032-004)
Picture Item Description Part Number Qty.
Not Pictured Manual - Case IH Steiger and New Holland
TJ SmarTrax Installation 016-5032-004 1
Not Pictured Manual - SmarTrax and SmartSteer
Calibration & Operation 016-0171-277 1
Valve - PVES Control 334-0002-162 1
Valve - PVES Shuttle 334-0002-163 2
Switch - Flow 334-0003-085 1
Bracket - Node Mounting 107-0172-084 1
Cable - Valve Harness 115-4001-104 1
Cable - Node Harness 115-4001-126 1

Chapter 2
6 Case IH Steiger & New Holland TJ/T90X0 SmarTrax™ Installation Manual
Assembly - SmarTrax Enable Foot Switch 063-0172-470 1
Bolt - M6 x 1.00 x 20 mm Hex 311-0070-010 4
Bolt - M8 x 1.25 x 50 mm Hex 311-0070-044 1
Nut - 3/8”-16 Nylon Insert Lock 312-4000-061 3
Nut - M6 Nylon Insert Lock 312-4000-207 4
Washer - 5/16” Split Lock 313-1000-019 1
Washer - 0.250” ID x 0.562” OD x 0.065”
Thick 313-2300-009 4
TABLE 2. Hydraulic Installation Kit (P/N 117-0199-109)
Picture Item Description Part Number Qty.
Fitting - -6 ORFS (M) to -6 SAE O-Ring (M)
Straight Adapter 333-0012-084 2
Hydraulic Hose - -6 ORFS (F) to -8 ORFS (F)
90° - 24” 214-1000-775 1
TABLE 1. SmarTrax Installation Kit (P/N 117-5032-004)
Picture Item Description Part Number Qty.

Manual No. 016-5032-004 7
Introduction
Hydraulic Hose - -6 ORFS (M) to -6 ORFS
(F) 90° - 13” 214-1000-776 1
Hydraulic Hose - -6 ORFS (F) to -6 ORFS (F)
90° - 24” 214-1000-779 1
TABLE 2. Hydraulic Installation Kit (P/N 117-0199-109)
Picture Item Description Part Number Qty.

Chapter 2
8 Case IH Steiger & New Holland TJ/T90X0 SmarTrax™ Installation Manual

CHAPTER
3
Manual No. 016-5032-004 9
C hapt er 3 Hydraulic System
Installation

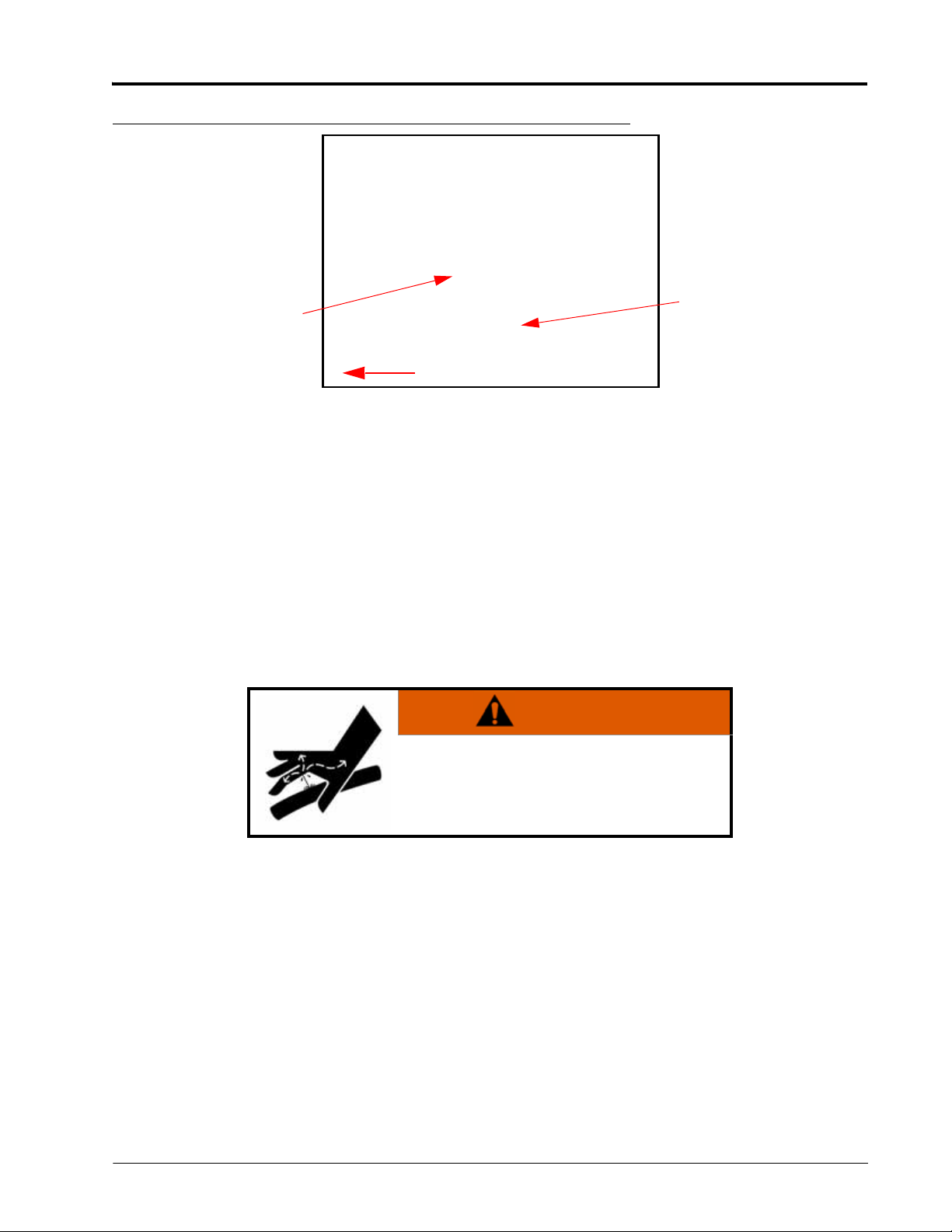

WARNING
Hydraulics are under pressure. Care should
always be taken with a system that has been
pressurized.
Before beginning the SmarTrax hydraulic
installation, turn off the machine and relieve
pressure by turning the steering wheel left and
right.
Never work on a hot machine. Always allow it to
cool before performing diagnostics,
maintenance, or routine service.
When disconnecting or purging hydraulic
hoses, be aware that the hydraulic fluid within
the machine’s system may be extremely hot
and under high pressure.
Tampering with hydraulic valves may cause
serious injury or death, and will void the
warranty.
CAUTION
When installing SmarTrax hydraulics or
performingdiagnostics,maintenance,or routine
service, ensure precautions are taken to
prevent any foreign material from being
introduced into the machine’s hydraulic system.
Objects or materials that are able to bypass the
machine’s hydraulic filtration system will reduce
performance and possibly damage the
SmarTrax hydraulic valve.

Chapter 3
10 Case IH Steiger & New Holland TJ/T90X0 SmarTrax™ Installation Manual
Install the Proportional Valve (PVE)

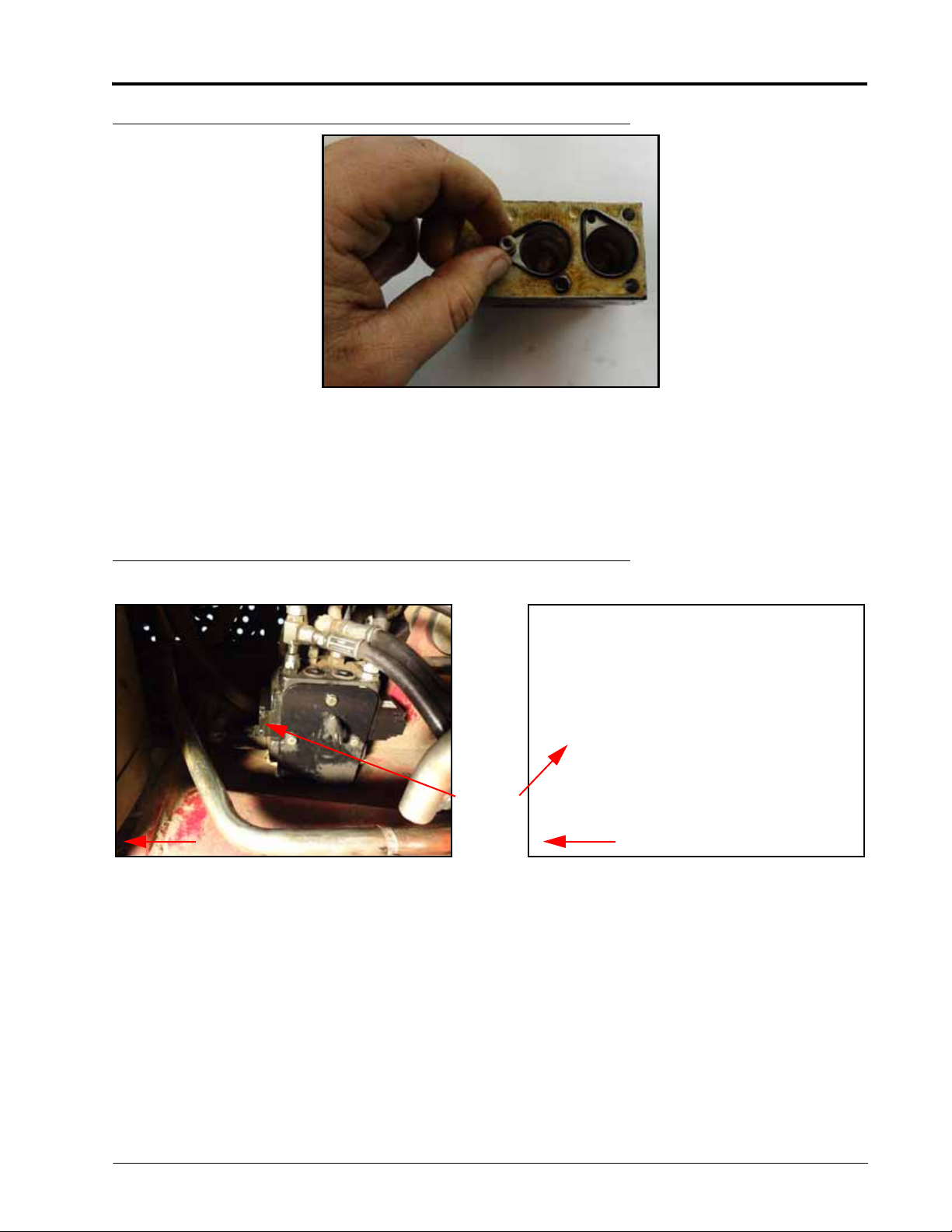

FIGURE 1. Steering Valve Location
1. Locate the steering valve.
Note: On smaller models, the steering valve is located under the hood, directly in front of the cab. On all
larger models, the steering valve is located behind the front axle on the right side of the tractor
frame.
FIGURE 2. Large End Cap Location
2. Remove the large end cap from the steering valve.
Note: It may be necessary to remove valve mounting bolts, hoses, and/or tubes to access the end cap.
Steering Valve
Location - Smaller
Models
Steering Valve
Location - Larger
Models (Behind
Front Axle on
Right Side of
Frame)
Large
End Cap
Valve Located Behind the Axle Valve Located by the Cab
Front of Machine Front of Machine

Manual No. 016-5032-004 11
Hydraulic System Installation
FIGURE 3. Shuttle Valve Installed in End Cap
3. Install the tapered end of a shuttle valve (P/N 334-0002-163) into the end cap.
4. Reinstall the end cap on the steering valve.
Note: Ensure the O-rings remain seated during installation.
5. Reinstall and tighten any previously removed mounting bolts, hoses, and/or tubes.
FIGURE 4. Small End Cap Location
6. Remove the opposite end cap from the steering valve.
Note: The second, smaller end cap is not used in the SmarTrax system. Store the end cap in a safe
place for future use in case the SmarTrax system is removed from the machine.
Small
End Cap
Valve Located Behind the Axle Valve Located by the Cab
Front of Machine Front of Machine

Chapter 3
12 Case IH Steiger & New Holland TJ/T90X0 SmarTrax™ Installation Manual
FIGURE 5. Shuttle Valve Installed in the PVE
7. Install the tapered end of the remaining shuttle valve into the supplied PVE (P/N 334-0002-162).
FIGURE 6. PVE Installed on Steering Valve
8. Install the PVE in the removed end cap location.
Note: Ensure the O-rings remain seated during installation.

Manual No. 016-5032-004 13
Hydraulic System Installation
Install the Override Flow Switch
FIGURE 7. Fittings and Transducers Installed in the Flow Switch
1. Install the -6 ORFS (M) to -6 SAE O-Ring (M) straight adapter fittings in the ends of the flow switch (P/N
334-0003-085), one in an A port and one in a B port.
2. Install pressure transducers into the remaining A and B ports.
Note: It makes no difference in which ports the adapter fittings and pressure transducers are installed as
long as one of each is installed in an A port and the other is installed in a B port.
FIGURE 8. Flow Switch Mounted on the Machine
3. Mount the flow switch to the valve mounting bracket using the supplied M8 hex head bolt (P/N 311-0070-
044) and the 5/16” lock washer (P/N 313-1000-019).
Note: The existing bolt in the selected mounting location will need to be removed.
Axle Mounting Location
(Bottom View) Cab Mounting Location
(Left Side View)
Valve
Mounting
Bolts
Front of Machine
Front of Machine

Chapter 3
14 Case IH Steiger & New Holland TJ/T90X0 SmarTrax™ Installation Manual

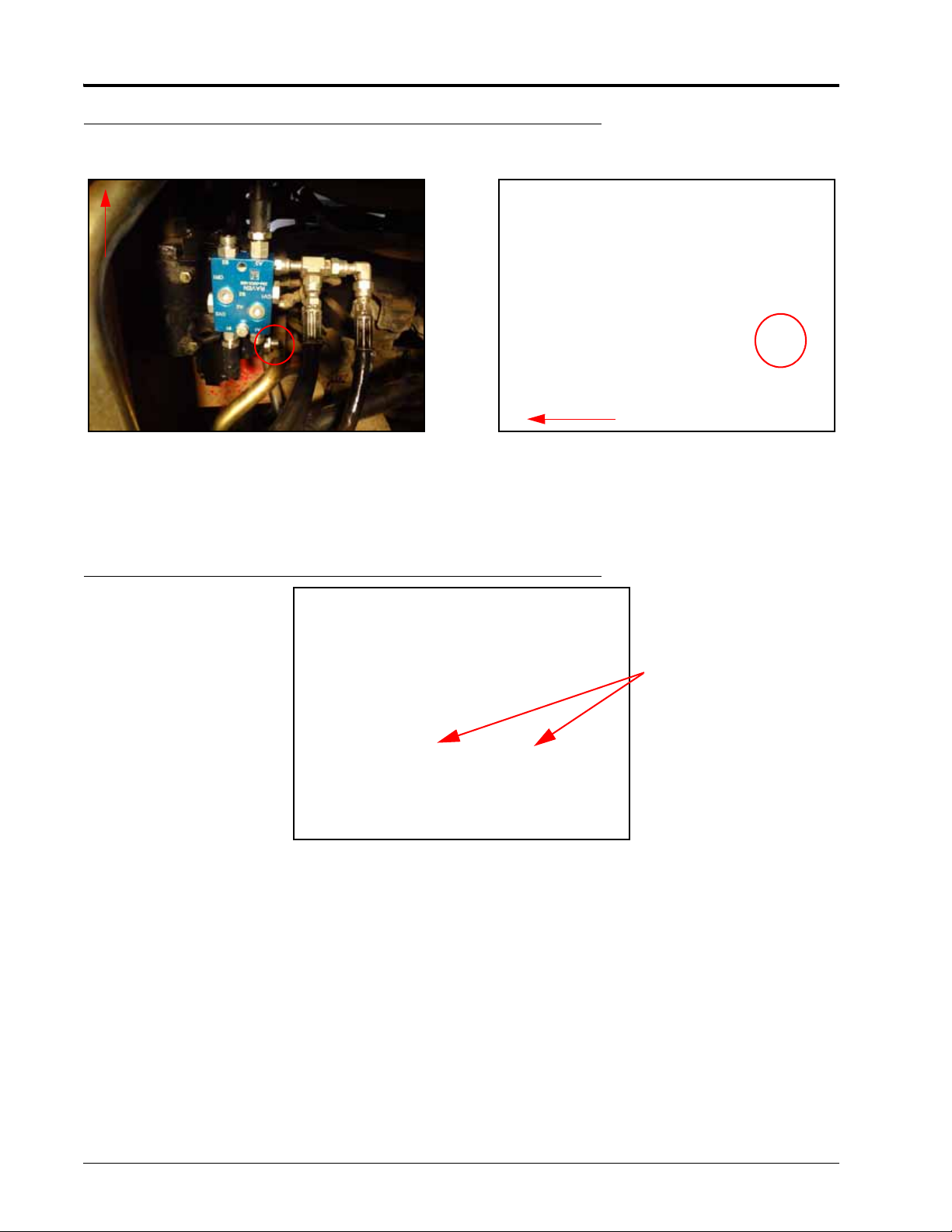

FIGURE 9. Pressure Hose Removed from the Steering Valve
4. Remove the pressure hose from the fitting installed in port PS of the steering valve fitting as shown in the
figure below.
Note: On smaller models, the pressure line is a steel tube. On larger models, the pressure line is a hose.
FIGURE 10. Pressure Hose Removed from the Bulkhead (If Applicable)
5. Smaller Models Only - Disconnect the pressure tube and hydraulic hose from the bulkhead fitting as shown
in the figure below.
Note: Store the disconnected pressure tube in a safe place for future use in case the SmarTrax system is
removed from the machine.
PS Port Circled at the Axle Mounting Location
(Bottom View) PS Port Circled at the Cab Mounting Location (Top View)
Front of Machine
Front of Machine
Disconnect Here

Manual No. 016-5032-004 15
Hydraulic System Installation
FIGURE 11. Hoses Installed on Flow Switch
6. Install the supplied 24” hydraulic hose on the pressure port of the steering valve.
Note: Two 24” hydraulic hoses were included in the installation kit - one (214-1000-775) for smaller
models and another (214-1000-779) for larger models. Only one hose properly connects to the
pressure port. The other hose will not be used and may be discarded.
7. Connect the other end of the installed hydraulic hose to one of the fittings on the flow switch.
8. Install the supplied 13” hydraulic hose (214-1000-776) on the remaining fitting on the flow switch.
9. Connect the other end of the installed 13” hydraulic hose to the machine’s pressure hose that was
previously disconnected from the steering valve.
Note: For smaller models, connect the other end of the installed 13” hydraulic hose to the machine’s
hose that was disconnected from the back side of the bulkhead.
10. Verify the hydraulic connections are tight.
11. Start the machine’s engine and ensure the hydraulic connections are not leaking and hoses are not rubbing
on or interfering with other moving parts.
12. Turn the wheels fully from side to side several times to purge air from the hydraulic system.
WARNING
Do not use hands to check for leaks in the
hydraulic system. Hydraulic fluid under
pressure can penetrate the skin and cause
serious injury or death.
Hose 214-1000-776
Connected to Previously
Disconnected Pressure
Hose
Hose 214-1000-775 or 214-
1000-779 Connected to PS
Port on Steering Valve
Front of Machine

Chapter 3
16 Case IH Steiger & New Holland TJ/T90X0 SmarTrax™ Installation Manual
