Raven SmarTrax User manual

Case IH STX/Steiger/Quadtrac
(AccuGuide™ - Ready) and
New Holland TJ/T90X0/T9.XXX
(IntelliSteer™ - Ready)
SmarTrax™ Installation Manual
P/N 016-5032-002 Rev C 09/15 E22732
Copyright 2011, 2012, 2014, 2015

While every effort has been made to ensure the accuracy of this document,
Raven Industries assumes no responsibility for omissions and errors. Nor is any
liability assumed for damages resulting from the use of information contained
herein.
Raven Industries shall not be responsible or liable for incidental or consequential
damages or a loss of anticipated benefits or profits, work stoppage or loss, or
impairment of data arising out of the use, or inability to use, this system or any of
its components. Raven Industries shall not be held responsible for any
modifications or repairs made outside our facilities, nor damages resulting from
inadequate maintenance of this system.
As with all wireless and satellite signals, several factors may affect the availability
and accuracy of wireless and satellite navigation and correction services (e.g.
GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot guarantee the
accuracy, integrity, continuity, or availability of these services and cannot
guarantee the ability to use Raven systems, or products used as components of
systems, which rely upon the reception of these signals or availability of these
services. Raven Industries accepts no responsibility for the use of any of these
signals or services for other than the stated purpose.
Disclaimer
©Raven Industries, Inc. 2011, 2012, 2014

Table of Contents
Manual No. 016-5032-002 Rev. C i
Chapter 1 Important Safety Information................................................. 1
Hydraulic Safety ........................................................................................................................ 2
Electrical Safety ........................................................................................................................ 2
Chapter 2 Introduction............................................................................. 3
Updates ..................................................................................................................................... 3
Preparing for Installation ........................................................................................................... 4
Recommendations .............................................................................................................. 4
Point of Reference ............................................................................................................... 4
Kit Contents ............................................................................................................................... 4
Chapter 3 Cab Component Installation .................................................. 7
Install the SmarTrax Node - Model Year 2010 & Older ............................................................. 7
Install the SmarTrax Node - Model Year 2011 & Newer ............................................................ 9
Install the SmarTrax Node ................................................................................................... 9
Install the Case IH Interface Box ....................................................................................... 11
Node Mounting Locations ....................................................................................................... 13
Install the Foot Switch ............................................................................................................. 13
Install the Master Switch (If Applicable) .................................................................................. 14
Install the Phoenix 200 Antenna - Model Year 2010 and Older (If Applicable) ....................... 15
Install the Chassis Cable - SmarTrax-Only Systems (If Applicable) ........................................ 15
Connect SmarTrax to an Existing Chassis Cable (If Applicable) ............................................ 16
Calibrate the SmarTrax System .............................................................................................. 16
System Diagrams .................................................................................................................... 17

Table of Contents
ii Case IH STX/Steiger/Quadtrac & New Holland TJ/T90X0/T9.XXX - Steering Ready SmarTrax™ Installation Manuall

CHAPTER
1
Manual No. 016-5032-002 Rev. C 1
C hapt er 1 Important Safety
Information
Read this manual and the operation and safety instructions included with your implement and/or controller
carefully before installing the SmarTrax™ system.
•Follow all safety information presented within this manual.
•If you require assistance with any portion of the installation or service of your Raven equipment, contact
your local Raven dealer for support.
•Follow all safety labels affixed to the SmarTrax system components. Be sure to keep safety labels in good
condition and replace any missing or damaged labels. To obtain replacements for missing or damaged
safety labels, contact your local Raven dealer.
When operating the machine after installing SmarTrax, observe the following safety measures:
•Be alert and aware of surroundings.
•Do not operate SmarTrax or any agricultural equipment while under the influence of alcohol or an illegal
substance.
•Remain in the operator’s position in the machine at all times when SmarTrax is engaged.
•Disable SmarTrax when exiting the operator’s seat and machine.
•Do not drive the machine with SmarTrax enabled on any public road.
•Determine and remain a safe working distance from other individuals. The operator is responsible for
disabling SmarTrax when the safe working distance has diminished.
•Ensure SmarTrax is disabled prior to starting any maintenance work on SmarTrax or the machine.
•When starting the machine for the first time after installing SmarTrax, be sure that all persons stand clear in
case a hose has not been properly tightened.
•The machine must remain stationary and switched off during SmarTrax installation or maintenance.
NOTICE
WARNING

Chapter 1
2Case IH STX/Steiger/Quadtrac & New Holland TJ/T90X0/T9.XXX - Steering Ready SmarTrax™ Installation Manual
Hydraulic Safety
•Raven Industries recommends that appropriate protective equipment be worn at all times when working on
the hydraulic system.
•Never attempt to open or work on a hydraulic system with the equipment running. Care should always be
taken when opening a system that has been previously pressurized.
•When disconnecting the hydraulic hoses or purging is required, be aware that the hydraulic fluid may be
extremely hot and under high pressure. Caution must be exercised.
•Any work performed on the hydraulic system must be done in accordance with the machine manufacturer’s
approved maintenance instructions.
•When installing SmarTrax hydraulics or performing diagnostics, maintenance, or routine service, ensure
that precautions are taken to prevent any foreign material or contaminants from being introduced into the
machine’s hydraulic system. Objects or materials that are able to bypass the machine’s hydraulic filtration
system will reduce performance and possibly damage the SmarTrax valve.
Electrical Safety
•Always verify that the power leads are connected to the correct polarity as marked. Reversing the power
leads could cause severe damage to the equipment.
•Ensure that the power cable is the last cable to be connected.
CAUTION

CHAPTER
2
Manual No. 016-5032-002 Rev. C 3
C hapt er 2 Introduction
Congratulations on your purchase of the SmarTrax system! This system is designed to provide cutting-edge,
hands-free steering of the machine via Global Positioning System (GPS) coordinates.
This manual applies to the following machines:
MAKE: Case IH
MODEL: STX 280-530, Steiger 335-535, Steiger 350-600, and Quadtrac (AccuGuide™-Ready)
MAKE: New Holland
MODEL: TJ 280-530, T9020-9060, T9.390-T9.670 (IntelliSteer™-Ready)
FIGURE 1. Case IH Steiger 535
Updates
Software and manual updates are available on the Raven Applied Technology website:
http://www.ravenhelp.com

Chapter 2
4Case IH STX/Steiger/Quadtrac & New Holland TJ/T90X0/T9.XXX - Steering Ready SmarTrax™ Installation Manual
Preparing for Installation
Before installing the SmarTrax system, park the machine where the ground is level, clean, and dry. Turn off the
machine and leave it turned off for the duration of the installation process. Bleed pressure from the hydraulic
system by loosening the hydraulic fittings slowly, where applicable.
During the installation process, follow good safety practices. Be sure to carefully read the instructions in this
manual as you complete the installation process.
Recommendations
Raven Industries recommends the following best practices when installing or operating the SmarTrax system
for the first time, at the start of the season, or when moving the SmarTrax system to another machine:
•Ensure the machine’s hydraulic filters have been recently changed and there are no issues with the
machine’s hydraulic system (e.g., pump issues, faulty hydraulic motors, fine metal deposits in the hydraulic
hoses, etc.).
•Ensure the machine’s hydraulic valve is using fresh oil and debris is flushed from the hydraulic hoses,
valves, and filters.
Raven Industries recommends the following best practices when installing the SmarTrax system:
•Use part numbers to identify the parts.
•Do not remove the plastic wrap from a part until it is necessary for installation.
•Do not remove plastic caps from a part until it is necessary for installation.
Point of Reference
The instructions in this manual assume that you are standing behind the machine, looking toward the cab.
Kit Contents
This section contains a list of the components that are included in the SmarTrax kit. Before beginning the
SmarTrax installation, compare the items in the kit with the components on this list. If you have questions about
the kit, contact your Raven dealer.

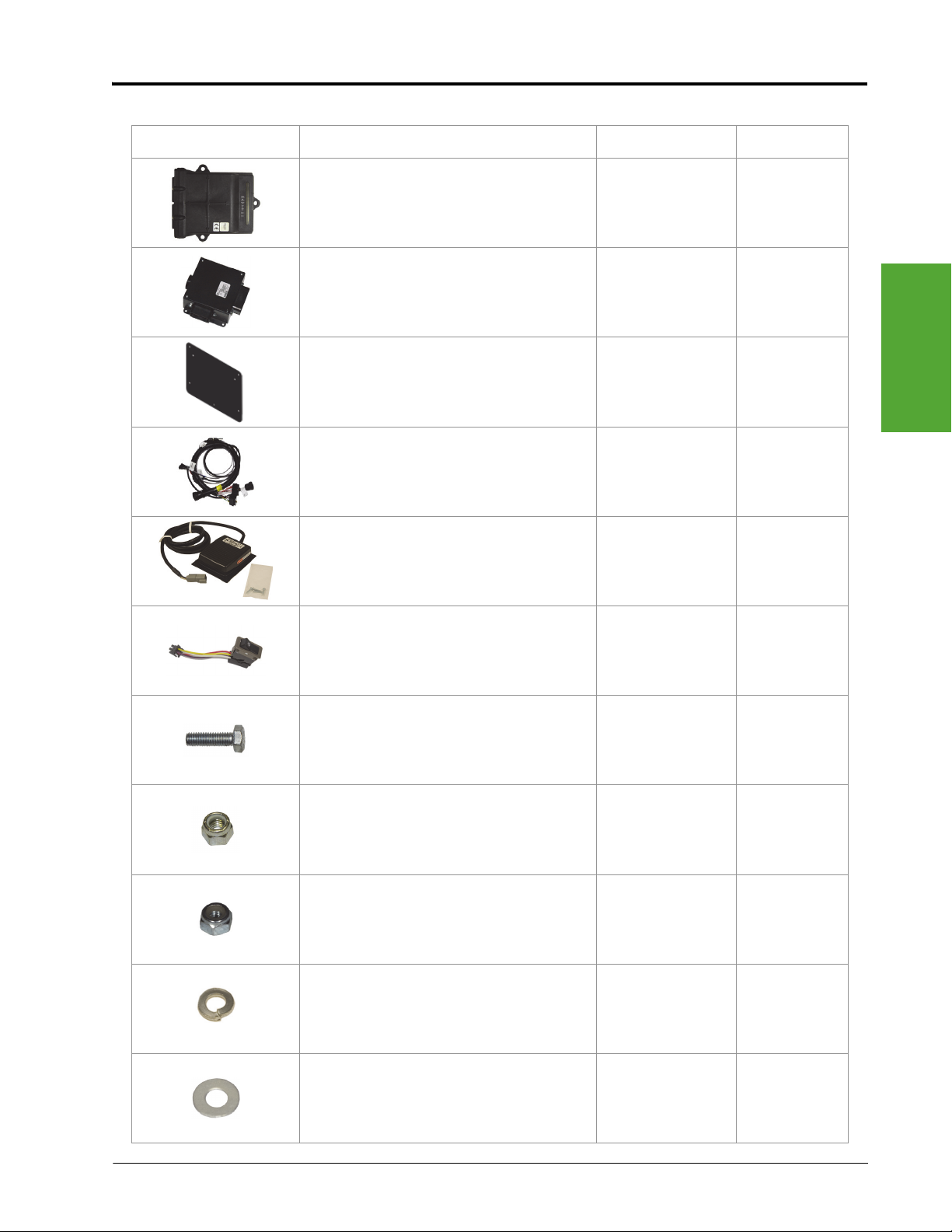

TABLE 1. SmarTrax Installation Kit (P/N 117-5032-002)
Picture Item Description Part Number Qty.
Not Pictured
Manual - Case IH STX, Steiger, Quadtrac
(AccuGuide-Ready) and New Holland TJ,
T90x0, T9.XXX (IntelliSteer-Ready)
SmarTrax Installation
016-5032-002 1
Not Pictured Manual - SmarTrax and SmartSteer
Calibration & Operation 016-0171-277 1

2
Manual No. 016-5032-002 Rev. C 5
Introduction
Node - SmarTrax RTK 063-0173-228 1
Interface - Case IH Box 063-0173-038 1
Plate - Node Mounting 107-0172-084 1
Cable - Case IH Steiger/Quadtrac SmarTrax
Node 115-4001-092 1
Assembly - SmarTrax Enable Foot Switch 063-0172-470 1
Switch - Master 412-2011-104 1
Bolt - M6 x 1.0 x 2.0 311-0070-010 4
Nut - 3/8”-16 Nylon Insert Lock 312-4000-061 3
Nut - M6 x 1.0 Lock 312-4000-207 4
Washer - 1/4” Zinc Split Lock 313-1000-016 4
Washer - 0.250” ID x 0.562” OD x 0.065
Thick 313-2300-009 4
TABLE 1. SmarTrax Installation Kit (P/N 117-5032-002)
Picture Item Description Part Number Qty.

Chapter 2
6Case IH STX/Steiger/Quadtrac & New Holland TJ/T90X0/T9.XXX - Steering Ready SmarTrax™ Installation Manual

CHAPTER
3
Manual No. 016-5032-002 Rev. C 7
C hapt er 3 Cab Component
Installation
Install the SmarTrax Node - Model Year 2010
& Older
1. Locate the Case steering control system cables under the instructional seat.

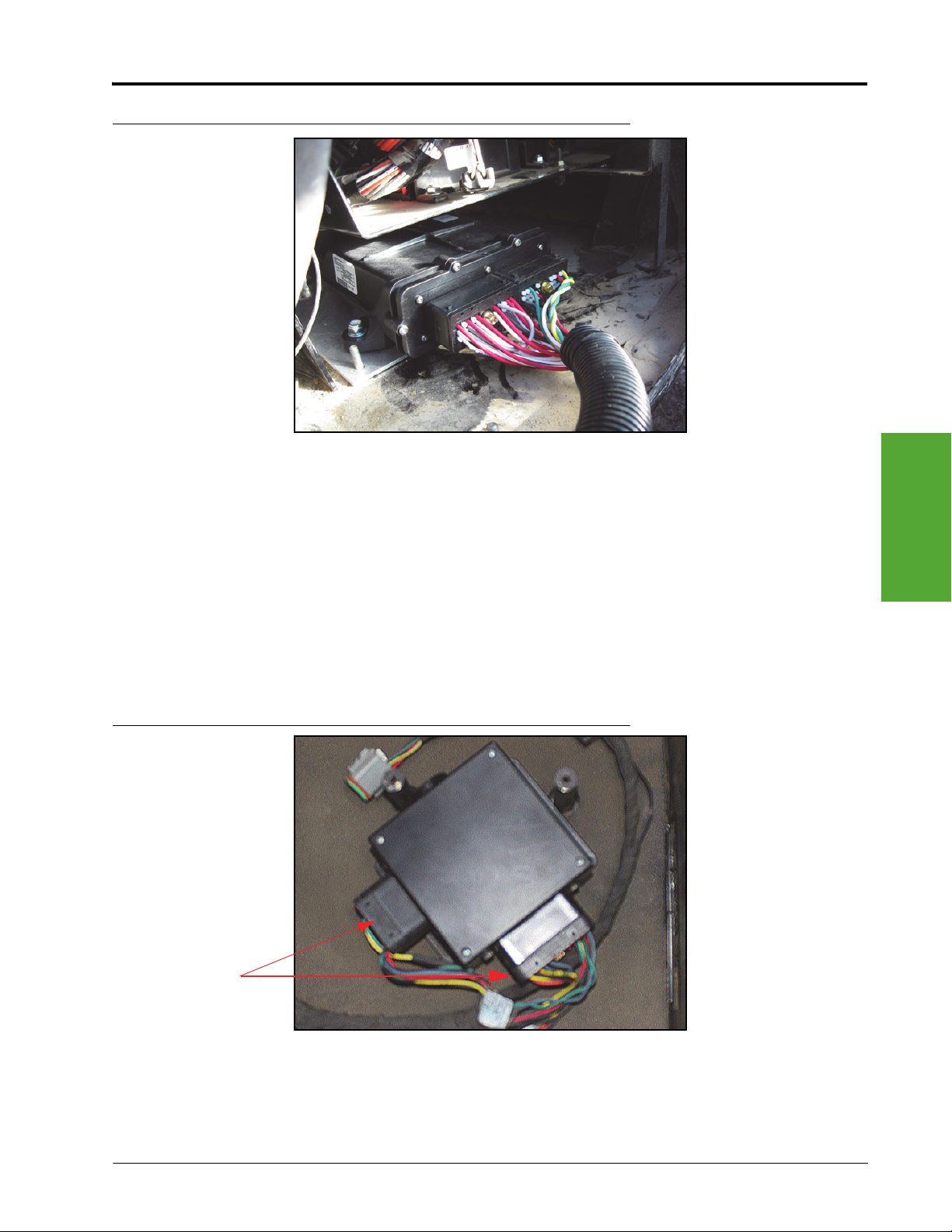

FIGURE 1. Case Cable Connected to the Case Interface Box
2. Place the Case interface box (P/N 063-0173-038) on the floor of the instructional seat compartment.
3. Connect the Case steering control cables to the Case interface box.
4. Connect the round, 37-pin connector of the node harness (P/N 115-4001-092) to the 37-pin port of the Case
interface box.
Steering Control
Cables Installed

Chapter 3
8Case IH STX/Steiger/Quadtrac & New Holland TJ/T90X0/T9.XXX - Steering Ready SmarTrax™ Installation Manual
FIGURE 2. Node Installed on Mounting Plate
5. Mount the SmarTrax node (P/N 063-0173-228) on the node mounting plate (P/N 107-0172-084) using three
3/8”-16 nylon insert lock nuts (P/N 312-4000-061).
6. Place the node in the instructional seat compartment, positioning it over the Case interface box so that the
holes in the mounting plate align with the machine’s existing mounting posts.
7. Secure the mounting plate on the machine’s mounting posts using four M6 x 1.0 x 20 mm bolts (P/N 311-
0070-010), four 1/4” split lock washers (P/N 313-1000-016) and four 1/4” flat washers (P/N 313-2300-009).
FIGURE 3. Node Cable Installed on Node
8. Install the two large, rectangular connectors of the node harness into the correct ports of the node,
tightening the bolts on the connectors to secure the connections.
9. Connect the round, 16-pin connector of the node harness to the Raven console cable.

3
Manual No. 016-5032-002 Rev. C 9
Cab Component Installation
Install the SmarTrax Node - Model Year 2011
& Newer
Install the SmarTrax Node
FIGURE 4. Instructional Seat Mounting Screws
1. Uninstall the instructional seat cushion by removing the screws that secure it to the frame.
2. Remove any contents from under the instructional seat.
FIGURE 5. Floor Mat Removed from Cab
3. Lift the floor mat from the floor in front of the seat.

Chapter 3
10 Case IH STX/Steiger/Quadtrac & New Holland TJ/T90X0/T9.XXX - Steering Ready SmarTrax™ Installation Manual
FIGURE 6. Removing Instructional Seat Molding
4. Remove the plastic molding under the instructional seat by removing the nuts and bolts that secure it.
FIGURE 7. Node Mounted to Mounting Plate
5. Mount the node (P/N 063-0173-228) to the node mounting plate (P/N 107-0172-084) using three 3/8”-16
lock nuts (P/N 312-4000-061).
6. Place the node in the instructional seat compartment so the connectors face the door.
7. Secure the node mounting plate to the existing bolts in the floor of the cab using four 1/4” split lock washers
(P/N 313-1000-016), four 1/4” flat washers (P/N 313-2300-009), and four M6 lock nuts (P/N 312-4000-207).
Plastic
Molding

3
Manual No. 016-5032-002 Rev. C 11
Cab Component Installation
FIGURE 8. Node Cable Installed on Node
8. Install the two large, rectangular connectors of the node harness into the correct ports of the node,
tightening the bolts on the connectors to secure the connections.
Note: The connectors should be facing the window.
9. Route the node harness into the instructional seat.
10. Connect the round, 16-pin connector of the node harness to the Raven console cable.
Note: The Raven console and console cable are sold separately.
Install the Case IH Interface Box

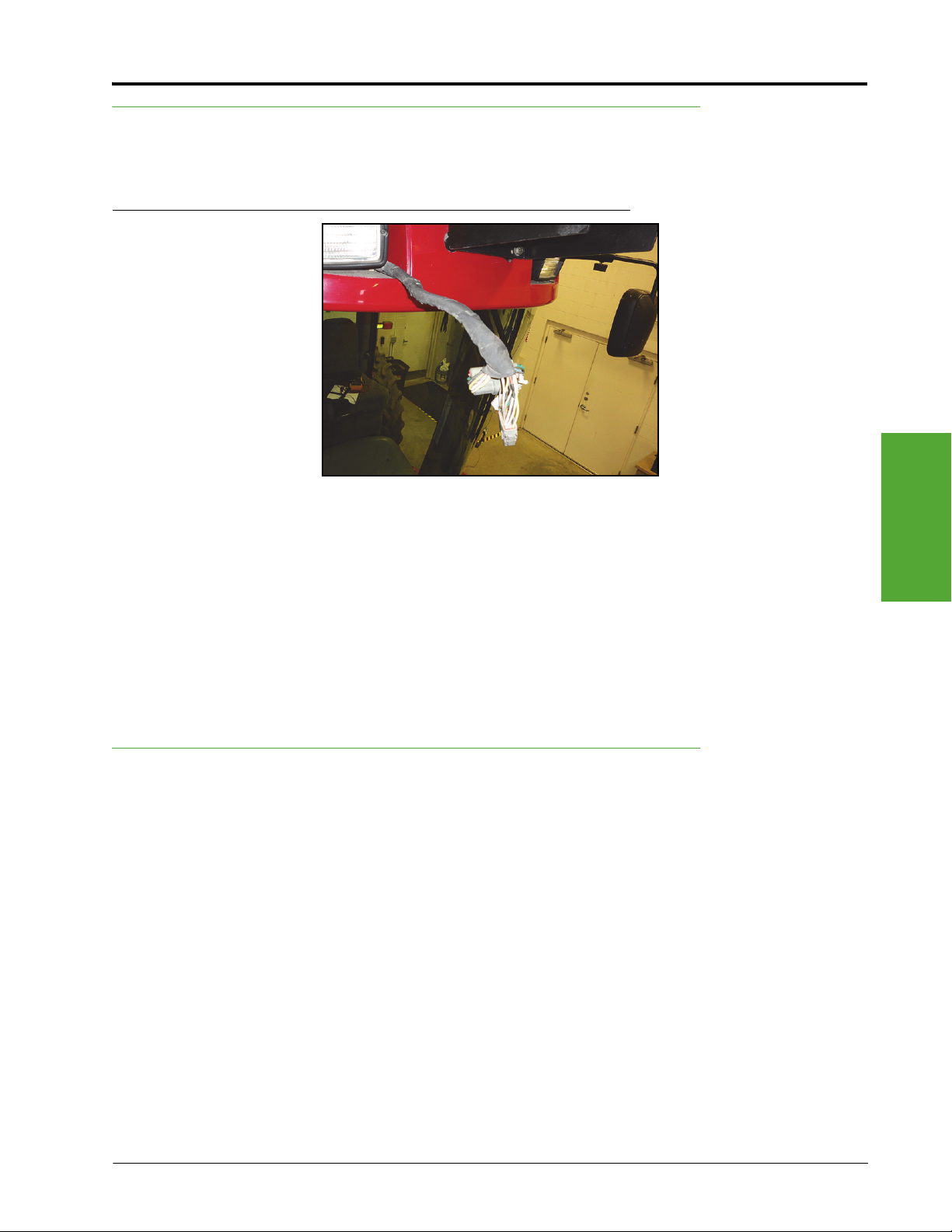

FIGURE 9. Original Case IH Cable Connected to the Interface Box
1. Connect the existing Case steering control cables to the Case interface box (P/N 063-0173-038).
Note: The steering control cables are located in the fuse box area, under the storage bin, and either
above or below the fuse panel.
Existing Case
Steering Control
Cable

Chapter 3
12 Case IH STX/Steiger/Quadtrac & New Holland TJ/T90X0/T9.XXX - Steering Ready SmarTrax™ Installation Manual
FIGURE 10. Double-Sided Tape on Case IH Interface Box
2. Place four double-sided tape strips on the bottom of the Case interface box.
FIGURE 11. 37-Pin Connector Port Location
3. Connect the round, 37-pin connector from the node harness (P/N 115-4001-092) to the 37-pin port of the
Case interface box.
4. Remove the backing from the double-sided tape and adhere the Case interface box to the metal plate
located under the back rest and inside the fuse panel compartment.
Note: Allow enough slack in the cable to allow the storage basket to be reinstalled.
37-Pin
Connector
Port

3
Manual No. 016-5032-002 Rev. C 13
Cab Component Installation
Node Mounting Locations

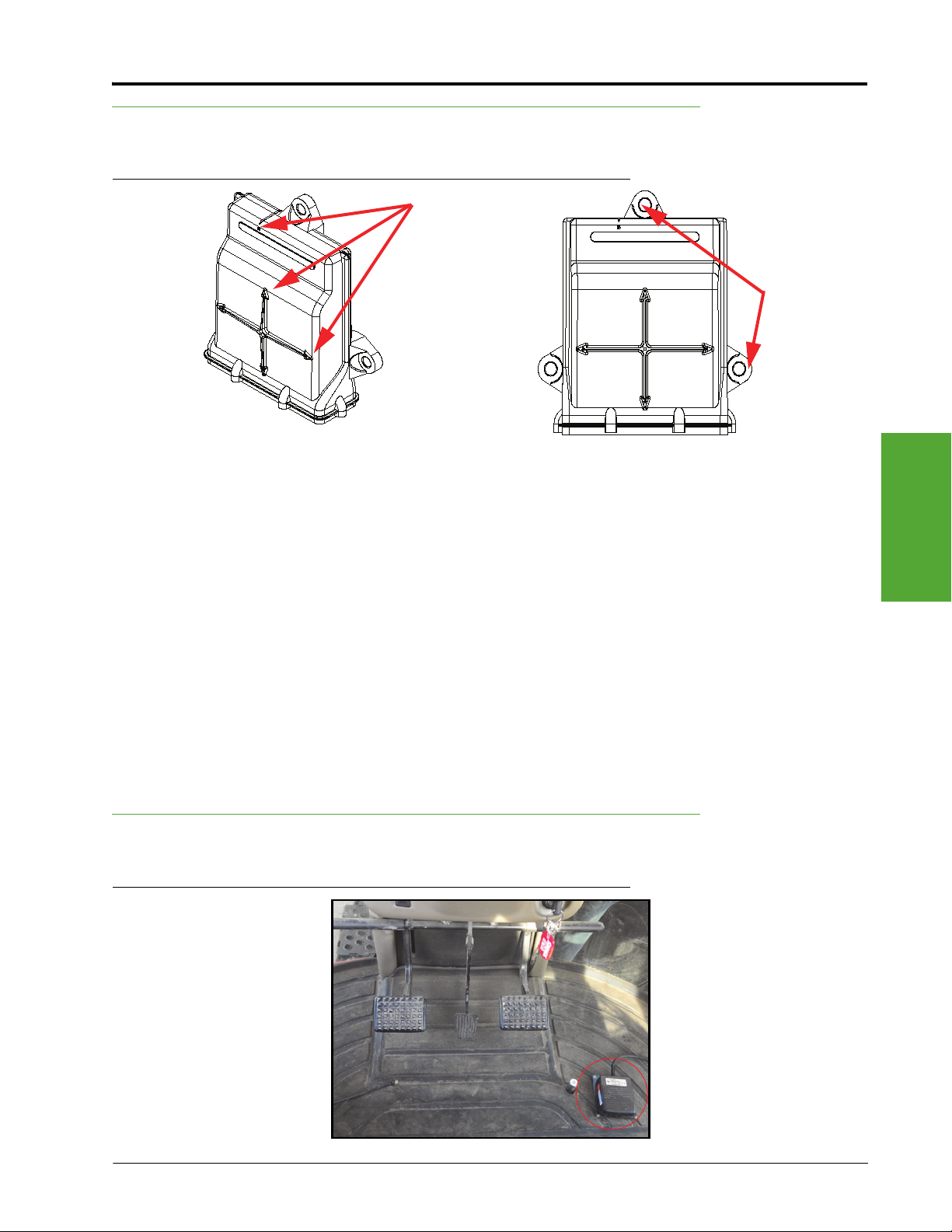

FIGURE 12. Node Mounting
When choosing the location for the SmarTrax node, consider the following points:
•Mount the SmarTrax node inside the machine’s cab on a flat, level surface for proper performance and
cable connection.
•One of the six numbered direction arrows on the node must be oriented in the direction of forward vehicle
travel, one arrow pointing straight up, and two of the arrows parallel to the ground.
Note: Make a note of the number of the arrow that is oriented in the direction of forward vehicle travel.
This number will be needed during the SmarTrax calibration process.
•The node mounting location must not create tripping hazards.
•Mount the node in a location where it will not be kicked or jarred during normal equipment operation.
•The location must allow cable routing to avoid crimping or damaging the cables or the node connections.
•Securely fasten the node using bolts or screws through at least two of the three mounting holes. When
mounted properly, the node should not become loose or rotate.
Install the Foot Switch
FIGURE 13. Foot Switch Installed
Direction Arrows
Any two arrows must
be parallel with level
ground
Mounting Tabs
1
2
3
4
5

Chapter 3
14 Case IH STX/Steiger/Quadtrac & New Holland TJ/T90X0/T9.XXX - Steering Ready SmarTrax™ Installation Manual
1. Select a suitable location for the foot switch (P/N 063-0172-470) to be installed.
Note: The foot switch should be installed in a location where the operator has easy access to it and is
able to fully press the pedal.
2. Using the holes in the foot switch as a template, drill holes in the floor of the cab.
3. Secure the foot switch to the floor by installing the supplied screws in each of the mounting holes.
4. Locate the ENABLE connector on the node harness (P/N 115-4001-092) and connect it to the foot switch
cable connector.
Install the Master Switch (If Applicable)
FIGURE 14. Factory Installed Master Switch Options
Note: If the machine is already equipped with a master switch as shown in Figure 9, skip this section.
1. Locate and disconnect the MASTER connection on the node harness (P/N 115-4001-092).
2. Route the MASTER connector to the armrest console.
3. Locate an unused switch port on the armrest console and remove the plug.
4. Route the MASTER connector from the node harness to the open switch port through the bottom of the
armrest console.
5. Connect the MASTER connector to the mating connector on the master switch (P/N 412-2011-104).
6. Feed the node harness wires and master switch wires into the armrest console.
7. Press on the switch casing to ensure the switch is securely installed.

3
Manual No. 016-5032-002 Rev. C 15
Cab Component Installation
Install the Phoenix 200 Antenna - Model Year
2010 and Older (If Applicable)
FIGURE 15. Case IH/New Holland GPS Wiring
Note: The Phoenix 200 to Case harness cable (P/N 115-4001-027) is sold separately. Contact your local
Raven dealer for ordering information.
1. Install the Phoenix 200 antenna (P/N 063-0172-719) on the existing mounting plate on the cab roof.
2. Connect the Phoenix 200 to Case harness cable between the antenna and the Port A GPS roof connection.
3. Disconnect the RAVEN GPS connection from the DGPS IN connection on the node harness.
4. Connect the CASE GPS connection and the DGPS IN connection on the node harness together.
Note: The RAVEN GPS connector is not used in the SmarTrax installation.
Install the Chassis Cable - SmarTrax-Only
Systems (If Applicable)
Note: The Raven Cruizer II RTK console with the 115-4001-099 console cable may be plugged directly
into the node cable (P/N 115-4001-068). Any other Raven console and console cable combination
requires a chassis harness cable connection.
If the machine does not contain an existing chassis power system (such as AutoBoom, product control, etc.), it
is necessary to install the chassis power cable to operate the SmarTrax system. If a CAN system already
exists on the machine, refer to Connect SmarTrax to an Existing Chassis Cable (If Applicable) below to
connect power to the SmarTrax system.
Note: The chassis cable is sold separately. Contact your local Raven dealer for ordering information.
1. Locate the SmarTrax chassis cable (P/N 115-4001-085).
2. Connect the TO SMARTRAX NODE connector from the chassis cable to the round 16-pin connector on the
node harness (P/N 115-4001-092).
3. Connect the TO CONSOLE CABLE connector to the Raven console cable.
4. Install a terminator (P/N 063-0172-369) on the CAN cable connector.

Chapter 3
16 Case IH STX/Steiger/Quadtrac & New Holland TJ/T90X0/T9.XXX - Steering Ready SmarTrax™ Installation Manual
5. Loop and tie-off the REMOTE SWITCH cable connection, securing it with plastic cable ties as necessary.
Note: The REMOTE SWITCH connector is not used in the SmarTrax system. Ensure the cable is
secured away from moving parts and heat sources.
6. Connect the ring terminals to the battery.
Note: The positive connectors are fused.
Connect SmarTrax to an Existing Chassis
Cable (If Applicable)
Note: The Raven Cruizer II RTK console with the 115-4001-099 console cable may be plugged directly
into the node cable (P/N 115-4001-068). Any other Raven console and console cable combination
requires a chassis harness cable connection.
Note: The SmarTrax interface tee is sold separately. Contact your local Raven dealer for ordering
information.
1. Locate and disconnect the connection between the Raven console cable and chassis cable on the
machine’s existing CAN system.
2. Install the SmarTrax interface tee cable (P/N 115-4001-070 or 115-4001-071) between the chassis and
Raven console harness.
3. Connect the SmarTrax node cable (P/N 115-4001-092) to the remaining SmarTrax interface tee.
Calibrate the SmarTrax System
Refer to the SmarTrax and SmartSteer Calibration & Operation Manual (P/N 016-0171-277) for instructions on
calibrating the SmarTrax system, adjusting system settings, and system operation.
