Reliable Pantman F1 User manual

The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Model F1
Model F1FR
Intermediate Level
Sprinklers
Bulletin 170 July 2020
Bulletin 170 July 2020
Features
1. Upright and pendent installations.
2. Available as either a standard response
Model F1 or quick response Model F1FR, K8.0
(115) LO.
3. Maximum working pressure of 175 psi (12
bar).
4. 17/32” (20mm) orifice with ¾” NPT (R¾).
For Model F156/F1FR56 ½” K 5.6 (80) Intermediate
Sprinkler Types refer to Bulletin 031 for technical
specifications and approvals.
Listings & Approvals
1. Listed by Underwriters Laboratories, Inc. (UL)
2. Listed by Underwriters’ Laboratories of Canada (ULC)
3. Certified by FM Approvals
4. NYC MEA No. 258-93-E
UL Listing Category
Sprinklers, Automatic & Open (VNIV)
Product Description
The Reliable Models F1 and F1FR Intermediate Level
Sprinklers include shields which protect the glass bulb from
water spray impingement caused by sprinklers located at a
higher elevation.
Typical applications are for storage racks which require
multi–level sprinklers and beneath open grid catwalks.
Application
Model F1 and F1FR Intermediate Level sprinklers are used
in fixed fire protection systems: Wet, Dry, Deluge or Preaction.
Care must be exercised that the orifice size, temperature rat-
ing, deflector style and sprinkler type are in accordance with
the latest published standards of the National Fire Protection
Association or the Authority Having Jurisdiction.
Installation
Model F1 sprinklers are standard response sprinklers and
Model F1FR are quick response sprinklers. Both types are
intended for installation as specified in NFPA 13. Upright
sprinklers must be installed with the Model D Sprinkler
Wrench specifically designed by Reliable for use with these
sprinklers, and pendent sprinklers must be installed with the
Model GFR1 Sprinkler Wrench specifically designed by Reli-
able for use with these sprinklers.

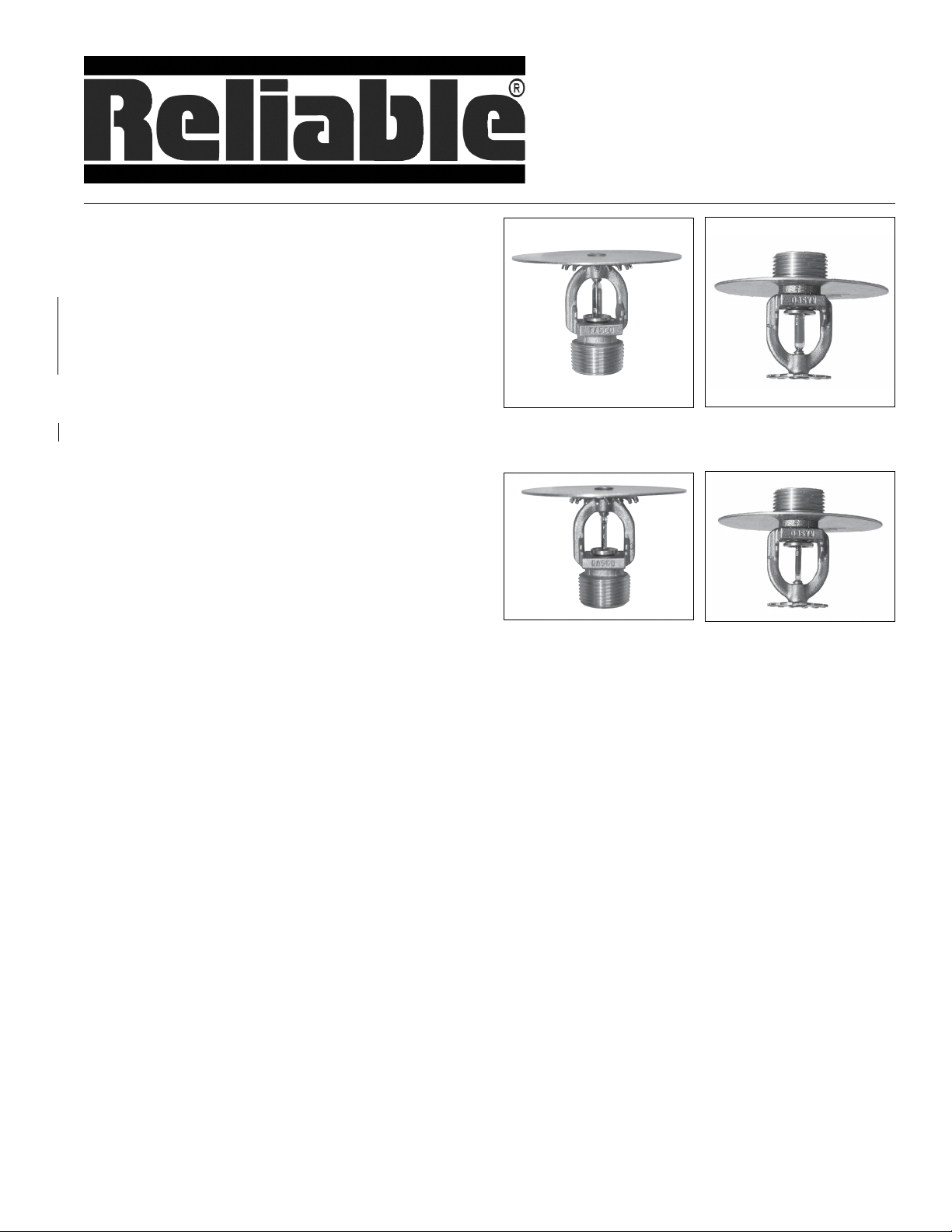

Model F1
Pendent Intermediate
Model F1
Upright Intermediate
Glass bulb sprinklers have orange covers to protect the
bulb during the installation process. REMOVE THIS PRO-
TECTION ONLY AFTER THE SYSTEM HAS BEEN HYDRO-
STATICALLY TESTED AND, WHEN APPLICABLE, THE ES-
CUTCHEONS HAVE BEEN INSTALLED. RASCO wrenches
are designed to install sprinklers when covers are in place.
Maintenance
The Models F1 and F1FR Sprinklers should be inspected
and the sprinkler system maintained in accordance with
NFPA 25. Do not clean sprinklers with soap and water, am-
monia or any other cleaning fluid. Remove dust by using a
soft brush or gentle vacuuming. Remove any sprinkler which
has been painted (other than factory applied) or damaged
in any way. A stock of spare sprinklers should be maintained
to allow quick replacement of damaged or operated sprin-
klers. Prior to installation, sprinklers should be maintained in
the original cartons and packaging until used to minimize
the potential for damage to sprinklers that would cause im-
proper or non-operation.
Model F1FR
Upright Intermediate
Model F1FR
Pendent Intermediate

2.
Model F1FR Quick Response Upright & Pendent Intermediate Level Sprinklers
Installation Data:
Sprinkler Type Nominal Orifice Thread Size
“K” Factor Sprinkler
Identification
Number (SIN)
Sprinkler
Height Approvals
US Metric
Pendent 17/32” (20mm) ¾” NPT (R ¾) 8.00 115.30 R3612 2.3” 1,2,3,4
Upright 17/32” (20mm) ¾” NPT (R ¾) 8.00 115.30 R7092 2.3” 1,2,3,4
Model F1 Standard Response Upright & Pendent Intermediate Level Sprinklers
Installation Data:
Sprinkler Type Nominal Orifice Thread Size
“K” Factor Sprinkler
Identification
Number (SIN)
Sprinkler
Height Approvals
US Metric
Pendent 17/32” (20mm) ¾” NPT (R ¾) 8.00 115.30 R1712 2.3” 1,2,3,4
Upright 17/32” (20mm) ¾” NPT (R ¾) 8.00 115.30 R7022 2.3” 1,2,3,4
Models F1 and F1FR Intermediate Level Sprinkler
Fig. 1

Temperature Ratings For F1FR:
Classification Sprinkler Temperature Bulb Color
°F °C
Ordinary 135 57 Orange
Ordinary 155 68 Red
Intermediate 175 79 Yellow
Intermediate 200 93 Green
High 286 141 Blue
Temperature Ratings For F1:
Classification Sprinkler Temperature Bulb Color
°F °C
Ordinary 135 57 Orange
Ordinary 155 68 Red
Intermediate 175 79 Yellow
Intermediate 200 93 Green
High 286 141 Blue
Extra High 360 182 Mauve
Ordering Information
Specify:
1. Sprinkler Model
2. Sprinkler Type
3. Orifice Size
4. Temperature Rating
5. Sprinkler Finish
Installation Wrenches
Upright — Model D Sprinkler Wrench
Pendent — Model GFR2 Sprinkler Wrench
Pendent Sprinkler Finishes (1)
Standard Finish
Bronze
Special Application Finishes
Electroless Nickel PTFE(4)(5)
Bright Chrome
Chrome Dull
Polyester Coated
Lead Plated(2)(4)
Wax Coated(2)(3)(4)
Wax Over Lead(2)(3)(4)
(1) Other colors and finishes are available. Consult factory for details.
(2) Model F1 Standard Response only.
(3) 55°F (68°C), 175°F (79°C), 200°F (93°C) and 286°F (141°C) temperature
ratings only.
(4) Only the sprinkler is wax coated, lead or Electroless Nickel PTFE
plated. The shield finish remains galvanized steel.
(5) cULus listed Corrosion Resistant.
Upright Sprinkler Finishes
Standard Finish
Bronze
Special Application Finishes
White Polyester
Note: Paint or any other coating applied over the factory finish
will void approvals and warranties.
Shields
Galvanized Steel
The Reliable Automatic Sprinkler Co., Inc.
[phone] Sales Offices
[phone] Sales Fax
[phone] Corporate Offices
www.reliablesprinkler.com Internet Address
Manufactured by
Recycled
Paper
Revision lines indicate updated or new data.
EG. Printed in U.S.A. 07/20 P/N 9999970034
The equipment presented in this bulletin is to be installed in accordance with the latest published Standards of the National Fire Protection Association, Factory
Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable.
Products manufactured and distributed by Reliable have been protecting life and property for over 90 years.
