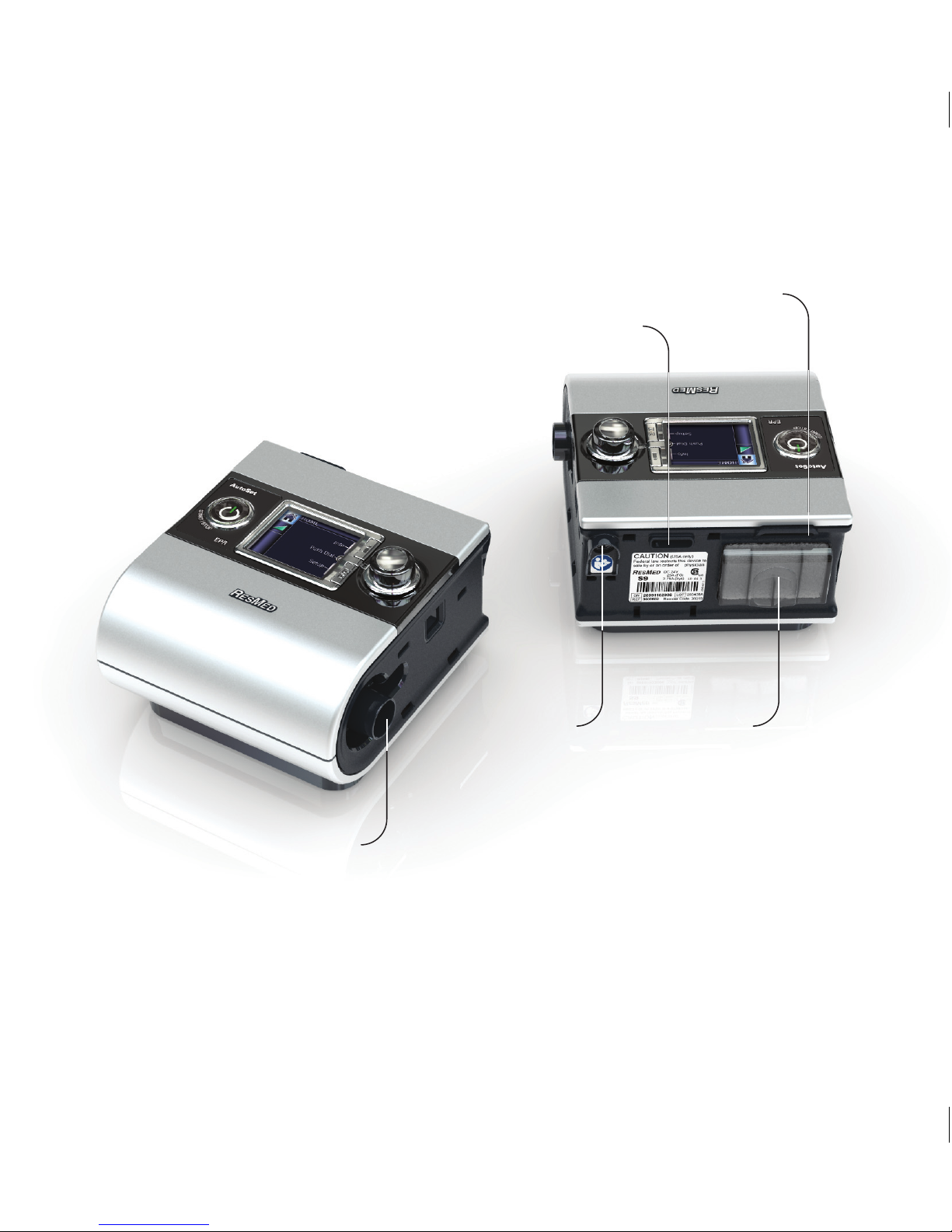

S9 at a glance
The S9 system comprises the following elements:
• S9 device • SlimLine air tubing • 90W power supply unit • S9 Travel bag • SD card
• S9 SD card protective folder.
Optional components include:
• H5i heated humidifier • Standard air tubing • 30W power supply unit (does not support H5i).
Welcome
Thank you for choosing the S9 Series or H5i. Before operating these devices,
please read the entire Welcome and Information Guides.
Air filterDC power inlet
SD card slot
Module/Adapter port
Air outlet
1
English
S9 Series H5i AMER Eng Contents.indd 1 26/03/2010 10:46:54 AM

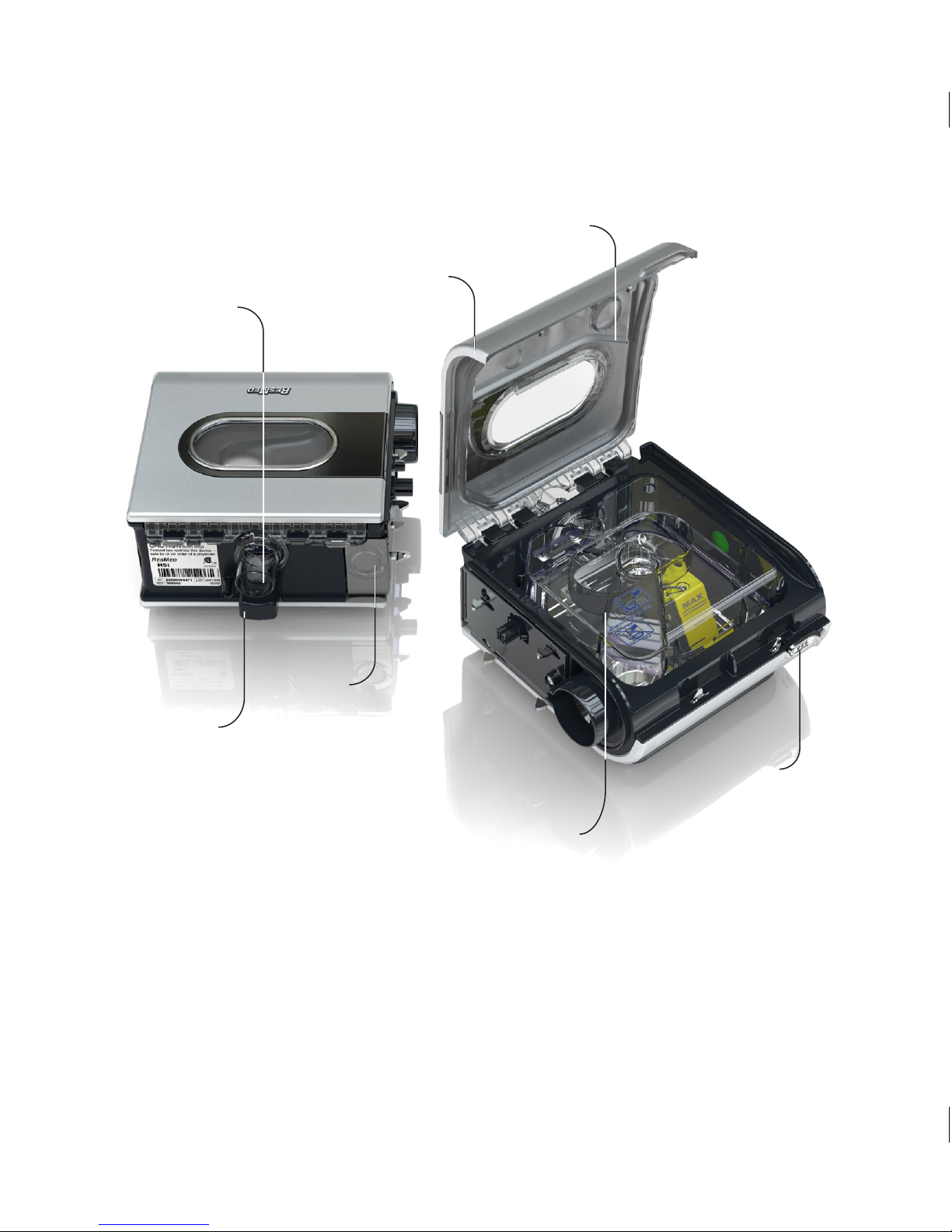

H5i at a glance
The H5i system comprises the following elements:
• H5i heated humidifier • H5i water tub.
Optional components include:
• ClimateLine heated tubing • H5i cleanable water tub.
Traveling tips
When moving or traveling with your H5i:
• Ensure that the water tub is empty.
• Disconnect the H5i from the S9 by using the release button.
Latch
Flip lid
Air outlet
H5i
water tub
Release
button
Flip lid seal
ClimateLine
connection
port
2
S9 Series H5i AMER Eng Contents.indd 2 26/03/2010 10:47:00 AM

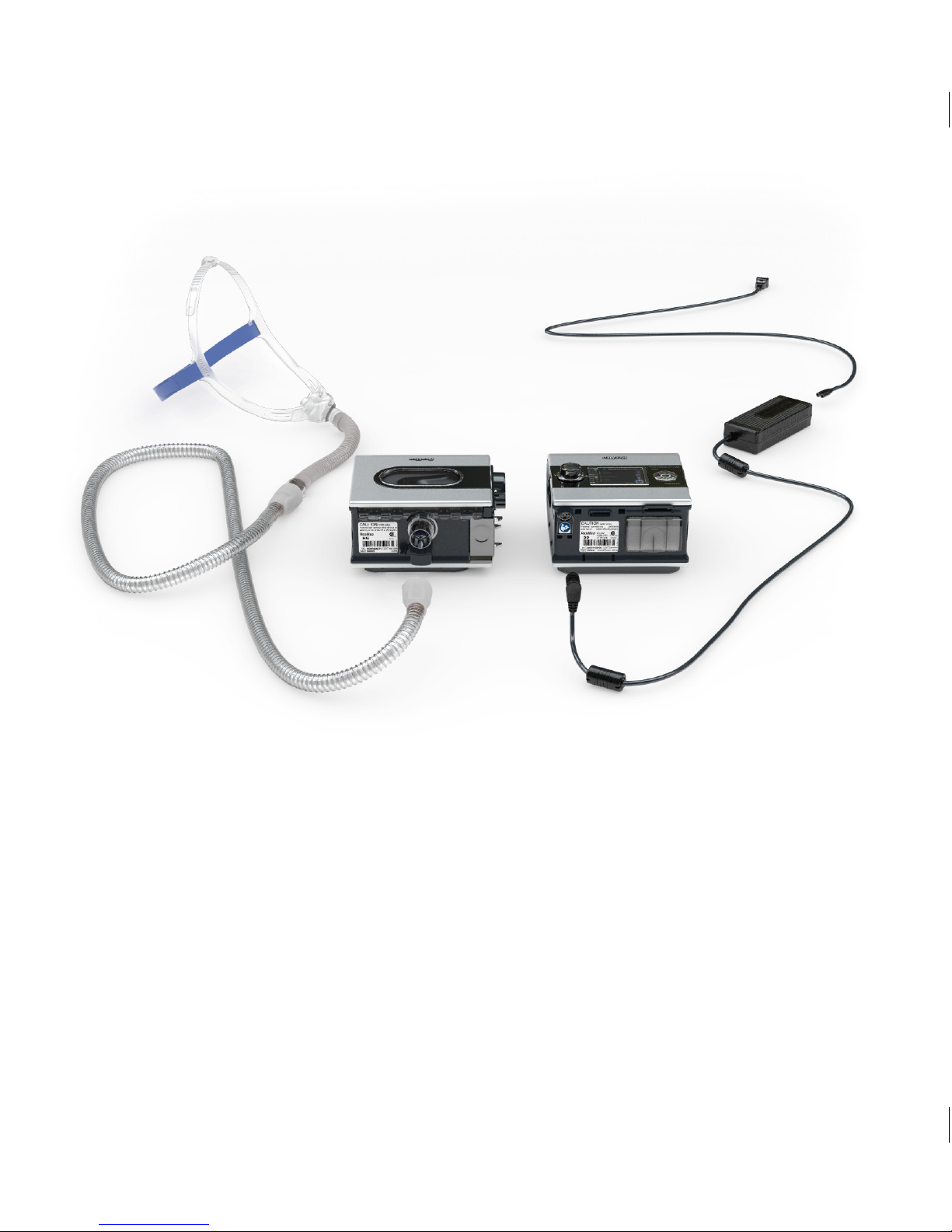

Setup
Align your H5i with your S9 and push them together until they click into place.1.
Connect the DC plug of the power supply unit to the rear of the S9.2.
Connect the power cord to the power supply unit.3.
Plug the other end of the power cord into the power outlet.4.
Connect one end of the air tubing firmly onto the air outlet.5.
Connect the assembled mask system to the free end of the air tubing.6.
Notes:
For more information on assembling your mask see your mask user guide.
•
Recommended masks are available on www.resmed.com on the Products page under Service &
•
Support.
3
1
2
4
5
6
3
English
S9 Series H5i AMER Eng Contents.indd 3 26/03/2010 10:47:01 AM

Filling the water tub
Slide the latch and lift open the flip lid.1.
Remove the water tub.2.
Fill the water tub (through the center hole) with distilled or deionized water 3.
up to the maximum water level mark (380 mL).
Return the water tub to the H5i.4.
Close the flip lid ensuring that it clicks into place.5.
1 2 345
4
S9 Series H5i AMER Eng Contents.indd 4 26/03/2010 10:47:05 AM

Info menu
Allows you to
view your sleep
statistics.
LCD screen
Setup menu
Allows you to
make changes
to settings.
Push dial
Turning the dial
allows you to
scroll through the
menu and change
settings. Pushing the
dial allows you to
enter into a menu and
confirm your choice.
Start/ Stop
button
Starts or stops
treatment.

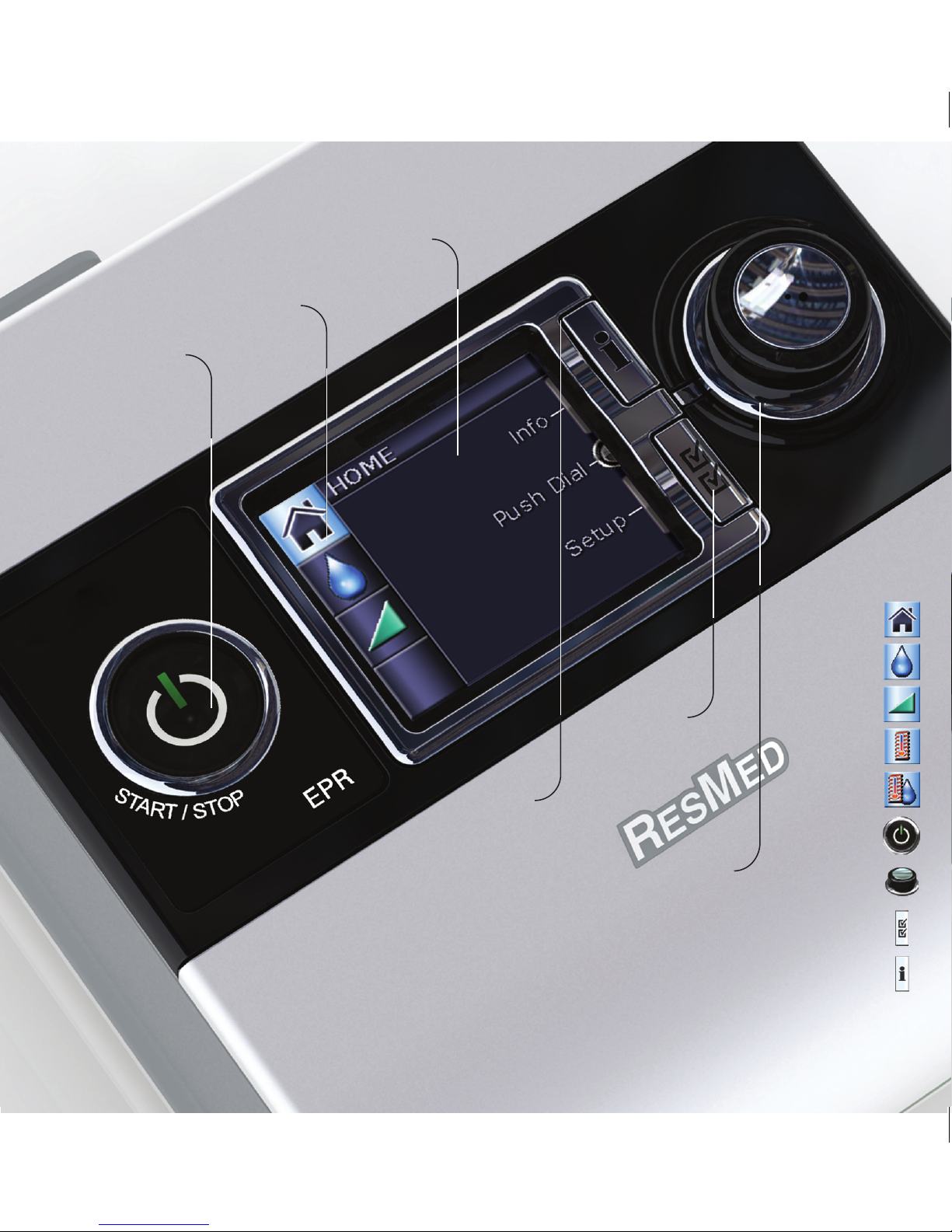

S9 basics
The control panel of your S9 device includes
an LCD screen as well as a Start/Stop button,
Push dial and the Info and Setup menu keys.
Key:
Info menu
Setup menu
Push dial
Start/ Stop
Climate Control
Heated tube
Ramp
Humidity level
Home
Home menu
5
English
S9 Series H5i AMER Eng Contents.indd 5 26/03/2010 10:47:06 AM

Adjusting humidity level
Ranging from OFF to 6, you can adjust the humidity level at any time to find the setting that is most
comfortable for you. To adjust your level of humidity:
Warming the H5i
The warm-up feature is used to pre-heat the water before starting
treatment.
To start warming:
Navigate to the humidity level icon.1.
Push and hold 2. for three seconds. The Warming Up status
bar is displayed.
You can stop warm-up at any time by pressing for at least three
seconds. You can start treatment at any time by pressing .
Note: In order to assist the heater plate in cooling, your S9 device will
continue to blow air for up to an hour after treatment has stopped.
However, you can unplug the device from the power outlet at any time and
allow the heater plate to cool without air flow.
6
From your HOME
1.
screen, turn
until the HUMIDITY
LEVEL screen is
displayed in blue.
Press
2. .
The selection is
highlighted in
orange.
Turn
3. until
the humidity level
that you require is
displayed.
Press
4. to
confirm your choice.
S9 Series H5i AMER Eng Contents.indd 6 26/03/2010 10:47:07 AM

Adjusting ramp time
Designed to make the beginning of treatment more comfortable, ramp time is the period during which
the pressure increases from a low start pressure to the treatment pressure. To adjust your ramp time:
Using mask-fit
Available in S9 AutoSet and S9 Elite, mask-fit helps you fit your mask properly. This feature delivers
treatment pressure for a three-minute period, prior to starting treatment, during which you can check and
adjust your mask-fit to minimize leaks.
Fit your mask as described in the mask user guide.1.
From your HOME screen, push and hold 2. for three seconds.
One of the following MASK FIT screens is displayed:
3. If necessary, adjust your mask, mask cushion and headgear until you have a Good mask-fit.
After three minutes, the pressure reverts to the set pressure and treatment will begin. You can end
mask-fit at any time by pressing .
7
From your HOME 1.
screen, turn
until the RAMP
screen is displayed
in blue.
Press
2. .
The selection is
highlighted in
orange.
Turn
3. until the
ramp time you
require is displayed.
Press
4. to
confirm your choice.
English
S9 Series H5i AMER Eng Contents.indd 7 26/03/2010 10:47:08 AM

Selecting the mask type
To select your type of mask:
Press
1. . The SETTINGS
screen is displayed.
Turn
2. until Mask is
displayed in blue.
Press
3. . The selection is
highlighted in orange.
Turn
4. until the mask
setting that you require is
displayed.
Press
5. to confirm your
choice.
Push
6. to return to the
HOME screen.
8
Note: Mask Fit is only available in S9 AutoSet and S9 Elite.
S9 Series H5i AMER Eng Contents.indd 8 26/03/2010 10:47:12 AM

Getting started
Make sure the power is connected.1.
Adjust the ramp time or humidification level if required.2.
Fit your mask as described in your mask user guide.3.
To start therapy, simply breathe into the mask and/or press4. .
Lie down and arrange the air tubing so that it is free to move if you 5.
turn in your sleep.
To stop treatment at any time, remove your mask and/or press 6. .
Notes:
SmartStart is only available in S9 AutoSet and S9 Elite.
•
If your clinician has enabled SmartStart your device will start
•
automatically when you breathe into the mask and stop automatically
when you remove your mask.
Once therapy has started the HUMIDITY LEVEL screen is displayed.
•
9
English
S9 Series H5i AMER Eng Contents.indd 9 26/03/2010 10:47:12 AM

Cleaning and maintenance
You should regularly carry out cleaning and maintenance as described in this section.
Daily
Remove the air tubing by pulling on the finger grips on the cuff. Hang it in a clean, dry place until
1.
next use.
Slide the H5i latch.2.
Lift open the flip lid and remove the water tub.3.
Wash the H5i water tub in warm water using a mild detergent.4.
Rinse thoroughly in clean water and allow it to dry away from direct sunlight.5.
Before next use, fill the water tub, return it to the H5i and close the flip lid.6.
Note: Do not open the H5i water tub. There are no user serviceable parts inside.
10
123
456
S9 Series H5i AMER Eng Contents.indd 10 26/03/2010 10:47:14 AM

Weekly
Remove the air tubing from the S9 device and the mask.1.
Wash the air tubing in warm water using mild detergent.2.
Rinse thoroughly, hang, and allow to dry.3.
Before next use, reconnect the air tubing to the air outlet and mask.4.
Monthly
Wipe the exterior of the S9 and H5i with a damp cloth and mild detergent.
1.
Check the air filter for holes and blockage by dirt or dust.2.
Peel the flip lid seal from the flip lid and wash it in warm water using a mild detergent.3.
Maintenance checklist
Inspect the H5i water tub and flip lid seal for wear and deterioration.
9
Replace the water tub if any component is leaking or has become cracked, cloudy or pitted.9
Replace the flip lid seal if cracked or torn.9
Clean white powder deposits in the water tub by using a solution of one part household vinegar to 9
10 parts water.
Replacing the air filter
Replace the air filter every six months (or more often if necessary).
Remove the air filter cover from the back of the S9 device.
1.
Remove and discard the old air filter.2.
Insert a new ResMed air filter ensuring that it is 3.
sitting flat in the air filter cover.
Replace the air filter cover.4.
Air filter
Air filter cover
11
English
S9 Series H5i AMER Eng Contents.indd 11 26/03/2010 10:47:17 AM

SD card
An SD card has been supplied
to gather therapy data from
your S9 device and provide
settings updates from your
clinician. When instructed to do
so, disconnect the S9 device
from the power outlet, remove
your SD card, insert it in the
protective folder and send it to
your clinician.
Removing the card
Push in the SD card to
1.
release it.
Remove the card.2.
Insert the card into the 3.
protective folder.
Send the protective folder 4.
back to your clinician as
instructed.
For more information on
removing and inserting your
card refer to your S9 SD Card
Protective Folder provided with
your device. Please retain the
S9 SD Card Protective Folder
for future use.
Notes:
For Troubleshooting information
•
refer to the Information Guide.
For more product information
•
see www.resmed.com.
1 2 34
12
S9 Series H5i AMER Eng Contents.indd 12 26/03/2010 10:47:19 AM

S9 Series H5i AMER Cover.indd 2 9/03/2010 9:45:45 AM

Global leaders in sleep and respiratory medicine www.resmed.com
AutoSet™
Elite™
Escape Auto™
Escape™
POSITIVE AIRWAY PRESSURE DEVICES
H5i™
HEATED HUMIDIFIER
Welcome Guide
English • Français • Español • Português
368219-Eng/3 2010-06
S9 Series
H5i
WELCOME
AMER
Manufacturer: ResMed Ltd 1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia. Distributed by: ResMed Corp 9001
Spectrum Center Boulevard San Diego CA 92123 USA. ResMed (UK) Ltd 96 Milton Park Abingdon Oxfordshire OX14 4RY UK. See
www.resmed.com for other ResMed locations worldwide. S9: Protected by patents: AU 691200, AU 697652, AU 702820, AU 709279,
AU 724589, AU 730844, AU 736723, AU 750095, AU 750761, AU 764761, AU 779327, AU 2007252223, EP 0651971 , EP 0661071,
EP 0920845, EP 0927538, EP 0934723, EP 1028769, EP 1126893, EP 1144036, EP 1502618, JP 3580776, JP 3778797, NZ 504595, NZ
570415, US 5245995, US 5704345, US 6029665, US 6138675, US 6240921, US 6363933, US 6367474, US 6425395, US 6502572, US
6591834, US 6675797, US 6745768, US 6817361, US 6988498, US 7040317, US 7100608, US 7320320, US 7537010. Other patents
pending. Protected by design registrations: AU 329025, AU 330142, CN 200830346526.0, EU 1067417, JP 1377401, JP 1377402, JP
1377403, NZ 411762, NZ 413090. Other designs pending. H5i: Protected by AU 2002233025, CN ZL02804936.5, HK 1065483, NZ
527088, US 6935337. Other patents pending. Designs pending. S9 and H5i are trademarks of ResMed Ltd and S9 is registered in U.S.
Patent and Trademark Ofce. © 2010 ResMed Ltd. 368219/3 2010-06
