ResMed S8 Elite II User manual

S8 Elite™ II System
User Guide
English

ResMed Ltd (Manufacturer) 1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia • ResMed Corp (US
Designated Agent) 14040 Danielson Street Poway CA 92064-6857 USA • ResMed (UK) Ltd (EU Authorised
Representative) 65 Milton Park Abingdon Oxfordshire OX14 4RX UK • ResMed Offices Australia, Austria, Brazil, China,
Finland, France, Germany, Hong Kong, India, Japan, Malaysia, Netherlands, New Zealand, Norway, Singapore, Spain,
Sweden, Switzerland, UK, USA (see www.resmed.com for contact details).
Protected by patents: AU 697652, EP 0661071, US 4944310, US 5199424, US 5522382, US 6240921, US 6705315.
Other patents pending.
Protected by design registrations: AU 302180, AU 302181, AU 302182, AU 302183, AU 302184, AU 302185, AU 302186,
CN 200430121212.2, CN 200430121213.7, CN 200430121211.8, CN 200430121214.1, CN 200430121215.6, CN
200430121216.0, CN 200430121217.5, EP 269436, HK 0412901.9, JP 1257662, JP 1257663, JP 1266956, JP 1266957, JP
1267270, JP 1267271, NZ 405614, NZ 406923, NZ 406924, NZ 406926, NZ 406927. Others pending.
S8, S8 Elite, Mirage, HumidAire, HumidAire 3i, ResScan, Mirage Vista, Ultra Mirage, Mirage Activa, Mirage Swift,
Mirage Liberty, Mirage Quattro, Papillon and SmartStart are trademarks of ResMed Ltd and HumidAire is
registered in U.S. Patent and Trademark Office.
© 2007 ResMed Ltd. 338425/1 07 08

1
S8 Elite™II System

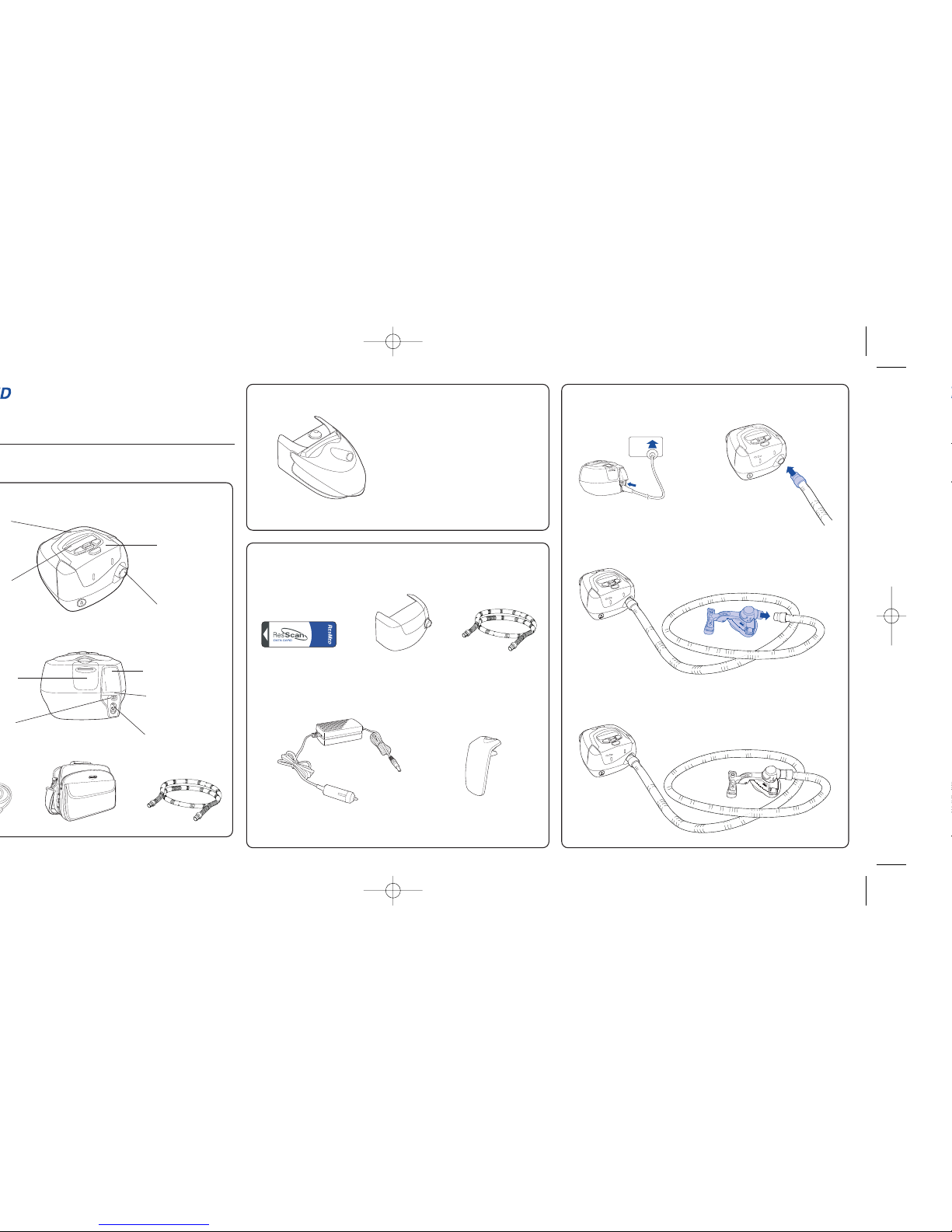

ILLUSTRATIONSComponent of 338425/1
A
Keypad
Carry handle
Air filter cover
Module
DC input
AC input
LCD screen
Air outlet
SYSTEM COMPONENTS
Air inlet
2 m
2
34 5
OTHER ACCESSORIES
C
1
5
SETTING UPTHE S8TM
D
2
3
4
BINTEGRATED HUMIDIFIER
32
3 m
1
4
© 2007 ResMed Ltd.
© 2007 ResMed Ltd.
© 2007 ResMed Ltd.
© 2007 ResMed Ltd.
HumidAire 3i™
Note: Some products not available in all regions.
338425 Illustrations.qxp 21/08/2007 1:03 PM Page 1

DATA CARD MODULE
G
12
© 2007 ResMed Ltd.
HUSINGTHE DATA CARD
1
3
2
© 2007 ResMed Ltd.
Note: Some products not available in all regions.
HumidAire 3i
EHUMIDAIRE 3i AND S8
© 2007 ResMed Ltd.
BLANK MODULE
F
12
© 2007 ResMed Ltd.
DDaattaa
ccoommmmuunniiccaattiioonnss
ppoorrtt
338425 Illustrations.qxp 21/08/2007 1:03 PM Page 2

iContents
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Your Responsibility 1
Medical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
About the S8 Elite II 2
Contraindications 2
Warnings 2
Cautions 3
Adverse Effects 4
The S8 Elite II System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
S8 Elite II 5
Masks 5
Humidifier 6
ResScan Data Card Module 6
Accessories 6
How to Use the S8 Elite II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Set Up the S8 Elite II 7
Assemble the Mask 7
Start Treatment 8
Stopping Treatment 8
Using the Mask-Fitting Feature 9
How to Attach a Humidifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Attach a HumidAire 3i Humidifier 11

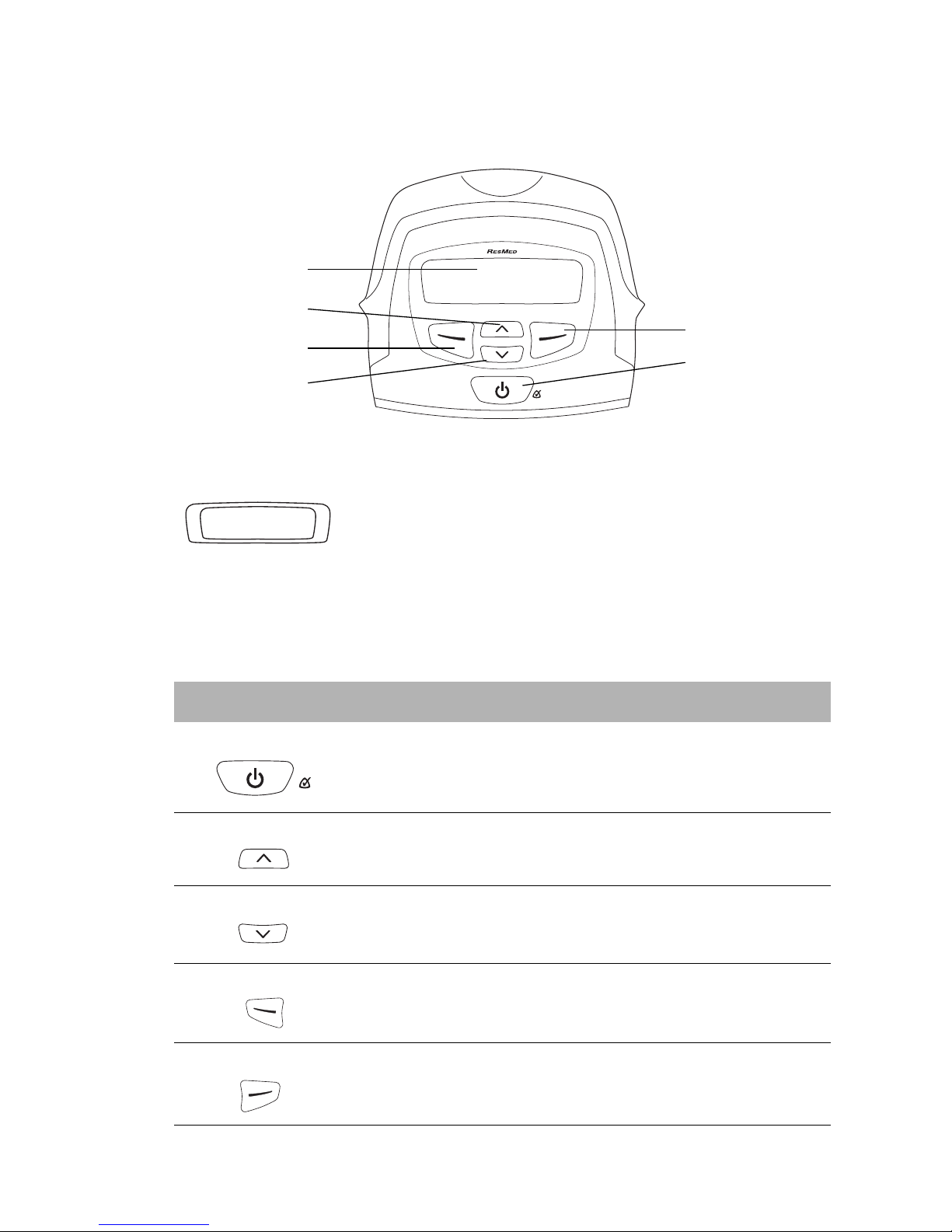

How to use the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
How to Change the Settings 13
How to Use the Standard Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
How to Use the Detailed Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Settings Menu 17
Results Menu 18
Options Menu 18
Servicing Menu 18
Messages on the S8 Elite II LCD 18
S8 Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using a Blank Module 20
Using a ResScan Data Card Module 20
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Daily Cleaning 23
Weekly Cleaning 23
Periodic Cleaning 23

iiContents
Replacing the Air Filter 24
Servicing 24
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
S8 Elite II (no Accessories) 31
Accessories 32
All Devices (where applicable) 32
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

1Introduction
Introduction
Thank you for choosing the S8 Elite™ II flow generator. The S8 Elite II is a
compact, all-in-one package with an inbuilt power supply and the option of
integrated data management and humidification.
This user manual contains the information you need for the correct use of your
S8 Elite II.
Your Responsibility
The owner or user of this system shall have sole responsibility and liability for any
injury to persons or damage to property resulting from:
•operation which is not in accordance with the operating instructions supplied
•maintenance or modifications carried out unless in accordance with
authorised instructions and by authorised persons.
Please read this manual carefully before use.
This manual contains special terms and icons that appear in the margins to draw
your attention to specific and important information.
•Warning alerts you to possible injury.
•Caution explains special measures for the safe and effective use of the
device.
•Note is an informative or helpful note.

2Medical Information
Medical Information
About the S8 Elite II
The S8 Elite II continuous positive airway pressure (CPAP) system is indicated
for the treatment of obstructive sleep apnoea (OSA) in adult patients.
The S8 Elite II CPAP system is intended for home and hospital use.
Contraindications
The S8 Elite II is not a life support device and may stop operating during power
failure or certain fault conditions. It should not be used by patients who are
dependent on continuous therapy.
Positive airway pressure therapy may be contraindicated in some patients with
the following pre-existing conditions:
•severe bullous lung disease
•pneumothorax
•pathologically low blood pressure
•dehydration
•cerebrospinal fluid leak, recent cranial surgery or trauma.
Warnings
•The entire manual should be read before using the S8 Elite II.
•Advice contained in this manual should not supersede instructions given by
the prescribing physician.
•A patient should not connect a device to the data communication port unless
instructed to do so by their health care provider or physician. Only ResMed
products are designed to be connected to the data communication port.
Connecting other devices could result in injury, or damage to the S8 Elite II
device.
•The S8 Elite II should be used with masks (and connectors)1recommended
by ResMed, or by a physician or respiratory therapist. A mask should not be
used unless the S8 Elite II device is turned on and operating properly. The
vent hole or holes associated with the mask should never be blocked.
Explanation: The S8 Elite II is intended to be used with special masks (or
connectors)1which have vent holes to allow continuous flow of air out of the
mask.
When the device is turned on and functioning properly, new air from the
device flushes the exhaled air out through the mask vent holes. However,
when the device is not operating, insufficient fresh air will be provided
1 Ports may be incorporated into the mask or in connectors that are near the mask.

3Medical Information
through the mask, and the exhaled air may be rebreathed. Rebreathing of
exhaled air for longer than several minutes can, in some circumstances, lead
to suffocation. This applies to most models of CPAP devices.
•In the event of power failure or machine malfunction, remove the mask.
•The S8 Elite II can be set to deliver pressures up to 20 cm H2O. In the
unlikely event of certain fault conditions, pressures up to 30 cm H2O are
possible.
•If oxygen is used with this device, the oxygen flow must be turned off when
the device is not operating. If oxygen has been left on while the device is not
operating, disconnect the oxygen and wait 30 minutes before turning on the
device.
Explanation: When the CPAP device is not in operation and the oxygen flow
is left on, oxygen delivered into the air delivery tubing may accumulate within
the CPAP machine enclosure and create a risk of fire. This applies to most
types of CPAP machines.
•Oxygen supports combustion. Oxygen should not be used while you are
smoking or in the presence of an open flame.
•Always ensure airflow is being generated by the device before the oxygen
supply is turned on.
•Always turn the oxygen supply off before stopping the airflow from the
device.
Note: At a fixed rate of supplemental oxygen flow, the inhaled oxygen
concentration will vary, depending on where the oxygen is introduced, the
pressure settings, patient breathing pattern, mask selection and leak rate.
•Do not use the S8 Elite II if there are obvious external defects or unexplained
changes in performance.
•Do not open the S8 Elite II case. There are no user serviceable parts inside.
Repairs and internal servicing should only be performed by an authorised
service agent.
•Explosion hazard—do not use in the vicinity of flammable anesthetics.
Cautions
•At low pressures, the flow through the exhalation ports of your mask may not
clear all exhaled gas from the tubing. Some rebreathing may occur.
•The airflow for breathing produced by this device can be as much as 6°C
higher than the temperature of the room. Caution should be exercised if the
room temperature is warmer than 32°C.
•When AC mains power (100–240V AC) is not available, always use a ResMed
DC-12 converter. (The DC-12 converter is available as an optional accessory.)
•If supplied, the ResScan™ Data Card module is designed for use with
specific ResMed devices.
•Only use the ResScan Data Card module (if supplied) as specified in this
manual.

4Medical Information
Note: The above are general warnings and cautions. Specific warnings, cautions
and notes appear with the relevant instructions in the manual.
Adverse Effects
Patients should report unusual chest pain, severe headache or increased
breathlessness to their prescribing physician. An acute upper respiratory tract
infection may require temporary discontinuation of treatment.
The following side effects may arise during the course of therapy with the S8
device:
•drying of the nose, mouth or throat
•nosebleed
•bloating
•ear or sinus discomfort
•eye irritation
•skin rashes
•chest discomfort.

5The S8 Elite II System
The S8 Elite II System
The S8 Elite II device is part of a system that consists of five elements:
•S8 Elite II flow generator
•Mask
•Humidifier
•Data management products
•Accessories.
S8 Elite II
Please refer to the illustrations in section Aof the illustration sheet.
Front view (A-1)
Shows the keypad and LCD screen, and the air outlet.
Rear view (A-2)
Shows where the module attaches, and the location of the air filter and power
sockets.
Power cord (A-3)
Power cord to attach the S8 Elite II to the AC (mains) power.
Travel bag (A-4)
Air tubing (A-5)
The 2 m air tubing connects the S8 Elite II to your mask.
Masks
You will also need a ResMed mask system (supplied separately).
The ResMed mask systems that are recommended for use with the S8 Elite II
are:
Nasal Masks
•Mirage Vista™ Nasal Mask
•Ultra Mirage™ II Nasal Mask
•Mirage™ Nasal Mask
•Mirage Activa™ Nasal Mask
•Papillon™.
Nasal Pillows Systems
•Mirage Swift™ Nasal Pillows System
•Mirage Swift™ II Nasal Pillows System.
Full Face Masks
•Mirage Liberty™ Full Face Mask
•Mirage Quattro™ Full Face Mask
•Ultra Mirage™ Full Face Mask.
Note: Not all masks are available in all regions.

6The S8 Elite II System
!
WARNING
For optimal product performance and data recording, ResMed mask
systems should be used with the S8 Elite II. Please refer to “Warnings” on
page 2.
Humidifier
Please refer to the illustration in section B of the illustration sheet.
A humidifier may be required if you are experiencing dryness of the nose, throat
or mouth. The S8 Elite II is compatible for use with the HumidAire 3i integrated
heated humidifier.
ResScan Data Card Module
The ResScan™ Data Card module and ResScan Data Card (C-1) may be used
with the S8 Elite II either to help your clinician to monitor your treatment or to
provide you with updates to your device settings. See “Using a ResScan Data
Card Module” on page 20 for information about how to use the Data Card
module and Data Card.
Accessories
Please refer to the illustrations in section Cof the illustration sheet.
Other accessories for use with the S8 Elite II:
•Front cap (not available in all regions) (C-2)
•Air tubing (3 m) (C-3)
•DC-12 converter (C-4)
•Blank module (C-5).
Note: ResMed regularly releases new products. Please check our website at
www.resmed.com.

7How to Use the S8 Elite II
How to Use the S8 Elite II
Please refer to the illustrations in section Dof the illustration sheet.
Set Up the S8 Elite II
1Place the S8 Elite II on a table near the head of your bed.
!
CAUTION
Be careful not to place the device where it can be bumped or where
someone is likely to trip over the power cord.
Note: You can also place your S8 Elite II on the floor beside or underneath your
bed. Ensure that the area is free from dust and clear of bedding, clothes or any
other objects that could block the air inlet.
2Connect the power cord to the socket at the rear of the flow generator (D-1). Plug
the other end of the power cord into the power outlet.
!
WARNING
Make sure the power cord and plug are in good condition and the
equipment is not damaged.
3Connect one end of the air tubing firmly onto the air outlet (D-2).
!
WARNING
•Only ResMed air tubing should be used with your flow generator. A
different type of air tubing may alter the pressure you actually receive,
reducing the effectiveness of your treatment.
•Blocking the air inlet or tubing while in operation could lead to
overheating of the device.
•In the clinical environment any personal computer that is used with your
CPAP system must be at least 1.5 m away from, or at least 2.5 m above,
the patient. It must also comply with the relevant test standard. For
personal computers the international standard is IEC 60950 or
equivalent.
Assemble the Mask
1Assemble your mask system according to the mask user instructions.
2Connect your mask system to the free end of the air tubing (D-3).
3Check that the mask setting on the MASK screen is the one recommended for
the mask you are using (see the table in “How to Select the Mask Type” on
page 17).
The S8 Elite II is now ready for use (D-4).

8How to Use the S8 Elite II
Start Treatment
1Make sure the power is on.
A welcome message is displayed briefly on the LCD screen, then the standby
(Ramp) screen appears. The key and LCD backlights also turn on.
2Lie down and arrange the air tubing so that it is free to move if you turn in your
sleep.
!
CAUTION
•Do not leave long lengths of air tubing around the top of your bed. They
could twist around your head or neck while you are sleeping.
•Make sure the area around the flow generator is dry and clean. It should
also be clear of bedding, clothes and other potential blockages.
3Alter the ramp time if required (see “How to Change the Ramp Time” on
page 13).
To start treatment, press the Start/Stop key, unless your clinician has set up
your device to start delivering therapy automatically. If so, your device will start
when you breathe into your mask (see “SmartStart” for details).
4Fit your mask as described in the mask user instructions.
!
WARNING
A mask should not be used unless the S8 Elite II device is powered and
operating properly.
5When ramping begins, the LCD will display the word "RAMPING", with the
current pressure indicated as dashes. Each dash is approximately equivalent to
2 cm H2O. For example, 6 dashes represents approximately 12 cm H2O
pressure.
SmartStart™
The S8 Elite II has a function called SmartStart™that your clinician can enable. If
SmartStart is enabled, your device will start automatically when you breathe into
your mask, and will stop automatically when you take your mask off. This means
you do not have to press the Start/Stop key to begin or end treatment.
Note: Do not use SmartStart when using a mask with an anti-asphyxia valve,
such as the Mirage Full Face Mask.
Stopping Treatment
To stop treatment at any time, remove your mask and press the Start/Stop key
or
if your clinician has enabled SmartStart, simply remove your mask and treatment
will end.

9How to Use the S8 Elite II
Using the Mask-Fitting Feature
You can use the S8 Elite II mask-fitting feature to help you fit your mask properly.
This feature delivers air pressure for a three-minute period, prior to starting
treatment, during which you can check and adjust your mask fit to minimise
leaks.
Note: Make sure that the mask setting on the MASK screen is the same as the
mask you are using.
To use the mask-fitting feature:
1Fit your mask as described in the mask user instructions.
2Hold down the Start/Stop key for at least three seconds until air pressure
delivery starts.
The following display will appear on the LCD screen indicating that the mask-
fitting feature is operating. Your S8 device will ramp to the mask-fit pressure and
will remain at this pressure for three minutes.
The LCD also displays a mask-fit star rating. See Table 1, “Definitions of Mask-
Fit Star Rating,” on page 10.
Note: The mask-fit star rating display disappears after three minutes.
The mask-fitting feature can only be started from the RAMP screen.
The mask-fit pressure is the set treatment pressure or 10 cm H20, whichever is
greater.
3Adjust your mask, mask cushion, and headgear until you have a secure and
comfortable fit.
Once you have a secure and comfortable fit, check your mask-fit star rating on
the LCD screen. Table 1 explains the mask-fit star ratings.
Note: If there is another person nearby to check your mask-fit star rating, you
can adjust your mask, mask cushion and headgear while lying down.
4After three minutes, the pressure reverts to the set pressure and treatment will
begin.
•If you do not wish to wait three minutes, hold down the Start/Stop key
for at least three seconds to start treatment immediately.
•If you press the Start/Stop key for less than three seconds, the unit will
return to standby mode (the RAMP screen is displayed).
MASK FIT: *****
excelnt
mask-fit star rating

10How to Use the S8 Elite II
Table 1: Definitions of Mask-Fit Star Rating
Star rating Definition
***** Excellent
****- Very good
***-- Good
**--- Adjust mask
*---- Adjust mask
----- Adjust mask

11How to Attach a Humidifier
How to Attach a Humidifier
Attach a HumidAire 3i Humidifier
Please refer to the illustration in section Eof the illustration sheet, and your
HumidAire 3i manual.
The HumidAire 3i humidifier attaches to the front of the S8 Elite II to provide
heated humidification. No other accessories are required for its use.
Notes:
a. Make sure the water chamber of the HumidAire 3i is empty before you attach
or detach the humidifier.
b. Remove the connector plug on the S8 Elite II before you attach the
HumidAire 3i. Reattach the connector plug firmly after you detach the
humidifier.
Storing the HumidAire 3i
Store the HumidAire 3i in its mesh-top pouch in the S8 Elite II carry bag when
not in use.

12How to use the Keypad
How to use the Keypad
The control panel of the S8 Elite II includes an LCD screen and keypad for
navigating through the menus and delivering treatment.
LCD Screen
The LCD screen displays the menus and treatment screens.
The LCD backlight turns off after two minutes of inactivity. It turns back on when
you press a key.
Keypad Keys
The S8 Elite II keypad has the following keys:
LCD screen
Left key
Up key
Right key
Start/Stop key
Down key
Key Function
Start/Stop •Starts or stops treatment.
•Extended hold (for at least three seconds) starts the
mask-fitting feature.
Up •Allows you to scroll through the S8 Elite II menus and
submenus, and increase the setting options.
Down •Allows you to scroll through the S8 Elite II menus and
submenus, and decrease the setting options.
Left •Performs the function indicated by the guiding text
displayed above it on the LCD screen. Guiding text
includes menu, change and apply.
Right •Performs the function indicated by the guiding text
displayed above it on the LCD screen. Guiding text
includes exit and cancel.

13How to use the Keypad
When the S8 device is in standby mode all keys remain lit. During therapy, the
keypad backlight turns off after two minutes of inactivity and the Start/Stop key
dims.
How to Change the Settings
You can change settings on the S8 Elite II by using the keypad and LCD. When
the S8 Elite II is in standby mode you can display a series of screens (a menu) on
the LCD screen in order to view and change the settings for a particular function.
Your clinician will preset the menu to either a standard view or a detailed view.
See “How to Use the Standard Menu” on page 14 and “How to Use the Detailed
Menu” on page 16 for more information.
How to enter the menu screens
When the S8 Elite II standby (RAMP) screen is displayed you will see the word
‘menu’ in the left-hand corner. To select an S8 Elite II menu, press the Left key.
How to scroll through the menu
When you are in the menu, scroll through items by pressing the Up or Down
keys.
How to change a setting option
When you have scrolled to the item you require:
1. Press the Left key (Change).
2. Press the Up or Down keys until you see the setting option that you require.
3. Press the Left key (Apply) to select the setting option.
If you wish to exit without changing the option, press the Right key (Cancel).
How to exit out of a menu
Press the Right key (Exit). This will take you back to the standby (RAMP) screen.
How to exit out of an item within the menu
Press the Right key (Exit).
How to Change the Ramp Time
During ramp time, the pressure increases from a low pressure to the prescribed
treatment pressure. You can set the ramp time in 5-minute intervals, from 0
minutes (OFF) up to a maximum ramp time set by your clinician.
The standby screen displays the current ramp time in the right-hand corner. To
change the ramp time, press the Up or Down key until the desired ramp time
appears.
Once a ramp time is selected, begin therapy by pressing the Start/Stop key.

14How to Use the Standard Menu
How to Use the Standard Menu
Figure 1 shows the standard menu.
Figure 1: Standard menu screen
You enter the standard menu from the standby (RAMP) screen, by pressing the
Left (menu) key.
How to Change the Expiratory Pressure Relief Setting
Your clinician may have set up your device to deliver expiratory pressure relief
(EPR). This can be used to help ease any discomfort you may experience when
breathing out during treatment. There are four settings:
•OFF (no EPR)
•1 (lowest EPR)
•2
•3 (highest EPR).
The EPR SETTING screen only appears if your clinician has enabled access to
EPR settings. To change the EPR setting, select Change (Left key). Press the Up
or Down keys until you see the setting that you require.
How to Select the Mask Type
Scroll to MASK and select Change (Left key). Press the Up or Down keys until
you see the mask type that you require.
RAMP: 10min
menu
WELCOME
>>>>>>
EPR SETTING: 1
change exit
USED HRS: 08000
exit
USAGE: 1000/1068
exit
MASK: ULTRA
change exit
SW: SX3960200
exit
