Resolution RE122 User manual

RE122 GE Compatible NanoMax Instructions - May 15, 2015
24-Hour Tech Support Line: [phone]
www.ResolutionProducts.com
RE122 GE ® -Co patible NanoMax ™ Door/Window
Programming/Enrolling
• Place control Panel into enrollment mode
o Remove battery tab to automatically send entire RF enrollment sequence, or
o Open cover to tamper the device.
Installation
• The 3M V B™ tape is an extremely effective adhesive. owever it requires three things to
properly bond:
1. Clean surface – any standard cleaner will work, but surface must be dry afterwards.
2. Warm temperature – if temperature is below 50F, warm the mounting surface by
vigorously rubbing it with something clean.
3. Pressure – apply firm pressure for 10-15 seconds.
• Remove 3M V B™ tape backing
• Place on desired location of door or window
• External Contact: Internal magnetic switch cannot be used when external contact is
installed. See next page for external contact mounting.
Operation
• Alarm when…
o Magnet is pulled away from internal reed switch, or
o External contact is opened
• Tamper Alarm, when cover is opened
• Supervisory transmission, every hour
• Low battery indication, when battery is nearing end of life
Physical
ousing dimensions 1.8 x 0.77 x 0.39 inches
Weight with battery 0.529 ounces
Mounting fastener 3M V B™ Tape
Tamper activation Cover removal
Environmental
Operating temperature 32°F to 120°F
Specifications
Magnet trip distance 1 inch nominal
Replacement battery Panasonic CR1632
Battery life 6 years
Strong, reliable RF signal Maximum FCC power
Battery tab can be
extracted
without removing the cover
RF Enrollment signal is
sent after tab is removed
RE122 GE Compatible NanoMax Instructions - May 15, 2015
24-Hour Tech Support Line: [phone]
www.ResolutionProducts.com
RE122 GE ® -Co patible NanoMax ™ Door/Window
Programming/Enrolling
• Place control Panel into enrollment mode
o Remove battery tab to automatically send entire RF enrollment sequence, or
o Open cover to tamper the device.
Installation
• The 3M V B™ tape is an extremely effective adhesive. owever it requires three things to
properly bond:
1. Clean surface – any standard cleaner will work, but surface must be dry afterwards.
2. Warm temperature – if temperature is below 50F, warm the mounting surface by
vigorously rubbing it with something clean.
3. Pressure – apply firm pressure for 10-15 seconds.
• Remove 3M V B™ tape backing
• Place on desired location of door or window
• External Contact: Internal magnetic switch cannot be used when external contact is
installed. See next page for external contact mounting.
Operation
• Alarm when…
o Magnet is pulled away from internal reed switch, or
o External contact is opened
• Tamper Alarm, when cover is opened
• Supervisory transmission, every hour
• Low battery indication, when battery is nearing end of life
Physical
ousing dimensions 1.8 x 0.77 x 0.39 inches
Weight with battery 0.529 ounces
Mounting fastener 3M V B™ Tape
Tamper activation Cover removal
Environmental
Operating temperature 32°F to 120°F
Specifications
Magnet trip distance 1 inch nominal
Replacement battery Panasonic CR1632
Battery life 6 years
Strong, reliable RF signal Maximum FCC power
Battery tab can be
extracted
without removing the cover
RF Enrollment signal is
sent after tab is removed

RE122 GE Compatible NanoMax Instructions - May 15, 2015
24-Hour Tech Support Line: [phone]
www.ResolutionProducts.com

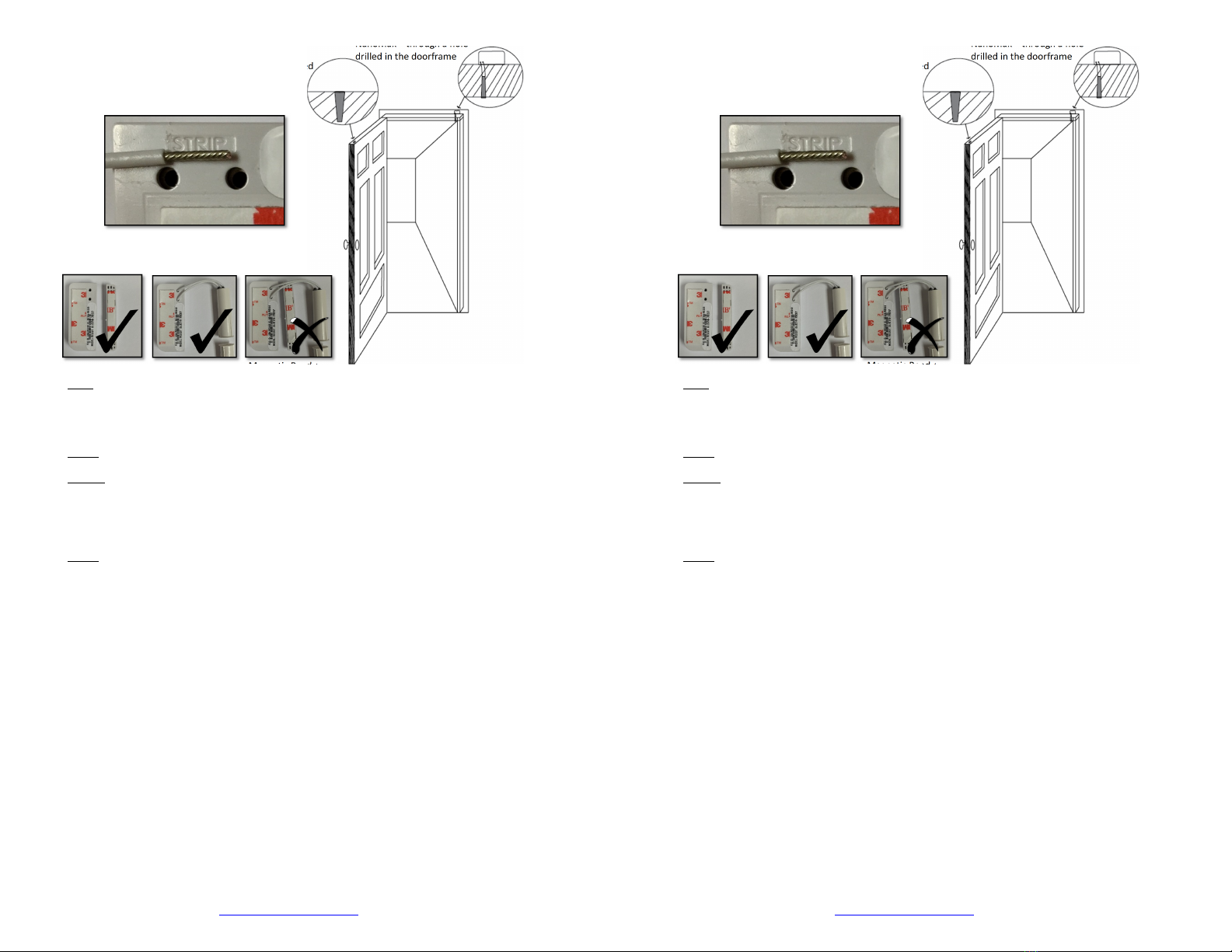

Magnet rests in drilled
hole on top of door.
External contact is wired to the
NanoMax™ through a hole
drilled in the doorframe
Magnetic Reed
External Contact
Magnetic Reed +
External Contact
Notices
“GE”, “Honeywell”, “DSC”, “2GIG” and “Napco” are trademarks owned by General Electric Company, Honeywell International
Inc., yco Safety Products Canada L D, 2GIG echnologies Inc., and NAPCO Security Systems, Inc., respectively.
Resolution Products, Inc. products will function with one of either GE, DSC, 2GIG or Honeywell systems. However, no Resolution
product is produced by, endorsed by, nor is officially associated with GE, Honeywell, 2GIG or DSC. Resolution recommends
verifying proper enrollment and operation, per control panel installation instructions, at installation.
Warranty
Resolution Products, Inc. will replace products that are defective in their first five (5) years.
FCC Notice
his device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
his device may not cause harmful interference.
his device must accept any interference that may be received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the Resolution Products, Inc. could void the user's authority to
operate this equipment.
FCC ID: U5X-RE122
IC Notice
his device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) his device may not cause interference, and
(2) his device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1)l'appareil ne doit pas produire de brouillage, et
(2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
Strip external contact wires to
¼” and twist each wire.
Typical External
Contact Installation
RE122 GE Compatible NanoMax Instructions - May 15, 2015
24-Hour Tech Support Line: [phone]
www.ResolutionProducts.com
Magnet rests in drilled
hole on top of door.
External contact is wired to the
NanoMax™ through a hole
drilled in the doorframe
Magnetic Reed
External Contact
Magnetic Reed +
External Contact
Notices
“GE”, “Honeywell”, “DSC”, “2GIG” and “Napco” are trademarks owned by General Electric Company, Honeywell International
Inc., yco Safety Products Canada L D, 2GIG echnologies Inc., and NAPCO Security Systems, Inc., respectively.
Resolution Products, Inc. products will function with one of either GE, DSC, 2GIG or Honeywell systems. However, no Resolution
product is produced by, endorsed by, nor is officially associated with GE, Honeywell, 2GIG or DSC. Resolution recommends
verifying proper enrollment and operation, per control panel installation instructions, at installation.
Warranty
Resolution Products, Inc. will replace products that are defective in their first five (5) years.
FCC Notice
his device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
his device may not cause harmful interference.
his device must accept any interference that may be received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the Resolution Products, Inc. could void the user's authority to
operate this equipment.
FCC ID: U5X-RE122
IC Notice
his device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) his device may not cause interference, and
(2) his device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1)l'appareil ne doit pas produire de brouillage, et
(2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
Strip external contact wires to
¼” and twist each wire.
Typical External
Contact Installation
