Retevis RA85 User manual

User’s manual
RA85

Menu
FEATURE....................................................................................
Unpacking and Checking Equipment......................................
Radio Introduction.....................................................................
Status indication.......................................................................
LED Indicator.............................................................................
Preparation................................................................................
Check Battery Power................................................................
Basic operation.........................................................................
Function Description................................................................
Main Function Description.......................................................
VOX.............................................................................................
Main Technical Specifications................................................
1
1
1
2
2
2
3
3
4
7
7
9

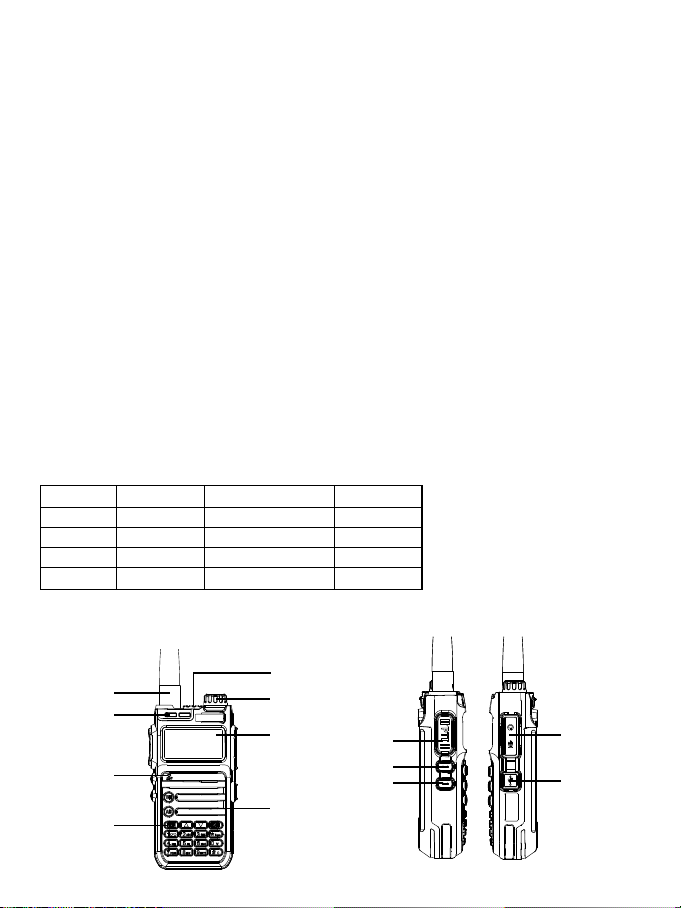

Antenna
Flashlight
Power/Volume Switch
Screen Display
speaker
TX/RX
indicator light
MIC
Numbers
Button
FEATURE
• Frequency Range: GMRS
•Dual Band, Dual Display, Dual Standby
•High Power, middle power, low power switching to meet the different talking distance, save power
•Up to 60 memory channels for programming frequency and other various data
•Multiple display modes such as channel number, frequency, channel frequency, channel name, etc.
•CTCSS/DCS, DTMF signaling reject unnecessary calls from other stations
•The tail tone is eliminated to avoid the noise from the speaker after the call is over
•VOX sound activated, no need to press the PTT button to talk
•Emergency alarm, ANI identification and other functions through DTMF
•DTMF, CTCSS (60.0 -259.9 HZ), DCS signaling codec function
•8-step frequency selection (2.5K, 5.0K, 6.25K, 10.0K, 12.5K, 20.0K, 25.0K, 50.0K)
•Automatic power saving function to extend battery life
•SOS emergency alert function
•Digital FM radio (receiving 65-108MHz)
•Menu item keyboard number direct selection function, transmit and receive frequency can be manually input
•Fashlight lighting function
•Frequency measurement function, copy the frequency of other devices at any time
•USB charging function, you can use the USB charging cable to charge
Unpacking and Checking Equipment
The box contains the following items. If any items are missing or damaged, please contact the dealer where you
purchased the product.
Radio Introduction
Product Quantity Product Quantity
Radio 1 Charging Base 1
Battery 1 Belt clip 1
Manual 1
Hand Strap 1
PTT Earphone/
Program Jack
USB charging
port
Side Button 1
Side Button 2
1

Status Indicator
Status Icon
LED Indicator
The LED indicators of this radio can let you easily grasp the
current operating status.
Preparation
Battery Installation
1.Align the battery with the battery mount on the back of the radio
2.Press the battery forcefully into the walkie-talkie, and slide the battery up
until the lock plate is locked to the correct position
If you need to remove the battery, turn off the radio. Press the battery lock to
the unlocked position and hold it down, then slide the battery down and
away from the battery mount.
Belt Clip Installation
Align the two screw holes of the belt clip with the screw holes above the
battery, install and tighten the screws.
If you need to remove the belt clip, loosen and remove the screws from
the belt clip
Install an external headset/microphone (optional purchase separately)
Indicator status Radio Status
Red light long bright Transmitting
Green light long bright Receiving
The current transmitting power is medium power (more power saving, relatively moderate
communication distance)
The current transmitting power is low power (the most power saving, relatively close
distance)
The current transmitting power is high power (the longest communication distance, the
highest power consumption)
Channel strength indicator, the more the number, the stronger the signal
This symbol indicates that the current status is DCS
This symbol indicates that the current status is CT
This symbol indicates that dual frequency waiting is on and it is in a dual-waiting status.
This symbol appears whne the buttonboard is locked, press 【#】button to unlock and it
disappears
This symbol indicates that the VOX function is activated, and the emission will start when
the sound pressure level of the microphone reaches the set value
Receiving and transmitting frequency inversion in frequency mode/channel mode
It appears whne the channel is working in a narrowband mode
Display the current remaining power of battery
A/B band pointer, indicating the current working frequency or working channel
Band A current channel number in channel mode
Band B current channel number in channel mode
This symbol appears when the side tone switch is set to button side tone/button+identity
code/identity code
NO. Icon Product Status
2
1
4
5
6
7
8
9
10
11
12
13
3
Aranbic No.
Aranbic No.
2

1.Open the earphone cover.
2.Insert the headphone plug into the headphone jack.
When you don't need to use the earphones, pull out the earphone plug from the earphone hole
and put on the earphone cover.
When the universal interface is not used, please put on the dust cover.
Do not shake the radio with the top of the antenna, otherwise it will reduce the working
performance and service life of the antenna.
Radio Charging
Note:
• Please use the charging equipment designated by our company to charge. When charging the whole device,
please turn off the radio first.
• According to the 2016 new requirements of the International Civil Aviation (IATA) "Technical Regulations for the
Safe Air Transport of Dangerous Goods", the state of charge of lithium-ion batteries (cells) for air transport shall
not exceed 30% of its rated capacity. Therefore, the first time the battery is used with the host, there will be a low
battery warning with the voice prompt "Please charge"phenomenon, please charge the battery before use.
When using the radio for the first time, a low battery alarm may appear. Please charge the battery before using,
follow the steps :
1. Insert the power adapter interface into the jack on the back of the charging base.
2. Insert the plug of the power adapter into the power socket.
3. Put the battery into the charging cradle.
4. Observe the LED indicator of the charging base to understand the current charging status, as shown in the
table below.

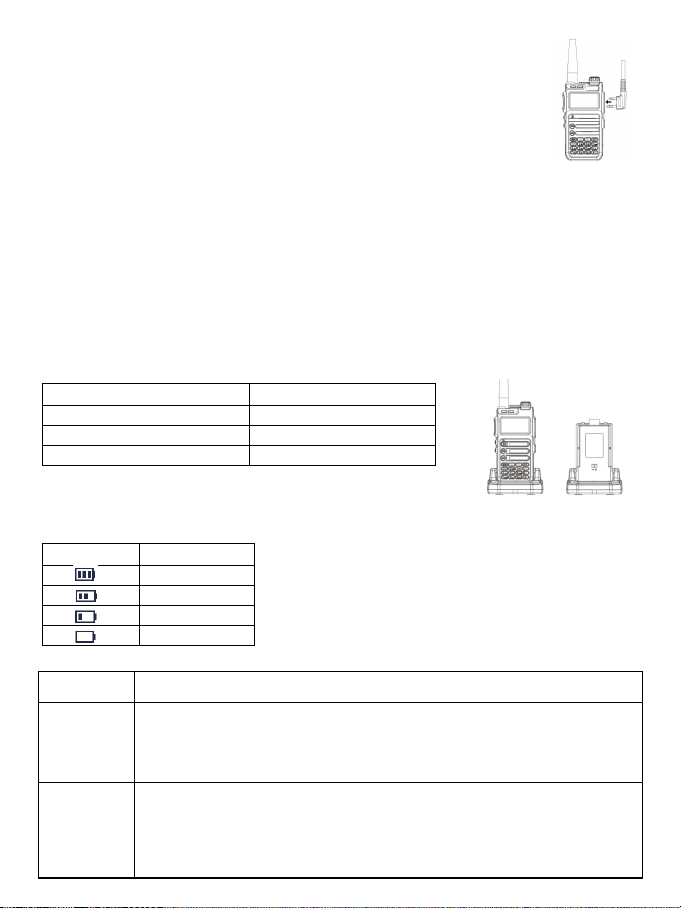

Check Battery Power
This function allows you to know the current battery voltage and remaining power.
Long press【0】key to display the current voltage.
The current battery level is displayed on the upper right of the screen, and the battery level icons are as follows:
Basic operation
Charing Base LED Indicator Current Charging Status
Red light flashing Lower battery voltage
Red light is on Charging
Green ligjt on Finished charging
Battery Icon Batter Power
High
Middle
Low
insufficient
Knobs, Switches,
Buttons Instructions
Power/volume
Switch
Select Channel
Turn on/off: Turn the [Power/Volume Switch] knob clockwise to turn on the radio and adjust
the volume to the maximum.
• Turn the [Power/Volume Switch] knob counterclockwise to adjust the volume to the
minimum until the radio is turned off.
• If the voice broadcast function is turned on, the startup voice will be broadcast.
The channel is the aisle through which the signal is transmitted. After power on, press the
[V/M] key to switch to the channel mode, press [/] to select the channel, and the channel
number will be displayed on the right side of the screen.
• If the channel broadcast function is turned on, the intercom will broadcast the current
channel mode.
3

Function Description
Menu Settings
You can enter "Menu Settings" through the menu key to set some common functions. The specific instructions
and operation methods are as follows:
Menu Primary menu Secondary menu Secondary menu setting description
No. display characters display characters
0 Squelch 0,…,9 Squelch level, the lower the level, the easier it is to interfere,
the higher the level the worse the sensitivity, the default value
is 3.
PTT Button Call
SK1（Side Key
1）
SK2（Side key 2）
V/M Key
A/B Key
Keyboard Lock
and Unlock
• Channel mode to initiate a call: After selecting a channel, press and hold the [PTT] key to
initiate a call to the current channel. Speak into the microphone in a normal tone. When a call
is initiated, the red LED light is always on.
• Manually input frequency to initiate a call: Press the [V/M] key to switch to frequency mode,
enter a frequency within the allowable range, and hold down the [PTT] key to initiate a call to
the current channel. Speak into the microphone in a normal tone. When a call is initiated, the
red LED light is always on.
• Receiving a call: After releasing the [PTT] key, you can answer it without any operation.
When receiving a call, the green LED light is always on.
To ensure the best receiving volume, please keep the distance between the microphone and
your mouth at 2.5 cm ~ 5 cm when transmitting.
The side buttons have two modes: short press and long press, and the following functions
can be selected: off, flashlight, alarm, radio, NOAA weather forecast, monitoring, and
frequency sweeping.
Off: No function
Flashlight function: Short press the [SK1] key to turn on the flashlight function and the
flashlight light is always on; short press the [SK1] key again to turn off the flashlight function.
If you choose to operate the flashlight function in the menu mode, short press the [SK1] key
the first time the flashlight lights up, short press the second time the flashlight light continues
to flash, short press three times the flashlight light to turn off.
Alarm: SOS emergency alarm function: Short press the [SK1] key to turn on the alarm
function. At this time, the green indicator light and the red indicator light flash at the same
time. Short press the [SK1] key again to release the alarm.
Radio: Short press the [SK1] key to turn on the radio function, and short press the [SK1] key
again to turn off the radio.
The radio frequency can be entered through the keyboard or tap the "#" key to automatically
search for radio stations. In radio mode, press the [EXIT] key to switch between
65-75/76-108MHz frequency band.
NOAA weather forecast: Short press the [SK1] key to turn on the NOAA function, and short
press the [SK1] key again to turn off the NOAA function.
Press the up and down keys to select the channel: 10 channels for selection: see Appendix 1
for details
Monitoring function: Short press the [SK1] key to turn on the monitoring function, and release
the [SK1] key to cancel the monitoring.
Sweep: Short press [SK1] to turn on the sweep function, and directly measure the frequency
of other devices.
Same side key SK1, with short press and long press function to choose
Frequency mode or channel mode switching.
• Frequency mode: Manually enter the frequency.
• Channel mode: Press [▲ / ▼] to select a channel.
A/B upper and lower frequency band switch selection.
Press the PTT button to transmit in the frequency band pointed to by the pointer.
Manual lock: Long press # key to lock the intercom.
Automatic lock: After the automatic keyboard lock is turned on, when there is no operation
on the buttons and knobs, the automatic lock will be delayed for 10 seconds.
Unlock: Long press # key to unlock the keyboard.
4

1 Step 2.5KHz In frequency mode, press ▲ / ▼ key to change the step value
5.0KHz of frequency, the value range is 2.5~50KHz
6.25KHz
10.00KHz
12.50KHz
20.0KHz
25.0KHz
50.0KHz
2 Tx Power High High power transmission
Middle Medium power transmission
Low Low power transmission
3 Power save OFF Turn off power saving mode
ON Turn on power saving mode
4 Vox Level OFF Turn off VOX
1,2,… 10 The level intensity of voice activation, the value range is 1~10.
5 Backlight Bright Backlight is always on
OFF Backlight off
5Sec,10Sec,… 60Sec Automatic backlight delay time, the range is 5~60 seconds
6 Menu Exit Time 5Sec,10Sec,… 60Sec Automatic backlight delay time, the value range is 5~60 seconds
7 Dual Standby OFF Dual Standby off
ON Dual Standby on
8 Beep Prompt OFF Beep Prompt off
ON Beep Prompt on
9 VOICE OFF Prompt voice off
ON Prompt voice on
OFF Press and hold the PTT button to keep transmitting
10 Tx over time
15,30,…600 Value range 15~600, step value 15
11
12
13
14
15
Rx DCS
Rx CTCSS
Tx DCS
Tx CTCSS
DTMFST
16
17
TONE
S-CODE
OFF
OFF
OFF
OFF
OFF
DCS off
DCS Standard sequence
CTCSS off
D023N,…,D754I
67.0HZ,…,254.1HZ
D023N,…,D754I
67.0HZ,…,254.1HZ
1,2，…,15
1000hz,1450hz,
1750hz,2100hz
DT-ST
ANI-ST
DT+ANI
DCS Standard sequence
Repeater activation audio
When needed, send out this group of information codes
(information codes can only be written by frequency writing
software)
DCS off
CTCSS off
CTCSS Standard sequence, At the same time, you can
directly type standard or non-standard CTCSS by keyboard
CTCSS Standard sequence, At the same time, you can
directly type standard or non-standard CTCSS by keyboard
5

18
19
Scan Mode
PTT-ID
20 MDF-A
21 MDF-B
TO
CO
Time scan
Carrier scan
Search mode scanSE
OFF Press PTT to not send ID code
Press PTT to send ID code (ID code is set by frequency
writing software)
Release PTT to send ID code
ID code is sent when you press and release the PTT button
In the channel mode of the A segment, the channel displays
the frequency
In the channel mode of section A, the channel displays the
channel name (the specific name is set in the frequency
writing software)
In the channel mode of section B, the channel displays the
frequency
In the channel mode of section B, the channel displays the
channel name (the specific name is set in the frequency
writing software)
BOT
EOT
Frequency
Name
Frequency
Name
BOTH
22 Busy Lockout OFF Allowed to transmit when channel is occupied and
ON Forbide to transmit when channel is occupied
23 Key Auto Lock OFF Automatic keyboard lock off
ON Automatic keyboard lock on
24 Key1 sp OFF No function
LAMP Turn on the flashlight function
SOS Turn on the alarm function
FM Turn on the radio function
NOAA Turn on NOAA weather forecast function
MONI Turn on the monitoring function
SEARCH Turn on the searching function
25 Key1 LP Same function as side key 1 short press
26 Key2 sp Same function as side key 1 short press
27 Key2 LP Same function as side key 1 short press
28 Alarm Mode On site
Send sound
Send code
29 TAIL OFF After the PTT is released, the radio does not send a shutdown
code, usually when it is relayed through the relay, let it make
noise to confirm whether the signal of the radio is relayed
ON After releasing the PTT button, the radio sends a shutdown
code to suppress the instantaneous noise of the listener
30 PROGER OF Turn off the call end alert tone
ON Turn on the call end alert tone
31 Language Chinese
English
6

22 Busy Lockout OFF Allowed to transmit when channel is occupied and
ON Forbide to transmit when channel is occupied
23 Key Auto Lock OFF Automatic keyboard lock off
ON Automatic keyboard lock on
24 Key1 sp OFF No function
LAMP Turn on the flashlight function
SOS Turn on the alarm function
FM Turn on the radio function
NOAA Turn on NOAA weather forecast function
MONI Turn on the monitoring function
SEARCH Turn on the searching function
25 Key1 LP Same function as side key 1 short press
26 Key2 sp Same function as side key 1 short press
27 Key2 LP Same function as side key 1 short press
28 Alarm Mode On site
Send sound
Send code
29 TAIL OFF After the PTT is released, the radio does not send a shutdown
code, usually when it is relayed through the relay, let it make
noise to confirm whether the signal of the radio is relayed
ON After releasing the PTT button, the radio sends a shutdown
code to suppress the instantaneous noise of the listener
30 PROGER OF Turn off the call end alert tone
ON Turn on the call end alert tone
31 Language Chinese
English
32 Reset VFO Menu initialization only
ALL Menu and channel initialization
33 SPECIAL DCS OFF Turn off special DCS
ON Turn on special DCS，Only the same DCS code can talk to
each other
Main Function Description
The functions supported by the walkie-talkie are shown in the table below.
Name Function Description
Squelch level Squelch level adjustment is to adjust the signal strength required when receiving signal. The
adjustment squelch level (0 open to 9 is the highest) is selected by the local environment, and 3
is generally selected.
DCS/CTCSS Used to avoid listening to unrelated calls of the same frequency. Only when the transmitted
DCS/CTCSS matches the received DCS/CTCSS, the radio can listen to the voice through the
speaker.
TOT The timeout timer can limit the single transmission time (the default is 60 seconds) to prevent the
communication parties from occupying channel resources for a long time, and to prevent the
terminal from being damaged due to overheating. After the duration of pressing the [PTT] key
expires, the terminal will automatically terminate the transmission and emit a warning tone. If you
need to talk again, please transmit after the preset time.
Power saving When the walkie-talkie has no receiving or transmitting, no button or knob operation reaches the
power saving time, it will automatically enter the power saving mode.
Low battery When the battery power is low, it can be charged in time through the sound reminder. When the
warning battery is too low, transmission will be prohibited.
Emergency An emergency alert is when you encounter an emergency, you can ask your companion or the
alert control center for help.
SCAN After the scan is turned on, the terminal will scan according to the scan list. When it finds activity
on a certain channel, it will stay on the channel to listen, so as to understand the current activity
status of the relevant group members.
Busy channel Channel busy lock can prevent interference from other terminals on the same channel during
lock transmission. When other terminals occupy the current channel, press and hold the [PTT] key,
and the terminal will emit a "beep" tone, indicating that it cannot be transmitted. If the current
channel is free, press and hold the [PTT] key to start transmission.
Power level The power level refers to the transmit power level of the walkie-talkie, which can be set to high
power or low power. High power can increase the signal strength of the current transmitted voice
of the terminal, and it can also communicate with the remote terminal. Low power can save power.
MONI Monitoring is a listening method used to receive more signals or weak signals, which helps to
distinguish and listen to the faint sounds in the speakers.
Channel It is used to indicate the sequence of the current channel.
broadcast
VOX After turning on the voice control, when the voice detected by the microphone meets the
transmission conditions, the terminal will automatically transmit the voice, and you can speak
directly without pressing the [PTT] key. The voice control gain is used to control the sensitivity of
the microphone's voice control emission, which is configured by the dealer.
VOX
press the [PTT] key to call, then this function can be enabled. Operation method:
1) In the standby mode, press the [MENU] key, the voice prompt "menu setting", enter the function menu setting;
2) Press [▲] or [▼] key to select 4 menu number forward or backward; or directly enter the number 4 to enter 4
menu number;
3) Press the [MENU] key, the voice prompt "Voice-activated emission", press the [▲] or [▼] key, select 1~10 (the
larger the value, the higher the sensitivity; such as selecting 3)
4) Press the [MENU] key, the voice prompt "OK", save and return to the previous menu.
5) Repeat the above operation, select OFF to turn off the voice-activated transmission function.
After turning on the voice-activated transmission function, speak into the microphone, and the voice can be
sent out; stop speaking, and the transmission will also stop. You can select the VOX sensitivity level according to
the quietness of the environment. If the environment noise is too large, long emission will occur after the VOX
function is activated.
7

If the dual-standby is enabled on this machine, the VOX function is turned off by default, and the VOX
function cannot be activated.
Keyboard Lock function
The keyboard lock function disables the number keys to prevent you from activating a function by mistake. This
radio can be set to automatic keyboard lock function, the operation is as follows:
1) In the standby mode, press the [MENU] key, the voice prompt "menu setting", enter the function menu setting;
2) Press the [▲] or [▼] key to select the 23 menu number forward or backward; or directly enter the numbers 2
and 3 to enter the 23 menu number;
3) Press [MENU] key, press [▲] or [▼] key to select ON;
4) Press the [MENU] key, the voice prompt "OK", save and return to the previous menu. The automatic keyboard
lock function is activated.
5) Repeat the above operation, select OFF to turn off the automatic keyboard lock function, and select manual
keyboard lock. The operation is as follows:
①In the standby state, long press the 《#》key for more than 2s, the keyboard lock function is activated (voice
prompt "keyboard lock");
②Long press the 《#》key repeatedly for more than 2s, the keyboard lock function is closed (voice prompt
"keyboard unlock").
After the automatic keyboard lock function is turned on, when it is not locked, the numeric keyboard is
automatically locked without any keyboard operation for 10 seconds.
Dual Standby
When in dual standby mode, the two-way radio can receive the frequency set by the A or B channel. The
operation is as follows:
1) In the standby mode, press the [MENU] key, the voice prompt "menu setting", enter the function menu setting;
2) Press the [▲] or [▼] key to select the 7 menu number forward or backward; or directly enter the number 7 to
enter the 7 menu number;
3) Press the [MENU] key, the voice prompt "Dual Standby", press [▲] or [▼] key, select ON
4) Press the [MENU] key, the voice prompt "OK", save and return to the previous menu. The dual-frequency
waiting function is turned on.
Repeat the above operation and select OFF to turn off the dual-frequency standby function. In the menu
mode, the dual-frequency standby is temporarily turned off, and recover after exiting.
Since the dual-standby mode is in the main and sub-channel scanning state, in the dual-standby mode,
even if the power saving function of the unit is turned on, its power saving function is still invalid, and the standby
time of the walkie-talkie will be shortened.
CTCSS/ DCS
CTCSS/ DCS is mainly used to avoid listening to unrelated calls on the same frequency. If CTCSS/DCS is set,
within the effective communication range, only calls with the same CTCSS/DCS set in the channel can be
received; but if CTCSS/DCS signaling is not set, you can listen to the effective communication range All calls on
the same channel.
Side Tone Switch
Key side tone: The radio emits key side tone when sending key side tone
ID code side tone: When sending the ID code, the radio will emit the ID code side tone
Button side tone + ID code side tone: When sending button side tone and ID code side tone, the radio emits the
corresponding sound
Note: Button side tone: including number key side tone and TONE tone
USB charging
The walkie-talkie can be directly plugged into the USB charging cable and charging with a power bank.
Frequency Measurement Function
Press +〖*〗key to enter the frequency measurement mode, press【▲】or【▼】key to select U segment or
V segment. When the signal is received, if the current frequency has CTCSS/DCS, it will be displayed on the
screen at the same time, press the key, you can save the current frequency. Or you can select the shortcut
operation method by pressing the side button.
Optional Accessories
Please use the accessories specified by our company.
If you use unlicensed accessories without authorization, all consequences caused by this will be the
responsibility of the user.
Please consult your local dealer for optional accessories of the walkie-talkie.
8

Main Technical Specifications
All specifications are subject to change without notice or responsibility.
Frequency Range GMRS
Memory channels 60
Frequency step 12.5kHz
Input voltage 7.4 VDC
Battery(standard configuration) 1800mAH(Li-Ion)
Battery life (5-5-90,high power transmission) About 14 Hours
Power: Consumption in standby ≤65mA
Consumption in reception ≤450 mA
Consumption in transmission ≤1.8 A @high power，850 mA @ low power
Frequency stability ±2.5ppm
Operating temperature -20℃to +60℃
Antenna impedance 50Ω
Dimensions (With battery, but without antenna) 121×61×33mm
Weight (Including antenna and battery) 223g
Transmit output power 5W/0.5W
Modulation 1[email protected]
Spurious emission -36dBm＜1GHz，-30dBm＞1GHz
FM signal-to-noise ratio 40dB @12.5KHz
Audio distortion ≤5%
Modulation limit ±2.5 [email protected] KHz
Adjacent channel power 60dB @ 12.5KHz
Audio response (300-3000Hz) +1~3dB
Receiving sensitivity 0.25μV (12dB SINAD)
Adjacent channel selectivity ≥[email protected]
Intermodulation immunity ≥[email protected]
Conducted spurious emissions ≤-57dB @12.5KHz
FM signal-to-noise ratio ≥40dB @12.5KHz
Audio output power 1W @16ohms
Audio distortion ≤5%
Audio response(300-3000Hz) +1～-3dB
9

TX
462.5625
462.5875
462.6125
462.6375
462.6625
462.6875
462.7125
467.5625
467.5875
467.6125
467.6375
467.6625
467.6875
467.7125
462.55
462.575
462.6
462.625
462.65
462.675
462.7
462.725
467.55
467.575
467.6
467.625
467.65
467.675
467.7
467.725
462.5625
462.5875
462.6125
462.6375
462.6625
462.6875
462.7125
467.5625
467.5875
467.6125
467.6375
467.6625
467.6875
467.7125
462.55
CH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
RX
462.5625
462.5875
462.6125
462.6375
462.6625
462.6875
462.7125
467.5625
467.5875
467.6125
467.6375
467.6625
467.6875
467.7125
462.55
462.575
462.6
462.625
462.65
462.675
462.7
462.725
462.55
462.575
462.6
462.625
462.65
462.675
462.7
462.725
462.5625
462.5875
462.6125
462.6375
462.6625
462.6875
462.7125
467.5625
467.5875
467.6125
467.6375
467.6625
467.6875
467.7125
462.55
Power
5W
5W
5W
5W
5W
5W
5W
0.5W
0.5W
0.5W
0.5W
0.5W
0.5W
0.5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
0.5W
0.5W
0.5W
0.5W
0.5W
0.5W
0.5W
5W
W/N
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
CTC/DCS
67
118.8
127.3
131.8
136.5
141.3
146.2
D243N
D032N
D047N
D051N
D053N
D065N
D116N
123
D743I
D332I
127.3
D243I
D606N
D731I
136.5
136.5
136.5
136.5
136.5
136.5
136.5
136.5
136.5
67
118.8
127.3
131.8
136.5
141.3
146.2
D243N
D032N
D047N
D051N
D053N
D065N
D116N
123
GMRS
10

462.575
462.6
462.625
462.65
462.675
462.7
462.725
467.55
467.575
467.6
467.625
467.65
467.675
467.7
467.725
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
462.575
462.6
462.625
462.65
462.675
462.7
462.725
462.55
462.575
462.6
462.625
462.65
462.675
462.7
462.725
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
12.5KHz
D743I
D332I
127.3
D243I
D606N
D731I
136.5
136.5
136.5
136.5
136.5
136.5
136.5
136.5
136.5
11

RF ENERGY EXPOSURE AND PRODUCT SAFETY GUIDE FOR PORTABLE
TWO-WAY RADIOS
Before using this radio, read this guide which contains important operating instructions for
safe usage and rf energy awareness and control for compliance with applicable standards
and regulations.
ATTENTION!
This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communica-
tions between two or more users over a distance. RF energy, which when used improperly, can cause biological
damage.
All Retevis two-way radios are designed, manufactured, and tested to ensure they meet government-established
RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of
two-way radios. These instructions are important because they inform users about RF energy exposure and
provide simple procedures on how to control it.
Please refer to the following websites for more information on what RF energy exposure is and how to control
your exposure to assure compliance with established RF exposure limits:http://www.who.int/en/
Local Government Regulations
When two-way radios are used as a consequence of employment, the Local Government Regulations requires
users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure
awareness can be facilitated by the use of a product label directing users to specific user awareness
information. Your Retevis two-way radio has a RF Exposure Product Label. Also, your Retevis user manual, or
separate safety booklet includes information and operating instructions required to control your RF exposure and
to satisfy compliance requirements.
Radio License
Governments keep the radios in classification, business two-way radios operate on radio frequencies that are
regulated by the local radio management departments (FCC, ISED, OFCOM, ANFR, BFTK, Bundesnetzagen-
tur...).To transmit on these frequencies, you are required to have a license issued by them. The detailed
classification and the use of your two radios, please contact the local government radio management
departments.
Use of this radio outside the country where it was intended to be distributed is subject to government regulations
and may be prohibited.
Unauthorized modification and adjustment
Changes or modifications not expressly approved by the party responsible for compliance may void the user’s
authority granted by the local government radio management departments to operate this radio and should not
be made. To comply with the corresponding requirements, transmitter adjustments should be made only by or
under the supervision of a person certified as technically qualified to perform transmitter maintenance and
repairs in the private land mobile and fixed services as certified by an organization representative of the user of
those services.
Replacement of any transmitter component (crystal, semiconductor, etc.) not authorized by the local government
radio management departments equipment authorization for this radio could violate the rules.
FCC Requirements:
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does
not cause harmful interference. (Licensed radios are applicable);
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (Other
devices are applicable)
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
NOTE:
•This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
12

•This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
CE Requirements:
•(Simple EU declaration of conformity) Shenzhen Retevis Technology Co., Ltd. declares that the radio equipment
type is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU
and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU; the full text of the EU declaration of
conformity is available at the following internet address: www.retevis.com.
•Restriction Information
This product can be used in EU countries and regions, including: Belgium (BE), Bulgaria (BG), Czech Republic
(CZ), Denmark (DK), Germany (DE), Estonia (EE), Ireland (IE), Greece (EL), Spain (ES), France (FR), Croatia
(HR), Italy (IT), Cyprus (CY), Latvia (LV), Lithuania (LT), Luxembourg (LU), Hungary (HU), Malta (MT),
Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Slovakia (SK), Finland
(FI), Sweden (SE) and United Kingdom (UK).
For the warning information of the frequency restriction, please refer to the package or manual section.
•Disposal
The crossed-out wheeled-bin symbol on your product, literature, or packaging reminds you that in the
European Union, all electrical and electronic products, batteries, and accumulators (rechargeable
batteries) must be taken to designated collection locations at the end of their working life. Do not dispo-
se of these products as unsorted municipal waste. Dispose of them according to the laws in your area.
IC Requirements:
Licence-exempt radio apparatus
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
RF Exposure Information
•DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also
cause you to exceed RF exposure limits. A proper antenna is the antenna supplied with this radio by the
manufacturer or an antenna specifically authorized by the manufacturer for use with this radio, and the antenna
gain shall not exceed the specified gain by the manufacturer declared.
•DO NOT transmit for more than 50% of total radio use time, more than 50% of the time can cause RF exposure
compliance requirements to be exceeded.
•During transmissions, your radio generates RF energy that can possibly cause interference with other devices
or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so.
•DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals,
aircraft, and blasting sites.
•Portable Device, this transmitter may operate with the antenna(s) documented in this filing in Push-to-Talk and
body-worn configurations. RF exposure compliance is limited to the specific belt-clip and accessory configura-
tions as documented in this filing and the separation distance between user and the device or its antenna shall
be at least 2.5 cm.
•Mobile Device, during operation, the separation distance between user and the antenna subjects to actual
regulations, this separation distance will ensure that there is sufficient distance from a properly installed
externally-mounted antenna to satisfy the RF exposure requirements.
13

•Occupational/Controlled Radio, this radio is designed for and classified as “Occupational/Controlled Use Only”,
meaning it must be used only during the course of employment by individuals aware of the hazards, and the
ways to minimize such hazards; NOT intended for use in a General population/uncontrolled environment.
•General population/uncontrolled Radio, this radio is designed for and classified as “General population/uncon-
trolled Use”.
RF Exposure Compliance and Control Guidelines and Operating Instructions
To control your exposure and ensure compliance with the occupational/controlled environment exposure limits,
always adhere to the following procedures.
Guidelines:
•User awareness instructions should accompany the device when transferred to other users.
•Do not use this device if the operational requirements described herein are not met.
Operating Instructions:
•Transmit no more than the rated duty factor of 50% of the time. To Transmit (Talk), push the Push to Talk (PTT)
button. To receive calls (listen), release the PTT button. Transmitting 50% of the time, or less, is important
because the radio generates measurable RF energy exposure only when transmitting in terms of measuring for
standards compliance.
•Transmit only when people outside the vehicle are at least the recommended minimum lateral distance away
from a properly installed according to installation instructions, externally mounted antenna.
•When operating in front of the face, worn on the body, always place the radio in a Retevis approved clip, holder,
holster, case, or body harness for this product. Using approved body-worn accessories is important because the
use of Non-Retevis approved accessories may result in exposure levels, which exceed the IEEE/ICNIRP RF
exposure limits.
Hand-held Mode
• Hold the radio in a vertical position with the microphone (and other parts of the radio including the
antenna) at least 2.5 cm (one inch) away from the nose or lips. The antenna should be kept away
from the eyes. Keeping the radio at a proper distance is important as RF exposure decreases with
increasing distance from the antenna.
Phone Mode
•When placing or receiving a phone call, hold your radio product as you would a wireless telephone. Speak
directly into the microphone.
Electromagnetic Interference/Compatibility
NOTE: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately
shielded, designed, or otherwise configured for electromagnetic compatibility
Avoid Choking Hazard
Small Parts. Not for children under 3 years.
Turn off your radio power in the following conditions:
WARNING
•Turn off your radio before removing (installing) a battery or accessory or when charging battery.
•Turn off your radio when you are in a potentially hazardous environments: Near electrical blasting
caps, in a blasting area, in explosive atmospheres (inflammable gas, dust particles, metallic powders,
grain powders, etc.).
•Turn off your radio while taking on fuel or while parked at gasoline service stations.
To avoid electromagnetic interference and/or compatibility conflicts
•Turn off your radio in any facility where posted notices instruct you to do so, hospitals or health care
facilities (Pacemakers, Hearing Aids and Other Medical Devices) may be using equipment that is
sensitive to external RF energy.
•Turn off your radio when on board an aircraft. Any use of a radio must be in accordance with
applicable regulations per airline crew instructions.
• Use the lowest volume necessary to do your job.
• Turn up the volume only if you are in noisy surroundings.
• Turn down the volume before adding headset or earpiece.
• Limit the amount of time you use headsets or earpieces at high volume.
• When using the radio without a headset or earpiece, do not place the radio's speaker directly
against your ear
Protect your hearing:
WARNING
14

Antennas
•Do not use any portable radio that has a damaged antenna. If a damaged antenna comes into
contact with the skin when the radio is in use, a minor burn can result.
Batteries (If appropriate)
•When the conductive material such as jewelry, keys or chains touch exposed terminals of the
batteries, may complete an electrical circuit (short circuit the battery) and become hot to cause bodily
injury such as burns. Exercise care in handling any battery, particularly when placing it inside a
pocket, purse or other container with metal objects.
Long transmission
•When the transceiver is used for long transmissions, the radiator and chassis will become hot.
• Use careful with the earphone maybe possible excessive sound pressure from earphones and
headphones can cause hearing loss.
Note: Exposure to loud noises from any source for extended periods of time may temporarily or
permanently affect your hearing. The louder the radio's volume, the less time is required before
your hearing could be affected. Hearing damage from loud noise is sometimes undetectable
at first and can have a cumulative effect.
Forbid
•Do not use charger outdoors or in moist environments, use only in dry locations/conditions.
•Do not disassemble the charger, that may result in risk of electrical shock or fire.
•Do not operate the charger if it has been broken or damaged in any way.
•Do not place a portable radio in the area over an air bag or in the air bag deployment area. The radio
may be propelled with great force and cause serious injury to occupants of the vehicle when the air
bag inflates.
To reduce risk
•Pull by the plug rather than the cord when disconnecting the charger.
•Unplug the charger from the AC outlet before attempting any maintenance or cleaning.
•Contact Retevis for assistance regarding repairs and service.
•The adapter shall be installed near the equipment and shall be easily accessible
•Contact Retevis for assistance regarding repairs and service.
•The adapter shall be installed near the equipment and shall be easily accessible
•This radio meets the RF exposure guidelines when used with the Retevis accessories supplied or
designated for the product. Use of other accessories may not ensure compliance with the RF
exposure guidelines and may violate regulations.
•For a list of Retevis-approved accessories for your radio model, visit the following website:
http://www.Retevis.com
Approved Accessories
WARNING
Safety Operation
WARNING
WARNING
Avoid Burns
15

Guarantee
Model Number:
Serial Number:
Purchasing Date:
Dealer: Telephone:
User’s Name: Telephone:
Country: Address:
Post Code: Email:
Remarks:
1.This guarantee card should be kept by the user, no replacement if lost.
2.Most new products carry a two-year manufacturer’s warranty from the date of
purchase. Further details, pls read http://www.retevis.com/after-sale/
3.The user can get warranty and after-sales service as below:
• Contact the seller where you buy.
• Products Repaired by Our Local Repair Center
4.For warranty service, you will need to provide a receipt proof of purchase from the
actual seller for verification
Exclusions from Warranty Coverage:
1.To any product damaged by accident.
2.In the event of misuse or abuse of the product or as a result of unauthorized
alterations or repairs.
3.If the serial number has been altered, defaced, or removed.
Please cut along with this line

Add: 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli
6th Road, Jihua Street, Longgang District, Shenzhen, China
Web: www.retevis.com
E-mail: [email protected]
Facebook: facebook.com/retevis
Shenzhen Retevis Technology Co.,Ltd.
