Ricoh SR5090 Quick start guide

Finisher SR5090, Booklet Finisher
SR5100
Machine Code: D3GD, D3GC
Field Service Manual
Ver 1.0
Latest Release: March, 2019
Initial Release: March, 2019
Copyright (c) 2019 Ricoh Co.,Ltd.

Symbols, Abbreviations
This manual uses several symbols and abbreviations. The meaning of those symbols and abbreviations
are as follows:
Symbol
What it means
Clip ring
Screw
Connector
Clamp
E-ring
Flat Flexible Cable
Timing Belt
SEF
Short Edge Feed
LEF
Long Edge Feed
K
Black
C
Cyan
M
Magenta
Y
Yellow
B/W, BW
Black and White
FC
Full color
[A] Short Edge Feed (SEF)
[B] Long Edge Feed (LEF)

1
Table of Contents
1. Detailed Descriptions.......................................................................................................................... 4
Major Changes from the Previous Machine........................................................................................... 4
Improved Stackability of Stapled Sheets............................................................................................ 4
Easier Replacement of Staple Cartridge............................................................................................ 6
Storing Extra Staple Cartridges.......................................................................................................... 7
Detaching and Reattaching the Booklet Tray End Fence By the Customer...................................... 8
Staple Near-End Detection................................................................................................................. 8
Specifications.......................................................................................................................................... 9
Finisher SR5090................................................................................................................................. 9
Booklet Finisher SR5100.................................................................................................................. 11
Paper Specifications......................................................................................................................... 14
Punch Unit PU3090.......................................................................................................................... 16
Layout................................................................................................................................................... 18
General Layout................................................................................................................................. 18
Electrical Component Layout............................................................................................................ 19
Transport Layout............................................................................................................................... 24
Proof Transport Layout (Drive)......................................................................................................... 24
Proof Transport Layout (Sensors).................................................................................................... 25
Shift Transport Layout (Drive) .......................................................................................................... 25
Mechanisms.......................................................................................................................................... 26
Shift Transport.................................................................................................................................. 26
Pre-Stack (Corner Stapling) ............................................................................................................. 26
Pre-Stack (Booklet Stapling) ............................................................................................................ 27
Shift Tray Movement/ Paper Height Detection/ Tray Full Detection................................................ 29
Pull-in Roller/ Paper Stack Holder.................................................................................................... 33
Corner Stapling.................................................................................................................................36
Staple Near-End Detection............................................................................................................... 41
Saddle Stitching (Booklet Stapling).................................................................................................. 42
2. Replacement and Adjustment .......................................................................................................... 52
Covers .................................................................................................................................................. 52
Rear Upper Cover, Rear Lower Cover............................................................................................. 52
Upper Cover...................................................................................................................................... 52
Front Cover....................................................................................................................................... 54
Front Left Side Cover........................................................................................................................ 54
Paper Guide Cover........................................................................................................................... 55
Lower Tray........................................................................................................................................ 56
Proof Tray......................................................................................................................................... 56

2
Shift Tray (Upper Tray)..................................................................................................................... 57
End Fence......................................................................................................................................... 57
Boards .................................................................................................................................................. 61
Controller Board (PCB1)................................................................................................................... 61
Corner Stapling Unit, Trailing Edge Alignment Unit............................................................................. 64
Corner Stapling Unit ......................................................................................................................... 64
Trailing Edge Alignment Unit............................................................................................................ 68
Main Unit (Motors)................................................................................................................................ 69
Stacking Sponge Roller Lift Motor.................................................................................................... 69
Leading Edge Guide Motor............................................................................................................... 69
Paper Stacking Holder Motor ........................................................................................................... 70
Exit Motor.......................................................................................................................................... 71
Feed-out Belt Motor.......................................................................................................................... 71
Jogger Motor..................................................................................................................................... 72
Main Unit (Sensors).............................................................................................................................. 73
Shift Tray Paper Height Sensor........................................................................................................ 73
Paper Stacking Holder HP Sensor................................................................................................... 74
Stacking Sponge Roller HP Sensor ................................................................................................. 75
Staple Tray Paper Sensor (S31)...................................................................................................... 76
Feed-out Belt HP Sensor.................................................................................................................. 76
Leading Edge Guide HP Sensor...................................................................................................... 77
Upper Tray Height Limit Switch........................................................................................................ 78
Sub Height Sensor............................................................................................................................ 78
Saddle Stitch Unit (Motors)................................................................................................................ 80
Saddle Stitch Unit............................................................................................................................. 80
Press Fold Motor .............................................................................................................................. 81
Booklet Jogger Motor........................................................................................................................ 85
Paper Guide Unit.................................................................................................................................. 87
Paper Guide Unit.............................................................................................................................. 87
Paper Guide HP Sensor................................................................................................................... 89
Paper Guide Motor ........................................................................................................................... 91
Stapler Unit........................................................................................................................................... 93
Stapler Unit....................................................................................................................................... 93
Punch Unit............................................................................................................................................ 96
Fold Adjustments.................................................................................................................................. 98
Adjusting the Alignment of the Flat Fold Rollers.............................................................................. 98
Adjusting the Folding Speed...........................................................................................................100
Flat Fold Booklet Unit Home Position Adjustment ......................................................................... 101

3

1.Detailed Descriptions
4
1.Detailed Descriptions
Major Changes from the Previous Machine
Improved Stackability of Stapled Sheets
New Retraction Mode for the Delivery of Stapled Sheets
To improve the stackability of stapled sheets, the trailing edge alignment unit (framed in yellow) now
has a mechanism for controlling stapling job delivery.

1.Detailed Descriptions
5
[A]: Paper Stacking Holder
[B]: Stacking Sponge Roller
[C]: Actuator for the Shift Tray Paper Height Sensor (S35)
After paper delivery, the stacking sponge roller [A] and actuator [B] move to the return position.
During paper delivery, they move to the home position. The stacking sponge roller retracts slightly into
the end fence.
On this machine, when delivering stapled sheets, the stacking sponge roller [A] and actuator [B] retract
entirely into the end fence.
On the previous machine, they were at the home position even for stapled jobs.
The thickness of the leading edge of the paper stacking holder [D] was reduced to create a wider gap

1.Detailed Descriptions
6
with the paper exit roller [E], thus allowing a larger amount to be retracted.

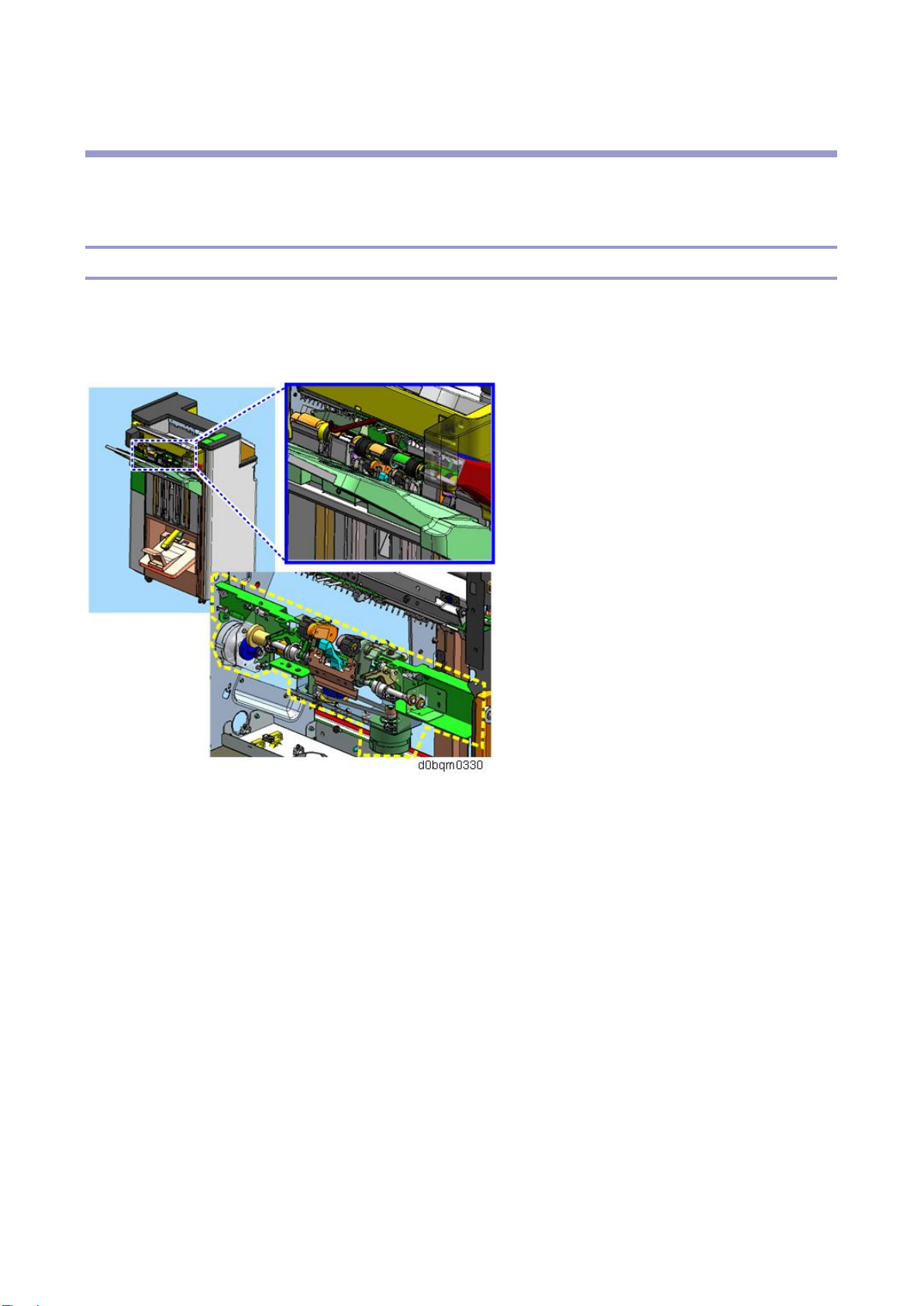

New Sensors
Two sensors [A] (the front and rear Sub Height Sensors) were added to detect stapled sheets.
When sheets stapled at one point (corner stapling) are stacked, the height of the stapled corner is
higher and hits the paper guide, edge guide, or the next stapled booklet. When one of the sensors
detects paper, the machine determines that the height limit has been reached and stops printing.
Easier Replacement of Staple Cartridge
The exterior of the stapler unit has been changed from a bracket to a resin cover.
The handle [A] is joined to the cover, and there is a decal [B] for checking operation.

1.Detailed Descriptions
7
Storing Extra Staple Cartridges
Thers is now a holder for storing extra cartridges.
This staple cartridge holder [A] is affixed to the inside of the finisher's front door.

1.Detailed Descriptions
8
Detaching and Reattaching the Booklet Tray End Fence By the Customer
The screw for securing the end fence [A] has been changed to a coin screw, allowing the customer to
detach and reattach the end fence.
Staple Near-End Detection
For details, see Staple Near-End Detection.

1.Detailed Descriptions
9
Specifications
Finisher SR5090
Item
Specifications
Paper size for the
Finisher Upper Tray:
A3 SEF, A4 SEF/LEF, A5 SEF/LEF, A6 SEF, B4 JIS SEF, B5 JIS SEF/LEF,
B6 JIS SEF, 11 x 17 SEF, 81/2 x 14 SEF, 81/2 x 13 SEF, 81/2 x 11 SEF/LEF,
81/4 x 14 SEF, 81/4 x 13 SEF, 8 x 13 SEF, 8 x 10 SEF, 71/4 x 101/2 SEF/LEF,
51/2 x 81/2 SEF/LEF, 8K SEF, 16K SEF/LEF, 12 x 18 SEF, 11 x 15 SEF, 11 x
14 SEF, 10 x 15 SEF, 10 x 14 SEF, 13 × 191/5 SEF, 13 × 19 SEF, 123/5 x
191/5 SEF, 123/5 x 181/2 SEF, 13 × 18 SEF, SRA3 SEF, SRA4 SEF/LEF,
226 × 310 mm SEF/LEF, 310 × 432 mm SEF, 81/2 x 132/5 SEF, 81/2 x
131/2 SEF, custom size
Paper weight for the
Finisher Upper Tray:
52.3–220.0 g/m2 (14.0 lb. Bond–80.9 lb. Cover)
Stack capacity for the
Finisher Upper Tray (80
g/m2, 20 lb. Bond):
•Without Z-fold:
•250 sheets: A4, 81/2 x 11 or smaller
•50 sheets: B4 JIS, 81/2 × 132/5 or larger
•With Z-fold:
•20 sheets: A4, 81/2 x 11 or smaller
•30 sheets: B4 JIS, 81/2 × 132/5 or larger
Paper size for the
Finisher Shift Tray:
A3 SEF, A4 SEF/LEF, A5 SEF/LEF, B4 JIS SEF, B5 JIS SEF/LEF, B6 SEF,
11 x 17 SEF, 81/2 x 14 SEF, 81/2 x 13 SEF, 81/2 x 11 SEF/LEF, 81/4 x 14
SEF, 81/4 x 13 SEF, 8 x 13 SEF, 8 x 101/2 SEF, 8 x 10 SEF, 71/4 x 101/2
SEF/LEF, 51/2 x 81/2 SEF/LEF, 8K SEF, 16K SEF/LEF, 12 x 18 SEF, 11 x 15
SEF, 11 x 14 SEF, 10 x 15 SEF, 10 x 14 SEF, 13 × 191/5 SEF, 13 × 19 SEF,
123/5 x 191/5 SEF, 123/5 x 181/2 SEF, 13 × 18 SEF, SRA3 SEF, SRA4
SEF/LEF, 226 × 310 mm SEF/LEF, 310 × 432 mm SEF, 81/2 x 132/5 SEF,
81/2 x 131/2 SEF, custom size
Paper weight for the
Finisher Shift Tray:
•Without Z-fold:
52.3–300.0 g/m2 (14.0 lb. Bond–165.0 lb. Index)
•With Z-fold:
64.0–105.0g/ m2 (17.1-28.0 lb. Bond)
Paper sizes that can be
shifted when delivered
to both finisher trays:
A3 SEF, A4 SEF/LEF, A5 SEF/LEF, B4 JIS SEF, B5 JIS SEF/LEF, 11 x 17
SEF, 81/2 x 14 SEF, 81/2 x 13 SEF, 81/2 x 11 SEF/LEF, 81/4 x 14 SEF, 81/4 x
13 SEF, 8 x 13 SEF, 8 x 10 SEF, 71/4 x 101/2 SEF/LEF, 51/2 x 81/2 SEF/LEF,
8K SEF, 16K SEF/LEF, 12 x 18 SEF, 11 x 15 SEF, 11 x 14 SEF, 10 x 15
SEF, 10 x 14 SEF, SRA4 SEF, 226 × 310 mm SEF, 81/2 x 132/5 SEF, 81/2 x
131/2 SEF, custom size

1.Detailed Descriptions
10
Item
Specifications
Paper weight that can
be shifted when
delivered to the
Finisher Shift Tray:
52.3–300.0 g/m2 (14.0 lb. Bond–165.0 lb. Index)
Stack capacity for the
Finisher Shift Tray (80
g/m2, 20 lb. Bond):
•Without Z-fold:
•3,000 sheets: A4 LEF, 81/2 x 11 LEF
•1,500 sheets: A3 SEF, A4 SEF, B4 JIS SEF, B5 JIS SEF/LEF, 11 x
17 SEF, 81/2 x 14 SEF, 81/2 x 11 SEF, 12 x 18 SEF, SRA3 SEF, 13
x 191/5 SEF, Long Edge 182 - 487.9 mm
•500 sheets: A5 LEF, Long Edge 148–181.9 mm
•100 sheets: A5 SEF, A6 SEF, 51/2 x 81/2 SEF
•With Z-fold:
•20 sheets: A4, 81/2 x 11 or smaller
•30 sheets: B4 JIS, 81/2 x 132/5 or larger
Staple paper size:
A3 SEF, A4 SEF/LEF, B4 JIS SEF, B5 JIS SEF/LEF, 11 x 17 SEF, 81/2 x 14
SEF, 81/2 x 13 SEF, 81/2 x 11 SEF/LEF, 81/4 x 14 SEF, 81/4 x 13 SEF, 8 x 13
SEF, 71/4 x 101/2 SEF/LEF, 8K SEF, 16K SEF/LEF, 11 x 15 SEF, 11 x 14
SEF, 10 x 15 SEF, 10 x 14 SEF, 226 × 310 mm SEF, 81/2 x 132/5 SEF, 81/2
x 131/2 SEF
Staple paper weight:
52.3–105.0 g/m2 (14.0 lb. Bond–28.0 lb. Bond)
You can use a sheet of paper weighing between 105.1 g/m2 (28.1 lb.
Bond) and 256.0 g/m2 (141.0 lb.
Index) per set as a slip sheet.
Staple capacity (80
g/m2, 20 lb. Bond):
•Without Mixed Size:
65 sheets: A3 SEF, A4 SEF/LEF, B4 JIS SEF, B5 JIS SEF/LEF, 11 x
17 SEF, 81/2 x 14 SEF, 81/2 x 13 SEF, 81/2 x 11 SEF/LEF, 81/4 x 14
SEF, 81/4 x 13 SEF, 8 x 13 SEF, 71/4 x 101/2 SEF/LEF, 8K SEF, 16K
SEF/LEF, 11 x 15 SEF, 11 x 14 SEF, 10 x 15 SEF, 10 x 14 SEF, 226 ×
310 mm SEF, 81/2 x 132/5 SEF, 81/2 x 131/2 SEF
•With Mixed Sizes:
65 sheets (A3 SEF/A4 LEF, B4 JIS SEF/B5 JIS LEF, 11 x 17 SEF/ 81/2
x 11 LEF)
•With Z-fold:
8 sheets: 52.0–80.0g/m2 (13.9-21.0 lb. Bond)
5 sheets: 80.1–105.0g/m2 (21.1-28.0 lb. Bond)
Stack capacity after
stapling (80 g/m2, 20
lb. Bond):
•Without Z-fold and Mixed Sizes:
•20–65 sheets: 150–46 sets (A4 LEF, 81/2 × 11 LEF)
•2–19 sheets: 150 sets (A4 LEF, 81/2 × 11 LEF)

1.Detailed Descriptions
11
Item
Specifications
•15–65 sheets: 100–23 sets (A4 SEF, 81/2 × 11 SEF)
•2–14 sheets: 100 sets (A3 SEF, A4 SEF, B4 JIS SEF, B5 JIS
SEF/LEF, 11 × 17 SEF, 81/2 × 14 SEF, 81/2 × 13 SEF, 81/2 × 11
SEF, 81/4 × 14 SEF, 81/4 × 13 SEF, 8 × 13 SEF, 71/4 × 101/2
SEF/LEF, 8K SEF, 16K SEF/LEF, 11 × 15 SEF, 11 × 14 SEF, 10 ×
15 SEF, 10 × 14 SEF, 226 × 310 mm SEF, 81/2 × 132/5 SEF, 81/2 ×
131/2 SEF)
•With Mixed Sizes:
2–65 sheets: 23 sets (A3 SEF/A4 LEF, B4 JIS SEF/B5 JIS LEF, 11 ×
17 SEF/81/2 × 11 LEF)
•With Z-fold:
•1–8 sheets: 23sets
Staple position:
4 positions (Top, Top Slant, Bottom, 2 Staples)
Power consumption:
67 W or less (Power is supplied from the main unit.)
Dimensions (W x D x
H):
657 × 730 × 980 mm (25.9 × 28.7 × 38.6 inches)
Weight:
•Without punch unit: 38 kg (83.8 lb.) or less
•With punch unit: 41 kg (90.4 lb.) or less
Booklet Finisher SR5100
Item
Specifications
Paper size for the
Finisher Upper Tray:
A3 SEF, A4 SEF/LEF, A5 SEF/LEF, A6 SEF, B4 JIS SEF, B5 JIS SEF/LEF,
B6 JIS SEF, 11 x 17 SEF, 81/2 x 14 SEF, 81/2 x 13 SEF, 81/2 x 11 SEF/LEF,
81/4 x 14 SEF, 81/4 x 13 SEF, 8 x 13 SEF, 8 x 10 SEF, 71/4 x 101/2 SEF/LEF,
51/2 x 81/2 SEF/LEF, 8K SEF, 16K SEF/LEF, 12 x 18 SEF, 11 x 15 SEF, 11 x
14 SEF, 10 x 15 SEF, 10 x 14 SEF, 13 × 191/5 SEF, 13 × 19 SEF, 123/5 x
191/5 SEF, 123/5 x 181/2 SEF, 13 × 18 SEF, SRA3 SEF, SRA4 SEF/LEF,
226 × 310 mm SEF/LEF, 310 × 432 mm SEF, 81/2 x 132/5 SEF, 81/2 x
131/2 SEF, custom size
Paper weight for the
Finisher Upper Tray:
52.3–220.0 g/m2 (14.0 lb. Bond–80.9 lb. Cover)
Stack capacity for the
Finisher Upper Tray (80
g/m2, 20 lb. Bond):
•Without Z-fold:
•250 sheets: A4, 81/2 x 11 or smaller
•50 sheets: B4 JIS, 81/2 × 132/5 or larger
•With Z-fold:
•20 sheets: A4, 81/2 x 11 or smaller
•30 sheets: B4 JIS, 81/2 × 132/5 or larger

1.Detailed Descriptions
12
Item
Specifications
Paper size for the
Finisher Shift Tray:
A3 SEF, A4 SEF/LEF, A5 SEF/LEF, B4 JIS SEF, B5 JIS SEF/LEF, B6 SEF,
11 x 17 SEF, 81/2 x 14 SEF, 81/2 x 13 SEF, 81/2 x 11 SEF/LEF, 81/4 x 14
SEF, 81/4 x 13 SEF, 8 x 13 SEF, 8 x 10 SEF, 71/4 x 101/2 SEF/LEF, 51/2 x
81/2 SEF/LEF, 8K SEF, 16K SEF/LEF, 12 x 18 SEF, 11 x 15 SEF, 11 x 14
SEF, 10 x 15 SEF, 10 x 14 SEF, 13 × 191/5 SEF, 13 × 19 SEF, 123/5 x 191/5
SEF, 123/5 x 181/2 SEF, 13 × 18 SEF, SRA3 SEF, SRA4 SEF/LEF, 226 ×
310 mm SEF/LEF, 310 × 432 mm SEF, 81/2 x 132/5 SEF, 81/2 x 131/2 SEF,
custom size
Paper weight for the
Finisher Shift Tray:
52.3–300.0 g/m2 (14.0 lb. Bond–165.0 lb. Index)
Paper sizes that can be
shifted when delivered
to both finisher trays:
A3 SEF, A4 SEF/LEF, A5 SEF/LEF, B4 JIS SEF, B5 JIS SEF/LEF, 11 x 17
SEF, 81/2 x 14 SEF, 81/2 x 13 SEF, 81/2 x 11 SEF/LEF, 81/4 x 14 SEF, 81/4 x
13 SEF, 8 x 13 SEF, 8 x 10 SEF, 71/4 x 101/2 SEF/LEF, 51/2 x 81/2 SEF/LEF,
8K SEF, 16K SEF/LEF, 12 x 18 SEF, 11 x 15 SEF, 11 x 14 SEF, 10 x 15
SEF, 10 x 14 SEF, SRA4 SEF/LEF, 226 × 310 mm SEF, 81/2 x 132/5 SEF,
81/2 x 131/2 SEF, custom size
Paper weight that can
be shifted when
delivered to the
Finisher Shift Tray:
52.3–300.0 g/m2 (14.0 lb. Bond–165.0 lb. Index)
Stack capacity for the
Finisher Shift Tray (80
g/m2, 20 lb. Bond):
•Without Z-fold:
•2,000 sheets: A4 LEF, 81/2 x 11 LEF
•1,000 sheets: A3 SEF, A4 SEF, B4 JIS SEF, B5 JIS SEF/LEF, 11 x
17 SEF, 81/2 x 14 SEF, 81/2 x 11 SEF, 12 x 18 SEF, SRA3 SEF, 13
x 191/5 SEF, Long Edge 182 - 487.9 mm
•500 sheets: A5 LEF, Long Edge 148–181.9 mm
•100 sheets: A5 SEF, A6 SEF, 51/2 x 81/2 SEF
•With Z-fold:
•30 sheets: B4 JIS SEF, 81/2 x 14 SEF
•20 sheets: A4, 81/2 x 11 SEF
Staple paper size:
A3 SEF, A4 SEF/LEF, B4 JIS SEF, B5 JIS SEF/LEF, 11 x 17 SEF, 81/2 x 14
SEF, 81/2 x 13 SEF, 81/2 x 11 SEF/LEF, 81/4 x 14 SEF, 81/4 x 13 SEF, 8 x 13
SEF, 71/4 x 101/2 SEF/LEF, 8K SEF, 16K SEF/LEF, 11 x 15 SEF, 11 x 14
SEF, 10 x 15 SEF, 10 x 14 SEF, 226 × 310 mm SEF, 81/2 x 132/5 SEF, 81/2
x 131/2 SEF
Staple paper weight:
52.3–105.0 g/m2 (14.0–28.0 lb. Bold)
You can use a sheet of paper weighing between 105.1 g/m2 (28.1 lb.
Bond) and 256.0 g/m2 (141.0 lb.Index) per set as a slip sheet.

1.Detailed Descriptions
13
Item
Specifications
Staple capacity (80
g/m2, 20 lb. Bond):
•Without Z-fold and Mixed Sizes:
65 sheets: A3 SEF, A4 SEF/LEF, B4 JIS SEF, B5 JIS SEF/LEF, 11 x
17 SEF, 81/2 x 14 SEF, 81/2 x 13 SEF, 81/2 x 11 SEF/LEF, 81/4 x 14
SEF, 81/4 x 13 SEF, 8 x 13 SEF, 71/4 x 101/2 SEF/LEF, 8K SEF, 16K
SEF/LEF, 11 x 15 SEF, 11 x 14 SEF, 10 x 15 SEF, 10 x 14 SEF, 226 ×
310 mm SEF, 81/2 x 132/5 SEF, 81/2 x 131/2 SEF
•With Mixed Size:
65 sheets (A3 SEF/A4 LEF, B4 JIS SEF/B5 JIS LEF, 11 x 17 SEF/ 81/2
x 11 LEF, 8K SEF/16K LEF)
•With Z-fold:
8 sheets: 52.0–80.0g/m2 (13.9-21.0 lb. Bond)
5 sheets: 80.1–105.0g/m2 (21.1-28.0 lb. Bond)
Stack capacity after
stapling (80 g/m2, 20
lb. Bond):
•Without Z-fold and Mixed Sizes:
•13–65 sheets: 150–30 sets (A4 LEF, 81/2 × 11 LEF)
•2–12 sheets: 150 sets (A4 LEF, 81/2 × 11 LEF)
•10–65 sheets: 100–15 sets (A4 SEF, B5 JIS SEF, 81/2 × 11 SEF)
•2–9 sheets: 100 sets (A3 SEF, A4 SEF, B4 JIS SEF, B5 JIS SEF,
11 × 17 SEF, 81/2 × 14 SEF, 81/2 × 13 SEF, 81/2 × 11 SEF, 81/4 ×
14 SEF, 81/4 × 13 SEF, 8 × 13 SEF, 71/4 × 101/2 SEF/LEF, 8K SEF,
16K SEF/LEF, 11 × 15 SEF, 11 × 14 SEF, 10 × 15 SEF, 10 × 14
SEF, 226 × 310 mm SEF, 81/2 × 132/5 SEF, 81/2 × 131/2 SEF)
•With Mixed Sizes:
2–65 sheets: 15 sets (A3 SEF/A4 LEF, B4 JIS SEF/B5 JIS LEF, 11 ×
17 SEF/81/2 × 11 LEF)
•With Z-fold:
1–8 sheets: 30sets
Staple position:
4 positions (Top, Top Slant, Bottom, 2 Staples)
Saddle stitch paper
size:
A3 SEF, A4 SEF, B4 JIS SEF, B5 JIS SEF, 11 x 17 SEF, 81/2 x 14 SEF, 81/2
x 11 SEF/LEF, 81/4 x 14 SEF, 81/4 x 13 SEF, 12 x 18 SEF, 11 × 15 SEF, 11
× 14 SEF, 10 × 15 SEF, 10 × 14 SEF, 13 x 18 SEF, SRA3 SEF, SRA4 SEF,
81/2 x 132/5 SEF, 81/2 x 131/2 SEF
Custom size
•Vertical: 182.0–330.2 mm (7.17–13.00 inches)
•Horizontal: 257.0–457.2 mm (10.12–18.00 inches)
Saddle stitch paper
weight:
64.0–105.0 g/m2 (17.1–28.0 lb. Bond)
You can use a sheet of paper weighing between 64.0 g/m2 (17.1 lb. Bond)
and 216.0 g/m2 (79.9 lb.Cover) per set as a cover sheet. You can use this
function with more than one cover sheet, but the

1.Detailed Descriptions
14
Item
Specifications
finishing precision is not guaranteed.
Saddle stitch capacity
(80 g/m2, 20 lb. Bond):
•20 sheets: 64.0–80.0g/m2 (17.1–21.0 lb. Bond)
•15-19 sheets: 80.1–105.0g/m2 (21.1–28.0 lb. Bond)
Stack capacity after
saddle stitching (80
g/m2, 20 lb. Bond):
•2–5 sheets: 30 sets
•6–10 sheets: 15 sets
•11–15 sheets: 10 sets
•16–20 sheets: 6 sets
Saddle stitch position:
Center 2 positions
Types of folds:
Half Fold
Half fold paper size:
A3 SEF, A4 SEF, B4 JIS SEF, B5 JIS SEF, 11 x 17 SEF, 81/2 x 14 SEF, 81/2
x 11 SEF/LEF, 81/4 x 14 SEF, 81/4 x 13 SEF, 12 x 18 SEF, 13 x 18
SEF, SRA3 SEF, SRA4 SEF, 81/2 x 132/5 SEF, 81/2 x 131/2 SEF, LGT,
Custom size
•Vertical: 182.0–330.2 mm (7.17–13.00 inches)
•Horizontal: 257.0–457.2 mm (10.12–18.00 inches)
Folding capacity of half
folding function:
•1 sheet: 64.0–216.0g/m2 (17.1 lb. Bond–79.9 lb. Cover)
•2–5 sheets: 64.0–105.0g/m2 (17.1–28.0 lb. Bond)
Power consumption:
67 W or less (Power is supplied from the main unit.)
Dimensions (W × D ×
H):
657 × 730 × 980 mm (25.9 × 28.7 × 38.6 inches)
Weight:
•Without punch unit: 58 kg (127.9 lb.) or less
•With punch unit: 61 kg (134.5 lb.) or less
Paper Specifications
Paper Thick [g/m2]
Norma
l
Thic
k 0
(40.0
to
52.2)
Thic
k 1
(52.3
to
63.0)
Thic
k 2
(63.1
to
80.0)
Thick
3
(80.1
to
105.0
)
Thick
4
(105.
1 to
163.0
)
Thick
5
(163.
1 to
220.0
)
Thick
6
(220.
1 to
256.0
)
Thick
7
(256.
1 to
300.0
)
Thick
8
(300.
1 to
350.0
)
A3 SEF
B4 SEF
A4 SEF
A4 LEF
B5 SEF
B5 LEF

1.Detailed Descriptions
15
Paper Thick [g/m2]
Norma
l
Thic
k 0
(40.0
to
52.2)
Thic
k 1
(52.3
to
63.0)
Thic
k 2
(63.1
to
80.0)
Thick
3
(80.1
to
105.0
)
Thick
4
(105.
1 to
163.0
)
Thick
5
(163.
1 to
220.0
)
Thick
6
(220.
1 to
256.0
)
Thick
7
(256.
1 to
300.0
)
Thick
8
(300.
1 to
350.0
)
A5 SEF
A5 LEF
B6 SEF
A6 SEF
13”×18” SEF
-
13”×19.2” SEF
-
12”×18” SEF
-
12.6”×17.7”(SRA3
) SEF
-
11”×17” SEF
-
8 1/2”×14” SEF
-
8 1/2”×11” SEF
-
81/2”×11” LEF
-
51/2”×81/2” SEF
-
51/2”×81/2” LEF
-
Here is the key for the symbols.
Corner stapling, booklet stapling, paper shift, proof tray, punching possible
Booklet stapling, shift tray, proof tray
Corner stapling, shift tray, proof tray, punching possible
Shift tray, proof tray, punching possible
Shift tray, punching possible
Shift tray, proof tray possible
Shift tray possible
x Cannot be used
- Incompatible
Color
Translucent
Label SA
Postcard
Transparencies
A3 SEF
-
-
-
B4 SEF
-
-
A4 SEF
A4 LEF
B5 SEF
-
-

1.Detailed Descriptions
16
Color
Translucent
Label SA
Postcard
Transparencies
B5 LEF
-
-
A5 SEF
-
-
-
-
-
A5 LEF
-
-
-
-
-
B6 SEF
-
-
-
-
-
B6 LEF
-
-
-
-
-
12”×18” SEF
*1
-
-
-
-
13”×18” SEF
*1
-
-
-
-
11”×17” SEF
-
-
-
8 1/2”×14” SEF
-
-
-
8 1/2”×11” SEF
-
-
-
81/2”×11” LEF
-
-
-
51/2”×81/2” SEF
-
-
-
-
-
51/2”×81/2” LEF
-
-
-
-
-
*1 No corner stapling
Here is the key for the symbols.
Corner stapling, booklet stapling, paper shift, proof tray, punching possible
Shift tray, proof tray, punching possible
Booklet stapling, shift tray, proof tray
Shift tray, punching possible
Shift tray, proof tray possible
x Cannot be used
- Incompatible
Punch Unit PU3090
Punch unit
type
Paper size
2 & 4 holes
type: 2 holes
SEF: A3, B4 JIS, A4, B5 JIS, A5, 11 x 17, 81/2 x 14, 81/2 x 11, 51/2 x 81/2, 71/4 x 101/2,
8 x 13, 81/2 x 13, 81/4 x 13, 8K, 16K, 81/4 x 14, 8 x 10, 11 x 15, 10 x 14, custom size
2 & 4 holes
type: 2 holes
LEF: A4, B5 JIS, A5, 81/2 x 11, 71/4 x 101/2, 16K, custom size
2 & 4 holes
type: 4 holes
SEF: A3, B4 JIS, 11 x 17, 11 x 15, 8K, custom size
2 & 4 holes
type: 4 holes
LEF: A4, B5 JIS, 81/2 x 11,71/4 x 101/2, 16K, custom size
4 holes type: 4
holes
SEF: A3, B4 JIS, A4, B5 JIS, A5, 11 x 17, 81/2 x 14, 81/2 x 11, 51/2 x 81/2, 71/4 x 101/2,
8 x 13, 81/2 x 13, 81/4 x 13, 8K, 16K, 81/4 x 14, 8 x 10, 11 x 15, 10 x 14, custom size
4 holes type: 4
LEF: A4, B5 JIS, A5, 81/2 x 11, 71/4 x 101/2, 16K, custom size
