Rotary 000 Series User manual

© February 2016 by Vehicle Service Group. All rights reserved. CO9420.9 IN20754
Rev.B9/2/2016
I
N
S
T
A
L
L
A
T
I
O
N
I
N
S
T
R
U
C
T
I
O
N
S
I
N
S
T
A
L
L
A
T
I
O
N
I
N
S
T
R
U
C
T
I
O
N
S
LP20633
B
M
W
B
M
W
DS35 & DS35EX Scissor Lift
(000 Series)
Capacity 3,500 kg (7,700 lbs)
(Maximum 1,750 kg (3,850 lbs) per pad)
Intended for unibody vehicles and
some frame vehicles within the rated
lift capacity.
Read entire manual before assembling, installing,
operating, or servicing this equipment.

1. General Lift Location
Use architects plan when available to locate lift. Fig. 1
and Fig. 1a shows typical lift dimensions.
Control cabinet may be placed on the left or right. This is
shown in Fig. 3.
Fig. 1
1940 SURFACE MOUNT
1835 FLUSH MOUNT
630
*750
BETWEEN PLATFORMS 2010
330330 1500
105
SPECIFICATION
DIRECTION
OF APPROACH
SURFACE MOUNT FLUSH MOUNT
COLLAPSED HEIGHT 105 -
RAISED HEIGHT 1940 1835
OVERALL LENGTH 2160 2160
PLATFORM LENGTH 1500 1500
RAMP LENGTH 330 330
OVERALL WIDTH 2010 2010
DISTANCE BETWEEN PLATFORMS 750 750
CAPACITY AT 180 MM HEIGHT 3.5 TONS 3.5 TONS
LIFTING TIME 43 SEC. 43 SEC.
1Ø MOTOR 50 HZ / 60HZ, 3KW,
208-230V 50/60 HZ, 3KW, 208-230V
3Ø MOTOR
50 HZ, 3KW,
380V 50 HZ, 3KW, 380V
60 HZ, 3KW,
380V 60 HZ, 3KW, 380V
2160
*NOTE: 750mm WILL ACCOMMODATE MOST
VEHICLES. LIFT MAY BE ADJUSTED DURING
INSTALLATION BUT DISTANCE BETWEEN
PLATFORMS SHOULD NOT EXCEED 912mm.
DS35 Scissor Lift
2

Fig. 1a
630
330528 1500
105
SPECIFICATION
DIRECTION
OF APPROACH
SURFACE MOUNT FLUSH MOUNT
COLLAPSED HEIGHT 105 -
RAISED HEIGHT 1940 1835
OVERALL LENGTH 2358 2358
PLATFORM LENGTH 1500 1500
RAMP LENGTH 330 330
OVERALL WIDTH 2010/2160 2010/2160
DISTANCE BETWEEN PLATFORMS 750/900 750/900
EXTENSION ARM LENGTH 528 528
CAPACITY AT 180 MM HEIGHT 3.5 TONS 3.5 TONS
LIFTING TIME 43 SEC. 43 SEC.
1Ø MOTOR 50 HZ / 60HZ, 3KW,
208-230V 50/60 HZ, 3KW, 208-230V
3Ø MOTOR
50 HZ, 3KW,
380V 50 HZ, 3KW, 380V
1940 SURFACE MOUNT
1835 FLUSH MOUNT
2358
*750 /900( 900 For BMW)
BETWEEN PLATFORMS 2010/2160/
*NOTE: 750mm WILL ACCOMMODATE MOST
VEHICLES. LIFT MAY BE ADJUSTED DURING
INSTALLATION BUT DISTANCE BETWEEN
PLATFORMS SHOULD NOT EXCEED 912mm.
60 HZ, 3KW,
380V 60 HZ, 3KW, 380V
DS35EX Scissor Lift
3

2. Vertical Clearance
Check the height of the area where the lift is to be
installed. Clearance should be calculated based on the
full raised height of the lift and the height of the tallest
vehicle being lifted.
WARNING Failure by purchaser to provide
adequate clearance could result in unsatisfactory lift
performace, property damage, or personal injury.
3. Flooring
Be certain you have the proper concrete floor to
properly handle the loaded lift. Floor should be in
generally good condition with no large cracks, spalling
or deterioration.
Minimum requirements for concrete are 100 mm
minimum depth, with steel reinforcement, cured to
3000 psi. Floor should be level within 6mm under each
platform area. No anchors should be installed within
64mm of any crack, edge, or expansion joint. There
should be no floor seam under ramp roller locations. If
these conditions cannot be met, a pad may be poured
to accommodate the lift.
Check with local building inspectors and/or permits
office for any special instructions or approvals
required for your installation.
WARNING Failure by purchaser to provide
the recommended mounting surface could result in
unsatisfactory lift performace, property damage, or
personal injury.
4. Electrical Requirements from Customer
• 380 VAC three phase 50 Hz power for 7 full load
amps.
• 208-230 VAC single phase 50 Hz or 60 Hz power for 21
full load amps.
• All wiring must conform to all national and local
electrical codes.
IMPORTANT Never operate the motor on line voltage
less than 208V. Motor damage may occur.
IMPORTANT Use separate circuit for each power unit.
Protect each circuit with a time delay fuse or circuit
breaker.
WARNING Make sure that the main power
supply is disconnected to avoid the possibility of
electrocution.
5. Safety Notices and Decals
For your safety, and the safety of others, read and
understand all of the safety notices and decals
included here.
Proper maintenance and inspection is necessary for
safe operation.
DO NOT operate a damaged lift.
Safety decals similar to those shown here are found
on a properly installed lift. Be sure all safety decals
have been placed on the control cabinet. Verify that all
authorized operators know the location of these decals
and fully understand their meaning. Replace worn,
faded, or damaged decals promptly.
WARNING Do not attempt to raise a vehicle on
the lift until the lift has been correctly installed and
adjusted as described in this manual.
4

SAFETY WARNING LABELS
FOR HINGED FRAME ENGAGING LIFTS
A. This Safety Warning placard
SHALL be displayed in a
conspicuous location in the lift area.
B. Use one of the mounting
arrangements illustrated on back of
this placard.
Lift Owner/User Responsibilities:
C. These Safety Warning labels
supplement other documents
supplied with the lift.
D. Be certain all lift operators read and
understand these labels, operating
instructions and other safety related
information supplied with the lift.
WARNING
©
Position vehicle
with center of gravity
midway between
adapters.
WARNING
Remain clear of
lift when raising
or lowering vehicle.
©
WARNING
Keep clear
of pinch points
when lift is moving.
©
WARNING
Clear area if vehicle
is in danger of falling.
©
WARNING
Avoid excessive
rocking of vehicle
while on lift.
©
Keep feet
clear of lift
while lowering.
©
WARNING
CAUTION
Authorized personnel
only in lift area.
©
CAUTION
Use vehicle
manufacturer’s
lift points.
©
CAUTION
Always use
safety stands when
removing or installing
heavy components. ©
Do not operate
a damaged lift.
©
SAFETY
INSTRUCTIONS
Read operating
and safety manuals
before using lift.
©
SAFETY
INSTRUCTIONS
CAUTION
Lift to be used
by trained operator
only.
©
??
?
ALI/WL300csw1992 by ALI, Inc.
The messages and pictographs
shown are generic in nature and
are meant to generally represent
hazards common to all automotive
lifts regardless of specific style.
Funding for the development and
validation of these labels was
provided by the Automotive Lift
Institute, PO Box 1519 New York,
NY. 10101-1519.
They are protected by copyright.
Set of labels may be obtained from
ALI or its member companies.
Power Unit: Secure placard
near lift controls.
Lift Control
Console:
Secure
placard in an
accessible
location.
Proper maintenance
and inspection
is necessary
for safe operation. ©
SAFETY
INSTRUCTIONS
5

6. Installation
Important: Always wear safety glasses while installing lift.
Required Tools and Supplies List
1. 3 phase 380V, 50 Hz, 10 amp service
2. Single phase 208-230V, 50 Hz or 60 Hz, 30 amp
service
3. 15 liters of ATF Dexron III or hydraulic fluid that
meets ISO 32 specifications
4. Chalk line
5. Tape measure, 5M min.
6. Level, 2M min.
7. Open end wrenches
8. Needle nose pliers
9. Cross head screw driver
10. Oil funnel
11. Hammer drill
7. Surface Mount & Flush Mount Control Cabinet Layout
Layout the service bay according to the architect’s
plans or owners instructions. Failure to install in
this orientation can result in personal and property
damage. Be certain that the proper conditions exists,
see previous page.
Note: The correct orientation of the platforms is critical
for proper layout of the lift.

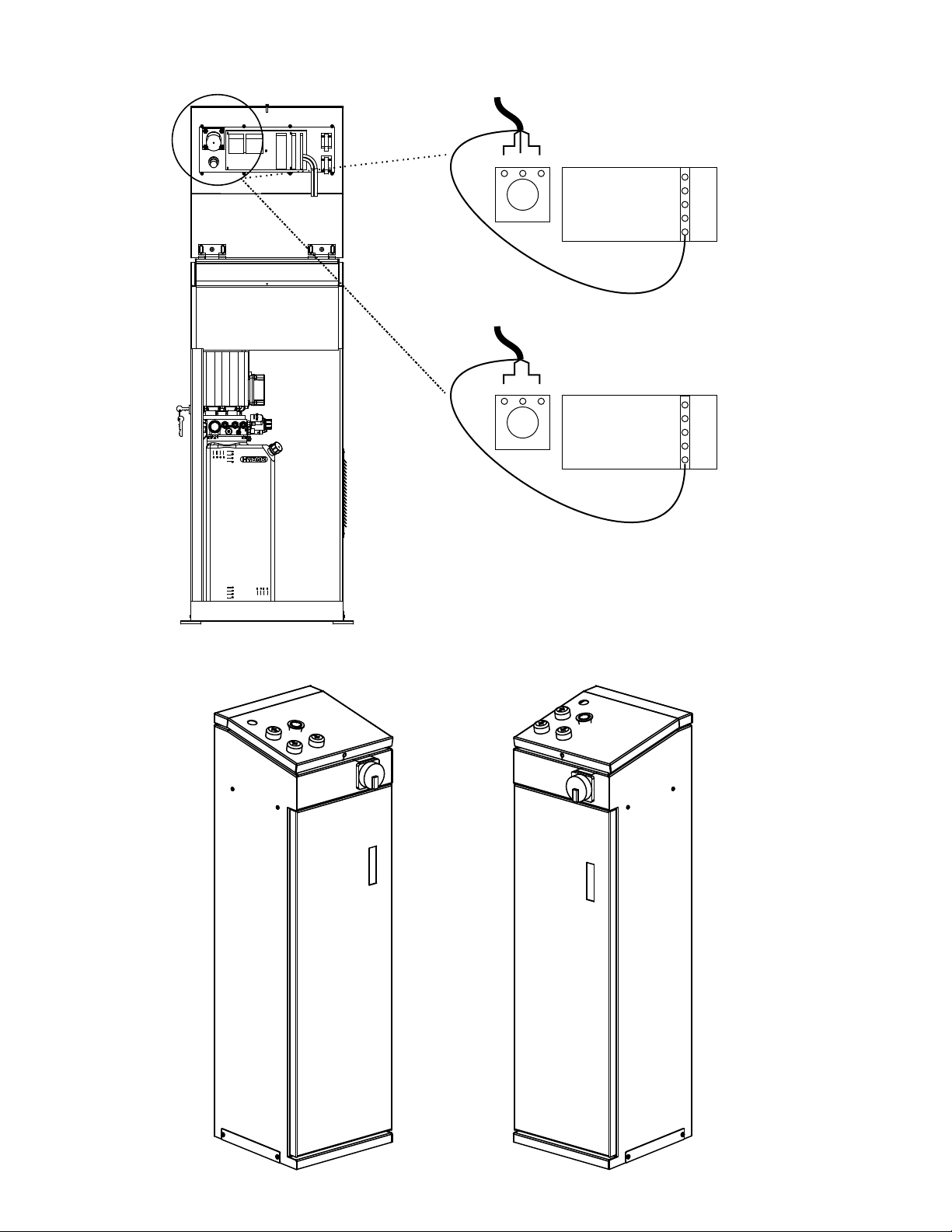

Place the control cabinet in the approximate location
(do not anchor), Fig. 3. Relocating the control cabinet
further away than the standard distance will require
the installer to provide suitable hydraulic hoses.
Additional hose covers will also be needed if installing
the control cabinet at a further distance than the
standard distances in surface mount configurations.
Hydraulic hoses should be 6mm min. ID with a min.
working pressure of 5800 psi with #6 JIC Swivel Female
fittings. Extension Hose Kits available.
8. Flush Mount Pit Requirements
Prior to pouring concrete, installer will need either the
Full Flush Mount Kit (part # XX100003) or Recess Box
Flush Mount Kit (part # XX100014). Please contact the
phone number listed on the front cover of the manual
for additional assistance. The Full Flush Mount Kit
contains frame components with concrete ties that
will need to be placed during concrete pour. See parts
breakdown manual for included components. Pit forms
are not provided and will be the responsibility of the
installer.
Bend frame anchors outward, perpendicular to angle
frame, and downward approximately 45° to floor level,
Fig. 2.
Place the recess box in the pit and install M8 bolts
to secure to frame and anchors to pit floor. If recess
weldment is not used, fasten recess box using anchors
only, Fig. 2a. Install hose cover to recess box using M8
bolts and anchors to pit floor, Fig. 2b.
For flush mount pit specifications, Fig. 2c and Fig. 2d.
688mm Fig. 2
6

NYLON
ANCHOR
M8 BOLT
RECESS
HOSE COVER
Fig. 2a
Fig. 2b
RECESS
WELDMENT NYLON
ANCHOR
RECESS
BOX
PUSH RECESS BOX
TIGHT AGAINST
CONCRETE WALL
PUSH RECESS BOX
TIGHT AGAINST
CONCRETE WALL
NYLON
ANCHOR
RECESS
BOX
7

DS35 Flush Mount Only
A
A
688
PIT WIDTH
688
PIT WIDTH
693
BETWEEN PITS
2200
3660 MIN. TO
NEAREST OBSTRUCTION
250
SECTION A-A
1675 TO
NEAREST
OBSTRUCTION
1675 TO
NEAREST
OBSTRUCTION
300
100800
3660 MIN. TO
NEAREST OBSTRUCTION
DIRECTION
OF APPROACH
(2) TWO 50mm PVC
PIPES ADJACENT
TO EACH OTHER
Ø76mm PVC PIPEØ50mm DRAIN HOLE
PIPES MUST BE FLUSH
WITH BOTTOM OF FLOOR
A
SECTION A-A
A
100
110
+5
-0
ROUTE CONDUIT TOWARDS THE CLOSEST DIRECTION
OF CABINET PLACEMENT. EXITING EITHER THE
SIDE OR BACK OF THE PIT IS ACCEPTABLE.

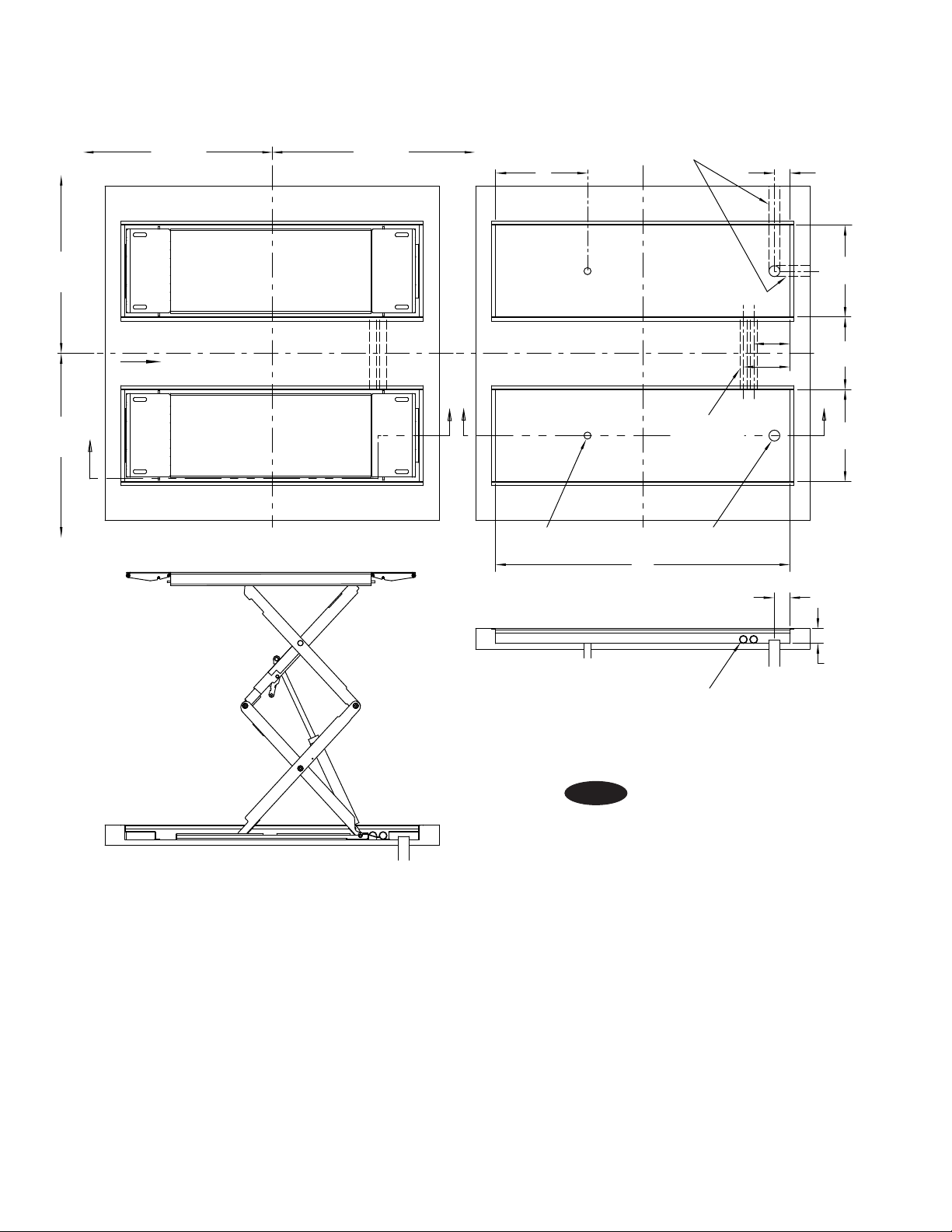

Fig. 2c
8

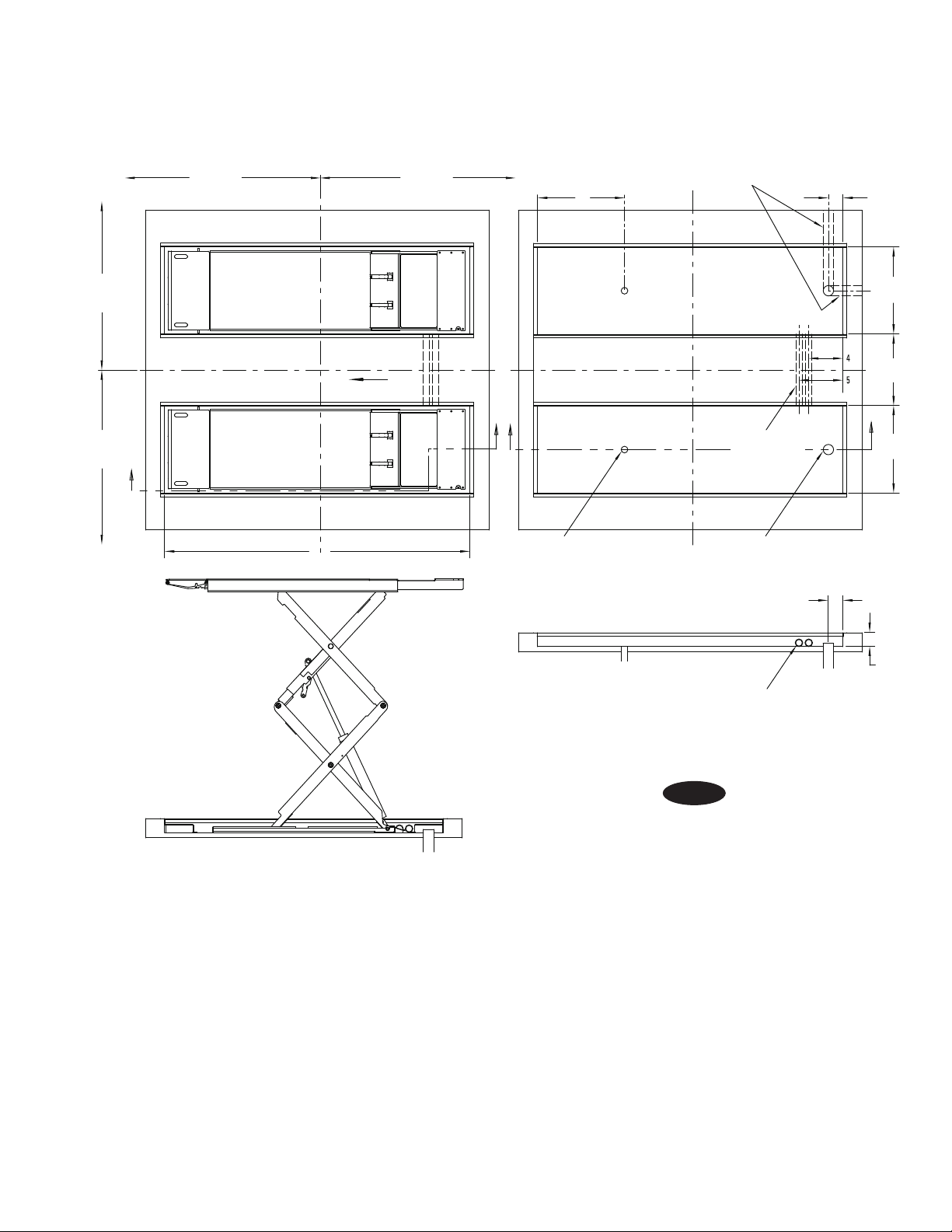

DS35EX Flush Mount Only
A
A
2400
3660 MIN. TO
NEAREST OBSTRUCTION
50
SECTION A-A
00
300800
3660 MIN. TO
NEAREST OBSTRUCTION
DIRECTION
OF APPROACH
(2) TWO 50mm PVC
PIPES ADJACENT
TO EACH OTHER
Ø76mm PVC PIPEØ50mm DRAIN HOLE
PIPES MUST BE FLUSH
WITH BOTTOM OF FLOOR
A
SECTION A-A
A
100
ROUTE CONDUIT TOWARDS THE CLOSEST DIRECTION
OF CABINET PLACEMENT. EXITING EITHER THE
SIDE OR BACK OF THE PIT IS ACCEPTABLE.
1675 TO
NEAREST
OBSTRUCTION
1675 TO
NEAREST
OBSTRUCTION
688
PIT WIDTH
688
PIT WIDTH6
843(BMW) / 693
BETWEEN PITS
110
+5
-0
Fig. 2d
9

9. Platforms and Control Cabinet Detail Layout

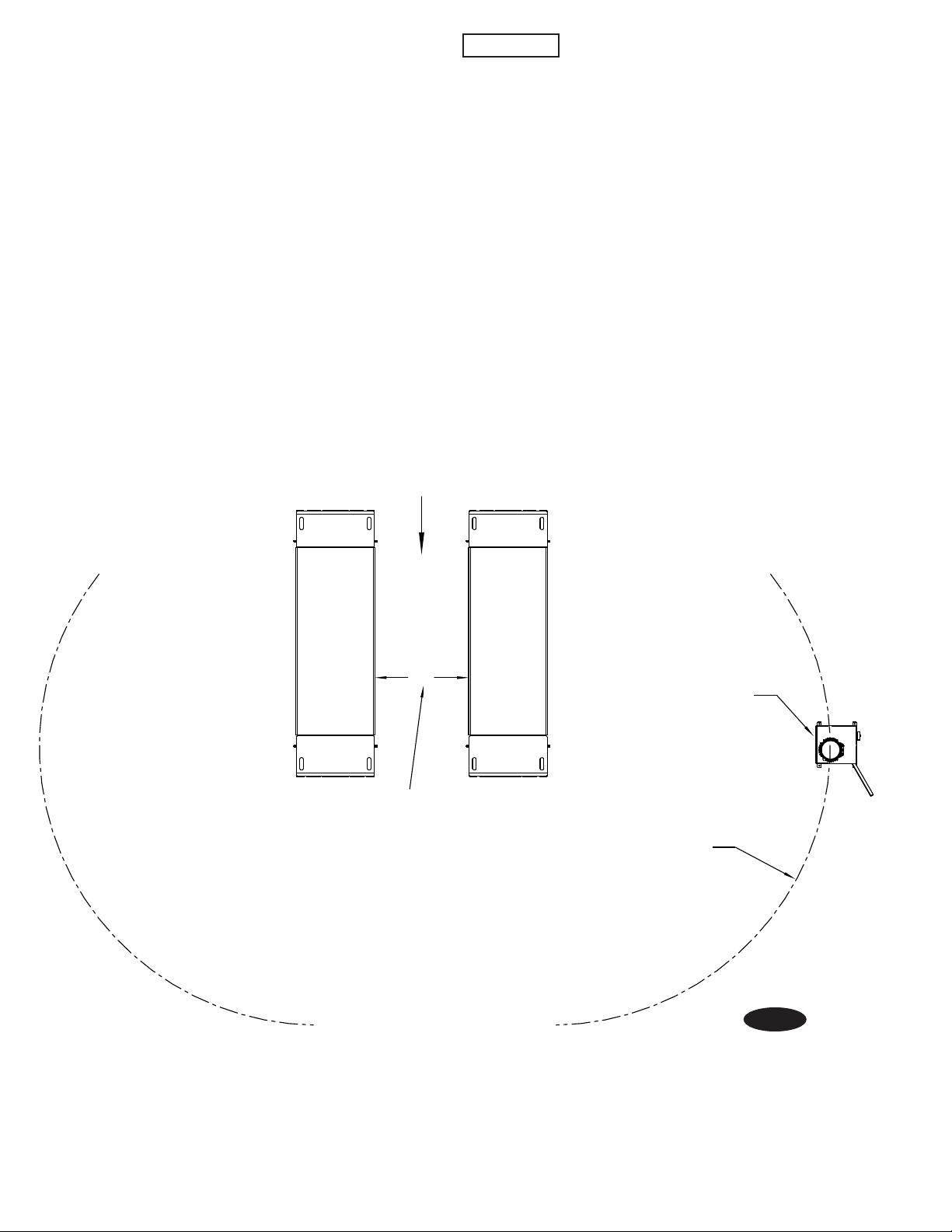

Place platforms and control cabinet as shown in Fig. 3
for surface mount or flush mount applications.
DO NOT anchor any components at this time. The
control cabinet should be located on the opposite
end of vehicle approach, as shown in Fig. 3. Operator
should be in a position to notice any misalignment of
lifting pads or vehicle during operation. Rotary Lift
does not recommend placing the control cabinet in a
different location orientation and doing so would be
the responsibility of the installer and/or end user.
*750
CONTROL CABINET PLACEMENT
DISTANCE BETWEEN
PLATFORMS
CONTROL CABINET SHOULD BE
ORIENTED SO THAT OPERATOR
FACES LIFT WHEN OPERATING
CONTROLS
DIRECTION
OF APPROACH
CONTROL CABINET PLACEMENT ENVELOPE
MAXIMUM 5 METERS FROM EDGE OF LIFT PLATFORM,
MINIMUM 1.5 METERS FROM EDGE OF LIFT PLATFORM,
EITHER FRONT SIDE OF LIFT (HOSE SIDE)
(OPTIONS AVAILABLE FOR HOSE EXTENSIONS
AND ADDITIONAL HOSE COVERS IF EXCEED
5 METERS ENVELOPE)
*NOTE: 750mm WILL ACCOMMODATE MOST
VEHICLES. LIFT MAY BE ADJUSTED DURING
INSTALLATION BUT DISTANCE BETWEEN
PLATFORMS SHOULD NOT EXCEED 912mm.
Fig. 3
IMPORTANT Control cabinet should always be
oriented so operator is facing the direction of the lift
when operating the lift.
If lift will be a flush mount application, the total run
length of the pipe chase from pit to bottom rear of
control cabinet should not exceed 2000mm.
10

10. Control Cabinet Connections
Electrical Connection:
Have a certified electrician run appropriate power
supply to motor wire size for a three phase 10 amp. or
single phase 30 amp. circuit.
CAUTION Never operate the motor on line voltage
less than 208V. Motor damage may occur.
All wiring must conform to all national and local
electrical codes.
IMPORTANT Use seperate circuit for each power
unit. Protect each circuit with a time delay fuse or
circuit breaker. Use a 10 amp. (three phase) or 30 amp.
(single phase) fuse.
WARNING
Make sure that the main power
supply is disconnected to avoid the possibility of
electrocution.
WARNING
All connections made inside the control
panel must be kept 457mm off of the floor.
T7 T1
T8 T2
T9 T3
T4
T5
T6
L1
L2
L3
11 12
Green
230V
Blue
13 14 15 16
T7
T4 T1 L1
T8
T5 T2 L2
T9
T6 T3 L3
208-230V
50/60Hz. 1Ø
380V
50 Hz. 3Ø
Transformer
11 12
Green
380V
Blue
13 14 15 16
POWER UNIT VOLTAGE RANGE
LINE VOLTAGE RUNNING MOTOR VOLTAGE RANGE +/-10%
230V 50/60Hz. 1Ø208-253V
380V 50Hz. 3Ø342-418V
11

L1
PE
L2 3Ø L3
L1
PE
L2 1Ø L3

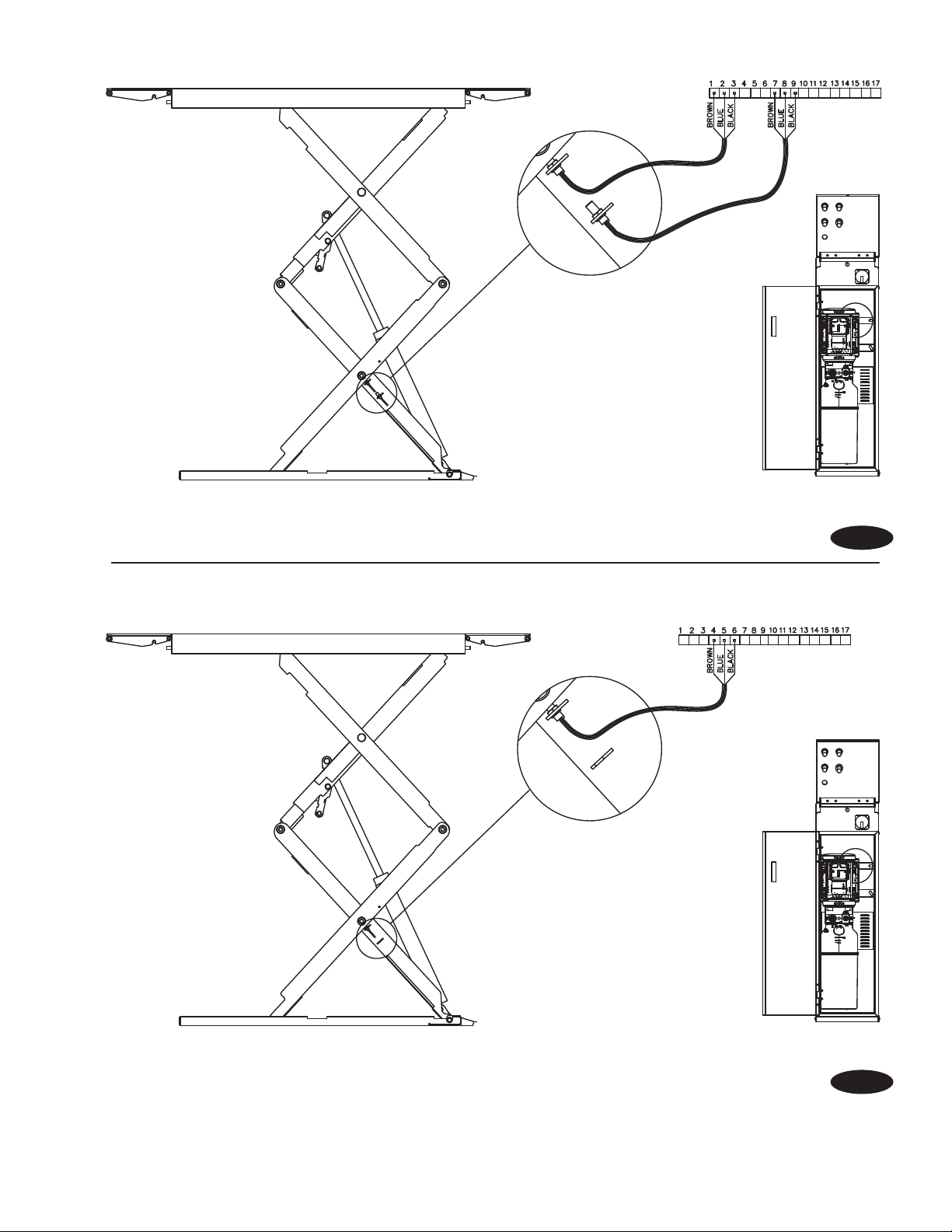

Connect Main Power To Switch
12

Connect One Platform Top Limit
Switch and Stop Down Switch
Connect One Platform
Top Limit Switch
Fig. 4
Fig. 5
13

WIRING SCHEMATIC
14

11. Oil Filling and Bleeding
Use Dexron III ATF, or hydraulic fluid that meets ISO32
specifications. Remove fill breather cap and add (10)
ten quarts of fluid. Turn power to on and ensure the
disconnect switch and emergency stop buttons are in
the “ON” position. Proceed with the following steps.
WARNING
Only skilled and authorized personnel
should be allowed to perform these operations.
Carefully follow all instructions shown below to
prevent possible damage to the car lift or risk of injury
to people.
Be sure that the operating area is cleared of people.
After positioning the lift as specified and performing
electric and hydraulic connections, the lift can be
operated by following the specific procedure.
1. Verify both top limit switches and stop down switch
electrical connections are complete, as shown in Fig. 4
and Fig. 5.
2. Connect hydraulic hoses “A” and “B” to the power
unit as shown in Fig. 7. To connect hoses, remove
closest cover to P1 platform, Fig. 7a.
3. Push the “UP” button until both platforms stop
moving.
4. Add 5 liters more of fluid.
5. Connect the uninstalled hydraulic hoses marked “C”
and “D”, as shown in Fig. 7.
6. Connect the uninstalled hydraulic tube, as shown in
Fig. 7.
7. Push the “UP” button until both platforms stop
moving.
8. Open the cabinet lid and press the “Override
UP” button, as shown in Fig. 7b, and HOLD FOR
APPROXIMATELY 40 SECONDS.
9. Close cabinet lid and lower platforms to the ground.
If lift does not raise but the motor runs, check the
motor for proper direction of rotation and switch the
phases on the power supply line if necessary.
Fig. 6
FILL BREATHER CAP
Fill Reservoir
15

Hydraulic Schematics
Fig. 7
Hose A DSS35-9801-1
Hose B DSS35-9801-2
Hose D DSS35-9801-4S
Hose C DSS35-9801-3S
Power
Unit
EPL8-03
EPY8 Y FITTING
16
DSS35-9801-3L（BMW）
DSS35-9801-1L（BMW）
DSS35-9801-2L（BMW）
DSS35-9801-4L（BMW）

Fig. 7a
Fig. 7b
COVER
COVER
COVER
OVERRIDE
BUTTON

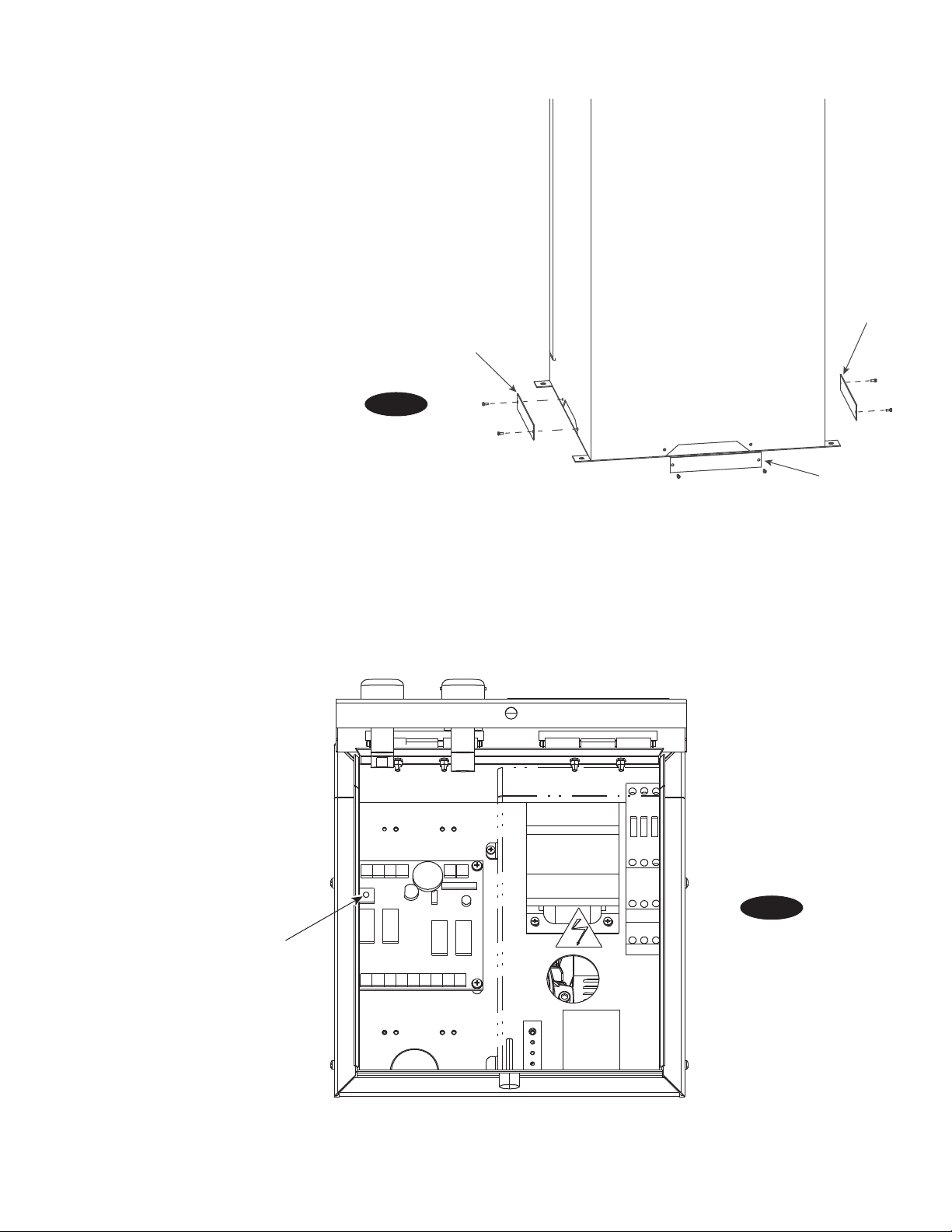

12. Hydraulic Hose Routing
1.The control cabinet includes three removable covers
for hydraulic routing, Fig.7a.
2. Customer to route hydraulic hose from lift to control
cabinet panel as desired. See Fig. 7, and Fig. 7a.
17

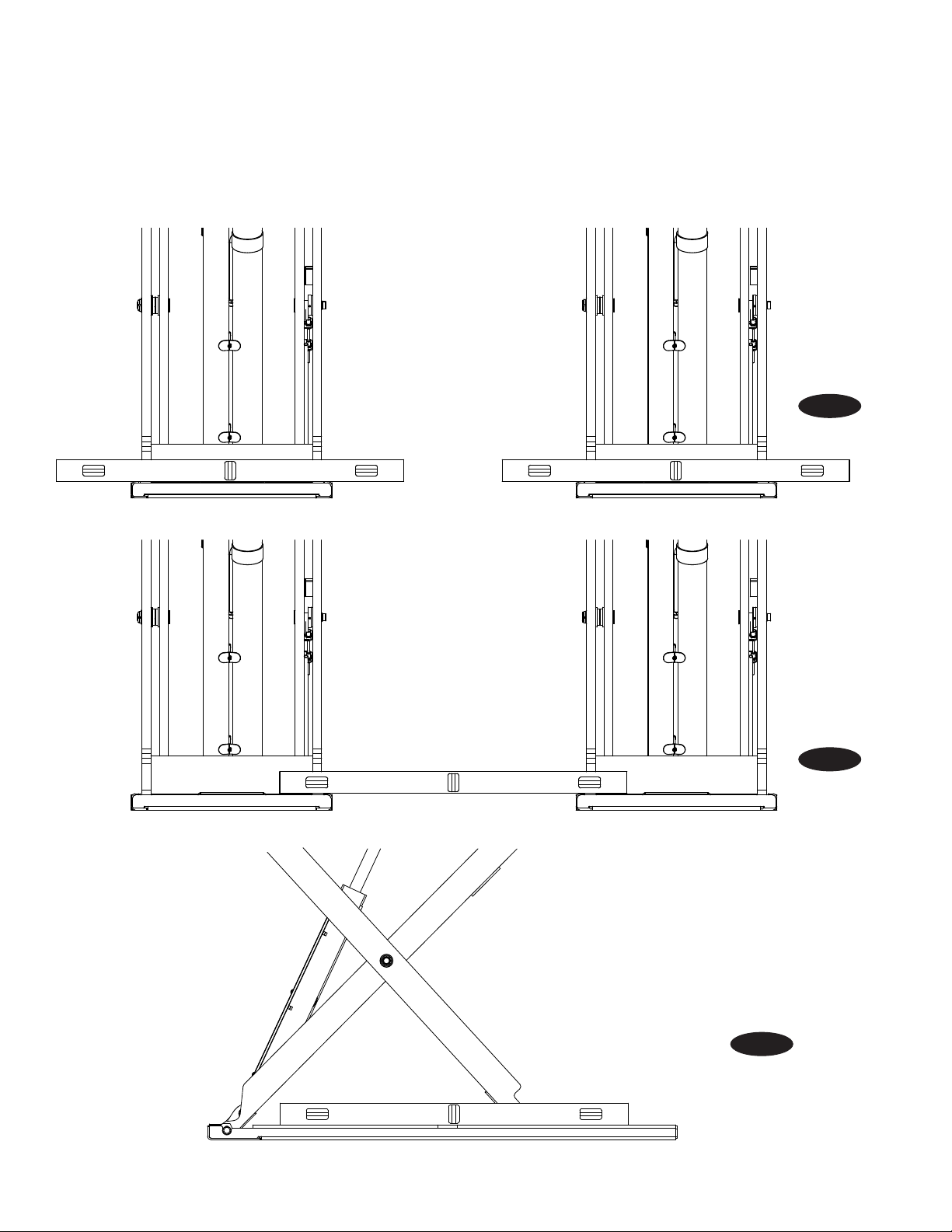

13. Final Positioning of Platforms
1. Verify the platform bases are square and the
distance between the platforms is correct.
2. Verify platform bases are level, Fig. 8.
3. Verify platform bases are level to each other, Fig. 8a.
Fig. 8
Fig. 8a
Fig. 8b
4. Verify both platform bases are level front to rear, Fig.
8b.
5. Verify platforms are level, Fig. 9.
6. Verify platforms are level to each other, Fig. 9a.
18

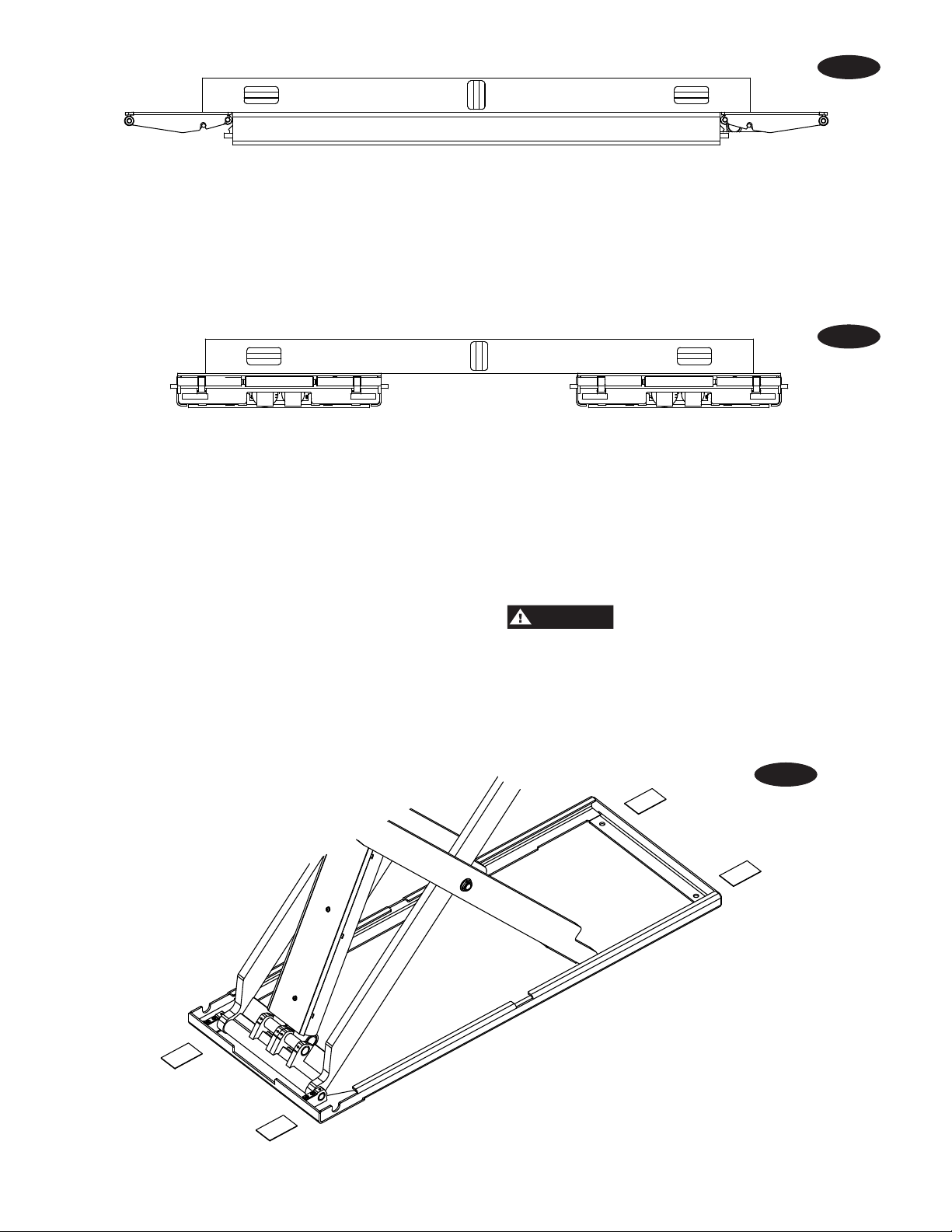

14. Anchoring
1. Turn the disconnect switch to “ON” and press the
“UP” button to raise the platforms which provides
room under the runways for drilling.
2. Drill and install (8) eight lift anchors loosely. Do not
tighten.
3. Complete leveling measurements described under
item number 13.
Fig. 9a
Fig. 9b
Fig. 9c
4. Shim as necessary, Fig. 9c, and tighten anchors.
5. Grout if necessary.
6. Re-check for levelness.
WARNING
Do not install this lift without anchoring
to required specifications. Failure could result in
personal injury or death.
19

15. Grouting
If lift must be shimmed, Fig. 10, the base must be
grouted to provide continuous support. Grout must
conform to ASTM C1107 and min. 5,000 psi (34 mpa).
WARNING
If the floor is not level the platforms will
not be level which could result in unsatisfactory lift
performance, property damage, or personal injury.

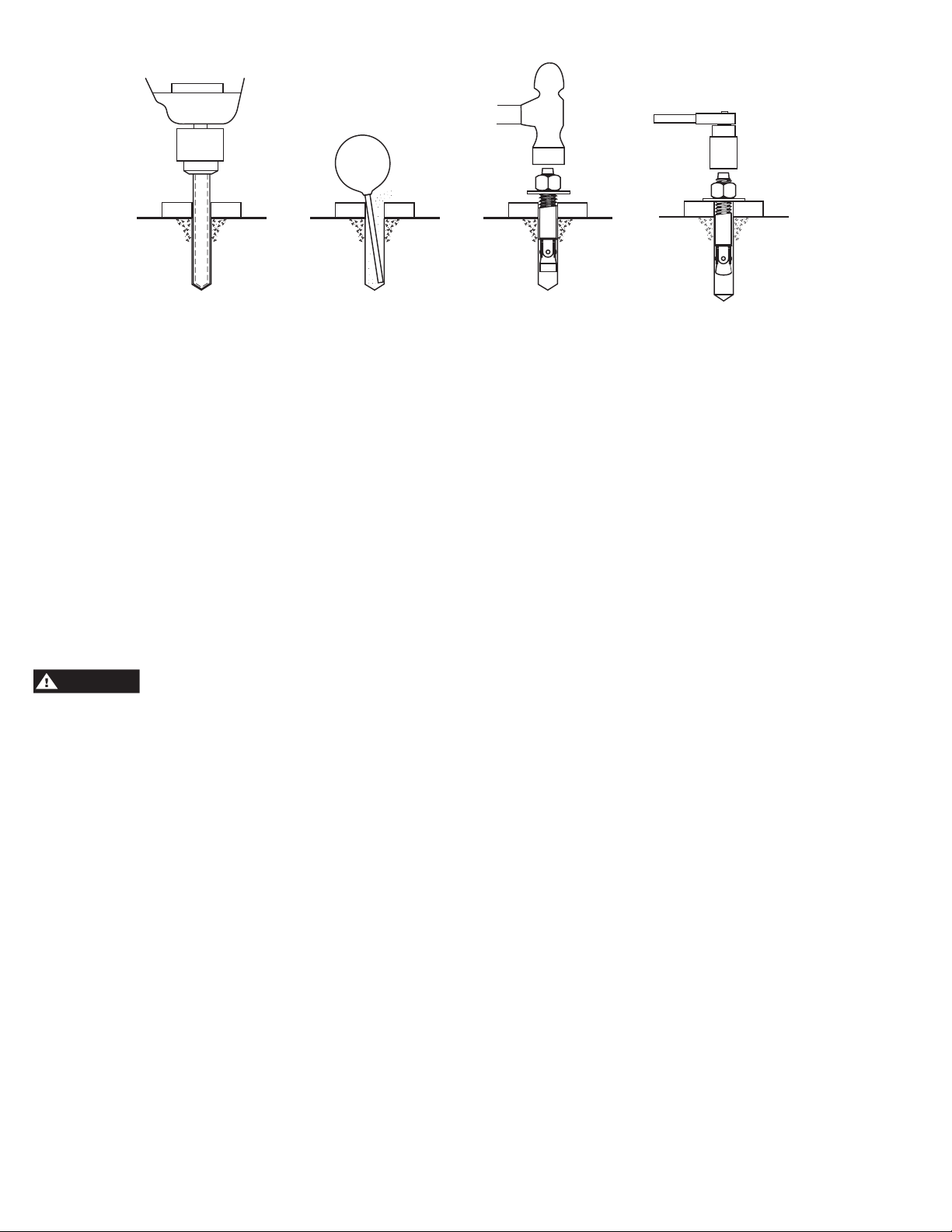

Run nut down just
below impact section
of bolt. Drive anchor
into hole until nut and washer
contact base.
Clean hole.Drill holes using 1/2” car-
bide tipped masonry drill
bit per ANSI B212.15-1994
(R2000)
Tighten nut with
Torque wrench to
40 ft.-lbs (54N-m)
.
20
