SAFETY INSTRUCTIONS
18/11/2016 Version No. 002 3
SAFETY INSTRUCTIONS
This chapter contains important safety instructions that you must
follow during operation and storage. Read the following before
any operation to ensure your safety and to keep the instrument in
the best possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the instrument.
WARNING
Warning: Identifies conditions or practices that could result in
injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that could result in
damage to the DMM or to other properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal

IDM-8341/8342 Series Instruction Manual/English
4 18/11/2016 Version No. 002
Earth (ground) Terminal
Do not dispose electronic equipment as unsorted municipal
waste. Please use a separate collection facility or contact the
supplier from which this instrument was purchased.
Safety Guidelines
General
Guideline
CAUTION
Make sure that the voltage input level does not exceed
DC1000V/AC750V.
Make sure the current input level does not exceed 12A.
Do not place any heavy object on the instrument.
Avoid severe impact or rough handling that can lead to
damaging the instrument.
Do not discharge static electricity to the instrument.
Use only mating connectors, not bare wires, for the terminals.
Do not block or obstruct the cooling fan vent opening.
Do not perform measurement at the source of a low-voltage
installation or at building installations (Note below).
Do not disassemble the instrument unless you are qualified as
service personnel.
Make sure that the COM terminal to earth is limited to 500Vpk.

SAFETY INSTRUCTIONS
18/11/2016 Version No. 002 5
(Note) EN 61010-1:2010 specifies the measurement categories and their
requirements as follows. The IDM-834X falls under category II 600V.
Measurement category IV is for measurement performed at the source of low-
voltage installation.
Measurement category III is for measurement performed in the building
installation.
Measurement category II is for measurement performed on the circuits directly
connected to the low voltage installation.
Power Supply
WARNING
AC Input voltage: 100/120/220/240 V AC
50/60Hz
The power supply voltage should not fluctuate more than 10%.
Connect the protective grounding conductor of the AC power
cord to an earth ground, to avoid electrical shock.
Fuse
WARNING
Fuse type: 0.125AT 100/120VAC
0.063AT 220/240 VAC
Make sure the correct type of fuse is installed before power up.
To avoid risk of fire, replace the fuse only with the specified
type and rating.
Disconnect the power cord before fuse replacement.
Make sure the cause of a fuse blowout is fixed before fuse
replacement.
Cleaning the
Instrument
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild detergent and

IDM-8341/8342 Series Instruction Manual/English
6 18/11/2016 Version No. 002
water. Do not spray any liquid.
Do not use chemicals containing harsh material such as
benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free, almost non-
conductive pollution (Note below)
Temperature: 0°C to 50°C
Humidity: 0~35°C: < 80%RH
>35°C: <70%RH
Altitude: <2000m
(Note) EN 61010-1:2010 specifies the pollution degrees and their requirements as
follows. The IDM-8341/8342 falls under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized
gases), that may produce a reduction of dielectric strength or surface
resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive pollution occurs.
The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution occurs.
Occasionally, however, a temporary conductivity caused by condensation must
be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-conductive
pollution occurs which becomes conductive due to condensation which is
expected. In such conditions, equipment is normally protected against
exposure to direct sunlight, precipitation, and full wind pressure, but neither
temperature nor humidity is controlled.

SAFETY INSTRUCTIONS
18/11/2016 Version No. 002 7
Storage
environment
Location: Indoor
Temperature: -10°C to 70°C
Humidity: 0~35°C: <90%RH
>35°C: <80%RH
Disposal
Do not dispose this instrument as unsorted municipal waste.
Please use a separate collection facility or contact the supplier
from which this instrument was purchased. Please make sure
discarded electrical waste is properly recycled to reduce
environmental impact.

IDM-8341/8342 Series Instruction Manual/English
8 18/11/2016 Version No. 002

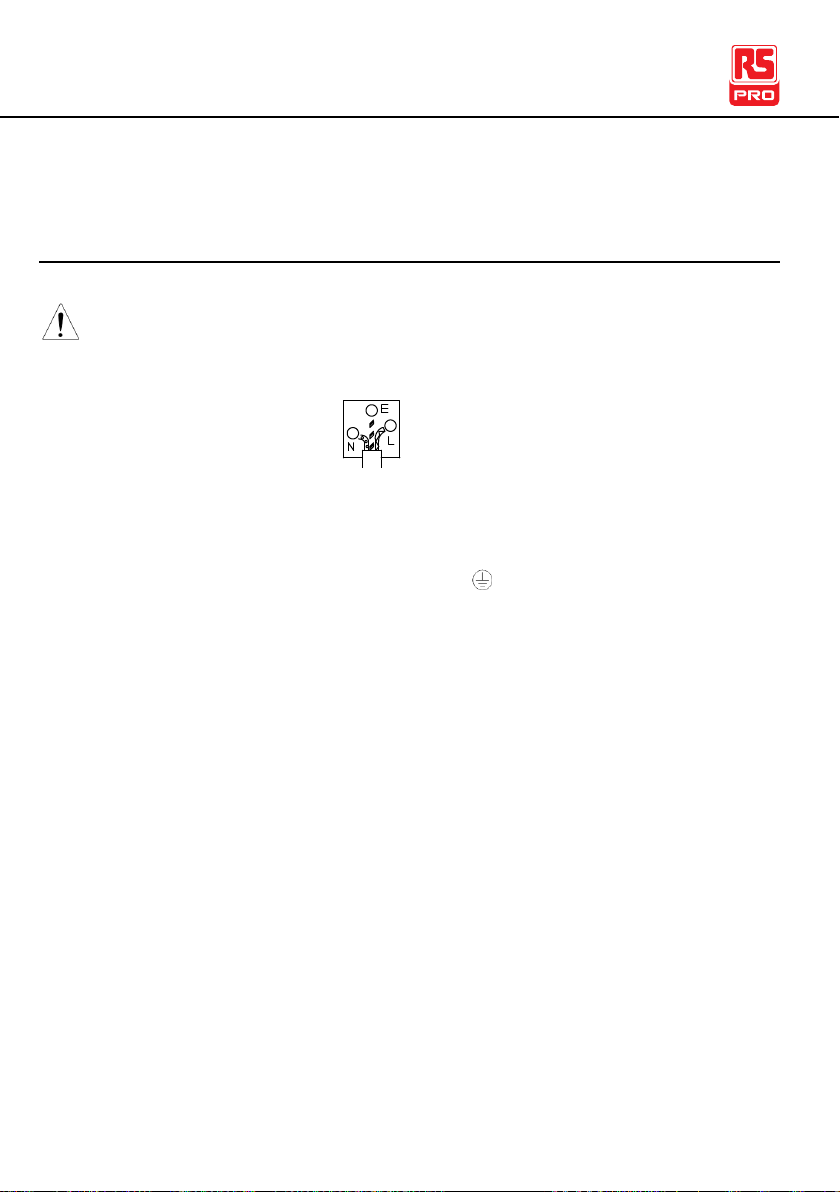

Power cord for the United Kingdom
When using the unit in the United Kingdom, make sure the power cord meets the
following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with the coloured
marking identified in your plug/appliance, proceed as follows:
The wire which is coloured Green & Yellow must be connected to the Earth terminal
marked with either the letter E, the earth symbol or coloured Green/Green &
Yellow.
The wire which is coloured Blue must be connected to the terminal which is marked
with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal marked with
the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or contact the
supplier.
This cable/appliance should be protected by a suitably rated and approved HBC
mains fuse: refer to the rating information on the equipment and/or user instructions
for details. As a guide, a cable of 0.75mm2 should be protected by a 3A or 5A fuse.
Larger conductors would normally require 13A types, depending on the connection
method used.
Any exposed wiring from a cable, plug or connection that is engaged in a live
socket is extremely hazardous. If a cable or plug is deemed hazardous, turn off the
mains power and remove the cable, any fuses and fuse assemblies. All hazardous
wiring must be immediately destroyed and replaced in accordance to the above
standard.

GETTING STARTED
18/11/2016 Version No. 002 9
GETTING STARTED
This chapter describes the IDM-8342 and IDM-8341 multimeters in a nutshell,
including accessories, and package contents, their main features and front / rear
panel introduction.
Characteristics ............................................................10
Accessories............................................................................... 11
Package Contents..................................................................... 12
Appearance.................................................................13

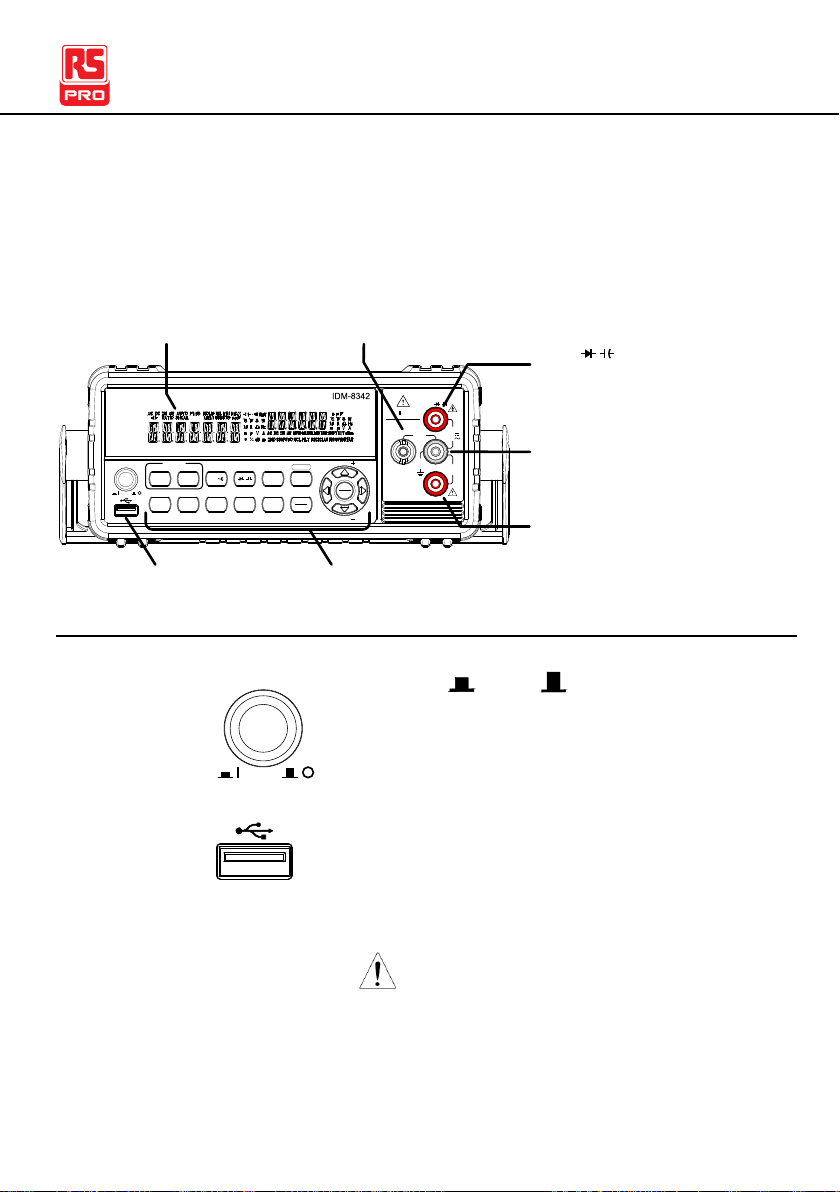

IDM-8341/8342 Front Panel...................................................... 13
Display Overview ...................................................................... 20
Rear Panel ................................................................................ 21
Set Up ........................................................................23
Tilting the Stand ........................................................................ 23
Power Up................................................................................... 24
How to Use the Instrument........................................................ 25

IDM-8341/8342 Series Instruction Manual/English
10 18/11/2016 Version No. 002
Characteristics
The IDM-8342 and IDM-8341 are portable, dual-display digital multimeters suitable
for a wide range of applications, such as production testing, research, and field
verification.
Performance
DCV accuracy: 0.02%
High current range: 10A
High Voltage range: 1000V
High ACV frequency response: 100kHz
Features
50000 count display
Multi functions: ACV, DCV, ACI, DCI, R, C, Hz, Temp*,
Continuity, Diode test, MAX/MIN, REL, dBm, Hold, MX+B, 1/X,
REF%, dB, Compare.
Manual or Auto ranging
AC true RMS
Data Logging to USB*
Data logging to PC using an Excel Add-In
Interface
Voltage/Resistance/Diode/Capacitance/ Temperature* input
Current input
USB device port as standard for remote control

GETTING STARTED
18/11/2016 Version No. 002 11
USB host* for data logging
Optional GPIB* (factory install)
Calibration port (for service operators only)
Excel Add-In for easy-to-use remote control, data logging and
for saving/recalling setups
* These features are only available on the IDM-8342
Accessories
Standard
Accessories
Part number
Description
82DM-83420Ex1
User Manual CD
82DM-83421Mx1
Safety Instruction Sheet
GTL-207A
Test leads: 1x red, 1x black
Optional
Accessories
Part number
Description
1040-8342020
GPIB (Factory installed, IDM-8342 only)
GTL-246
USB Cable
GTL-205
Temperature Probe Adapter with
Thermal Coupling (K-type)
Download
Name
Description

IDM-8341/8342 Series Instruction Manual/English
12 18/11/2016 Version No. 002
IDMvcp.inf (In IDM-834X
USB DRIVER.ZIP)
USB driver
IDM-834x Excel Addins
Data logging Excel Add-In logs
measurements to a PC by remote
control via the USB interface only. This
Excel Add-In can’t be used via the GPIB
interface.
Package Contents
Check the contents before using the instrument.
Opening the box
Contents
(single unit)
Main unit
Test leads (red x1,
black x1)
Power cord x1 (region dependent)
User manual CD
Safety instruction sheet

GETTING STARTED
18/11/2016 Version No. 002 13
Appearance
IDM-8341/8342 Front Panel
Function keys and
Arrow keys
DC/AC 0.5A Terminal,
AMPS Fuse Holder
Power Switch, USB Host
port (IDM-8342 only)
Main
Display

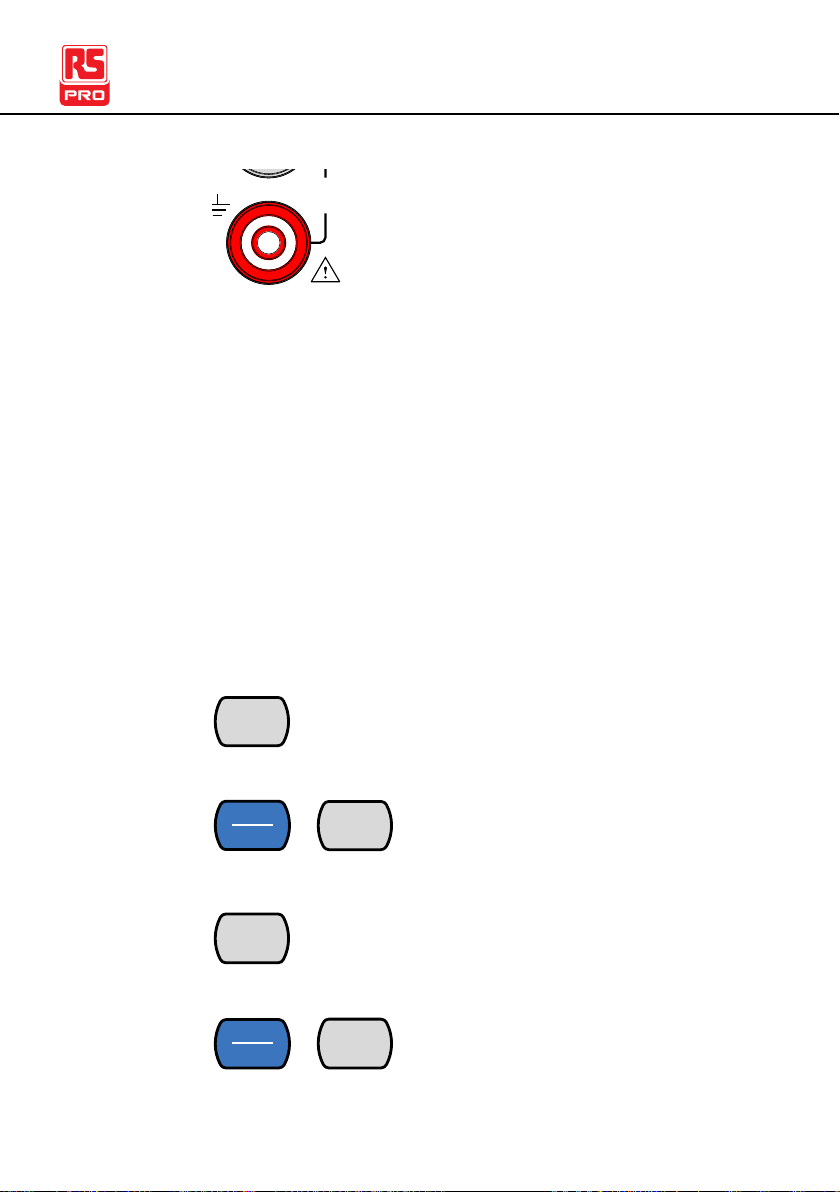

DC/AC 12A
Terminal
COM
Terminal
V
Terminal
TEMP
DC + AC
Auto
CAT 600V
COM
250V
W
V
T0.5A
FUSE
INPUT
MAX
500Vpk
12A
MAX
750V
1000V
MAX
0.5A
MAX
USB STOINT/EXTCOMPMATHREL#
LOCAL
dBmdBACIDCI
POWER
Enter
RANGE
RANGE
SHIFT
EXIT
MENUTRIGHOLDMX/MNREL
2NDHz/P
/
W/
ACVDCV
W
Power Switch
POWER
Turns On or Off the main power. For the
power up sequence, see page 24.
USB Host Port
The Host port is a type A USB port for logging
data. See the USB Store chapter for more
details, page 87.
Note: IDM-8342 only.

IDM-8341/8342 Series Instruction Manual/English
14 18/11/2016 Version No. 002
Main Display
Shows measurement results and parameters. For display
configuration details, see page 82 (light setting).
For an overview of the main display, see page 20.
W
V
Input
Terminal
CAT 600V
COM
250V
W
V
T0.5A
FUSE
INPUT
MAX
500Vpk
12A
MAX
750V
1000V
MAX
0.5A
MAX
This terminal is used for all measurements
except for DC/AC current measurements.
COM Terminal
CAT 600V
COM
250V
W
V
T0.5A
FUSE
INPUT
MAX
500Vpk
12A
MAX
750V
1000V
MAX
0.5A
MAX
Accepts ground (COM) line in all measurements.
The maximum withstand voltage between this
terminal and earth is 500Vpk.
DC/AC 0.5A
Terminal
AMPS Fuse
Holder
CAT 600V
COM
250V
W
V
T0.5A
FUSE
INPUT
MAX
500Vpk
12A
MAX
750V
1000V
MAX
0.5A
MAX
Low current measurement terminal. Accepts
DC/AC Current input. For details see page 38.
DC: 500μA~0.5A
AC: 500μA~0.5A
As a fuse, protects the instrument from over-
current. Rating: T0.5A, 250V.(This terminal
accepts DC/AC current input).

GETTING STARTED
18/11/2016 Version No. 002 15
DC/AC 12A
Terminal
CAT 600V
COM
250V
W
V
T0.5A
FUSE
INPUT
MAX
500Vpk
12A
MAX
750V
1000V
MAX
0.5A
MAX
High range current measurement terminal.
Accepts DC/AC Current input. For DCI or ACI
details, see page 38.
Measurement
Keys
The top row of measurement keys are used for basic DMM
measurements such as voltage, current, resistance, capacitance
and frequency. The bottom row of measurement functions are
used for more advanced functions.
Each key has a primary and secondary function. The secondary
function is accessed in conjunction with the SHIFT key.
Upper Measurement keys
DCV
DCV
DCI
Measures DC Voltage (page 32).
DCI
(SHIFT→DCV)
SHIFT
EXIT
→
DCV
DCI
Measures DC Current (page 38).
ACV
ACV
ACI
Measures AC Voltage (page 32).
ACI
(SHIFT→ACV)
SHIFT
EXIT
→
ACV
ACI
Measures AC Current (page 38).

IDM-8341/8342 Series Instruction Manual/English
16 18/11/2016 Version No. 002
DCV + ACV
DCV
DCI
+
ACV
ACI
Measures DC + AC voltage (page 32).
DCI+ACI
SHIFT
EXIT
→
DCV
DCI
+
ACV
ACI
Measures DC + AC current
(page 38).
Resistance/
Continuity)
/
W
dB
Measures resistance or continuity, depending on the
selected mode. See page 43 and 48, respectively.
dB
(SHIFT→ Ω/ )
SHIFT
EXIT
→
/
W
dB
Measures dB. See page 66.
Diode/
Capacitance
/
dBm
Tests diodes or measures capacitance, depending on
the selected mode. See page 45 and 46, respectively.
dBm
(SHIFT →
/
)
SHIFT
EXIT
→
/
dBm
Measures dBm. See page 64
Hz/P
Hz/P
TEMP
Measures the frequency or period of a signal,
depending on the selected mode. See page 51.
TEMP
(SHIFT → Hz/P)
SHIFT
EXIT
→
Hz/P
TEMP
Measures temperature. See page 54.

GETTING STARTED
18/11/2016 Version No. 002 17
2ND
2ND
LOCAL
As the 2nd key, selects the measurement item on the
2nd display (page 58). Pressing and holding for more
than 1 second turns off the 2nd display.
As the Local key, releases the remote control and
returns the instrument to local panel operation (page
113).
Lower Measurement keys
REL
REL
REL#
Measures the Relative value (page 70).
REL#
(SHIFT→REL)
SHIFT
EXIT
→
REL
REL#
Manually sets the reference value for the
Relative value measurement.
MX/MN
MX/MN
MATH
Measures the Maximum or the Minimum value (page
68).
MATH
(SHIFT→
MX/MN)
SHIFT
EXIT
→
MX/MN
MATH
Enters the Math measurement mode. The
supported math functions include MX+B,
REF% and 1/X. See page 75 for details.
HOLD
HOLD
COMP
Activates the Hold function (page 72).

IDM-8341/8342 Series Instruction Manual/English
18 18/11/2016 Version No. 002
COMP
(SHIFT→HOLD)
SHIFT
EXIT
→
HOLD
COMP
Activates the compare measurement
function. See page 73.
TRIG
TRIG
INT/EXT
Triggers sample acquisition manually when the trigger
is set to external triggering. See page 31. (Note: Not
supported for capacitance measurement)
INT/EXT
(SHIFT→TRIG)
SHIFT
EXIT
→
TRIG
INT/EXT
Toggles the trigger source as either
internal or external(manual trigger).
MENU
MENU
USB STO
Enters the configuration menu for System Settings,
Measurement Settings, Temperature measurement
settings, I/O settings and USB storage settings. See
page 79 for the system menu.
USB STO
(SHIFT→MENU
)
SHIFT
EXIT
→
MENU
USB STO
Logs measurement data to a USB drive.
This function is only available for the IDM-
8342. See page 87.
SHIFT/EXIT
SHIFT
EXIT
When used as a SHIFT key, it is used to access the
secondary functions associated with the measurement
keys.
When used as an EXIT key, it will exit out of menu
systems.
