RS PRO ICM 135R User manual

Instruction Manual
ICM 135R
Electrical Clamp Multimeter

EN FR IT DE ES

2
Safety Information
For safe operation of this clamp-multimeter,
read these instructions completely before
you use it and comply with them fully.
Failure to observe these warnings can
result in severe injury or death.
- If possible, do not work alone, so
assistance can be given if required.
- Do not use the clamp-multimeter or
test-leads if they are damaged.
- Do not use the clamp-multimeter if it is not
operating correctly, or if it is wet.
- Use the clamp-multimeter only as
specified in these Operating Instructions,
or the protection provided by it may be
impaired.
- Use extreme caution and wear Personal
Protective Equipment when taking
measurements where Hazardous Live
parts could be Accessible.
-Use caution when measuring or working
near voltages above 30 V ac rms, or
60 V dc. These voltages may cause a
shock.
-Do not allow fingers to protrude beyond
the Tactile Barrier when fitting or
removing the instrument from around a
Hazardous Live conductor, as this may
cause a shock.
Symbols as marked on the Clamp-
multimeter and instructions
Risk of electric shock
Refer to operating instructions.
DC measurement
Equipment protected by double or
reinforced insulation
<Battery
Earth
AC measurement
Conforms to EU directives
May be used on uninsulated
Conductors.

3
Caution
If the clamp-multimeter is used in the vicinity
of equipment which generates electromag-
netic interference, the display may become
unstable or the measurements shown may
be subject to large errors.
TEST EQUIPMENT RISK ASSESSMENT
Users of this equipment and or their
employers are reminded that Health and
Safety Legislation require them to carry
out valid risk assessments of all
electrical work so as to identify potential
sources of electrical danger and risk of
electrical injury such as from inadvertent
short circuits. Where the assessments
show that the risk is significant then the
use of fused test leads constructed in
accordance with HSE guidance note
GS38 “ Electrical Test Equipment for use
by Electricians” should be used.
Maintenance
Do not attempt to repair the clamp-
multimeter. It contains no user-serviceable
parts.
Contact RS Components for repair,
servicing or calibration of this clamp-
multimeter. The address is given at the
end of these instructions.
Cleaning
To clean the clamp-multimeter, use a
damp cloth moistened with a weak
detergent solution. Do not use abrasives
or solvents.

4

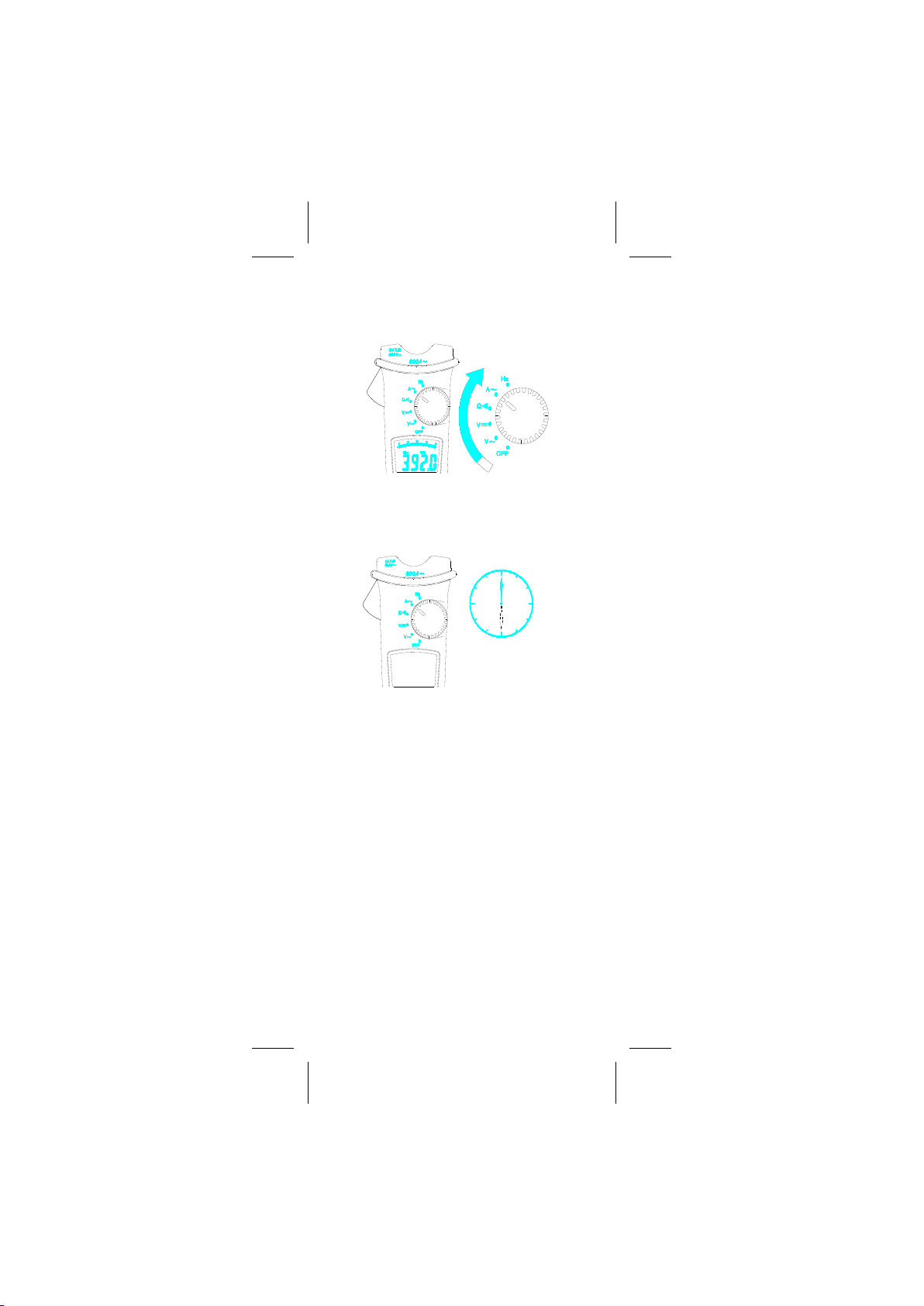

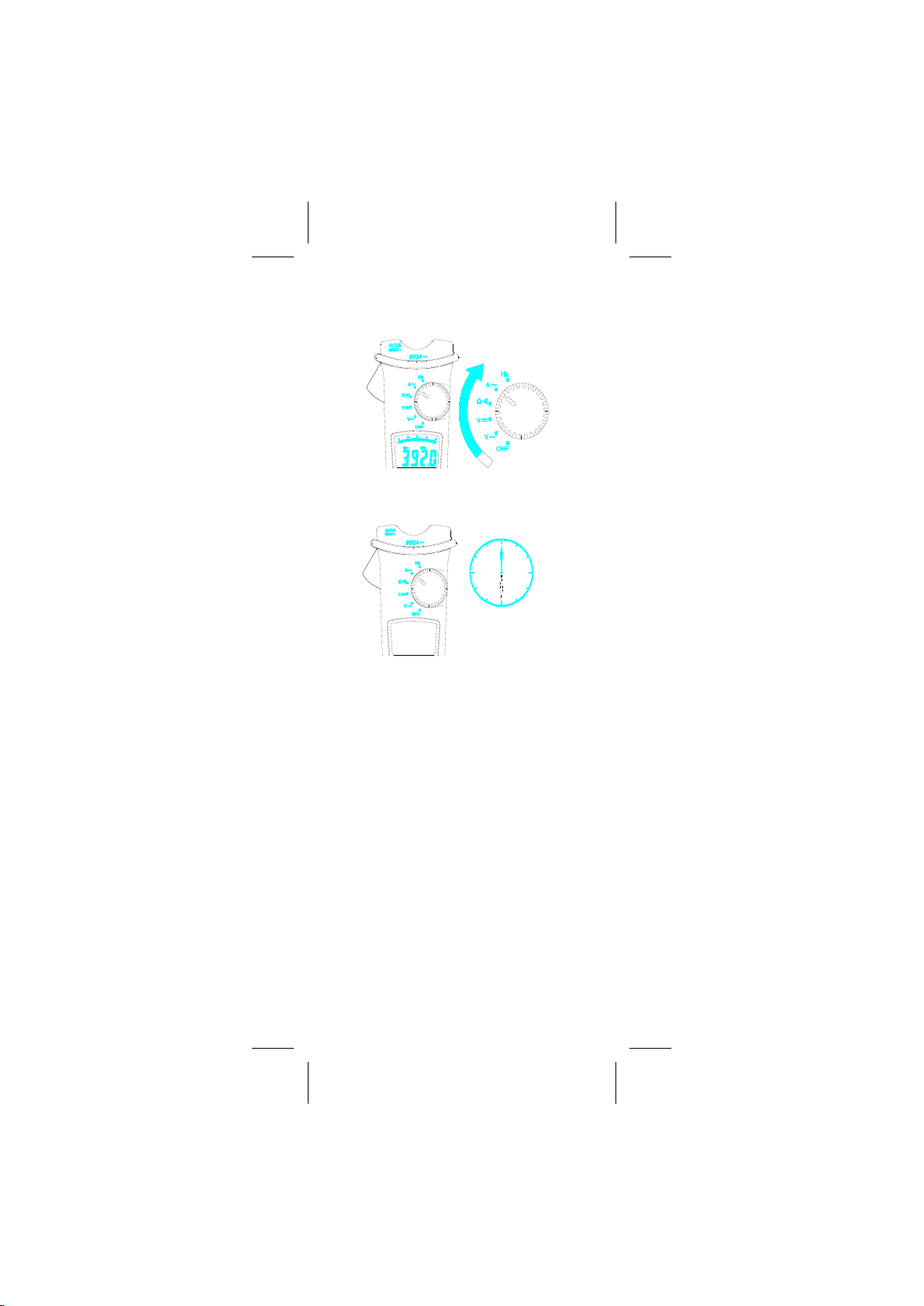

Power On / Off
Auto Power Off
30min
Auto Power Off disable :
Press any button (except the Hold button),
or rotate the rotary switch to reset the
Auto Power-Off function and turn the
clamp-multimeter on.

5
AC V / DC V
Resistance

6
ACA
I
I+(-I)=0
I
I
I
OK
190A
Continuity
CAT.Ⅲ.600V
with respect to
earth for the jaw.
Tactile Barrier for
hand guard
Do not hold
the meter across
the Tactile Barrier

7
Data Hold
190A
0A
Hz
ACA 50Hz

8

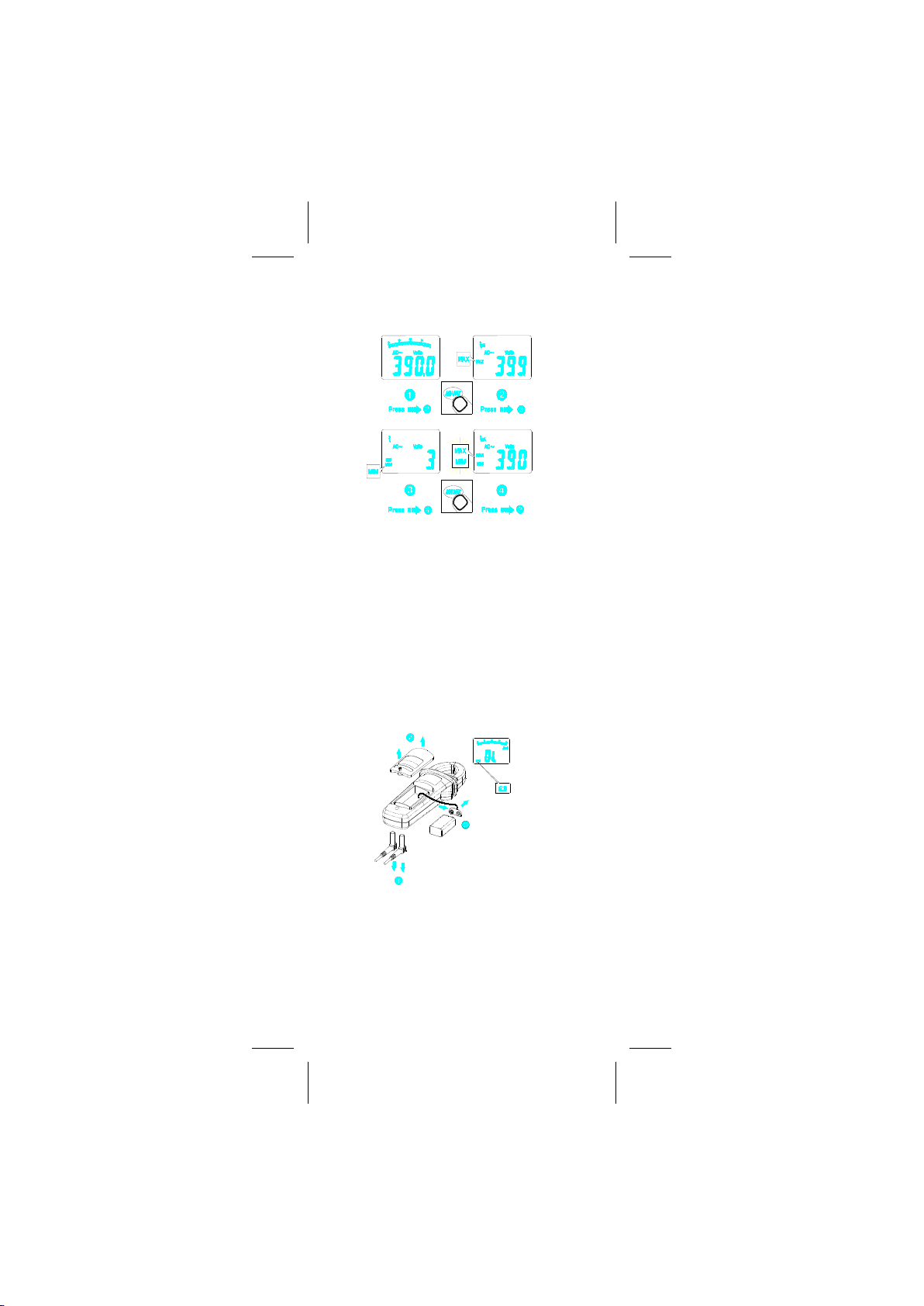

Min / Max Hold
MAX: The clamp-multimeter stores the
maximum and minimum values. The
maximum value is displayed.
MIN: The clamp-multimeter stores the
maximum and minimum value. The
minimum value is displayed.
MAX MIN (flashing):
The clamp-multimeter stores the
maximum and minimum values. The
present value is displayed.
Normal: Press and hold the MIN MAX
button to return to normal operation.
Warning : Disconnect the clamp-
multimeter from all power sources and
remove it from around a conductor before
removing the battery compartment cover.
Replace battery:
Replace the battery when the low battery
symbol “<” appears on the display.
Battery Replacement

9
Back Light
Peak Hold
The back-light will automatically turn off
after approximately 60 seconds.
PMAX : The clamp-multimeter stores the
peak maximum and minimum values.
The peak maximum value is displayed.
PMIN : The clamp-multimeter stores the
peak maximum and minimum values.
The peak minimum value is displayed.
CAL:Press and hold the PEAK button
>3 sec to calibrate the clamp-multimeter
for accurate measurement.
Normal: Press and hold the PEAK
button to return to normal operation.

10
Specifications
1-1 General Specifications
LCD display :
4000 counts, 3 3/4 digit LCD readout.
Measuring rate : 1.5 times / sec.
Overrange display :
“OL” is displayed for “Ω” functions,
Actual value is shown for “A” and “V”
function.
Automatic power off time :
Approximately 30 minutes after power on.
Low battery indicator :
<is displayed.
Power requirement :
9V battery type 6LR61 (IEC) Alkaline.
Battery life : ALKALINE 9V ; 200 hours.
1-2 Environmental Conditions
Indoor Use only.
Calibration :
One year calibration cycle.
Operating temperature :
0°C ~ 30°C (≦80% RH)
30°C ~ 40°C (≦75% RH)
40°C ~ 50°C (≦45%RH)
Storage temperature :
-20 to +60°C, 0 to 80% RH (batteries not
fitted).
Overvoltage category :
IEC 61010-1 600V CAT.Ⅲ.
CAT.Ⅲequipment is designed to protect
against the transients in the
equipment in fixed installations, such as
distribution panels, feeders
and short branch circuits and lighting
systems in large buildings.
Operating altitude : 2000m (6562 ft)
Conductor Size : 34mm diameter.
Pollution degree : 2
EMC : EN 61326-1
Shock vibration :
Sinusoidal vibration per MIL-T-28800E
(5 ~ 55 Hz, 3g maximum).

11
Function Range Accuracy
V0~400.0Vrms
400~600Vrms ±(1.0%+ 5 digits)
50Hz ~ 500Hz *1
V0~400.0 V
400~600 V ±(0.7% + 2 digits)
*1: For readings of less than 15% of full
scale (4000 digits), add 4 digits to reading.
The settling time will be longer.
Overload protection: 600 Vrms
Input impedance: 1MΩ// less than 100pF.
AC Conversion Type:
AC Conversions are ac-coupled, true rms
responding, calibrated to the rms value of
a sine-wave input. Accuracies are given for
sine-wave at full-scale and non-sine wave
below half-scale. For non sine-wave add
the following Crest Factor corrections:
For Crest Factor of 1.4 to 2.0, add 1.0% to
accuracy.
For Crest Factor of 2.0 to 2.5, add 2.5% to
accuracy.
For Crest Factor of 2.5 to 3.0, add 4.0% to
accuracy.
CF ≦ 2 600V//600A
1-3 Electrical Specifications
Accuracy is ± (% reading + number of
digits) at 23°C ±5°C < 80%RH.
Temperature coefficient :
Add 0.2 x (Specified accuracy) / °C, < 18°C,
> 28°C .
Voltage

12
Resistance & Continuity
Function Range Accuracy
Ω ;400.0Ω±(1% + 3 digits)
Overload protection : 600 Vrms
Max. open circuit voltage : 3V
Continuity check :
Internal sounder activates if the resistance
of the circuit under test is less than 30Ω
approximately.
AC Current
* 1 AC Conversion Type and additional
accuracy is same as AC Voltage.
Overload protection: 600 Arms
Position Error: ±1% of reading.
Frequency : Hz
Range Accuracy
20~400Hz ±(0.1% + 2 digits)
Overload protection : AC/DC 600 Arms
Sensitivity : 3 Arms for ACA (A)
(>400Hz Unspecified)
Peak Hold : ± (3% + 15digits)
*>600Vpeak Unspecified.
*>600Apeak Unspecified.
The range is automatically switched to the
low resolution range at Peak Hold or Min
Max Hold.
Function Range Accuracy
A
(50~60Hz)
0~60.0A ±(1.9% + 7 digits)*1
60.1~400.0A
±(1.9% + 5 digits)
401~600A
A
(61~400Hz)
0~400.0A
±(2.5% + 7 diigts) *1
401~600A

13
Limited Warranty
This instrument is warranted to the original
purchaser against defects in material and
workmanship for 3 year from the date of
purchase. During this warranty period, RS
Components will, at its option, replace or
repair the defective unit, subject to verifica-
tion of the defect or malfunction. This
warranty does not cover fuses, disposable
batteries, or damage from abuse, neglect,
accident, unauthorized repair, alteration,
contamination or abnormal conditions of
operation or handling.
Any implied warranties arising from the sale
of this product, including but not limited to
implied warranties of merchantability and
fitness for a particular purpose, are limited to
the above. The manufacturer shall not be
liable for loss of use of the instrument or
other incidental or consequential damages,
expenses, or economic loss, or for any claim
or claims for such damage, expense or
economic loss.
Some states or countries laws vary, so the
above limitations or exclusions may not
apply to you. For full terms and conditions,
refer to the current RS Catalogue.

14
