Ruijie Reyee RG-NIS Series User manual

Ruijie Reyee RG-NBS, NIS Series
Switches ReyeeOS 2.239
Web-based Configuration Guide
Document Version: V1.0
Date: September 26, 2023
Copyright © 2023 Ruijie Networks

Copyright
Copyright © 2023 Ruijie Networks
All rights are reserved in this document and this statement.
Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document
or any portion of this document, in any form or by anymeans, without the prior written consent of Ruijie Networks
is prohibited.
Trademarks including , are owned by Ruijie Networks.
All other trademarks or registered trademarks mentioned in this document are owned by their respectiveowners.
Disclaimer
The products, services, or features you purchase are subject to commercial contracts and terms. Some or all of
the products, services or features described in this document may not be within the scope of your purchase or
use. Unless otherwise agreed in the contract, Ruijie Networks does not make any express or implied statement
or guarantee for the content of this document.
Due to product version upgrades or other reasons, the content of this document will be updated from time to
time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.
This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder
any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

I
Preface
Intended Audience
This document is intended for:
Network engineers
Technical support and servicing engineers
Network administrators
Technical Support
Official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee
Technical Support Website: https://ruijienetworks.com/support
Case Portal: https://caseportal.ruijienetworks.com
Community: https://community.ruijienetworks.com
Technical Support Email: [email protected]
Conventions
1. GUI Symbols
Interface
symbol
Description
Example
Boldface
1. Button names
2. Window names, tab name, field name and
menu items
3. Link
1. Click OK.
2. Select Config Wizard.
3. Click the Download File link.
>
Multi-level menus items
Select System >Time.
2. Signs
The signs used in this document are described as follows:
Warning
An alert that calls attention to important rules and information that if not understood or followed can result in
data loss or equipment damage.
Caution
An alert that calls attention to essential information that if not understood or followed can result in function
failure or performance degradation.
Note
An alert that contains additional or supplementary information that if not understood or followed will not lead to
serious consequences.

II
Specification
An alert that contains a description of product or version support.
3. Note
The manual offers configuration information (including model, description, port type, software interface) for
indicative purpose only. In case of any discrepancy or inconsistency between the manual and the actual version,
the actual version prevails.

Web-based Configuration Guide Login
1
1 Login
1.1 Configuration Environment Requirements
1.1.1 PC
Google Chrome, Internet Explorer 9.0, 10.0, and 11.0, and some Chromium/Internet Explorer kernel-based
browsers (such as 360 Extreme Explorer) are supported. Exceptions such as garble characters or format
error may occur if an unsupported browser is used.
1024 x 768 or a higher resolution is recommended. If other resolutions are used, the page fonts and formats
may not be aligned, the GUI is less artistic, or other exceptions may occur.
1.2 Logging in to the Web Page
1.2.1 Connecting to the Device
Use a network cable to connect the switch port to the network port of the PC, and configure an IP address for
the PC that is on the same network segment as the default IP of the device to ensure that the PC can ping
through the switch. For example, set the IP address of the PC to 10.44.77.100.
Table 1-1 Default settings
Feature
Default Value
Device IPAddress
10.44.77.200
Password
A username is not required when you log in for the
first time. The default password is admin.
1.2.2 Logging in to the Web Page
(1) Enter the IP address (10.44.77.254 by default) of the device in the address bar of the browser to open the
login page.
Note
If the static IP address of the device is changed, or the device dynamically obtains a new IP address, the new
IP address can be used to access the web management system of the device as long as the PC and the
device are on the same LAN, and their IP addresses are in the same network segment.

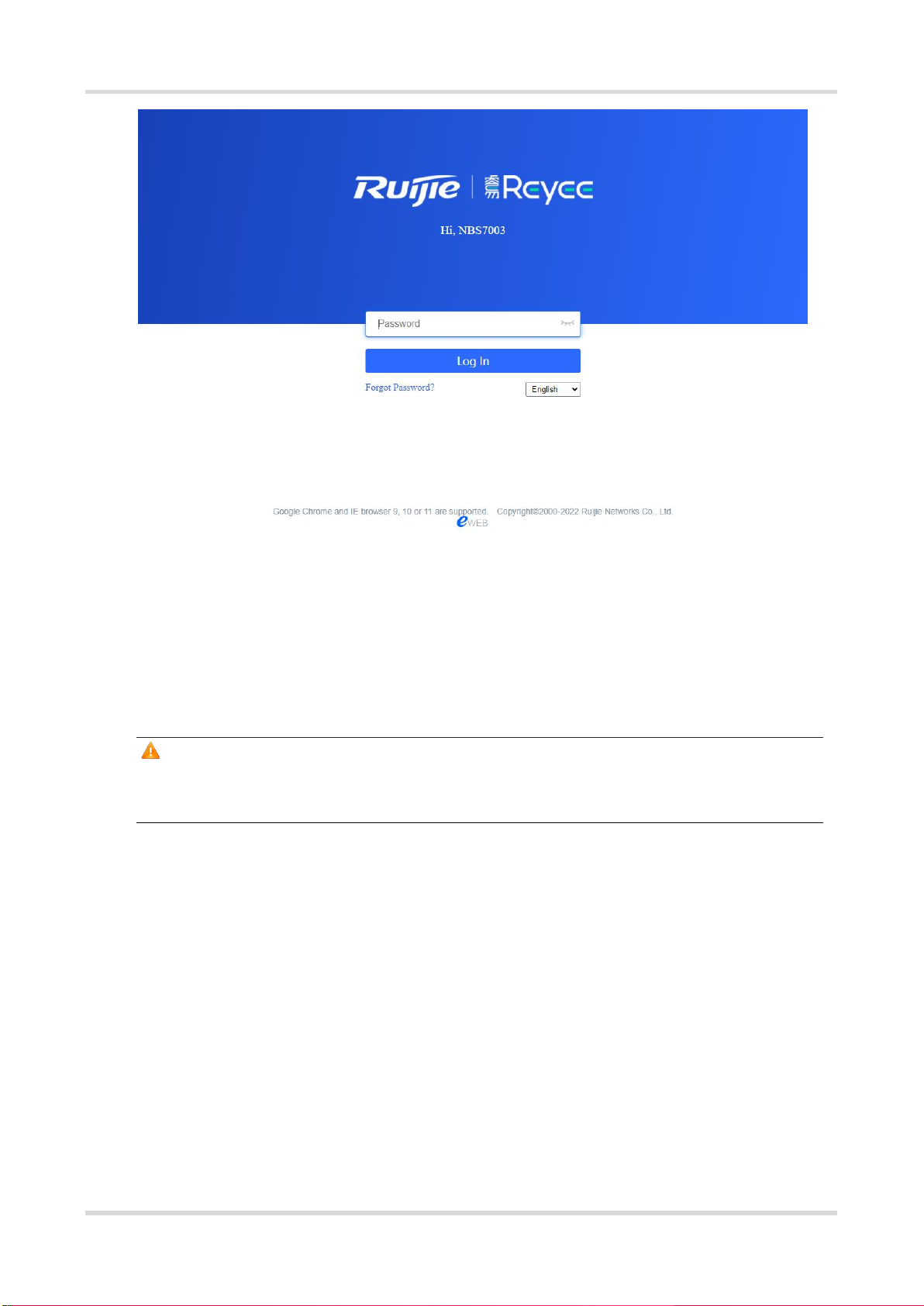

(2) Enter the password and click Log In to open the homepage of the web management system.

Web-based Configuration Guide Login
2
You can use the default password admin to log in to the device for the first time. For security purposes, you are
advised to change the default password as soon as possible after logging in, and to regularly update your
password thereafter.
If you forget the Device IP address or password, hold down the Reset button on the device panel for more than
5s when the device is connected to the power supply to restore factory settings. After restoration, you can use
the default IP address and password to log in.
Caution
Restoring factory settings will delete all configurations of the device. Therefore, exercise caution when
performing this operation.

Web-based Configuration Guide Login
3
1.2.3 Frequently-Used Controls on the Web Page
Table 1-2 Frequently-Used Controls on the Web Page
Control
Description
Local Device: Allows you to configure all functions of the
local device.
Network: Allows you to configure common functions of all
wired and wireless Reyee products in batches in an ad hoc
network.
The navigation bar is arranged horizontally on the top when
the device acts as a slave device, and vertically on the left
when the device acts as a master device.
Click it to change the language.
Click it to log in to the MACC for remote O&M through the
URL or by scanning the QR code.
Click it to access the network setup wizard.
Click it to log out of the web management system.
Click Add or Batch Add to add one or more table entries in
the dialog box that appears.After adding the table entries, you
can view the added table entries on this page.

Web-based Configuration Guide Login
4
Click it to delete the selected table entries in batches.
Quickly locate the table entry you want to find through the
drop-down list or by entering a keyword.
Click them to edit, delete, or bind a table entry.
If the toggle switch is displayed in gray and the button is on
the left, the related function is disabled. If the toggle switch is
displayed in blue and the button is on the right, the related
function is enabled.
Update data on the current page.
Set the number of table entries displayed on a page. Click a
page number or specify the page number to go to the
corresponding page.
1.3 Quick Setup
1.3.1 Configuration Preparations
Connect the device to the power supply, and connect the device port to an uplink device with a network cable.
1.3.2 Procedure
1. Adding Device to Network
By default, users can perform batch settings and centralized management of all devices in the network.
Therefore, before starting configuration, you need to check and confirm the number of online devices and
network status in the network.
Note
Under normal circumstances, when multiple new devices are powered on and connected, they will be
automatically interconnected into a network, and the user only needs to confirm that the number of devices is
correct.
If there are other devices in the network that are not added to the current network, you can click Add to My
Network and enter the management password of the added device to manually add the corresponding device
to the network where the device is located, and then start the network-wide configuration.

Web-based Configuration Guide Login
5
2. Creating a Web Project
Click Start Setup to set the networking modes and management password of the device.
(1) Network Name: Identify the network where the device is located.
(2) Internet: Select the networking mode.
○DHCP: An IP address is assigned to the device by the uplink DHCP server. By default, the device detects
whether the IP address can be dynamically obtained. If the IP address is obtained successfully, there is
no need to manually set the IP address.
○Static IP: The user manually enter a specified IP address, subnet mask, gateway IP address, and DNS
address.
(3) Management Password: Set the password for logging in to the management page.
(4) Country/Region: Select the country or region where the device is located.
(5) Time Zone: Set the system time. The network time server is enabled to provide time services by default.
Please select your actual time zone.

Web-based Configuration Guide Login
6

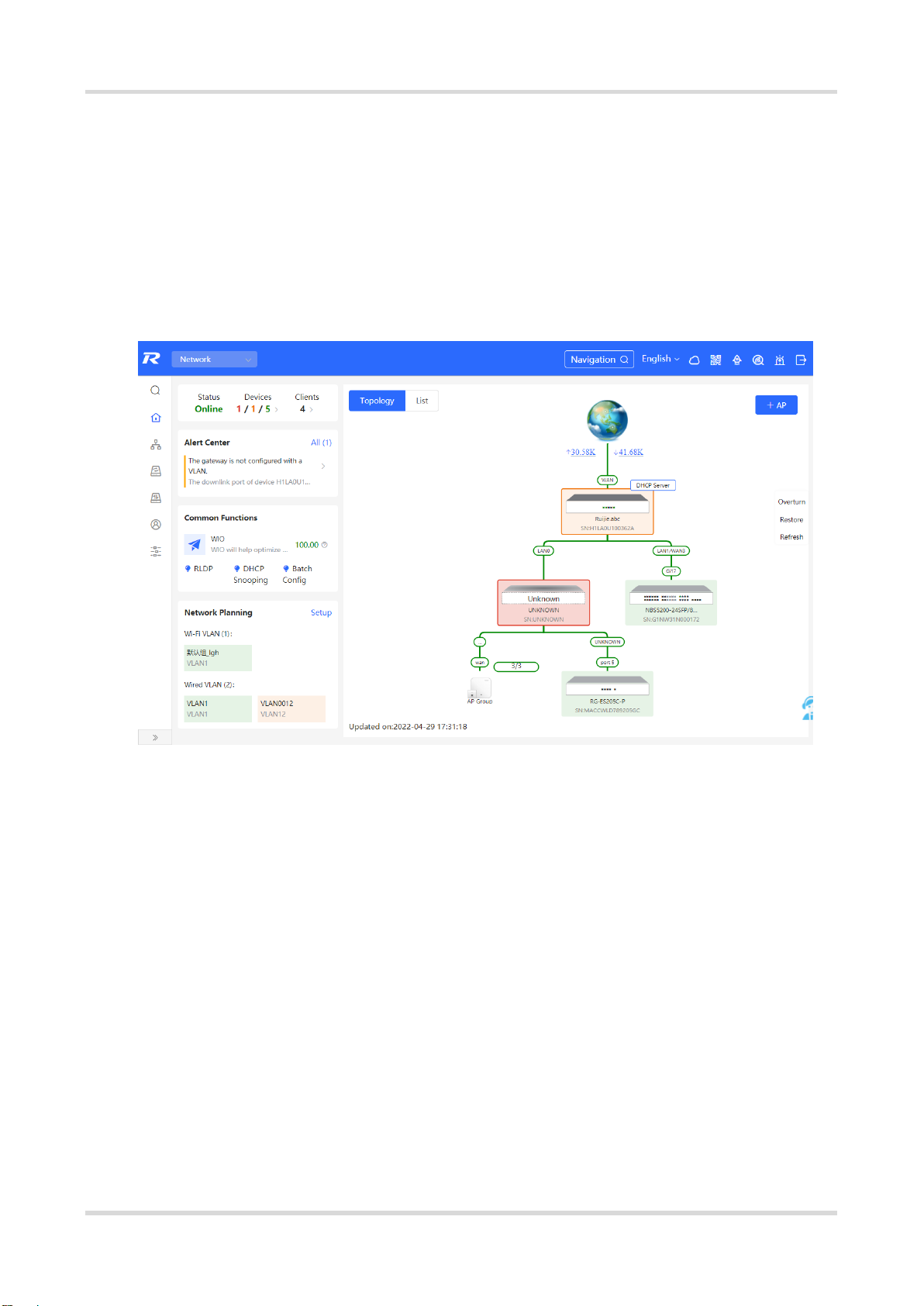

Click Create Network & Connect to deliver related configuration for initialization and detect the network. After
completing the quick setup, the new device is connected to the Internet, and you can continue to bind the device
to the cloud account for remote management. For specific operations, please refer to the instructions on the page
to log in to the Noc Cloud platform for configuration.
Note
●Click Exit in the upper right corner and follow prompts to perform operations. Then, the device can skip
quick setup to go to the Eweb management system. To configure again after exiting or completing the quick
configuration, click the sign in the navigation bar at the top of the web page.
●After changing the management password, you need to re-visit the device management address and use
the new password to log in to the device.
1.3.3 Procedure for Configuring Hot Standby (VCS)
The VCS (Virtual Chassis System) is a feature that provides virtualization andclustering capabilities forswitches.
VCS technology allows multiple physical switches to form a logically unified device, creating a virtual switch
stack. This stack is treated as a single entity with shared management and data planes.
Hot standby can improve data forwarding reliability when an NBS switch is used as the core switch. By stacking
two switches and automatically switching to the standby switch when theactive switch fails, hot standby ensures
uninterrupted data forwarding in the event of a single point of failure.
Caution
Hot standby is supported only on NBS7006 and NBS7003 series switches.
Only two switches are supported to form a hot standby group.
When multiple switches are configured, select 10GE interfaces as hot standby interfaces to connect the
member switches.
Stacking: refers to physically connecting multiple switches with stack cables, allowing them to operate as a
single logical unit for data forwarding.

Web-based Configuration Guide Login
7
(1) Enter the default IP address 10.44.77.200 in the address bar of your browser to go to the web management
interface of the NBS switch. Click the Hot Standby tab (or click Configure in the red box below if the
switch is not yet configured).
(2) Click Start Setup.
(3) Connect both switches using a network cable on their 10GE interfaces. Then, choose Dual-Device Config,
and click Next.

Web-based Configuration Guide Login
8
(4) Select the active switch and click Next.
(5) Select the standby switch.
(6) Select the hot standby interfaces. You are advised to select two adjacent interfaces on a switch, and can
select up to four interfaces on each device for hot standby. These hot standby interfaces must be 10GE
interfaces. By default, the active switch has a priority of 200, while the standby switch has a priority of 100.
If the priority is changed, a switch with a higher priority will become the active switch.

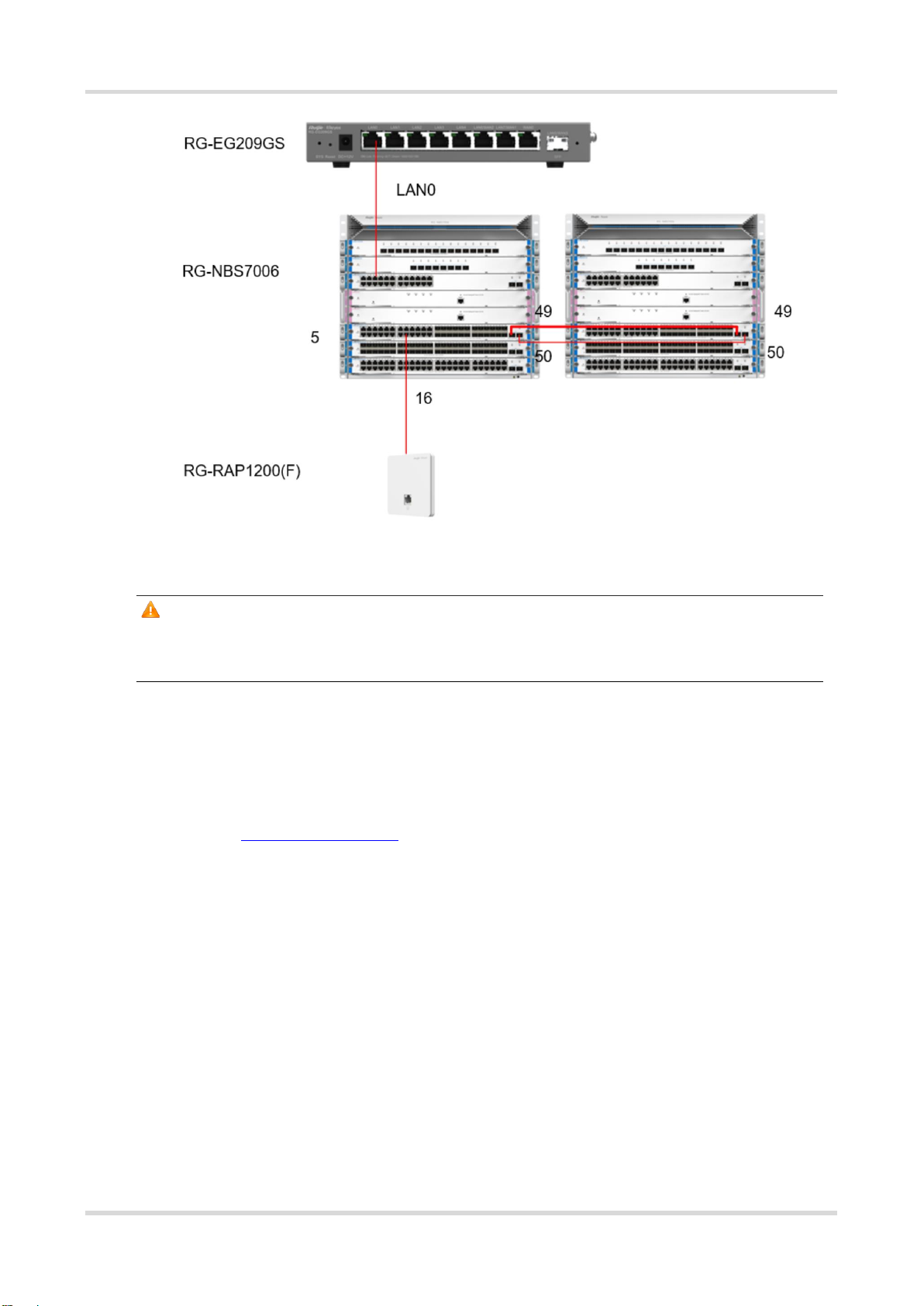

(7) Then, click Next. Use a 10GE cable to connect the hot standby interfaces that you have selected. (The
following figure shows an example of connecting Interface 49 of Device 1 to Interface 49 of Device 2.)

Web-based Configuration Guide Login
9
(8) After the cables are connected, proceed as prompted, and wait for the device to reboot successfully.
Caution
To delete the hot standby configuration, ensure that the network cable connecting the hot standby interfaces is
disconnected. Failure to do so may result in a loop that can cause network disconnection.
1.4 Work Mode
The device supports two work modes: Standalone and Self-Organizing Network. It works in Self-Organizing
Network mode by default. The system presents different menu items based on the work mode. To modify the
work mode, see Switching the Work Mode.
Self-Organizing Network: After the self-organizing network discovery function is enabled, the device can be
discovered in the network and discover other devices in the network. Devices network with each other based on
the device status and synchronize global configuration. You can log in to the Web management page of the
device to check management information about all devices in the network. After self-organizing network
discovery is enabled, users can maintain and manage the current network more efficiently. You are advised to
keep this function enabled.

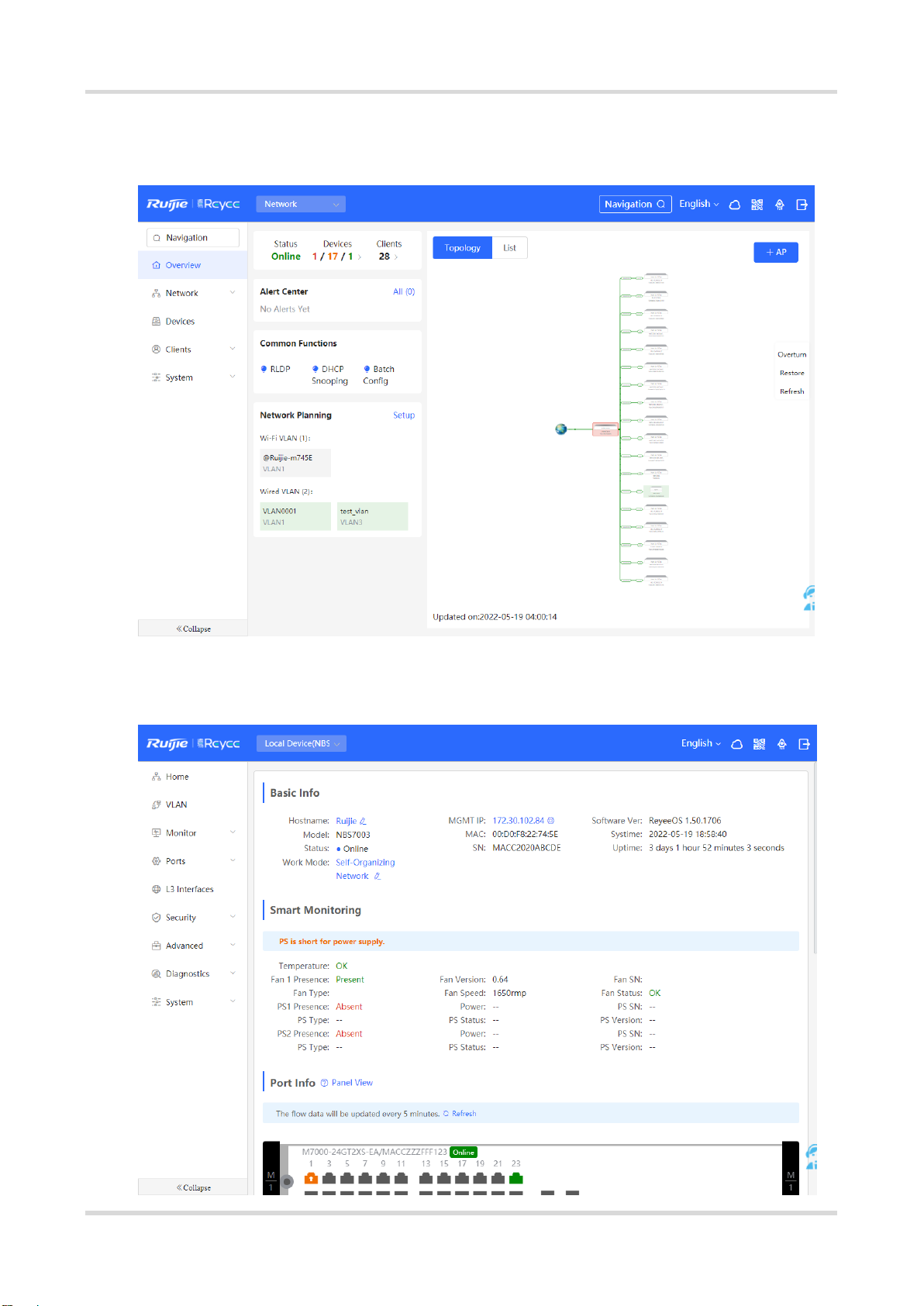

When the device is in self-organizing network mode, the Web page has two configuration modes: the network
mode and the local device mode. For more information, see Switching the Management Mode.
Standalone mode: If the self-organizing network discovery function is disabled, the device will not be
discovered in the network. After logging in to the Web page, you can configure and manage only the currently
logged in device. If only one device is configured or global configuration does not need to be synchronized to
the device, you can disable the self-organizing network discovery function.

Web-based Configuration Guide Login
10

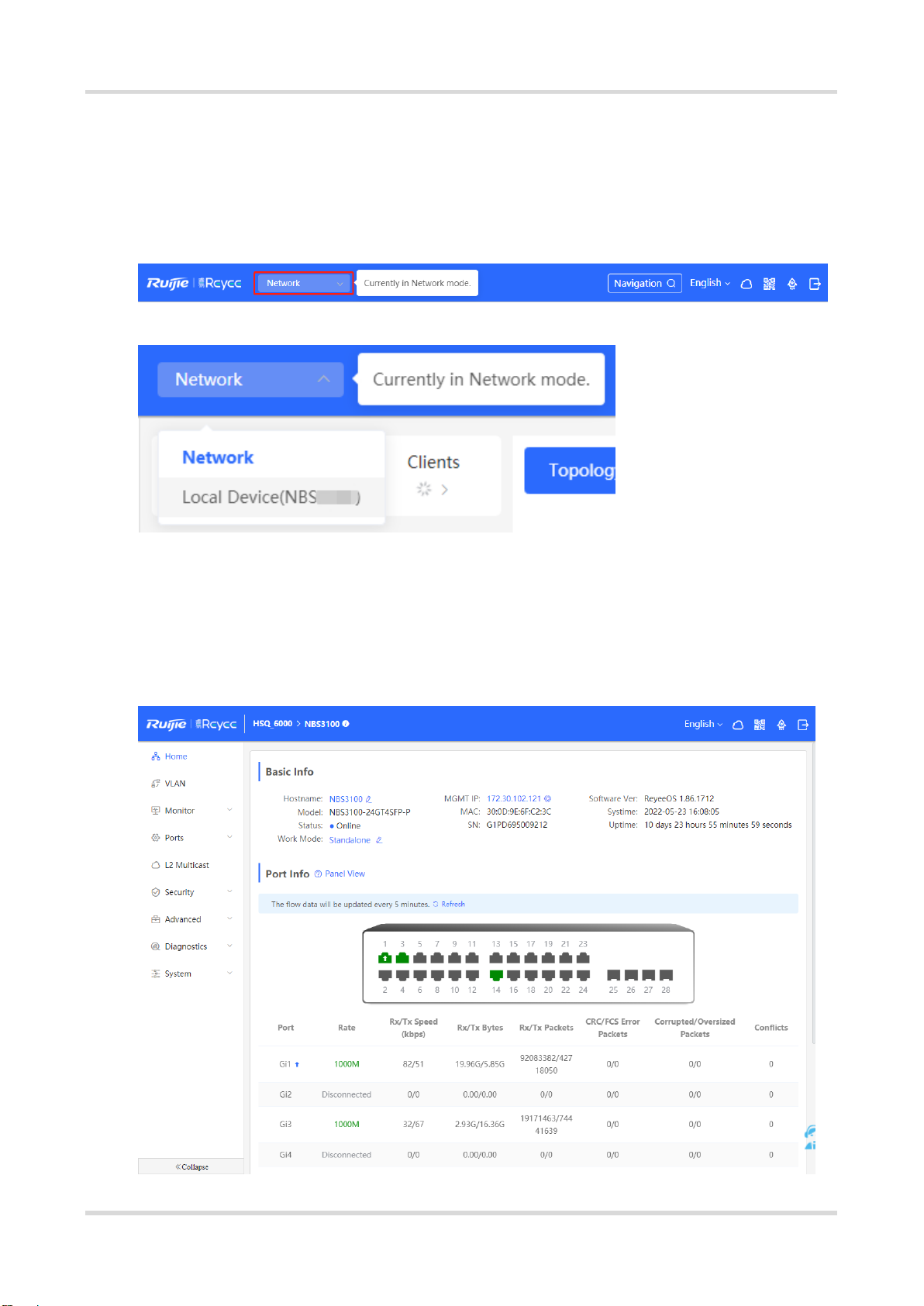

1.5 Switching the Management Mode
In standalone mode, you can configure and manage only the current logged in device without self-organizing
network function. As shown in
In self-organizing network mode, the Web page has the network mode and the local device mode. Click the
Currently in Network mode in the navigation bar and select the desired mode from the drop-down list box.
The network mode: Display the management information of all devices in the network and configure all
devices in the current network from the network-wide perspective. As shown in;
The local device mode: Only configure the device that you log in to. As shown in.
Figure 1-1 The Web Page in Standalone Mode

Web-based Configuration Guide Login
11
Figure 1-2 The Web Page in Network Mode in Self-Organizing Mode
Figure 1-3 The Web Page in Local Device Mode in Self-Organizing Mode

Web-based Configuration Guide Login
12

Web-based Configuration Guide Network management
13
2 Network management
2.1 Overviewing Network Information
In network mode, the Overview page displays thecurrent network topology, uplink anddownlink real-time traffic,
network connection status, and number of users and provides short-cut entries for configuring the network and
devices. Users can monitor and manage the network status of the entire network on the page.
2.2 Viewing Networking Information
Choose Network > Overview.
The networking topology contains information about online devices, connected port numbers, device SNs, and
uplink and downlink real-time traffic.

Web-based Configuration Guide Network management
14
Click a traffic data item to view the real-time total traffic information.
Click a device in the topology to view the running status and configuration of the device and configure device
functions. By default, the product model is used as the device name. Click to modify the device name
so that the description can distinguish devices from one another.

Web-based Configuration Guide Network management
15
The update time is displayed in the lower-left corner of the topology view. Click Refresh to update the
topology to the latest state. It takes some time to update the topology data. Please wait patiently.

Web-based Configuration Guide Network management
16
2.3 Adding Networking Devices
2.3.1 Wired Connection
(1) When a new device connects to an existing device on the network, the system displays the message “A
device not in SON is discovered.” and the number of such devices in orange under “Devices” on the upper-
left corner of the [Overview] page. You can click Manage to add this device to the current network.
(2) After the system switches to the Network List page, click Other Network. In the Other Network section,
select the device to be added to the network and click Add to My Network.
