Samson FOUNDATION 3730-5 Service manual

Series 3730
Electropneumatic Positioner
Type 3730-5
with FOUNDATION™ fieldbus communication
FF Device Rev 1
Mounting and
Operating Instructions
EB 8384-5 EN (1300-1614)
Firmware version K 1.25/ R 1.46
Edition August 2008
Fig. 1 · Type 3730-5

2EB 8384-5 EN
DANGER!
DANGER indicates a hazardous situation
which, if not avoided, will result in death or
serious injury.
WARNING!
WARNING indicates a hazardous situation
which, if not avoided, could result in death or
serious injury.
NOTICE
NOTICE indicates a property damage
message.
Note: Supplementary explanations,
information and tips
Definitions of the signal words used in these instructions

Contents Page
1 Important safety instructions . . . . . . . . . . . . . . . . . . . . . . 9
2 Article code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

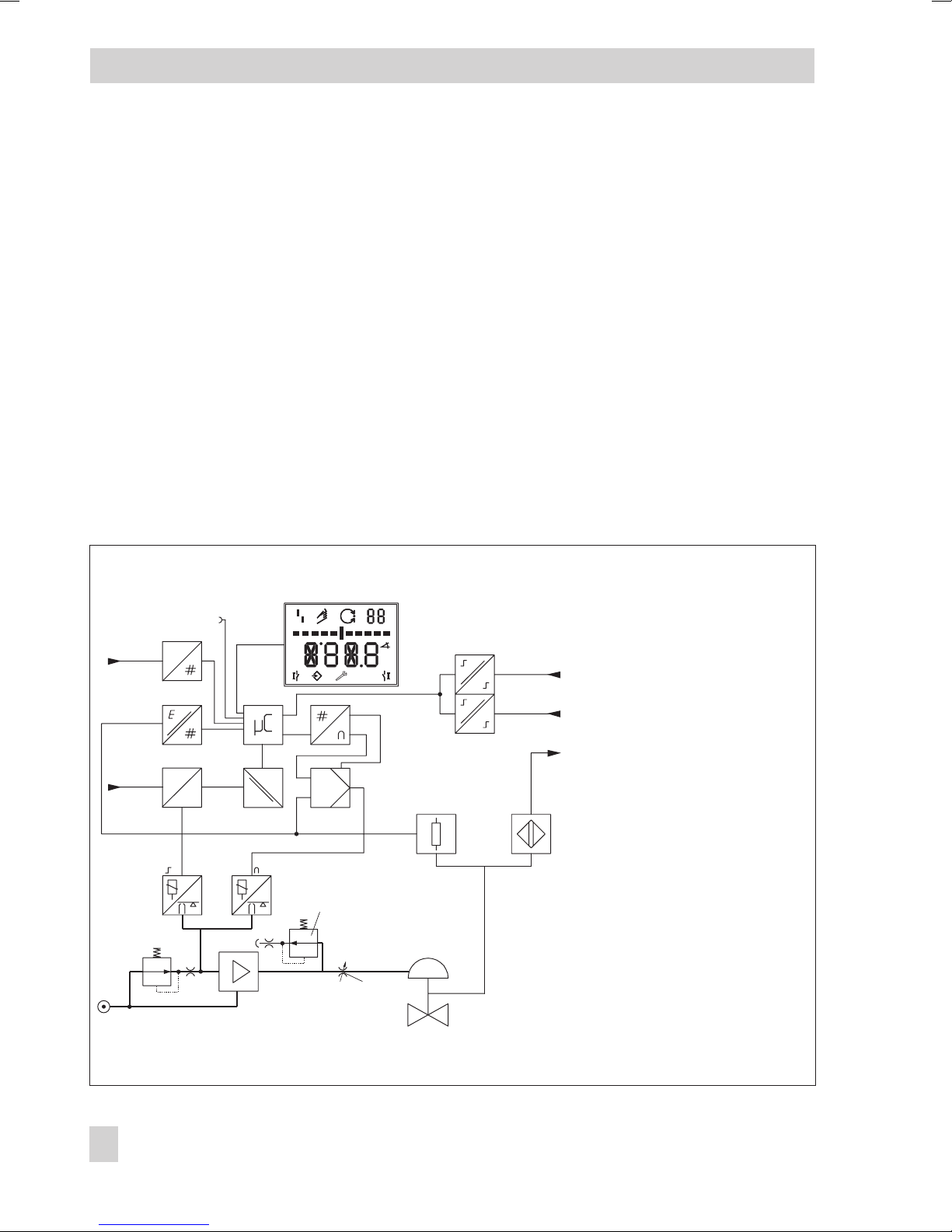

3 Design and principle of operation . . . . . . . . . . . . . . . . . . . 12
3.1 Additional equipment. . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2 Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.3 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4 Attachment to the control valve – Mounting parts and accessories . . . 18
4.1 Direct attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.1.1 Type 3277-5 Actuator. . . . . . . . . . . . . . . . . . . . . . . . . 20
4.1.2 Type 3277 Actuator. . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.2 Attachment according to IEC 60534-6 . . . . . . . . . . . . . . . . . 24
4.3 Attachment to Type 3510 Micro-flow Valve. . . . . . . . . . . . . . . 26
4.4 Attachment to rotary actuators . . . . . . . . . . . . . . . . . . . . . 28
4.4.1 Heavy-duty version . . . . . . . . . . . . . . . . . . . . . . . . . . 30
4.5 Reversing amplifier for double-acting actuators . . . . . . . . . . . . . 32
4.5.1 Reversing amplifier (1079-1118 or 1079-1119) . . . . . . . . . . . . 32
4.6 Attaching an external position sensor . . . . . . . . . . . . . . . . . 34
4.6.1 Mounting the position sensor with direct attachment. . . . . . . . . . . 34
4.6.2 Mounting the position sensor with attachment according to IEC 60534-6 36
4.6.3 Mounting the position sensor to Type 3510 Micro-flow Valve . . . . . . 37
4.6.4 Mounting the position sensor to rotary actuators . . . . . . . . . . . . 38
4.7 Attaching positioners with stainless steel housings. . . . . . . . . . . . 39
4.8 Air purging function for single-acting actuators. . . . . . . . . . . . . 39
4.9 Required mounting parts and accessories. . . . . . . . . . . . . . . . 40
5 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
5.1 Pneumatic connections . . . . . . . . . . . . . . . . . . . . . . . . 44
5.1.1 Signal pressure gauges . . . . . . . . . . . . . . . . . . . . . . . . 44
5.1.2 Supply pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
5.1.3 Signal pressure (output) . . . . . . . . . . . . . . . . . . . . . . . . 45
5.2 Electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . 45
5.2.1 Establishing communication . . . . . . . . . . . . . . . . . . . . . . 48
6 Operator controls and readings . . . . . . . . . . . . . . . . . . . . 50
7 Start-up – Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 52
7.1 Defining the valve closed position . . . . . . . . . . . . . . . . . . . 52
7.2 Setting the volume restriction Q . . . . . . . . . . . . . . . . . . . . 53
7.3 Adapting the display . . . . . . . . . . . . . . . . . . . . . . . . . 53
EB 8384-5 EN 3
Contents

7.4 Limiting the signal pressure . . . . . . . . . . . . . . . . . . . . . . 54
7.5 Checking the operating range of the positioner . . . . . . . . . . . . . 54
7.6 Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
7.6.1 MAX – Initialization based on maximum range . . . . . . . . . . . . 57
7.6.2 NOM – Initialization based on nominal range . . . . . . . . . . . . . 58
7.6.3 MAN – Initialization based on a manually selected range . . . . . . . 59
7.6.4 SUb substitute calibration . . . . . . . . . . . . . . . . . . . . . . . 60
7.7 Zero calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
7.8 Reset to default values . . . . . . . . . . . . . . . . . . . . . . . . . 64
7.9 Start-up via local interface (SSP) . . . . . . . . . . . . . . . . . . . . 64
8 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
8.1 Enabling and selecting parameters . . . . . . . . . . . . . . . . . . 65
8.2 Operating modes . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
8.2.1 Automatic and manual modes. . . . . . . . . . . . . . . . . . . . . 65
8.2.2 SAFE – Fail-safe position . . . . . . . . . . . . . . . . . . . . . . . 66
8.3 Malfunction/maintenance alarm . . . . . . . . . . . . . . . . . . . . 67
8.3.1 Confirming error messages . . . . . . . . . . . . . . . . . . . . . . 68
9 Status and diagnostic alarms . . . . . . . . . . . . . . . . . . . . . 68
9.1 Standard EXPERT diagnostics . . . . . . . . . . . . . . . . . . . . . 68
9.2 Extended EXPERT+diagnostics . . . . . . . . . . . . . . . . . . . . . 69
10 Adjusting the limit switch . . . . . . . . . . . . . . . . . . . . . . . 70
11 Retrofitting an inductive limit switch . . . . . . . . . . . . . . . . . . 72
12 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
13 Servicing explosion-protected devices . . . . . . . . . . . . . . . . . 73
14 Serial interface (firmware update). . . . . . . . . . . . . . . . . . . 73
15 Fieldbus specification . . . . . . . . . . . . . . . . . . . . . . . . . 75
15.1 Device description (DD) . . . . . . . . . . . . . . . . . . . . . . . . 75
15.2 FOUNDATION™ fieldbus block model . . . . . . . . . . . . . . . 75
15.3 Resetting the device . . . . . . . . . . . . . . . . . . . . . . . . . . 76
15.4 Status classification and condensed state . . . . . . . . . . . . . . . . 76
16 Settings in TROVIS-VIEW software. . . . . . . . . . . . . . . . . . . 78
16.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
16.1.1 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . 78
16.2 Installing TROVIS-VIEW software . . . . . . . . . . . . . . . . . . . 79
16.3 Starting TROVIS-VIEW and performing basic settings . . . . . . . . . 80
16.4 Data transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
4EB 8384-5 EN
Contents

16.4.1 Offline operation (indirect data transmission) . . . . . . . . . . . . . 83
16.4.2 Online operation (direct data transmission) . . . . . . . . . . . . . . 83
16.4.3 Setting parameters . . . . . . . . . . . . . . . . . . . . . . . . . . 84
16.5 Initializing the positioner and performing an operational test . . . . . . 86
16.6 Status classification . . . . . . . . . . . . . . . . . . . . . . . . . . 88
17 Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
17.1 Code list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
17.2 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
17.2.1 Resource Block. . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
17.2.2 Analog Output Transducer Block . . . . . . . . . . . . . . . . . . . 109
17.2.3 Discrete Input Transducer Blocks . . . . . . . . . . . . . . . . . . . 110
17.2.4 Analog Output Function Block . . . . . . . . . . . . . . . . . . . . 112
17.2.5 Discrete Input Function Block DI1 . . . . . . . . . . . . . . . . . . . 114
17.2.6 Discrete Input Function Block DI2 . . . . . . . . . . . . . . . . . . . 115
17.2.7 PID Function Block . . . . . . . . . . . . . . . . . . . . . . . . . . 116
17.3 Other parameters . . . . . . . . . . . . . . . . . . . . . . . . . . 118
17.3.1 Stale Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
17.3.2 Link Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
17.3.3 LAS Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . 118
17.4 Parameter lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
18 Dimensions in mm. . . . . . . . . . . . . . . . . . . . . . . . . . 182
19 Valve characteristic selection. . . . . . . . . . . . . . . . . . . . . 184
Text certificates . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
EB 8384-5 EN 5
Contents

Modifications of positioner firmware in comparison to previous versions
Previous New
Communication K 1.11 K 1.21
Leakage sensor at binary input 2 The connection of a leakage sensor at binary input 2 (by selecting
LEAKAGE SENSOR in CONFIG_BINARY_INPUT2 parameter of
the AO Transducer Block) causes:
4Information specified in XD_ERROR_EXT parameter in the AO
Transducer Block and the generation of a diagnostic alarm
which is logged
4The state of the binary input is reported in BINARY_INPUT2
parameter in the Transducer Block
Diagnostic alarm
“Device not initialized“ The diagnostic alarm “Device not initialized” is generated when the positioner is not initialized and the condensed status is set to
“Maintenance alarm”.
Display of the working range
FINAL_VALUE_RANGE The correction of the working range FINAL_VALUE_RANGE over on-site operation of the positioner (Code 8/9) is also transferred
over fieldbus in firmware version K 1.21 and higher.
Inactivated internal solenoid valve A masking allows to be set whether an inactivated internal sole-
noid valve generates an AO block error and a resulting block
alarm.
SOLENOID_SELECT parameter The SOLENOID_SELECT parameter in firmware K 1.21 and
higher allows to be set whether a “Maintenance now“ block error
of the AO Transducer Block results in an output error in the AO
Block.
TOT_VALVE_TRAV_LIM parameter New range: 1000 … 990 000 000
K 1.22
Working range
FINAL_VALUE_RANGE The working range FINAL_VALUE_RANGE of the AO Transducer Block is compared on entering it with TRANSM_PIN_POS.
If the TRANSM_PIN_POS parameter is changed, the positioner
checks whether the setting and unit match the current working
range FINAL_VALUE_RANGE. If this is not the case, the
FINAL_VALUE_RANGE parameter is set to 0 to 100 %.
VALVE_TYPE parameter The parameter of the AO Transducer Block is set depending on
the selected PIN_POS. The last setting is kept when VALVE_TYPE
is set to OFF.
FINAL_VALUE parameter The manipulated variable is scaled with FINAL_VALUE_ RANGE
in firmware K 1.22 and higher, and not with XD_SCALE.
Display of O/S mode in
AO Transducer Block If the AO Transducer Block is set to O/S mode, this is indicated in the positioner display by MAN/AUTO.
6EB 8384-5 EN
Modifications of positioner firmware

Modifications of positioner firmware in comparison to previous versions
Previous New
K 1.23
Internal modifications
K 1.24
BUS_ADDRESS parameter The bus address has the default setting of 248.
Device type In the delivery state, the device is configured as a basic device.
K 1.25
Internal modifications
Control R 1.43 R 1.44
Internal modifications
R 1.45
Internal modifications
R 1.46
Internal modifications
EB 8384-5 EN 7
Modifications of positioner firmware

8EB 8384-5 EN

1 Important safety instructions
For your own safety, follow these instructions concerning the mounting, start-up and opera-
tion of the positioner:
4The positioner may only be mounted, started up or operated by trained and
experienced personnel familiar with the product.
According to these Mounting and Operating Instructions, trained personnel refers to
individuals who are able to judge the work they are assigned to and recognize
possible dangers due to their specialized training, their knowledge and experience as
well as their knowledge of the relevant standards.
4Explosion-protected versions of this positioner may only be operated by personnel
who have undergone special training or instructions or who are authorized to work
on explosion-protected devices in hazardous areas. Refer to section 13.
4Any hazards that could be caused by the process medium, the operating pressure,
the signal pressure or by moving parts of the control valve are to be prevented by
means of the appropriate measures.
4If inadmissible motions or forces are produced in the actuator as a result of the supply
pressure, the supply pressure must be restricted by means of a suitable supply
pressure reducing station.
Combustible dust atmospheres of zone 21 and zone 22
4For use in combustible dust atmospheres complying with the type of protection Ex tD (pro-
tection by enclosure for dust), observe sections 5.6.3.2 and 18.2 of EN 60079-14: 2008
for Practice A.
To avoid damage to any equipment, the following also applies:
4Do not operate the positioner with the back of the positioner/vent opening facing
upwards.
The vent opening must not be sealed when the positioner is installed on site.
EB 8384-5 EN 9
Important safety instructions

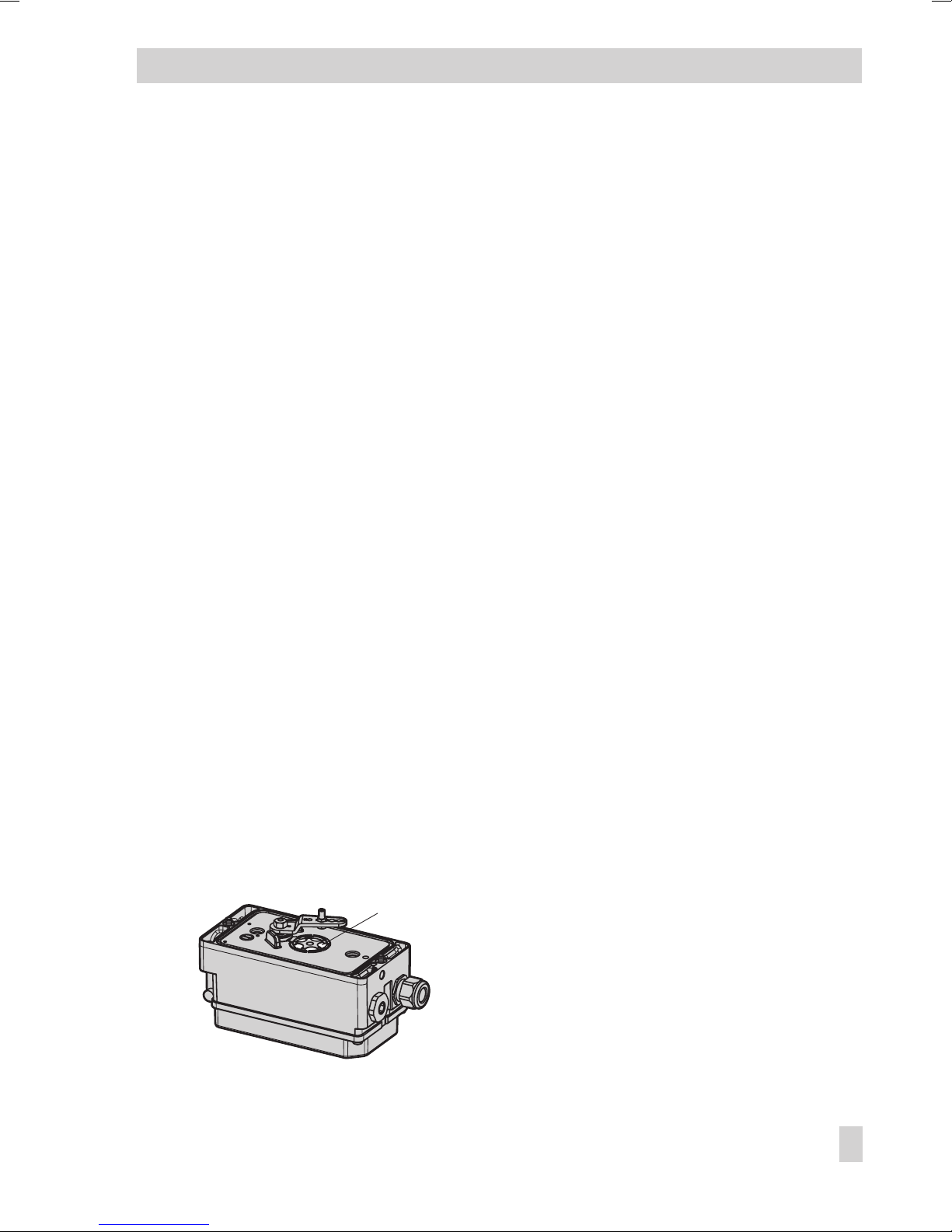

Vent opening

4Proper shipping and appropriate storage are assumed.
Note: The device with a CE marking fulfills the requirements of the Directives 94/9/EC
(ATEX) and 89/336/EEC (EMC).
The Declaration of Conformity is available on request.
10 EB 8384-5 EN
Important safety instructions

2 Article code
EB 8384-5 EN 11
Article code
Positioner Type 3730-5 xxx0x0xx0x00x0xx
With LCD and autotune, FOUNDATION™ fieldbus
Explosion protection
Without
II 2 G EEx ia IIC T6 and II 2 D IP 65 T 80 °C (ATEX)
CSA/FM intrinsically safe / non incendive
II 3 G EEx nA II T6, II 3 G EEx nL IIC T6 and
II3DIP65T80°Cacc. to ATEX
0
1
3
8
Additional equipment
Inductive
limit switch Without 1 x Type SJ2-SN 0
1
Solenoid valve Without
With, 24 V DC 0
4
External position sensor Without
With 00
10 0
Binary input Without
Floating contact 00
1
Diagnostics
EXPERT (standard)
EXPERT+(extended diagnositics)
1
2
Housing material
Aluminum (standard)
Stainless steel 1.4581 0
0
1
Special applications
None
Positioner compatible with paint
Vent connection with ¼-18 NPT thread 00 0 0
0
1
2
Special version
None
NEPSI Ex ia
NEPSI Ex nL/nA
IECEx
GOST Ex approval
1
8
1
1
0
0
0
0
0
0
0
1
1
1
0
9
0
2
4

3 Design and principle of
operation
The electropneumatic positioner is attached
to pneumatic control valves. It is used to as-
sign the valve stem position (controlled vari-
able x) to the control signal (reference vari-
able w). The input signal received from a
control system is compared to the travel or
rotational angle of the control valve, and a
pneumatic signal pressure (output variable
y) is produced.
The positioner consists of a travel sensor sys-
tem proportional to resistance, an analog
i/p converter with a downstream booster
and the electronics unit with microcontroller.
When a deviation occurs, the actuator is
pressurized or vented. If required, the
changes in the signal pressure can be
slowed down by a connectable Q restric-
tion. The signal pressure supplied to the ac-
tuator can be limited by software or on site
to 1.4, 2.4 or 3.7 bar.
A constant air stream to the atmosphere is
created by the flow regulator (9) with a
fixed set point. The air stream is used to
purge the inside of the case as well as to op-
timize the air capacity booster. The i/p
module (6) is supplied with a constant up-
stream pressure by the pressure regulator
(8) to make it independent of the supply air
pressure.
12 EB 8384-5 EN
Design and principle of operation
Fig. 2 · Functional diagram
w
x
Q
%
S
mm
GG
PD
Serial
Interface 16
15 BE2
BE1
11
2
4
13
20
17 18
19
24V DC
5
3
12
6
7
8
10
1
14
9
x
y
1 Control valve
2 Travel sensor
3 PD controller
4 A/D converter
5 Microcontroller
6 i/p converter
7 Air capacity booster
8 Pressure regulator
9 Flow regulator
10 Volume restriction
11* Inductive limit switch
12* Solenoid valve
13 IEC 61158-2
interface module
14 Binary input, passive
15* Binary input, active
16 Display
17* Solenoid valve control
18* Galvanic isolation
19 D/A converter
20 Communication interface
* Optional
FOUNDATION
fieldbus
IEC 61158-2

The positioner communicates and is pow-
ered using IEC 61158-2 transmission tech-
nology conforming to FOUNDATION™
fieldbus specification.
As a standard feature, the positioner comes
with a binary input for DC voltage signals to
signalize process information over the
FOUNDATION™fieldbus.
3.1 Additional equipment
Version with solenoid valve
If the operating voltage for the solenoid
valve (12) fails, the supply pressure for the
i/p module is vented to the atmosphere. The
positioner can no longer operate and the
control valve moves to the fail-safe position
determined by the actuator, independent of
the reference variable.
NOTICE
In manual mode (MAN), the manual set
point is also reset to 0 %. A different manual
set point must be entered again (Code 1).
Version with inductive limit switch
The rotary shaft of the positioner carries an
adjustable tag which actuates the installed
proximity switch.
Version with binary contact
All positioners are fitted with a binary input
for DC voltage signals over which process
information can be issued over the
FOUNDATION™ fieldbus network.
Another optional binary input is an active
input powered by the positioner to connect
a floating contact. Its switching condition
can also be issued over the FOUNDATION™
fieldbus network.
Version with external position sensor
In this version, only the sensor is mounted to
the control valve. The positioner is located
separately from the valve.
The connection of x and y signals to the
valve is established by cable and piping for
air (only without inductive limit switch).
EXPERT+extended valve diagnostics
See Table 5 on page 42 for order numbers.
EXPERT+upgrades the standard EXPERT di-
agnostics firmware incorporated in the
positioner. The upgraded version provides
extended functions to pinpoint valve param-
eters that have worsened, allowing the user
to plan predictive maintenance and service
work before malfunctions can affect the pro-
cess and may cause unscheduled plant shut-
downs.
The extended EXPERT+diagnostics can be
activated later at the positioner when
EXPERT+is not already activated on delivery
of the positioner. The required activation
code or an EXPERT+USB dongle can be
purchased to activate EXPERT+.
3.2 Communication
The positioner is completely controlled over
the digital signal transmission implemented
according to FOUNDATION™ fieldbus spec-
ification.
Data are transmitted as bit-synchronous
current modulation at a rate of 31.25 kbit/s
Design and principle of operation
EB 8384-5 EN 13

over twisted-pair cables conforming to
IEC 61158-2.
Note: In the case, complex functions are
started in the positioner, which require a
long calculation time or lead to a large
quantity of data being stored in the volatile
memory of the positioner, the alert “busy” is
issued over DD.
This alert is not a fault alarm and can sim-
ply be confirmed.
Configuration using TROVIS-VIEW software
The positioner can be configured using
TROVIS-VIEW Configuration and Operator
Interface software.
The positioner is equipped with an addi-
tional digital SERIAL INTERFACE to connect
the RS-232 or USB port of the computer to
the positioner over an adapter cable.
The TROVIS-VIEW software enables the user
to easily set parameters in the positioner
and view process parameters online.
Configuration using the NI-FBUS™
Configurator
The NI-FBUS™ Configurator from National
Instruments can also be used to configure
the positioner. For this purpose, an interface
card must be installed in a computer to con-
nect it to the FOUNDATION™ fieldbus.
The integrated function blocks are linked
using the NI-FBUS™ Configurator.
14 EB 8384-5 EN
Design and principle of operation

3.3 Technical data
EB 8384-5 EN 15
Design and principle of operation
Type 3730-5 Positioner with FOUNDATIONTM fieldbus communication
Rated travel,
adjustable
Direct attachment to Type 3277: 3.6 to 30 mm
Attachment acc. to IEC 60534-6: 3.6 to 200 mm
Attachment to rotary actuators (VDI/VDE 3845): 24° to 100°
Travel range,
adjustable Adjustable within the initialized travel/angle of rotation; travel can be restricted to 15at the maximum
Bus connection Fieldbus interface acc. to IEC 61158-2 bus-powered Physical Layer Class: 113 (without explosion protection) und 111 (with ex. protection)
Field device acc. to FM 3610 Entity, FISCO and FNICO
Communication
Fieldbus Data transmission as per FOUNDATION™ fieldbus specification,
Communication Profile Class: 31 PS, 32 L;
Interoperability tested according to Interoperability Test System (ITK) Revision 4.6
Local Over SAMSON SSP interface and serial interface adapter
Software requirements
(SSP) SAMSON TROVIS-VIEW with database module 3730-5
Permissible operating
voltage 9 to 32 V DC, power supply over bus line · The limits specified in the EC Type Examination Certificate additionally apply for explosion-protected devices
Max. operating current 15 mA
Add. current in case of fault 0 mA
Supply air
Supply pressure from 1.4 to 7 bar (20 to 105 psi),
Air quality acc. to ISO 8573-1 Edition 2001: Max. particle size and density: Class 4
Oil content: Class 3; Moisture and water: Class 3; Pressure dew point: At least 10 K
beneath the lowest ambient temperature to be expected
Signal pressure (output) 0 bar up to supply pressure,
limitable to 1.4/2.4/3.7 bar ±0.2 bar via software
Characteristic
Linear/equal percentage/reverse equal percentage · User-defined (over operating
software and communication) · Butterfly valve linear/equal percentage · Rotary plug
valve linear/equal percentage · Segmented ball valve linear/equal percentage
Deviation from terminal-based conformity ≤1 %
Hysteresis ≤0.3 %
Sensitivity ≤0.1 %
Direction of action Reversible
Air consumption Independent from supply pressure approx. 110 ln/h
Air output capacity
Actuator pressurized
Actuator vented At Δp = 6 bar: 8.5 mn
3/h, at Δp = 1.4 bar: 3.0 mn 3/h KVmax (20 °C) = 0.09
at Δp = 6 bar: 14.0 mn
3/h, at Δp = 1.4 bar: 4.5 mn 3/h KVmax (20 °C) = 0.15

16 EB 8384-5 EN
Design and principle of operation
Type 3730-5 Positioner with FOUNDATIONTM fieldbus communication
Permissible ambient
temperature
–45 to +80 °C
The limits specified in the EC Type Examination Certificate additionally apply for
explosion-protected devices
Influences Temperature: ≤0.15 %/10 K Supply air: None
Vibration: ≤0.25 % up to 2000 Hz and 4 g acc. to IEC 770
Electromagn. compatibility Complying with EN 61000-6-2, EN 61000-6-3 and NAMUR Recommendation NE 21
Explosion protection
FM approval:
CSA approval:
IECEx:
II 2 G EEx ia IIC T6 / II 2 D IP 65 T 80 °C
II 3 G EEx nA/nL II T6 / II 3 D IP 65 T 80 °C
Intrinsically safe; Class I, II, III, Div. 1, Groups A-G; Class I, Zone 0, AEx ia IIC T6;
Non incendive; Class I, Div. 2, Groups A, B, C, D; Class II, III, Div. 2, Groups F, G;
NEMA Type 4X, Type 3730-53
Ex ia IIC T6; Class I, Zone 0; Class II, Div. I, Groups E, F, G; Type 4 Enclosure
Ex nA IIC T6; Class I, Div. 2, Groups A, B, C, D; Class II, Groups E, F, G; Type 4
Enclosure; Type 3730-53
Ex ia IIC T6
Electrical connection One M20 x 1.5 cable gland, for 6 to 12 mm clamping range · Second additional
threaded M20 x 1.5 hole · Screw terminals for 0.2 to 2.5 mm² wire cross-section
Degree of protection IP 66 / NEMA 4X
Implementation in
safety-related systems in
compliance with
IEC 61508/SIL
Probability of failure on demand of safety functions PFD < 2.8 x 10–7 for a confidence
level of 95 %.
The safe failure fraction (SFF) according to Table A1 in IEC 61508-2 is greater or
equal to 0.99.
The valves are therefore suitable for implementation in safety-related systems with a
hardware fault tolerance of 1 or 2 up to and including SIL 4.
Binary contact 1
Input 0 to 30 V DC reverse polarity protection, static destruction limit 40 V / 5.8 mA,
current consumption 3.5 mA at 24 V, galvanically isolated
Signal Signal “1” at Ue > 5 V Signal “0” at Ue < 3 V
Materials
Housing Die-cast aluminum EN AC-AlSi12(Fe) (EN AC-44300) acc. to DIN EN 1706;
chromated and powder paint coated · Special version: stainless steel 1.4581
External parts Stainless steel 1.4571 and 1.4301
Cable gland Nickel-plated brass, M20x1.5
Weight Approx. 1 kg

EB 8384-5 EN 17
Design and principle of operation
Options for Type 3730-5
Binary contact 2 for floating contact
Switching input R < 100 Ω, contact loadability 100 mA, static destruction limit 20 V / 5.8 mA,
galvanically isolated
Solenoid valve Approval acc. to IEC 61508/SIL
Input
24 V DC, reverse polarity protection, static destruction limit 40 V
Current consumption I = U5.7V
3840
−
Ω(corresponding to 4.8 mA at 24 V/114 mW)
Signal "0" no pick-up ≤15 V
Signal "1" safe pick-up >19 V
Service life >5 x 106switching cycles
KVcoefficient 0.15
Implementation in
safety-related systems in
compliance with
IEC 61508/SIL
Same as positioner pneumatics
Inductive limit switch
Type SJ 2SN Proximity
Switch For connection to switching amplifier acc. to EN 60947-5-6
External position sensor
Travel Same as positioner
Cable 10 m with M12x1 connector, designed for continuous flexing, flame retardant acc. to
VDE 0472, resistant to oils, lubricants, coolants as well as other corrosive media
Perm. ambient temperature –60 to +105 °C
Vibration immunity Up to 10 g in the range between 10 and 2000 Hz
Degree of protection IP 67

4 Attachment to the control
valve – Mounting parts and
accessories
WARNING!
Attach the positioner, keeping the following
sequence:
1. Mount the positioner on the control valve
2. Connect the supply air
3. Connect the electrical power
4. Perform the start-up settings
The positioner is suitable for the following
types of attachment:
4Direct attachment to SAMSON
Type 3277 Actuator
4Attachment to actuators according to
IEC 60534-6 (NAMUR)
4Attachment to Type 3510 Micro-flow
Valve
4Attachment to rotary actuators
NOTICE
Attach the positioner to the control valve,
observing the following instructions to avoid
damaging the positioner.
–
Use only the mounting parts/accessories
listed in the Tables 1 to 5 (pages 40 to
42) to mount the positioner. Observe the
type of attachment!
–
Observe the assignment between lever
and pin position (see travel tables on
page 19)!
Lever and pin position
The positioner is adapted to the actuator
and to the rated travel by the lever on the
back of the positioner and the pin inserted
into the lever.
The travel tables on page 19 show the maxi-
mum adjustment range at the positioner. The
travel that can be implemented at the valve
is additionally restricted by the selected
fail-safe position and the required compres-
sion of the actuator springs.
The positioner is standard equipped with the
lever M(pin position 35).
Note: If the standard mounted lever M (pin
position 35) is replaced, the newly mounted
lever must be moved once all the way as far
as it will go in both directions to adapt it to
the internal measuring lever.
18 EB 8384-5 EN
Attachment to the control valve – Mounting parts and accessories

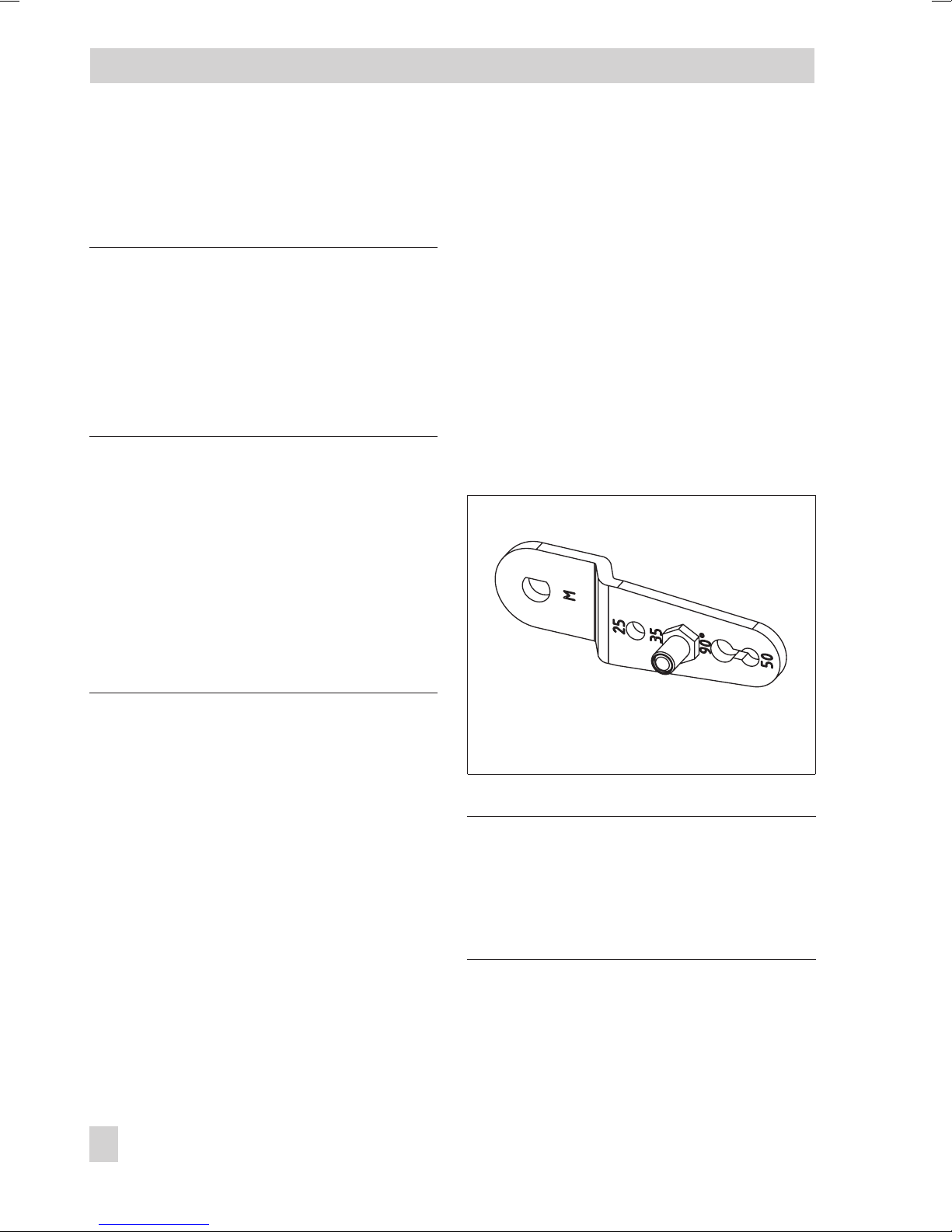

Fig. 3 · Lever M with pin position 35

EB 8384-5 EN 19
Attachment to the control valve – Mounting parts and accessories
Travel tables
Note: The lever Mis included in the scope of delivery.
Levers S,L,XL for attachment according to IEC 60534-6 (NAMUR) are available as acces-
sories (see Table 3 on page 41).
Direct attachment to Type 3277-5 and Type 3277 Actuators
Actuator size Rated travel Adjustment range at positioner Required
lever Assigned pin position
[cm²] [mm] Min. Travel Max.
120 7.5 5.0 to 25.0 M 25
120/240/350 15 7.0 to 35.0 M 35
355/700 30 10.0 to 50.0 M 50
Attachment according to IEC 60534-6 (NAMUR)
SAMSON valves/Type 3271 Actuator Other valves/actuators Required
lever Assigned pin position
Actuator size Rated travel
[cm²] [mm] min. Travel max.
60 and 120 with
Type 3510 Valve 7.5 3.6 to 18.0 S 17
120 7.5 5.0 to 25.0 M 25
120/240/350 15 7.0 to 35.0 M 35
700 7.5
700 15 and 30 10.0 to 50.0 M 50
1000/1400/2800 30 14.0 to 70.0 L 70
1000/1400/2800 60 20.0 to 100.0 L 100
1400/2800 120 40.0 to 200.0 XL 200
Attachment to rotary actuators according to VDI/VDE 3845
Rotary actuators Required
lever Assigned pin position
Min. Opening angle Max.
24 to 100° M 90°

4.1 Direct attachment
4.1.1 Type 3277-5 Actuator
Refer to Table 1 on page 40 for the required
mounting parts as well as the accessories
with their order numbers.
Note the travel table on page 19!
Actuator with 120 cm²
Depending on the type of positioner attach-
ment, the signal pressure is routed either left
or right of the yoke through a bore to the
actuator diaphragm. Depending on the
fail-safe action of the actuator "Actuator
stem extends" or "Actuator stem retracts"
(valve closes or opens if the supply air fails),
the switchover plate (9) must first be at-
tached to the actuator yoke. Align the
switchover plate with the corresponding
symbol for left or right attachment according
to the marking (view looking onto the
switchover plate).
1. Mount connecting plate (6) or pressure
gauge bracket (7) with pressure gauges
onto the positioner, making sure both
seal rings (6.1) are seated properly.
2. Remove vent plug (4) on the back of the
positioner and close the signal pressure
output "Output 38" on the connecting
plate (6) or on the pressure gauge
bracket (7) with the stopper (5) included
in the accessories.
3. Place follower clamp (3) on the actuator
stem, align and screw tight so that the
mounting screw is located in the groove
of the actuator stem.
4. Mount cover plate (10) with narrow side
of the cut-out opening (Fig. 4, left) point-
ing towards the signal pressure connec-
tion. Make sure that the bonded gasket
(14) points towards the actuator yoke.
5. 15 mm travel: Keep the follower pin (2)
at lever M(1) on the back of the
positioner in the pin position 35 (deliv-
ered state).
7.5 mm travel: Remove the follower pin
(2) from the pin position 35, reposition it
in the bore for pin position 25 and
screw tight.
6. Insert formed seal (15) in the groove of
the positioner casing.
7. Place positioner on the cover plate (10)
in such a manner that the follower pin
(2) rests on the top of the follower clamp
(3). Adjust the lever (1) correspondingly
and open the positioner cover to hold
the positioner shaft in position at the cap
or the switch (Fig. 20).
The lever (1) must rest on the follower
clamp with spring force.
Mount the positioner on the cover plate
(10) using the two fixing screws. During
the installation make sure that the seal
ring (10.1) is inserted in the bore of the
cover plate.
8. Mount cover (11) on the other side.
Make sure that the vent plug points
downwards when the control valve is in-
stalled to allow any condensed water
that collects to drain off.
20 EB 8384-5 EN
Attachment to the control valve – Mounting parts and accessories
