Samson 3730-0 Service manual

Mounting and
Operating Instructions
EB 8384-0 EN (1300-1609)
Edition August 2017
Series 3730
Type 3730-0 Electropneumatic Positioner

Denition of signal words
DANGER!
Hazardous situations which, if not
avoided, will result in death or seri-
ous injury
WARNING!
Hazardous situations which, if not
avoided, could result in death or se-
rious injury
NOTICE
Property damage message or mal-
function
Note:
Additional information
Tip:
Recommended action

2 EB 8384-0 EN

Contents
EB 8384-0 EN 3
1 Important safety instructions ..........................................................................5
2 Article code...................................................................................................6
3 Design and principle of operation ..................................................................7
3.1 Technical data ...............................................................................................8
4 Attachment to the control valve – Mounting parts and accessories .................12
4.1 Direct attachment.........................................................................................14
4.1.1 Type 3277-5 Actuator ..................................................................................14
4.1.2 Type 3277 Actuator .....................................................................................16
4.2 Attachment according to IEC 60534-6 (NAMUR) ...........................................18
4.3 Attachment according to VDI/VDE3847 .......................................................20
4.4 AttachmenttoType3510Micro-owValve ....................................................26
4.5 Reversingamplierfordouble-actingactuators ..............................................26
4.5.1 Reversingamplier(1079-1118or1079-1119) ............................................28
4.6 Attachingpositionerswithstainlesssteelhousings...........................................28
4.7 Airpurgingfunctionforsingle-actingactuators ..............................................30
5 Connections ................................................................................................35
5.1 Pneumaticconnections..................................................................................35
5.1.1 Signalpressuregauges ................................................................................35
5.1.2 Supplypressure ...........................................................................................35
5.2 Electricalconnections ...................................................................................36
6 Operation...................................................................................................39
6.1 Operatingcontrols .......................................................................................39
7 Start-up and settings ...................................................................................40
7.1 Defaultswitchpositions ................................................................................40
7.2 Fail-safeposition..........................................................................................40
7.3 VolumerestrictionQ.....................................................................................40
7.4 Selectingthetravel.......................................................................................41
7.5 Directionofaction........................................................................................41
7.6 Limitingthesignalpressure...........................................................................41
7.7 Referencevariable .......................................................................................41
7.8 Connectingthepositioner .............................................................................42

4 EB 8384-0 EN
Contents
7.9 Zeroadjustment...........................................................................................42
7.10 Gain...........................................................................................................42
7.11 Adaptingthetravel ......................................................................................42
7.12 Activatingthetight-closingfunction ...............................................................43
8 Maintenance ...............................................................................................43
9 Servicing explosion-protected devices ..........................................................43
10 Dimensions in mm.......................................................................................44

EB 8384-0 EN 5
Important safety instructions
1 Important safety instructions
Foryourownsafety,followtheseinstructionsconcerningthemounting,startupandopera-
tionofthepositioner:
−Thepositioneristobemounted,starteduporoperatedonlybytrainedandexperienced
personnelfamiliarwiththeproduct.Accordingtothesemountingandoperatinginstruc-
tions,trainedpersonnelisreferredtoasindividualswhoareabletojudgetheworkthey
areassignedtoandrecognizepossibledangersduetotheirspecializedtraining,their
knowledgeandexperienceaswellastheirknowledgeoftheapplicablestandards.
−Explosion-protectedversionsofthispositioneraretobeoperatedonlybypersonnelwho
hasundergonespecialtrainingorinstructionsorwhoisauthorizedtoworkonexplosion-
protecteddevicesinhazardousareas.Refertosection9.
−Anyhazardsthatcouldbecausedinthevalvebytheprocessmedium,thesignalpres-
sureorbymovingpartsaretobepreventedbytakingappropriateprecautions.
−Ifinadmissiblemotionsorforcesareproducedinthepneumaticactuatorasaresultof
thesupplypressurelevel,itmustberestrictedusingasuitablesupplypressurereducing
station.
To avoid damage to any equipment, the following also applies:
−Propershippingandstorageareassumed.
−Donotgroundelectricweldingequipmentneartothepositioner.
Note
Devices with a CE marking fulll the requirements of the Directives 2014/30/EU and
2011/65/EU and, depending on the version, 2014/34/EU as well.
The declarations of conformity are included at the end of these instructions.


6 EB 8384-0 EN
Article code
2 Article code
Positioner Type 3730-0 x 00000000x0 0 x0x x
Explosion protection
Without 0
ATEX: II2GExiaIICT6Gb;II2DExiaIIICT80°CDb 1
FM/CSA:ClassI,Zone0AExiaIIC;ClassI,II,III,Div.1,GroupsA-G;
ClassI,Div.2,GroupsA-D;ClassII,Div.2,GroupsF,G/
ExiaIICT6;ClassI,Zone0;ClassII,GroupsE-G;
ExnAIIT6;ClassI,Zone2;ClassII,Div.2,GroupsE-G
3
ATEX: II2GExtbIIICT80°CDbIP66 5
JIS: ExiaIICT6 7
ATEX: II3GExnAIIT6;II3GExicIICT6;II3DExtcIIICT80°CIP66 8
Housing material
Aluminum 0
Stainlesssteel1.4581 1
Special applications
Without 0
Compatiblewithpaint 1
Exhaustairwith¼NPTconnection,backofhousingsealed 2
Special version
Without 0 0
EAC Ex: 1ExiaIICT6/T5/T4GbX;ExtbIIICT80°CDbX 1 1 4
EAC Ex: 2ExnAIICT6/T5/T4GcX;2ExicIICT6/T5/T4GcX;
 2ExtcIIICT80°CDcX
8 2 0
AttachmentaccordingtoVDI/VDE3747withinterface 6
AttachmentaccordingtoVDI/VDE3747preparedforinterface 7

EB 8384-0 EN 7
Design and principle of operation
3 Design and principle of oper-
ation
Theelectropneumaticpositionerismounted
onpneumaticcontrolvalvesandisusedto
assignthevalveposition(controlledvari-
ablex)tothecontrolsignal(referencevari-
ablew).Thepositionercomparestheelectric
controlsignalofacontrolsystemtothetravel
ofthecontrolvalveandissuesasignalpres-
sure(outputvariabley)forthepneumatic
actuator.
Asupplypressurebetween1.4to6baris
required.Theelectricinputsignalisarefer-
encevariablebetween4to20mA.
Thepositionerisdesigneddependingonthe
correspondingaccessoriesfordirectattach-
menttoType3277Actuatorsorforattach-
menttoactuatorsaccordingtoIEC60534-6
(NAMUR).
Thepositionerconsistsofatravelsensorsys-
temproportionaltoresistance,ananalog
i/pconverterwithadownstreamaircapaci-
tyboosterandtheelectronicswithmicrocon-
troller.
Thepositionofthevalvestemistransmitted
asalineartravelmotionoverthepick-uple-
vertothetravelsensor(2)andsuppliedto
an analog PD controller (3). The PD control-
lercomparesthisactualvalvepositiontothe
2
3
6
7
8
10
1
9
4
w
x
Qy
x
1Controlvalve
2Travelsensor
3 PD controller
4DIPswitches
6i/pconverter
7Aircapacitybooster
8Pressureregulator
9 Flowregulator
10 Volumerestriction
Fig.1: Functional diagram

8 EB 8384-0 EN
Design and principle of operation
DCcontrolsignalcomingfromthecontrol
system,e.g.a4to20mAsignal.
Incaseofasystemdeviation,theactivation
ofthei/pconverter(6)ischangedsothat
theactuatorofthecontrolvalve(1)ispres-
surizedorventedaccordinglyoverthe
downstreambooster(7).Thiscausesthe
valveplugtomovetothepositiondeter-
minedbythereferencevariable.
Thesupplyairissuppliedtotheboosterand
thepressureregulator(8).Anintermediate
owregulator(9)withxedsettingsisused
topurgethepositionerand,atthesame
time,guaranteestrouble-freeoperationof
thebooster.Theoutputsignalpressuresup-
pliedbytheboostercanbelimitedbyacti-
vatingtheDIPswitchsettingS5 (4).
Thevolumerestriction(10)andtheswitchS6
areusedtooptimizethepositionerby
adaptingittotheactuatorsizeandchang-
ingthegainfactor.
Tight-closing function:
Afteractivatingthetight-closingfunction(re-
fertosection7.12),thepneumaticactuator
iscompletelylledwithairorventedassoon
asthereferencevariablefallsbeloworex-
ceedsthecorrespondingdeactivatingpoint
of4.5mAor19.5mA.
Inthecaseofthree-wayvalves,thefunction
allowstheplugmovetotheendposition
withfullactuatorthrust.
3.1 Technical data
Type 3730-0 Positioner (the technical data for explosion-protected devices may be restricted by the limits
specied in the test certicates)
Ratedtravel Adjustable: DirectattachmenttoType3277: 5.3to 30mm
 Attachmentacc.toIEC60534-6: 5.3to200mm
Travelrange Adjustablewithintheratedtravel,max.ratio1:5
Referencevariablew Signal range 4 to 20 mA
Split-rangeoperation4to12mAand12to20mA,activatedatDIPswitches
Two-wiredevicewithreversepolarityprotection·Staticdestructionlimit100mA
Minimum current > 3.6 mA
Load impedance Versionwithoutexplosionprotection:≤6V(correspondingto300Ωat20mA),
explosion-protectedversion:≤6V
Supply air
Airqualityacc.toISO8573-1
(edition2001-02):
1.4to7bar(20to105psi)
Max.particlesizeanddensity:Class4·Oilcontent:Class3·Pressuredewpoint:
Class3oratleast10Kbeneaththelowestambienttemperaturetobeexpected
Signalpressure(output) 0baruptothecapacityofthesupplypressure
Limitationtoapprox.2.4barenabledatDIPswitch

EB 8384-0 EN 9
Design and principle of operation
Type 3730-0 Positioner (the technical data for explosion-protected devices may be restricted by the limits
specied in the test certicates)
Characteristic Linear,deviationfromcharacteristic≤1%
Hysteresis ≤1%
Sensitivity ≤0.1%
Directionofaction SelectableoverDIPswitch
Airconsumption,steadystate Independentfromsupplypressureapprox.120ln/h
Air output capacity
Actuatorlledwithair
Actuatorvented
WhenΔp=6bar: 8.5mn³/h,whenΔp=1.4bar:3.0mn³/h KVmax(20°C)=0.09
WhenΔp=6bar:14.0mn³/h,whenΔp=1.4bar:4.5mn³/h KVmax(20°C)=0.15
Permissibleambienttemperature –20to+80°C
–45to+80°Cwithmetalcablegland
Thetemperaturelimitsforexplosion-protecteddevicesmayberestrictedbythe
limitsspeciedinthetestcerticates.
Inuences Temperature: ≤0.15%/10K
Supplyair: None
Vibrations: ≤0.25%upto2000Hzand4gaccordingtoIEC770
Electromagneticcompatibility ComplyingwithEN61000-6-2,EN61000-6-3,EN61326-1andNAMURRec-
ommendation NE 21
Useinsafety-instrumented
systemsacc.toIEC61508
Suitableforuseinsafety-instrumentedsystemsuptoSIL2(singledevice)andSIL3
(withredundantconguration),emergencyshutdownatareferencevariableof
0mA
Degreeofprotection IP 66
Materials Die-castaluminumENAC-AlSi12(Fe)(ENAC-44300)acc.toDINEN1706,
chromatedandplasticcoated
Externalparts:stainlesssteel1.4404/316L
Weight Approx.1kg
Compliance ·

10 EB 8384-0 EN
Design and principle of operation
Summary of explosion protection certicates for Type3730-0 Positioner
Type Certicate Type of protection/comments
-01
ECTypeExamina-
tionCerticate
Number PTB03.ATEX2099
II2GExiaIICT6Gb
II2DExiaIIICT80°CDb
Date 2016-04-19
Number RU C-DE.08.B.00113
1ExiaIICT6/T5/T4GbX
ExtbIIICT80°CDbX
Date 2013-11-15
Valid until 2018-11-14
-03
CSA Number 1613095 ExiaIICT6;ClassI,Zone0
ClassII,GroupsE,F,G
ExnAIIT6;ClassI,Zone2
ClassII,Div.2,GroupsE,F,G
Date 2005-02-11
FM Number 3021579 ClassI,Zone0AExiaIIC
ClassI,II,III,Div.1,GroupsA,B,C,D,E,F,G
ClassI,Div.2,GroupsA,B,C,D
ClassII,Div.2,GroupsF,G
Date 2004-12-01
-05
ECTypeExamina-
tionCerticate
Number PTB03.ATEX2099
II2DExtbIIICT80°CDbIP66
Date 2016-04-19
-07
JIS
Number TC17330
ExiaIICT6
Date 2017-07-29
Valid until 2020-07-28
-08
ECTypeExamina-
tionCerticate
Number PTB03.ATEX2179X II3GExnAIIT6
II3GExicIICT6
II3DExtcIIICT80°CIP66
Date 2013-09-17
Number RU C-DE.08.B.00113
2ExnAIICT6/T5/T4GcX
2ExicIICT6/T5/T4GcX
2ExtcIIICT80°CDcX
Date 2013-11-15
Valid until 2018-11-14

EB 8384-0 EN 11

12 EB 8384-0 EN
Attachment to the control valve – Mounting parts and accessories
4 Attachment to the control
valve – Mounting parts and
accessories
Thepositionercanbemountedeitherdirectly
toSAMSONType3277Actuatorortocon-
trolvalveswithcastyokesorrod-typeyokes
accordingtoIEC60534-6(NAMUR).
Forattachmenttothevariousactuators,cor-
respondingmountingpartsandaccessories
arerequired.Thesearelistedwiththeiror-
dernumbersinTable3toTable7.
Onattachingthepositioner,itisimportantto
observetheassignmentbetweenleverand
pinpositionaccordingtothetravelslistedin
the travel tables.
Thetravelthatcanbeachievedatthevalve
isrestrictedbythepinpositionusedandad-
ditionallybytheselectedfail-safeactionand
therequiredactuatorspringcompression.
ThepositionerisequippedwiththeleverM
(pinposition35)asstandard.
Note:
If the standard mounted lever M (pin
position 35) is replaced, the newly
mounted lever must be moved once
all the way as far as it will go in both
directions to adapt it to the internal
measuring lever.

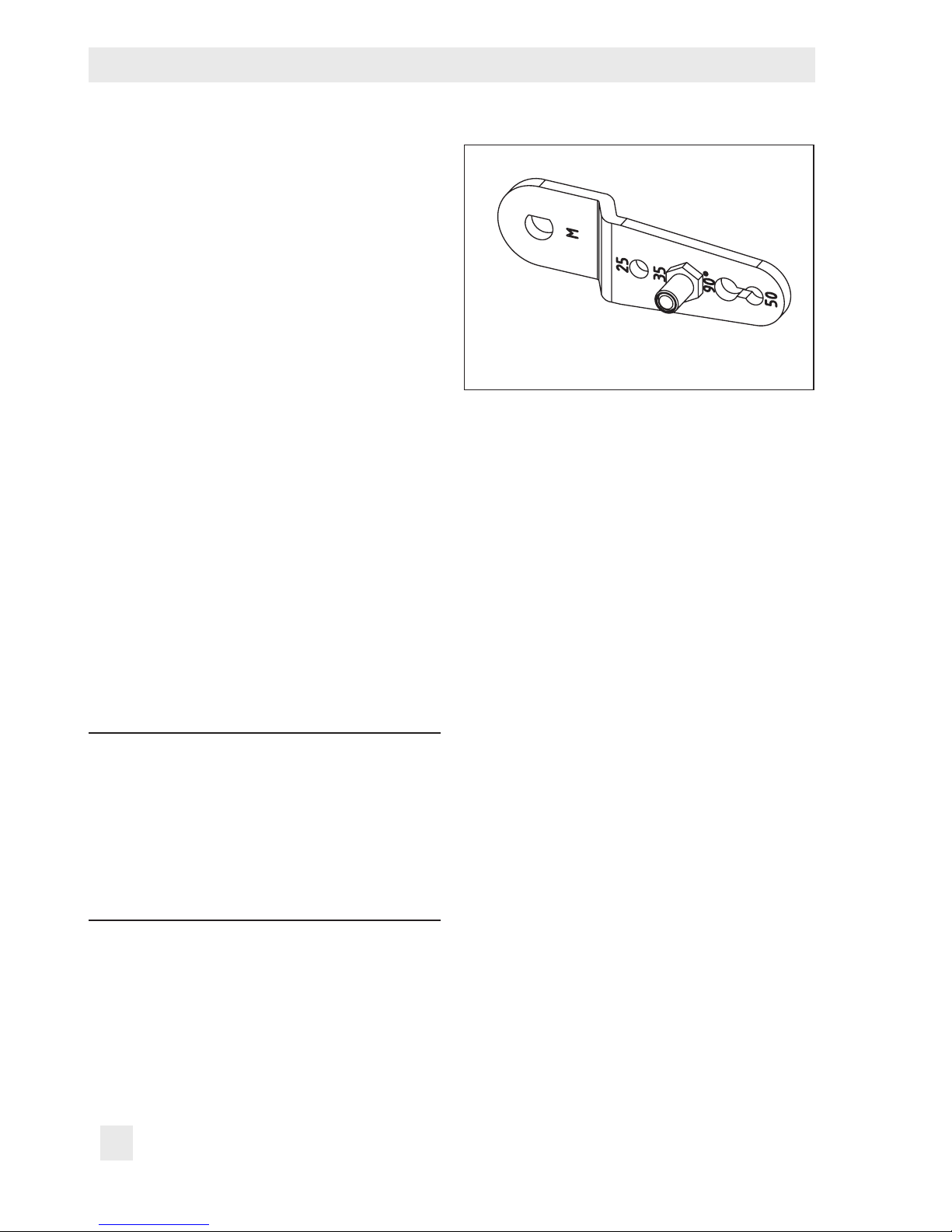

Fig.2: Lever M with pin position 35


EB 8384-0 EN 13
Attachment to the control valve – Mounting parts and accessories
Note:
The M lever is included in the scope of delivery.
S, L, XL levers for attachment according to IEC 60534-6 (NAMUR) are available as
accessories (see Table5 on page33). The XXL lever is available on request.
Table1: Travel for direct attachment to Type3277-5 and Type3277 Actuators
Actuator size
[cm²]
Rated travel
[mm]
Adjustment range at positioner
Required lever
Assigned
pin position
Min. travel
[mm]
Max. travel
[mm]
120 7.5 5.0 25.0 M 25
120/175/
240/350 15 7.0 35.0 M 35
355/700 30 10.0 50.0 M 50
Table2: Travel for attachment according to IEC60534-6 (NAMUR)
SAMSON valves with Type3271
Actuator Other valves/actuators
Required
lever
Assigned pin
position
Actuator size
[cm²]
Rated travel
[mm]
Min. travel
[mm]
Max. travel
[mm]
60 and 120
with
Type3510Valve
7.5 3.6 18.0 S17
120 7.5 5.0 25.0 M25
120/175/
240/350 15 7.0 35.0 M35
355/700/750 7.5
355/700/750 15 and 30 10.0 50.0 M50
1000/1400/
2800
30 14.0 52.0 L70
60 20.0 75.0 L 100
1400/2800 120 40.0 200.0 XL 200
See
manufacturer’s
specications
200 Seemanufacturer’s
specications XXL 300


14 EB 8384-0 EN
Attachment to the control valve – Mounting parts and accessories
4.1 Direct attachment
4.1.1 Type 3277-5 Actuator
Refer to Table3 on page31 for the re-
quired mounting parts and accessories listed
with their order numbers.
Refer to travel table on page13.
Actuator with 120cm²
Dependingonthetypeofpositionerattach-
ment,thesignalpressureisroutedeitherleft
orrightoftheyokethroughaholetotheac-
tuatordiaphragm.Dependingonthefail-safe
actionoftheactuator"Actuatorstemextends"
or"Actuatorstemretracts"(valveclosesor
opensifthesupplyairfails),theswitchover
plate(9)mustrstbemountedtotheactuator
yoke.Aligntheswitchoverplatewiththecor-
respondingsymbolforleftorrightattachment
accordingtothemarking(viewlookingonto
theswitchoverplate).
1. Mountconnectingplate(6)orpressure
gaugebracket(7)withpressuregauges
ontothepositioner,makingsurethetwo
seals(6.1)areseatedproperly.
2. Removescrewplug(4)onthebackof
thepositionerandsealthesignalpres-
sureoutput(Output38)ontheconnect-
ingplate(6)oronthepressuregauge
bracket(7)withthestopper(5)included
intheaccessories.
3. Placefollowerclamp(3)ontheactuator
stem,alignandscrewtightsothatthe
mountingscrewislocatedinthegroove
oftheactuatorstem.
4. Mountcoverplate(10)withnarrowside
ofthecut-outopening(Fig.3,ontheleft)
pointingtowardsthesignalpressurecon-
nection.Makesurethatthebondedgas-
ket(14)pointstowardstheactuatoryoke.
5. 15 mm travel:Keepthefollowerpin(2)
onleverM(1)onthebackoftheposi-
tionerinthepinposition35(delivered
state).
7.5 mm travel:Removethefollowerpin
(2)fromthepinposition35,repositionit
intheholeforpinposition25andscrew
tight.
6. Insertformedseal(15)intothegrooveof
thepositionerhousingandinserttheseal
(10.1)onthebackofthehousing.
7. Placepositioneronthecoverplate(10)
insuchamannerthatthefollowerpin
(2)restsonthetopofthefollowerclamp
(3).Adjustthelever(1)correspondingly
andopenthepositionercovertoholdthe
positionershaftinpositionatthecap.
Thelever(1)mustrestonthefollower
clampwithspringforce.
Mountthepositioneronthecoverplate
(10)usingthetwoxingscrews.
Note applying to all types of attach-
ment except for direct attachment to
Type 3277-5:
The signal pressure output at the back
must be sealed by the screw plug (4,
order no. 0180-1254) and the associ-
ated O-ring (order no. 0520-0412).
8. Mountcover(11)ontheotherside.Make
surethattheventplugislocatedatthe
bottomwhenthecontrolvalveisinstalled
toallowanycondensedwaterthatcol-
lectstodrainoff.


EB 8384-0 EN 15
Attachment to the control valve – Mounting parts and accessories
911
Supply 9 Output 38
5
6
4
7
6
10
10.1
3
2
1
15
6.1
1.1
1.2
14
8
Symbols
Actuatorstem
extends
Leftattachment Rightattachment
Actuatorstem
retracts
Switchoverplate(9)
Marking
Signalpressure
inputforleft
attachment Signalpressure
inputforright
attachment
Cut-outof
coverplate
NOTICE
Always use the connecting plate (6)
included in the accessories to connect
supply and output.
Never screw threaded parts directly
into the housing.
1 Lever
1.1 Nut
1.2 Diskspring
2 Followerpin
3 Followerclamp
4 Screwplug
5 Stopper
6 Connecting plate
6.1 Seals
7 Pressuregaugebracket
8 Pressuregauge
mountingkit
9 Switchoverplate
10 Coverplate
10.1 Seal
11 Cover
14 Flatgasket
15 Formedseal

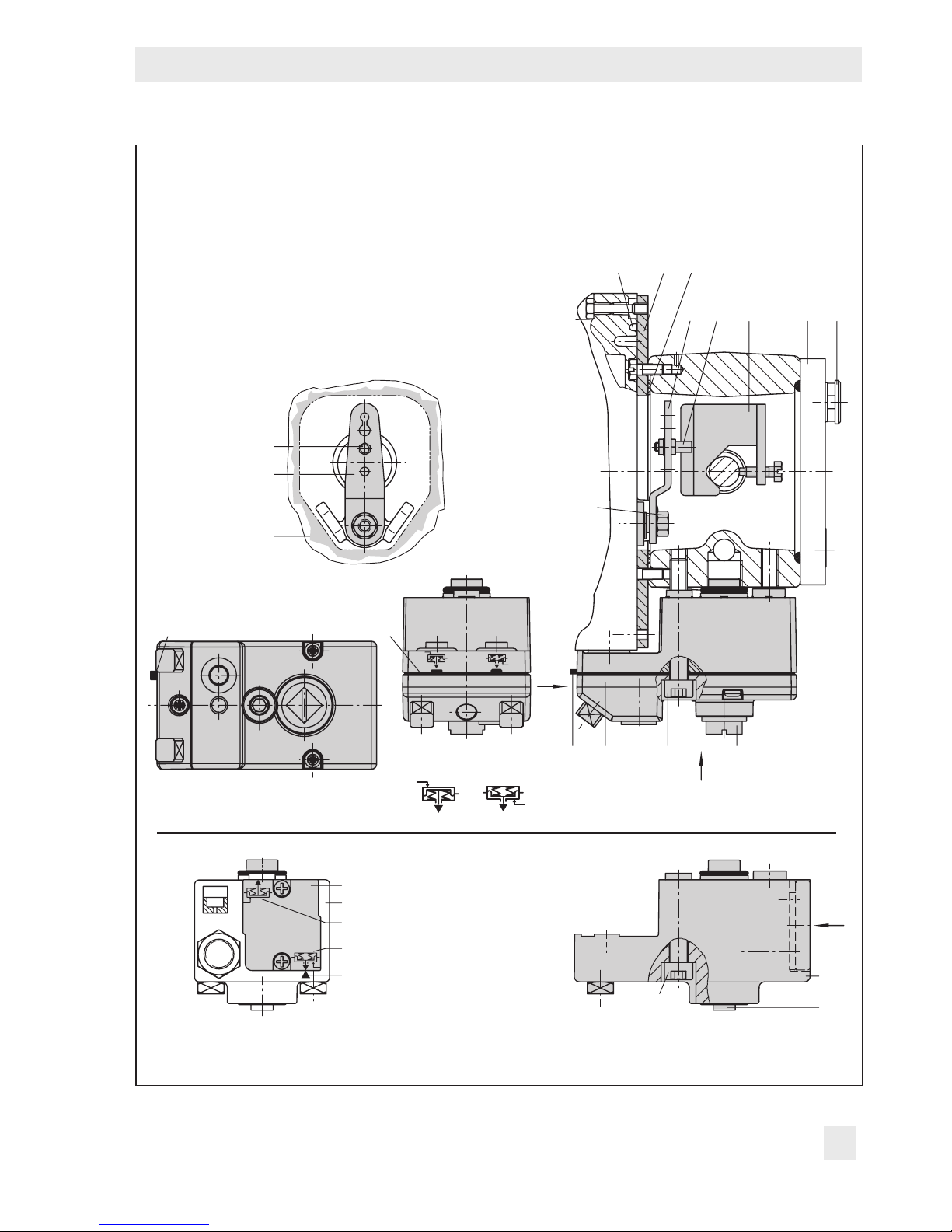

Fig.3: Direct attachment – Signal pressure connection for Type 3277-5 Actuator with 120 cm²

16 EB 8384-0 EN
Attachment to the control valve – Mounting parts and accessories
4.1.2 Type 3277 Actuator
Refer to Table4 on page32 for the re-
quired mounting parts and accessories listed
with their order numbers.
Refer to travel table on page13.
Actuators with 175 to 750 cm² effective ar-
eas
Mountthepositionerontheyokeasshown
inFig.4.Thesignalpressureisroutedtothe
actuatorovertheconnectionblock(12),for
actuatorswithfail-safeaction"Actuatorstem
extends"internallythroughaholeinthe
valveyokeandfor"Actuatorstemretracts"
throughanexternalpipe.
1. Placefollowerclamp(3)ontheactuator
stem,alignandscrewtightsothatthe
mountingscrewislocatedinthegroove
oftheactuatorstem.
2. Mountcoverplate(10)withnarrowside
ofthecut-outopening(Fig.4,ontheleft)
pointingtowardsthesignalpressurecon-
nection.Makesurethatthebondedgas-
ket(14)pointstowardstheactuator
yoke.
3. For actuators with 355, 700 or
750cm²,removethefollowerpin(2)on
leverM(1)onthebackofthepositioner
frompinposition35,repositionitinthe
holeforpinposition50andscrewtight.
For actuators 175, 240 and 350cm²
with15mmtravel,keepthefollowerpin
(2)inpinposition35.
4. Insertformedseal(15)intothegrooveof
thepositionerhousing.
5. Placepositioneronthecoverplatein
suchamannerthatthefollowerpin(2)
restsonthetopofthefollowerclamp(3).
Adjustthelever(1)correspondinglyand
openthepositionercovertoholdthepo-
sitionershaftinpositionatthecap.The
lever(1)mustrestonthefollowerclamp
withspringforce.
Mountthepositioneronthecoverplate
(10)usingthetwoxingscrews.
6. Makesurethatthetipofthegasket(16)
projectingfromthesideoftheconnec-
tionblockispositionedtomatchtheac-
tuatorsymbolfortheactuator'sfail-safe
action"Actuatorstemextends"or"Actu-
atorstemretracts".Ifthisisnotthecase,
unscrewthethreefasteningscrewsand
liftoffthecover.Turnthegasket(16)by
180°andre-insert.
Theoldconnectionblockversion(Fig.4,
bottom)requirestheswitchplate(13)to
beturnedtoaligntheactuatorsymbol
withthearrowmarking.
7. Placetheconnectionblock(12)withthe
associatedsealsagainstthepositioner
andtheactuatoryokeandfastenusing
thescrew(12.1).Foractuatorswithfail-
safeaction"Actuatorstemretracts",ad-
ditionallyremovethestopper(12.2)and
mounttheexternalsignalpressureline.
8. Mountcover(11)ontheotherside.
Makesurethattheventplugislocatedat
thebottomwhenthecontrolvalveisin-
stalledtoallowanycondensedwater
thatcollectstodrainoff.

EB 8384-0 EN 17
Attachment to the control valve – Mounting parts and accessories
2
10 1415
12
31
1
11.1
SUPPLY
13
B
C
1.1
1.2
12
12.1
12
12.2
12.11216
16 16
12.2
SUPPLY
View A
View B
View C
SUPPLYG
G 3/8
A
LeverM
Cut-outof
coverplate(10)
Actuatorstemextends
Actuatorstemretracts
Connection
block(old)with
switchplate(13)
Actuatorstem
extends retracts
1 Lever
1.1 Nut
1.2 Diskspring
2 Followerpin
3 Followerclamp
10 Coverplate
11 Cover
11.1 Vent plug
12 Connectionblock
12.1 Screw
12.2 Stopper or connection
forexternalpiping
13 Switchplate
14 Flatgasket
15 Formedseal
16 Gasket

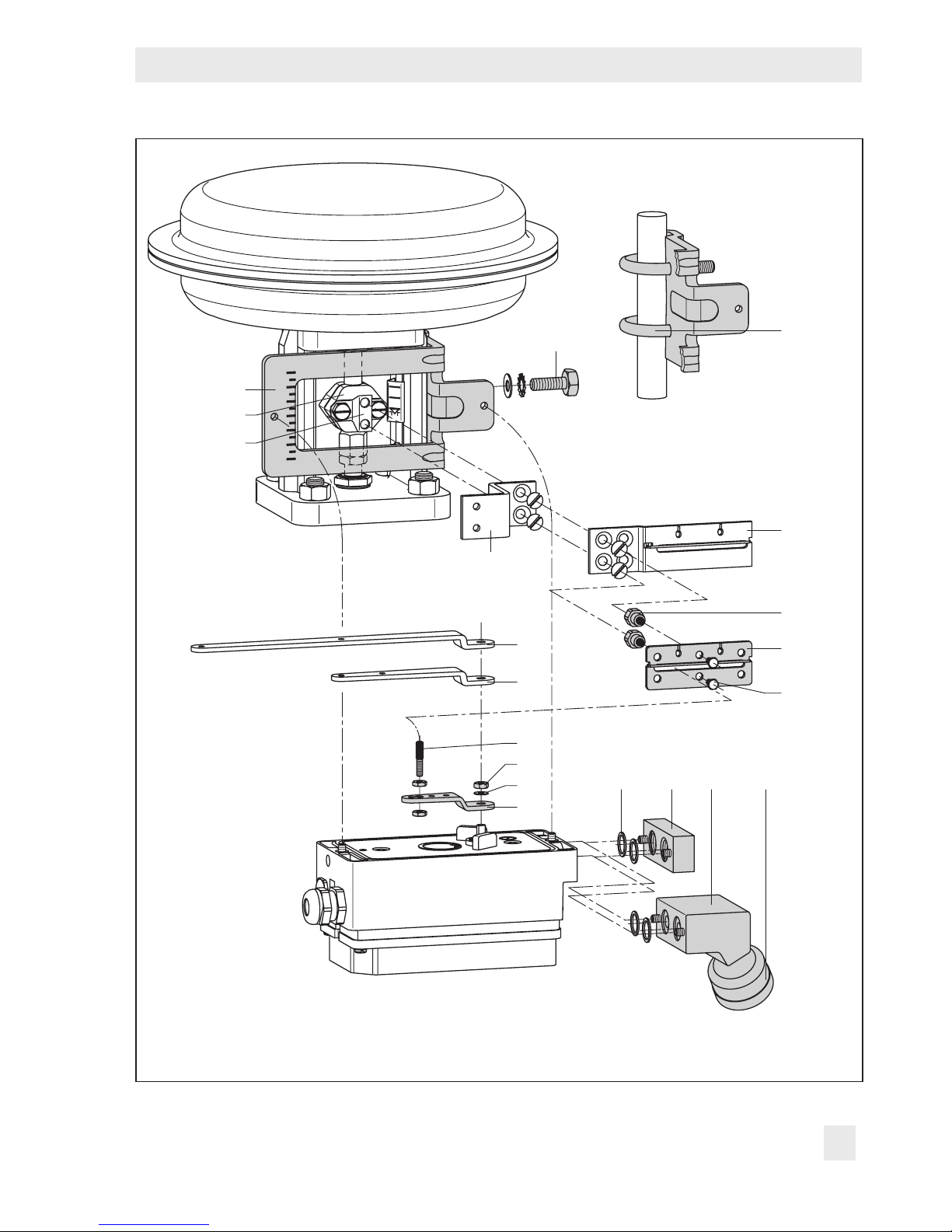

Fig.4: Direct attachment – Signal pressure connection for Type 3277-5 Actuator with 175 to 750 cm²
Marking

18 EB 8384-0 EN
Attachment to the control valve – Mounting parts and accessories
4.2 Attachment according to
IEC 60534-6 (NAMUR)
Thepositionerisattachedtothecontrolvalve
usingaNAMURbracket(10).
Refer to Table5 on page33 for the re-
quired mounting parts and accessories listed
with their order numbers.
Refer to travel table on page13.
1. Screwthetwobolts(14)tothebracket
(9.1)ofthestemconnector(9),placethe
followerplate(3)ontopandusethe
screws(14.1)tofastenit.
Actuator sizes 2800cm² and 1400cm²
with 120mm travel:
For a travel of 60 mm or smaller,screw
thelongerfollowerplate(3.1)directlyto
thestemconnector(9).
For a travel exceeding 60mm,mount
thebracket(16)rstandthenthefollow-
erplate(3)tothebrackettogetherwith
thebolts(14)andscrews(14.1).
2. MountNAMURbracket(10)tothecon-
trolvalveasfollows:
For attachment to the NAMUR rib,use
anM8screw(11)andtoothedlock
washerdirectlyintheyokehole.
For attachment to valves with rod-type
yokes,usetwoU-bolts(15)aroundthe
yoke.AligntheNAMURbracket(10)ac-
cordingtotheembossedscalesothatthe
followerplate(3)isshiftedbyhalfthe
bracketrangetotheNAMURbracket
(theslotofthefollowerplateiscentrally
alignedwiththeNAMURbracketatmid
valvetravel).
3. Mountconnectingplate(6)orpressure
gaugebracket(7)withpressuregauges
(8)onthepositioner,makingsurethe
twoseals(6.1)areseatedproperly.
4. Selectrequiredleversize(1)M,Lor XL
andpinpositionaccordingtotheactua-
torsizeandvalvetravellistedatthebot-
tomofthetraveltable.
Shouldapinpositionotherthanposition35
withthestandardleverMberequired,ora
leversizeLor XLberequired,proceedas
follows:
5. Screwthefollowerpin(2)intheassigned
leverhole(pinposition)aslistedinTa-
ble2onpage13.Onlyusethelonger
followerpin(2)includedinthemounting
kit.
6. Placethelever(1)ontheshaftofthepo-
sitionerandfastenittightusingthedisk
spring(1.2)andnut(1.1).
NOTICE
If a new lever (1) has been mounted,
move it once all the way as far as it
will go in both directions.
7. PlacepositionerontheNAMURbracket
insuchamannerthatthefollowerpin
(2)restsintheslotofthefollowerplate
(3,3.1).Adjustthelever(1)correspond-
ingly.
ScrewthepositionertotheNAMUR
bracketusingbothitsmountingscrews.
10
11
1
114.1
3
3.1
16
15
14
1
1.2
1.1
2
9.1
9
6.1 6 7 8
Fig.5: Attachment according to IEC 60534-6 (NAMUR)

EB 8384-0 EN 19
Attachment to the control valve – Mounting parts and accessories
4.2 Attachment according to
IEC 60534-6 (NAMUR)
Thepositionerisattachedtothecontrolvalve
usingaNAMURbracket(10).
Refer to Table5 on page33 for the re-
quired mounting parts and accessories listed
with their order numbers.
Refer to travel table on page13.
1. Screwthetwobolts(14)tothebracket
(9.1)ofthestemconnector(9),placethe
followerplate(3)ontopandusethe
screws(14.1)tofastenit.
Actuator sizes 2800cm² and 1400cm²
with 120mm travel:
For a travel of 60 mm or smaller,screw
thelongerfollowerplate(3.1)directlyto
thestemconnector(9).
For a travel exceeding 60mm,mount
thebracket(16)rstandthenthefollow-
erplate(3)tothebrackettogetherwith
thebolts(14)andscrews(14.1).
2. MountNAMURbracket(10)tothecon-
trolvalveasfollows:
For attachment to the NAMUR rib,use
anM8screw(11)andtoothedlock
washerdirectlyintheyokehole.
For attachment to valves with rod-type
yokes,usetwoU-bolts(15)aroundthe
yoke.AligntheNAMURbracket(10)ac-
cordingtotheembossedscalesothatthe
followerplate(3)isshiftedbyhalfthe
bracketrangetotheNAMURbracket
(theslotofthefollowerplateiscentrally
alignedwiththeNAMURbracketatmid
valvetravel).
10
11
1
114.1
3
3.1
16
15
14
1
1.2
1.1
2
9.1
9
6.1 6 7 8
Fig.5: Attachment according to IEC 60534-6 (NAMUR)
NOTICE
Always use the connecting plate (6) included in the
accessories to connect supply and output.
Never screw threaded parts directly into the housing.
Attachmenttorod-typeyoke
Rodswith20to35mmdiameter
AttachmenttoNAMURrib
Additionalbracketfor
actuatorswith2800cm²
andtravel≥60mm
LeverXLandL
1 Lever
1.1 Nut
1.2 Diskspring
2 Followerpin
3 Followerplate
3.1 Followerplate
6 Connecting plate
6.1 Seals
7 Pressuregaugebracket
8 Pressuregauge
mountingkit
9 Stem connector
 9.1 Bracket
10 NAMURbracket
11 Screw
14 Bolt
14.1 Screws
15 U-bolt
16 Bracket

20 EB 8384-0 EN
Attachment to the control valve – Mounting parts and accessories
4.3 Attachment according to
VDI/VDE3847
Type3730-0x00000000x0060xxandType
3730-0x00000000x0070xxPositionerswith
airpurgingoftheactuator’sspringchamber
canbeattachedaccordingtoVDI/
VDE3847.
Type3730-0x00000000x00x0xxPositioner
withoutairpurgingoftheactuator’sspring
chambercanbeattachedaccordingtoVDI/
VDE3847.
Thistypeofattachmentallowsthepositioner
tobereplacedquicklywhiletheprocessis
runningbyblockingtheairintheactuator.
Thesignalpressurecanbeblockedintheac-
tuatorbyunscrewingtheredretainingscrew
(20)andthenturningtheairblocker(19)on
thebottomoftheadapterblock.
Attachment to Type 3277 Actuator (see
Fig.6)
−Requiredmountingpartsandaccesso-
ries:Table6onpage33
Mountthepositionerontheyokeasshown
inFig.6.Thesignalpressureisroutedtothe
actuatorovertheconnectingplate(12),for
actuatorswithfail-safeaction“actuatorstem
extends”internallythroughaboreinthe
valveyokeandfor“actuatorstemretracts”
throughexternalpiping.
OnlytheY1portisrequiredforpositioner
attachment.TheY2portcanbeusedforair
purgingofthespringchamber.
1. Placefollowerclamp(3)ontheactuator
stem,alignitandscrewtightsothatthe
mountingscrewislocatedinthegroove
oftheactuatorstem.
2. Placetheadapterbracket(6)onthepo-
sitionerandmountusingthescrews
(6.1).Makesurethatthesealsarecor-
rectlyseated.Forpositionerswith air
purging,removethestopper(5)before
mountingthepositioner.Forpositioners
without air purging,replacethescrew
plug(4)withaventplug.
3. Foractuatorswith355,700or750cm²,
removethefollowerpin(2)ontheMle-
ver(1)onthebackofthepositionerfrom
pinposition35,repositionitinthehole
forpinposition50andscrewtight.
Foractuators175,240and350cm²
with15mmtravel,keepthefollowerpin
(2)inpinposition35.
4. Inserttheformedseal(6.2)inthegroove
oftheadapterbracket(6).
5. Inserttheformedseal(17.1)intothe
turnboard(17)andmounttheturnboard
totheadapterblock(13)usingthe
screws(17.2).
6. Mounttheblankplate(18)totheturn-
board(17)usingthescrews(18.1).
Makesurethatthesealsarecorrectly
seated.
Note:
A solenoid valve can also be mount-
ed in place of the blank plate (18).
The orientation of the turnboard (17)
determines the mounting position
of the solenoid valve. Alternative-
ly, a restrictor plate can be mounted
(uAB11EN).
18.1
1
17.2 18
17
17.1
13.1
13
12
12.1
3
11.1
11
19
20
Exh.
1.1
1.2
1.1
1.2
1
2
6.2 6.1
6
4
6.3
5
1 Lever
1.1 Nut
1.2 Diskspring
2 Followerpin
3 Followerclamp
4 Screwplug
5 Stopper
6 Adapterbracket
6.1 Screws
6.2 Formedseal
6.3 Screws
11 Cover
11.1 Vent plug
12 Connecting plate
12.1 Seal
13 Adapterblock
13.1 Screws
17 Turnboard
17.1 Formedseal
17.2 Screws
18 Blankplate
18.1 Screws
19 Airblocker
20 Retainingscrew
Fig.6: Attachment according to VDI/VDE3847 to Type3277 Actuator

