Samson TROVIS 3730-3 User guide

Safety Manual
SH 8384-3 EN
Translation of original instructions
Edition December 2016
Series 3730
Type 3730-3
Electropneumatic Positioner
with HART®communication

2 SH 8384-3 EN
Denition of signal words
Hazardous situations which, if not avoided,
will result in death or serious injury
Hazardous situations which, if not avoided,
could result in death or serious injury
Property damage message or malfunction
Additional information
Recommended action
DANGER
!
WARNING
!
NOTICE
!
Note
Tip
The mounting and operating instructions for all supplied devices are
included in the delivery. The latest versions of the documents are available
on our website at www.samson.de > Product documentation. You can
enter the document number or type number in the [Find:] eld to look for
a document.

SH 8384-3 EN 3
Purpose of this manual
The Safety Manual SH8384-3 contains information relevant for the use of the Type3730-3
Positioner in safety-instrumented systems according to IEC61508 and IEC61511. The safety
manual is intended for planners, constructors, and operators of safety-instrumented systems.
Risk of malfunction due to incorrect mounting, connection or start-up of the device.
Refer to the Mounting and Operating Instructions EB8384-3on how to mount the positioner,
perform the electric and pneumatic connections as well as start up the positioner.
Observe the warnings and safety instructions written in the Mounting and Operating
Instructions EB8384-3.
Further documentation
The documents listed below contain descriptions of the start-up, functioning, and operation of
the positioner. You can download these documents from the SAMSON website. The
documents marked with an asterisk (*) are supplied with the positioner either in printed or
electronic form.
Type3730-3 Positioner with HART
®communication
uT8384-3: Data sheet
uEB 8384-3*: Mounting and operating instructions
u KH 8384-3*: Conguration instructions for HART®communication
uKA8384-2/3*: Quick guide
EXPERTplus diagnostics (Type3730-3 Positioner in rmware version 1.50 and higher)
u T 8389: Data sheet
u EB 8389*: Operating instructions
EXPERT+ diagnostics (Type3730-3 Positioner up to rmware version 1.49)
u T 8388: Data sheet
u EB 8388: Operating instructions
In addition to the positioner documentation, observe the documentation for the pneumatic
actuator, valve, and other valve accessories.
NOTICE
!
Note

4 SH 8384-3 EN
Contents
1 Scope ...........................................................................................................5
2 Technical data (excerpt from EB8384-3) ........................................................6
3 Safety-related functions .................................................................................8
4 Mounting, connection, and start-up..............................................................10
5 Required conditions.....................................................................................11
6 Proof testing................................................................................................13
7 Repairs .......................................................................................................15

SH 8384-3 EN 5
Scope
1 Scope
General
The Type3730-3 Electropneumatic Positioner is a single-acting, venting positioner with
HART®communication for attachment to pneumatic rotary and linear actuators with
spring-return mechanism. The positioner is used to position control valves.
Use in safety-instrumented systems
Observing the requirements of IEC61508, the systematic capability of the pilot valve for
emergency venting as a component in safety-instrumented systems is given.
Use of the positioner is possible on observing the requirements of IEC61511 and the re-
quired hardware fault tolerance in safety-instrumented systems up to SIL2 (single device/
HFT=0) and SIL3 (redundant conguration/HFT=1).
The individual safety functions of the positioner are to be regarded as TypeA elements in ac-
cordance with IEC61508-2.
The architecture and the interval between proof tests must be changed accordingly for a
higher safety integrity level.
Versions and ordering data
Apart from the low-temperature version with metal cable gland, all versions of the
Type3730-3 Positioner are suitable for use in safety-instrumented systems. However, the op-
tional equipment affects the safety-related behavior of the positioner. These options are the
inductive limit contactSJ2-SN and the solenoid valve.
The article code written on the nameplate provides details on the optional equipment of the
positioner:
Note

6 SH 8384-3 EN
Technical data (excerpt from EB8384-3)
Type 3730-3 Positioner x x x x x x x x 0x0 0 x0x x
Option (additional equipment)
Without inductive limit contact
With inductive limit contact SJ2-SN (NAMUR NC contact)
0
1
Without solenoid valve
With 24VDC solenoid valve
0
4
Attachment
The positioner is suitable for the following types of attachment in combination with various
mounting parts:
−Direct attachment to SAMSON Type3277 Actuators
−Attachment to linear actuators according to IEC60534-6 (NAMUR)
−Attachment to linear actuators according to VDI/VDE3847
−Attachment to SAMSON Type3510 Micro-ow Valve
−Attachment to rotary actuators according to VDI/VDE3845, xing levels 1 and 2
2 Technical data (excerpt from EB8384-3)
Type 3730-3 Positioner: also observe the technical data in the test certicates for explosion-protected versions
Reference
variable
w
Signal range 4 to 20mA · Two-wire device, reverse polarity protection · Minimum span 4mA
Static
destruction limit
100mA
Minimum current 3.6mA for display · 3.8mA for operation
Load impedance ≤ 8.2V (corresponds to 410Ω at 20mA)
Supply air
Supply air 1.4 to 7bar (20 to 105psi)
Air quality acc.
to ISO 8573-1
Max. particle size and density: Class 4 · Oil content: Class 3 · Pressure dew point:
Class3 or at least 10K below the lowest ambient temperature to be expected
Signal pressure (output) 0 bar up to the supply pressure · Can be limited to 1.4bar/2.4bar/3.7bar ±0.2bar
by software
Hysteresis ≤0.3%

SH 8384-3 EN 7
Technical data (excerpt from EB8384-3)
Type 3730-3 Positioner: also observe the technical data in the test certicates for explosion-protected versions
Sensitivity ≤0.1%
Transit time Venting or lling with air adjustable separately up to 240s by software.
Air output
capacity
To ll actuator
with air At Δp = 6 bar: 8.5 mn³/h · At Δp = 1.4 bar: 3.0 mn³/h · KVmax (20 °C) = 0.09
To vent actuator At Δp = 6 bar: 14.0 mn³/h · At Δp = 1.4 bar: 4.5 mn³/h · KVmax (20 °C) = 0.15
Permissible ambient tem-
perature
–20 to +80°C (all versions)
–45 to +80°C with metal cable gland
Observe the limits in the test certicate for explosion-protected versions.
Use in safety-instrumented
systems (SIL)
Observing the requirements of IEC61508, the systematic capability of the pilot valve
for emergency venting as a component in safety-instrumented systems is given.
Use is possible on observing the requirements of IEC61511 and the required hard-
ware fault tolerance in safety-instrumented systems up to SIL2 (single device/HFT=0)
and SIL3 (redundant conguration/HFT=1).
Safety-relevant options
Solenoid valve · Approval according to IEC61508/SIL · Emergency venting function
Input
24VDC · Electrical isolation and reverse polarity protection · Static destruction limit
40V
Current consumption I = U – 5.7V
3840Ω (corresponding to 4.8mA at 24V/114mW)
Signal '0' (no response) <12V (emergency shutdown at 0V)
Signal '1' (response) > 19V
Service life >5x106 switching cycles
KV coefcient 0.15
Use in safety-instrumented
systems acc. to IEC61508/
SIL
Same as positioner pneumatics
Inductive limit contact by Pepperl+Fuchs · Function: safety-related end position monitoring
For connection to switching amplier according to EN60947-5-6.
Can be used in combination with a software limit contact.
SJ2-SN proximity switch Measuring plate not detected: ≥3mA · Measuring plate detected: ≤1mA

8 SH 8384-3 EN
Safety-related functions
3 Safety-related functions
1. Emergency venting over the i/p converter (Fig.1 path )
In automatic operation, the PD controller (3) compares the actual value to the DC control
signal from 4 to 20mA coming from the microcontroller. In case of a system deviation,
the activation of the i/p converter is changed so that the actuator (1) is either vented or
lled with air. Fail-safe action is triggered when no signal (0mA) is applied to terminals
11/12 and, as a result, to the i/p converter.
2. Emergency venting over the optional solenoid valve (Fig.1 path )
The solenoid valve (12) is energized by a 24VDC voltage signal. Fail-safe action is trig-
gered when no signal (0mA) is applied to terminals 81/82. This causes the solenoid
valve (12) to vent the output of the i/p converter to the atmosphere. The actuator is vent-
ed as well.
3. Safety-related end position monitoring over the optional inductive limit contact
(Fig.1 path )
The inductive limit contactSJ2-SN (NAMUR NC contact) indicates the adjusted end posi-
tion in a safety-instrumented system at terminals 41/42. See u EB8384-3 for adjusting
the limit contacts.
Fail-safe action
Fail-safe action is triggered by the i/p converter or solenoid valve and upon supply air fail-
ure. The positioner fully discharges its pneumatic output to the atmosphere, causing the
mounted actuator to be vented. As a result, the valve moves to the fail-safe position. The fail-
safe position depends on how the springs are arranged in the pneumatic actuator (air-to-
close or air-to-open).
When the air supply fails and the optional solenoid valve is de-energized, all positioner
functions, except open/closed loop control, remain active (including diagnostics, HART®
communication as well as position and status feedback).
The pneumatic output of the positioner can also be vented to the atmosphere over the
software, e.g. by entering a suitable set point. This procedure is not a safety-instrumented
function.
Protection against unauthorized changes to the conguration
A change to the conguration cannot affect the safety function nor cause it to be deactivated.
Note

SH 8384-3 EN 9
Safety-related functions
Q
%
mm
G
PD
Serial
Interface 16
13
22
15
A2
A3
BE
2
4
21 FSK
20
19
5
3
7
8
10
14
14
9
17 18
81
82
11
12
42
41
51
52
83
84
31
32
31
32
A1
Q
%
m
m
m
m
G
PD
Se
ri
al
Int
e
rf
ace
1
6
13
22
15
A
2
A3
BE
2
4
21
F
SK
20
1
9
5
3
7
8
1
0
14
14
9
17 1
8
A
1
G
12 6
x
y1
11
w
w
x
24 V DC
1 Control valve 13* Analog position transmitter
2Travel sensor 14 Software limit contact, alarm 1/2
3 PD controller 15 Fault alarm output, alarm 3
4 A/D converter 16 Display
5Microcontroller 17* Actuation of solenoid valve
6 i/p converter 18* Electrical insulation
7Air capacity booster 19 D/A converter
8Pressure regulator 20 Communication interface
9Flow regulator 21 HART®connection
10 Volume restriction 22 Binary input BE*
11* Inductive limit contact
12* Solenoid valve * Options
Fig.1: Functional diagram of the positioner

10 SH 8384-3 EN
Mounting, connection, and start-up
4 Mounting, connection, and start-up
Refer to Mounting and Operating Instructions u EB8384-3 on how to mount, perform the
electric and pneumatic connections as well as start up the positioner.
Only use the specied original mounting parts and accessories.
G
+81 -82 +11 -12 +83 -84 +51 -52
A2A3 A1
+41 -42 +31 -32
A
+31 -32
24VDC
Solenoid valve
(optional)
mA control
signal
Not Ex: Binary input of a PLC acc. to
IEC61131-2 (Pmax = 400mW) or switch-
ing amplier acc. to EN60947-5-6
Ex: Sw. amplier acc. to EN60947-5-6
A3
Fault alarm
Limit contacts
A2
Software
A1
Software
optionally
inductive
Position
transmitter with
two-wire
transmitter
supply unit
Leakage sensor
Analog input x
Binary input

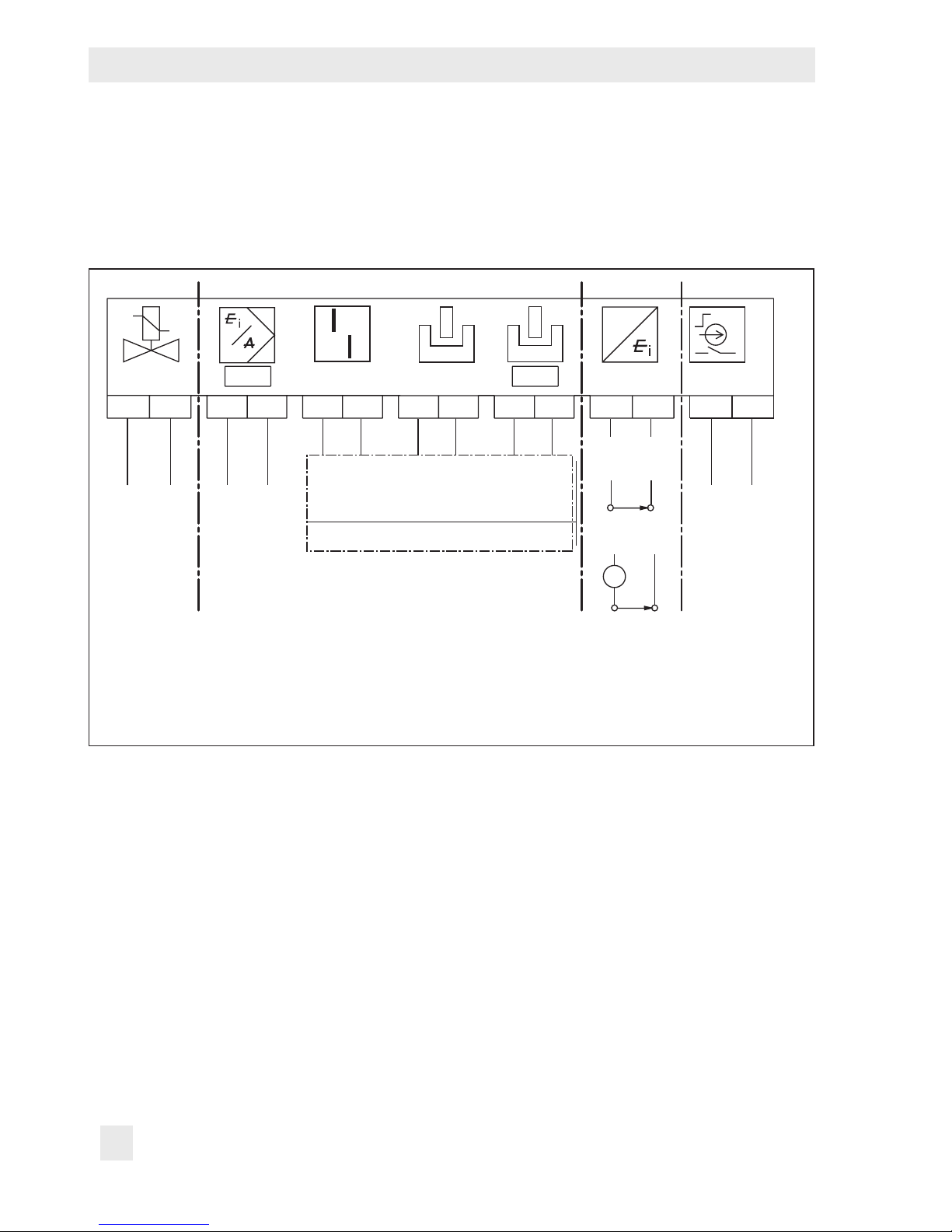

Fig.2: Electrical connection

SH 8384-3 EN 11
Required conditions
5 Required conditions
Risk of malfunction due to incorrect selection or wrong installation and operating conditions.
Only use control valves in safety-instrumented systems after the necessary conditions in the
plant have been fullled. The same applies to the mounted positioner.
Selection
ÎThe required transit times of the control valve are kept.
The transit times to be implemented are determined by the process engineering require-
ments.
The minimum OPEN and CLOSE transit times can be read in Codes 40 and 41 after the
positioner has been initialized.
ÎThe positioner is suitable for the prevailing ambient temperature.
Versions Temperature range
All –20 to +80 °C
With metal cable gland –45 to +80 °C
The limits in the test certicates additionally apply to explosion-protected versions.
ÎThe temperature limits are observed.
Mechanical and pneumatic installation
ÎThe positioner is mounted properly as described in the mounting and operating instruc-
tions and connected to the air supply.
Error codes 50 to 58 indicate incorrect attachment. For safety-instrumented systems, we
recommend assigning the 'Maintenance alarm' status to these errors to quickly recognize
them when they occur (indicated by on the display).
ÎThe maximum supply pressure does not exceed 7bar.
ÎThe pneumatic air supply meets the instrument air specications.
WARNING
!
Tip
Tip

12 SH 8384-3 EN
Required conditions
Particle size and quantity Oil content Pressure dew point
Class 4 Class 3 Class 3
≤ 5 µm and 1000/m³ ≤ 1mg/m³ –20 °C or at least 10 K below the lowest ambi-
ent temperature to be expected
We recommend installing a supply pressure regulator/lter upstream of the positioner.
For example, the SAMSON Type4708 Supply Pressure Regulator with 5µm lter car-
tridge can be used.
ÎThe supply air line has a minimum inside diameter of 4mm.
Select the cross section and length of the line to ensure that the supply pressure at the po-
sitioner on lling the actuator with air does not fall below the minimum limit.
ÎThe positioner is mounted as prescribed.
ÎThe vent opening at the back of the positioner remains open when the positioner is in-
stalled on site.
Electrical installation
ÎThe positioner is connected to the electric power supply properly as described in the
mounting and operating instructions.
ÎOnly cables whose outside diameters are suitable for the cable glands are used.
ÎThe electrical cables in Ex i circuits comply with the data that planning was based on.
ÎThe cable glands and cover screws are fastened tightly to ensure that the degree of pro-
tection is met.
ÎThe installation requirements for the applicable explosion protection measures are ob-
served.
ÎThe special conditions specied in the explosion protection certicates are observed.
Operation
ÎWhen the optional inductive limit contact is used, Code 38 is set to YES.
ÎThe inductive limit contact is adjusted mechanically to meet the specications.
Tip

SH 8384-3 EN 13
Proof testing
6 Proof testing
The proof test interval and the extent of testing lie within the operator's responsibility. The
operator must draw up a test plan, in which the proof tests and the interval between them
are specied. We recommend summarizing the requirements of the proof test in a check-
list.
Risk of dangerous failure due to malfunction in the event of emergency (actuator is not vented
or the valve does not move to the fail-safe position).
Only use devices in safety-instrumented systems that have passed the proof test according to
the test plan drawn up by the operator.
Regularly check the safety-instrumented function of the entire SIS loop. The test intervals are
determined, for example on calculating each single SIS loop in a plant (PFDavg).
Function testing
Regularly check the safety function according to the test plan drawn up by the operator.
Record any faults in the positioner and inform SAMSON of them in writing.
−Emergency venting by applying a 0mA signal to terminals 11/12 (control signal):
1. Apply supply air within the permissible range (max. 7bar) to the positioner which
allows the valve to move to the maximum travel/angle of rotation.
2. Apply an electric input signal ≥3.6mA to the positioner (terminals 11/12).
3. Switch the positioner to automatic mode (if it has not already been done).
4. Apply the input signal (terminals 11/12) over a local current source or over the con-
trol system in such a way that the valve moves to 50% of its travel/opening angle.
The travel in automatic mode can be read at the positioner in Code 0.
5. Set the electric input signal to 0mA or disconnect it.
This must cause the valve to move to its fail-safe position (terminals 11/12).
WARNING
!
Note
Tip

14 SH 8384-3 EN
Proof testing
6. Check whether the actuator is fully vented within the demanded time.
Connect a pressure gauge to check that the actuator has completely vented.
−Emergency venting by applying a 0V signal to terminals 81/82 (solenoid valve):
1. Apply supply air within the permissible range (max. 7bar) to the positioner which al-
lows the valve to move to the maximum travel/angle of rotation.
2. Apply an electric input signal ≥3.6mA to the positioner (terminals 11/12).
3. Supply the solenoid valve with a voltage >19VDC (terminals 81/82).
4. Apply the input signal (terminals 11/12) over a local current source or over the con-
trol system in such a way that the valve moves to 50% of its travel/opening angle.
The travel in automatic mode can be read at the positioner in Code 0.
5. Set the voltage to 0VDC (terminals 81/82).
6. Check whether the actuator is fully vented within the demanded time.
Connect a pressure gauge to check that the actuator has completely vented.
−Safety-related end position monitoring
1. Apply supply air within the permissible range (max. 7bar) to the positioner which al-
lows the valve to move to the maximum travel/angle of rotation.
2. Apply an electric input signal ≥3.6mA to the positioner (terminals 11/12).
3. Switch the positioner to automatic mode (if it has not already been done).
4. Apply the input signal (terminals 11/12) over a local current source or over the con-
trol system in such a way that the valve moves to 50% of its travel/opening angle.
5. Apply the input signal (terminals 11/12) over a local current source or over the con-
trol system in such a way that the valve moves to the end position.
6. Check whether a signal exists at terminals 41/42 when the valve has reached the
end position.
Tip
Tip
Tip

SH 8384-3 EN 15
Repairs
Visual inspection to avoid systematic failure
To avoid systematic failure, inspect the positioner regularly. The frequency and the scope of
the inspection lie within the operator's responsibility. Take application-specic inuences into
account, such as:
−Dirt blocking the pneumatic connections
−Corrosion (destruction primarily of metals due to chemical and physical processes)
−Material fatigue
−Aging (damage caused to organic materials, e.g. plastics or elastomer, by exposure to
light and heat)
−Chemical attack (organic materials, e.g. plastics or elastomer, which swell, leach out or
decompose due to exposure to chemicals)
Risk of malfunction due to the use of unauthorized parts.
Only use original parts to replace worn parts.
7 Repairs
Only perform the work on the positioner described in uEB 8384-3.
Fail-safe action impaired due to incorrect repair.
Service and repair work must only be performed by trained staff.
NOTICE
!
NOTICE
!

16 SH 8384-3 EN

Manufacturer's Declaration
Changed on:
2014-06-23
2014-07-30
2014-08-21
V/HE-1142-3 DE-EN
Changed by:
V31/Bhk/V74/Tny
V31/Bhk/V74/Tny
V31/Bhk/V74/Tny
SAMSON AKTIENGESELLSCHAFT · Weismüllerstraße 3 · 60314 Frankfurt am Main, Germany · Phone: [phone] · Fax: [phone] · [e-mail]
Herstellererklärung
Manufacturer's Declaration
Für folgende Produkte
For the following products
Stellungsregler
Typ
3730-0XXXXXXXXXX00...
Typ 3730
-1XXXXXXXXXX00...
Typ 3730
-2XXXXXXXXXX00...
Typ
3730-3XXXXXXXXXX00...
Typ 3730
-4XXXXXXXXXX00...
Typ 3730
-5XXXXXXXXXX00...
Type 3730-0XXXXXXXXXX00...
Type 3730
-1XXXXXXXXXX00...
Type 3730
-2XXXXXXXXXX00...
Type 3730
-3XXXXXXXXXX00...
Type 3730
-4XXXXXXXXXX00...
Type 3730
-5XXXXXXXXXX00...
Positioner
Hiermit wird bestätigt, dass das Steuerventil in
den o. g.
Stellungsreglern gemäß IEC 61508
für den Einsatz in siche
rheitsgerichteten Krei-
sen g
eeignet ist.
D
ie Stellungsregler haben eine HFT von
0 und
können
nach IEC 61511 bis SIL 2 (einzelnes
Gerät
, HFT = 0) und SIL 3 (redundante Ver-
scha
ltung, HFT = 1) eingesetzt werden.
Die
Geräte sind nach Typ A eingestuft.
We hereby certify that the pilot valve installed
in the
positioners mentioned above is suitable
for use in safety
-instrumented systems accord-
ing to IEC
61508.
The positioners have an HFT of
0 and can be
used up to SIL
2 (single device, HFT = 0) and
SIL
3 (redundant configuration, HFT = 1) ac-
cordi
ng to IEC 61511.
The devices
are classified as type A.
Die Konformität des Entwicklungsprozesses,
der durchgefü
hrten FMEDA und der Aussa-
gen dieser Herste
llererklärung sind von der
TÜV Rheinland I
ndustrie Service durch das
Zertifikat
V60 2012 C8 vom Dezember 2012
zert
ifiziert.
The conformity of the development process
and the performed FMEDA as well as the
statemen
ts in this Manufacturer’s Declaration
are certified by TÜV Rheinland Industrie Se
r-
vice GmbH in the Certificate
V60 2012 C8 of
December 2012
.
Sicherheitstechnische Annahmen
Safety-related assumptions
Unter Verwendung des i/p-Wandlers und/oder
des optiona
len Magnetventils schaltet der ein-
fachwirkende Stellungsregler seinen pneum
a-
tischen Ausgang gegen Atmosphäre durch
und entlüftet dadurch den angeschlo
ssenen
Ventila
ntrieb.
When the i/p converter and/or the optional so-
lenoid valve are used, the single
-acting posi-
tioner discharges its pneumatic output to the
atmosphere, causing the mounted actuator to
be vented.
Sicherheitstechnische Kenndaten
Safety-related data
λsafe, undetected
9
FIT
λsafe, detected
0
FIT
λdangerous, undetected
1
FIT
λdangerous, detected
0
FIT
PFDavg. bei jährlicher Prüfung
4,2 · 10-6
HFT
0
Gerätetyp
A
SFF (Safe Failure Fraction)
90 %
MTBFgesamt
11940 Jahre
MTBFdangerous, undetected
119530 Jahre
λsafe, undetected
9
FIT
λsafe, detected
0
FIT
λdangerous, undetected
1
FIT
λdangerous, detected
0
FIT
PFDavg. with annual test
4.2 · 10-6
HFT
0
Device type
A
Safe failure fraction (SFF)
90 %
MTBFtotal
11940 years
MTBFdangerous, undetected
119530 years
1 FIT = 1 Ausfall pro 10
9
Stunden
1 FIT = 1 failure per 10
9
hours

Manufacturer's Declaration
Changed on:
2014-06-23
2014-07-30
2014-08-21
V/HE-1142-3 DE-EN
Changed by:
V31/Bhk/V74/Tny
V31/Bhk/V74/Tny
V31/Bhk/V74/Tny
SAMSON AKTIENGESELLSCHAFT · Weismüllerstraße 3 · 60314 Frankfurt am Main, Germany · Phone: [phone] · Fax: [phone] · [e-mail]
Nutzbare Gebrauchsdauer
Useful lifetime
Nach IEC 61508-2 Abschnitt 7.4.9.5 können
acht bis zwölf Jahre angenommen oder ein
Wert benutzt werden, der sich durch Betrieb
s-
bewährung des Anwe
nders ergibt.
According to IEC 61508-2, section 7.4.9.5, a
useful lifetime of eight to twelve years can be
assumed. Other values can be used based on
the user’s previous experience (prior use/
proven
-in-use).
Bestimmungsgemäße Verwendung
Intended use
–Bedienungsanleitung
–
Sicherheitshandbuch + TV-SK 9838
–
Anforderung an Instrumentenluft-Qualität
–Operating instructions
–
Safety manual + TV-SK 9838
–
Quality requirements for instrument air
Das sicherheitsgerichtete Entlüften kann
wie folgt ausgelöst werden:
–
Der elektrische Eingang des Stellungsreg-
lers wird energielos gesetzt.
oTypen 3730-0/-1/-2/-3: 0 mA an den
Klemmen 11/12
oTypen 3730-4/-5: Spannungspegel 0 V
an den Klemmen: IEC 1158-2
–
Der elektrische Eingang des optionalen
Magnetventils wird energielos gesetzt.
oTypen 3730-2/-3/-4/-5: Span
nungspegel
0 V DC an den Klemmen: 81/82
Emergency venting can be triggered as fol-
lows:
–
The electrical input of the positioner is de-
energized.
oTypes 3730-0/-1/-2/-3: 0 mA at termi
nals
11/12
oTypes 3730-4/-5: 0 V voltage level at
terminals "IEC 1158-2"
–
The electrical input of the optional solenoid
valve is de-energized.
oTypes 3730-2/-3/-4/-5: 0 V DC voltage
level at terminals 81/82
Hinweis!
Note!
Die Stellungsregler der Typen 3730-2/-3/-4/-5
sind mit umfangreichen Mitteln zur
Diagnose
ausgestattet. Diese Diagnose b
ewertet den
Zust
and des Stellungsreglers und der ange-
bauten Armatur. Die sicherheit
stechnischen
Kennwerte können sich
durch Einsatz der Di-
agnose verbessern. Die Diagnose dient auch
der Aufdeckung
unerkannter systematischer
Fehler (siehe VDI 2180 Blatt 5)
.
The Types 3730-2/-3/-4/-5 Positioners come
with extensive diagnostic functions. They a
s-
sess the condition of the positioner as well as
of the control valve it is mounted on. The saf
e-
ty
-related data can be improved by using the
diagnostics. Diagnostics also serve to revea
l
undetected systematic failures (refer to
VDI
2180, sheet 5).
Voraussetzungen
Requirements
Die Reparaturzeit ist klein gegenüber der mit
t-
leren Anforderungsrate. Durchschnittliche B
e-
anspruchung in industrieller U
mgebung durch
Medien und Umgebungsbedingu
ngen wird vo-
rausgesetzt. Der Anwender ist für
den be-
stimmungsgemäßen G
ebrauch verantwortlich.
Short mean time to repair compared to the a
v-
erage rate of demand.
Normal exposure to in-
dustrial environment and fluids is assumed.
The user is responsible for e
nsuring that the
device is used as intended.

Manufacturer's Declaration
Changed on:
2014-06-23
2014-07-30
2014-08-21
V/HE-1142-3 DE-EN
Changed by:
V31/Bhk/V74/Tny
V31/Bhk/V74/Tny
V31/Bhk/V74/Tny
SAMSON AKTIENGESELLSCHAFT · Weismüllerstraße 3 · 60314 Frankfurt am Main, Germany · Phone: [phone] · Fax: [phone] · [e-mail]
SAMSON AG
SAMSON AG
Guido König
Zentralabteilungsleiter
Produktmanagement und
-marketing
Mess
- und Regeltechnik
SAMSON GROUP
Stephan Michalik
Zentralabteilungsleiter
Qualitätsmanagement
Director
Product Management and Marketing
Instrumentation and Controls
SAMSON GROUP
Head of Central Department
Quality Management

SAMSON AG · MESS- UND REGELTECHNIK
Weismüllerstraße 3 · 60314 Frankfurt am Main, Germany
Phone: [phone] · Fax: [phone]
[email protected] · www.samson.de
SH 8384-3 EN 2017-01-18 · English
