Warning
This is a Class 1 product and must be earthed.
Please read these instructions carefully before commencing any work.
This unit must be fitted by a competent and qualified electrician.
Install in accordance with the IEE Wiring regulations and current
Building Regulations.
Check the pack and make sure you have all the parts listed.
To prevent electrocution switch off at the mains supply before
installing or maintaining this fitting. Ensure other persons cannot
restore the electrical supply without your knowledge.
Installation
Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting, carefully
note the position of each set of wires.
Note the power at the fuse board and the luminaire must be switched off before installation or maintenance.

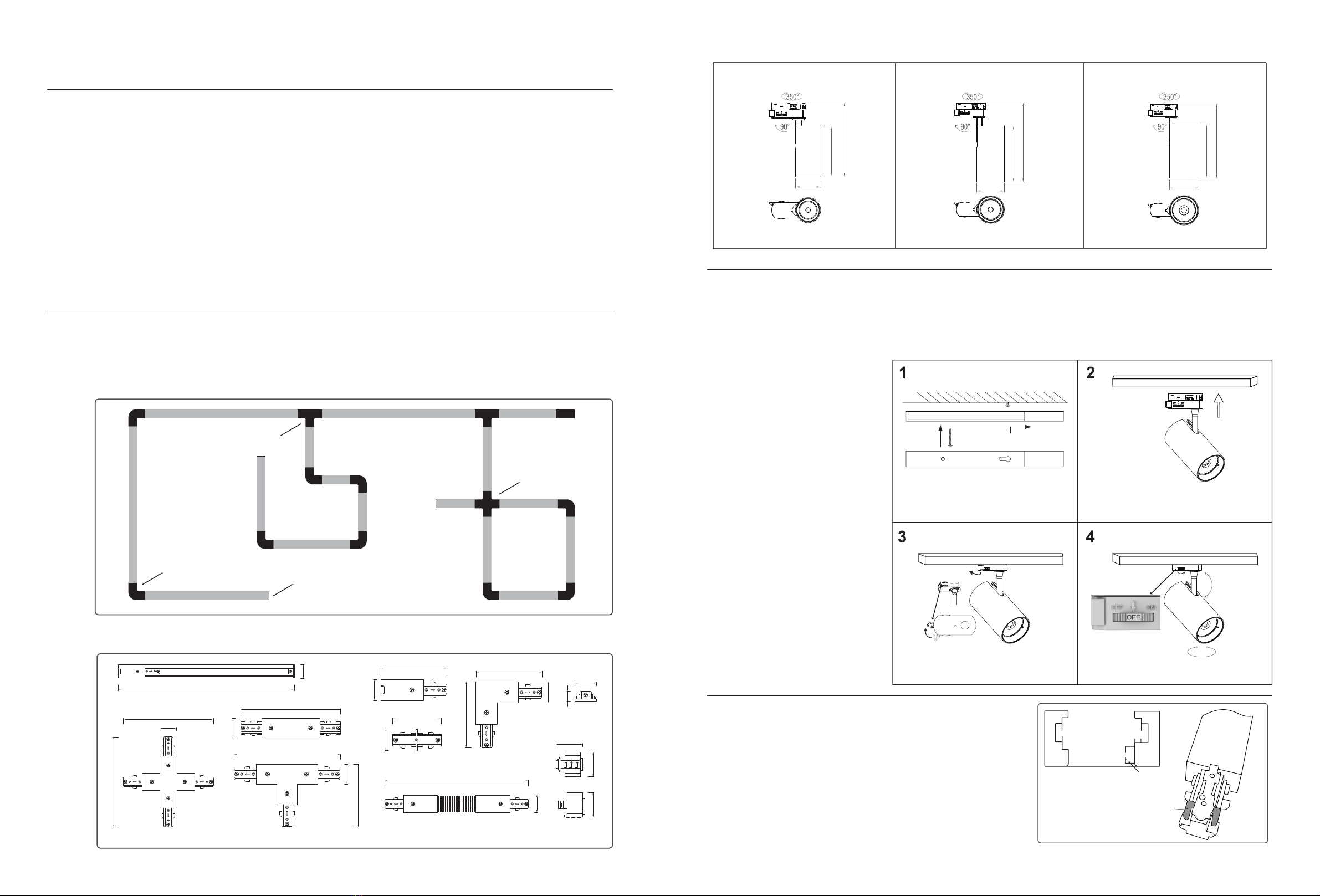

Layout
This track system can be extended to a variety of different configurations using accessories such as left bends,
right bends, T jucntions, X junctions and flexible joints.
Track Accessory:
TJunction
X Junction
Dead End
Bend
This light fitting should be connected to a fused circuit.
If replacing an existing fitting, make a careful note of the connections.
Only to be installed outside arms reach.
This track is suitable for dimming. But the fittings with low voltage
lamps are not suitable for dimming. Care must be taken to only use
the same type of fitting that is able to be dimmed, and that the
dimmer wattage must not be exceeded.
Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your local
authority or retailer for recycling advice.
108.0mm
35.0mm
35.5mm
79.5mm
294.0mm
35.0mm
35.0mm
108.0mm
108.0mm
35.0mm
16.5mm
183.0mm
183.0mm
35.0mm
35.0mm
108.0mm
183.0mm
40.0mm
40.0mm
43.0mm
35.0mm
182.0mm
1000.0mm
2000.0mm
3000.0mm
35.0mm
• Plan the track layout and and decide accessories
needed before fixing anything to the ceiling.
• The maximum power per run of track is
1KW (1000W).
• Mark the first hole position and fit the screw in
position as shown.
• Feed the screw through the keyhole slot, and
slide into position. Mark the position of the
second hole.
• Locate the track and fit the second screw into
position.
• If fitting accessories, remove the end cap, and
push them firmly home. Fit extra lengths of
track as required.
• Ensure the ceiling is capable of holding the
weight of the track and products. Take care to
avoid damaging any concealed wiring and pipes.
The correct fixings should be used for brick,
cavity walls or plasterboard.
Connection
• The track accessories are provided with earth connection points on both sides.
• When offering the accessory to the track, verify which tab needs to be removed.
(See left hand diagram).
• To remove the tab, grasp firmly with a pair of pliers and lever back.
• The tab should snap cleanly off. (See right hand diagram).
• Locate the accessory in the track and push home.
End view of track
Earth Conductor
Remove One or Other Tab
Marked in Grey
Remaining Earth tab needs
to be inserted into Earth
conductor to ensure Earth
continuity.
Thank you for purchasing this light fitting. Please read the instruction carefully before use to ensure safe and satisfactory
operation of this product. Please retain these instruction for future reference. 23W 34W
Products:
• Push the switch on the light from OFF to ON.
• Locate the product in the track with the
connections in the slot. Don’t loosen your hand,
Push the buckle tab in place to fix the light in the
track firmly.
• Replace fuse or circuit breaker and switch on.
Your light is now ready for use.
200mm
146mm
Ø79mm
197mm
140mm
Ø69mm
15W
160mm
110mm
Ø54mm
101630 / 101631 / 101632 / 101633 101634 / 101635 / 101636 / 101637
101626 / 101627 / 101628 / 101629
Push up
Push the buckle tab to
the right in place
90º
330º
Push the switch from OFF to ON
