Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and
satisfactory operation of this product. Please retain these instructions for future reference.
Warning
Layout
• Plan the desired layout of this fitting carefully,
ensuring the cables will reach the distance between
the junction box and the light fitting.
• Avoid locating any cables in positions that would
cause a hazard. Position cables and junction boxes
(not supplied) away from areas where they may be
at risk from being cut, trapped or damaged.
• The mains supply cable must have a minimum cross
sectional area of 1.0mm².
• Cables in walls must be protected using suitable
conduit or plastic trunking.
Existing fittings must be completely removed before
installation of a new product. Before removing the
existing fitting, carefully note the position of each set
of wires.
• Silde the shade anticlockwise to release it and set
asside. Also remove the plastic cover and keep in a
safe place for refitting later.
• Hold the ceiling cover in place and mark the position
of the holes.
• Ensure the wall is capable of holding the weight
of the product, or if fitting to a ceiling, ensure
there is a joist at the point of fixing to support the
weight of the product. Take care to avoid damaging
any concealed wiring and pipes. The correct
fixings should be used for brick, cavity walls or
plasterboard.
• Fix into position.
• Wire as detailed below
Installation
Check that...
• You have correctly identified the wires
• The connections are tight
• No loose strands have been left out of the connection
block.
This is a Class 1 product and must be earthed.
Please read these instructions carefully before
commencing any work.
This unit must be fitted by a competent and qualified
electrician.
Install in accordance with IEE Wiring regulations and
current Building Regulations.
To prevent electrocution switch off at mains supply
before installing or maintaining this fitting. Ensure
other persons cannot restore the electrical supply
without your knowledge. If you are in any doubt,
please consult a qualified electrician.
This light fitting should be connected to a circuit with a
30mA RCD fitted.
If replacing an existing fitting, make a careful note of
the connections.
This system contains non-replaceable parts and
cannot be serviced. If damage occurs the part should
be scrapped.
Waste electrical products should not be disposed of
with household waste. Please recycle where facilities
exist. Check with your local authority or retailer for
recycling advice.
This product is rated at IP20.
This product is not suitable for dimming.
These products should not be fitted to PIR circuits or
short duration timed switches.
Specification
Voltage: 240V ~ 50Hz
Lamp: 15W SMD 3014 LED's
IP rating: 20

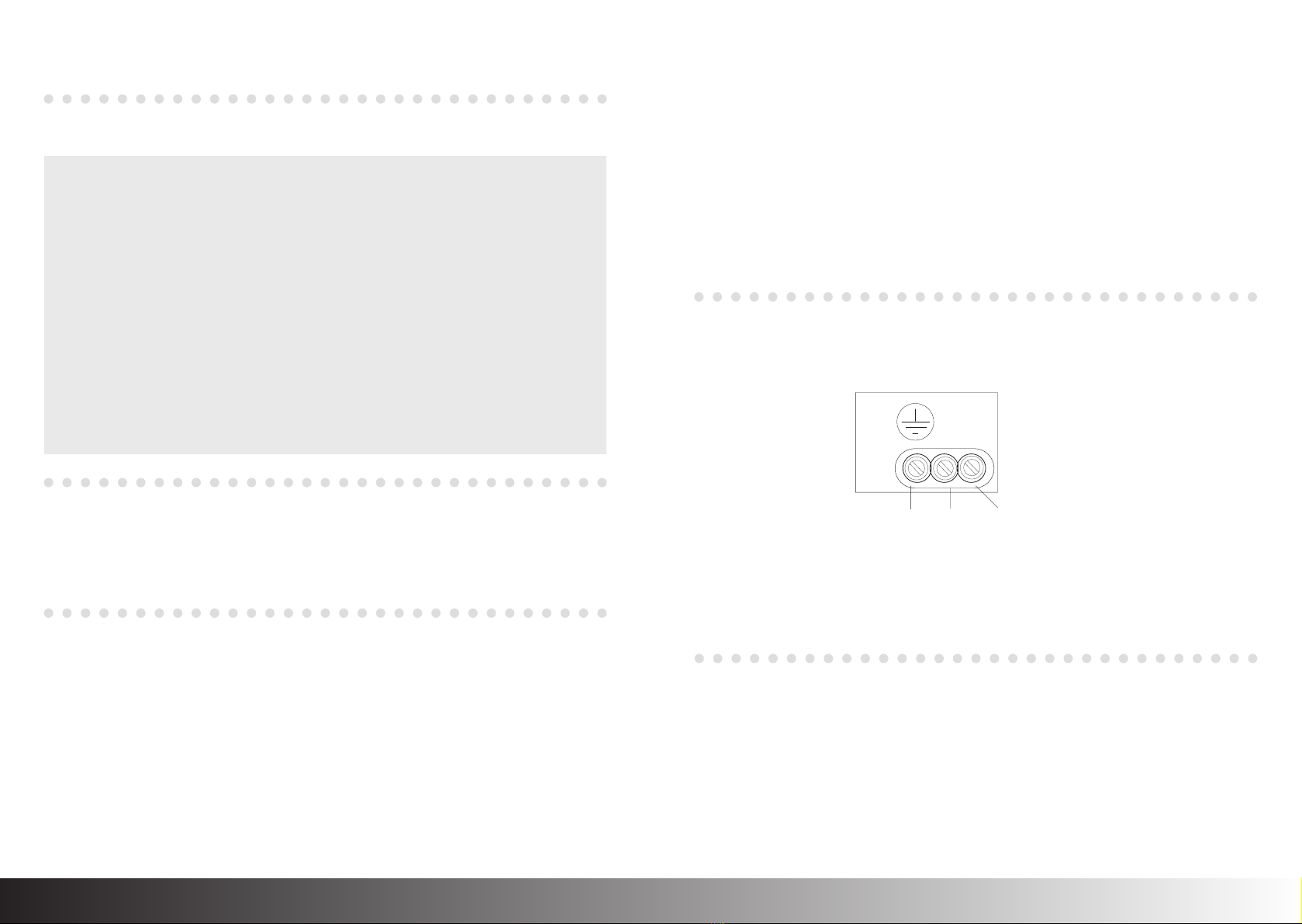

Wiring
Loosen the screw on the terminal block.
Having correctly identified the wiring from your existing
light fitting, connect to the connection block inside the
product in the following way:
• Refit the plastic cover.. Seucre in place by lining up
the adhesive pads. Make sure the holes in the plastic
cover line up with the keyholes so the screws are
accessible
• Refit the shade by lining up the three tabs on the
edge of the shade wit the three slots in the ceiling
cover. Slide the shade clockwise to secure in place.
Periodically check the fit of the shade.
• Replace fuse or circuit breaker and switch on. Your
light is now ready for use.
Commissioning
N L
Earth
Green/
Y
ll
w
Neutral
Blue
Live
Brown
