SCAN 67 User guide

67
ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 67
EU SCAN
EU - ASSEMBLY AND INSTRUCTIONS MANUAL
SCAN 67

2
67
EU SCAN
You have purchased a product by one of Europe’s leading manufacturers of
wood-burning stoves, and we are sure that you will have years of pleasure from your
purchase.
To make the best possible use of your stove, it is important that you follow
our advice and instructions. Read through this Assembly and Instruction Manual
carefully before you start to assemble your stove.
SCAN 67
1000 MM
SCAN 67
1300 MM
SCAN 67
1600 MM
CONGRATULATIONS
ON YOUR NEW SCAN
WOOD-BURNING STOVE

3
TABLE OF CONTENTS
¬¬ TECHNICAL DATA 4
Installation 4
Safety 4
Technical data and dimensions 5
Dimension sketch and minimum distances 6
Type plate 8
Product registration number 8
¬¬ ASSEMBLY 9
Tools needed for mounting of the stove 9
Loose parts 9
Additional accessories 9
Disposal of packaging 9
Fresh air intake 9
Closed combustion system 10
Existing chimney and pre-fabricated element chimney 10
Connection between stove and steel chimney 10
Requirements for chimney 11
Distance to furniture 11
Safety distance 11

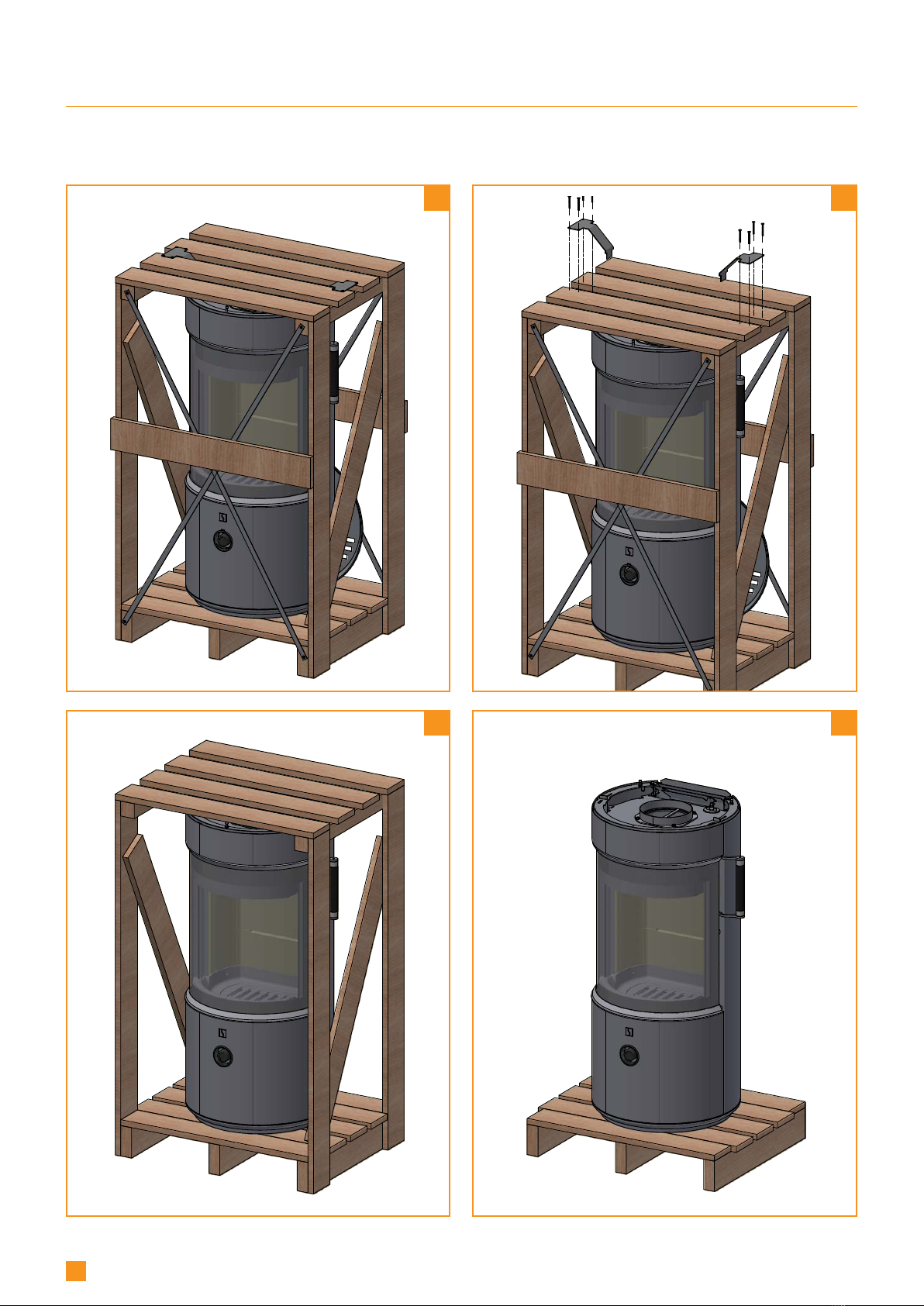

Removal of packaging 12

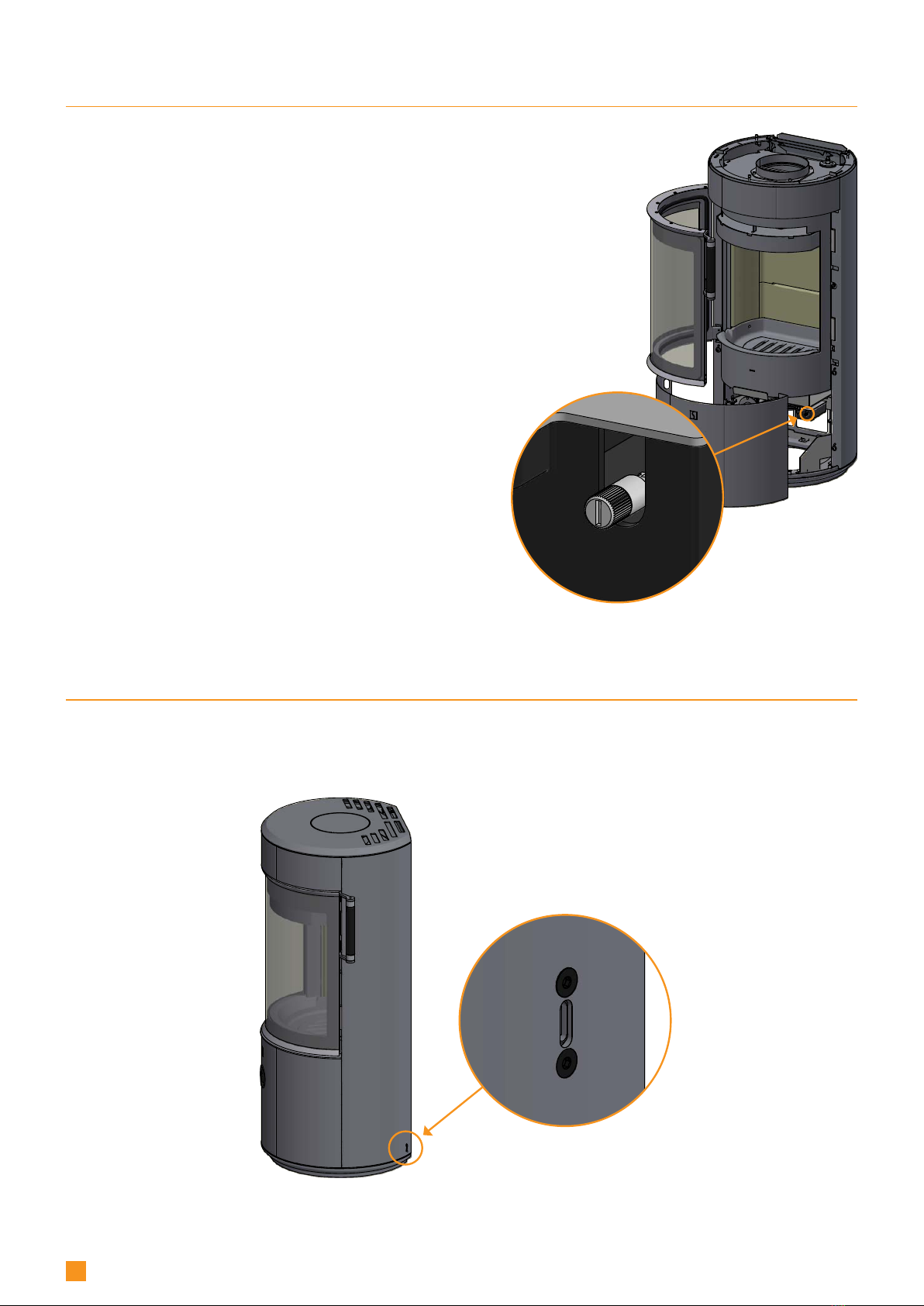

Setting of electronic air control 14
Charging of electronic air control 14
Height adjustment of stove 15
Door (Self-closing) 16

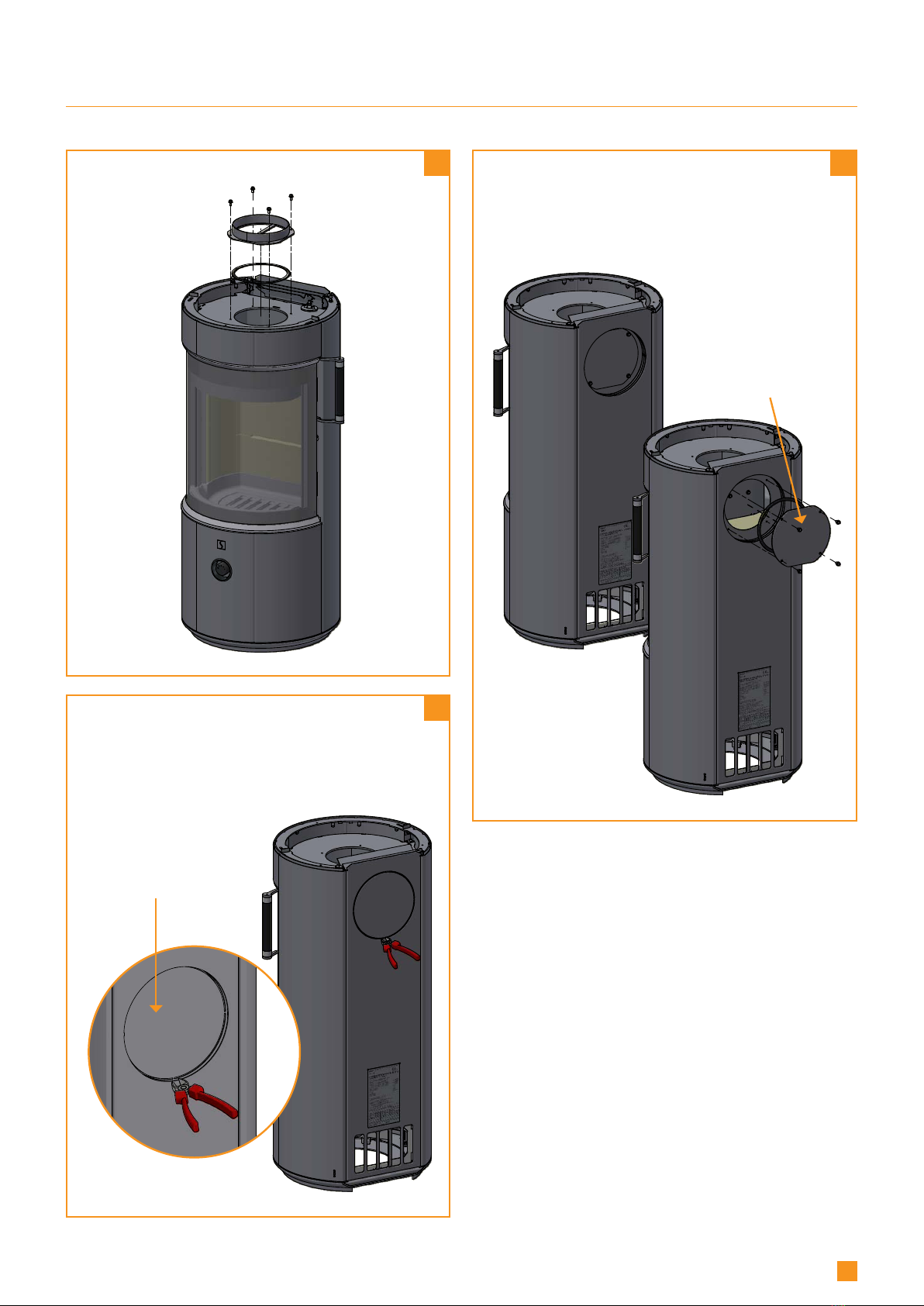

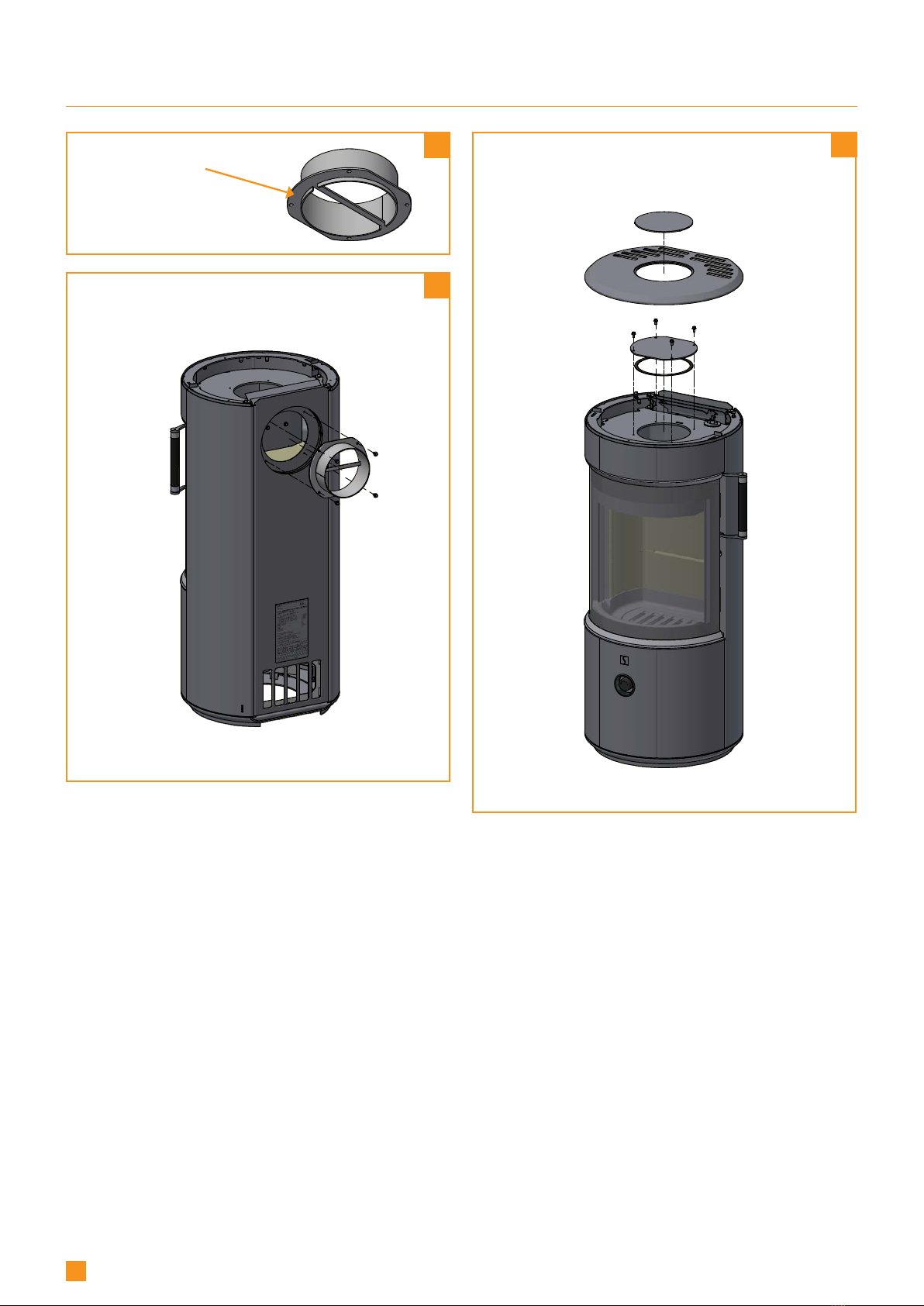

Fitting the flue connection piece 19
Handle 21
Heat-storage system 22
Load-bearing foundation 23
Floor plate 23
¬¬ INSTRUCTIONS FOR USE 24
CB-technology (Clean Burn) 24
Electronic air control 24
Manual air control 24
Baffle plates 24
Ash container 24
¬¬ INSTRUCTIONS FOR HEATING 26
Environmentally-friendly firing 26
Lighting 26
Continuous operation 27
Warning about over-firing 27
Using the stove in various weather conditions 27
Firing in the spring or autumn 27
The function of the chimney 27
Chimney fire 28
General notes 28
¬¬ HANDLING OF THE FUEL 29
Selecting wood/fuel 29
Preparation 29
Storing 29
Moisture 29
Use of the following as fuel is illegal 29
Calorific value of the wood 29
¬¬ MAINTAINANCE 30
Sweeping the chimney and cleaning the stove 30
Checking the stove 30
Servicing 30
Combustion chamber lining 30
Gaskets 30
Painted surfaces 30
Removal of baffle plates and combustion chamber lining 31
Cleaning the glass 33
Disposal of stove parts 33
¬¬ TROUBLESHOOTING 34
¬¬ WARRANTY 35

4
YOU GET THE BEST USE OF
THE STOVE BY USING
A TOP-DOWN
LIGHTING METHOD
SEE
"INSTRUCTIONS FOR HEATING"
PLEASE NOTE!
TECHNICAL DATA
INSTALLATION
¬ The house owner is responsible for ensuring that installation and assembly are in accordance with national and local building
regulations as well as the information provided in this Assembly and Instruction Manual
¬ When you install any kind of fireplace or stove, you must inform the local building and housing authorities. In addition you are
obliged to have the installation inspected and approved by a local chimney sweep prior to commissioning
¬ To ensure best-possible functionality and safety for your installation, we advise you to call a professional fitter. Your Scan
Dealer will be able to recommend a qualified fitter in your area. For information on Scan Dealers, please go to
www.scan-stoves.com
SAFETY
Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as
intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case
if parts that are necessary for the operation and safety of the stove are dismantled or removed.

5
TECHNICAL DATA AND DIMENSIONS
Test in compliance with EN 13240
CO Emission at 13% O20,055 %
CO Emission at 13% O2687 mg/Nm3
Dust @ 13% O230 mg/Nm3
Nox@ 13% O299 mg/Nm3
Efficiency 76 %
Energy efficiency index 100
Energy efficiency class A
Nominel output 5 kW
Chimney temperature EN 13240 287 °C
Temperature in flue conn. piece 344 °C
Amount of smoke 5,9 g/sec
Sub-pressure EN 13240 11 Pa
Recommended sub-pressure in
connecting piece 18 Pa
Required combustion air supply 18 m3/h
Fuel Wood
Fuel consumption 1,8 kg/h
Amount of fuel 1,4 kg
Amount of fuel, max. 2,0 kg
Surface treatment Senotherm
Max. wood length 30 cm*
Weight Scan 67 1000 mm approx. 101 kg
Weight Scan 67 1300 mm approx. 114 kg
Weight Scan 67 1600 mm approx. 121 kg
Connecting piece int. diameter for outside flue pipe 144 mm
Connecting piece ext. diameter for outside flue pipe 148 mm
Connecting piece int. diameter for inside flue pipe 157 mm
Connecting piece ext. diameter for inside flue pipe 161 mm
Fresh air connection piece external diameter 100 mm
Approval type Intermittent fuelling**
Materials
Stainless steel plate
Cast iron
Ceramic stone/vermiculite
Glass
*
**
The stove can take logs up to 35 cm (vertically placed).
Intermittent operation in this context means normal use of
a wood-burning stove. In other words, you should let the fire
die down until only the embers are left before refueling.
This stove is produced in accordance with type approval for
the product, which also covers the product’s Assembly and
Instruction Manual.
The Declaration of Performance (DoP) is available from
www.scan-stoves.com

6
900
900
360°
NAVN: STI: DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067003.idw
90067003
Målskitse Scan 67 - 1600 mm
12-01-2022 KEN
VÆGT:
AREAL:
407,81 kg
42743361 mm^2
122
463,5445 694,5
1600 407
143*
415*
1248***
1151
180
506
450
227
NAVN: STI: DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067002.idw
90067002
Målskitse Scan 67 - 1300 mm
12-01-2022 KEN
VÆGT:
AREAL:
407,81 kg
42743361 mm^2
122
463,5
407
143*
245
591,5
1300
315*
1051
1148***
180
506
450
227
NAVN: STI: DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067001.idw
90067001
Målskitse Scan 67 - 1000 mm
12-01-2022 KEN
VÆGT:
AREAL:
N/A
N/A
122
463,5
407
143*
145
391,5
1000
115*
851
948***
180
506
227
450
NAVN: STI: DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067004.idw
90067004
Opstillingstegning (afstand til brændbart materiale)
12-01-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
Y
X
1100**
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067007.idw
90067007
Opstillingstegning (afstand til brændbart materiale)
13-01-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
225
451
225
636
863
Scan 67 1300 mm Scan 67 1600 mmScan 67 1000 mm
DIMENSION SKETCH AND MINIMUM DISTANCES
All distances are in mm. All distances are minimum distances * Connection of fresh-air intake Ø 100 mm ** Min. distance to furniture/flammable material *** Height to the beginning of flue connecting piece at top outlet
Floor plate
X / Y according to national laws and regulations
Flammable material
Radiation zone

7
900
900
360°
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 87\90087007.idw
90087007
Opstillingstegning (afstand til brandmur)
02-02-2021 KEN
Scan 87
VÆGT:
AREAL:
N/A
N/A
500
304
680
1480
1693
800
50
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 87\90087007.idw
90087007
Opstillingstegning (afstand til brandmur)
02-02-2021 KEN
Scan 87
VÆGT:
AREAL:
N/A
N/A
500
304
680
1480
1693
800
50
NAVN: STI: DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067006.idw
90067006
Opstillingstegning (afstand til brændbart materiale)
13-01-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
50*
230*
457*
600
826,5
NAVN: STI: DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067008.idw
90067008
Opstillingstegning (afstand til brændbart materiale)
13-01-2022 KEN
VÆGT:
AREAL:
N/A
N/A
50*
230*
457*
400
626,5
1040
583*
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067007.idw
90067007
Opstillingstegning (afstand til brændbart materiale)
13-01-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
225
451
225
636
863
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067009.idw
90067009
Opstillingstegning (afstand til brændbart materiale)
13-01-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
100
458
685
850
850
100
NAVN: STI: DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067005.idw
90067005
Opstillingstegning (afstand til brændbart materiale)
12-01-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
700
Flammable ceiling
(Scan 67 1600 mm)

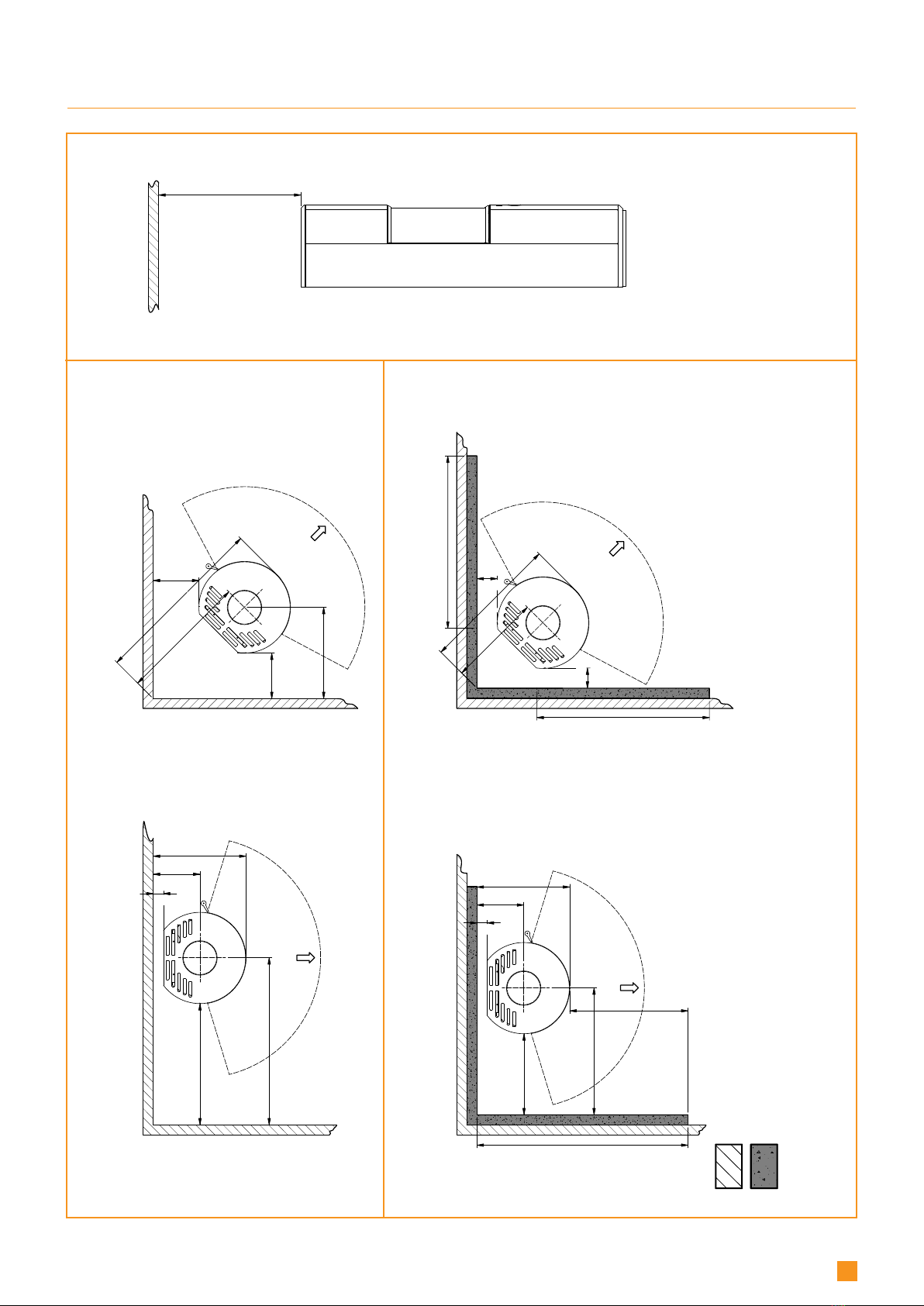

MINIMUM DISTANCES
Flammable material Fire wall, e.g. 50 mm Jøtul Firewall, 110 mm brick or other material with corresponding fireproof and insulating abilities
All distances are in mm. All distances are minimum distances * Half-insulated chimney / shielded flue pipe (The requirements to the chimney and the flue pipe in terms of safety distances must be met)
Minimum distance to flammable materials
Minimum distance to flammable wall protected by a fire wall

8
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067010.idw
90067010
Ovn med typeskilt og produktregistreringsnummer
14-02-2022 KEN
SCAN 67
VÆGT:
AREAL:
254,34 kg
28191423 mm^2

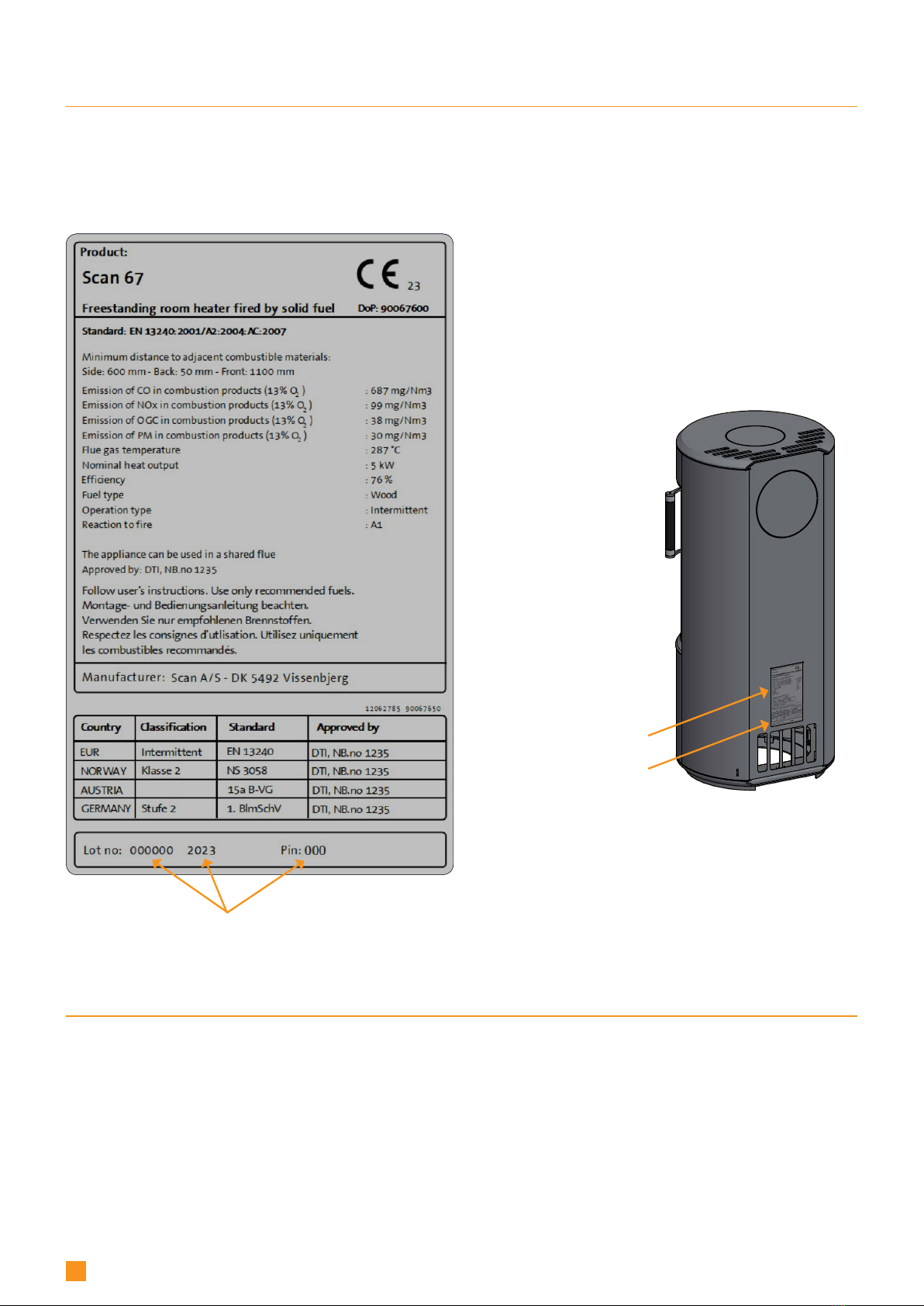

Typeplate
Type plate
Product
registration number
Product registration number
PRODUCT REGISTRATION NUMBER
All Scan wood-burning stoves are provided with a product registration number. Please make a note of this number at the rear
page of this manual; you will always need to quote it when contacting your dealer or Scan A/S.
The product registration number is located at the rear of the stove.
TYPE PLATE
All Scan wood-burning stoves are fitted with a type plate that specifies the approval standards and the distance to flammable
materials.
The type plate is located at the rear of the stove.

9
ASSEMBLY
TOOLS NEEDED FOR MOUNTING OF THE STOVE
¬ Spirit level ¬ Combo wrench 8 mm
¬ Cutting nippers ¬ 3 allen keys (2,5 mm, 4 mm & 5 mm)
LOOSE PARTS
In the stoves combustion chamber you will find the following loose parts:
¬ Glove ¬ Connecting piece 148 cm for outside flue pipe
¬ Seal for the connecting piece ¬ Dekor plate for top plate
¬ USB-C charger cable for Zensoric control ¬ Eco energy label
ADDITIONAL ACCESSORIES
¬ Small shaped floor plate in glass ¬ Large shaped floor plate in glass
¬ Scan 67 1300 cm: Heat accumulating stones ¬ Scan 67 1600 cm: Heat accumulating stones
(2 items approx. 21 kg) (5 items approx. 52,5 kg)
¬ Handle - 7 different kinds
DISPOSAL OF PACKAGING
Your Scan stove may come supplied with the following packaging:
Wood packaging The wood packaging can be reused and after final use can be incinerated as a CO2neutral
product or sent for recycling
Foam Send for recycling or waste disposal
Plastic bags Send for recycling or waste disposal
Stretch/plastic film Send for recycling or waste disposal
FRESH AIR INTAKE
In a well-insulated house, the air used up by the burning process has to be replaced. This particularly applies to houses with
mechanical ventilation. There are different ways of making sure that an air exchange takes place. The most important thing is to
ensure that there is a supply of air to the room where the wood stove is located. The external wall vent must be located as close
to the wood stove as possible, and you must be able to close it when you are not using the wood stove.
National and local building regulations must be followed with regard to the connection of fresh-air intake.

10
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067032.idw
90067032
Friskluftstilslutning
03-03-2022 KEN
Scan 67
VÆGT:
AREAL:
254,18 kg
28175583 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067010.idw
90067010
Ovn med typeskilt og produktregistreringsnummer
14-02-2022 KEN
SCAN 67
VÆGT:
AREAL:
254,34 kg
28191423 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068058.idw
90068058
klargøring til vægbeslag
12-05-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
EXISTING CHIMNEY AND PRE-FABRICATED ELEMENT CHIMNEY
If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chim-
ney sweep, for advice. These experts will also let you know if your chimney needs renovating.
¬ When connecting a pre-fabricated element chimney, follow the manufacturer’s connection instructions for the
relevant chimney type.
CONNECTION BETWEEN STOVE AND STEEL CHIMNEY
Your Scan dealer, or local chimney sweep, can advise you on choosing a make and type of steel chimney. This ensures that the
chimney will match your wood-burning stove.

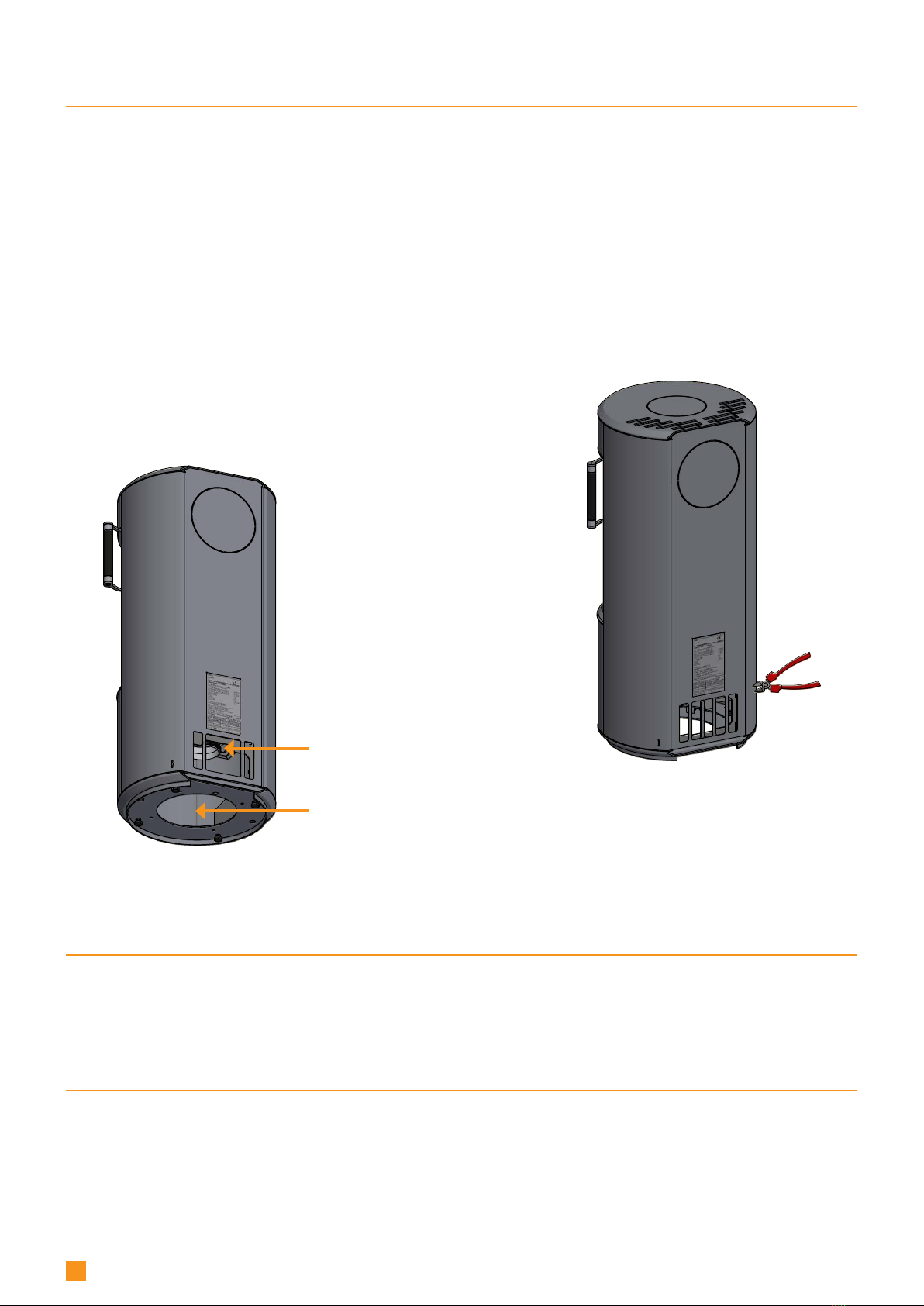

If you want external combustion
air via a wall, remove the cover
plate at the rear of the stove with
a pair of cutting pliers
External
combustion air
via wall
External
combustion air
via floor
CLOSED COMBUSTION SYSTEM
You should use the closed combustion system for the wood-burning stove if you live in a newly-built, airtight home.
External combustion air is connected through a ventilation pipe via the wall or floor.
We recommend mounting a valve in the ventilation pipe in order to avoid condensate in the stove and the pipe system, when the
stove is not in use. It can also be an advantage to insulate the ventilation pipe.
Minimum Ø 100 mm ventilation pipe, maximum length: 6 metres with a maximum of one bend. We recommend smooth steel
pipes.
If the external combustion air is connected at the rear, the dismounted plate must be mounted on the hole for external air in the
bottom of the stove.
NOTE: if the stove has a fresh air connexion or closed combustion, the ventilation pipe must be open, when the stove is in use!

11
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067015.idw
90067015
Ovn med buet knærør
28-01-2022 KEN
Scan 67
VÆGT:
AREAL:
257,27 kg
28689967 mm^2
REQUIREMENTS FOR CHIMNEY
The chimney must have a minimum internal diameter of 148 mm and have a T400 designation, with G for the soot fire test. The
length should be min. 4 metres.

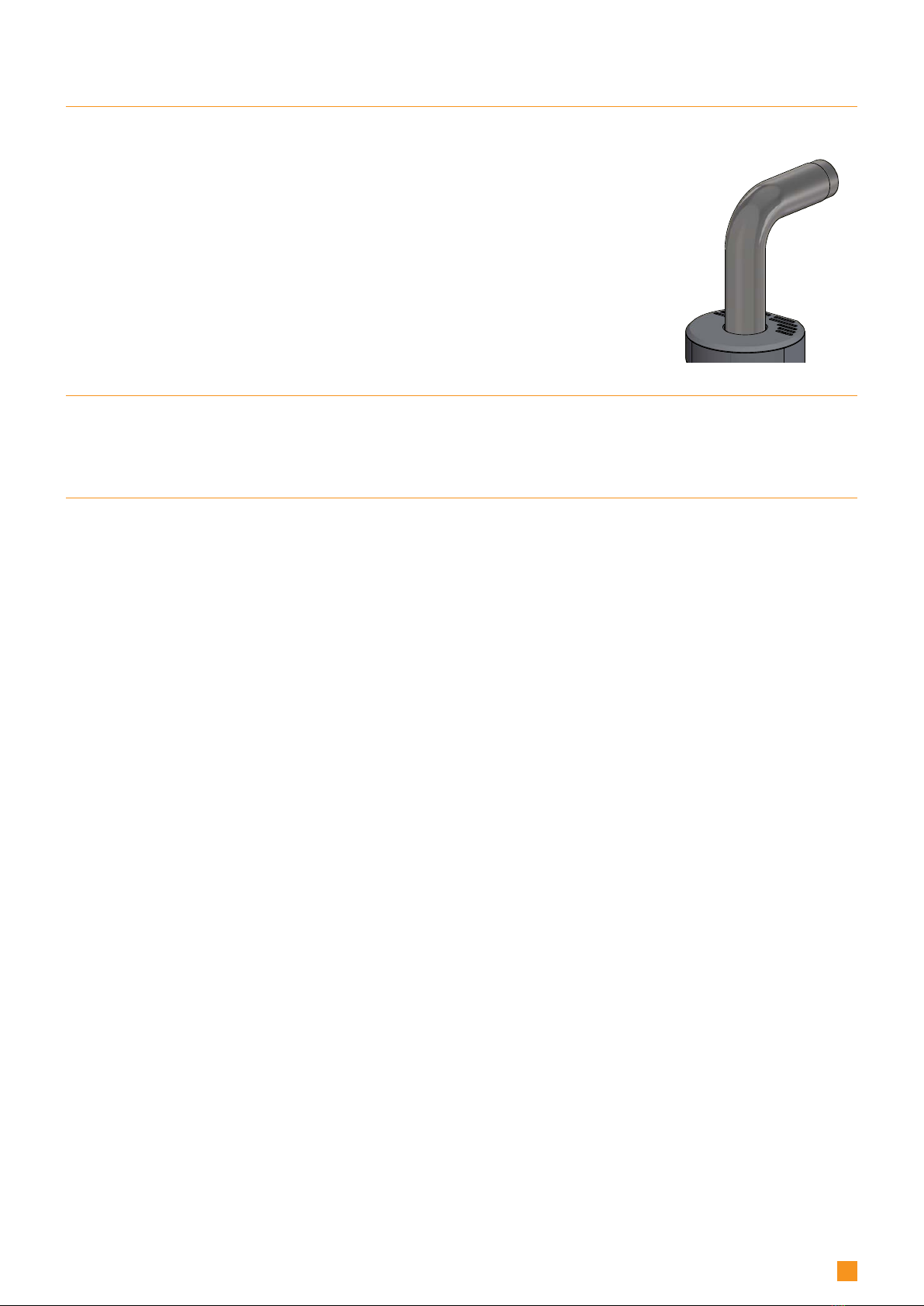

If you opt to connect the stove with an elbow pipe, you should use a curved elbow, as this gives a better draught.
If you connect the stove with a sharp elbow pipe, the cleansing lid must be placed in the vertical
part so that the horizontal part can be cleaned through here.
If the chimney is fitted with a smoke extractor, it must be possible to adjust it to a suitable draft.
The requirements to the chimney and the flue pipe in terms of safety distances must be met.
¬ Choosing the wrong length or diameter of chimney could impair functionality
¬ Always comply exactly with the instructions provided by the chimney supplier
¬The stove is not prepared for a balanced chimney, in which case the warranty is invalid
DISTANCE TO FURNITURE
Distance to furniture from glass: 1100 mm.
You should however assess whether furniture or other items might become excessively dry due to being too close to the stove.
SAFETY DISTANCE
European, national and local regulations concerning safety distances for wood-burning stoves must be complied with.
The stove must be set up so that the stove itself, the flue pipe, and the chimney can all be cleaned.

12
21
43
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067044.idw
90067044
Scan 67 - Palle
16-03-2022 KEN
Scan 67
VÆGT:
AREAL:
321,76 kg
45502056 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067045.idw
90067045
Scan 67 - Palle
16-03-2022 KEN
Scan 67
VÆGT:
AREAL:
321,76 kg
45502056 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067046.idw
90067046
Scan 67 - Palle
16-03-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067047.idw
90067047
Scan 67 - Palle
16-03-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
REMOVAL OF PACKAGING
Check that the stove is not damaged before starting to install it.
The stove comes attached to a wooden pallet on delivery.

13
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067050.idw
90067050
Scan 67 - Palle
16-03-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
65
7 8
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067048.idw
90067048
Scan 67 - Palle
16-03-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067049.idw
90067049
Scan 67 - Palle
16-03-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067050.idw
90067050
Scan 67 - Palle
16-03-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
A
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580025B.idw
90580025B
Afmontering fra Palle 12-04-2021
KEN
Scan 80
Weight: Area:
N/A N/A
REMOVAL OF PACKAGING
Remove the cover plate in the base
Remove the screws
Lift off the front of the base
The LED is placed loose inside the stove and must be
mounted before the front plate is fitted. Press the LED
down until it "clicks"

14
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067041.idw
90067041
Opladning af elektronisk luftregulering
14-03-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067041.idw
90067041
Opladning af elektronisk luftregulering
14-03-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067061.idw
90067061
Stting of electronic control
16-05-2022 KEN
Scan 67
VÆGT:
AREAL:
422,85 kg
44250721 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067061.idw
90067061
Stting of electronic control
16-05-2022 KEN
Scan 67
VÆGT:
AREAL:
422,85 kg
44250721 mm^2
CHARGING OF ELECTRONIC AIR CONTROL
Before firing in the stove, the electronic air control - Zensoric must be charged by connecting the supplied USB-C charger plug at
the bottom of the side of the stove and the 5V power supply in the socket.
SETTING OF ELECTRONIC AIR CONTROL
The electronic air control on Scan 67 run in 3 levels:
Step 1 - Suitable for softwood, e.g. fir, pine, poplar, willow
Step 2 - Suitable for between hardwoods, e.g. birch, maple, or mixed hardwood
Step 3 - Suitable for hardwood, e.g. beech, ash, oak
The stove is delivered set to Step 2 - which suits the needs of most consumers.
If you want to change the setting, turn the air control button:
Step 1 - Turn clockwise
Step 2 - Set to center position
Step 3 - Turn counterclockwise
When the door is opened, the LED blinks:
1 white blink - Step 1
2 white blink - Step 2
3 white blink - Step 3

15
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067040.idw
90067040
Indstilling af justerskruer
04-03-2022 KEN
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067040.idw
90067040
Indstilling af justerskruer
04-03-2022 KEN
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067040.idw
90067040
Indstilling af justerskruer
04-03-2022 KEN
VÆGT:
AREAL:
N/A
N/A
5 mm
HEIGHT ADJUSTMENT OF STOVE
The stove has four adjustment screws under the stove. Use the adjustment screws to get the stove to stand straight and level.
NOTICE: It is very important that the stove is level to allow an optimal function of the door. Please note that once mounted the
stove can no longer be adjusted!
Adjustment screw

16
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067034.idw
90067034
Justering af selvluk
11-03-2022 KEN
Scan 67
VÆGT:
AREAL:
283,56 kg
29265430 mm^2
*
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067034.idw
90067034
Justering af selvluk
11-03-2022 KEN
Scan 67
VÆGT:
AREAL:
283,56 kg
29265430 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067034.idw
90067034
Justering af selvluk
11-03-2022 KEN
Scan 67
VÆGT:
AREAL:
283,56 kg
29265430 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067033.idw
90067033
Justering af selvluk
11-03-2022 KEN
Scan 67
VÆGT:
AREAL:
283,56 kg
29265430 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067033.idw
90067033
Justering af selvluk
11-03-2022 KEN
Scan 67
VÆGT:
AREAL:
283,56 kg
29265430 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067043.idw
90067043
Justering af selvluk
11-03-2022 KEN
Scan 67 - 1600 mm
VÆGT:
AREAL:
N/A
N/A
DOOR (SELF-CLOSING)
The door is delivered without self-closing function (Bauart 1).
Long screw
Pointed screw
If you want a self-closing door, the spring can be
tightened by turning the long screw (inside the spring)
clockwise using a Allen key (5 mm) and at the same time
tightening the pointed screw at the bottom with a Allen key
(2.5 mm)
NOTICE: Scan 67 1300 mm/1600 mm (see page 17)
Long screw

17
21
43
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067054.idw
90067054
Disassembly of bauart
19-04-2022 KEN
Scan 67
VÆGT:
AREAL:
407,53 kg
42691873 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067054.idw
90067054
Disassembly of bauart
19-04-2022 KEN
Scan 67
VÆGT:
AREAL:
407,53 kg
42691873 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067054.idw
90067054
Disassembly of bauart
19-04-2022 KEN
Scan 67
VÆGT:
AREAL:
407,53 kg
42691873 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067055.idw
90067055
Disassembly of bauart
19-04-2022 KEN
Scan 67
VÆGT:
AREAL:
407,53 kg
42691873 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067055.idw
90067055
Disassembly of bauart
19-04-2022 KEN
Scan 67
VÆGT:
AREAL:
407,53 kg
42691873 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067056.idw
90067056
Disassembly of bauart
19-04-2022 KEN
Scan 67
VÆGT:
AREAL:
0,01 kg
1392 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067056.idw
90067056
Disassembly of bauart
19-04-2022 KEN
Scan 67
VÆGT:
AREAL:
0,01 kg
1392 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067054.idw
90067054
Disassembly of bauart
19-04-2022 KEN
Scan 67
VÆGT:
AREAL:
407,53 kg
42691873 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067057.idw
90067057
Disassembly of bauart
19-04-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067057.idw
90067057
Disassembly of bauart
19-04-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A

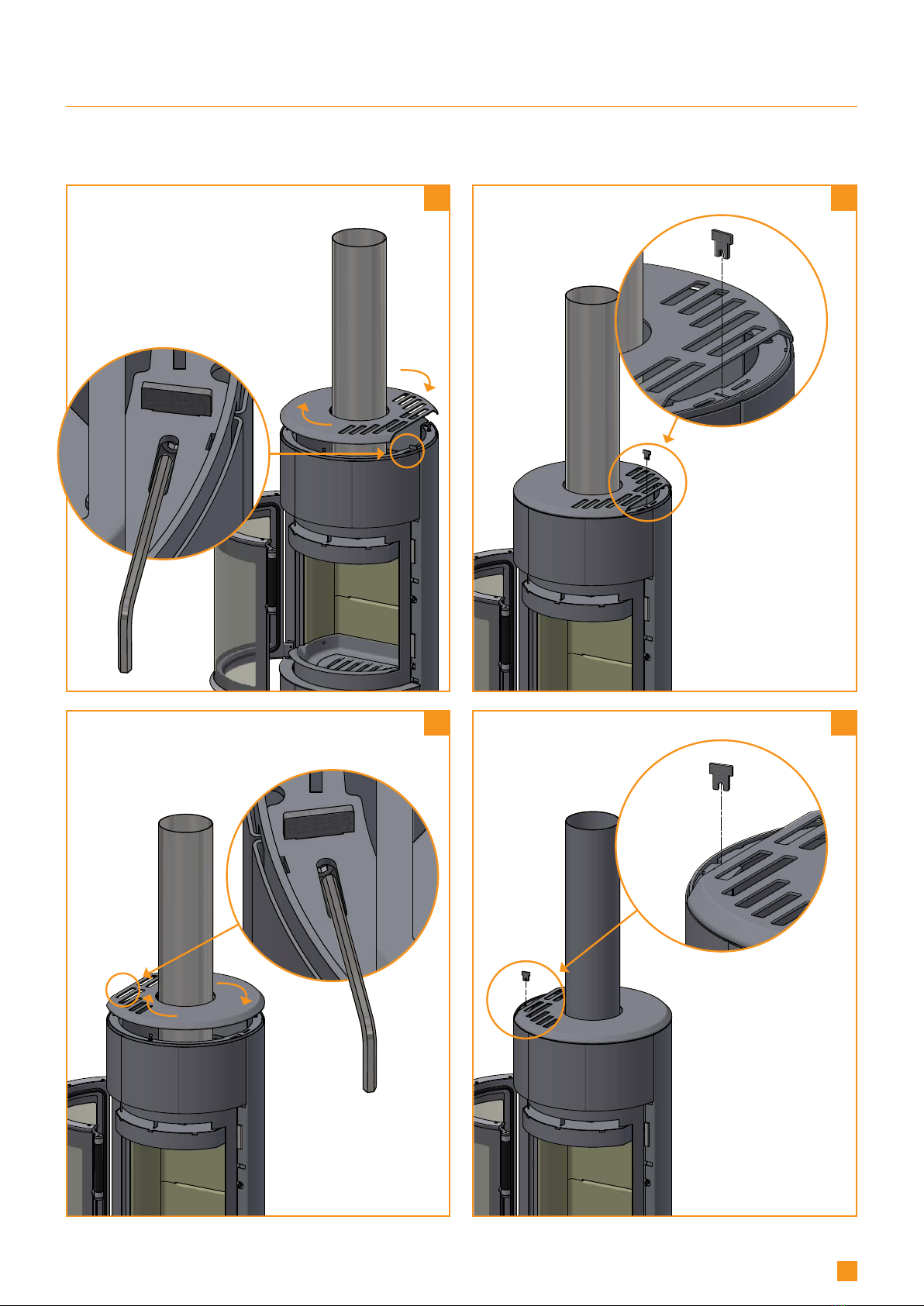

DOOR (SELF-CLOSING)
NOTICE: Scan 67 1300 mm/1600 mm.
If you want a self-closing door, when the flue pipe is mounted, the front plate must first be removed.
Pull up the locking pieceLift the top plate and turn it a quarter turn.
Then loosen the screw inside the top.
Important! Open the door before
loosening the screws
Lift the top plate and turn it half a turn.
Then loosen the screw inside the top
Pull up the locking piece

18
65
7
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067058.idw
90067058
Disassembly of bauart
19-04-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067059.idw
90067059
Disassembly of bauart
19-04-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067060.idw
90067060
Disassembly of bauart
19-04-2022 KEN
Scan 67
VÆGT:
AREAL:
407,74 kg
42687857 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067060.idw
90067060
Disassembly of bauart
19-04-2022 KEN
Scan 67
VÆGT:
AREAL:
407,74 kg
42687857 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067058.idw
90067058
Disassembly of bauart
19-04-2022 KEN
Scan 67
VÆGT:
AREAL:
N/A
N/A
Pull the frontplate down and outRemove screws while holding on to the frontplate
Then it is possible to adjust the long screw (see page 16)
DOOR (SELF-CLOSING)

19
31
2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067026.idw
90067026
Scan 67 - Afmontage af røgstuds i topafgang
16-02-2022 KEN
Scan 67
VÆGT:
AREAL:
0,00 kg
526 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067027.idw
90067027
Afmontage dækplade i svøb, bagudgang
16-02-2022 KEN
Scan 67
VÆGT:
AREAL:
253,95 kg
28173411 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067028.idw
90067028
Afmontage dækplade i varmeskjold, bagudgang
16-02-2022 KEN
Scan 67
VÆGT:
AREAL:
253,95 kg
28173411 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067030.idw
90067030
Afmontage dæksel i bagudgang
16-02-2022 KEN
Scan 67
VÆGT:
AREAL:
253,59 kg
28111475 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067030.idw
90067030
Afmontage dæksel i bagudgang
16-02-2022 KEN
Scan 67
VÆGT:
AREAL:
253,59 kg
28111475 mm^2
Remove the cover.
This is to be used later as a seal and cover at the top
of the smoke outlet
Cover
Unscrew the stove’s heat shield and remove it.
Using cutting pliers, cut off the cover plate from the rear
plate and at its securing points
Unscrew the stove’s connecting piece and remove it
FITTING THE FLUE CONNECTION PIECE
The stove is prepared from the factory for top outlet for inside flue pipe.
Heat shield
IN THE REAR OUTLET

20
6
5
4
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067031.idw
90067031
Scan 67 - Montage af dæksel i topafgang
03-03-2022 KEN
Scan 67
VÆGT:
AREAL:
257,27 kg
28689967 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067029.idw
90067029
Montage røgstuds i bagudgang
16-02-2022 KEN
Scan 67
VÆGT:
AREAL:
253,59 kg
28111475 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 67\90067029.idw
90067029
Montage røgstuds i bagudgang
16-02-2022 KEN
Scan 67
VÆGT:
AREAL:
253,59 kg
28111475 mm^2
Fit the cover and tighten it.
Place the top plate
Fit the connecting piece with the four screws
FITTING THE FLUE CONNECTION PIECE IN THE REAR OUTLET
Mount the ceramic gasket on the
connecting piece
