LYRA - JACK
IN-GROUND HYDRAULIC OPERATOR
JACK
JACK
CARRYING BOX
LYRA
FRANÇAIS
ENGLISH
ITALIANO

15
International registered trademark n. 804888
GENERAL FEATURES
COMPONENTS
11
12
13
14
15
16
17
1 External box
2 Oil filler cap
3 Oil level indicator
4 Hydraulic fittings
5 Release screw
6 By-Pass Valves
7 Jack
8 Broached bush
9 Box lid
1
2
3
4
5
JACK - NON-CARRYING BOX
JACK - CARRYING BOX
6
789
10
LYRA - HYDRAULIC UNIT
LEAF WEIGHT (Kg)
LEAF LENGTH (m)
ENGLISH
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
The LYRA JACK is made of a hydraulic pump and a hydraulic jack. The jack is placed inside a NON-
CARRYING BOX or inside a STAINLES STEEL CARRYING BOX according to the model.
The LYRA pump unit casing is used as an oil tank and contains the electric motor, the hydraulic pump, the
distributor and the hydraulic oil. The JACK is composed by a double piston connected to a rack which
engages with the pinion of the leaf dragging shaft.
Gates up to 2 meters long can be securely locked using the operators internal hydraulic locking system, to
ensure a perfect keeping in opening and closing. For gates of length over 2 meters it is advisable to use
operators without hydraulic lock and separate electrical locking device to ensure keeping in closing.
The operator can be optionally provided with an adjustable hydraulic slowing-down device operating in
both opening and closing (during the last 15° of rotation).
The operator is equipped with a release system for the manual opening of the leaves in case of power failure
10 Foundation box
11 Foundation base
12 Braking adjustment screw
(optional)
13 Greaser
14 Rod support
15 Draining screw
16 Electric cable exit hole
17 Water draining hole
APPLICATION CHARTS
JACK
400
JACK
400
1500 Kg
800 Kg
JACK
800
45
60
SUPER JACK
1500
JACK
800
SUPER JACK
1500
400 Kg
LEAF MAX WEIGHT
CYCLES/HOUR
OPERATOR
0
200
400
600
800
1000
1200
1400
1600
1 2 3 4 5 6 7 8
SUPER JACK 1500
JACK 800
JACK 400

16
The indicated frequency of use is valid only for the first operating hour and at a 20°C temperature
«JACK» ROTATION ANGLE
DIMENSIONS (in mm)
401
210
121
400 - 440
121
202
400 mm 100° - 140°
440 mm 180°
152
188
320
410
68
55
Fig. 6
Fig. 7
Fig. 8
DO NOT enable the electronic slow-down on the control unit if the operator is equipped with hydraulic slow-down
POWER SUPPLY
MOTOR POWER
MOTOR ROTATION SPEED
ANGULAR SPEED
CYCLES HOUR (T = 20°C)
OPERATING TEMPERATURE
THERMAL PROTECTION
MAX TORQUE
STARTING CAPACITOR
PUMP CAPACITY
HYDRAULIC SLOWDOWN
OPERATOR Weight
PROTECTION CLASS
MAX. LEAF WEIGHT
MAX. LEAF LENGTH
TECHNICAL DATA
JACK - NON-CARRYING BOX
JACK - CARRYING BOX
LYRA - HYDRAULIC UNIT
International registered trademark n. 804888
ENGLISH
LYRA JACK 800 JACK 1500 SUPER LYRA
JACK 400
230 Vac 50/60 Hz
-
-
220W 310W
1400 rpm
-
-
7° / s 8,2° / s
45 60
-20°C +55°C
-
150°
130°
-
-
56 daNm 75daNm
-
12,5 µF 10 µF
1,5 L
1 L
-
15° OPENING/CLOSING (OPTIONAL)
-
-
8 Kg
IP67
400 Kg 800 Kg 1500 Kg
4 m
100° - 140° - 180°
5 m
100°
-
-
-

17
1 - GATE ARRANGEMENTS
Before the installation, check that all gate parts (fixed and mobile) have a resistant and non-deformable
structure; also make the following checks:
1.1. the leaves must be rigid and compact;
1.2. the weight and length of each leaf should not exceed the values supported by the specific operator
model (see tables);
1.3. the hinges and the structure of the gate must operate smoothly throughout the execution of the
movement, without frictions or obstacles
ONLY THE UPPER HINGE IS SUFFICIENT TO INSTALL THE OPERATOR;
1.4. THE INSTALLATION OF THE MECHANICAL STOPS IN OPENING AND CLOSING IS ALWAYS NECESSARY
2 - INSTALLATION OF THE FOUNDATION BOX (NON-CARRYING BOX)
SHEATH FOR
HYDRAULIC
PIPES
HYDRAULIC
UNIT
=
=
600 mm
300
mm
160 mm
Fig. 9 Fig. 10
Fig. 11 Fig. 12
To install the foundation NON CARRYING box:
2.1. Based on the measurements shown in Fig. 9, prepare an excavation inside which the foundation box
will be cemented
IT IS MANDATORY TO RESPECT THE MINIMUM DISTANCE OF THE ROTATION AXIS FROM THE PILLAR - 55 mm
2.2. Provide a PVC DRAIN PIPE FOR THE DRAINAGE OF RAINWATER, to be inserted in the OF 40 MM Ø AT LEAST
slot inside the box before it is cemented (Fig. 10); BRING THE PIPE TO THE DRAIN OF THE SEWER LINE
2.3. Provide a FLEXIBLE PLASTIC SHEATH FOR THE PASSAGE OF THE HYDRAULIC PIPES, to OF 32 MM Ø AT LEAST
be inserted in the slot inside the box before it is cemented (Fig. 10); BRING THE PIPES UP TO THE «LIRA»
HYDRAULIC UNIT
2.4. Before cementing the foundation box, make sure that it is perfectly horizontal and perpendicular to the
axis of the gate, using a level (Fig. 11 - Fig. 12)
PVC WATER
DRAIN PIPE
International registered trademark n. 804888
ENGLISH

18
4.1. Insert the broached bush on the jack shaft.
4.2. Turn the jack shaft toward closing until it stops.
4.3. Move the leaf back about 5° and weld the bush to the with «U» shaped iron bar (not supplied), and
to the gate leaf (Fig. 15)
4.4. Caution! Do not place the leaf outside the axes (Fig. 17 and 18); make sure that the shaft coincides
with the rotation axis of the jack (Fig. 16)
3 - «JACK» INSTALLATION INSIDE THE NON-CARRYING BOX
3.1. Place the jack in the foundation box (Fig.13), positioning the axis of the output shaft aligned with the
axis of the gate hinge; weld the 4 corners to fix (Fig.14)
4 - LEAF INSTALLATION ON THE NON-CARRYING BOX
FOR OPERATORS WITH BRAKE: MAKE SURE THAT THE JACK HAS REACHED THE STOP AND NOT ONLY THE
SLOWDOWN BEGINNING POINT!
PIVOT
SHAFT
BUSH
«U»
SHAPED
BAR
LEAF
DO NOT PLACE THE LEAF OUTSIDE THE AXES (FIG. 17 - 18); MAKE THE SHAFT COINCIDE WITH THE ROTATION AXIS
OF THE LEAF HINGE; THE MINIMUM DISTANCE FROM THE COLUMN MUST BE 55 MM (FIG. 16)
55 mm
min.
Fig. 13
Fig. 14
Fig. 15
Fig. 17 Fig. 18
Fig. 16
International registered trademark n. 804888
ENGLISH

19
600 mm
450
mm
215 mm
6 - ASSEMPBLY OF THE LEAF SUPPORTING RODS
6.1. Insert the sliding bushing into the box and secure it
with the appropriate screw (Fig. 23)«A»
6.2. Insert all assemblies as shown in Fig. 23 A
Fig. 19 Fig. 20
Fig. 21 Fig. 22
Fig. 23
5 - INSTALLATION OF THE CARRYING BOX (STAINLESS STEEL BOX)
To install the foundation CARRYING box:
5.1. Based on the measurements shown in Fig. 19, prepare an excavation inside which the foundation box
will be cemented
IT IS MANDATORY TO RESPECT THE MINIMUM DISTANCE OF THE ROTATION AXIS FROM THE PILLAR - 55 mm
5.2. Provide a PVC DRAIN PIPE FOR THE DRAINAGE OF RAINWATER, to be inserted in the OF 40 MM Ø AT LEAST
slot inside the box before it is cemented (Fig. 20); BRING THE PIPE TO THE DRAIN OF THE SEWER LINE
5.3. Provide a FLEXIBLE PLASTIC SHEATH FOR THE PASSAGE OF THE HYDRAULIC PIPES, to OF 32 MM Ø AT LEAST
be inserted in the slot inside the box before it is cemented (Fig. 20); BRING THE PIPES UP TO THE «LIRA»
HYDRAULIC UNIT
5.4. Before cementing the foundation box, make sure that it is perfectly horizontal and perpendicular to the
axis of the gate, using a level (Fig. 21 - Fig. 22)
SHEATH FOR
HYDRAULIC
PIPES
HYDRAULIC
UNIT
PVC WATER
DRAIN PIPE
WARNING! BEFORE ASSEMBLY, LUBRICATE ALL
COMPONENTS WITH THE SUPPLIED GREASE LEAF
SUPPORTING
ROD
ROD
SUPPORT
BOX
SHAFT
BUSH
International registered trademark n. 804888
ENGLISH

20
4.1. Place the gate leaf on the support rod, taking care to
make the rotation axis of the leaf hinge coincide with the
rotation axis of the support; be sure to respect the
perpendicularity with the rotation axis (Fig. 24 - Fig. 25)
4.2. Carefully weld the support rod to the leaf, making
fixing sections of about 3 or 4 cm along the contact
surface and avoiding welding near the threaded holes
(Fig. 26)
7 - LEAF INSTALLATION ON THE CARRYING BOX
BEFORE INSTALLING THE LEAF ON THE FOUNDATION BOX,
MAKE SURE THAT THE CONCRETE INSIDE THE EXCAVATION
IS PERFECTLY SOLIDIFIED
55 mm
min.
Fig. 24
Fig. 25
Fig. 26
Fig. 27 Fig. 28
Fig. 29 Fig. 30
HOLES
LEAF
SUPPORT
ROD
LEAF
ROTATION
AXIS
LEAF
DO NOT PLACE THE LEAF OUTSIDE THE AXES (FIG. 27 - 28); MAKE THE SHAFT COINCIDE WITH THE ROTATION AXIS
OF THE LEAF HINGE; THE MINIMUM DISTANCE FROM THE COLUMN MUST BE 55 MM (FIG. 29)
GREASE ALL PARTS BY THE USE OF THE SPECIAL GREASER (FIG.61), UNTIL THE GREASE COMES OUT FROM BOTH SIDES
International registered trademark n. 804888
ENGLISH

21
MAKE SURE TO MOUNT THE OPERATOR IN THE CORRECT POSITION;
REFER TO THE FOLLOWING DRAWINGS TO EXECUTE THE CORRECT OPERATOR POSITIONING SEQUENCE
8.1. Position the operator in correspondence with the carrying box and insert it vertically, making sure it is
positioned in the correct direction, as shown in Fig. 31
8.2. Once the operator has been placed into the box, move it forward (Fig. 32) until the splined shaft of the
operator is in correspondence with the hole of the box shaft
8.3. Lift the operator and insert its shaft inside the box shaft (Fig. 33)
8.4. Secure the operator by acting on the screws «1» and «2» as shown in Fig. 34
8.5. Make the connections of the hydraulic pipes to the unit and to the jack (Chap. 12 - Fig. from 50 to 53)
2
1
8 - «JACK» INSTALLATION INSIDE THE CARRYING BOX
Fig. 31 Fig. 32
Fig. 33 Fig. 34
IT IS ADVISABLE TO WELD THE ROD SUPPORT AND THE BOX SHAFT (FIG. 36) AFTER INSTALLING THE OPERATOR
INSIDE THE BOX, IN ORDER TO TAKE ADVANTAGE OF ALL THE AVAILABLE STROKE AND, FOR VERSIONS WITH
BEFORE WELDING THE TWO COMPONENTS, BE CAREFUL THAT ONE OF THE SHAFT PLANES COINCIDES WITH ONE OF
OF THE ROD SUPPORT SIDES (FIG. 35) TO ENSURE THE MAXIMUM ANGLE WHEN THE «MECHANICAL STOP KIT» IS
INSTALLED
HYDRAULIC SLOWDOWN, TO SIMPLIFY THE REACHING OF THE DESIRED SLOWDOWN STARTING POINT
International registered trademark n. 804888
ENGLISH

22
Fig. 36
Fig. 35
WELD ONLY AT THE TIME OF INSTALLATION (IN CASE THE OPERATOR IS INSTALLED LATER)
9 - ADJUSTABLE MECHANICAL STOP INSTALLATION
9.1. Insert the stop bracket into the box shaft, making sure it is oriented in the same direction of the leaf
support bracket, then lock it with the seeger (Fig. 37 and Fig. 38)
6.2. Fix the two stop supports «A» to the box using the provided screws «B» and their fixing bolts (Fig. 39)
6.3. Insert the two «stop screws» «C» into the special housings on the stop supports, using the bolts «D»
as shown in (Fig. 39)
SEEGER
A
A
C
D
B
0
105°
-15°
Fig. 37 Fig. 38 Fig. 39
Fig. 40 Fig. 41 Fig. 42
ROD
SUPPORT
TWO
COINCIDING
PLANES
BOX SHAFT
TWO
COINCIDING
PLANES
STOP
BRACKET
MAX. ANGLE
USING THE
MECHANICAL
STOP KIT
INSIDE
OUTSIDE
LEFT
OPERATOR
RIGHT
OPERATOR
International registered trademark n. 804888
ENGLISH

23
10 - RELEASE MOUNTING - BASIC RELEASE / PLUS RELEASE
TWO TYPES OF RELEASE ARE AVAILABLE FOR «JACK» OPERATORS WITH CARRYING BOX:
BASIC RELEASE (WITH CUSTOMIZED KEY) OR PLUS RELEASE (WITH DIN KEY)
10.1. BASIC RELEASE: grease the coupling pin «A» and mount the release system under the leaf support
rod using the 4 supplied screws (Fig. 43a)
10.2. PLUS RELEASE: grease the coupling pin «B» and mount the release system under the leaf support
rod using the 5 supplied screws (Fig. 44a)
FOR THE ELECTRICAL WIRINGS OF THE RELEASE, REFER TO THE ELECTRONIC CONTROL UNIT USER MANUAL
AB
Fig. 43a
Fig. 44a
11 - RELEASE SYSTEM - BASIC RELEASE / PLUS RELEASE
11.1. BASIC RELEASE
TO UNLOCK
- insert the supplied Allen key in the slot «A» and turn
180° toward the center of the gate (Fig. 45)
- hold the key and move the leaf; once the desired leaf
position has been reached, turn the key to its original
position and remove it
TO LOCK
- move the leaf to its original position until the release
system is re-hooked.
11.2. PLUS RELEASE
TO UNLOCK
- insert the supplied key into the lock and turn it 90°
clockwise (Fig. 46)
- pull the key outwards up to its stop in order to extract the
handle of the release system (Fig. 47)
- move the leaf to the desired position, close the handle
of the release system and remove the key
TO LOCK
- move the leaf to its original position until the release
system is re-hooked.
180°
90°
A
Fig. 43 Fig. 44
Fig. 45
Fig. 46
Fig. 47
BASIC RELEASE PLUS RELEASE
HANDLE
STOP
RELEASE
HANDLE
BASIC
RELEASE
PLUS
RELEASE
ALL THE UNLOCKING AND LOCKING OPERATIONS MUST BE CARRIED OUT ONLY WHEN THE POWER
SUPPLY IS OFF!
PLUS
RELEASE
International registered trademark n. 804888
ENGLISH

24
12 - «LYRA» HYDRAULIC UNIT BOX WALL MOUNTING
12.1. Fix the «LYRA» box to the wall using the screws, as shown in Fig. 48
12.2. Connect the hydraulic pipes to the hydraulic unit and to the jack (Figures 49 to 53).
40 mm
20 mm
HYDRAULIC
PIPES
INLET
PORT
CABLES
INLET
PORT
COPPER
PIPE
FLEXIBLE
PIPE
13 - BREATHER CAP REMOVAL
13.1. Unscrew the red cap as shown in Fig. 54 and
throw it away; replace it with the black cap (Fig. 55) RED
CAP
BLACK
CAP
14 - ADJUSTMENT OF THE THRUST FORCE
14.1. If necessary, adjust the thrust force of the leaf
using the By-Pass valves placed on the front side of the
«LYRA» hydraulic unit (Fig. 56)
14.2. Adjust the by-pass valves (Fig. 56) using the key
«A» (supplied to the authorized installers).
Turn the key clockwise to increase the force;
Turn the key counter-clockwise to decrease the force;
A
THE AUTOMATION IS FACTORY SET TO A FORCE OF
15 KGF, IN ORDER TO ENSURE THE ANTI-CRUSHING
SAFETY, SO IT IS RECOMMENDED TO MODIFY THIS SETTING
ONLY IN CASE OF ABSOLUTE NEED!
Fig. 48
Fig. 49
Fig. 50 Fig. 51 Fig. 52 Fig. 53
Fig. 54 Fig. 55
Fig. 56
IT IS MANDATORY TO REMOVE THE BREATHER CAP
AT THE END OF THE INSTALLATION!
+ -
YELLOW
+ -
GREY
International registered trademark n. 804888
ENGLISH

25
15 - BRAKING ADJUSTMENT
(ONLY FOR OPERATORS EQUIPPED WITH OPTIONAL HYDRAULIC BRAKE)
It is possible to adjust the leaf slowdown in opening and
closing, by the use of the braking adjustment screws:
8.1. Loosen the Allen screw «1» which locks the brake
adjustment screw «2» (Fig. 57);
adjust it CLOCKWISE FOR A GREATER BRAKING
(SPEED REDUCTION)
adjust it ANTI-CLOCKWISE FOR LESS BRAKING
(SPEED INCREASE)
8.2. At the end of the adjustment, tighten the Allen
screw «1» to re-lock the braking adjustment screw «2»
+
-
+
-
2
2
1
1
THE SLOWDOWN STARTS FROM THE LAST 15°
DEGREES OF THE LEAF ROTATION!
16 - BLEEDING PROCEDURE
16.1. During the hydraulic pipes connection phase, air may enter the system and could cause irregular
operation of the automation. This irregular operation consists in abnormal movement of the gate and
excessive noise. To solve this problem, it is necessary to carry out the bleeding procedure:
1 - Open the gate by giving a «START» command
2 - While the gate is moving, loosen the bleed screw «A» (Fig. 59);
3 - Let the air escape until non-emulsified oil appears;
4 - Tighten the bleed screw «A» before the operator ends the opening cycle;
5 - Close the gate by giving a «START» command
6 - While the gate is moving, loosen the bleed screw «B» (Fig. 59);
7 - Let the air escape until non-emulsified oil appears;
8 - Tighten the bleed screw «B» before the operator ends the closing cycle.
9 - Refill the oil level from the oil filler cap.
SEA recommends using only SEA 0X29 oil (supplied)
B
B
BLEED
SCREW
OPENING
CLOSING
INSIDE
OUTSIDE
B
A
A
A
Fig. 57
Fig. 58 Fig. 59
It is recommended to repeat full operation on both screws after 2 or 3 opening/closing cycles
INSIDE
OUTSIDE
International registered trademark n. 804888
ENGLISH

26
A
17 - RELEASE SYSTEM ON HYDRAULIC UNIT
17.1. TO RELEASE:
- Open the case-door with the special key supplied.
- Using a screwdriver, turn the release screw «A»
anticlockwise, about 180°
- Manually move the gate.
17.2. TO LOCK:
- Using a screwdriver, turn the release screw «A»
clockwise until it stops.
- Close the case-door LOCK
RELEASE
Fig. 60
11
2
2
3
4
5
6
7
8
9
10
10
11
2x1
4x1
4x1,5 *
2x1
4x2,5
4x1
1xRG58
4x1
4x1,5 *
2x1,5
CHECK THE OIL LEVEL (TRANSPARENT CAP NO. 3 IN FIG. 1)
REPLACE THE OIL
CHECK THE CORRECT OPERATION OF THE BY-PASS VALVES (CHECK THE FORCE IN OPENING AND CLOSING)
CHECK THE CORRECT OPERATION OF THE RELEASE SYSTEM
CHECK THE SLOWDOWN SYSTEM ADJUSTMENT (ONLY FOR OPERATORS WITH HYDRAULIC BRAKE)
CHECK THE CORRECT DRAINAGE OF RAINWATER
CHECK THE INTEGRITY OF THE ELECTRIC CABLES
GREASE ALL THE MOVING PARTS
GREASE THE ROTATION SHAFT OF THE FOUNDATION BOX, AS SHOWN IN FIG. 61
ANNUAL
4 YEARS
ANNUAL
ANNUAL
ANNUAL
ANNUAL
ANNUAL
ANNUAL
ANNUAL
19 - STANDARD INSTALLATION
PERIODIC MAINTENANCE - FOR THE INSTALLER EXCLUSIVELY
ALL OPERATIONS MUST BE CARRIED OUT EXCLUSIVELY BY AN AUTHORIZED INSTALLER
SWITCH-OFF THE POWER SUPPLY BEFORE CARRYING-OUT MAINTENANCE OPERATIONS
18 - OPERATOR COMMISSIONING
18.1. Once all the installation and adjustment operations have been
completed, release the operator and carry out some slow manual
movement, checking that there is no friction or irregularity and that
travel is fluid along the full stroke of the gate
Fig. 61
Fig. 62
«JACK» with NON-CARRYING BOX
can be released from the «LYRA» unit
BEFORE STARTING THE OPERATOR, IT IS IMPERATIVE TO GREASE THE CASE
THROUGH THE SPECIAL GREASER, (FIG. 61) UNTIL THE GREASE COMES OUT.
USE GREASE DIN 51502 KP 2 N-20 - K 2 K-20
inside
outside
1) Operators
2) Mechanical stops
3) Control unit
4) Flashing lamp
5) Right photocell
6) 16A - 0,03A differential switch
7) Left photocell
8) «START/STOP» key-button
9) Antenna
10) Photocell columns
11) Warning notices
International registered trademark n. 804888
ENGLISH

27
International registered trademark n. 804888

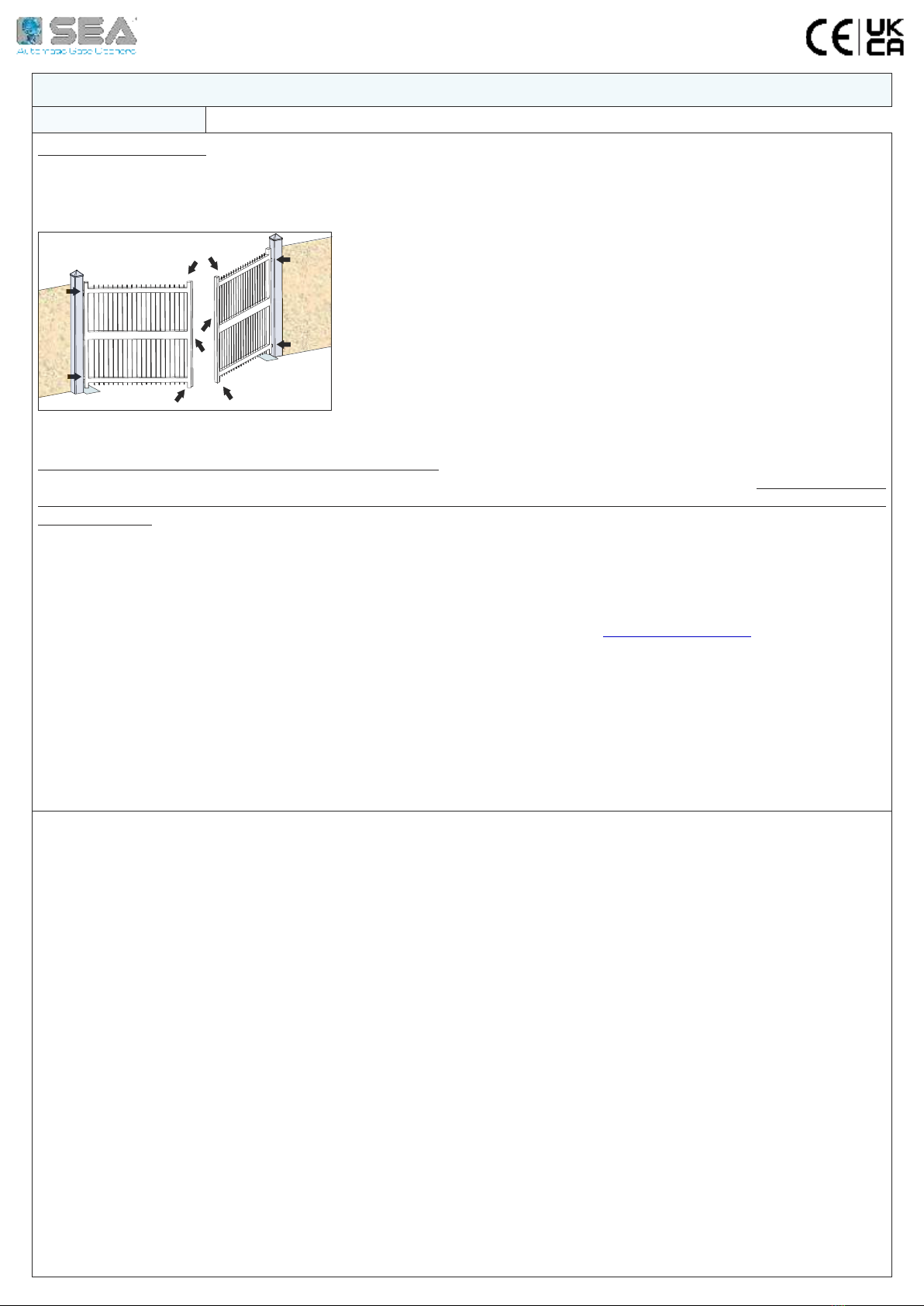

RISK EXAMINATION: The points pointed by arrows are potentially dangerous. The installer must take a thorough risk
examination to prevent crushing, conveying, cutting, grappling, trapping so as to guarantee a safe installation for people,
things and animals ( ). As for misunderstandings that Re. Laws in force in the Country where installation has been made
may arise refer to your area distributor or call our help desk. These instructions are part of the device and must be kept in a
well known place. The installer shall follow the provided instructions thoroughly. products must only be used to SEA
automate doors, gates and wings. Any initiative taken without explicit SEA
authorization will preserve the manufacturer from whatsoever responsibility.
The installer shall provide warning notices on not assessable further risks.
SEA in its relentless aim to improve the products, is allowed to make
whatsoever adjustment without giving notice. This doesn’t oblige to SEA
upgrade the past production. can not be deemed responsible for any SEA
damage or accident caused by product breaking, being damages or accidents
due to a failure to comply with the instructions herein. The guarantee will be
void and the manufacturer responsibility will be nullified if original spare SEA
parts are not being used. The electrical installation shall be carried out by a
professional technician who will release documentation as requested by the laws in force. Packaging materials such as
plastic bags, foam polystyrene, nails etc must be kept out of children’s reach as dangers may arise.
INITIAL TEST AND STARTING OF THE AUTOMATION: After having completed the necessary operations for a correct
installation of the product and after having evaluated all the risks which could arise in any installation, it is necessary to
test the automation to guarantee the maximum security and, in particular, to guarantee that the laws in force are
fully respected. The first Start must be executed according to the rule EN 12445 which establishes the methods of tests
for checking the gate automation respecting the limits established by the rule EN 12453
SAFETY PRECAUTIONS: All electrical work should comply with the current regulations. A 16A / 0,030 differential switch
must be used. Separate the source cables (operators, power supply) and command cables (photocells, push-buttons,
etc). Be sure the entire system is properly earth bonded. Always run cables in separate ducts to prevent interferences
INTENDED USE: The operator has been designed to be used for the automation of swing gates only
SPARE PARTS: Send request for spare parts to: SEA S.p.A. - Teramo - ITALY - www.seateam.com
SAFETY AND ENVIRONMENTAL COMPATIBILITY: Don’t waste product packing materials and/or circuits
STORAGE: T = -30°C/+60°C ; Humidity = min. 5% / max. 90% (without condensation); must be properly Materials
packaged, handled with care and with appropriate vehicles
WARRANTY LIMITS see the sales conditions -
MAINTENANCE AND DECOMMISION: must only be carried out by specialised and authorised personnel
THE MANUFACTURER CAN NOT BE DEEMED RESPONSIBLE FOR ANY DAMAGE OR INJURY CAUSED BY
IMPROPER USE OF THIS PRODUCT
SEA S.p.A. reserves the right to make any required modification or change to the products and/or to this manual without
any advanced notice obligation.
GENERAL NOTICE
PART FOR BOTH INSTALLER AND END-USER
1. Read carefully these Instructions before beginning to install the product. Store these instructions for future reference
2. Don’t waste product packaging materials and /or circuits
3. This product was designed and built strictly for the use indicated in this documentation. Any other use, not expressly indicated here,
could compromise the good condition/operation of the product and/or be a source of danger. SEA S.p.A. declines all liability caused by
improper use or different use in respect to the intended one.
4. The mechanical parts must comply with Directives: Machine Regulation 2006/42/CE and following adjustments, Low Tension
(2006/95/CE), electromgnetic Consistency (2004/108/CE); Installation must be done respecting Directives: EN12453 and EN12445.
5. Do not install the equipment in an explosive atmosphere.
6. SEA S.p.A. is not responsible for failure to observe Good Techniques in the construction of the locking elements to motorize, or for any
deformation that may occur during use.
7. Before attempting any job on the system, cut out electrical power and disconnect the batteries. Be sure that the earthing system is
perfectly constructed, and connect to it the metal parts of the gate
8. Use of the indicator-light is recommended for every system, as well as a warning sign well-fixed to the frame structure.
9. SEA S.p.A. declines all liability as concerns the automated system safety and efficiency, if components used are not produced by SEA
10. For maintenance, strictly use original parts by SEA.
11. Do not modify in any way the components of the automated system.
12. The installer shall supply all information concerning the system manual functioning in case of emergency and shall hand over to the
user the warnings handbook supplied with the product.
13. Do not allow children or adults to stay near the product while it is operating. The application cannot be used by children, by people
with reduced physical, mental or sensorial capacity or by people without experience or necessary training. Keep remote controls or other
pulse generators away from children, to prevent involuntary activation of the system.
14. Transit through the leaves is allowed only when the gate is fully open.
15. The User must not attempt to repair or to take direct action on the system and must solely contact qualified SEA personnel or SEA
service centers. The User can apply only the manual function of emergency.
16. The power cables maximum length between the central engine and motors should not be greater than 10 m. Use cables with 2,5
mm2 section. Use double insulation cable (cable sheath) to the immediate vicinity of the terminals, in particular for the 230V cable. Keep
an adequate distance (at least 2.5 mm in air), between the conductors in low voltage (230V) and the conductors in low voltage safety
(SELV) or use an appropriate sheath that provides extra insulation having a thickness of 1 mm.

International registered trademark n. 804888
DECLARATION OF CONFORMITY
DICHIARAZIONE DI CONFORMITÀ
SEA S.p.A. declares under its proper responsability and, if applicable, under the responsability of its
authorised representative that, , the by installing the appropriate safety equipment and noise filtering
products:
La SEA S.p.A. dichiara sotto la propria responsabilità e, se applicabile, del suo rappresentante
autorizzato che, , i prodotti:con l’installazione degli adeguati dispositivi di sicurezza e di filtraggio disturbi
DESCRIPTION - DESCRIZIONE MODEL - MODELLO TRADEMARK - MARCA
are built to be integrated into a machine or to be assembled with other machinery to create a machine under
the provisions of Directive 2006/42/CE;
comply with the essential safety requirements related to the products within the field of applicability of the
Community Directives 2014/35/UE and 2014/30/UE
sono costruiti per essere incorporati in una macchina o per essere assemblati con altri macchinari per
costruire una macchina ai sensi della Direttiva 2006/42/CE;
sono conformi ai requisiti essenziali di sicurezza relativi ai prodotti entro il campo di applicabilità delle
Direttive Comunitarie 2014/35/UE e 2014/30/UE
THE MANUFACTURER OR THE AUTHORIZED REPRESENTATIVE
IL COSTRUTTORE O IL RAPPRESENTATE AUTORIZZATO
SEA S.P.A.
ZONA INDUSTRIALE SANT’ATTO
64100 - TERAMO - ITALY
+ 39 0 861 588341 www.seateam.com
PLACE AND DATE OF ISSUE
LUOGO E DATA DI EMISSIONE
TERAMO, 24/10/2022
SEA
LYRA AC
(AND ALL ITS BY-PRODUCTS - E TUTTI I SUOI DERIVATI)
12001005
SEA
SUPER LYRA AC
(AND ALL ITS BY-PRODUCTS - E TUTTI I SUOI DERIVATI)
12001031
SEA
JACK 400 100°
(AND ALL ITS BY-PRODUCTS - E TUTTI I SUOI DERIVATI)
1201005
SEA
JACK 800 100°
(AND ALL ITS BY-PRODUCTS - E TUTTI I SUOI DERIVATI)
12015010
SEA
SUPER JACK 100°
(AND ALL ITS BY-PRODUCTS - E TUTTI I SUOI DERIVATI)
12101070

SEA S.p.A.
Zona Industriale Sant’Atto - 64020 - Teramo - ITALY
Tel. [phone] r.a. Fax [phone]
www.seateam.com
International registered trademark n. 804888
