Shuttle TNT User manual

Page 1
TNT

Page 1
Congratulations on the purchase of your new Shuttle TNT. Shuttle equipment has been trusted by physical therapists and
sports training facilities around the globe for almost half a century. It is our mission to deliver the finest quality exercise
devices with superior customer service. We welcome you as a valued customer.
For your safety it is crucial that you read this manual thoroughly and understand the equipment before use. If you have any
questions about your Shuttle TNT you can give us a call at [phone], email us at
[email protected], or chat with us via live chat at www.shuttlesystems.com (Monday-Friday, 8 am to 5
pm Pacific Time).
WELCOME TO THE FAM

IMPORTANT SAFETY INFORMATION ..…………………………………………………………….…………. 1
PERSONAL SAFETY ……….……………………………………………………………………….……………. 1
SPECIFICATIONS ………………………………….………………………………………………..…..……….. 2
IDENTIFICATION OF THE MANUFACTURER …………………………………………………………..……. 3
ASSEMBLY OF THE TNT ………………………………………………………..……………………….……… 4
- REMOVING THE CARRIAGE………………………………………………….….…..5
- ATTACHING THE HEAD-END STAND………………………………………..…..…6
- ATTACHING THE KICKPLATE STRUCTURE………………………………….……..7
- INSTALLING THE SEAT………………………..………………….…………………..9
- INSERTING THE CARRIAGE…………………………………………………..…….11
- ATTACHING THE KICKPLATE BOARD………………………………………..……12
- ATTACHING THE LOW PROFILE HEADREST……………….….….……..….……12
- ATTACHING THE TOWERS (TNT WITH TOWERS ONLY)………..…….…….…..14
- ATTACHING THE PULLEYS (TNT WITH TOWERS ONLY).……….………….……15
USING THE PRODUCT ………………………………………………………………………….………….….. 16
MAINTENANCE AND CARE ……………………………………………………………………….….……… 18
WARRANTY ………………………………………………………………………………………….………….. 19
SUPPORT ………………………………………………………………..……………………..………….…….. 20
TABLE OF CONTENTS

Page 1
Read all safety information before operating the TNT. It is the owner’s responsibility to ensure that users are aware of
all warnings and precautions.
Please read all instructions before using the product. These instructions were written to ensure the safety of the user and to
protect the product.
You should always consult with a physician before beginning a new fitness plan.You are advised to investigate and inform
yourself about any health related actions and choices you make.
Use caution when mounting and dismounting.
Do not allow children to have unsupervised access to the product.
Keep pets away from the TNT at all times.
Perform regular maintenance for optimal performance and longevity. To ensure safety, the TNT must be checked for wear
and damage on a regular basis.
Replace any damaged or worn parts immediately. Do not use the TNT until the repair is performed.
Use only original parts from the manufacturer. Changes or modifications to this unit not expressly approved by Shuttle
Systems could void the warranty.
The TNT is for indoor use only. Do not store the TNT outdoors, near water, or at high humidity levels.
Fully assemble the product before using it. Check the product before each use. Do not continue to use the product if it is
not working properly.
Use of this product is subject to medical examination to assess your suitability to the type of workout exercise you intend to
perform, and in compliance with the conditions for use laid down by Shuttle Systems.
Persons suffering from certain physical conditions may only use the product under the strict supervision of a doctor with
specific qualifications.
Before starting any workout, make sure your position on the product is correct, paying attention to any components that
may obstruct use.
Plan the workout according to your physical characteristics and state of health, beginning with less demanding workloads.
Do not overexert yourself or work to exhaustion. Incorrect or excessive exercise may cause physical harm or sudden death.
If you feel any pain or abnormal symptoms, stop your workout immediately and consult your physician.
Wear proper workout clothing and shoes during training; do not wear loose clothing. Tie long hair back. Keep hands,
shoelaces, garments, and accessories away from moving parts. Do not insert objects into openings on the equipment.
When using the TNT, other people must remain at a safe distance.
Do not use the product when children or pets are present.
The person in charge of the gym must explain proper and improper use of the equipment to users.
Assemble and use the product only on a solid and flat surface.
Keep the product in good working condition. If you see signs of wear, contact Shuttle Technical Support Service.
Do not attempt any maintenance work on the product other than the operations described in the user manual.
IMPORTANT SAFETY INFORMATION
PERSONAL SAFETY

Page 2

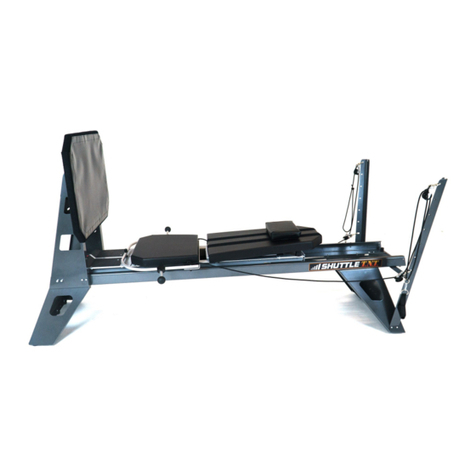

Dimensions: 30”W x 105”L
Floor Space Required: 3’W x 10’L
Carriage Capacity: 450 lbs
Max Resistance:
TNT: 6-250 lbs*
Total Elasticords:
TNT: (8) Elasticords Total;
(1) 6 lb Elasticord,
(1) 12 lb Elasticord
(6) 25 lb Elasticords
KICKPLATE
HEADREST
BACKREST
ELASTICORDS
ROM HANDLE
KNURLED
KNOBS
SLOTTED
PLATE
SPECIFICATIONS (TNT WITH TOWERS)
ADJUSTABLE
PLATE
* Elasticords are rated starting
resistance, but will gain
resistance up to 40% in
extension
HEADREST
BACKREST
ELASTICORDS
ROM
CONTROL
ROPE
SLOTTED
PLATE
ADJUSTABLE
PLATE
ADJUSTABLE
HANDLEBARS
KICKPLATE
FOOTREST
SEAT
TOWERS
ADJUSTABLE
PULLEYS
PULLEY
HANDLES
KNURLED
KNOBS
TOWER
SLOTS
Dimensions: 30”W x 105”L
Floor Space Required: 3’W x
10’L
Carriage Capacity: 450 lbs
Max Resistance:
TNT: 6-250 lbs*
Total Elasticords:
TNT: (8) Elasticords Total;
(1) 6 lb Elasticord,
(1) 12 lb Elasticord
(6) 25 lb Elasticords
* Elasticords are rated starting
resistance, but will gain
resistance up to 40% in
extension
SEAT
FOOTREST
ADJUSTABLE
HANDLEBARS
SPECIFICATIONS
SPECIFICATIONS (TNT WITH TOWERS)

Page 3
C
A
B
D
A - Manufacturer’s name and contact
B - Item number
C - Description of product
D - Serial number
IDENTIFICATION OF MANUFACTURER

Page 4
Assembly of the TNT requires two people.
Tools Needed: 7/16 inch socket or combination wrench, 1/2 inch socket of combination wrench.
Keep in mind that the following images in Steps 1-7 pertain to the TNT without towers, if you bought the TNT with towers
your parts may appear slightly different than those in the included images but the required steps remain the same.
The TNT will come in two boxes:
1. TNT Rails and Carriage
- TNT Rails
- Carriage
- Headrest
- Parts Bag
- Towers (only if ordered)
- Accessories (only if ordered)
2. TNT Stands
- Kickplate Structure
- Head-End Stand
- Kickplate Board
Head-End Stand
(Head-End)
Kickplate Structure
(Foot-End)
It is important to become familiar with the expressions “Foot-End and Head-End” as they indicate orientation for the
various steps and structures.
ASSEMBLY OF THE TNT

Page 5
REMOVING THE CARRIAGE
STEP 1
ITEMS REQUIRED
Carriage

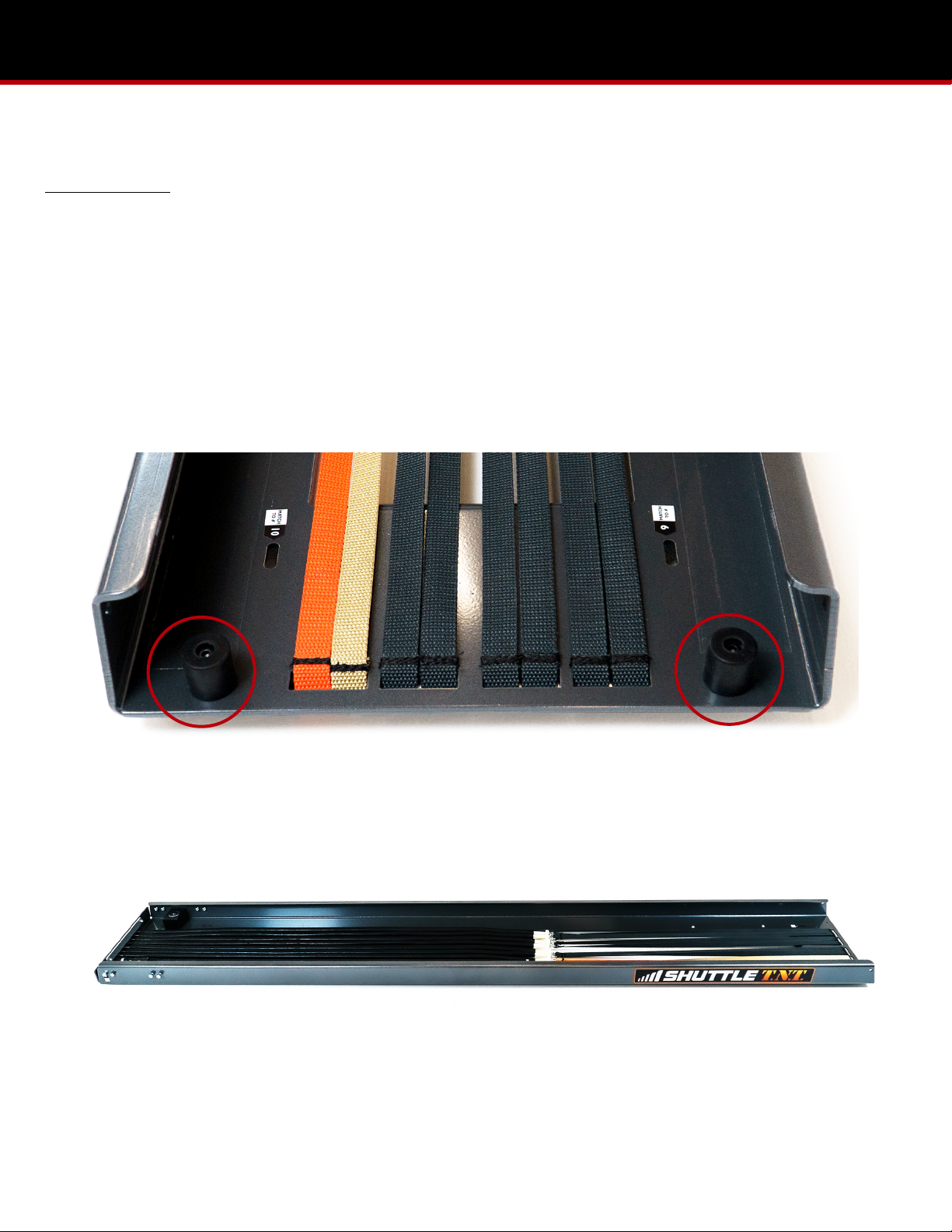

1. Remove the two rubber bumpers at the head-end of the TNT rails. Set them aside for Step 5. (Pic 1.1)
2. The carriage can now be removed by pulling it out through the head-end of the rails. Gently set the carriage to the side
for now. (Pic 1.2)
1.1
1.2
ASSEMBLY OF THE TNT (STEP 1)

Page 6
ATTACHING THE HEAD-END STAND
STEP 2
ITEMS REQUIRED
TNT Rails
Head-End Stand
1. Flip the rails upside down, exposing four lock nuts at the head-end of the TNT rails. Remove the four bolts (two on each
side) from the rails. (Pic 2.1)
2. Align the holes of the head-end stand with the now exposed bolt holes on the TNT rails. The head-end stand should be
flipped upside down so the rubber feet are facing up. (Pic 2.2)
3. From the underside of the TNT rails, insert the four bolts up into and through the head-end stand. Hand tighten the lock
nuts. It is important to make sure the lock nuts are against the head-end stand as they will interfere with the carriage if
they are along the TNT rails. (Pic 2.3)
2.1
2.2
2.3
ASSEMBLY OF THE TNT (STEP 2)

Page 7
ATTACHING THE KICKPLATE STRUCTURE
STEP 3
ITEMS REQUIRED
Kickplate Structure
Parts Bag
1. Flip the TNT rails and head-end stand over with the foot-end resting on the ground. (Pic 3.1)
2. Remove the eight bolts (four on each side) at the foot-end of the TNT rails. (Pic 3.2)
3. Position the foot-end of the TNT rails to the inside of the kickplate structure. Align the holes and insert the eight bolts
into the rails and through the kickplate structure. (Pic 3.3)
4. Tighten down all bolts at the kickplate structure and head-end stand. (Pic 3.4)
5. Place the eight nut caps (four on each side) from the parts bag, onto the eight lock nuts at the kickplate structure.
Images on next page
ASSEMBLY OF THE TNT (STEP 3)

Page 8
3.3
MOUNTING THE KICKPLATE STRUCTURE
STEP 3
3.2
3.4
3.1
ASSEMBLY OF THE TNT (STEP 3)

Page 9
INSTALLING THE SEAT
STEP 4
ITEMS REQUIRED
Carriage
Seat
1. Turn the seat upside down with the cushion resting on the ground. Remove the four lock nuts and washers from the bolt
studs. (Pic 4.1)
2. Unscrew and remove the barrel nut from the carriage. Lift the handle bar frame from the cushion and align bolt holes
“13”, “14”, and “15”. (Pic 4.2)
3. Place the seat cushion into the corresponding holes of the carriage and handle bar frame. (Pic 4.3)
4. Tighten down the barrel nut to bolt “15”. Tighten two thick lock nuts with washers to the rear bolt studs on the seat
cushion. Tighten two shallow lock nuts with washers to the last two remaining bolt studs on the seat cushion. (Pic 4.4)
Adjusting Handlebars: Twist the knobs counter-clock-wise to loosen. Adjust to desired position and tighten by twisting
clockwise.
4.1
4.2
More images on next page
ASSEMBLY OF THE TNT (STEP 4)

Page 10
4.3
4.4
4.2
4.4
4.4
INSTALLING THE SEAT
STEP 4
ASSEMBLY OF THE TNT (STEP 4)

Page 11
INSERTING THE CARRIAGE
STEP 5
ITEMS REQUIRED
Carriage
TNT Rails
Rubber Bumpers
1. Insert the foot-end of the carriage into the TNT rails, and let it gently slide along the track until it contacts the rebound
blocks. (Pic 5.1)

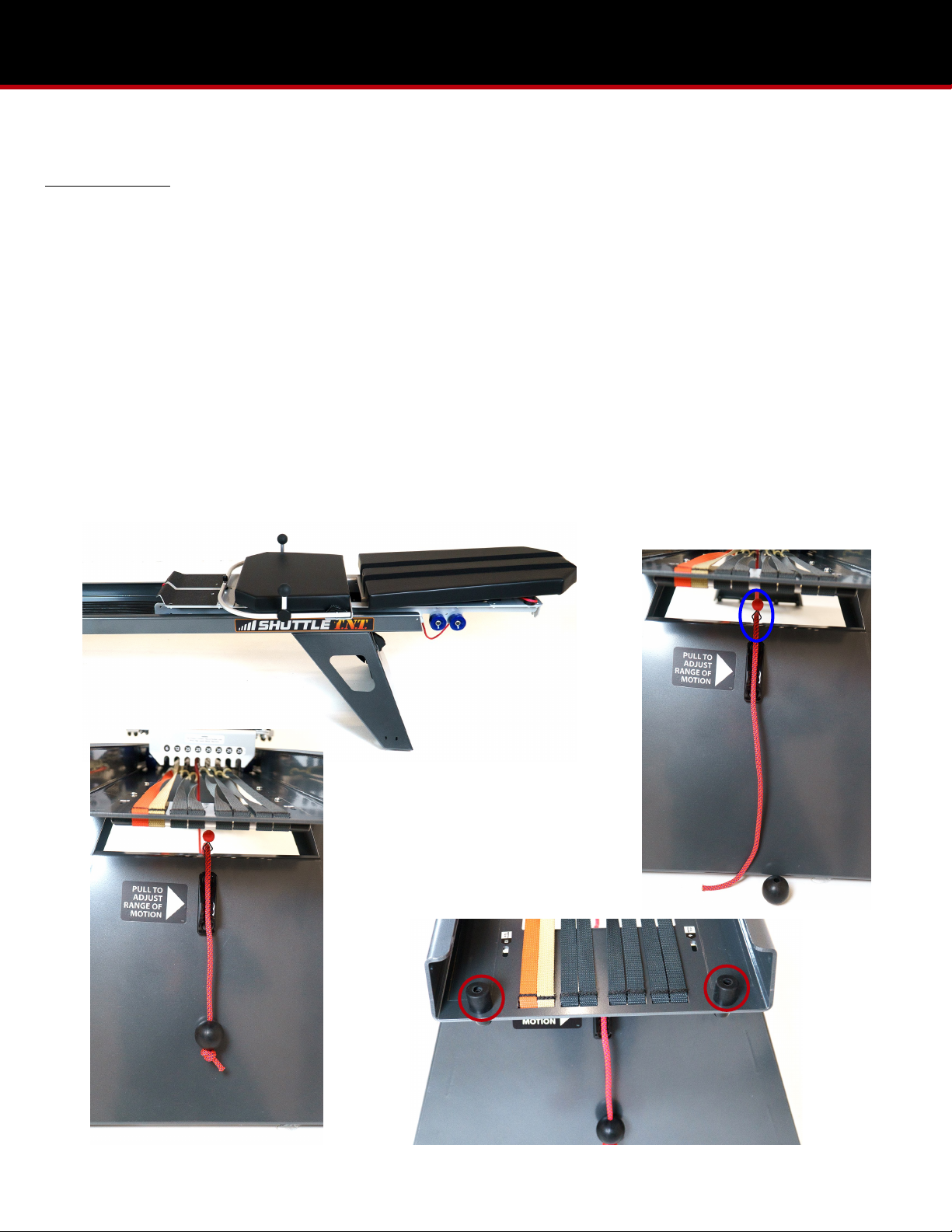

2. Remove the rubber ball from the Range of Motion (ROM) Control Rope by untying the knot at the end of the ROM
Control Rope. (Pic 5.2)
3. Guide the ROM Control Rope through the red rope guide at the head-end stand and push the rope into the black rope
cleat. Once the ROM Control Rope is secured, place the rubber ball back onto the rope and tie a knot at the end of it.
(Pic 5.3)
4. Insert and tighten down the two rubber bumpers removed from the two holes at the head-end of the rails in Step 1.
(Pic 5.4)
5.2
5.3
5.1
5.4
ASSEMBLY OF THE TNT (STEP 5)

Page 12
ATTACHING THE KICKPLATE BOARD
STEP 6
ITEMS REQUIRED
Kickplate Board

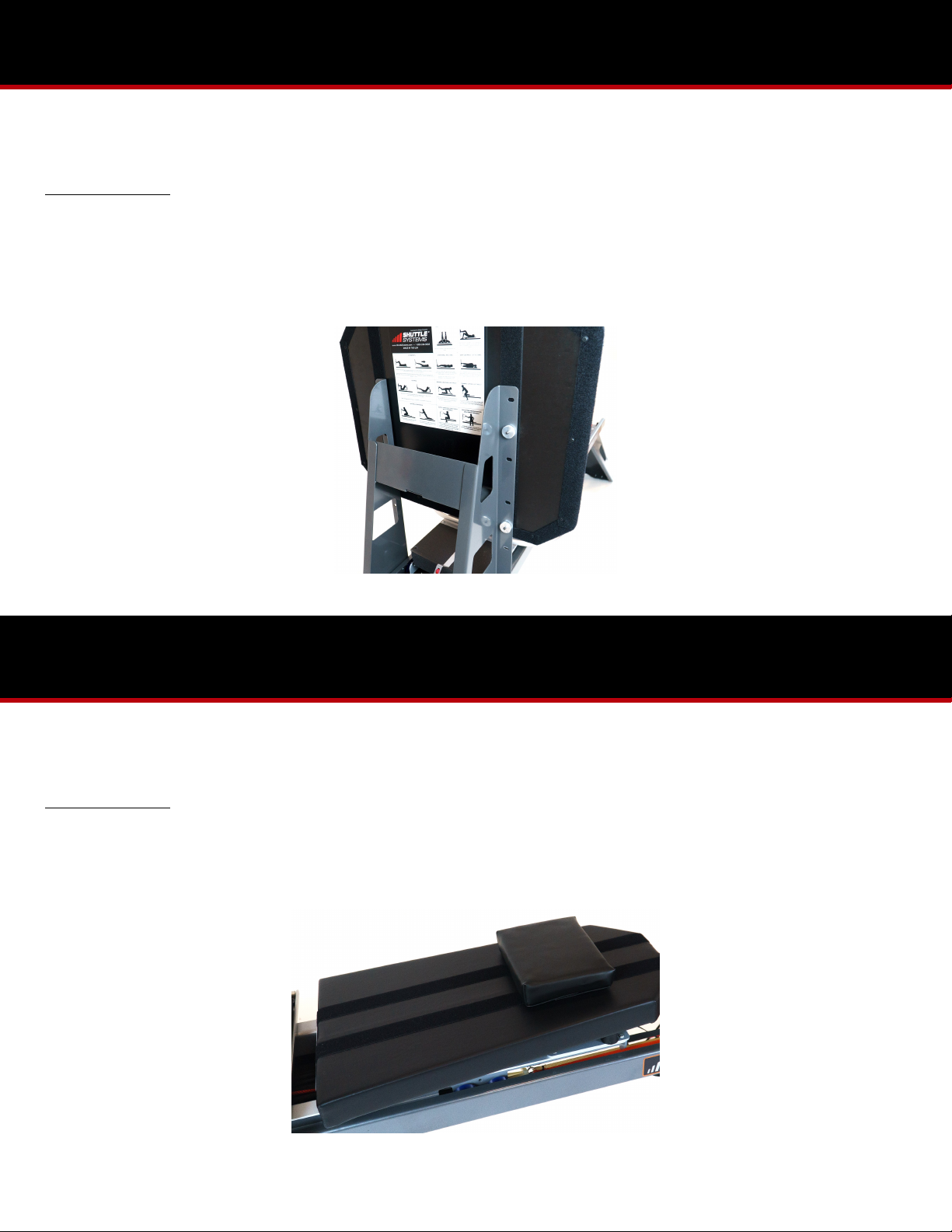

1. The kickplate board is adjustable to three different heights. Once the desired position is determined, insert the four
protruding bolts at the back of the kickplate board into the desired corresponding holes in the kickplate structure.
Secure with the knurled knobs. (Pic 6.1)
ATTACHING THE LOW PROFILE HEADREST
STEP 7
ITEMS REQUIRED
Low Profile Headrest
1. Align the velcro strip on the back of the low profile headrest with those on the carriage. Locate the desired position and
press down and into place to ensure sufficient contact. (Pic 7.1)
7.1
6.1
ASSEMBLY OF THE TNT (STEP 6)
ASSEMBLY OF THE TNT (STEP 7)

Page 13
The following two steps are
for the
TNT WITH TOWERS ONLY
ASSEMBLY OF THE TNT (CONTINUED)

Page 14
8.1
ATTACHING THE TOWERS
STEP 8
ITEMS REQUIRED
Towers
Tower Crossbar
1. Align the tower crossbar underneath the head-end of the TNT rails to bolt holes “9” and “10”. Insert two bolts into the
TNT rails and through the crossbar. Hand tighten for now. (Pic 8.1)
2. Align the “11” and “12” bolt holes on the towers with the crossbar. Insert the longer bolts with a washer into the tower
and through the crossbar. Place another washer on the bolt and hand tighten the lock nuts for now. (Pic 8.2)
3. Insert four bolts (two on each side) into the lower four bolt holes on the towers and through the bolt holes at the base of
the head-end stand. Tighten down all lock nuts. (Pic 8.3)
8.2
8.3
ASSEMBLY OF THE TNT (STEP 8)

Page 15
ATTACHING THE PULLEYS
STEP 9
ITEMS REQUIRED
Towers Bag
1. Attach the PNF pulleys (two on each side) from the towers bag to the eyelet at the desired height on the towers.
2. Feed the rope through both pulleys. (Pic 9.1)
3. Locate the rope cleat on both sides of the carriage and secure the end of the rope by pushing it down and back into the
rope cleat. (Pic 9.2)
Run the end
of the rope
without
handles
through the
pulleys
9.1
9.2
ASSEMBLY OF THE TNT (STEP 9)

Page 16
Located between the TNT rails are eight elasticords. They are at the head-end of the machine attached to the gray, orange,
and tan lanyards.
Warning!!If you grasp the lanyard too close to the!plastic white knob you risk pinching your fingers.!!
Always detach the elasticords when the machine is not in use. This prevents premature stretching of the elasticords
and greatly extends their life.
Attaching Elasticords: To engage the head-end elasticords grasp the middle of the lanyard (one at a time) and pull back
towards the head-end stand preferably using your core. Slip the exposed plastic white knob at the end of the elasticord
into at the corresponding slot at the!head-end of the carriage to engage the elasticord.
Detaching Elasticords: To disengage resistance, grasp the middle of the lanyard (one at a time) and pull back towards the
head-end stand and drop it down below the carriage.
Adjusting the Kickplate: The kickplate adjusts to three vertical positions. To adjust the height, begin by removing the four
knurled knobs from the back of the kickplate. Move the kickplate board to the desired vertical position. Line up the bolts on
the back of the kickplate board with the appropriate holes in the kickplate structure and secure by tightening the four
knurled knobs down.
The vertical position of the kickplate can be positioned as follows: High- This is the best position for 90° flexion of taller
individuals and unsupported heel activities. Middle- Majority of users will enjoy this position to achieve 90° flexion. Low-
This position is best for direct body alignment activities.
Adjusting the Headrest: The headrest is easily adjusted depending on patient size and desired exercise type. This can be
done by pulling the headrest up and away from the backrest and repositioning with the velcro strips.
The footrest is located at the end of the carriage. It provides a surface to rest an uninvolved foot.
Adjusting the ROM (Range of Motion) Control: At the head-end of the carriage is a ROM control handle (red rope). The
handle may be adjusted toward or away from the machine and secured in the rope cleat at the head-end stand. Moving the
ROM control allows the positioning of the carriage in relation to the kickplate. This will adjust the knee flexion.
Warning! Never attempt to move the ROM
control rope while the elasticords are attached
or the machine is in use.
Adjusting the Handlebars: The handlebars are
easily adjusted by twisting the knobs counter-
clock-wise and moving to desired position.
Secure by twisting clockwise.
Adjusting the Backrest: The backrest adjusts to
supine and 45°. To adjust the backrest from
supine to 45°, pull up on the backrest and grasp
the red handle located on the adjustable plate.
Secure it by inserting the plate firmly between
the two bumpers on the backrest.
Warning! Never attempt to adjust the backrest
when the machine is in use or when a patient is
supporting their weight on it.
HEADREST
BACKREST
ELASTICORDS
ROM
CONTROL
ROPE
SLOTTED
PLATE
ADJUSTABLE
PLATE
HANDLEBARS
KICKPLATE
USING THE PRODUCT

Page 17
The PNF (Proprioceptive Neuromuscular Facilitation) pulley system is designed to allow upper body exercises while laying,
sitting, or kneeling on the TNT carriage. It can also be used while standing or sitting next to the TNT.
The system is designed to be adjusted in the following ways:
1. To adjust the height of the upper pulleys, release the clip and move to any of the six slots found on the towers.
2. To adjust the position of the handle, adjust the length of the rope. Do this by securing the rope in the rope cleat located
on either side of the carriage. Make sure to snug the rope down into the rope cleat before use.
3. The position on the handle can also be adjusted by sliding the black plastic rope lock (found on the rope adjacent to
the handle) away from or closer to the handle.
Warning! Never attempt to adjust the PNF pulley system when the machine is in use.
HEADREST
BACKREST
ELASTICORDS
ROM
CONTROL
ROPE
SLOTTED
PLATE
ADJUSTABLE
PLATE
HANDLEBARS
KICKPLATE
FOOTREST
SEAT
TOWERS
ADJUSTABLE
PULLEYS
PULLEY
HANDLES
KNURLED
KNOBS
TOWER
SLOTS
USING THE PRODUCT (TNT WITH TOWERS)
