Siargo MF5000 Series User manual








Gas Mass Flow Meter VE.2
Model MF5000
Sold in North America by:
Servoflo Corporation
75 Allen Street
Lexington, MA 02472
www.servoflo.com/info@servoflo.com
781-862-9572



www.Siargo.com

MF5000UserManual






1

|

Page

Gas Mass Flow Meter
withMEMScalorimetricsensingtechnology
MF5000Series


User Manual
DocumentNo. 04‐2022‐M7EN
Issuedate:  2022.04
Revision:  VE.2





SiargoLtd.
3100DeLaCruzBoulevard,Suite210
SantaClara,CA95054
USA

Tel:+1(408)969.0368
Email:[email protected]




©Copyright2022bySiargoLtd.
SiargoLtd.anditssubsidiariesreservetherighttochangethespecificationsand/ordescriptions
withoutpriornotice.Forfurtherinformationandupdates,pleasevisit:www.Siargo.com






www.Siargo.com

MF5000UserManual






2

|

Page



Attention!















Usewithcaution!













Pleasecarefullyreadthismanualpriortooperatingthisproduct.

Donotopenormodifyanyhardwarewhichmayleadtoirrecoverable
damage.

Donotusethisproductifyoususpectanymalfunctionsordefection.

Donotusethisproductforcorrosivemediaorinastrongvibration
environment.

Usethisproductaccordingtothespecifiedparameters.

Onlythetrainedorqualifiedpersonnelshallbeallowedtoperform
productservices.
Becautiousfortheelectricalsafety,evenitoperatesatalowvoltage,
anyelectricalshockmightleadtosomeunexpecteddamages.

Thegastobemeasuredshouldbecleanandfreeofparticles.Donotapply
thismeterforliquidmedium.

Donotapplyforanyunknownornon‐specifiedgasesthatmay
damagetheproduct.

Forremotedata,pleasebesurethemeterisproperlyconfigured.



www.Siargo.com

MF5000UserManual






3

|

Page


TableofContents

1.Overview..................................................................................................5
2.Receipt/unpackoftheproducts................................................................6
3.Knowingtheproducts...............................................................................7
3.1.Productdescription...............................................................................................7
3.2.LCDdescription.....................................................................................................7
3.3.Poweranddatacabledescription...........................................................................8
3.4.Mechanicaldimensions..........................................................................................9
4.Installation..............................................................................................10
5.OperationandMENUdescription..............................................................13
5.1Checktheproductspecifications...........................................................................13
5.2Checktheleakage...............................................................................................13
5.3Powerthemeteranddigitaldataconnection.........................................................13
5.4MeterMENUdescriptions....................................................................................14
5.4.1Startingthemeasurement............................................................................................14
5.4.2MENUentrywithaverifiedpassword............................................................................15
5.4.3SettheRS485Modbusaddress......................................................................................15
5.4.4SettheRS485communicationbaudrate........................................................................16
5.4.5Resetorcalibratetheoffset..........................................................................................16
5.4.6Gasconversionfactor(GCF)fordifferentgasmeasurement.............................................17
5.4.7Setthe2nd‐correctionfactor.........................................................................................18
5.4.8SettheResponsetime..................................................................................................18
5.4.9Settheunitfortheaccumulatedortotalizedflowrate....................................................19
5.4.10Settheunitfortheinstantflowrate..............................................................................19
5.4.11Changethedefaultpassword........................................................................................20
5.4.12Resettheaccumulatedortotalizedflowrate..................................................................20
5.4.13Resetthe2nd‐correctionfactor.....................................................................................21
5.4.14ExittheMENU..............................................................................................................21
5.4.15MENUkeysequenceforthesettings..............................................................................22



www.Siargo.com

MF5000UserManual






4

|

Page

5.5RS485Modbuscommunicationprotocol...............................................................22
5.5.1Hardwareconnection....................................................................................................23
5.5.2Communicationparameters..........................................................................................23
5.5.3Frame..........................................................................................................................24
5.5.4Functioncodes.............................................................................................................24
5.5.5Registers......................................................................................................................24
5.6Analog(4~20mA)output....................................................................................28
6.Productselectionandorderinformation...................................................29
6.1Productselection................................................................................................29
6.2Ordercontactandcustomersupport.....................................................................30
7.Technicalspecifications............................................................................31
7.1Specifications.....................................................................................................31
7.2Pressureloss.......................................................................................................32
8.Technicalnotesfortheproductperformance.............................................35
8.1Measurementprinciple........................................................................................35
8.2Precautionsforthebestperformanceoftheproduct..............................................35
8.2.1Comparisonwithathirdpartyreferencemeter...............................................................35
8.2.2Particlecontaminationandfluidiccleanness..................................................................36
8.2.3Applytoadifferentgasmedium....................................................................................36
9.Troubleshooting......................................................................................37
10.WarrantyandLiability..............................................................................38
11.Servicecontact........................................................................................40
AppendixI:Productevaluationkit..................................................................41
AppendixII:Documenthistory.......................................................................42





www.Siargo.com

MF5000UserManual






5

|

Page

1. Overview

Allcontactinformationcanbefoundattheendofthismanual.
Thismanualprovidesessentialinformationfortheoperationofthe3rdgenerationoftheMF5000
seriesofgasmassflowmetersforgeneral‐purposegasmetrology.Theproductperformance,
maintenance,andtrouble‐shootingaswellastheinformationforproductorder,technicalsupport,
andrepairarealsoincluded.
MF5000massflowmetersaredesignedforgeneralpurposepreciseindustrialgasmeasurement,
monitor,orcontrol.Themeterseriescoverawidedynamicflowrangewithaworkingpressurerating
ofupto1.5MPa,andatemperaturerangingfrom‐20to60°C.
ThemetersareoperatedwithSiargo’sproprietaryMEMScalorimetricmassflowsensorstogether
withthesmartcontrolelectronics.Thesensorsurfaceispassivatedwithsiliconnitrideceramic
materialsandwithawater/oilproofnano‐coatingforperformanceandreliability.Themeterbodyis
madeofstainlesssteelSUS304thatisreadyforapplicationofmostgases.
Thisnewreleaseoffersapplicationsinahazardouszone(ExiaIICT4Gb,equivalenttoClassI,Div.1,
zone0,GroupA,T4)aswell.ItalsobooststheprotectionclasstoIP66andoffersadditional
mechanicalconnectionflexibilitywithbothmaleandfemaleconnectorswhichcanbefurther
adaptedwithanyotherthreadedones.TheelectricalinterfaceischangedfromDB9toM12for
betterprotection.





www.Siargo.com

MF5000UserManual






6

|

Page

2. Receipt/unpackoftheproducts

Uponreceiptoftheproducts,pleasecheckthepackingboxbeforethedismantlementofthepacking
materials.Ensurenodamagesduringshipping.Ifanyabnormalityisobserved,pleasecontactand
notifythecarrierwhoshippedtheproductandinformthedistributorsorsalesrepresentativesifthe
orderisnotplaceddirectlywiththemanufacturer,otherwise,themanufacturershouldbeinformed
aswell.Foranyfurtheractions,pleaserefertothereturnandrepairsectioninthismanual.
Ifthepackingboxisintact,proceedtoopenthepackingbox,andyoushallfindtheproduct(either
themeterorthemeterwiththevalvepertheactualorder).Thepoweradapterand/ordatacableas
shownbelowmayalsobefoundaccordingtoyouractualorder.



 



Flowmeterdatacable
Figure2.1:MF5000flowmeteranddatacable

Pleasecheckimmediatelyfortheintegrityoftheproductaswellasthepoweranddatacable,ifany
abnormalisidentified,pleasenotifythedistributor/salesrepresentativeormanufacturerassoonas
youcan.Ifanydefectsareconfirmed,anexchangeshallbearrangedimmediatelyviatheoriginal
saleschannel.(Note:theLCDscreenshallnotbelighteduntilthepowercableispluggedin).This
usermanualshallalsoeitherbeincludedinthepackingboxorviaanonlinerequestforanelectronic
version.Inmostcases,thismanualshallbemadeavailabletothecustomerbeforetheactualorder.
ThecableisastandardonewithanM12connector.






www.Siargo.com

MF5000UserManual






7

|

Page

3. Knowingtheproducts

3.1. Productdescription










Figure3.1:MF5000partsdescription

3.2. CDdescription



Figure3.2:LCDsymbolillustration.

TheLCDprovidesallinformationthattheproductmeasures.Somesymbolsarereservedfor
futureupgrades,andwillnotbelightedduringtheoperation.Thefollowingtabledetailsthe
meaningofeachofthesymbols.

Meterbody
LCDdisplay
MENUkeys
NPTorother
connectors

Flowdirection
Electricalinterface,M12



www.Siargo.com

MF5000UserManual






8

|

Page

Table3.1:Symbolsdescription
USERThetoprowonlydisplayswhencommunicationorotheruser‐defined
functionisinprocess.
Total
Themiddlerowdisplaystheaccumulatedortotalizedflowratein
Nm3(Normalizedcubicmeters)orSCF(Standardcubicfeet).Here
thestandard(normalized)conditionsreferto20°C,101.325kPa.
Flowrate
ThebottomrowdisplaystheinstantflowrateinSLPM(Standard
litersperminute),Nm3/h(Normalizedcubicmetersperhour),or
SCFM(Standardcubicfeetperminute)
E1Error1–Sensorerror
E2Error2–ADCerror
E3Error3–RTCerror
E4Error4–EEPROMerror
E5Error5–Oscillator(crystal)error
Temperature,formodelswithtemperatureoption
PPressure,formodelswithpressureoption
*Note:Boththepressureandtemperaturesensorscanbeintegratedwiththecurrentproduct
butnotwiththedefaultmodels.Pleasecontactthemanufacturerforfurther
information.

3.3. Poweranddatacabledescription

Table3.2:MF5o00wire(M12)assignments.



SocketCable
Figure3.3:MF5000socketandcable


Wire Color Definition
1Brown12~24Vdc
2WhiteRS485B
3BlueGND,commonground
4BlackRS485A
5

Gray

4

~

20mAoutput



www.Siargo.com

MF5000UserManual






9

|

Page

3.4. Mechanicaldimensions



Figure3.4:MF5000meterdimensions






ModelDN(mm)D(NPTM)L
MF500331/8”138
MF500661/4”144
MF500883/8”144
MF5012121/2”150
MF5019193/4”182.5



www.Siargo.com

MF5000UserManual






10

|

Page

4. Installation

Donotopenoralteranypartoftheproductwhichwouldleadtomalfunctionandirrecoverable
damage.Itwillalsoforfeitthetermsofthewarrantyandcauseliability.
Theproductatthetimeofshipmentisfullyinspectedforitsqualityandmeetsallsafetyrequirements.
Additionalsafetymeasuresduringtheinstallationshouldbeapplied.Thisincludes,butisnotlimited
totheleakageverificationprocedures,standardEDS(electrostaticdischarge)precautions,andDC
voltageprecautions.Othertaskssuchascalibration,partreplacement,repair,andmaintenance
mustonlybeperformedbytrainedpersonnel.Uponrequest,themanufacturerwillprovide
necessarytechnicalsupportand/ortrainingforthepersonnel.
Theproductispreferabletobeinstalledhorizontally.Flowdirectionshouldbealignedwiththe
arrowmarkonthemeterbody.Iftheflowingfluidmayhaveparticlesordebris,afilterisstrongly
recommendedtobeinstalledupstreamofthemeter.






Figure4.1:MF5000meterinstallation

Pleasefollowthefollowingstepstocompletetheinstallation:
a)Uponopeningthepackage,theproduct'sphysicalintegrityshouldbeinspectedtoensureno
visualdamage.
b)Beforeinstallationoftheproduct,pleaseensurethatthepipedebrisorparticlesoranyother
foreignmaterialsarecompletedremoved.
c)Cautionsduringinstallation:

i)Itispreferabletofirstinstall/connectthemeterinletandthentheoutletendofthemeter;
Toensurethemeasurementaccuracy,anupstreamstraightpipeoflengthnolessthan
10DNandadownstreamstraightpipeoflengthnolessthan5DNshouldbeinplace.Please
refertothefollowingrecommendedinstallationconfiguration.



www.Siargo.com

MF5000UserManual






11

|

Page









(a)90‐degreeelboworT‐piece(b)2x90‐degreeelbow
Figure4.2:MF5000meterinstallation

(ii)Iftheupstreamordownstreampipesizeisdifferentfromthatoftheproduct,thesizeof
theinstallationlinepipediameter(s)shouldbelargerthantheflowchannel(pipe)sizeof
themeterstobeinstalled.Forsometypicalsituations,pleasefollowtheinstallation
recommendationdetailedinthefollowingsketches.


(c)2x90‐degreeelbow,3D(d)Pipesize‐reduction

(e)Pipesizeexpansion(f)Controlvalveatupstreamordownstream
Figure4.3:MF5000meterinstallation

(iii)Duringinstallation,pleasemakesurenoforeignmaterials(suchaswater,oil,dirt,particles,
etc.)entertheinstallationpipeline.




www.Siargo.com

MF5000UserManual






12

|

Page

d)ConnectelectricalwiresperthewiredefinitioninTable3.3.Pleasebesureofthepowersupply
range(i.e.,12~24VDC)andpowersupplypolarization.Ifanadapterisotherthantheone
suppliedbythemanufacturer,makesuretheadaptermeetsindustrialstandardsandhasall
safetycertifications.
e)Forthedatacommunicationwireconnection,pleasefollowthedescriptioninTable3.3and
makesurethatthewiresarecorrectlyconnectedtotheproperportsonyourdata
device/equipment.Pleasemakesurethedatacablemeetsindustrialstandardswithproper
shielding.
f)Oncetheexternalpowerissuccessfullyconnected,theLCDshouldbelightedupwiththeproper
informationdisplayedtoworkcorrectly.
g)Slowlyopenthevalve(s)ifany,upstreamordownstreamorbothofthepipeline,andthemeter
shouldthenstarttomeasuretheflowinthepipeline.Note:becausethemeterhasalarge
dynamicalmeasurementrange,itcouldbenormalifyouseethesmallinstantflowratebefore
youopenthevalveastherecouldbesomeleakage.However,makesurethemeterreadsnull
whenthereisnoflowpresentinthepipeline.
h)Thiswillconcludetheinstallation.

Cautions
a)Don'talteranypartsoftheproduct.
b)Ensuretheelectricalconnectionisproperlydonepertheinstructions.
c)Makesurenomechanicalstressesintheconnections.
d)Thestrongelectromagneticinterferencesourcesclosebyoranymechanicalshocksatthe
pipelinemayalsocreatemalfunctioningoftheproduct.
e)Slowlyopen/closevalvestopreventabruptpulseflowimpact.




www.Siargo.com

MF5000UserManual






13

|

Page

5. OperationandMENUdescription

5.1 Checktheproductspecifications

Beforestartingtousethisproduct,checktheproductspecificationsthatcanbefoundinthismanual
orthebasicinformationlocatedonthebackpaneloftheproduct.
ThedetailedproducttechnicalspecificationscanbefoundinSection7.Foraspecificapplication,
thepressureratingmustnotbehigherthanthesystempressuretobemeasured,andtheflowrange
shouldalsobewithinthespecifiedones.Inmostcases,theuseofahighfull‐scalerangedmeterfor
theverylowflowratemeasurementoftenresultsinerroneousdata.Thegastobemeasuredmust
alsobeconsistentwiththatspecifiedbytheproduct.Beparticularlycautiousaboutthesupplied
voltageindicatedinthespecification.Ahighervoltagemayleadtoirrecoverabledamage,anda
lowervoltagewillnotpowertheproductforanydesiredfunctions.
Forthebestperformanceoftheproduct,itisadvisedthatthegastobemeasuredmustbecleanand
freeofparticlesorotherforeignmaterials.

5.2 Checktheleakage

Checkgasleakagebeforeanymeasurement.Ifitisneeded,thepressurizednitrogenoraircanbe
usedfortheleakagecheck.

5.3 Powerthemeteranddigitaldataconnection

AlthoughthisproductcomplieswiththeCE‐requiredEMCregulations,italsorequirestheproductto
beusedaccordingtothestandardelectricaldevicepractice.Beforeconnectingthemeterwith
externalDCpoweroranAC‐DCadapter,makesurethesupplyvoltageiswithintherangeofthe
specifiedonesinSection7.BecautiousthatthestandardelectricaldeviceprecautionssuchasEDS
(electrostaticdischarge)andDCvoltageareobserved.Excessiveelectrostaticdischargemay
damagetheproduct.
Themanufacturer‐suppliedpoweranddatacablehavealockingfixture.Lockthecableandmake
sureitisproperlyengagingandwillnotbeaccidentallygotunplugged.
Half‐duplexRS485Modbusisusedfordigitaldatacommunication.Makesurethewiresareproperly
connectedtothereceiverside.



www.Siargo.com

MF5000UserManual






14

|

Page

5.4 MeterMENUdescriptions








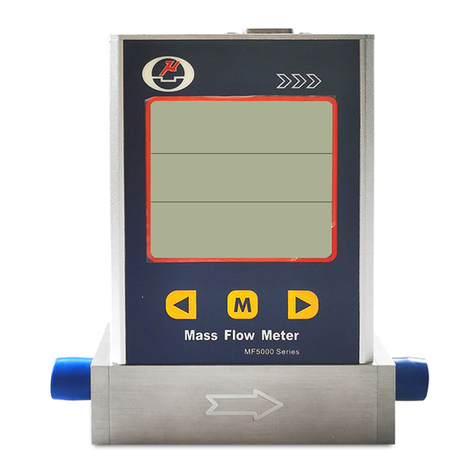

Figure5.1:MF5000keyboard
Themeterhasafront3‐keykeyboardfortheusertosetthedesiredfunctions,accessdata,andcheck
thestatus.TheMenukey(M)isatthecentralpositionthatallowstheusertoselectafunctionand
confirmationorotherrelatedactionsthatwillbedetailedbelow.Twokeys(“Left”and“Right”)to
selectthemenuandsub‐menu.

5.4.1 Startingthemeasurement

Oncethepowerissuppliedandnoabnormalissuesareobserved,themeterisreadytoperformthe
measurements.Thedefaultdisplayisforthemassflowmeasurementhavingtwonumericallineson
theLCD.Themiddlelineistheaccumulatedortotalizedflowrate,andthelowerlineistheinstant
flowrate.Theupperlinewilllightupwhenthepressureortemperatureoptionisselected.

ThedisplaycharactersarelimitedbytheLCDcapability,thefollowingtableistheillustration.




LeftMENURight



www.Siargo.com

MF5000UserManual






15

|

Page

5.4.2 MENUentrywithaverifiedpassword
Attheflowmeasurement(main)display,pressthecentral“M”MENU
key,itwillenterintothepasswordsettingandverificationMENU.The
defaultpasswordis“11111”.Ifthepasswordisincorrect,thedisplaywill
returntothemaindisplay.
Toenteranewpassword,pressthe“Up”or“Down”keytochangethe
digitthatflashes,andpressthe“M”keytoconfirm.Repeatthisprocess
forall5digitsandthemeterwillenterintothemenusetting
interfaces/screen.

Subsequently,theMENUallowstheuserto:
 SetModbusaddressF2‐Addr
 Changecommunicationbaudrate    F3‐bPS
 ResetorcalibratetheoffsetF11‐oFFST
 Enterthegasconversionfactor(GCF)    F12‐GCF
 Setthe2
nd
‐correctionfactor    F14‐Corr
 Changetheresponsetime    F16‐rESPS
 Settheunitfortheaccumulatedortotalizedflowrate F31‐UnT‐A
 Settheunitfortheinstantflowrate   F32‐UnT‐F
 ChangethedefaultpasswordF91‐PASS
 Clearorresettheaccumulatedortotalizedflowrate  F92‐CLr‐A
 Resetthe2
nd
‐correctionfactor    F94‐rS2nd
 ExitfromtheMENUF99‐qUIT
Note:Duringthisprocess,themeterwillcontinuetomeasuretheflowwithoutbeinginterrupted.

5.4.3 SettheRS485Modbusaddress
AfterthepasswordisverifiedandenteredintotheMENUsettings,pressthe“Up”or“Down”key
untilthescreenshowstheF2‐Addrasindicatedtotheleft.
TheModbusaddresshas3digits,whichcanbeanynumber
between001to255.Pressthe“M”keytoenterintothechange
addressscreen.Pressthe“Up”or“Down”keytochangethe
flashingdigits,andthenpressthe“M”keytoconfirm.Afterthe
addressisset,thedisplaywillreturntoF2‐Addr,whichindicates
thetaskiscompleted.Pressthe“Up”or“Down”keytoselectF99
‐qUITandthe“M”keytoexittheMENUandreturntotheMain
Displayscreen.



www.Siargo.com

MF5000UserManual






16

|

Page



5.4.4 SettheRS485communicationbaudrate
Followingtheabove‐mentionedsteps,attheMENUsettingscreen,usethe“Up”or“Down”keyto
selectF3‐bPSandthenpressthe“M”keytosettheRS485communicationbaudrate.
Thereare6baudratesselectable,dependingonyoursystem
requirements:4800,9600,19200,38400,57600,and115200.The
defaultbaudrateis9600.Usethe“Up”or“Down”keytoselectthe
desiredoneandpressthe“M”keytoconfirm.Thedisplaywillthen
returntotheF3‐bPSscreen,whichindicatesthetaskiscompleted.
Usethe“Up”or“Down”keytoselectF99‐qUITandthe“M”keyto
exittheMENUandreturntotheMainDisplayscreen.


5.4.5 Resetorcalibratetheoffset
Afteracertaintimeofusage,themeter’soffset(zeroflowrate)mightormightnothaveasmallshift.
Orwhenyouapplythemeterfordifferentgases,theoffsetmightbeshifted.Toensure
measurementaccuracy,itisnecessarytoresetorcalibratetheoffset.Followingtheabove‐
mentionedsteps,attheMENUsettingscreen,usethe“Up”or
“Down”keytoselectF11‐oFFST.Beforeperformingthetask,
makesurethereisabsolutelynoflowintheflowchannel,otherwise,
itwillcreateevenbiggererroneousmeasurementresults.
Pressthe“M”keytoconfirmthetask,anditwillopenthesub‐
MENUaskingyoutoconfirm.Usethe“Up”or“Down”keytoselect
thedesiredoneandpressthe“M”keytoconfirm.Thedisplaywill
thenreturntotheF11‐oFFSTscreen,whichindicatesthetaskis



www.Siargo.com

MF5000UserManual






17

|

Page

completed.Usethe“Up”or“Down”keytoselectF99‐qUITandthe“M”keytoexittheMENUand
returntotheMainDisplayscreen.

5.4.6 Gasconversionfactor(GCF)fordifferentgasmeasurement
Forthegeneralpurposeoftheapplication,agasconversionfactor(GCF)canbeappliedtometerthe
gasdifferentfromthedefaultoneortheoneusedforcalibration.TheGCFisdeterminedbythe
thermalcalorimetricsensingprincipleaswellasthemeterfluidicdynamicdesignandthecontrol
circuitry.Contactthemanufacturertoobtainthevaluescorrespondingtothecorrectmodels.
TheGCFforairis1000.
Note:Ifthemeterduringpurchaseisorderedforaspecialrealgascalibration,contactthe
manufacturerbeforefurtherproceeding.
Followingtheabove‐mentionedsteps,attheMENUsettingscreen,
usethe“Up”or“Down”keytoselectF12‐GCF.Pressthe“M”key
toconfirm,anditwillopenthesub‐MENUshowingthecurrentgas
conversionvalue.Usethe“Up”or“Down”andthe“M”confirming
keytoinputthedesiredvalue,andpressthe“M”keyagainto
completethetask.ThedisplaywillthenreturntotheF12‐GCF
screen,whichindicatesthetaskiscompleted.Usethe“Up”or
“Down”keytoselectF99‐qUITandthe“M”keytoexittheMENU
andreturntotheMainDisplayscreen.





www.Siargo.com

MF5000UserManual






18

|

Page

5.4.7 Setthe2
nd
‐correctionfactor
Followingtheabove‐mentionedsteps,attheMENUsetting
screen,usethe“Up”or“Down”keytoselectF14‐Corrandthen
pressthe“M”keytosetthe2
nd
‐correctionfactor.





5.4.8 SettheResponsetime
Followingtheabove‐mentionedsteps,attheMENUsettingscreen,usethe“Up”or“Down”keyto
selectF16‐rESPSandthenpressthe“M”keytosettheresponsetime.
Thereare6responsetimeselectable:125,250,500,1000,2000,
and5000,unitismsec.Thedefaultresponsetimeis125msec.
Usethe“Up”or“Down”keytoselectthedesiredoneandpress
the“M”keytoconfirm.ThedisplaywillthenreturntotheF16‐
rESPSscreen,whichindicatesthetaskiscompleted.Usethe“Up”
or“Down”keytoselectF99‐qUITandthe“M”keytoexitthe
MENUandreturntotheMainDisplayscreen.






www.Siargo.com

MF5000UserManual






19

|

Page

5.4.9 Settheunitfortheaccumulatedortotalizedflowrate
Thisfunctionistosettheunitofaccumulatedflow.Ifonelikestoswitchbetweenm
3
andSCF,
followingtheabove‐mentionedsteps,attheMENUsettingscreen,
usethe“Up”or“Down”keytoselectF31‐UnT‐A.Pressthe“M”
keytoconfirm,anditwillopenthesub‐MENUshowingthecurrent
unitofaccumulatedflow.Usethe“Up”or“Down”andthe“M”
confirmingkeytoselectthedesiredone,andpressthe“M”key
againtocompletethetask.ThedisplaywillthenreturntotheF31
–UnT‐Ascreen,whichindicatesthetaskiscompleted.Usethe“Up”
or“Down”keytoselectF99‐qUITandthe“M”keytoexitthe
MENUandreturntotheMainDisplayscreen.


5.4.10 Settheunitfortheinstantflowrate
Thisfunctionistosettheunitforaninstantflowrate.IfonelikestoswitchbetweenSLPM,m
3
/h
(m3PH),andSCFM,followingtheabove‐mentionedsteps,atthe
MENUsettingscreen,usethe“Up”or“Down”keytoselectF32‐
UnT‐F.Pressthe“M”keytoconfirm,anditwillopenthesub‐
MENUshowingthecurrentunitofaccumulatedflow.Usethe“Up”
or“Down”andthe“M”confirmingkeytoselectthedesiredone,
andpressthe“M”keyagaintocompletethetask.Thedisplaywill
thenreturntotheF32‐UnT‐Fscreen,whichindicatesthetaskis
completed.Usethe“Up”or“Down”keytoselectF99‐qUITand
the“M”keytoexittheMENUandreturntotheMainDisplayscreen.

