MMMOPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
VISIC100SF
Tunnel Air Quality Sensors
Title Page

28017171/194 V/V4-0/2022-09| SICKOPERATING INSTRUCTIONS |VISIC100SF
Subject to change without notice
Described Product
Product name: VISIC100SF
Manufacturer
SICK AG
Erwin-Sick-Str. 1
79183 Waldkirch
Germany
Legal Information
This work is protected by copyright. All rights derived from the copyright shall be reserved
for SICK AG. Reproduction of this document or parts of this document is only permissible
within the limits of the legal determination of Copyright Law. Any modification,
shortening or translation of this document is prohibited without the express written
permission of SICK AG.
The trademarks stated in this document are the property of their respective owner.
© SICK AG. All rights reserved.
Original document
This document is an original document of SICK AG.

3
8017171/194 V/V4-0/2022-09| SICK OPERATING INSTRUCTIONS |VISIC100SF
Subject to change without notice
Symbols and document conventions
Warning symbols
Warning levels and signal words
DANGER
Risk or hazardous situation which will result in severe personal injury or death.
WARNING
Risk or hazardous situation which could result in severe personal injury or death.
CAUTION
Hazard or unsafe practice which could result in personal injury or property damage.
NOTICE
Hazard which could result in property damage.
Information Symbols
Data integrity
SICK AG uses standardized data interfaces, such as standard IP technology, in its
products. The focus here is on product availability and features.
SICK AG always assumes the integrity and confidentiality of data and rights affected in
connection with the use of the products are ensured by the customer.
In all cases, the customer is responsible for the implementation of safety measures
suitable for the respective situation, e.g., network separation, firewalls, virus protection
and patch management.
Hazard (general)
Hazard by voltage
Hazard for the environment/nature/organic
life
Important technical information for this product
Important information on electric or electronic functions
Supplementary information
Link to information at another place

CONTENTS
48017171/194 V/V4-0/2022-09| SICKO P E R A T I N G I N S T R U C T I O N S | VISIC100SF
Subject to change without notice
1 Important information ..................................................................................................................... 8
1.1 About this document .................................................................................................................................. 8
1.2 Responsibility of user................................................................................................................................. 8
1.3 Intended use............................................................................................................................................... 9
1.3.1 Purpose of the device ................................................................................................................ 9
1.3.2 Product identification ................................................................................................................ 9
1.3.3 Installation location ................................................................................................................... 9
2 Product description ........................................................................................................................ 10
2.1 Features of the VISIC100SF .................................................................................................................... 10
2.2 Device versions ........................................................................................................................................ 11
2.2.1 Standard components: VISIC100SF visibility measurement (K-value) ................................. 11
2.2.2 Optional equipment ................................................................................................................. 12
2.2.3 Measuring principle ................................................................................................................. 16
2.2.4 Interior view - VISIC100SF....................................................................................................... 16
2.3 Interfaces.................................................................................................................................................. 19
2.3.1 Analog interfaces characteristics............................................................................................ 19
2.3.2 Digital interfaces properties.................................................................................................... 19
2.3.3 Modbus®-RTU interface characteristics ................................................................................. 19
3 Mounting and electrical installation ............................................................................................ 20
3.1 Safety notes.............................................................................................................................................. 20
3.2 Material required...................................................................................................................................... 20
3.3 Preparing the installation location .......................................................................................................... 21
3.4 Mounting................................................................................................................................................... 22
3.4.1 Scope of delivery...................................................................................................................... 22
3.4.2 Mounting the VISIC100SF ....................................................................................................... 22
3.4.3 Mounting the connection unit (optional) ................................................................................ 24
3.4.4 Mounting the TAD control unit (optional)................................................................................ 25
3.4.5 Mounting and commissioning of the gas sensors (optional) ................................................. 25
3.5 VISIC100SF wiring.................................................................................................................................... 28
3.5.1 Safety notes ............................................................................................................................ 28
3.5.2 Connecting the LED ................................................................................................................. 29
3.5.3 Wiring of analog outputs, relay outputs and voltage supply .................................................. 31
3.5.4 Bus interface wiring ................................................................................................................. 32
3.5.5 Shielding................................................................................................................................... 32
3.5.6 Connection unit wiring ............................................................................................................. 34
3.5.7 TAD control unit wiring............................................................................................................. 35
3.6 Connections.............................................................................................................................................. 36
3.6.1 Standard version...................................................................................................................... 36
3.6.2 VISIC100SF with connection unit............................................................................................36
3.6.3 VISIC100SF connections with TAD control unit...................................................................... 36

CONTENTS
5
8017171/194 V/V4-0/2022-09| SICK OPERATING INSTRUCTIONS |VISIC100SF
Subject to change without notice
4 Commissioning................................................................................................................................37
4.1 Commissioning, step by step ...................................................................................................................37
4.2 Bus connections .......................................................................................................................................39
4.3 Modbus®RTU (integrated in the VISIC100SF standard version) ...........................................................39
4.3.1 Modbus®RTU data format ......................................................................................................39
4.3.2 Modbus®RTU baud rates ........................................................................................................39
4.3.3 Read Holding Register (0x03)..................................................................................................40
4.3.4 Modbus®RTU Read Coil (0x01) ..............................................................................................41
4.4 PROFIBUS DP-V0 (optional)......................................................................................................................41
4.4.1 PROFIBUS addressing ..............................................................................................................41
4.4.2 PROFIBUS DP-V0 baud rates ...................................................................................................42
4.4.3 Access via GSD file...................................................................................................................42
4.4.4 Coding of visibility measured value status..............................................................................43
4.5 RS-485 - topology and bus termination...................................................................................................44
4.6 Stub line length for terminal box on all RS-485 bus systems ................................................................44
5 Operation..........................................................................................................................................46
5.1 Operating and display elements ..............................................................................................................46
5.1.1 Display with keypad in VISIC100SF.........................................................................................46
5.1.2 Reset button and “Maint” LED ................................................................................................46
5.1.3 Display unit in the TAD control unit .........................................................................................47
5.2 Operating states .......................................................................................................................................47
5.2.1 Checking the operating state (visual control) .........................................................................47
5.2.2 Checking malfunction messages.............................................................................................47
5.3 Checking the analog outputs ...................................................................................................................47
5.3.1 Displaying measured values ....................................................................................................47
5.4 Operating functions ..................................................................................................................................47
5.5 Status messages ......................................................................................................................................47
5.5.1 Malfunction messages .............................................................................................................47
5.5.2 Maintenance request messages .............................................................................................48
6 VISIC100SF menu navigation .......................................................................................................49
6.1 Menu structure .........................................................................................................................................49
6.1.1 Short description: Entering settings on the keypad................................................................49
6.2 Measuring operation mode “RUN”...........................................................................................................50
6.3 “SET” mode ...............................................................................................................................................51
6.3.1 Structure and sequence of “SET” mode submenu items.......................................................52
6.3.2 Activating maintenance in menu item “Maint” .......................................................................53
6.3.3 Calling up maintenance request and malfunction messages with menu item “Status” ......53
6.3.4 Maintenance request for gas sensors in submenu item “NxtMRq” ......................................53
6.3.5 Calling-up the operating duration in submenu item “Uptime” ...............................................54
6.3.6 Calling up the software version in submenu item “SwVers” ..................................................55
6.4 Connecting the bus systems ....................................................................................................................56
6.4.1 Setting the RS-485 interface with submenu item “Bus”........................................................56

CONTENTS
68017171/194 V/V4-0/2022-09| SICKO P E R A T I N G I N S T R U C T I O N S | VISIC100SF
Subject to change without notice
6.5 Setting bus parameters ........................................................................................................................... 57
6.5.1 Setting the PROFIBUS address in “PB ID” .............................................................................. 57
6.5.2 Setting the Modbus®address in “MB ID”............................................................................... 58
6.5.3 Setting the Modbus®data transfer format with menu item “MB Par”.................................. 58
6.5.4 Setting the Modbus®baud rate with menu item “MB BdR”.................................................. 59
6.6 Testing digital/analog outputs and gas sensors..................................................................................... 60
6.6.1 Signal test “IO test” ................................................................................................................. 60
6.6.2 Assigning analog outputs with menu item “IOMap”............................................................... 63
6.6.3 Scaling analog outputs ............................................................................................................ 64
6.6.4 Output visibility as “K-value” or “μg” ...................................................................................... 65
6.6.5 Activating/deactivating the external temperature sensor (optional) .................................... 65
6.6.6 Activating/deactivating the heating (optional) ....................................................................... 66
6.6.7 Device adjustment using submenu item “Tuning”................................................................. 66
7 TAD control unit menu navigation............................................................................................... 67
7.1 Basic features .......................................................................................................................................... 67
7.2 Main functions.......................................................................................................................................... 67
7.3 Switch-on procedure ................................................................................................................................ 67
7.3.1 Characteristics of the heating up phase ................................................................................ 67
7.4 Operating elements.................................................................................................................................. 68
7.4.1 LEDs ......................................................................................................................................... 68
7.4.2 Function buttons ...................................................................................................................... 69
7.5 Starting operation .................................................................................................................................... 70
7.5.1 Initialization phase................................................................................................................... 70
7.5.2 Measuring screen .................................................................................................................... 71
7.5.3 Displaying the Main menu....................................................................................................... 72
7.5.4 Selecting the menu item ......................................................................................................... 72
7.5.5 Returning to the measuring screen ........................................................................................ 72
7.5.6 Selecting the menu language.................................................................................................. 72
7.5.7 Setting the display contrast..................................................................................................... 73
7.5.8 Changing numerical parameters (password input) ................................................................ 73
7.6 Activating Maintenance mode ................................................................................................................. 74
7.7 Main menu item “Diagnosis”................................................................................................................... 75
7.7.1 Maintenance requests of gas sensors: “Next Maintenance” ................................................ 76
7.7.2 Retrieving the operating duration: “Uptime” .......................................................................... 76
7.7.3 Retrieving device information with “Device Info” ................................................................... 77
7.7.4 Retrieving the state of peripheral equipment with submenu item “Peripheral”................... 77
7.7.5 Error messages/maintenance requests with “Messages” .................................................... 78
7.8 Testing digital/analog outputs................................................................................................................. 79
7.8.1 Testing the analog output AO1................................................................................................ 79
7.8.2 Testing the analog outputs AO2 - AO4 .................................................................................... 80
7.8.3 Testing the “Fault” relay with submenu item “Fault” ............................................................. 80
7.8.4 Testing the “Maintenance Request” relay with submenu item “Maintenance Req.”........... 80

CONTENTS
7
8017171/194 V/V4-0/2022-09| SICK OPERATING INSTRUCTIONS |VISIC100SF
Subject to change without notice
7.9 Performing settings on the device with menu item “Configuration” ......................................................80
7.9.1 Scaling analog outputs with menu item “Scale AO” ...............................................................81
7.9.2 Assigning analog outputs “AO Mapping”.................................................................................82
7.9.3 Setting the PROFIBUS address in “PROFIBUS ID” ..................................................................83
7.9.4 Conversion visibility/dust concentration with menu item “Conversion μg” ..........................84
7.9.5 Activating/deactivating temperature measurement with menu item “Temp.” .....................85
8 Shutdown .........................................................................................................................................86
8.1 Technical knowledge necessary for shutdown........................................................................................86
8.2 Safety information ....................................................................................................................................86
8.3 Preparations for shutdown.......................................................................................................................86
8.4 Switch-off procedure.................................................................................................................................86
8.5 Protective measures for shutdown device ..............................................................................................86
8.5.1 Measures for short-term shutdown .........................................................................................86
8.6 Transport ...................................................................................................................................................87
8.7 Disposal.....................................................................................................................................................87
9 Maintenance....................................................................................................................................88
9.1 Technical knowledge, required ................................................................................................................88
9.2 Safety notes ..............................................................................................................................................88
9.3 Maintenance .............................................................................................................................................89
9.3.1 VISIC100SF maintenance ........................................................................................................89
9.3.2 Maintenance plan ....................................................................................................................93
9.3.3 Tunnel cleaning ........................................................................................................................93
9.4 When requesting Customer Service from SICK.......................................................................................93
9.4.1 Exchanging the measuring unit ...............................................................................................93
9.5 Spare parts ...............................................................................................................................................94
9.5.1 Consumable parts/operating materials .................................................................................94
9.5.2 Spare parts for VISIC100SF.....................................................................................................94
10 Clearing malfunctions ....................................................................................................................95
10.1 Description of device errors .....................................................................................................................95
10.2 Description of maintenance requests .....................................................................................................96
10.3 Display of error states on the TAD control unit ......................................................................................96
10.4 Further error causes .................................................................................................................................96
11 Specifications ..................................................................................................................................97
11.1 Compliances .............................................................................................................................................97
11.1.1 Electrical protection .................................................................................................................97
11.1.2 Standards observed .................................................................................................................97
11.1.3 Declaration of Conformity ........................................................................................................97
11.2 Dimensions ...............................................................................................................................................98
11.3 Technical Data ....................................................................................................................................... 103

88017171/194 V/V4-0/2022-09| SICKO P E R A T I N G I N S T R U C T I O N S | VISIC100SF
Subject to change without notice
IMPORTANT INFORMATION
1 Important information
1.1 About this document
●These Operating Instructions describe:
– Device components
–Installation
–Operation
– Maintenance work required
●It contains important safety information for safe operation.
1.2 Responsibility of user
▸Read the Operating Instructions before putting the VISIC100SF into operation.
▸Observe all safety information.
▸If anything is not clear: Please contact SICK Customer Service.
Designated users
The VISIC100SF may be operated by qualified persons only who, based on their device-
specific training and knowledge of the device as well as knowledge of the relevant
regulations, can assess the tasks given and recognize the hazards involved.
Correct use
●This Manual presumes that the VISIC100SF has been delivered as specified during
project planning (e.g., for use in a tunnel) and with the relevant delivery state of the
VISIC100SF (→delivered System Documentation).
●If you are not sure whether the VISIC100SF complies with the planned configuration or
the delivered System Documentation:
▸Please contact SICK Customer Service.
●The VISIC100SF should only be used as described in these Operating Instructions, see
“Purpose of the device”, page 9. The manufacturer assumes no responsibility for any
other use.
●Maintenance work should be performed as prescribed in this Manual.
●Do not attempt any work on or repairs to the VISIC100SF unless described in this
Manual.
●Do not modify the VISIC100SF in any way unless specifically instructed and permitted to
do so by the manufacturer.
●Use only original spare parts and wear and tear parts from SICK.
Failure to observe these precautions could result in:
●Voiding the manufacturer‘s warranty.
●Causing the VISIC100SF to become dangerous.
Special local conditions
▸Follow all local laws, regulations, and company policies applicable at the installation
location.
Retention of document
These Operating Instructions:
●Must be available for reference.
●Must be conveyed to new owners.

9
8017171/194 V/V4-0/2022-09/ SICK OPERATING INSTRUCTIONS | VISIC100SF
Subject to change without notice
IMPORTANT INFORMATION
1.3 Intended use
1.3.1 Purpose of the device
The VISIC100SF measures the visibility in tunnels and at the tunnel portals. When
appropriate gas sensors have been fitted, the concentrations of CO, NO and NO2in the
tunnel can be determined at the same time visibility is measured.
1.3.2 Product identification
The type plate is located on the side on the rear enclosure panel.
1.3.3 Installation location
●In a tunnel
●On tunnel portals
●In basement garages
●Generally in applications similar to tunnels for measuring visibility and gas
concentrations
The VISIC100SF can be equipped with maximum two gas sensors.
Product name: VISIC100SF
Manufacturer: SICK AG
Erwin-Sick-Str. 1 · 79183 Waldkirch · Germany

10 8017171/194 V/V4-0/2022-09| SICKO P E R A T I N G I N S T R U C T I O N S | VISIC100SF
Subject to change without notice
PRODUCT DESCRIPTION
2 Product description
2.1 Features of the VISIC100SF
▸Simultaneous or individual measurement of
a) Standard:
– Visibility (K-value)
b) Optional
– CO concentration
– NO concentration
–NO
2concentration
– Combination of two gas concentrations possible
▸Measuring visibility with fog dissipation (optional).
▸Compact design with low space requirements.
▸Already calibrated ex factory, no readjustment required onsite (Plug & Measure).
▸Scope of delivery with or without connection unit.
▸Scope of delivery with or without TAD control unit.
▸Keypad and single-line display in the measuring unit to
– Display values when the device is open.
– Control diagnosis and maintenance.
– Assign device addresses when using bus wiring.
▸Status LED signals error-free operation (green), maintenance request (yellow) and
malfunction (red).
▸Standard: 3 analog outputs and 2 digital outputs, 1 Modbus®RTU.
▸Optional: PROFIBUS DP-V0
Fig. 1: VISIC100SF application example
ca. 300 m
...
ca.150 m
ʛʛ
ʛ
ʛ
ʛ
ʛ
K-value
CO /NO/
NO2
Option:
- Connection unit and/or TAD
- Fog dissipation: Version with heating
Tunnel
control room

11
8017171/194 V/V4-0/2022-09/ SICK OPERATING INSTRUCTIONS | VISIC100SF
Subject to change without notice
PRODUCT DESCRIPTION
2.2 Device versions
2.2.1 Standard components: VISIC100SF visibility measurement (K-value)
Fig. 2: VISIC100SF sensor
4
8
5
6
2
Enclosure cover
Inlet opening for air to be measured
Rear enclosure panel with mounting bracket
Status LED
Screw plugs for operation without gas sensors
Electrical screw fitting for cable (10 ... 14 mm)
Electrical screw fitting for cable (6 ... 12 mm)
Connection for functional grounding
7
2
2
1
3

12 8017171/194 V/V4-0/2022-09| SICKO P E R A T I N G I N S T R U C T I O N S | VISIC100SF
Subject to change without notice
PRODUCT DESCRIPTION
2.2.2 Optional equipment
2.2.2.1 Gas sensor for measuring CO, NO or NO2
The type plate is stuck on the gas sensor.
Fig. 3: Gas sensor type plate
Fig. 4: Gas sensors CO, NO, NO2
Designation
Measured component
Item number
Serial number
Enclosure
M20 x 1.5 mm thread
4-pin connecting cable
4-pin connector
The CO, NO and NO2sensors can only be distinguished by their type plate, see Fig. 3: “Gas
sensor type plate”

13
8017171/194 V/V4-0/2022-09/ SICK OPERATING INSTRUCTIONS | VISIC100SF
Subject to change without notice
PRODUCT DESCRIPTION

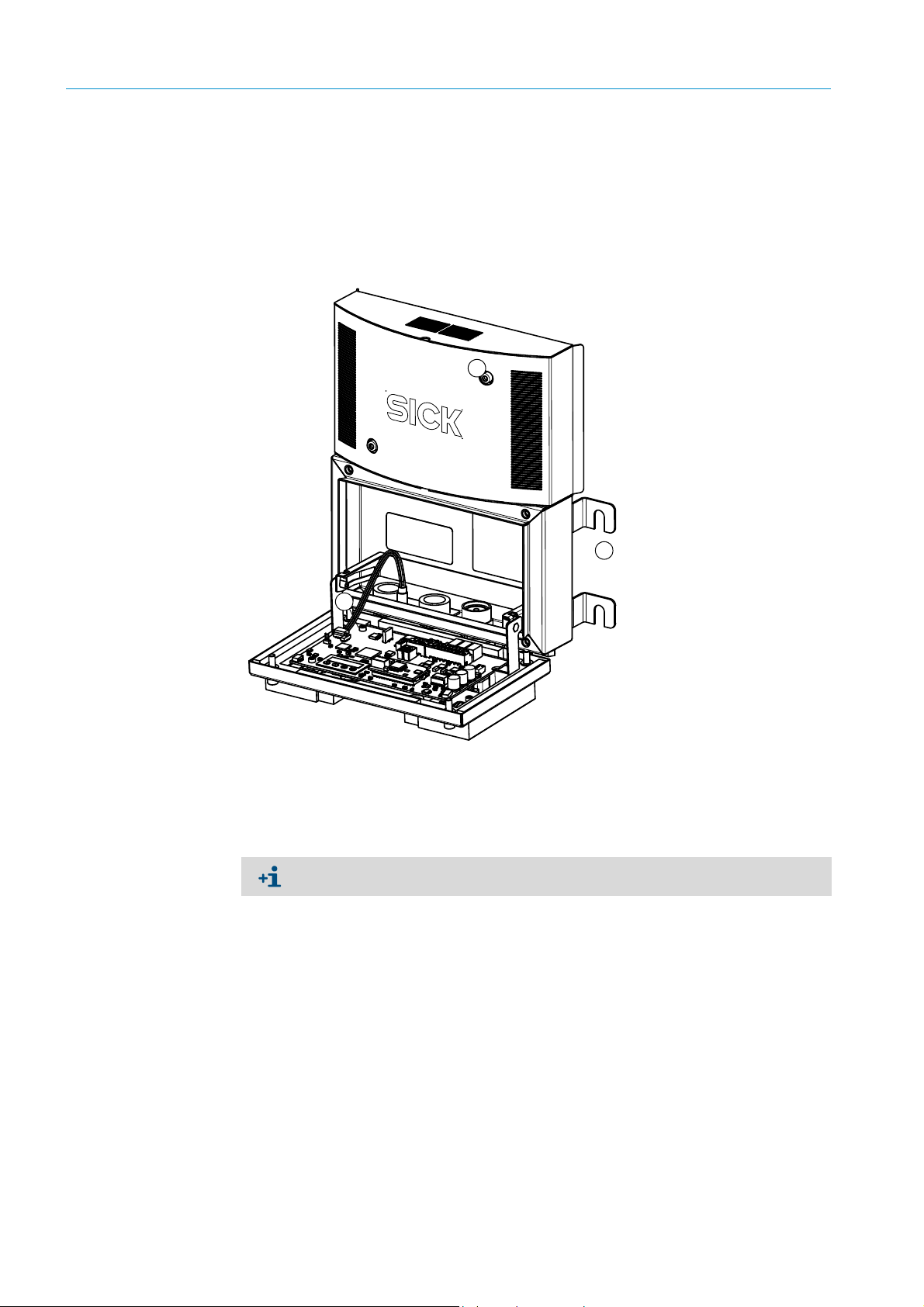

2.2.2.2 Connection unit
2 variants:
●TB-A1: Connection unit for reconnection of cables. It contains:
– 10 connection terminals for reconnection of on-site cables.
●TB-A2: Connection unit to connect the VISIC100SF to the power voltage. It contains:
– Power supply filter, connection terminals and a power supply unit.
Fig. 5: Connection unit with 24 V voltage supply for the sensor
Specifications concerning stub lines, see “Stub line length for terminal box on all RS-
485 bus systems”, page 44, must always be adhered to when the VISIC100SF and the
associated connection unit are part of a bus system.
Enclosure cover
Rear enclosure panel with mounting bracket
Electrical screw fittings for cables:
●3 x 6 ... 11 mm
●2 x 10 ... 14 mm
Grounding
1
2
4
3
Ready-made connection cables are available for both variants. (Further details on
connection cables, see “Installation material”, page 20).

14 8017171/194 V/V4-0/2022-09| SICKO P E R A T I N G I N S T R U C T I O N S | VISIC100SF
Subject to change without notice
PRODUCT DESCRIPTION
2.2.2.3 TAD control unit
2 variants:
●TAD100 standard control unit:
– Connection to VISIC100SF analog: 3 x 4 ... 20 mA and 2 x relay
– Connection to VISIC100SF via RS-485 interface (SICK bus)
– Display unit
– Electrical connection to power voltage
●TAD100 control unit with optional I/Os:
– Connection to VISIC100SF via RS-485 interface (SICK bus)
– Display unit
– Electrical connection to power voltage

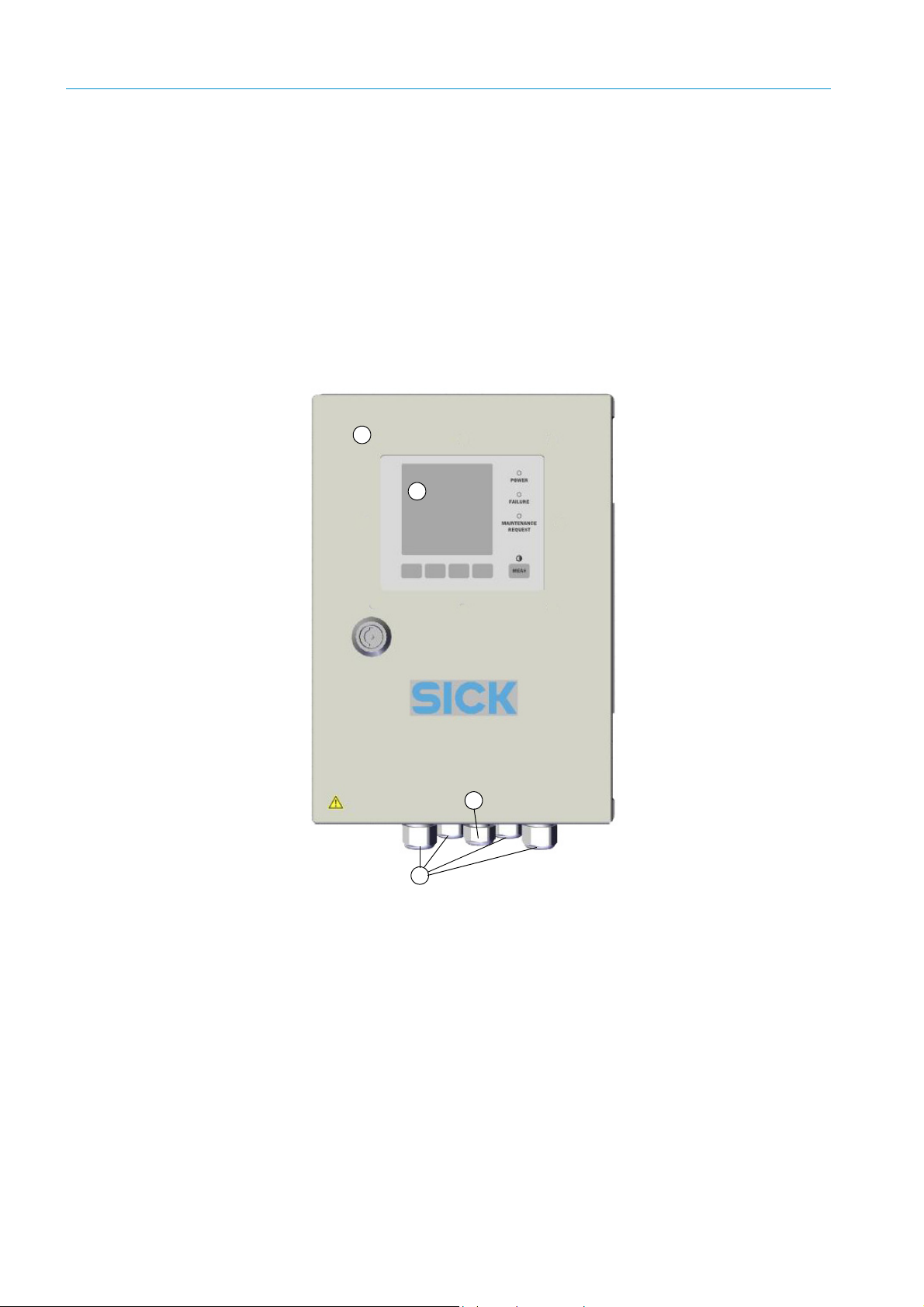

Fig. 6: TAD control unit
1
2
Enclosure cover
Display unit
Electrical screw fittings for cables:
4 x 6 ... 12 mm (M20 x 1.5)
1 x 5 ... 10 mm (M16 x 1.5)
4
3

15
8017171/194 V/V4-0/2022-09/ SICK OPERATING INSTRUCTIONS | VISIC100SF
Subject to change without notice
PRODUCT DESCRIPTION

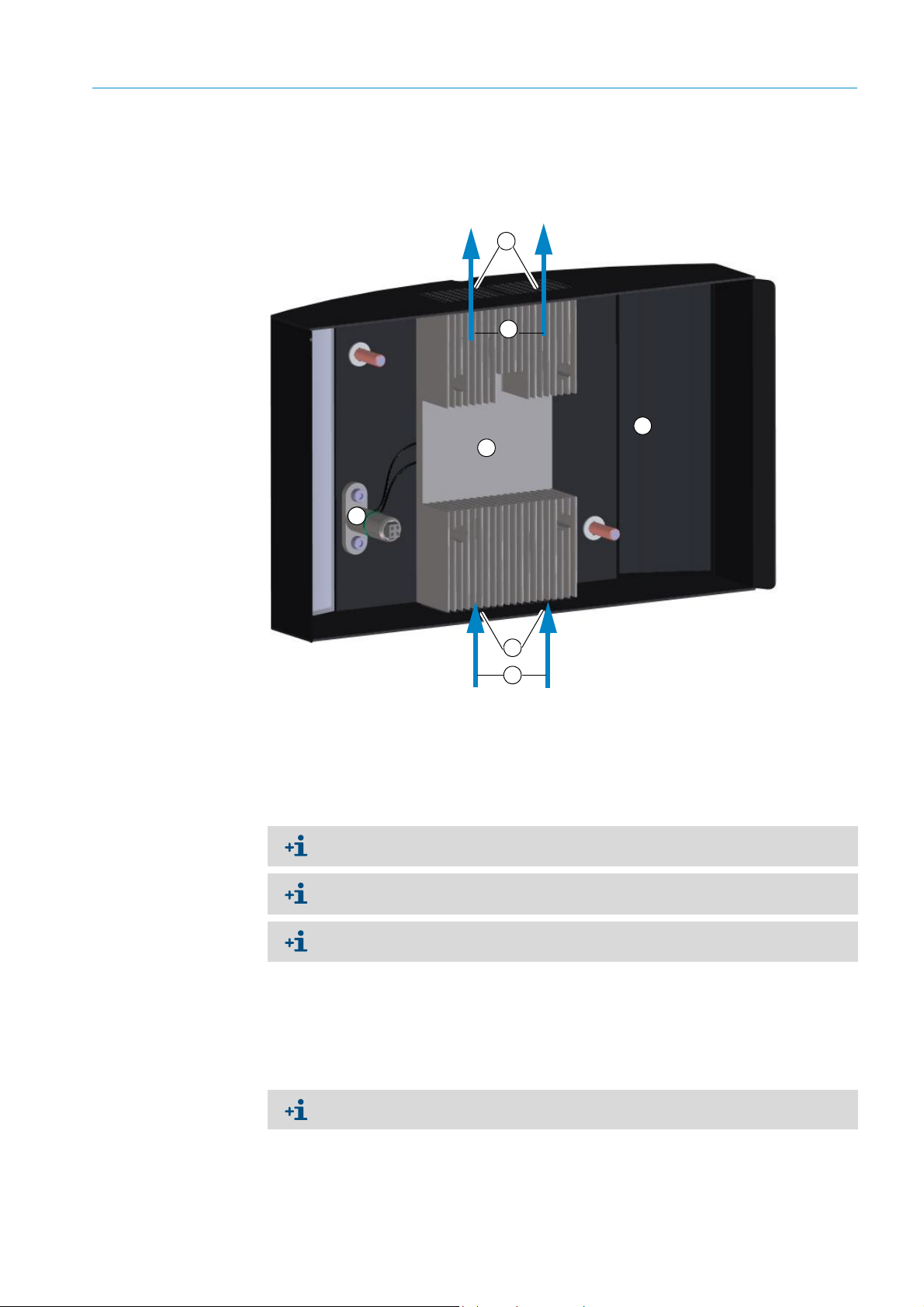

2.2.2.4 Fog dissipation (cover with integrated heating element)
SICK provides a variant with a heating element in the cover for fog dissipation.
Fig. 7: VISIC100SF cover with heating element for fog dissipation
2.2.2.5 Bus interface: PROFIBUS DP-V0, Modbus®RTU
The VISIC100SF is delivered with the following bus interface depending on the
configuration:
–Modbus
®RTU (standard)
– PROFIBUS DP-V0 (option)
1
3
2
Enclosure cover
Heating element
Electrical contacts for heating element
Inlet opening for air to be measured
Flow direction of air to be measured
4
5
5
4
The heating element is integrated in the VISIC100SF cover and cannot be retrofitted
onsite.
The side openings for the air to be measured are closed off on the VISIC100SF version
with fog dissipation.
If the cover is not placed on the measuring unit, error message F004 (heating) is active
because the voltage supply to the heating is interrupted.
Modbus®RTU is not available when a TAD control unit is used.

16 8017171/194 V/V4-0/2022-09| SICKO P E R A T I N G I N S T R U C T I O N S | VISIC100SF
Subject to change without notice
PRODUCT DESCRIPTION
2.2.3 Measuring principle
●Visibility: Scattered light measurement
●CO, NO, NO2: Electrochemically
2.2.4 Interior view - VISIC100SF

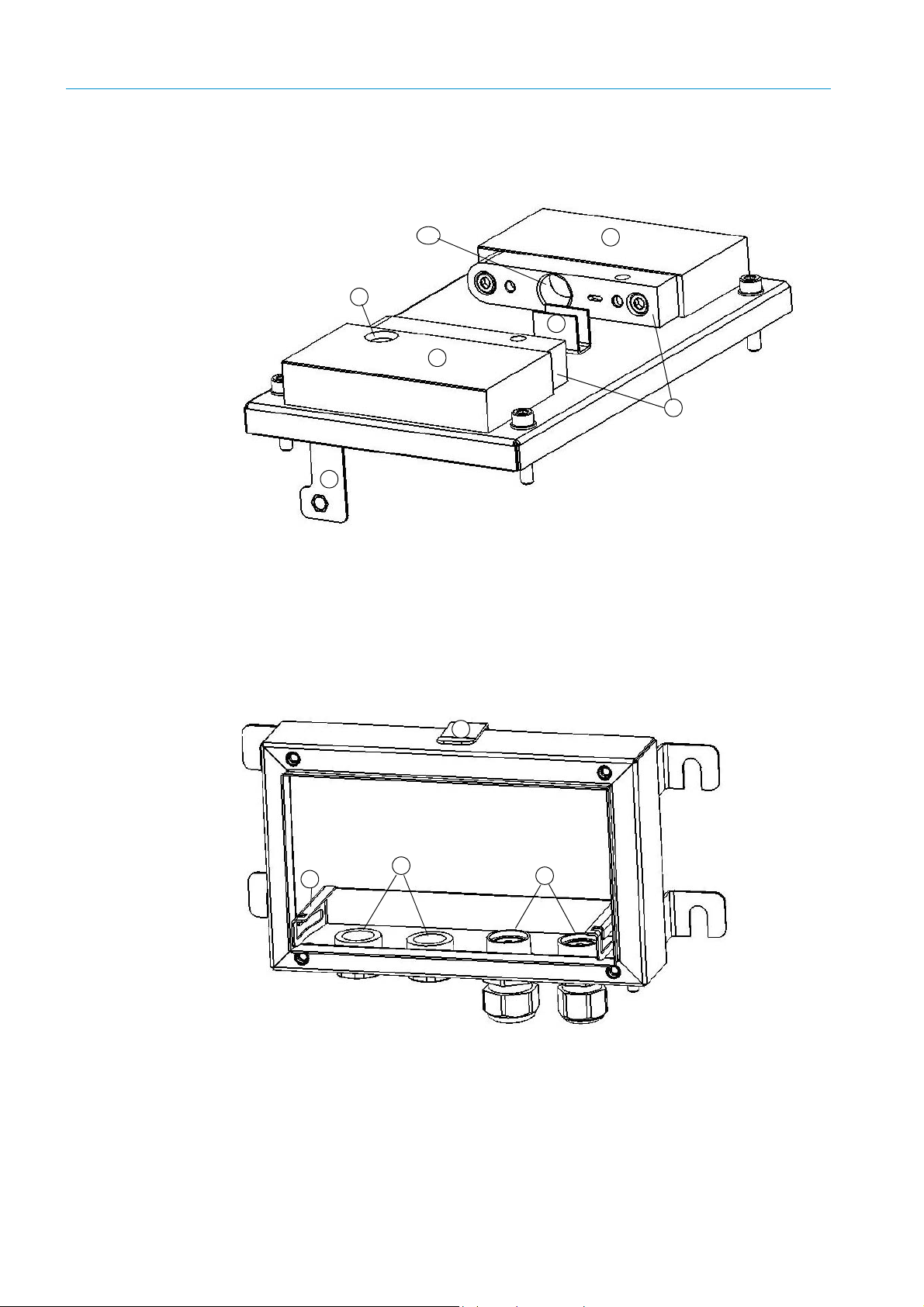

Fig. 8: Interior view - enclosure, complete
1
2
3
Enclosure cover
Rear enclosure panel with mounting bracket
Measuring unit
The enclosure cover can be held on the rear enclosure panel for maintenance purposes.

17
8017171/194 V/V4-0/2022-09/ SICK OPERATING INSTRUCTIONS | VISIC100SF
Subject to change without notice
PRODUCT DESCRIPTION
Fig. 9: Interior view - enclosure cover without heating
Interior view - enclosure cover with heating
see “VISIC100SF cover with heating element for fog dissipation”, page 15.
Interior view - measuring unit
Fig. 10: Measuring unit - circuit board with display and keypad
Inlet opening for air to be
measured
1
1
23
45
7
Hinge fixture
Slot for Status LED
Slots for gas sensors
Wiring block for bus connections (RS-485)
Wiring block for 24 V and signals
Reset button
Display with keypad
6

18 8017171/194 V/V4-0/2022-09| SICKO P E R A T I N G I N S T R U C T I O N S | VISIC100SF
Subject to change without notice
PRODUCT DESCRIPTION
Fig. 11: Measuring unit
Fig. 12: Interior view - rear enclosure panel
Hinge fixture
Sender side
Receiver side
Optical shielding
Dust shields
Opening for plug contact for enclosure cover
Light trap
1
2
3
4
5
6
7
Hinge rail for measuring unit
Threads for gas sensors
Cable glands
Bracket for enclosure cover
1
23
4

19
8017171/194 V/V4-0/2022-09/ SICK OPERATING INSTRUCTIONS | VISIC100SF
Subject to change without notice
PRODUCT DESCRIPTION
2.3 Interfaces
●Standard:
– 3 analog interfaces for measured value output
– 2 digital interfaces for maintenance requests or malfunction messages
– RS-485: Either Modbus®RTU or SICK bus to the TAD control unit
●Optional:
– PROFIBUS DP-V0
2.3.1 Analog interfaces characteristics
The interfaces of the VISIC100SF provide 4 ... 20 mA signals. If an error exists on the
VISIC100SF or when the measured value underflows the lower measuring range limit, the
relevant analog output switches to 1 mA. If the upper measuring range limit is exceeded,
the relevant analog output switches to 23 mA.
The following formula shows the relation between the output current and the respective
measured variable:
2.3.2 Digital interfaces properties
If a device error is detected or a measured value is outside the measuring range, an error is
signaled via the malfunction relay. If no device error exists, the malfunction relay is in a
closed state. The relay opens when an error occurs.
2.3.3 Modbus®-RTU interface characteristics
see “Modbus® RTU (integrated in the VISIC100SF standard version)”, page 39.
The switch to 1 mA only affects the analog output with a device error. All other analog
outputs continue to output a measured value between 4 ... 20 mA.
The analog interface can drive a load resistance of up to 500 Ohm.
The refresh rate is ≤1.6 seconds.
Messgröße (Gas-Konz. o. Sichttr.) = x Messbereichsendwert
16
Measured variable (gas conc. without visibility)
Output current - 4mA
full-scale value

20 8017171/194 V/V4-0/2022-09| SICKO P E R A T I N G I N S T R U C T I O N S | VISIC100SF
Subject to change without notice
MOUNTING AND ELECTRICAL INSTALLATION
3 Mounting and electrical installation
3.1 Safety notes
3.2 Material required
Table 1: Mounting material
Table 2: Installation material
NOTE: Preventive measures for operating safety
The VISIC100SF is normally used together with control technology.
▸Should a malfunction occur on the VISIC100SF, ensure this cannot lead to
conditions dangerous for traffic or can hinder traffic.
NOTE: The system operator is responsible for the operating safety of the
device when integrated in a system
▸Observe the connection values from Section, see “Technical Data”, page 103, when
integrating the device in a system.
WARNING: Preventive measures during mounting and installation
▸Observe the generally applicable regulations for protective clothes in tunnels.
▸Observe the regulations for personal safety (e.g., lane closure, warning devices).
NOTE:
Mounting of the VISIC100SF may be carried out by qualified persons only who, based
on their device-specific training and knowledge of the device as well as knowledge of the
relevant regulations, can assess the tasks given and recognize the hazards involved.
NOTE:
Original SICK mounting material is recommended for safe mounting of the VISIC100SF.
CAUTION: The connection unit and the TAD control unit do not have
independent main power switches.
▸Ensure the following before installation in accordance with EN 61010:
●A main power switch is available in the tunnel.
●Service personnel can easily access the main power switch.
●The main power switch is marked as disconnecting device.
Material required Item number Required for
Mounting kit 2071034 VISIC100SF, connection unit or TAD control unit
see “VISIC100SF drilling plan (all units of
measurement in mm)”, page 100.
see “Dimensions of control unit for VISIC100SF
(all units of measurement in mm)”, page 100
Drilling plan
Drilling template
Material required Item number Required for
Cable, 2 m (12 x 0.75 mm2) 2076476
Analog cables for connection of VISIC100SF -
connecton unit or TAD control unit.
Cable, 5 m (12 x 0.75 mm2) 2076477
Cable, 10 m (12 x 0.75 mm2) 2076478
Cable, 20 m (12 x 0.75 mm2) 2076479
Onsite cables
Robust material, suitable for outdoor applications,
halogen-free, screened;
wires 12 x 0.75 mm2;
Connection VISIC100SF to connection unit, TAD
control unit or tunnel control room.
