System board D1156
Additional Technical Manual
En
g
lish
September 1999 edition

Intel, Pentium and Celeron are registered trademarks and MMX and OverDrive are
trademarks of Intel Corporation, USA.
Microsoft, MS, MS-DOS and Windows are registered trademarks of Microsoft Corporation.
PS/2 and OS/2 Warp are registered trademarks of International Business Machines, Inc.
All other trademarks referenced are trademarks or registered trademarks of their respective
owners, whose protected rights are acknowledged.
Copyright Siemens AG 1999.
All rights, including rights of translation, reproduction by printing, copying or similar methods,
even of parts are reserved.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or design,
are reserved. Delivery subject to availability.
Right of technical modification reserved.

A26361-D1156-Z180-3-7619
Contents
Introduction....................................................................................................................................... 1
Features ........................................................................................................................................... 1
Mechanics ........................................................................................................................................ 2
Connectors and Jumpers.......................................................................................................... 4
Internal chipcard reader or serial port 2 (COM2) (external via wire)................................... 4
Power supply ATX connector............................................................................................ 4
Wake on LAN (WOL) connector........................................................................................ 5
Power on switch connector (ON/OFF switch).................................................................... 5
Front panel connector (version 1)...................................................................................... 6
Front panel connector (version 2)...................................................................................... 7
USB chipcard reader connector ........................................................................................ 8
Fan 1 connector for CPU fan or system fan (if external temperature sensor is in use)...... 8
Configuration............................................................................................................................. 9
Clock frequency................................................................................................................ 9
Functions controlled by the switch block ......................................................................... 10
Power...................................................................................................................................... 10
Power requirement.......................................................................................................... 10
Power loadability............................................................................................................. 10
Documentation................................................................................................................................11
Installing drivers.............................................................................................................................. 11
Upgrades........................................................................................................................................ 11
Main memory.......................................................................................................................... 11
Troubleshooting.............................................................................................................................. 12
Message BIOS update............................................................................................................ 12
The screen stays blank........................................................................................................... 12

A26361-D1156-Z180-3-7619 English - 1
Introduction
iThis system board is available in different configuration levels. Depending on the
hardware configuration of your device, it may be that you cannot find several options in
your version of the system board, even though they are described.
You may find further information e. g. in the complete Technical Manual for the system board and in
the description "BIOS Setup". For detailed information see chapter "Documentation".
Further information to drivers is provided on the supplied drivers diskettes or on the "Drivers &
Utility" or "ServerStart" CD. For detailed information please look at chapter "Installing drivers". The
latest BIOS version or drivers can be found on the internet under
http://www.siemens.de/computer/service.
Features
Function D1156-A
Chipset 440 ZX100
DIMM sockets 2
ISA slots 2
PCI slots 4
ISA/PCI shared - -
AGP Port 1
System monitoring - -
Thermal Management - -
Wake On LAN (WOL) X (optional)
Keyboard On - -
IrDA - -
Chipcard Reader - -
Save to Disk (ACPI S4) X
Save to RAM (ACPI S3) - -
LAN on board - -
!Computer system boards and components contain very delicate IC chips. To protect them
against damage caused from electric static, you have to follow some precautions:
• Unplug your computer when you work inside.
• Hold components by the edge, don't touch their leads.
• Use a grounded wrist strap.
Place the system board and the components on a grounded antistatic pad whenever you
work outside the computer.
Once you have installed the system board, you should remove the battery protection (i.e.
the thin plastic plate between battery and contact spring).

Mechanics
2 - English A26361-D1156-Z180-3-7619
Mechanics
Layout
ATX 12"' x 8'' (304,8 mm x 203,2 mm)
Some of the following connectors are optional and may therefore not be included on your system
board.

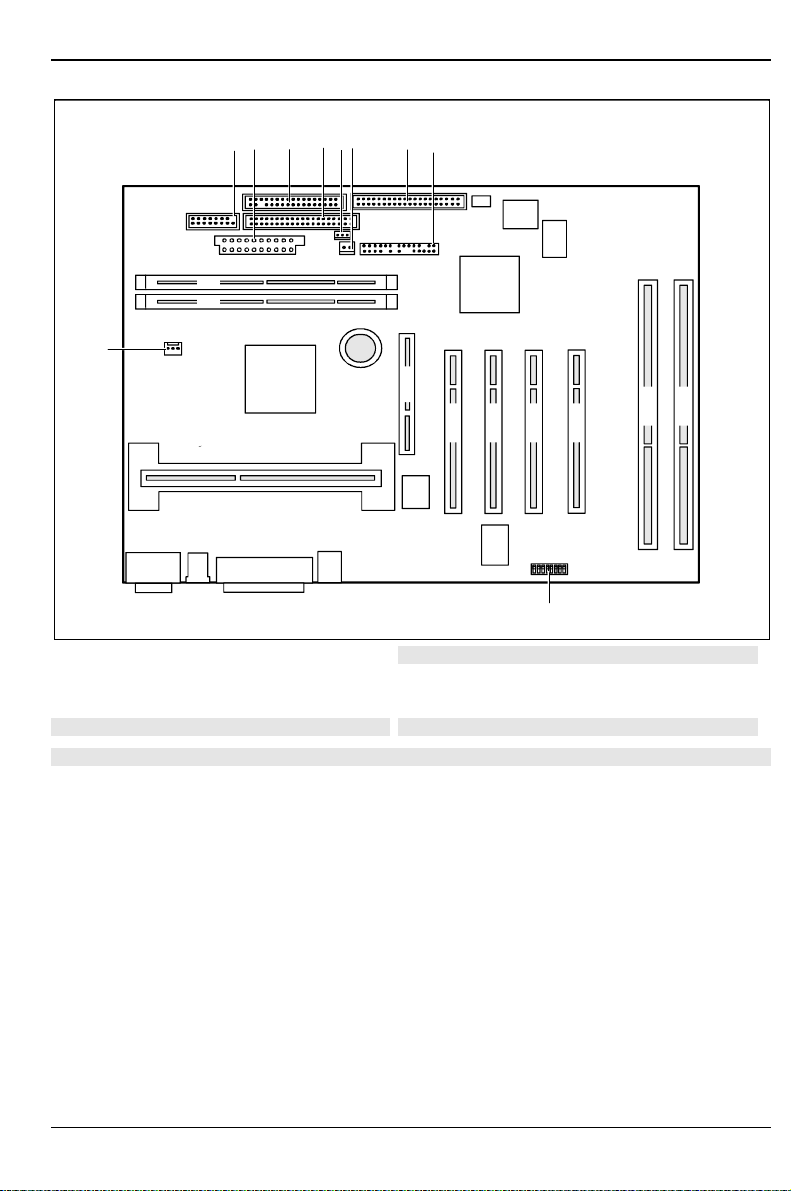

21
AGP
Slot 1
PCI5 PCI 2 PCI 3 PCI4
ISA1 ISA2
413 6
25
1 = Serial port 1
2 = PS/2 mouse port
3 = PS/2 keyboard port
4 = Parallel port
5 = USB connection 2
6 = USB connection 1

Mechanics
A26361-D1156-Z180-3-7619 English - 3
21
AGP
Slot 1
PCI5 PCI 2 PCI 3 PCI4
ISA1 ISA2
12 34567
8
9
10
1 = Internal chipcard reader or serial port 2
2 = Power supply
3 = Floppy disk drive
4 = IDE drives 3 and 4 (secondary)
5 = Wake On LAN
6 = ON/OFF switch
7 = IDE drives 1 and 2 (primary)
8 = Front panel connector
9 = DIP switch
10 = Fan 1 (e. g. for the processor)
The components and connectors marked do not have to be present on the system board.

Mechanics
4 - English A26361-D1156-Z180-3-7619
Connectors and Jumpers
!Some of the following connectors are optional!
Internal chipcard reader or serial
port 2 (COM2) (external via wire)
1
2
Pin Signal Pin Signal
1 DCD 2 (low asserted) 2 DSR 2 (low asserted)
3 SIN 2 (high asserted) 4 RTS 2 (low asserted)
5 SOUT 2 (high asserted) 6 CTS 2 (low asserted)
7 DTR 2 (low asserted) 8 PC_ON_Strobe
9 GND 10 VCC Auxiliary
11 EXT SMI (low asserted) 12 VCC
13 RESETDRV (high asserted) 14 GND
15 GND 16 Key
Power supply ATX connector
10
20
1
11
Pin Signal Pin Signal
1 +3.3 V 2 +3.3 V
3 GND 4 +5 V
5 GND 6 +5 V
7 GND 8 Powergood (high asserted)
9 +5 V Auxiliary 10 +12 V
11 +3.3 V 12 -12 V
13 GND 14 PS on (low asserted)
15 GND 16 GND
17 GND 18 -5 V
19 +5 V 20 +5 V

Mechanics
A26361-D1156-Z180-3-7619 English - 5
Wake on LAN (WOL) connector 1
Pin Signal
1 +5 V Auxiliary
2 GND
3 Wake pulse (high asserted)
Power on switch connector
(ON/OFF switch)
1
Pin Signal
1 GND
2 Power on pulse (low asserted)

Mechanics
6 - English A26361-D1156-Z180-3-7619
Front panel connector (version 1)
1
2
Reset adapter1) HD-LED2)
2) Cable is not included in the delivery scope.
3) The same interface.
1) Reset adapter from 4pin female to 2pin male.
Power On LED2)
SCSI LED Input 3)
2) Speaker2)
Message LED2)
Pin Signal Pin Signal
1 Reserved 2 Speaker
3 Anode Standby LED 4 Key
5 Key 6 GND
7 Anode PON_LED 8 VCC
9 Not connected 10 Key pin
11 Cathode PON_LED (GND) 12 Key
13 Anode Message LED 14 Key
15 Cathode Message LED 16 Key pin
17 Key 18 Key
19 Anode HD_LED 20 Key
21 Cathode HD_LED 22 Key
23 GND (for Reset and Power button) 24 Not connected
25 Power Button 26 SCSI LED Input
27 Not connected 28 SCSI LED Input
29 Reset Button 30 Not connected

Mechanics
A26361-D1156-Z180-3-7619 English - 7
Front panel connector (version 2)
1
2
HD-LED1
)
1
)
Cable is not included in the deliver
y
scope.
2
)
The same interface.
Power On LED1
)
Power On/Off
SCSI LED Input 2
)
1
)
Reset1
)
Messa
g
e LED1
)
Speaker2
)
Pin Signal Pin Signal
1 Reserved 2 Speaker
3 Anode Standby LED 4 Key
5 Key 6 GND
7 Anode PON_LED 8 VCC
9 Not connected 10 Key pin
11 Cathode PON_LED (GND) 12 Key pin
13 Anode Message LED 14 Key
15 Cathode Message LED 16 Not connected
17 Key 18 SCSI LED Input
19 Anode HD_LED 20 SCSI LED Input
21 Cathode HD_LED 22 Not connected
23 GND (for Reset and Power button) 24 Key
25 Power Button 26 GND
27 Not connected 28 GND
29 Reset Button 30 GND

Mechanics
8 - English A26361-D1156-Z180-3-7619

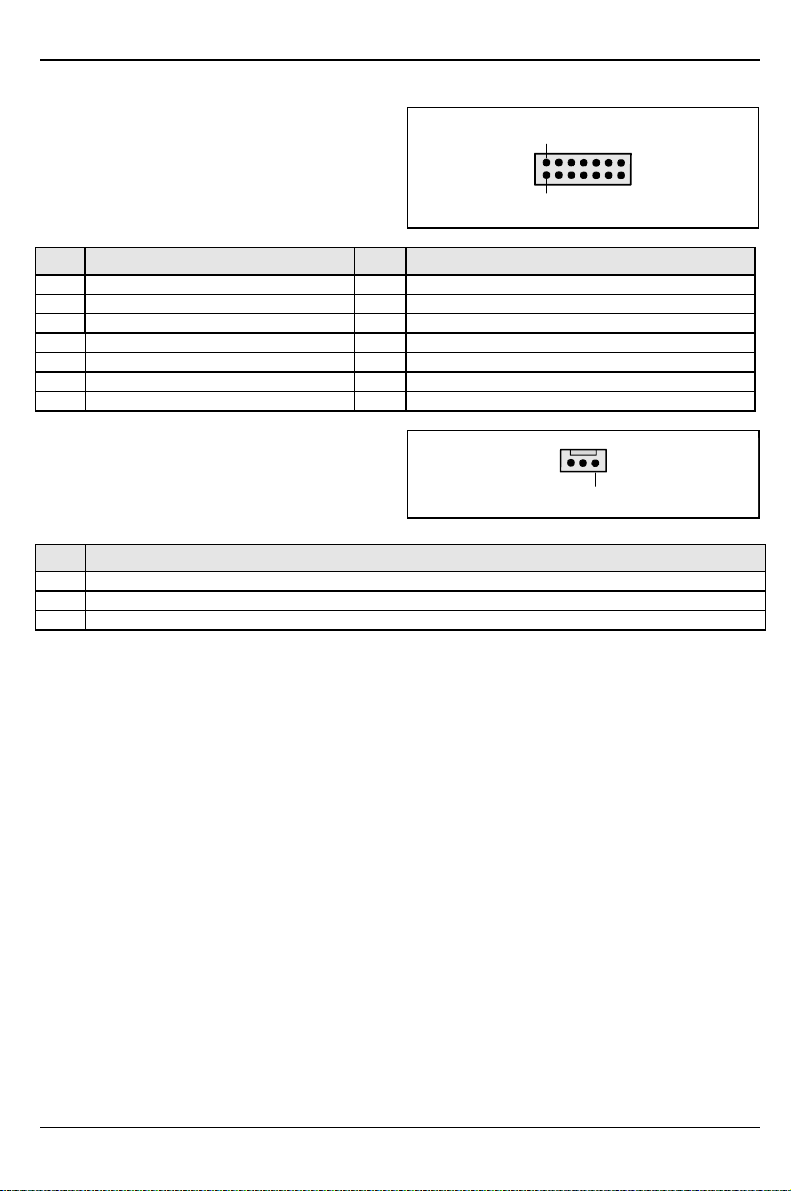

USB chipcard reader connector
1
2
Pin Signal Pin Signal
1 P3V3P_DUAL 2 VCC
3 Data negative output up 4 Data positive up
5 Data negative 6 Data positive down
7 GND 8 GND
9 Chipcard present (high asserted) 10 VCC Auxiliary
11 P3V3P 12 Power OK (low asserted)
13 Chipcard reader On (low pulse) 14 Key
Fan 1 connector for CPU fan or
system fan (if external temperature
sensor is in use) 1
Pin Signal
1 GND
2 6 - 12 V; 0 V
3 Fan sense

Mechanics
A26361-D1156-Z180-3-7619 English - 9
Configuration
Clock frequency
!The switches may only be set as specified in the tables below for the particular processor
used.
There are also processors, which automatically always operate at the proper frequency,
regardless of the switch position.
As these new processors do not differ externally from the previous processors, we
recommend always setting the switches in accordance with the processor.
This system board you may use with Pentium II processors with 100 MHz Front Side Bus
or with Pentium III processors with 100 MHz Front Side Bus or with Celeron processors
with 66 MHz Front Side Bus.
Information on which processors can be used is available from your sales office or the
customer service center.
Celeron with 66 MHz Front Side Bus:
Processor Switch 5 Switch 6 Switch 7 Switch 8
233 MHz off off on on
266 MHz on on off on
300 MHz off on off on
333 MHz on off off on
366 MHz off off off on
400 MHz on on on off
433 MHz off on on off
Pentium II with 100 MHz Front Side Bus:
Processor Switch 5 Switch 6 Switch 7 Switch 8
350 MHz off off on on
400 MHz on on off on
450 MHz off on off on
Pentium III with 100 MHz Front Side Bus:
Processor Switch 5 Switch 6 Switch 7 Switch 8
450 MHz off on off on
500 MHz on off off on
550 MHz off off off on

Mechanics
10 - English A26361-D1156-Z180-3-7619
Functions controlled by the switch block
Function SW1
PWS SW2 RCV SW3 FWP SW4 AUX
Password Skip on X X X
Off off X X X
Recovery BIOS X on X X
Off X off X X
Floppy write protect X X on X
Off X X off X
iSwitch 4 (SW4) is reserved!
Power
Power requirement
Source Voltage Maximum
variation Maximum current Comment
Main power supply +5.1 V ±5 % 15 A
Main power supply +12 V ±10 % 300 mA
Main power supply -12 V ±10 % 100 mA
Main power supply +3.3 V ±5 % 4 A
Auxiliary power supply +5.0 V ±5 % 50 mA without Wake On LAN and
PCI bus auxiliary power
support
Auxiliary power supply 1 A with Wake On LAN and PCI
bus auxiliary power support
Onboard power supply 1.8 - 3.5 V ±5 % 14 A
Power loadability
Fuse
number Maximum Fuse current Function Maximum function current
1 750 mA Universal serial bus (USB) Port A 500 mA
Keyboard Not specified
Mouse Not specified
2 750 mA Universal serial bus (USB) Port B 500 mA

Documentation
A26361-D1156-Z180-3-7619 English - 11
Documentation

Insert the "Drivers & Utilities" CD.

When the DeskStart window appears, select SCENIC Pro.

Select the language in which you want to operate the user interface.

Select Documentation and then select e. g.Windows 95.

Select - Technical Manuals

Select - Technical Manuals (BIOS)
iYou may have to install the Acrobat Reader - Software on the CD-ROM
(path: utls/acrobat) before reading!
For more details please read the according readme.txt files.
Installing drivers

Insert the "Drivers & Utilities" CD.

When the DeskStart window appears, select SCENIC Pro.

Select the language in which you want to operate the user interface.

Select Operating System used.

Go back to page after item Operating System used.

Select Updates.
Upgrades
Main memory
Support: The system needs at least one module and can manage at most three SDRAM
modules.
PC100 modules must have an SPD-EEPROM*.
It is not possible to mix SDRAM and EDO modules.
Size: From 16 Mbytes up to 512 Mbytes SDRAM
Technology: 100 MHz unbuffered DIMM modules.
168 pin, 3.3V, 100 MHz SDRAM
2M, 4M, 8M, 16M and 32M x 64 bit
Granularity: For one socket 16, 32, 64, 128 or 256 Mbyte
* The EEPROM of PC100 modules contains a number of critical timing parameters and data
regarding the chip and the module vendor. Due to this the system board will properly recognize
the module by reading all important timing parameters specified in the EEPROM via the Serial
Presence Detect interface.

Troubleshooting
12 - English A26361-D1156-Z180-3-7619
Troubleshooting
Message BIOS update
The System BIOS provides optimum support for the processor you have chosen. If the message
BIOS update for installed CPU failed
appears the microcode required for the processor inserted must still be loaded. Further information
on this is available in the "BIOS Setup" manual on the "Drivers & Utilities" CD provided.
iIf this error message occur, refer for further information to the description "BIOS Setup"
which is delivered on the "Drivers & Utilities" CD.
The screen stays blank
If your screen stays blank this may have the following cause:
The wrong RAM memory module has been inserted

See the chapter "Main Memory" for information which memory modules can be used.
ACPI S4 (Save-to-Disk) doesn't work
This system board is fully compliant for ACPI S4. Therefore it is PC98 certified by Microsoft.
If you have any problems with ACPI please ensure that all of your components are supporting
ACPI S4.
− Operating System
− Hardware and drivers of controllers (e. g. VGA, audio, LAN, SCSI controllers).
