Technical Instructions
Document No. 155-160P25
VF 599-2
June 10, 2003
Three-Way Valves
2-1/2 to 6-inch Flanged Iron Body
Description The Flowrite VF 599 series three-way valves are designed to work with either a
pneumatic or electronic actuator. They are available in both ANSI Class 125 and 250.
Features •Valve flange face-to-face dimensions meet ISA 75.03 standards
•Direct coupled universal bonnet
•Choice of bronze or stainless steel trim
•ANSI Leakage Class IV (0.01% of Cv)
•Cartridge type packing
•Optional service flange available
Application A typical application for the Flowrite three-way valve is the mixing of two different
temperatures of water supplies.
The valve can also be used for throttling or bypass coil control applications. A pump is
recommended on the coil circuit to improve the heat transfer characteristics of the coil
and for freeze protection.
Product Numbers
Table 1. Product Numbers for Three-Way Valve Assemblies.
Flow Rate
Line Size
Stroke
ANSI Class 125
ANSI Class 250
Cv (Kvs) Inch (mm) Inch (mm) Stainless
Steel Trim
Bronze
Trim
Stainless
Steel Trim
Bronze
Trim
63 (54) 2-1/2 (65) 3/4 (20) 599-06165 599-06160 599-06175 599-06170
100 (85) 3 (80) 3/4 (20) 599-06166 599-06161 599-06176 599-06171
160 (137) 4 (100) 1-1/2 (40) 599-06167 599-06162 599-06177 599-06172
250 (214) 5 (125) 1-1/2 (40) 599-06168 599-06163 599-06178 599-06173
400 (340) 6 (150) 1-1/2 (40) 599-06169 599-06164 599-06179 599-06174

Technical Instructions Flowrite VF599 Series Three-Way Valves
Document Number 155-160P25 2-1/2 to 6-inch Flanged Iron Body
June 10, 2003
Page 2 Siemens Industry, Inc.
Ordering a Valve
Plus Actuator
Assembly
To order a complete valve plus actuator assembly from the factory, combine the actuator
prefix code with the suffix of the valve assembly product number. See 155-304P25 (TB 249)
for selection procedure and ordering codes.
Valve assemblies can be ordered using the numbers in Table 1.
The service flange is ordered separately.
Specifications
Line size 2-1/2 to 6 inches (65 to 150 mm)
Capacity See Tables 6 and 7, and Figure 2
Body style Flanged
Seat style Metal-to-metal
Action Three-way water mixing
Valve body rating See Table 2
Stem travel (Stroke)
2-1/2 and 3-inch 3/4-inch (20 mm)
4, 5, and 6-inch 1-1/2 inches (40 mm)
Material
Body Cast iron ASTM A 126 Class B
Body trim See Table 1
Stem Stainless steel ASTM A582 Type 303
Packing EPDM O-ring
Liquid service to 250°F (120°C)
Controlled medium Water, glycol solutions to 50%
Medium temperature range 20 to 250°F (–7 to 120°C)
Operating
Maximum inlet pressure See Table 5
Maximum recommended differential pressure
for modulating service
Bronze trim 25 psi (173 kPa)
Stainless steel trim 50 psi (345 kPa).
Rangeability >100:1
Close-off pressures See Tables 8 and 9, and Figure 3
Close-off ratings According to ANSI/FCI 70-2
Leakage rate Class IV (0.01% of Cv)
Flow characteristics Equal percentage for N.C.
Linear for N.O.
Miscellaneous
Canadian Registration Numbers 0H7645.5
0C0838.9
Mounting location NEMA 1 (interior only)
Dimensions See Tables 10 and 11, and Figure 5
Face-to-face dimensions ANSI/ISA S75.03
Valve weight See Table 12

Flowrite VF599 Series Three-Way Valves Technical Instructions
2-1/2 to 6-inch Flanged Iron Body Document Number 155-160P25
June 10, 2003
Siemens Industry, Inc. Page 3
Accessories

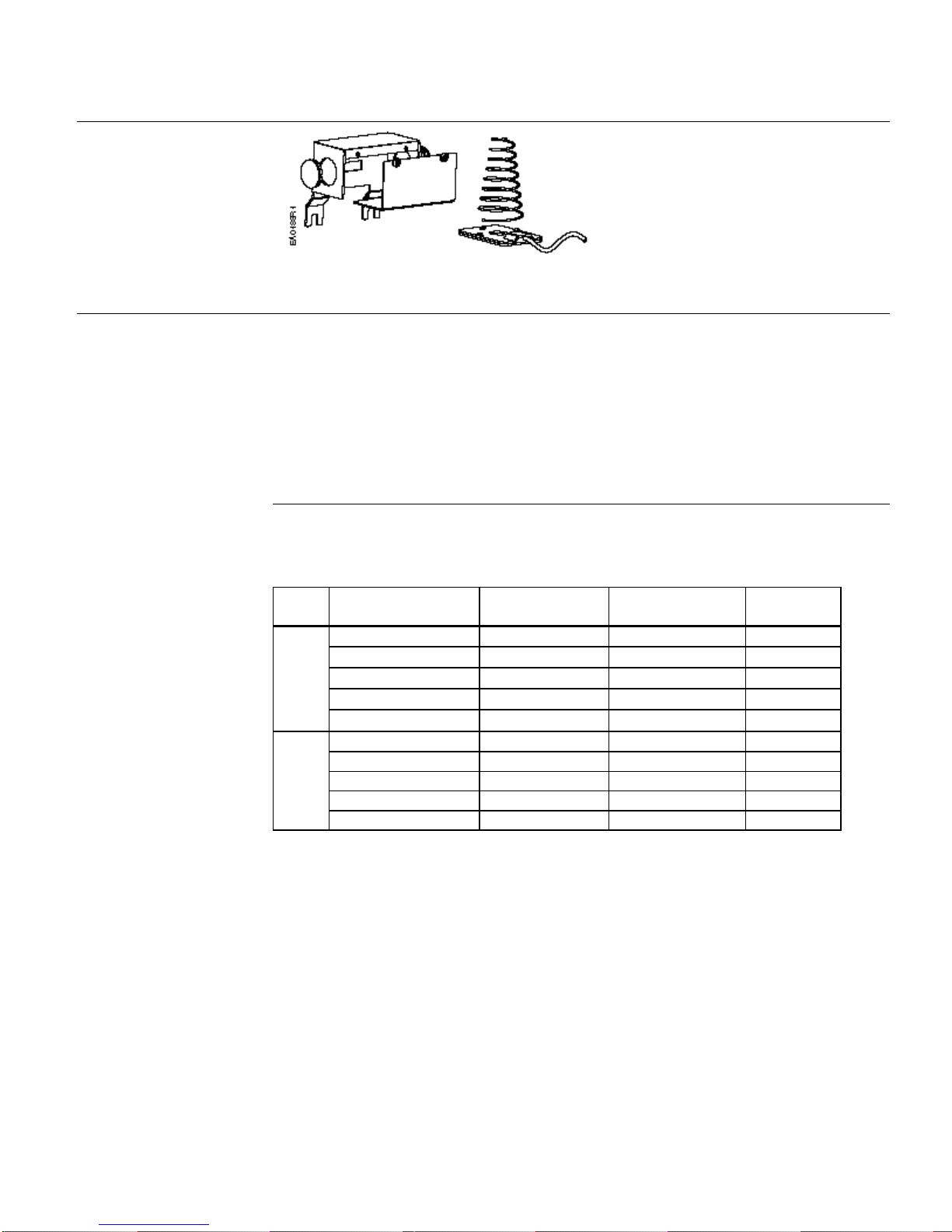

Figure 1. Packing Heating Element for Use
with SKB/C, 8-inch and 12-inch Actuators.
599-00418: Packing Heating Element:
Allows the stem to move freely in valves
that control fluids at temperatures below
32°F (0°C). Prevents ice crystal
formation on the stem, which may
damage the packing.
Operating Voltage 24 Vac
Heating Output 20W
Service Kits Valve packing kit 599-08020
Rebuild/repack kits See Table 2
Service flange See Table 3
Flange gaskets and bolts See Table 4
Stem retainer clip 2-1/2 inch and 3-inch valves 599-00305
4, 5, and 6-inch valves 599-00306
Lower seat tool See Table 10
Rebuild/repack kit To select the rebuild/repack service kit, know your valve body assembly number. The
valve body assembly number is stamped on the tag on the valve body.
Table 2. Rebuild/Repack Service Kit Part Numbers.
Trim
Valve Size
Inches (mm)
ANSI Class 125
Valve No.
ANSI Class 250
Valve No.
Kit No.
Bronze
2-1/2 (65)
599-06160
599-06170
599-10125
3 (85)
599-06161
599-06171
599-10126
4 (100)
599-06162
599-06172
599-10127
5 (125)
599-06163
599-06173
599-10128
6 (150)
599-06164
599-06174
599-10129
Stainless
Steel
2-1/2 (65)
599-06165
599-06175
599-10120
3 (85)
599-06166
599-06176
599-10121
4 (100)
599-06167
599-06177
599-10122
5 (125)
599-06168
599-06178
599-10123
6 (150)
599-06169
599-06179
599-10124

Technical Instructions Flowrite VF599 Series Three-Way Valves
Document Number 155-160P25 2-1/2 to 6-inch Flanged Iron Body
June 10, 2003
Page 4 Siemens Industry, Inc.
Service Flanges Table 3. Part Numbers for VF 599 Service Flanges.
Line Size
Service Flange Part Numbers
Inches (mm)
ANSI Class 125
ANSI Class 250
2-1/2 (65) 599-05011 599-05016
3 (80) 599-05012 599-05017
4 (100) 599-05013 599-05018
5(125) 599-05014 599-05019
6 (150) 599-05015 599-05020
Flange Gasket and
Bolt Kits Table 4. Part Numbers for VF 599 Flange Gasket and Bolt Kits.
Description Line Size
Inch (mm) Kit Part Number Cap Screw Size - Inch
ANSI
Class
125
2-1/2 (65)
599-09236
5/8 – 11 × 1-1/2
3 (80)
599-09237
5/8 – 11 × 1-3/4
4 (100)
599-09238
5/8 – 11 × 2
5 (125)
599-09239
3/4 – 10 × 2
6 (150)
599-09240
3/4 – 10 × 2
ANSI
Class
250
2-1/2 (65)
599-09241
3/4 – 10 × 2
3 (80)
599-09242
3/4 – 10 × 2-1/2
4 (100)
599-09243
3/4 – 10 × 2-1/2
5 (125)
599-09244
3/4 – 10 × 2-3/4
6 (150)
599-09245
3/4 – 10 × 3
Tables Table 5. Cast Iron Valve Body Ratings.
Temperature Pressure psig (kPa)
°F °C ANSI Class 125 ANSI Class 250
–20 to 150 –30 to 66 200 (1387) 500 (3447)
200 93 190 (1310) 460 (3171)
250 121 175 (1206) 415 (2861)
300 149 165 (1137) 375 (2585)
400 204 140 (965) 290 (1999)
450 232 125 (861) 250 (1723)

Flowrite VF599 Series Three-Way Valves Technical Instructions
2-1/2 to 6-inch Flanged Iron Body Document Number 155-160P25
June 10, 2003
Siemens Industry, Inc. Page 5
Table 6. Maximum Water Capacity - U.S. Gallons Per Minute.
Flow is Equal Through Both Ports.
Valve
Size
in
Inches
Pressure Differential - psi
Cv\1 2 3 4 5 6 8 10 15 20 25 30 40 50 60 75
2-1/2 63 89 109 126 141 154 178 199 244 282 315 345 398 445 488 546
3 100 141 173 200 224 245 283 316 387 447 500 548 632 707 775 866
4 160 226 277 320 358 392 453 506 620 716 800 876 1012 1131 1239 1386
5 250 354 433 500 559 612 707 791 968 1118 1250 1369 1581 1768 1936 2165
6 400 566 693 800 894 980 1131 1265 1549 1789 2000 2191 2530 2828 3098 3464
Table 7. Maximum Water Capacity - Cubic Meters Per Hour (m3/hr)
Flow is Equal Through Both Ports.
Valve
Size
in
mm
Pressure Differential - kPa
1 10 20 30 40 50 60 80 Kvs/100 150 200 300 400 500
65 5.4 17.1 24 30 34 38 42 48 54 66 76 94 108 121
80 8.5 27 38 47 54 60 66 76 85 104 120 147 170 190
100 14 43 61 75 87 97 106 123 137 168 194 237 274 306
125 21 68 96 117 135 151 166 191 214 262 303 371 428 479
150 34 108 153 187 216 242 265 306 342 419 484 592 684 765
Table 8. Close-off Pressures for Electronic Actuators.
Action Valve Size
In. (mm)
SKB/C SKD El/Mech
Spring Return
El/Mech
Non-Spring Return
psi
(kPa)
psi
(kPa)
psi
(kPa)
psi
(kPa)
NC
(Upper port)
2-1/2 (65) 97 (668) 34 (234) 24 (165) 50 (344)
3 (80) 63 (434) 22 (152) 15 (103) 32 (220)
4 (100) 39 (268) — — 10 (68) 20 (137)
5 (125) 25 (172) — — — — — —
6 (150) 17 (117) — — — — — —
NO
(Bottom port)
2-1/2 (65) 153 (518) 38 (262) 23 (158) 48 (330)
3 (80) 101 (342) 25 (172) 16 (110) 32 (220)
4 (100) 65 (448) — — 10 (68) 21 (144)
5 (125) 42 (289) — — — — — —
6 (150) 29 (199) — — — — — —

Technical Instructions Flowrite VF599 Series Three-Way Valves
Document Number 155-160P25 2-1/2 to 6-inch Flanged Iron Body
June 10, 2003
Page 6 Siemens Industry, Inc.
Figure 2. Water Capacity Graph.
Selection Example
Select a valve given:
←Required flow = 500 gpm
↑Desired pressure drop = 5 psi
→Select a 5-inch (125 mm) valve, Cv 250.
Table 9. Close-off Pressures for Pneumatic Actuators.
Action Valve Size
In. (mm)
5 to 10 psi (34 to 69 kPa) Spring Range
8-inch Actuator
12-inch Actuator
0 psi (0 kPa)
0 psi (0 kPa)
NC
(Upper port)
2-1/2 (65) 36 (248) 114 (786)
3 (80) 23 (158) 74 (510)
4 (100) — 46 (317)
5 (125) — 29 (199)
6 (150) — 20 (137)
NO
(Bottom port)
Valve Size
In. (mm)
8-inch Actuator
12-inch Actuator
15 psi
(103 kPa)
30 psi
207 kPa)
15 psi
(103 kPa)
30 psi
(207 kPa)
2-1/2 (65) 31 (213) 100 (689) 95 (655) 304 (2096)
3 (80) 20 (44) 66 (144) 63 (434) 200 (1378)
4 (100) — — 40 (275) 129 (889)
5 (125) — — 26 (179) 82 (565)
6 (150) — — 18 (124) 57 (393)

Flowrite VF599 Series Three-Way Valves Technical Instructions
2-1/2 to 6-inch Flanged Iron Body Document Number 155-160P25
June 10, 2003
Siemens Industry, Inc. Page 7

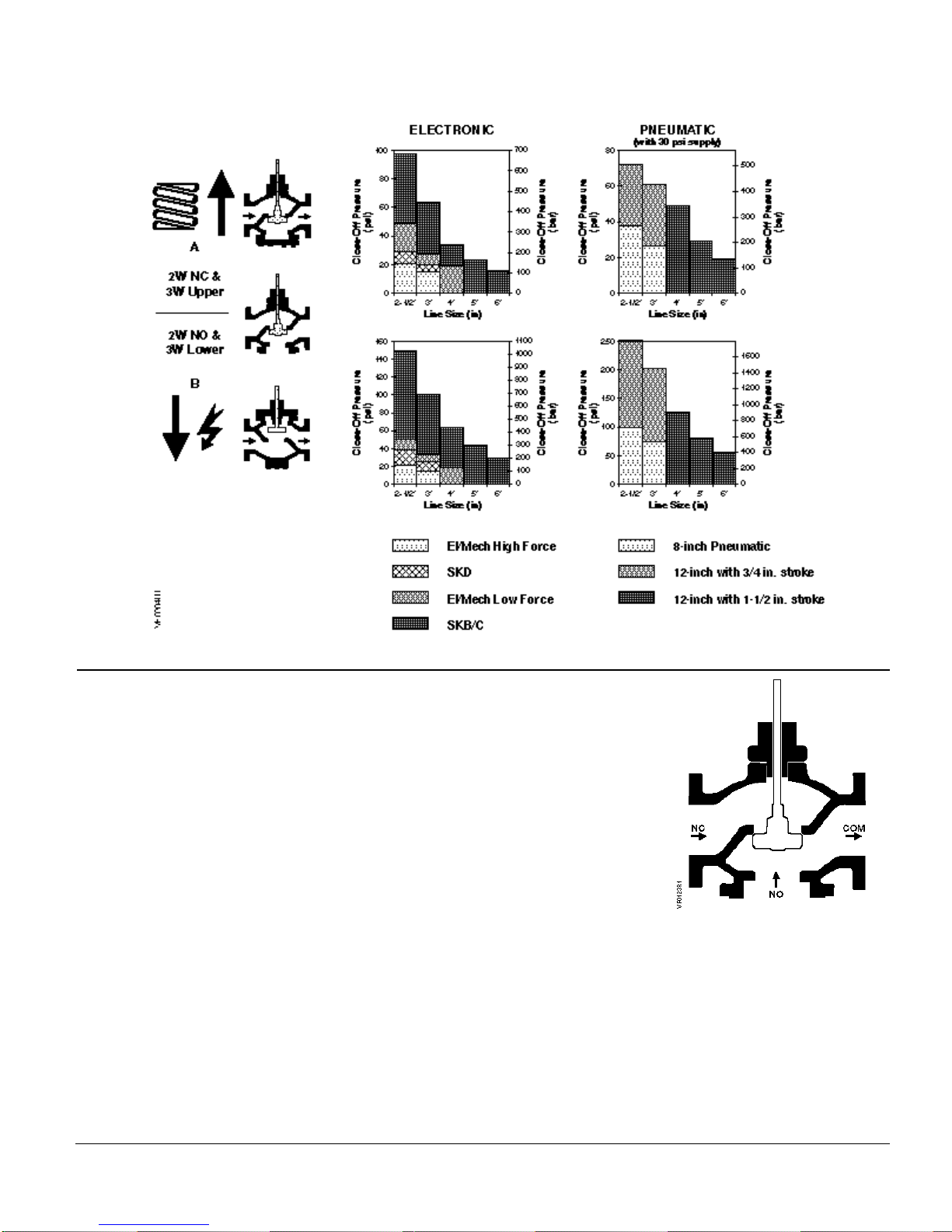

Figure 3. Close-off Pressures.
Operation
This Flowrite three-way valve is designed as a mixing
valve.
As the valve stem moves downward, the flow through
the NO port decreases and the flow through the NC
port increases. As the valve stem moves upward, the
flow through the NO port increases and the flow
through the NC port decreases.
In the event of power failure, a spring return actuator
returns the valve to its normal position. Non-spring
return actuators will hold the last commanded
position. See the Technical Instructions of the
various actuators for additional information.
If this valve is used in diverting applications, the
following conditions apply:
Diverting service with modulating control can only
use the electro-hydraulic actuator, SKB/C. The
differential pressure must not exceed 90% of the
maximum differential pressure specified for the
three-way valve in mixing service.
Diverting service with a pneumatic actuator can only
be used with two-position control. To change over
from one port to another, there must be no system
pressure. The pump is turned off.
Figure 4. Three-Way Valve
Operation as a Mixing Valve.

Technical Instructions Flowrite VF599 Series Three-Way Valves
Document Number 155-160P25 2-1/2 to 6-inch Flanged Iron Body
June 10, 2003
Page 8 Siemens Industry, Inc.
Sizing The sizing of a valve is important for correct system operation. An undersized valve will
not have sufficient capacity at maximum load. An oversized valve may initiate cycling
and the seat and throttling plug can be damaged because of the restricted opening.
Correct sizing of the control valve for actual expected conditions is considered essential
for good control.
Some variables which must be determined are:
•The medium to be controlled: water, etc.
•The maximum inlet temperature and pressure of the medium at the valve.
•The pressure differential that will exist across the valve under maximum load
demand.
•The maximum capacity the valve must deliver.
•The maximum line pressure differential the valve actuator must close against.
•See AB-1 Control Valve Selection and Sizing (Document Number 155-285) for
further recommendations.
See Tables 6 and 7 for valve capacities.
Mounting and
Installation
•Install the valve so that the flow follows the direction of the arrow indicated on the
valve body identification tag.
•For best performance, install the valve assembly with the actuator above the valve
body. The valve and actuator can be installed in any position between vertical and
horizontal. Siemens Building Technologies does not recommend installing the valve
assembly below horizontal or upside down.
•If installing a service flange, see Table 13 for proper placement.
•For flange dimensions and bolt hole information, see 155-303P25 (TB 248).Allow
sufficient space for servicing the valve and actuator. See Table 12 for valve body
dimensions. See Figure 5 and Table 11 for dimensions of the service envelope
recommended around the actuator.
•A lower seat tool is required for removing a three-way valve. See Table 10 for part
numbers.
NOTE: Instructions for field mounting an actuator, spring adjustments, wiring diagrams,
and start-up are covered in the Technical Instructions and Installation
Instructions for each actuator.
Table 10. Three-Way Valve Lower Seat Tool.
Part Number Valve Size
Inches (mm)
599-09144 2-1/2 (65)
599-09145 3 (75)
599-09146 4 (100)
599-09147 5 (125)
599-09148 6 (150)

Flowrite VF599 Series Three-Way Valves Technical Instructions
2-1/2 to 6-inch Flanged Iron Body Document Number 155-160P25
June 10, 2003
Siemens Industry, Inc. Page 9
Dimensions The letters in Figure 5 refer to actuator and service envelope dimensions in Table 11.
See Table 12 for valve body dimensions.
Table 11. Dimensions of the Actuator and Recommended Service Envelope.
Dimensions in Inches (Millimeters).
Figure 5.
Actuator
Actuator
Prefix
Code
Actual
Height of
Actuator
H1
Service
Height
H
Actual width or
diameter of
Actuator
W1
Service
Width
W
8" Pneumatic
277
278
283
284
14-1/8
(359) 26 (660) 8-3/4 (222) diameter
21
(533)
12" Pneumatic
279
281
285
287
17-7/8
(454) 30 (762) 15-1/8 (384)
diameter 27 (686)
SKB/C with
handle closed
289
290
291
292
293
294
14-3/4
(375) 22-3/4 (578) 7 (178) Width × 8-15/16 (226) Depth 25 (635)
SKD
274
275
276
11-13/16
(300) 19-3/4 (500) 5 (127) Width × 6-5/8 (169) Depth 14-1/2
(360)
El/Mech with
linkage
295
296
297 11 (280) 22 (559) 5-3/4 (144) Width ×
8-7/8 (225) Depth 25-3/4 (654)
Table 12. Valve Dimensions and Weight.
Nominal
Valve Size
Inch (mm)
Dimensions in Inches (Millimeters)
Weight
A B C Dlbs. (kg)
ANSI Class
125
ANSI Class
250
Service
Flange
ANSI Class
125
ANSI Class
250
2-1/2
(65)
10-7/8
(276.4)
11-1/2
(292)
9-3/8
(239.2)
3-3/4
(95)
6-1/2
(165)
50
(23)
63
(29)
3
(80)
11-3/4
(298.5)
12-1/2
(318)
10-3/4
(272)
4-3/8
(111)
7
(178)
65
(30)
82
(37)
4
(100)
13-7/8
(352.4)
14-1/2
(368)
12-1/2
(317.6)
5-1/8
(131.6)
7-1/2
(191)
110
(50)
134
(61)
5
(125)
15-3/4
(400)
16-5/8
(422)
13-3/4
(349.2)
5-3/4
(146.2)
8-1/2
(216)
136
(62)
176
(80)
6
(150) 17-3/4 (451) 18-5/8 (473) 15-1/2 (393) 6-5/8 (167) 9-1/2 (241) 141 (64) 258 (117)

Technical Instructions Flowrite VF599 Series Three-Way Valves
Document Number 155-160P25 2-1/2 to 6-inch Flanged Iron Body
June 10, 2003
Information in this publication is based on current specifications. The company reserves the right to make changes in specifications and models as
design improvements are introduced. Flowrite is a registered trademark of Siemens Industry, Inc. Product or company names mentioned herein
may be the trademarks of their respective owners. © 2003 Siemens Industry, Inc.
Siemens Industry, Inc.
Building Technologies Division
1000 Deerfield Parkway
Buffalo Grove, IL 60089
+ 1 847-215-1000
Your feedback is important to us. If you have
comments about this document, please send them
to [e-mail]
Document No. 155-160P25
Printed in the U.S.A.
Page 10

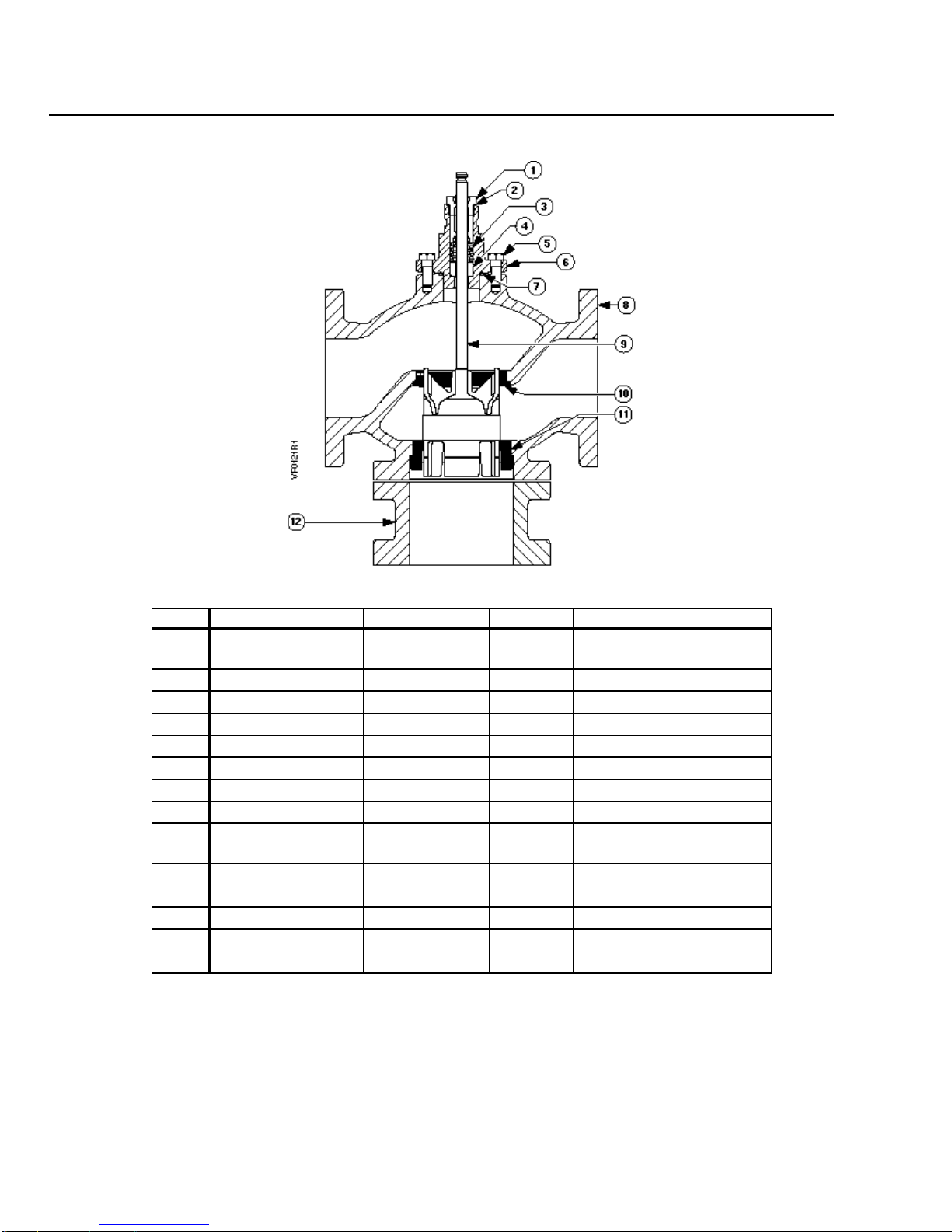

Parts List
Table 13. Parts List for Three-Way Flanged Valves.
Item
Part Name
Order Number
Quantity
Material
1 Packing Cartridge
Assembly
– 1 –
2
Gasket
–
1
Copper
3
Packing Spring
–
1
Stainless steel
4
Packing Bearing
–
1
Bronze
5
Cap Screw
4
Plated steel
6
Bonnet
–
1
Cast iron
7
O-ring
–
1
EP
8
Valve Body
–
1
Cast Iron
9 Stem and Plug
Assembly
– 1 Bronze or stainless steel
10
Upper Seat
–
1
Bronze or stainless steel
11
Lower Seat
–
1
Bronze or stainless steel
12
Service Flange
See Table 3
(Optional)
Cast iron
Packing Kit
599-08020
–
Items 1 and 2
Rebuild/Repack Kit
See Table 2
–
Items 1, 2, 3,4, 7, and 9
