Siemens Simatic S7-1500 User manual

Power supply module
PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
SIMATIC
S7-1500/ET 200MP
Power supply module
PS 60W 24/48/60VDC HF
(6ES7505-0RB00-0AB0)
Manual
01/2019
A5E39450002
-AB
Preface
Documentation guide
1
Product overview
2
Wiring
3
Parameters
4
Interrupts, diagnostic alarms,
error and status alarms
5
Technical specifications
6
Dimensional drawing
A
Parameter data record
B

Siemens AG
Digital Industries
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E39450002-AB
Ⓟ
06/2019 Subject to change
Copyright © Siemens AG 2017 - 2019.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
Manual, 01/2019, A5E39450002-AB 3
Preface
Preface
Purpose of the documentation
This manual supplements the system manual S7-1500/ET 200MP Automation System
(https://support.industry.siemens.com/cs/ww/en/view/59191792).
Functions that generally relate to the system are described in this manual.
The information provided in this manual and in the system/function manuals support you in
commissioning the systems.
Conventions
The term "CPU" is used in this manual both for the CPUs of the S7-1500 automation system
and for interface modules of the ET 200MP distributed I/O system.
Also observe notes marked as follows:
Note
A note contains important information on the product described in the documentation, on the
handling of the product, or on the section of the documentation to which particular attention
should be paid.
Security information
Siemens provides products and solutions with industrial security functions that support the
secure operation of plants, systems, machines and networks.
In order to protect plants, systems, machines and networks against cyber threats, it is
necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial
security concept. Siemens’ products and solutions only form one element of such a concept.
Customer is responsible to prevent unauthorized access to its plants, systems, machines
and networks. Systems, machines and components should only be connected to the
enterprise network or the internet if and to the extent necessary and with appropriate security
measures (e.g. use of firewalls and network segmentation) in place.
Additionally, Siemens’ guidance on appropriate security measures should be taken into
account. For more information about industrial security, please visit
(http://www.siemens.com/industrialsecurity).
Siemens’ products and solutions undergo continuous development to make them more
secure. Siemens strongly recommends to apply product updates as soon as available and to
always use the latest product versions. Use of product versions that are no longer supported,
and failure to apply latest updates may increase customer’s exposure to cyber threats.
To stay informed about product updates, subscribe to the Siemens Industrial Security RSS
Feed under (http://www.siemens.com/industrialsecurity).

Preface
Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
4Manual, 01/2019, A5E39450002-AB
Open Source Software
Open-source software is used in the firmware of the I/O modules. Open Source Software is
provided free of charge. We are liable for the product described, including the open-source
software contained in it, pursuant to the conditions applicable to the product. Siemens
accepts no liability for the use of the open source software over and above the intended
program sequence, or for any faults caused by modifications to the software.
For legal reasons, we are obliged to publish the original text of the license conditions and
copyright notices. Please read the information relating to this on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/109741045).

Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
Manual, 01/2019, A5E39450002-AB 5
Table of contents
Preface ................................................................................................................................................... 3
1 Documentation guide .............................................................................................................................. 6
2 Product overview .................................................................................................................................. 10
2.1 Properties................................................................................................................................10
2.2 Operating and display elements .............................................................................................12
3 Wiring ................................................................................................................................................... 13
3.1 Wiring the power supply module.............................................................................................13
4 Parameters ........................................................................................................................................... 15
4.1 Parameters .............................................................................................................................15
5 Interrupts, diagnostic alarms, error and status alarms............................................................................ 16
5.1 Status and error displays ........................................................................................................16
5.2 Diagnostic alarms ...................................................................................................................18
5.3 Interrupts.................................................................................................................................19
6 Technical specifications ........................................................................................................................ 20
A Dimensional drawing............................................................................................................................. 22
B Parameter data record .......................................................................................................................... 24

Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
6Manual, 01/2019, A5E39450002-AB
Documentation guide
1
The documentation for the SIMATIC S7-1500 automation system, the CPU 1516pro-2 PN
based on SIMATIC S7-1500 and the SIMATIC ET 200MP distributed I/O system is arranged
into three areas.
This arrangement enables you to access the specific content you require.
Basic information
The System Manual and Getting Started describe in detail the configuration, installation,
wiring and commissioning of the SIMATIC S7-1500 and ET 200MP systems. For
CPU 1516pro-2 PN you use the corresponding operating instructions. The STEP 7 online
help supports you in the configuration and programming.
Device information
Product manuals contain a compact description of the module-specific information, such as
properties, wiring diagrams, characteristics and technical specifications.

Documentation guide
Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
Manual, 01/2019, A5E39450002-AB 7
General information
The function manuals contain detailed descriptions on general topics regarding the SIMATIC
S7-1500 and ET 200MP systems, e.g. diagnostics, communication, motion control, Web
server, OPC UA.
You can download the documentation free of charge from the Internet
(http://w3.siemens.com/mcms/industrial-automation-systems-simatic/en/manual-
overview/Pages/Default.aspx).
Changes and supplements to the manuals are documented in a Product Information.
You can download the product information free of charge from the Internet
(https://support.industry.siemens.com/cs/us/en/view/68052815).
Manual Collection S7-1500/ET 200MP
The Manual Collection contains the complete documentation on the SIMATIC S7-1500
automation system and the ET 200MP distributed I/O system gathered together in one file.
You can find the Manual Collection on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/86140384).
SIMATIC S7-1500 comparison list for programming languages
The comparison list contains an overview of which instructions and functions you can use for
which controller families.
You can find the comparison list on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/86630375).
"mySupport"
With "mySupport", your personal workspace, you make the best out of your Industry Online
Support.
In "mySupport", you can save filters, favorites and tags, request CAx data and compile your
personal library in the Documentation area. In addition, your data is already filled out in
support requests and you can get an overview of your current requests at any time.
You must register once to use the full functionality of "mySupport".
You can find "mySupport" on the Internet (https://support.industry.siemens.com/My/ww/en).
"mySupport" - Documentation
In the Documentation area in "mySupport" you can combine entire manuals or only parts of
these to your own manual.
You can export the manual as PDF file or in a format that can be edited later.
You can find "mySupport" - Documentation on the Internet
(http://support.industry.siemens.com/My/ww/en/documentation).

Documentation guide
Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
8Manual, 01/2019, A5E39450002-AB
"mySupport" - CAx data
In the CAx data area in "mySupport", you can access the current product data for your CAx
or CAe system.
You configure your own download package with a few clicks.
In doing so you can select:
●Product images, 2D dimension drawings, 3D models, internal circuit diagrams, EPLAN
macro files
●Manuals, characteristics, operating manuals, certificates
●Product master data
You can find "mySupport" - CAx data on the Internet
(http://support.industry.siemens.com/my/ww/en/CAxOnline).
Application examples
The application examples support you with various tools and examples for solving your
automation tasks. Solutions are shown in interplay with multiple components in the system -
separated from the focus on individual products.
You will find the application examples on the Internet
(https://support.industry.siemens.com/sc/ww/en/sc/2054).
TIA Selection Tool
With the TIA Selection Tool, you can select, configure and order devices for Totally
Integrated Automation (TIA).
This tool is the successor of the SIMATIC Selection Tool and combines the known
configurators for automation technology into one tool.
With the TIA Selection Tool, you can generate a complete order list from your product
selection or product configuration.
You can find the TIA Selection Tool on the Internet
(http://w3.siemens.com/mcms/topics/en/simatic/tia-selection-tool).

Documentation guide
Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
Manual, 01/2019, A5E39450002-AB 9
SIMATIC Automation Tool
You can use the SIMATIC Automation Tool to run commissioning and maintenance activities
simultaneously on various SIMATIC S7 stations as a bulk operation independently of the TIA
Portal.
The SIMATIC Automation Tool provides a multitude of functions:
●Scanning of a PROFINET/Ethernet network and identification of all connected CPUs
●Address assignment (IP, subnet, gateway) and station name (PROFINET device) to a
CPU
●Transfer of the date and the programming device/PC time converted to UTC time to the
module
●Program download to CPU
●Operating mode switchover RUN/STOP
●Localization of the CPU by means of LED flashing
●Reading out CPU error information
●Reading the CPU diagnostic buffer
●Reset to factory settings
●Updating the firmware of the CPU and connected modules
You can find the SIMATIC Automation Tool on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/98161300).
PRONETA
With SIEMENS PRONETA (PROFINET network analysis), you analyze the PROFINET
network during commissioning. PRONETA features two core functions:
●The topology overview independently scans PROFINET and all connected components.
●The IO check is a fast test of the wiring and the module configuration of a system.
You can find SIEMENS PRONETA on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/67460624).

Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
10 Manual, 01/2019, A5E39450002-AB
Product overview
2
2.1 Properties
Order number
6ES7505-0RB00-0AB0
View of the module
Figure 2-1 View of the PS 60W 24/48/60VDC HF module

Product overview
2.1 Properties
Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
Manual, 01/2019, A5E39450002-AB 11
Properties
The PS 60W 24/48/60VDC HF power supply module supports the use of additional modules.
Advantage over the "standard" power supply module:
To save a higher volume of data retentively in case of power failure, the PS 60W
24/48/60VDC HF supplies power to the CPU.
The PS 60W 24/48/60VDC HF has the following properties:
●Technical properties
–Rated input voltages 24/48/60 VDC
–Output power 60 W
–Power failure backup
–Electrical isolation to the bus, safe electrical separation according to EN 61131-2
The module supports the following functions:
Table 2- 1 Version dependencies of the module functions
Function
Firmware version
of the module
Configuration software
STEP 7
(TIA Portal) as of
V14 SP1
GSD file in STEP 7
(TIA Portal) V12 or higher,
or STEP 7 V5.5 SP3 or
higher
Firmware update
V1.0.0 or higher
X
X
(PROFINET IO only)
Identification data I&M0 to I&M4
V1.0.0 or higher
X
Configuration in RUN V1.0.0 or higher X
Diagnostic alarms
V1.0.0 or higher
X
Diagnostic interrupts V1.0.0 or higher X
Only configurable on LH side next to interface
module / CPU
V1.0.0 or higher X
Extended retentivity of the CPU data area in
the event of a power failure
V1.0.0 or higher X
(only with CPU S7-1500
firmware version V2.1 or
higher)
---
Accessories
The following components are supplied with the power supply module:
●Power connector
●U connector
These components are also available as spare parts.

Product overview
2.2 Operating and display elements
Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
12 Manual, 01/2019, A5E39450002-AB
2.2 Operating and display elements

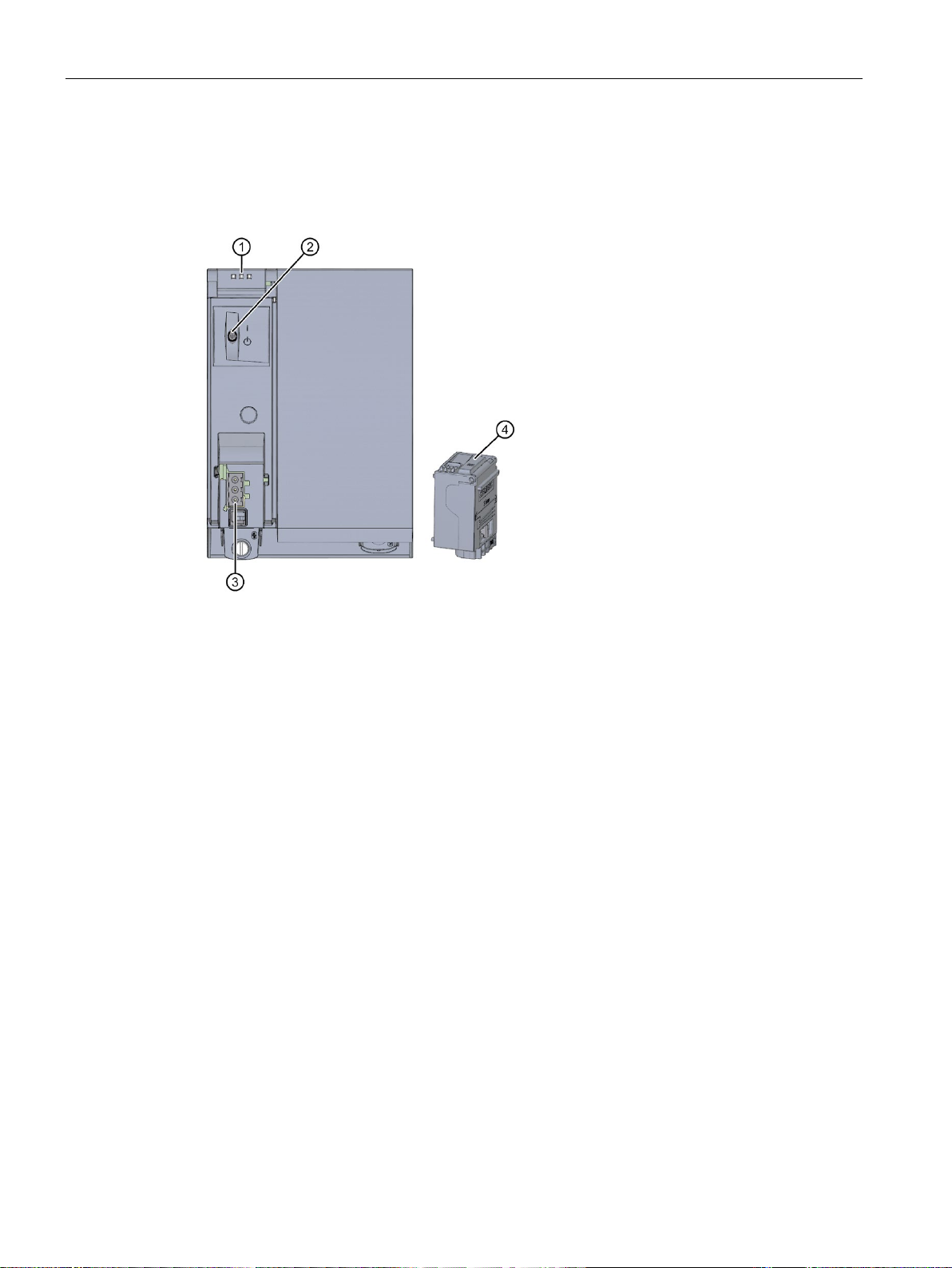

The following figure shows the control and connection elements of the
PS 60W 24/48/60VDC HF behind the front panel as well as the power connector.
①
LED displays indicating the current operating state and diagnostic status of the PS
②
On/off switch
③
Power inlet for the power connector
④
Power connector; inserted in delivery state
Figure 2-2 View of the PS 60W 24/48/60VDC HF (without front panel) and of the power connector

Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
Manual, 01/2019, A5E39450002-AB 13
Wiring
3
3.1 Wiring the power supply module
Mains connection
WARNING
Installation instructions
Risk of death or serious injury.
Observe the general installation instructions applicable in your country when wiring the
power supply module.
Fuse the power cables according to their conductor cross-section.
The following applies to mains connection of the power supply module using the power
connector:
●The power connector provides connection of the input voltage to the power supply
module with touch protection.
●The power connector provides permanent wiring.
●The power connector features an internal strain relief.
●The power connector ensures reverse polarity protection.
●A coding element is used on the power connector to assign it to a specific type of power
supply module. A connector coded for 230V AC cannot be inserted into a 24 V DC power
supply module.
DANGER
Do not manipulate or omit the coding element
Changes to the coding element can result in dangerous states in your plant and/or
damage to the outputs of the
I/O modules. In order to avoid damage, do not manipulate the coding. The coding
element may not be omitted.
Cables
You need flexible cables to wire power to the power supply module. The conductor cross-
section must be 1.5 mm2(AWG: 16). The diameter of a 3 x 1.5 mm2sheathed cable can be
no more than 8.5 mm. The ground conductor of flexible cables must be longer than the two
other conductors. The fusing must meet the requirements of the corresponding control
cabinet.

Wiring
3.1 Wiring the power supply module
Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
14 Manual, 01/2019, A5E39450002-AB
Reference
For information on installation of the power supply module and wiring of the power
connector, refer to the system manual S7-1500/ET 200MP Automation System
(https://support.industry.siemens.com/cs/ww/en/view/59191792).
Siemens recommends the use of devices from the SITOP family of products for applications
with load power supplies. Wiring information is available in the documentation for the load
power supply.

Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
Manual, 01/2019, A5E39450002-AB 15
Parameters
4
4.1 Parameters
Parameters of the PS 60W 24/48/60VDC HF
The PS 60W 24/48/60VDC HF is usually already integrated in the hardware catalog of
STEP 7 (TIA Portal). In this case, STEP 7 (TIA Portal) checks the configured properties for
plausibility during configuration.
However, you can also assign parameters to the module by means of a GSD file and the
configuration software of any provider. The module does not check the validity of the
configured properties until after the configuration has been loaded.
When you assign the module parameters in STEP 7, you use various parameters to specify
the module properties. The following table lists the configurable parameters. The effective
range of the parameters that can be set depends on the type of configuration. The following
configurations are possible:
●Central operation with an S7-1500 CPU (with STEP 7 TIA Portal V14 SP1 or higher)
●Distributed operation on PROFINET IO in an ET 200MP system (with GSD file
PROFINET IO in STEP 7 (TIA Portal) V12 or higher or STEP 7 V5.5 SP3 or higher
For parameter assignment in the user program, the parameters are transferred to the
module using the WRREC instruction (reparameterization in RUN) and data records; see
section Parameter data record (Page 24).
Table 4- 1 Configurable parameters and their defaults
Parameters
Range of values
Default setting
Parameter as-
signment
in RUN
Scope with configuration software,
e.g., STEP 7 (TIA Portal)
Integrated in the
hardware cata-
log STEP 7
(TIA Portal) V14
SP1 or higher or
GSD file
PROFINET IO
GSD file
PROFIBUS DP
Diagnostics / mainte-
nance
•Supply voltage moni-
toring *
Yes/No No Yes Module ---
•Switch position Off * Yes/No No Yes Module ---
* In case of central operation of a S7
-1500 CPU with firmware V2.1.0 or higher the diagnostics are
not
displayed in the
diagnostics buffer to ensure reliable backup of the extended retentive data.

Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
16 Manual, 01/2019, A5E39450002-AB
Interrupts, diagnostic alarms, error and status alarms
5
5.1 Status and error displays
Introduction
Diagnostics by means of LEDs is a basic tool for troubleshooting. Usually, you can pinpoint
the source of error more precisely by analyzing the module status information in STEP 7, or
in the diagnostic buffer of the CPU. These locations contain the corresponding error
information in plain text.
LED displays
The following figure shows the LED displays (status and error displays) of the
PS 60W 24/48/60VDC HF.
①
RUN LED
②
ERROR LED
③
MAINT LED
Figure 5-1 LED displays of PS 60W 24/48/60VDC HF

Interrupts, diagnostic alarms, error and status alarms
5.1 Status and error displays
Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
Manual, 01/2019, A5E39450002-AB 17
Meaning of the LED displays
The following table explains the meaning of the status and error displays. You can find
remedial measures for diagnostic alarms in chapter Diagnostic alarms (Page 18).
Table 5- 1 Status and error displays RUN/ERROR/MAINT
LED
Meaning
Remedy
RUN
ERROR
MAINT
Off Off Off
OFF; PS returns no bus voltage
•External error; diagnostics is disabled
•PS not powered in the system, no supply voltage
at the PS and CPU/IM.
Switch on power to the PS
Check the supply voltage
Switch on PS
On On On
Startup; all LED displays are lit briefly after system
startup, or during module restart after firmware up-
date.
-
Flashing
Not rele-
vant
Not rele-
vant
Startup, PS returns bus voltage, PS waiting for pa-
rameterization
-
Off
Flashing
Not rele-
vant
Error, PS supplies no bus voltage
•Supply voltage missing and diagnostics is ena-
bled
•Internal error
Evaluate diagnostic alarms and
take appropriate remedial
measures; see chapter Diag-
nostic alarms (Page 18)
Off
Not rele-
vant
On
Maintenance request, PS returns no bus voltage
•Switch is off; power is present and diagnostics is
enabled
Switch on PS
Flashing
Flashing
Flashing
Malfunction
LEDs flash persistently
Replace PS

Interrupts, diagnostic alarms, error and status alarms
5.2 Diagnostic alarms
Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
18 Manual, 01/2019, A5E39450002-AB
5.2 Diagnostic alarms
Diagnostic alarms
The following table shows the meaning of the diagnostic alarms and possible remedial
measures for the respective cause.
One of the following "LED images" indicates directly on the PS that a diagnostic alarm was
triggered.
●The red ERROR-LED is flashing.
Indicates external or internal errors.
●The yellow MAINT-LED is lit.
Maintenance; a maintenance request is active.
●All three LEDs are flashing permanently
The PS is in "Defective" state.
In STEP 7, the diagnostic results are displayed in plain text by means of the online and
diagnostic view. You can read the diagnostic data records by means of the "RDREC"
instruction.
Table 5- 2 Diagnostic alarms, their meaning and remedies
Diagnostic alarm
Error
code
Meaning
Reac-
tion
Remedial measures
Dec.
Hex.
External error
Supply
voltage missing
266D010AHNo supply voltage, or incorrect
insertion of the power connector
into the PS.
1 Check the supply voltage.
Internal error
Overtemperature 5D0005HOvertemperature on the printed
circuit board.
2 Check PS load. Isolate PS from
mains. Wait one minute before you
power on the PS again.
Overvoltage back-
plane bus
267D010BHHigh EMC interference or a defec-
tive PS, CPU or IM inserted.
2 Eliminate electromagnetic interfer-
ence. Check inserted modules and
bus connectors. Isolate PS from
mains. Wait one minute before you
power on the PS again.
Safety shutdown 285D011DHReliable operation of the module
is no longer guaranteed.
2 Check ambient conditions. Isolate PS
from mains. Wait one minute before
you power on the PS again.
Maintenance
Switch turned off
268
D
010C
H
The PS is switched off.
1
Switch on PS.
Malfunction
Module failure
256
D
0100
H
PS failure.
3
Replace PS.

Interrupts, diagnostic alarms, error and status alarms
5.3 Interrupts
Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
Manual, 01/2019, A5E39450002-AB 19
External errors, internal errors and malfunctions
●External errors occur outside the PS. In the parameterization, specify whether or not an
external error can trigger a diagnostic alarm. By default, external errors do not trigger
diagnostic alarms.
●Internal errors occur inside the PS. If still possible, an internal error always triggers a
diagnostic alarm.
●A malfunction is a static state; the PS must be sent in for repair. If still possible, a defect
always triggers a diagnostic alarm.
Explanation of the reactions
The PS is switched off retentively. Alarm is only generated if the PS is still powered by the
CPU or IM via the backplane bus. You cannot switch on the module unless you have
eliminated the error and disconnected power to the PS for approximately one minute.
5.3 Interrupts
What is a diagnostic interrupt?
You can determine reactions to internal or external errors in the user program, by
programming a diagnostic interrupt which interrupts cyclic program execution on the CPU
and triggers the diagnostic interrupt OB (OB82). The event which led to the interrupt is
entered in the start information of the OB82.
Trigger of a diagnostic interrupt
Events that can trigger a diagnostic alarm can also trigger a diagnostic interrupt:
●Supply voltage missing
●Overtemperature
●Overvoltage on the backplane bus
●Safety shutdown
●Switch position Off
●Malfunction
Reactions to a diagnostic interrupt
You can find the CPU reaction to a diagnostic interrupt in the function manual System
diagnostics (http://support.automation.siemens.com/WW/view/en/59192926).
Detailed information on the error event is available in the diagnostic interrupt OB by
executing the "RALRM" instruction (read additional interrupt information) and in the STEP 7
Online Help.

Power supply module PS 60W 24/48/60VDC HF (6ES7505-0RB00-0AB0)
20 Manual, 01/2019, A5E39450002-AB
Technical specifications
6
Technical specifications of the PS 60W 24/48/60VDC HF
Article number
6ES7505-0RB00-0AB0
General information
Product type designation
PS 60 W 24/48/60 V DC HF
HW functional status
E01
Firmware version
V1.0.0
Engineering with
•STEP 7 TIA Portal configurable/integrated as of version V14 SP1
Supply voltage
Rated value (DC)
24 V / 48 V / 60 V
permissible range, lower limit (DC)
Static 19.2 V, dynamic 18.5 V
permissible range, upper limit (DC)
Static 72 V, dynamic 75.5 V
Reverse polarity protection
Yes
Short-circuit protection
Yes
Mains buffering
•Mains/voltage failure stored energy time 20 ms
Input current
Rated value at 24 V DC
3 A
Rated value at 48 V DC
1.5 A
Rated value at 60 V DC
1.2 A
Inrush current, max.
≤ 8 A for t ≤ 1 s
Output current
Short-circuit protection
Yes
Power
Infeed power to the backplane bus
60 W
Power loss
Power loss at nominal rating conditions
12 W
Interrupts/diagnostics/status information
Status indicator
Yes
Isolation
Isolation tested with
2 500 V DC (type test)
EMC
Interference immunity against voltage surge
•on the supply lines acc. to IEC 61000-4-5 Yes; ±1 kV (acc. to IEC 61000-4-5; 1995; surge
symm.), ±2 kV (acc. to IEC 61000-4-5; 1995;
surge asymm.), no external protective circuit
required
