Silca Delta 2000 MC User manual

®
D413875XA
vers. 3.0
Operating manual
Manuel d’instructions
Manual de instrucciones
Manuale d’uso
Gebrauchsanleitung
EN

© 1998 SILCA S.p.A - Vittorio Veneto
This manual has been drawn up by SILCA S.p.A.
All rights reserved. No part of this publication may be reproduced or used in any form or by any means (photocopying,
microfilm or other) without the written permission of SILCA S.p.A.
Edition: February 2008
Printed in Vittorio Veneto
by SILCA S.p.A.
via Podgora, 20 (Z.I.)
31029 VITTORIO VENETO (TV) - Italy

INDEX
1 TRANSPORT ...................................................................................................3
1.1 Packing ... ..............................................................................................3
1.2 Transport ... ...........................................................................................3
1.3 Unpacking .............................................................................................3
1.4 Machine handling ..................................................................................3
2 WORKING PARTS ..........................................................................................4
3 MACHINE DESCRIPTION ...............................................................................5
3.1 Technical data ......................................................................................6
3.2 Electrical circuit .....................................................................................7
4 ACCESSORIES PROVIDED ...........................................................................8
5 MACHINE INSTALLATION and PREPARATION ..........................................9
5.1 Checking for damage ............................................................................9
5.2 Environmental conditions ......................................................................9
5.3 Positioning . ...........................................................................................9
5.4 Description of work station ..................................................................10
5.5 Separate parts ....................................................................................10
5.6 Connection to the mains .....................................................................10
6 REGULATION and USE of the MACHINE ...................................................11
6.1 Checking and Setting ..........................................................................11
6.2 Setting .................................................................................................11
6.3 Cutting operations ...............................................................................12
6.4 Replacing the tip stop .........................................................................12
7 MAINTENANCE .............................................................................................14
7.1 Cutting tool replacement .....................................................................14
7.2 Brush replacement ..............................................................................14
7.3 Tracer point replacement ....................................................................15
7.4 Replacing the fuses ............................................................................15
8DISPOSAL ....................................................................................................16
9 ASSISTANCE ................................................................................................17
9.1 How to request service .......................................................................17

Operating manual - English DELTA 2000 MC
Copyright Silca 1 998 1
GUIDE TO THE MANUAL
This manual has been produced to serve as a guide for users of the DELTA 2000 MC key-cutting ma-
chine. Read it carefully; it is essential if you wish to operate your machine safely and efficiently.
CONSULTATION
The contents of the manual are divided into sections relating to:
- Transport and handling ........................................................................................... Chapter 1
- Description of machine and safety devices ........................................................... Chapters 2-3-4-5
- Proper use of the machine ..................................................................................... Chapters 5-6
- Maintenance ........................................................................................................... Chapter7
TECHNICAL TERMS
Common technical terms are used in this manual. To assist those wit h little experience of key cutting,
below is an illustration of the terms used for the different parts of keys:
Fig. 1
1) Head
2) Rim
3) Stem
4) Tip
5) Back
6) Cuts
2
1
4
6
5
3

DELTA 2000 MC Operating manual - English
2 Copyright Silca 1 998
GENERAL INSTRUCTIONS
The DELTA 2000 MC key-cutting machine has been designed according to the specifications of the Ma-
chine Directives. From the design stage risks for the operator have been eliminated in all areas: tr ans-
port, regulation, cutting and maintenance.
The use of protective goggles is compulsory during cutting operations, as indicated on the machine itself
and in this manual.
The material used in the manufacture of this machine and the components employed during use of the
machine are not dangerous and their use complies with standards.
USE
The DELTA 2000 MC key-cutting machine must be installed and used in the way laid down by the man-
ufacturer, as illustrated in this manual.
If the machine is used differently or for purposes different from those described in this manual, the cus-
tomer will forego any rights he may have over SILCA S.p.A. Furthermore, unforeseen danger to the op-
erator or any third parties may arise from incorrect use of the machine.
Negligence in the use of the machine or failure on t he part of the operator to observe the instructions
given in this manual are not covered by the guarantee and the manufacturer declines all responsibility in
such cases. It is therefore indispensable to read the operating manual carefully in order to make the best
use of the DELTA 2000 MC key-cutting machine and benefit from its potential.
FURTHER RISKS
There are no further risks arising from the use of the DELTA 2000 MC key-cutting machine.
PROTECTION AND SAFETY PRECAUTIONS FOR THE OPERATOR
The DELTA 2000 MC key-cutting machine is built entirely to standards. The operations for which it has
been designed are easily carried out at no risk to the operator.
The adoption of general safety precautions (use of protective goggles) and observation of the instruc-
tions provided by the manufacturer in this manual eliminate all human error, unless deliberate.
The DELTA 2000 MC key-cutting machine is designed with features which make it completely safe in all
its parts.
• Power supply
The key-cutting machine must be supplied with electricity by means of a safety device (supplied with the
230V machines; on request for other voltages). The plug must be earthed.
• Start-up
The machine is started up by means of:
- the safety device switch supplied with the 230V machines);
- the ON switch, situated on the machine, which activates the machine motor.
• Maintenance
The operations to regulate, service, repair and clean the machine have been devised in the simplest and
safest way possible. There is no danger of removable parts being replaced wrongly or unsafely.
• Machine identification
The DELTA 2000 MC is provided with an identification label which shows the serial number (fig. 2).
WARNING: should the machine be left on continuously for over 50 minutes, the cutting tool motor is protect-
ed against overheating and will automatically cut out.In such cases, proceed as follows:
a) turn off the master switch (F);
b) let the motor cool for at least 2 hours before using the machine again.
Fig. 2
(*) see chap.8 DISPOSAL, page 16.

Operating manual - English DELTA 2000 MC
Copyright Silca 1 998 3
1 TRANSPORT
The DELTA 2000 MC key-cutting machine is easily transported and is not dangerous to handle.
The packed machine can be carried by one person.
1.1 Packing
The DELTA 2000 MC key-cutting m achine comes in a st rong
cardboard box, the dimensions of which are shown in fig. 3, de-
signed to protect the machine and all its parts even when it is
stored for long periods.
Fig. 3
1.2 Transport
It is advisable to use the packing every time the machine is transported, as this will avoid knocks which
could cause damage to the machine, persons or things.
1.3 Unpacking
To remove the machine from the packing box, carefully follow the illustrated instructions below:
Fig. 4
Check the contents of the box, which should comprise:
- 1 DELTA 2000 MC key-cutting machine;
- 1 set of documents, including: operating manual, spare parts list and guarantee;
- 1 chippings tray;
- 1 power cable;
- 1 power supply safety device (supplied with the 230V machines)
- 1 set of accessories.
1.4 Machine handling
When the DELTA 2000 MC key-cutting machine has been unpacked, place it directly on its workbench.
This operation can be carried out by one person,
firmly holding the base, and no other part, to lift and
carry the machine.
AB
CD

DELTA 2000 MC Operating manual - English
4 Copyright Silca 1 998
2WORKING PARTS
Fig. 5 A - right-hand clamp
A1- right-hand clamp knob
B - left-hand clamp
B1- left-hand clamp knob
C - tip stop
C1- tip stop grub screw
D - carriage
D1 - carriage lever handle
E - chippings tray
F - motor/brush start button
G - tracer point
G1- tracer point locking screw
G2- tracer point adjusting nut
G3- tracer point unit locking screw
H - cutting tool
I-cover
J- motor
K - brush
L - fuses
M - supply socket
X - safety device (supplied with the 230V machines; on request for other voltages)
X1- safety device main switch
X2- warning light
A
A1
B
B1
C
C1
DD1
E
F
G
G1
G2
G3
H
I
J
K
L
M
C
C1 XX2
X1

Operating manual - English DELTA 2000 MC
Copyright Silca 1 998 5
3 MACHINE DESCRIPTION
DELTA 2000 MC is a professional key-cutting machine for keys such as FORD (FO19P, FO20P), ABLOY
(left-hand cutting only, for all), ABUS (AB32, AB38P), AVA CHUBB (ACH, 5ACH4, 5ACH1). The machine
comprises the following main parts:

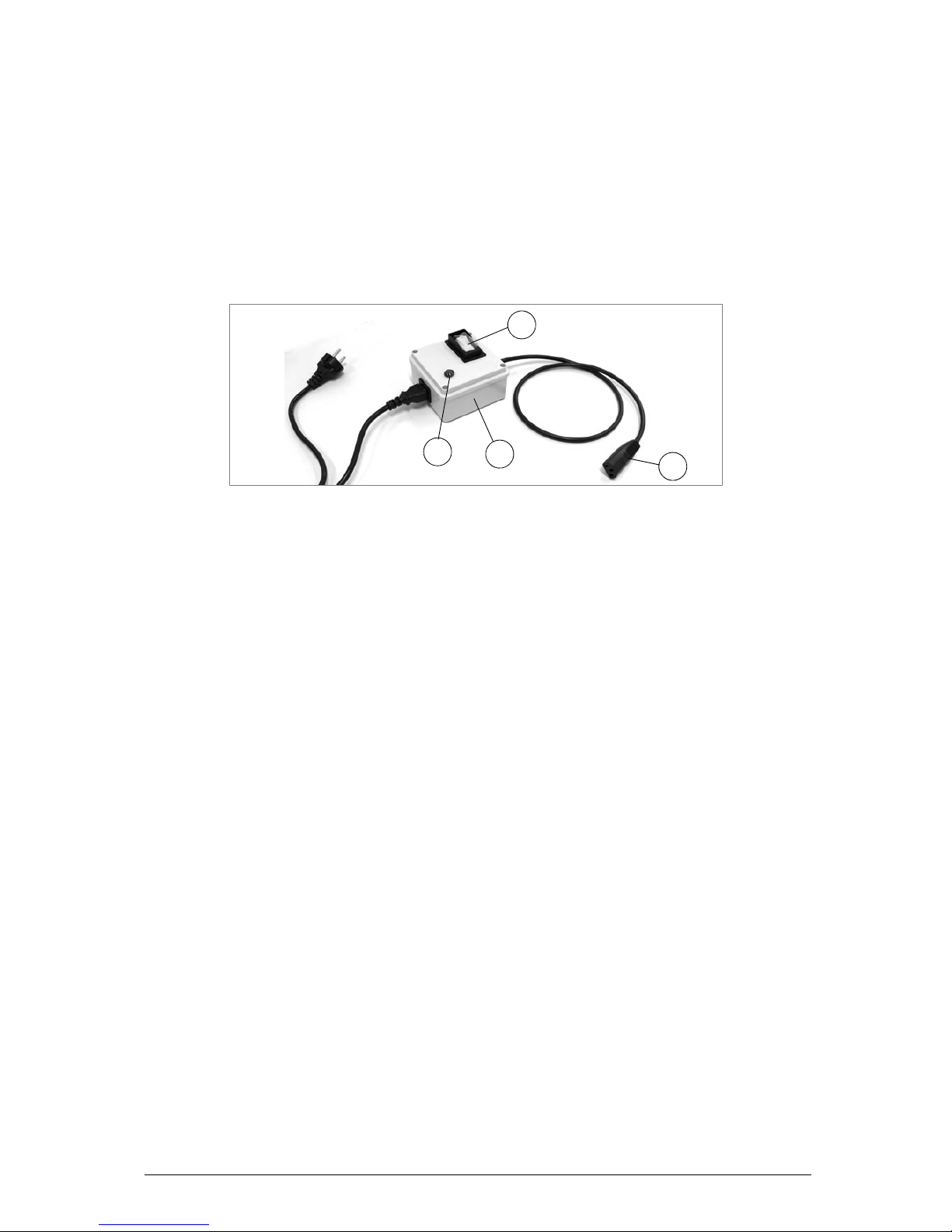

SAFETY DEVICE (X)
The device is connected to a power plug with a differential switch. power the key-cutting machine
by pressing the switch (X1)
(fig. 6) .
The warning light (X2) illuminates to indicate voltage in the plug (X3).
WARNING: Switch (X1) is electromagnetic, in the event of a power failure it goes out automatically. When
electricity is restored it must be reset manually to power the machine again by means of the plug
(X3).

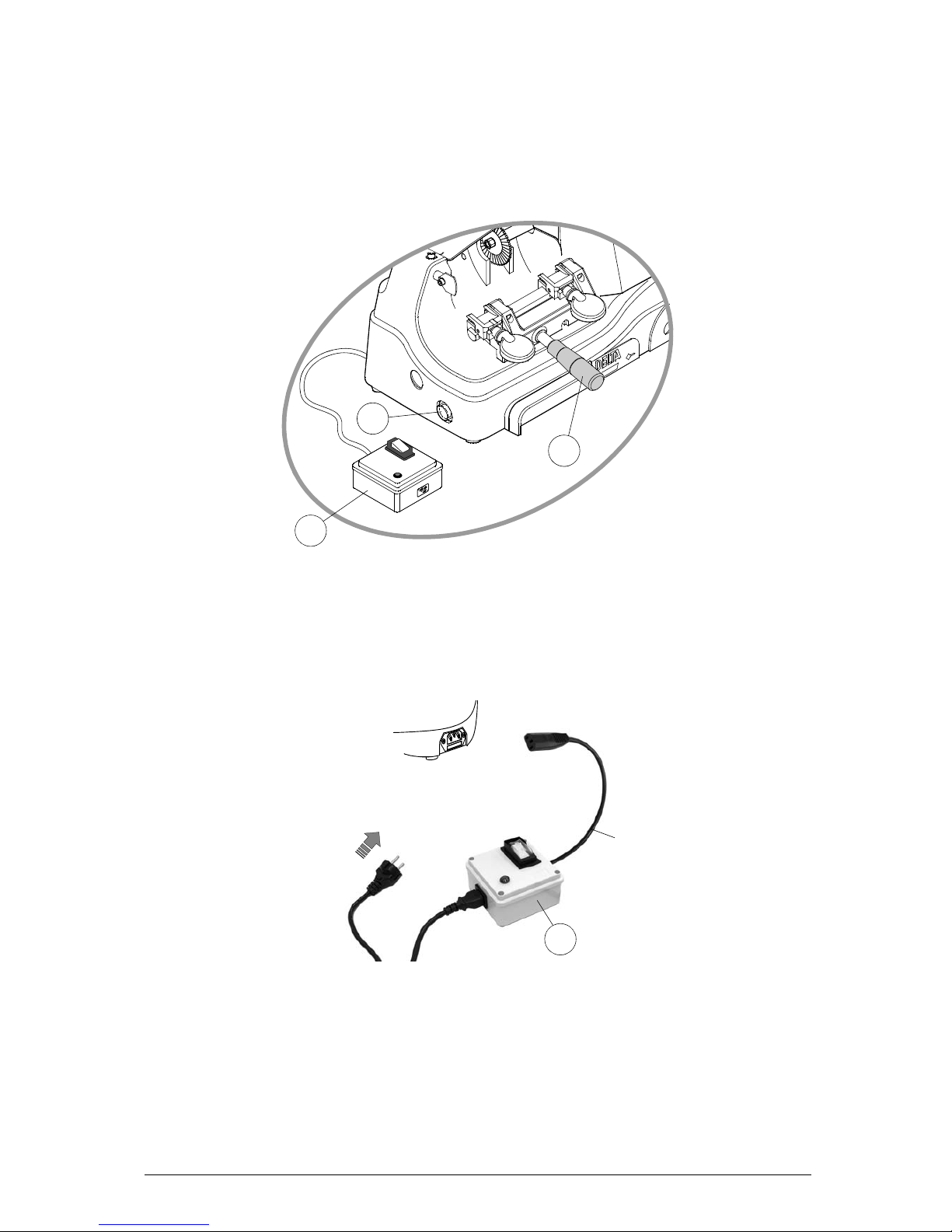

Fig. 6
MASTER SWITCH (F)
The motor and brush starting button (F) is placed on the left side of the DELTA 2000 MC key-cutting ma-
chine.
WARNING: the switch is constantly illuminated to indicate that the machine is live.
MOTOR (J)
The DELTA 2000 MC has a direct dri ve motor. The transmission unit comprises the motor, cutter and
brush and is protected by a single cover (I).
MOBILE UNIT
The mobile unit comprises a carriage (D) which holds a single unit with two tilting jaws.
The carriage is fitted to the translation shaft and is moved manually by the operator. It is designed to pre-
vent the accumulation of dust or cutting chips.
The key-cutting machine has a sloping table so that the chips will fall into the special tray (E) placed under
carriage and easily removed in order to dispose of the waste.
• Brush (K)
The brush is used to eliminate burrs caused by the cutting process and is made of safe materials.
• Cutting tool (H)
The cutting tool is the part of the DELTA 2000 MC machine which cuts the key blank. The tool is in HSS
super rapid steel and is protected by a special cover (I) to ensure safe operation.
• Tracer point (G)
The tracer point is housed on the left-hand side of the machine base. Its depth settings are easily regu-
lated with the ring nut (G2).
• Right-hand clamp (A)
The right-hand jaw (A) houses the key to be cut and is fitted to the shaft, together with the left-hand jaw.
The clamp unit is secured by means of a knob (A1), anatomically shaped to facilitate grip and control of
the cutting operation.
• Left-hand clamp (B)
The left-hand jaw (B) houses the key to be copied and is secured by means of the knob (B1).
• Tip stops (C)
The interchangeable tip stops act as a reference for positioning the keys and are attached to the carriage
by means of grub screws (C1).
X
X1
X2
X3

DELTA 2000 MC Operating manual - English
6 Copyright Silca 1 998
3.1 Technical data
ELECTRICAL PROPERTIES: 230V - 50Hz 190W 1,5A
CUTTING TOOL: Super Rapid Steel (HSS)
MOTOR: One speed single phase 230V-50Hz 1350 rpm 0,145 Kw
CARRIAGE MOVEMENT: manual
CLAMPS: rocker
SAFETY DEVICE: supplied with the 230V machines; on request for other voltages
CARRIAGE RUN (maximum length of cuts): 23 mm
DIMENSIONS: width: 210 mm depth: 370 mm height: 250 mm
NOISE PRESSURE: Lp (A)= 92,2 dB (A)
NOISE POTENTIAL: Lw (A)= 104,9 dB (A)
WEIGHT: Kg. 14

Operating manual - English DELTA 2000 MC
Copyright Silca 1 998 7
3.2 Electrical circuit
The DELTA 2000 MC key-cutting machine is provided with a motor which performs at 1350 rpm with con-
sumption of approx. 0,19 kw and absorption of 1,5A.

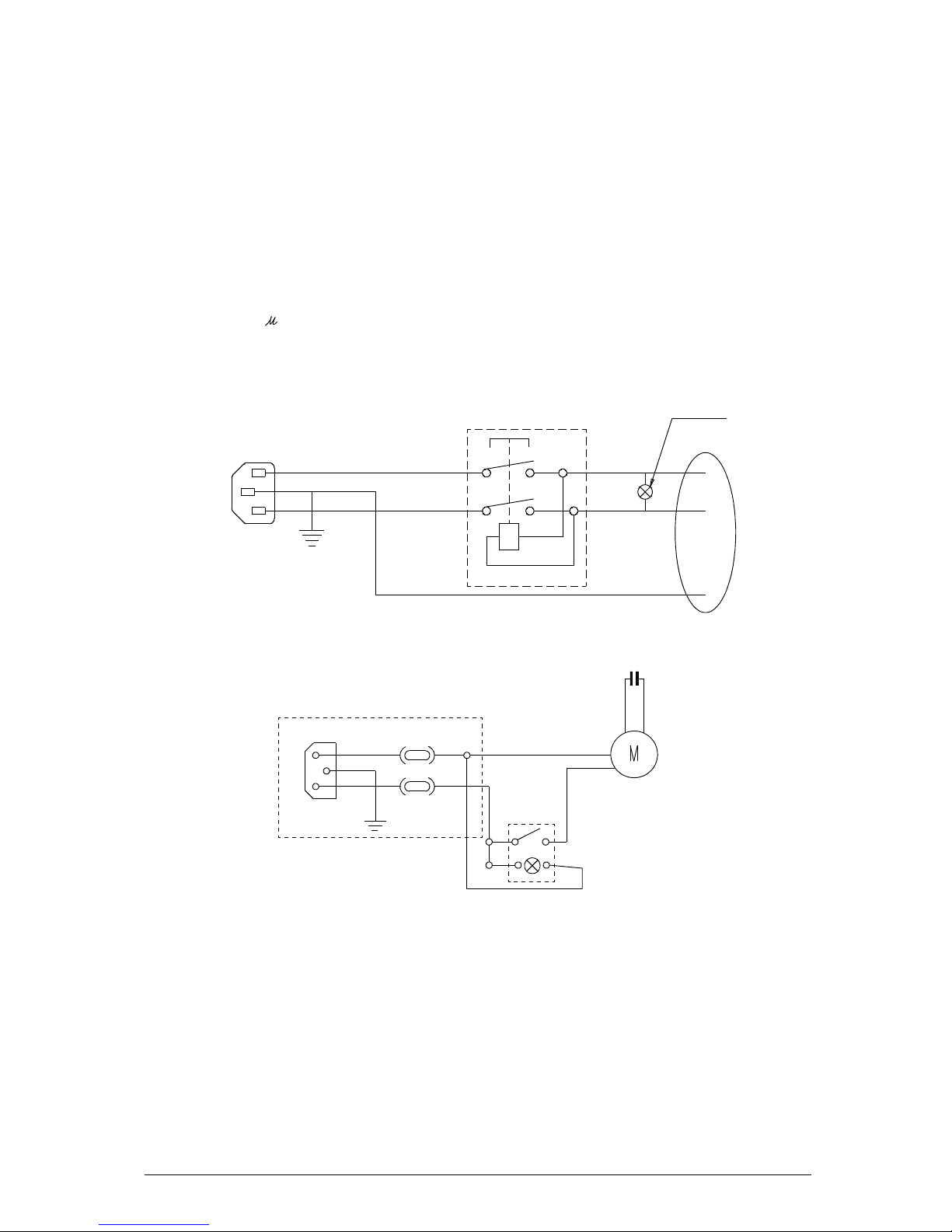

The main parts of the electrical circuit are listed below:
1) Safety device inlet
2) Safety main switch
3) Warning light
4) Wiring clip
5) Machine inlet
6) Rapid 3,15A fuses
7) Switch with lamp
8) Motor: 230V a.c. 50Hz
9) 6,3 F condenser
5
6
6
7
8
9
machine inlet
motor
3
brown
light blue
yellow-green
brown
light blue
OUT
IN
4
1
2
Safety device

DELTA 2000 MC Operating manual - English
8 Copyright Silca 1 998
4 ACCESSORIES PROVIDED
To ensure trouble-free working with t he DELTA 2000 MC, it is advisable to always ha ve certain spare
parts on hand.
It is advisable to always have a tool box containing: tools, cutting tools, brushes and small replacement
parts.
DELTA 2000 MC is supplied with a full range of accessories.
The accessories provided by Silca are all that is necessary to carry out the operations for which the ma-
chine is designed.
code D413433BA
3mm TIP STOPS
2 pcs
code D309226ZZ
5x20 FUSES 3,15 Amps rapid
2 pcs
1
2
3
4
5
6
7
9
10
code D300222ZZ
2,5 mm ALLEN KEY
code D300223ZZ
3 mm ALLEN KEY
code D300308ZZ
10 mm SPANNER
code D312327ZZ
15 mm SPANNER
code D200756ZZ
SETTING PINS
2 pcs
code D300224ZZ
4 mm ALLEN KEY
code D302883ZZ
8 mm SPANNER
8
code D301760ZZ
17 mm SPANNER

Operating manual - English DELTA 2000 MC
Copyright Silca 1 998 9
5 MACHINE INSTALLATION AND PREPARATION
The DELTA 2000 MC key-cutting machine can be installed by the purchaser and does not require any
special skills. However, some checks and preparation for use need to be carried out by the operator.
5.1 Checking for damage
The DELTA 2000 MC is solid and compact and will not normally damage if transport, unpacking and in-
stallation have all been carried out according to the instructions on the packing box.
However, it is always advisable to check that the machine has not suffered any damage.
5.2 Environmental conditions
To ensure that the be st use is m ade of t he key-cutting machine, certain parameters must be bo rne in
mind:
- damp, badly ventilated sites should be avoided.
- the conditions for the machine are:
- temperature: between 0 and 40°C
- relative humidity: approx. 60%
5.3 Positioning

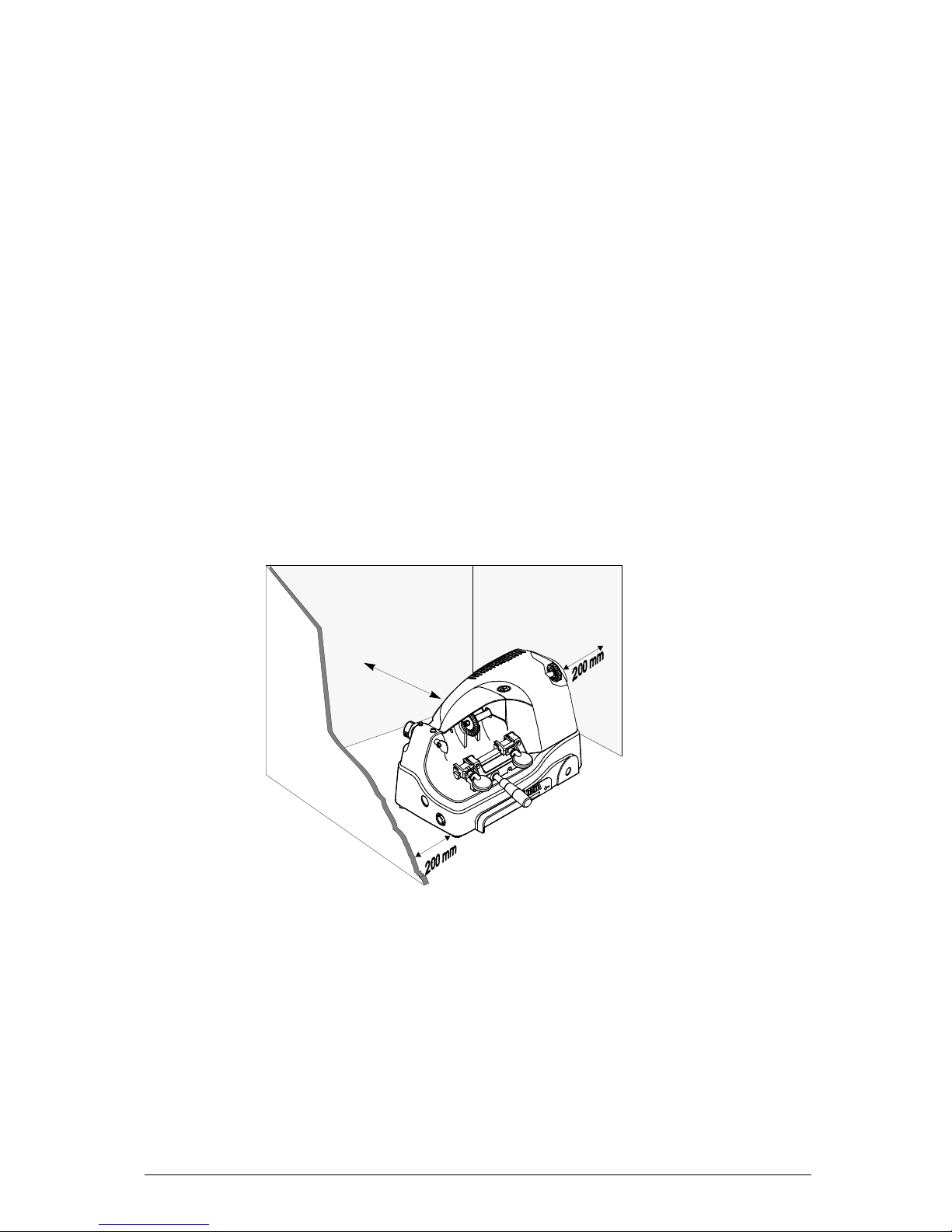

Place the machine on a horizontal surface, solid enough to take the weight (14 Kg).
To facilitate operation and maintenance, install the machine with a clearance of at least 20 0 mm on all
sides (fig. 7).
Check that the weight of the machine is evenly distributed over the four feet; horizontal positioning pre-
vents vibrations during operation.
WARNING: ensure that the machine voltage is the same as that of the mains, which must be properly earthed
and provided with a differential switch.
Fig. 7
200mm

DELTA 2000 MC Operating manual - English
10 Copyright Silca 1 998
5.4 Description of work station
The machine needs only one operator, who has the following controls at his/her disposal (fig. 8):
• Safety device (X).
• Master switch (F), placed on the left-hand side of the machine; provided with a warning light indicating
that the machine is live.
• Carriage lever handle (D1).
Fig. 8
5.5 Separate parts
The detachable parts of the machine are packed separately and must be fitted to the DELTA 2000 MC
by the operator, as follows:
POWER CABLE
First connect the safety device (X) to the key-cutting machine and the power cable then connect the free
end of the power cable to the power mains (fig. 9).
Fig. 9
5.6 Connection to the mains
It is extremely important for the operator’s safety to ensure that the key-cutting machine is connected to
the power mains with the right voltage and by means of a
properly earthed differential switch.
D1
F
X
power
mains power
cable
X

Operating manual - English DELTA 2000 MC
Copyright Silca 1 998 11
6 REGULATION AND USE OF THE MACHINE
6.1 Checking and Setting
The cutting tool on the DELTA 2000 MC is used to cut the key blanks and must be periodically checked
and replaced.
Periodically, and whenever the cutting tool is replaced, check the key-cutting machine settings, to ensure
perfect machine efficiency.
6.2 Setting
AXIAL SETTING
Axial setting refers to adjustment of the distance between the tracer point position and cutting position
(fig. 10-A).
The axis setting for the DELTA 2000 MC is fixed and is established on assembly in our
workshops.

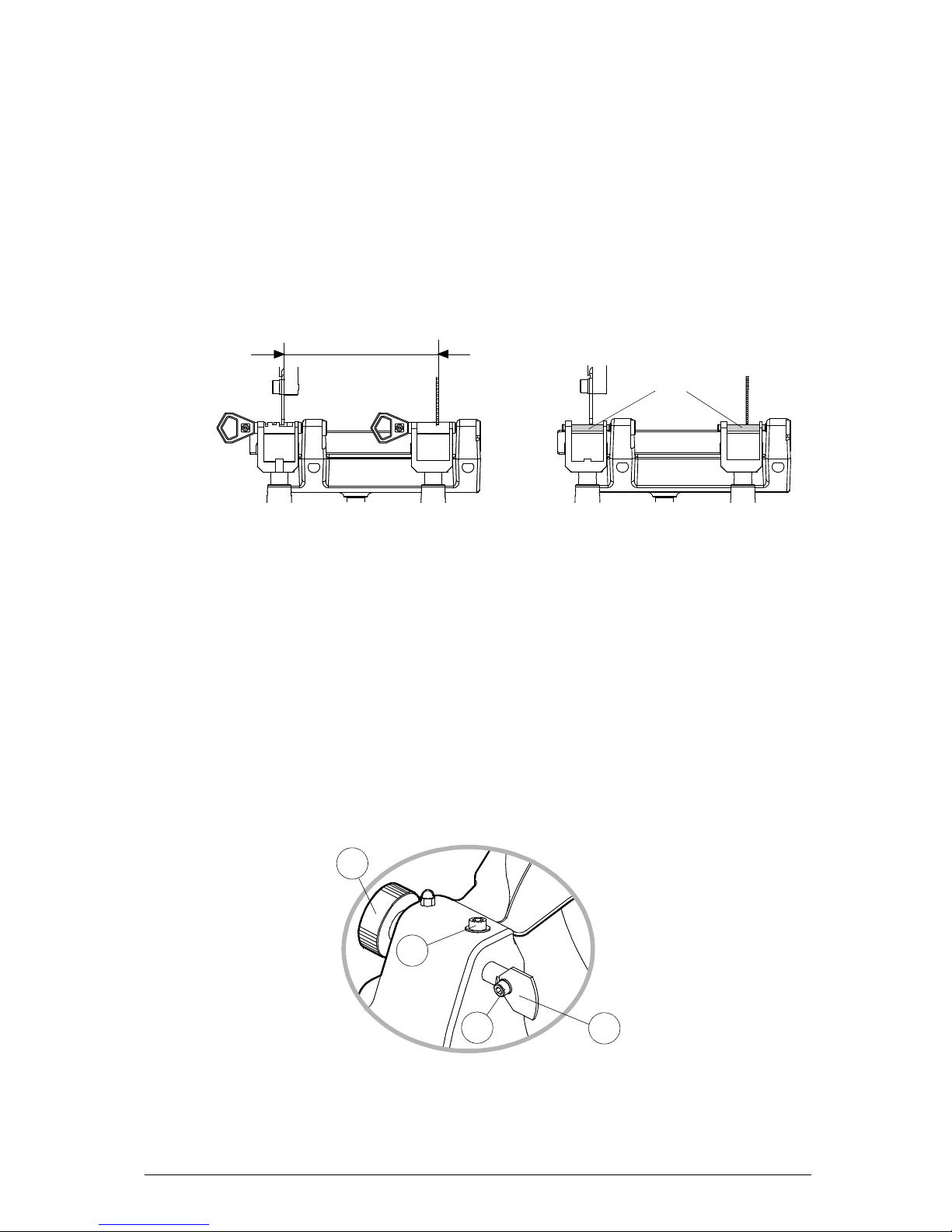

Fig. 10
DEPTH SETTING
Depth setting refers to adjustment of the alignment between the tracer point depth and the depth of the
cuts.
To regulate the depth settings, proceed as follows:
WARNING: disconnect the machine from the mains.
1) place the setting pins (provided) on the clamps (fig. 10-B).
2) raise the carriage and take towards the tracer po int and cutting tool u ntil the pin on the left-hand
clamp comes into contact with the tracer point.
3) turn the cutting tool anticlockwise by han d. Take the gauging pin on the left-hand clamp up to the
tracer point and ensure that the cutting tool skims the pin on the right-hand clamp.
4) turn the right-hand clamp knob upwards and repeat the operation described above.
5) if necessary, regulate the cutting depth by means of the tracer point, as described below:
a) loosen the tracer point locking screw (G3) (fig. 11).
b) turn the adjusting nut (G2): clockwise to advance the tracer point (G), anticlockwise to move the
tracer point back.
6) when regulation is complete, screw down the screw (G3) to lock the tracer point.
7) if the height of the tracer point must be adjusted, loosen screw (G1) and re-position manually.
8) when regulation is complete, screw down the screw (G1) to lock the tracer point.
Fig. 11
setting
pins
AB
G3
G1
G2
G

DELTA 2000 MC Operating manual - English
12 Copyright Silca 1 998
6.3 Cutting operations
WARNING: to work in complete safety, pay special attention to the following recommendations:
• Always work with dry hands.
• Check that the machine is properly earthed.
• Use the protective goggles, even if the cutting tool is fitted with a protective shield.
• Start the motor only when all the operations with the carriage have been carried out (securing
keys, etc.).
• Keep hands away from the cutting tool when in motion.
6.4 Replacing the tip stop
ABLOY keys can feature two types of cut which differ only in the dis-
tance between the first cut and the tip of the key. This distance can
be 3 or 5 mm (fig. 12). The machine leaves our workshops set for
the cutting of ABLOY keys with a distance of 5 mm between the tip
and the first cut. To cut keys wit h a distance of 3mm the standard
tip stops must be replaced with the ones provided.
Fig. 12
To do so, proceed as follows:
1) loosen the two grub screws (C1);
2) remove the 5 mm tip stops;
3) fit the 3 mm tip stops provided, positioning them as shown in fig. 13;
4) tighten the grub screws (C1), exerting slight pressure in the direction of the arrow on the tip stops.
FITTING KEYS INTO THE CLAMP
ABLOY - FO19P/FO20P:
Place the original key in the left-hand jaw, pushing towards the tip stop and secure by means of the knob
(B1); the profile of the jaw ensures that the key is centred. Place the key blank in the right-hand jaw in
the same way and secure by means of the knob (A1).
AB32 - AB38P:
Place the original key in the left-hand jaw (B), pushing towards the tip stop and against the side of the
jaw (fig. 13); secure by means of the knob (B1). Place the key blank in the right-hand jaw (A) in the same
way and secure by means of the knob (A1).
Fig. 13
C
A
B
A1
B1
original
key
key
blank
A1
B1
CC
C1
C1
B
A

Operating manual - English DELTA 2000 MC
Copyright Silca 1 998 13
KEY CUTTING
1) Fit the original key into the left-hand jaw (B) and secure in the way described above;
2) fit the key blank into the right-hand jaw (A) and secure in the way described above;
3) activate the machine by means of start button (F);
4) grip the lever (D1) with the left hand and the knob (A1) with the right hand;
5) push the carriage towards the cutting tool until it brings the original key int o contact with the tr acer
point;
6) make a rotary movement downwards with the knob (A1) to copy the inclination of the cuts;
7) repeat the operation for each cut, if necessary adding a slight horizontal movement (fig. 14);
8) for keys cut on both sides, turn off the machine and turn both keys over, then repeat the operations
described above;
9) when cutting is finished, turn off the machine and remove the keys from the clamp;
10) re-activate the machine with switch (F) and eliminate burrs with the brush (K).
Fig. 14
original key key blank AB
B1 A1
D1
A1

DELTA 2000 MC Operating manual - English
14 Copyright Silca 1 998
7 MAINTENANCE
WARNING: for repairs or replacement of parts for maintenance, the ‘CE’ mark is guaranteed only if original
spare parts provided by the manufacturer are used.
Although the DELTA 2000 MC key-cutting machine does not require special maintenance, it is advisable
to check and, if necessary, replace the parts subject to wear (cutting tool, brush, tracer point).
Replacement is simple and can be carried out by the operator.
CLEANING: it is advisable to use a soft brush to keep the carriage and clamps free of chippings from
cutting operations.
WARNING: DO NOT USE COMPRESSED AIR!
WARNING: to keep the machine well maintained we recommend using protective oil, e.g. WD40 or similar,
applied to the burnished mechanical parts. This prevents oxidation of the parts in question
(clamps, guides, carriages, etc.).
Before starting any type of maintenance (checks or replacements), read the instructions below:
• never carry out maintenance or servicing with the machine switched on.
• always remove the mains plug.
• follow all the instructions in the manual to the letter.
• use original spare parts.
• always check that any screws or nuts removed when replacing a piece are properly tightened.
7.1 Cutting tool replacement
It is not necessary to remove the protective shield in order to replace the cutting tool (H).
WARNING: unplug the machine from the mains.
1) place the spanner provided in position on the motor shaft (fig. 15);
2) use a suitable spanner to loosen the new cutting tool locking nut.
WARNING: the thread is left-handed.
3) replace the cutting tool after cleaning its seat;
4) install the new cutting tool and tighten the nut.
WARNING: the tool rotates clockwise.
Fig. 15
7.2 Brush replacement
When the brush (K) is no longer effective it must be replaced, as follows:
WARNING: unplug the machine from the mains.
1) place the spanner provided in position on the motor shaft (fig. 15);
2) use the wrench provided to loosen the brush locking screw (fig. 16);
3) replace the brush and secure with the screw;
4) remove the spanner from the motor shaft.
Fig. 16
H
X
K

Operating manual - English DELTA 2000 MC
Copyright Silca 1 998 15
7.3 Tracer point replacement
To replace the tracer point (G), proceed as follows (fig. 17):
WARNING: unplug the machine from the mains.
1) loosen and remove the tracer point locking screw (G1).
2) remove the tracer point.
3) fit the new tracer point.
4) re-gauge the machine as described in Ch. 6, page 11.
Fig. 17
7.4 Replacing the fuses
WARNING: unplug the machine from the mains.
1) detach the wiring from the machine plug;
2) turn the key-cutting machine so that the fuse box is easily reached;
3) remove the fuse box placed below the power inlet (M) (fig. 18);
4) replace the fuses (L);
5) close the fuse box and connect the power cable.
WARNING: the fuses must both be of the same type (rapid) and with the same amps (3,15 Ampere).
Fig. 18
G1
G
L
M

DELTA 2000 MC Operating manual - English
16 Copyright Silca 1998
8DISPOSAL
For correct disposal please refer to current standards.
INFORMATION FOR USERS OF PROFESSIONAL EQUIPMENT
From "Actuation of Directive 2012/19/EU regarding Waste Electrical and Elec-
tronic Equipment (WEEE)"
The symbol of a crossed waste bin found on equipment or its packing indicates that at the end of the
product’s useful life it must be collected separately from other waste so that it can be properly treated
and recycled.
In particular, separate collection of this professional equipment when no longer in use is organised and
managed:
a) directly by the user when the equipment was placed on the market before 31 December 2010 and the
user personally decides to eliminate it without replacing it with new equivalent equipment designed for
the same use;
b) by the manufacturer, that is to say the subject which was the first to introduce and market new equip-
ment that replaces previous equipment, when the user decides to eliminate equipment placed on the
market before 31 December 2010 at the end of its useful life and replace it with an equivalent product
designed for the same use. In this latter case the user may ask the manufacturer to collect the existing
equipment;
c) by the manufacturer, that is to say the subject which was the first to introduce and market new equip-
ment that replaces previous equipment, if it was placed on the market after 31 December 2010;
Suitable separate collection for the purpose of forwarding discarded equipment for recycling, treatment
or disposal in an environmentally friendly way helps to avoid possible negative effects on the
environment and human health and encourages re-use and/or recycling of the materials making up the
equipment.
The sanctions currently provided for by law shall apply to users who dispose of products in unauthorised
ways.
