Silvercrest SMUD 860 A1 User manual

IAN 271293
MULTI COOKER
Operating instructions
MULTI COOKER SMUD 860 A1
MULTIKOCHER
Bedienungsanleitung

GB/IE Operating instructions Page 1
DE/AT/CH Bedienungsanleitung Seite 69
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the
device.
Klappen Sie vor dem Lesen die beiden Seiten mit den Abbildungen aus und machen Sie sich anschließend
mit allen Funktionen des Gerätes vertraut.

A

C
B

GB│IE │ 1 ■
SMUD 860 A1
Contents
Introduction ...................................................2
Intended use ..................................................2
Package contents ..............................................2
Description of the appliance .....................................3
Technical data .................................................4
Safety instructions .............................................4
Assembly and setting up ........................................7
Beforefirstuse ................................................8
Operation ....................................................9
Button functions .......................................................... 9
General ...............................................................10
Programme overview .....................................................11
Use of the standard programme ............................................ 12
Multi-function programme ................................................. 27
Keep-warm function ......................................................28
Delayed cooking/timer ...................................................28
Cleaning and care .............................................29
Storage .....................................................32
Troubleshooting ..............................................33
Warranty and service..........................................34
Disposal .....................................................35
Importer.....................................................35
Recipes......................................................36
Multi-function programme ................................................. 36
"Bake" programme.......................................................41
"Sear" programme .......................................................43
"Rice" programme .......................................................45
"Rice pudding" programme ................................................48
"Pasta" programme ......................................................50
"Yoghurt" programme .................................................... 53
"Cake" programme ...................................................... 53
"Slow cooking" programme................................................56
"Steam" programme...................................................... 59
"Potatoes" programme ....................................................62
"Soup" programme ......................................................63
"Stew" programme....................................................... 64
"Jam" programme .......................................................66

■ 2 │ GB│IE SMUD 860 A1
Introduction
Congratulations on the purchase of your new appliance.
You have selected a high-quality product. The operating instructions are part of
this product. They contain important information on safety, usage and disposal.
Before using the product, familiarise yourself with all operating and safety instruc-
tions. Use the product only as described and for the specified areas of application.
Please also pass on these operating instructions to any future owner.
Intended use
This appliance is intended exclusively for the preparation of food. This appliance
is intended solely for use in private households. Do not use it for commercial
purposes.
Package contents
Multi Cooker (base) with inner bowl
Steamer
Measuring cup
Spoon
Ladle
Quick guide
Operating instructions
NOTE
Check contents for completeness and damage immediately after unpacking.
Contact Customer Services if necessary.

GB│IE │ 3 ■
SMUD 860 A1
Description of the appliance

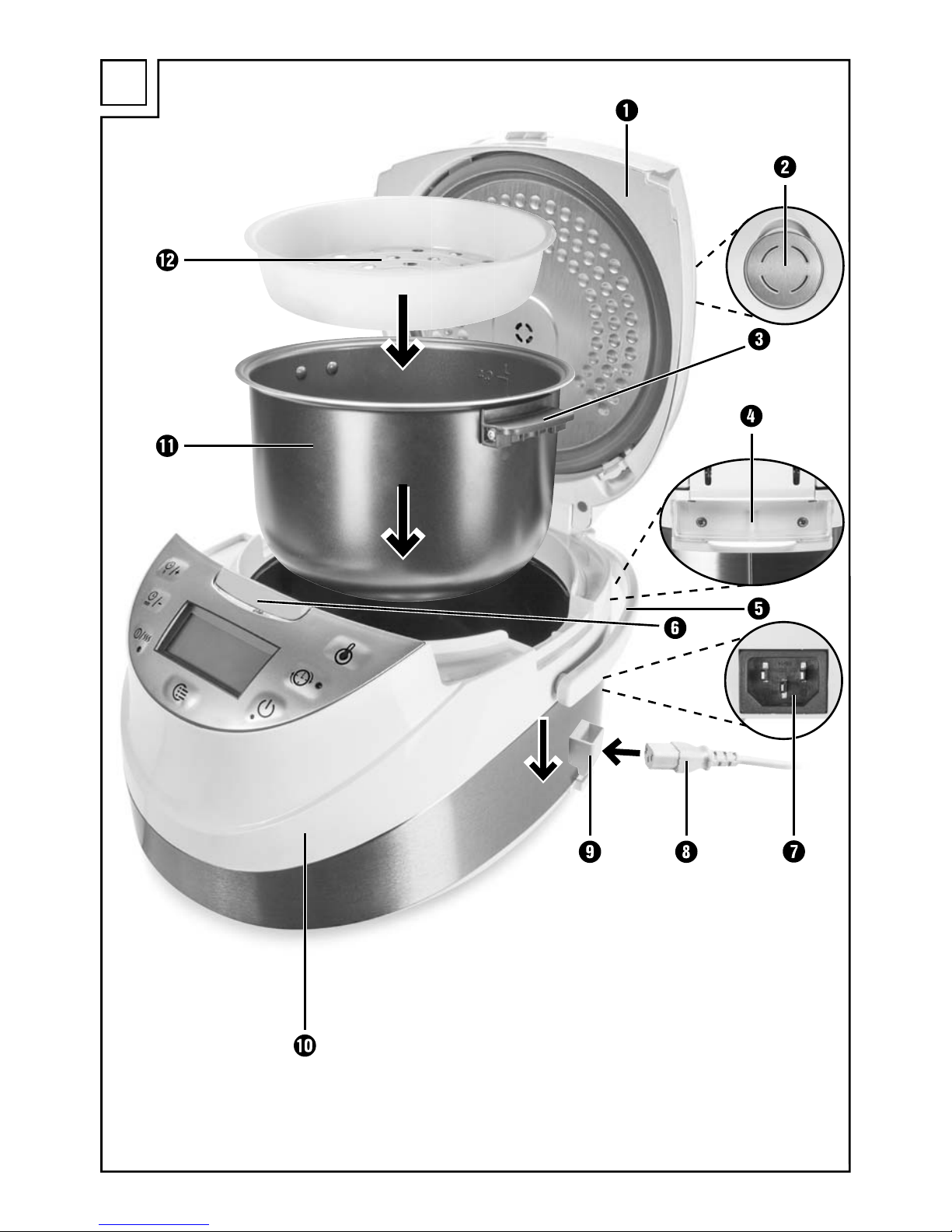

Figure A:
Appliance lid
Steam vent
Lifting aid
Condensation collector
Handle
Lid release
Socket
Connection plug
Cutlery bracket
Base
-Inner bowl
3Steamer
Figure B:
!Temperature button
.Timer button
0Start button
6Menu button
1Stop button
%min/- button
+h/+ button
Figure C:
,Measuring cup
Spoon
/Ladle

■ 4 │ GB│IE SMUD 860 A1
Technical data
Rated voltage: 220 - 240 V ~, 50/60 Hz
Max. power consumption: 860 W
Safety instructions
DANGER – RISK OF ELECTRIC SHOCK!
► Do not use the appliance outdoors.
► To prevent accidents, have defective plugs and/or power
cables replaced immediately by an authorised specialist
technician or our Customer Service department.
► Do not kink or crush the power cable. Keep the power cable
well away from sources of heat.
► Never handle the plug or the power cable with wet hands.
► Always remove the inner bowl from the base before cleaning
it in water!
NEVER immerse the appliance in water or any other
liquid!
WARNING! RISK OF INJURY!
► Cooking appliances should be set up in a stable location
using the handles to avoid spillage of hot liquids.
► This appliance must not to be used by children under the age
of 8.
► This appliance may be used by children aged 8 and above
if they are under constant supervision.
► Cleaning and maintenance may not be carried out by children.
► Children must not use the appliance as a plaything.

GB│IE │ 5 ■
SMUD 860 A1
WARNING! RISK OF INJURY!
► Children younger than 8 years of age must be kept away
from the appliance and the power cable.
► This appliance may be used by persons with limited physical,
sensory or mental capabilities or lack of experience and
knowledge, provided that they are under supervision or
have been told how to use the appliance safely and are
aware of the potential risks.
► To ensure that you can disconnect the appliance quickly in
the event of an emergency, do not use extension cables.
► Do not operate the appliance if it has been dropped or is
damaged in any way. Have the appliance checked and/or
repaired by qualified technicians if necessary.
► Hot steam is released during operation, especially when the
lid is opened. Keep a safe distance away from the steam.
► Ensure that all parts are completely dry before pouring oil or
liquid fat into the appliance. Otherwise, hot oil or fat could
splatter out.
► Use the inner bowl only with the supplied base.
► Ensure that all parts of the appliance are completely dry before
operating the appliance. Dry all parts properly after cleaning.
Caution! Hot surface!

■ 6 │ GB│IE SMUD 860 A1
WARNING! RISK OF INJURY!
► Some parts of the appliance become very hot during operation.
Touching these may cause serious burns.
► After use, always use oven gloves to touch the inner bowl
and the lifting aids on the inner bowl. Risk of burns!
► Never pour liquids directly into the base! Always insert the
inner bowl first.
WARNING! RISK OF FIRE!
► Do not use the appliance near hot surfaces.
► Never leave the appliance unattended while it is being used.
► Do not use an external timing switch or a separate remote
control system to operate the appliance.
CAUTION! MATERIAL DAMAGE!
► Do not place the appliance close to open flames or other
sources of heat (heating, direct sunlight, gas stoves, etc.).
► Never place the appliance in a fitted cupboard, recesses or
similar.
► Be careful when using metallic, pointed, or sharp objects to
remove food from the appliance. These can damage the
coating of your appliance!
► Do not cut any food in the inner bowl! This can damage the
coating of your appliance.

GB│IE │ 7 ■
SMUD 860 A1
Assembly and setting up
1) Take all the parts out of the box and remove the packaging material and any
protective wrapping or stickers.
2) Clean all components as described in the section "Cleaning and Care".
Ensure that all parts are completely dry.
3) Place the appliance on a clean and level heat-resistant surface.
NOTE
Make sure that the steam coming out of the steam vent has enough space to
escape.
4) Attach the cutlery bracket onto the mount on the side of the appliance.
You can store the ladle /and spoon in it.
5) Open the appliance lid by pressing the lid release .
6) Insert the inner bowl -so that the lifting aids of the inner bowl -fit into the
recesses in the sides.
7) Insert the connection plug into the socket on the appliance.
8) To steam food, insert the steamer 3into the inner bowl -.
9) Insert the plug into a mains power socket. All of the symbols will light up.
The "Start" indicator lamp will flash.
10) Close the appliance lid .

■ 8 │ GB│IE SMUD 860 A1
Before first use
Once the appliance is assembled and connected to the mains supply:
1) Open the appliance lid by pressing the lid release and opening the appli-
ance lid .
2) If the steamer 3is inserted, remove it.
3) Remove the inner bowl -by its lifting aids and fill it with approximately
1 litre of water. Replace the inner bowl -into the base .
4) Press the menu button 6 until the "Steam" symbol flashes.
5) Press the "min/- " button %until the timer is set to 00:30.
6) Press the start button 0 .
The appliance heats up. As soon as the correct steaming temperature has
been reached, the time will start counting down backwards. As soon as the
programmed time has elapsed, you will hear 5 beeps.
7) Press the stop button 1 . Tip the water away.
8) Allow the appliance to cool down and clean the inner bowl -(see section
"Cleaning and maintenance").
NOTE
The first time the appliance heats up, some odour may be generated due to
production-related residue. This is normal and is completely harmless. Ensure
sufficient ventilation; for example, by opening a window.

GB│IE │ 9 ■
SMUD 860 A1
Operation
Button functions
Button
symbols Name Function
!"Temperature" button Activates the temperature
setting.
."Timer" button
Activates the timer to start the
appliance after a time delay.
Includes "Timer" indicator lamp.
0"Start" button Starts the selected programme.
Includes "Start" indicator lamp.
6"Menu" button For selecting the desired
programme.
1"Stop" button
For stopping a programme.
Includes indicator lamp
"keep warm"
%"min/-" button For reducing the temperature
and setting the minutes.
+"h/+" button For increasing the temperature
and setting the hours.

■ 10 │ GB│IE SMUD 860 A1
General
1) Press the stop button 1 . The appliance is in standby mode: All symbols
are shown on the display; the "start" indicator lamp flashes.
2) To select a programme, press the menu button 6 until the symbol of the
desired programme flashes.
If this programme allows you to set a temperature, the temperature indication on
the bottom left of the display will show the set value.
3) If you want to change the preset cooking time, press the h/+ + or min/-
%buttons until the desired time is shown on the display.
4) Press the start button 0 to start the programme. In the "Sear", "Pasta", and
"Steam" programmes, the set time starts counting down in 1-minute steps once the
device has reached the desired temperature. In all other programmes, the set time
counts down immediately after you press the start button 0 .
NOTE
During the cooking process, the symbol and the symbol , the remaining
duration of the programme, and the symbol of the currently active programme
are displayed.
The indicator lamp "Start", which is integrated into the "Start" button 0, is lit.
The indicator lamp "Keep Warm", which is integrated into the "Stop"
button1 , is lit.
It indicates that the keep-warm function is activated (indicator lamp on) and
will start automatically after the programme finishes.
You can deactivate the keep-warm function at any time during the cooking
process by pressing the start button 0 .
5) To interrupt a programme or the keep-warm function, press the stop button 1 .

GB│IE │ 11 ■
SMUD 860 A1
Programme overview
Number Programme Symbol Further information
1 Multi-function -
- The time starts counting down
immediately after starting the
programme.
2 Bake
- The time starts counting down
immediately after starting the
programme.
3 Sear
The time starts counting down as
soon as the desired temperature
has been reached.
4 Rice
- The time starts counting down
immediately after starting the
programme.
- Max. capacity: 4 litres
5 Heat-up
- The time starts counting down
immediately after starting the
programme.
6 Rice pudding
- The time starts counting down
immediately after starting the
programme.
- Max. capacity: 4 litres
7Pasta
- The time starts counting down
once the desired temperature
has been reached.
- Max. capacity: 4 litres
8 Yoghurt
- The time starts counting down
immediately after starting the
programme.
- Max. capacity: 4 litres
- No keep-warm function
9 Cake
- The time starts counting down
immediately after starting the
programme.
10 Low-temperature
cooking
- The time starts counting down
immediately after starting the
programme.
- Max. capacity: 4 litres
11 Steaming
- The time starts counting down
once the desired temperature
has been reached.
- Max. capacity: 2.5 litres of water

■ 12 │ GB│IE SMUD 860 A1
12 Potatoes
- The time starts counting down
immediately after starting the
programme.
13 Soup
- The time starts counting down
immediately after starting the
programme.
- Max. capacity: 4 litres
14 Stew
- The time starts counting down
immediately after starting the
programme.
- Max. capacity: 4 litres
15 Jam
- The time starts counting down
immediately after starting the
programme.
- Max. capacity: 4 litres
Use of the standard programme
NOTE
When using the programmes "Sear", "Pasta", and "Steam", the time only starts
to count down after the appliance has reached the desired temperature.
In all other programmes, the counter starts as soon as you press the start
button 0 .

GB│IE │ 13 ■
SMUD 860 A1
"Bake" programme
You can use this programme like an oven.
fixed pre-set
temperature 145°C
Configurable time 10 minutes to 2.5 hours
in 5-minute increments
Keep-warm function yes
up to 24 hours
Symbol in the display
1) Press the menu button 6 until the "Bake" symbol flashes.
2) If you want to change the preset cooking time of 30 minutes, press the min/-
button % to set the minutes and the h/+ button + to set the hours.
3) Close the appliance lid .
4) Press the start button 0 . The "start" indicator lamp lights up and the time
starts counting down.
When the programme finishes, the appliance switches to the keep-warm mode
for a maximum of 24 hours.
■ If you want to stop a programme or the keep-warm function, press the stop
button 1 .

■ 14 │ GB│IE SMUD 860 A1
"Sear" programme
You can use this programme to sear meat or fish.
Configurable tempera-
ture approx. 100–170°C in increments of 5°C
Configurable time 10 minutes to 1 hour
in 5-minute increments
Keep-warm function yes
up to 24 hours
Symbol in the display
1) Press the menu button 6 until the "Sear" symbol flashes.
2) If you want to change the preset cooking time of 30 minutes, press the min/-
button % to set the minutes and the h/+ button + to set the hours.
3) Press the temperature button ! . The temperature display flashes.
The pre-set temperature is 140°C.
4) Use the min/- %and h/+ + buttons to set the required temperature.
5) Press the start button 0 . The "start" indicator lamp lights up and the appli-
ance heats up.
6) Wait until the appliance has heated up. As soon as the temperature has been
reached, you will hear a beep and the set time will start counting down.
7) Place the ingredients into the inner bowl -. Flip the food as necessary.
When the programme finishes, the appliance switches to the keep-warm mode
for a maximum of 24 hours.
■ If you want to stop a programme or the keep-warm function, press the stop
button 1 .

GB│IE │ 15 ■
SMUD 860 A1
"Rice" programme
You can use this programme to cook rice.
fixed pre-set
temperature 115°C (140°C at the end of the programme)
Configurable time 20 minutes to 2 hours
in 1-minute increments
Keep-warm function yes
up to 24 hours
Symbol in the display
1) Place the rinsed rice into the inner bowl -.
2) Add water to the inner bowl -. See the recipes for the amounts required
(see section "Recipes")!
3) Insert the inner bowl -into the base .
4) Close the appliance lid .
5) Press the menu button 6 until the "Rice" symbol flashes.
6) If you want to change the preset cooking time of 30 minutes, press the min/- %
button to set the minutes and the h/+ + button to set the hours.
7) Press the start button 0 . The "start" indicator lamp lights up and the appli-
ance heats up. The set time starts counting down.
When the programme finishes, the appliance switches to the keep-warm mode
for a maximum of 24 hours.
■ If you want to stop a programme or the keep-warm function, press the stop
button 1 .

■ 16 │ GB│IE SMUD 860 A1
"Heat-up" function
This programme allows you to reheat previously cooked meals.
fixed pre-set
temperature 105°C
Configurable time 10 minutes to 1 hour
in 5-minute increments
Keep-warm function yes
up to 24 hours
Symbol in the display
1) Place the ingredients to be heated up into the inner bowl -.
2) Place the inner bowl -inside the appliance.
3) Close the appliance lid .
4) Press the menu button 6 until the "Heat-up" symbol flashes.
5) If you want to change the preset cooking time of 20 minutes, press the min/-
button % to set the minutes and the h/+ button + to set the hours.
6) Press the start button 0 . The "start" indicator lamp lights up and the appli-
ance heats up. The set time starts counting down.
When the programme finishes, the appliance switches to the keep-warm mode
for a maximum of 24 hours.
■ If you want to stop a programme or the keep-warm function, press the stop
button 1 .
