SKYLOTEC SIRIUS User manual

FI
SE
GR
TR
PL
HU
CZ
SK
RO
SL
BG
EE
LT
LV
RU
RS
HR
CN
© SKYLOTEC
MAT-BA-0203-00
Stand 02.10.2019
PSA-VO (EU) 2016/425
Käyttöohje
Bruksanvisning
Οδηγίες χρήσης
Kullanım kılavuzu
Instrukcja użytkowania
Használati útmutató
Návod k použití
Návod na použitie
Instrucțiuni de utilizare
Navodila za uporabo
Ръководство за употреба
Kasutusjuhend
Naudojimo instrukcija
Ekspluatācijas instrukcija
Руководство по эксплуатации
Упутство за употребу
Upute za upotrebu
使用说明书
GEBRAUCHSANLEITUNG
SIRIUS
SKYLOTEC GmbH
Im Mühlengrund 6-8
56566 Neuwied · Germany
Fon +49 (0)2631/9680-0
Mail [email protected]
Web www.skylotec.com
0123
TÜV SÜD Product Service GmbH
Zertifizierstelle Ridlerstraße 65
80339 München/Germany
51
k
S
B
N
M
ANSI/ASSE Z359.4
1-person load
59-141kg / 130 - 310 lb
Max. 28 descents
11mm, H 190m
EN 12841-C
10-12mm, 250kg
EN 341:2011/2A
H 190m, Tmin -30°C
11mm, 30-200kg
Im Mühlengrund 6-8
D-56566 Neuwied
Use only compatible rope.
Inspect annually in
accordance with instructions.
Ser.-No. (xxxxxx)xxx
MM/YYYY
Avoid descending into el.,
therm., and chem. hazards.
Staut23.09.2019
A3
G
Instruction for use
Gebrauchsanleitung
Istruzioni per l'uso
Instructions d'utilisation
Instrucciones de uso
Manual de utilização
Gebruiksaanwijzing
Betjeningsvejledning
Bruksanvisning
GB
DE
IT
FR
ES
PT
NL
DK
NO
MAT-BA-0203-00_20191002.indd 1 29.10.2019 15:38:38

2
GB Instruction for use
Icons page 4-11
Explanation page 12-18
DE Gebrauchsanleitung
Icons Seite 4-11
Erklärung Seite 19-26
IT Istruzioni per l’uso
Icone Pagina 4-11
Dichiarazione Pagina 27-34
FR Instructions d’utilisation
Icônes page 4-11
Explication page 35-42
ES Instrucciones de uso
Iconos Páginas 4-11
Aclaración Páginas 43-51
PT Manual de utilização
Ícones páginas 4-11
Explicação páginas 52-59
NL Gebruiksaanwijzing
Pictogrammen pagina 4-11
Verklaring pagina 60-67
DK Betjeningsvejledning
Ikoner Side 4-11
Forklaring Side 68-74
NO Bruksanvisning
Ikoner Side 4-11
Forklaring Side 75-81
FI Käyttöohje
Kuvat Sivu 4-11
Selitys Sivu 82-88
SE Bruksanvisning
Symboler Sidan 4-11
Förklaring Sidan 89-95
EL Οδηγίεςχρήσης
 Εικονίδια Σελίδα4-11
 Επεξήγηση Σελίδα96-104
TR Kullanımkılavuzu
Semboller Sayfa 4-11
 Açıklama Sayfa105-111
PL Instrukcjaużytkowania
Ikony Strona 4-11
 Objaśnienia Strona112-120
HU Használatiútmutató
Ikonok 4-11. oldal
Nyilatkozat 121–128. oldal
CZ Návodkpoužití
Ikony Strana 4-11
 Vysvětlení Strana129-135
SK Návodnapoužitie
Ikony Strana 4-11
Vyhlásenie Strana 136–142
MAT-BA-0203-00_20191002.indd 2 29.10.2019 15:38:38

3
Informationen/Informations
RO Instrucțiunideutilizare
Pictograme Paginile 4-11
Explicarea Paginile 143–150
SL Navodila za uporabo
Ikone Stran 4-11
Razlaga Stran 151–157
BG Ръководствозаупотреба
 Икони страница4-11
 Декларация страница158-165
ET Kasutusjuhend
Sümbolid Lk 4-11
Selgitus Lk 166-172
LT Naudojimoinstrukcija
Piktogramos p. 4-11
Paaiškinimas p. 173-179
LV Ekspluatācijasinstrukcija
Ikonas 4.-11. lpp.
Skaidrojums 180.–186. lpp.
RU Руководствопоэксплуатации
 Условныеобозначения стр.4-11
 Пояснения стр.187-195
RS Упутствозаупотребу
 Иконе Страна4-11
 Објашњење Страна196-203
HR Upute za upotrebu
Simboli stranice 4-11
Pojašnjenje stranice 204-210
CH 使用说明书
图标 页码4-11
 声明 页码211-
MAT-BA-0203-00_20191002.indd 3 29.10.2019 15:38:38

4

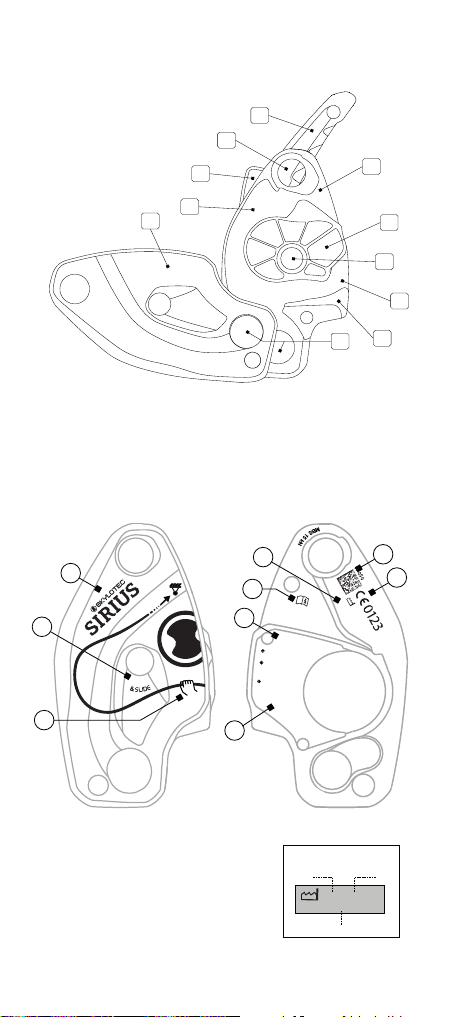

2. MARKING
1. NOMENCLATURE OF PARTS
1a
1a
1b
1b
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
HANDLE
ROPE INLET (free rope)
ROPE OUTLET (working rope)
HANDLE’S SAFETY LATCH
ATTACHMENT HOLE
BECKET
CAM
OPENING BUTTON
FIXED JAMMING ELEMENT
TOP SIDE PLATE
BOTTOM SIDE PLATE
HOUSING
1
2
3
4
5
6
7
8
9
P
S
R
E
S
ANSI/ASSE Z359.4
1-person load
59-141kg / 130 - 310 lb
Max. 28 descents
11mm, H 190m
EN 12841-C
10-12mm, 250kg
EN 341:2011/2A
H 190m, Tmin -30°C
11mm, 30-200kg
Im Mühlengrund 6-8 D-
56566 Neuwied
Use only compatible rope.
Ser.-No. (xxxxxx)xxx
MM/YYYY
Avoid descending into el.,
therm., and chem. hazards.
k
51
S
N
BM
Month
MANUFACTURE DATE
TRACEABILITY
Individual number
Year
Ser.-No. (xxxxxx)xxx
MM/YYYY
9BODY CONTROLLING THE MANUFACTURING OF PPE
MAT-BA-0203-00_20191002.indd 4 29.10.2019 15:38:38

5

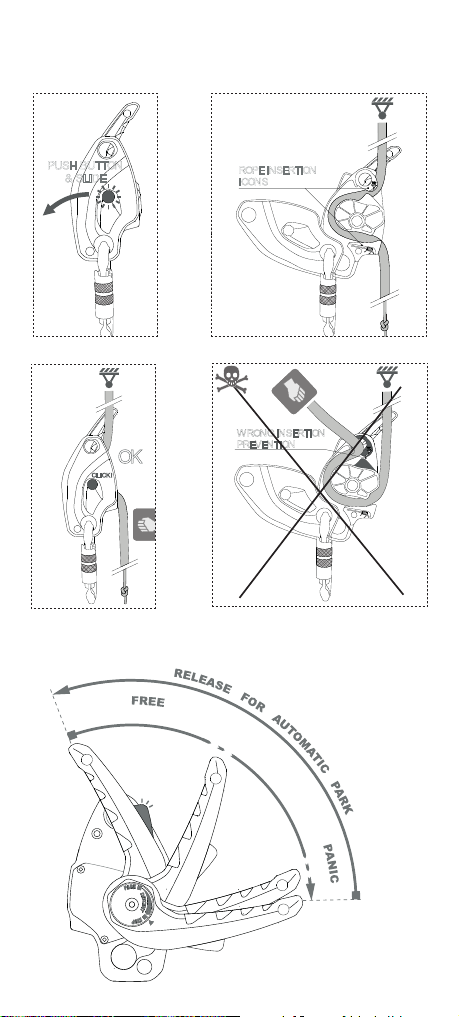

3. ROPE INSERTION
PUSH BUTTON
&SLIDE
ROPE INSERTION
IC
ONS OK
CLICK!
WRONG INSERTION
PREVENTION
PUSH BUTTON
&SLIDE
ROPE INSERTION
ICONS
OK
CLICK!
WRONG INSERTION
PREVENTION
PUSH BUTTON
&SLIDE
ROPE INSERTION
IC
ONS
OK
CLICK !
WRONG INSERTION
PREVENTION
PUSH BUTTON
&SLIDE
ROPE INSERTION
IC
ONS OK
CLICK !
WRONG INSERTION
PREVENTION
a
dc
b
T
A
O
T
R
I
O
N
D
E
S
C
E
N
T
S
T
O
P
PRESS TO
UNLOCK
PRESS TO
UNLOCK
PARK
ROTA
TION
BLOCK
4. FUNCTIONAL PRINCIPLES
MAT-BA-0203-00_20191002.indd 5 29.10.2019 15:38:39

6
TEST!
5. OPERATIONAL CHECK

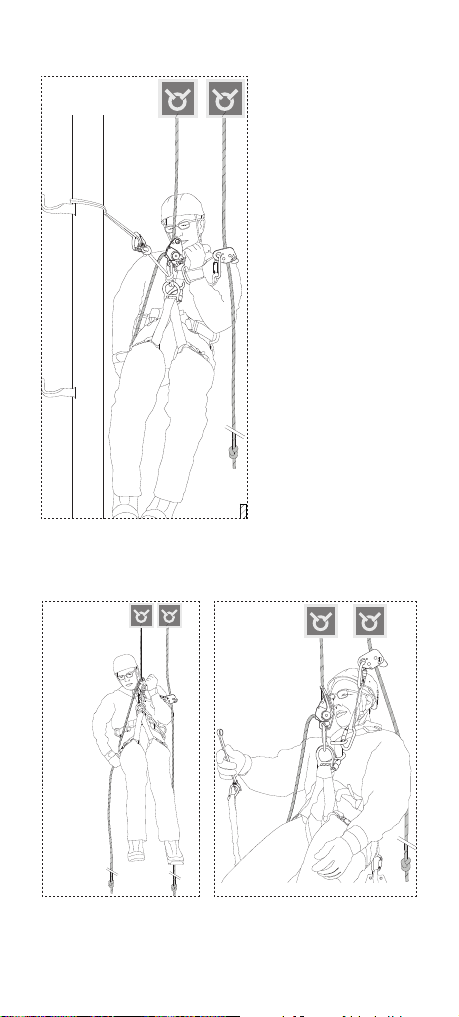

6. DESCENT AND POSITIONING
HOLD FREE END
OF THE ROPE!
a b
MAT-BA-0203-00_20191002.indd 6 29.10.2019 15:38:40

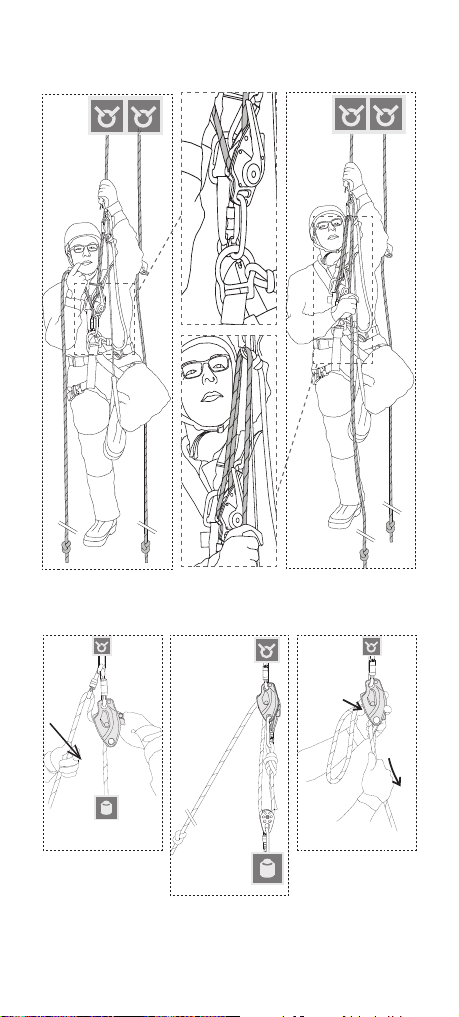

7
a b
7. ROPE ASCENT
PRESS TO
OPEN CAM
PULL
8. LOWERING FROM AN ANCHOR
a b c
Re-direction
Halving the
force
Hold
free
end
Feeding rope
MAT-BA-0203-00_20191002.indd 7 29.10.2019 15:38:40

8

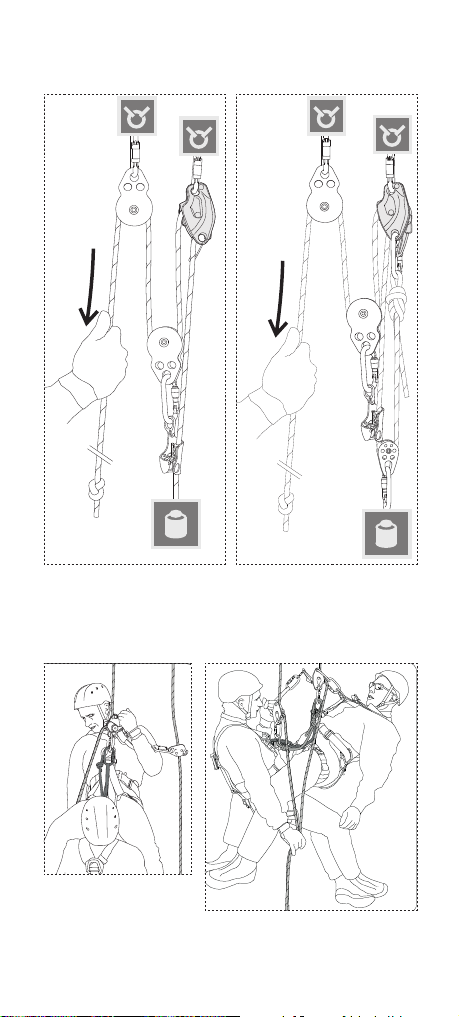

9. HAULING AND PROGRESS CAPTURE
PULL
PULL
a b

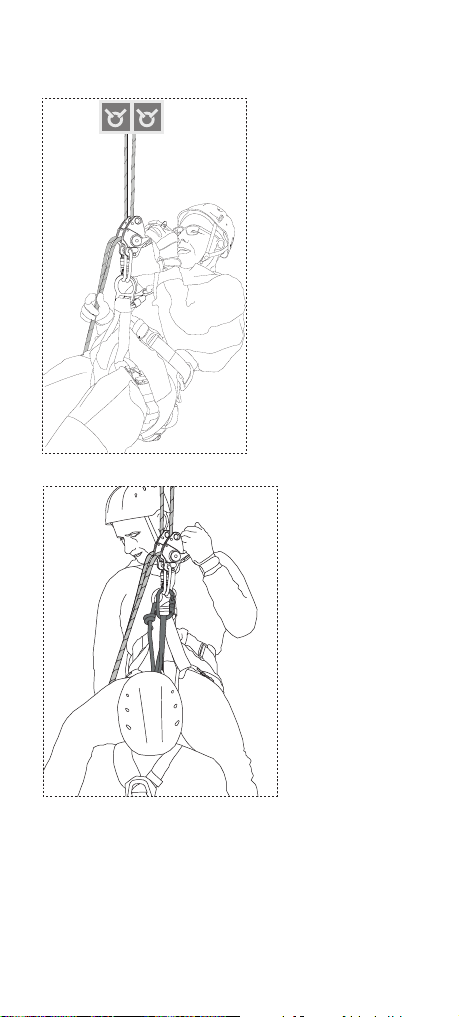

10. RESCUE
ab
3:1 6:1
MAT-BA-0203-00_20191002.indd 8 29.10.2019 15:38:41

9
11. PARALLEL DESCENDERS DESCENT
a
b
MAT-BA-0203-00_20191002.indd 9 29.10.2019 15:38:41

10
UNDERSTAND AND FOLLOW THESE
INSTRUCTIONS CAREFULLY!
Activities done at heights are inherently dangerous.
Understand and accept the risks involved before
participating. You are responsible for your own
actions and decisions. Before using this product,
read and understand all instructions and warnings
that accompany it and familiarise yourself with its
proper use, capabilities and limitations. We
recommend that every climber seeks proper training
in the use of the equipment. Failure to read and
follow these warnings can result in severe injury or
even death!
Dimensions H x W x D: 175mmx79mmx47mm
Mass: 510 g
EN 341:2011 Class A (Rescue)
WORKING LOAD:
minimum rated load is 30 kg,
maximum rated load is 200 kg.
MAXIMUM DESCENT DISTANCE:
190 m
(approved for 20 consecutive descents)
APPROVED TEMPERATURE RANGE:
-30°C≤approvedtemperature≤+60°C
ROPE TYPE(S):
Tests according to the standard EN 341:2011 have
been performed with the following low stretch
kernmantel rope (concordant with EN 1891 Type A).
Ropemodel Skylotec
Superstatic,11mm
diameter 11 mm
sheath slippage Ss ≤2.1%
elongation E≤5%
mass per metre M75 g/m
sheath proportion Sp 39%
core proportion C61%
shrinkage R 2.5%
material PA
MAT-BA-0203-00_20191002.indd 10 29.10.2019 15:38:41

11
Tested and approved for descents with a released
energy of 7.5 MJ (according to EN 341 class A):
W=m∙g∙h∙n
W= energy [J]
m= mass [kg]
g= acceleration of gravity= 9,81m/s2
h= height [m]
n= number of descents
EN 12841:2006 Type C
Tested for use with low stretch ropes (EN 1891 type A)
withdiameter10mm≤ø≤12mm
Maximum working load: 250 kg.
ANSI/ASSEZ359.4-2013
Refer to ANSI Z359.1 and ANSI Z359.4 standards and
any applicable regulations.
Single-person use: (130 lb to 310 lb, 59 kg to 141 kg);
Maximum descent distance: 620 ft = 190 m;
Maximumdescentrate:6.6ft/s≈2m/s;
Maximum number of descents: 25;
Rope: Skylotec Superstatic, 11 mm low-stretch rope.
Tested and approved for multiple descents with a
released energy of 5 500 000 foot-pounds. The descent
energy rating is determined by:
E=WxHxN
E= energy [foot-pounds]
W: test weight [lb]
H: descent height [ft]
N: number of descents
MAT-BA-0203-00_20191002.indd 11 29.10.2019 15:38:41

12
GB Instruction for use
Read this notice carefully
This device was designed to offer you the degree of
safety expected from personal protective equipment in
accordance with the European Regulation (EU)
2016/425.
Safetymeasuresandwarnings
a) There are innumerable and even unimaginable
possible modes of use of this device. Only techniques
shown in the gures that are not crossed out or
displaying a skull are recommended and covered by the
warranty.
b) This product must be used exclusively by adequately
skilled persons, otherwise the user must be constantly
supervised by trained personnel, who must guarantee
for the safety. This includes liability against damages,
injuries and death incurred by improper use or misuse
of the equipment.
c) This product may be used combined with personal
protective equipment conforming to Regulation (EU)
2016/425 and compatibly with the relevant information.
d) Combinations of equipment may result in unforeseen
risks.
e) In work at a height the foreman must ensure proper
management and planning (including risk assessment
and rescue plan) of the work being performed.
f) The primary functions of Sirius are progression along
a working line, positioning and descent in rescue. It may
be necessary to supplement arrangements with
collective or personal means of protection against falls
from a height. When used in accordance with EN 12841
type C it must always be used in conjunction with a fall-
arrest device on an independent safety line.
g) Avoid any slack on the anchor line.
h) The lifetime of this product will be extended if it is
used with care. In particular, avoid rubbing against
abrasive surfaces and/or sharp edges.
i) The braking action of the device and thus your safety
may be considerably reduced if the device or the rope is
dirty, oily, muddy or icy.
j) Prolonged use in salty environments (e.g. sea cliffs)
may affect the performance of the product.
k)Donotexposethedevicetosignicantheatorcold
MAT-BA-0203-00_20191002.indd 12 29.10.2019 15:38:41

13
(see work and stock temperature).
l) Avoid any contact with chemical reagents as they may
affect the performance of this product. Contact the
producer if in doubt.
m) This device is not tested to work in explosive
atmospheres.
n) Avoid descending into electrical, chemical, or thermal
hazards. Do not use equipment around moving
machinery.
o) The descender device should never be left in place
(specicallyoutdoors),e.g.ataworkstation,becauseof
the weathering deterioration of the rope.
Figure 1: NOMENCLATURE OF PARTS
1 Housing (1a – top side plate, 1b – bottom side plate);
2 handle; 3 handle’s safety latch; 4 attachment hole; 5
becket; 6 opening button; 7 cam; 8 xed jamming
element; 9 rope inlet (free rope); 10 rope outlet (working
rope).
Figure 2: MARKING
1 manufacturer & model; 2 device opening instruction; 3
rope insertion instruction; 4 month and year of
production & serial number; 5 read the instruction
manual; 6 manufacturer’s address; 7 information on the
standards; 8 article number; 9 body controlling the
manufacturing of PPE
Figure 3: ROPE INSERTION
To install the descender on the rope, press the opening
button and simultaneously slide the housing sides apart
(gure3a).Threadtheworkinglineintheslotbetween
the cam and the becket and lead it around the cam so
that the free end of the rope exits the device between
bothjammingelements(gure3b).Slidethehousing
sides back together. The device is only closed properly
once the opening button locks the top housing side and
is fully released (gure 3c). The descender may be
attached by means of an oval locking connector (EN
362 or ANSI Z359.12) either to the harness‘ ventral and
sternalattachmentpoint(gure6)oritcanbefastened
to an anchor (gure 8a). Wrong insertion is partially
preventedbytheshapeofthecam(gure3d).Consult
MAT-BA-0203-00_20191002.indd 13 29.10.2019 15:38:41

14
the icons on the steel parts and the sketch on the
housing for help.
Figure 4: FUNCTIONAL PRINCIPLES
Sirius features one-way locking of the rope.
Under load the friction of the rope rotates the cam to jam
theropeagainstthexedjammingelement.Togradually
release the grip on the rope, unlock the handle by
pressing the safety latch and rotate it (always hold the
free end of the rope). In case of over-rotation (e.g. panic
reaction), the device engages in the 2nd (anti-panic)
stop. By releasing the handle, it automatically returns in
the park position.
In the other direction the rope moves relatively
unimpeded.
Figure 5: OPERATIONAL CHECK
Check that the sides of the housing cannot be slid apart
and the closing button is fully released (the device is
closed correctly).
• Check whether the rope is inserted correctly (according
to the sketch on the housing).
• Before each use, carry out an operational check of the
device by loading it and testing descent functionality
whilesecuredbyothermeans(gure5a).
• It is essential to assess the reliability and security of
the entire safety system you are relying on. Non-
exhaustive list includes:
- adequate resistance of the anchors (EN 795, ANSI/
ASSE Z359.1 or according to valid regulations) and the
structuretheyarexedon;
- correct (higher) positioning of the anchors to prevent
pendulum effects or arrest a fall;
- correct positioning of the ropes:
• removing or protecting them from sharp edges or
pointsofchang;
• preventing ill running of the descender (e.g. loaded
over an edge or at an angle to the rope);
• rope redundancy in rope access;
• to tie a stopper knot at the free end of the rope.
Any overload or dynamic loading of the descender may
damage the rope!
MAT-BA-0203-00_20191002.indd 14 29.10.2019 15:38:41

15
Figure 6: DESCENT AND POSITIONING
While loading the system, the user should hold with one
hand the free end of the rope and with the other hand
unlockandgraduallypullthehandle(gure6a).This
unblocks the rope and allows for a controlled descent.
The maximum permitted speed of descent is 2 m/s. By
pulling the handle down to its terminal position (rotation
block), the user will activate the descender‘s 2nd stop
position (anti panic) and the descent will be stopped
instantly. To resume descending, return the handle in
theparkposition(gure4),andrestarttheprocess.To
position just let the handle go. It will park automatically
(gure6b).Takecaretoplaceyourback-updevicehigh
on the safety line and lock it during positioning.
Figure 7: ROPE ASCENT
For shorter ascents, install a rope clamp in the working
end of the rope above the descender device. While
lifting yourself on the rope clamp, pull the free end of the
ropeexitingSiriusupwards(gure7a).Ifergonomically
easier pulling is sought after, re-direct the rope over the
rope clamp’s carabiner or install a small pulley in it
(gure7b).Neverallowslackbetweentheropeclamp
and the descender device!
Figure 8: LOWERING FROM AN ANCHOR
Re-directing the rope over a carabiner is suggested to
lowerfromaxedposition(gure8a).Forhalvingthe
forceontheline,thebecketmaybeemployed(gure
8b). With no or little tension pay the rope out by holding
the free end and pressing on the cam to open it. Pull the
ropewiththeotherhand(gure8c).
Always hold the free end of the rope during manipulation.
Never allow slack between the user and the anchor
point. Connection of the descender device to the anchor
point should be arranged so that descent is not impeded.
Figure 9: HAULING AND PROGRESS CAPTURE
HaulingfromaxedpositionwithSiriusasaprogress
capture device is done by means of a 3:1 pulley system
(gure 9a). Ergonomically easier pulling from above
may be attained by employing another re-directional
pulley on the free end of the rope. As with lowering,
MAT-BA-0203-00_20191002.indd 15 29.10.2019 15:38:41

16
higher loads may be controlled by employing the becket
and consequently attaining a 6:1 mechanical advantage
(gure9b).
Figure 10: RESCUE
Loweringfromananchor:followinstructionsongure
8a and 8b. Double person load on working line (Figure
10a): The rescuer fastens the descender to his harness
and connects the injured person by means of an
additional connecting element. Simultaneous descent
of the rescuer and the victim on separate lines (Figure
10b): The rescuer gradually pulls the victims handle by
means of a cordelette as he/she descends so that the
victim’s descent is initiated and kept constant. Be
mutually secured. For a smooth descent, higher tension
of the victim’s free rope is recommended. WARNINGS:
Rescue and evacuation manoeuvres may only be
practicedbypersonsspecicallytrainedforthepurpose.
For all rescue manoeuvres the use of gloves is
recommended. To avoid loss of control and rope
damage (heat), lower descent speeds are advisable
during rescue operations.
Figure 11: PARALLEL DESCENDERS DESCENT
Parallel descenders technique may be adopted in cases
were risk assessment discloses more established
methods as unsafe. Both single person (11a) and
double person (11b) loads are applicable. With light
loads consider that force on each descender is halved.
Generalinformation
Regularexamination:
Regular periodical inspections must be carried out by a
competent person at least once a year and according to
manufacturer‘s recommendations. Furthermore, we
would sincerely recommend one set of equipment is
used by one person only as its history of use is best
traced and understood in this way.
• Before each use, it is vital to check all PPE equipment
intended to be used. Verify that all descender’s
components (housing, handle, steel elements, button
and rope) are faultless and in good working condition.
Follow the procedures described at www.skylotec.com.
• Do not hesitate to retire the device if:
MAT-BA-0203-00_20191002.indd 16 29.10.2019 15:38:41

17
- It fails to pass the inspection.
- It shows signicant wear, deformation, cracks and
corrosion.
- After an overload or a major impact. They could cause
internal or invisible damage that may signicantly
weaken its strength. In case of uncertainty treat the
device as damaged or consult SKYLOTEC.
- When its full history of use is not known.
Packing,storage,maintenanceandcleaning
Each product is packed with its INSTRUCTIONS FOR
USE.
Proper maintenance and storage are imperative to
ensure correct functioning of the product (as well as all
your equipment) and thus your safety.
Clean the product with a brush under running cold water
of domestic supply. If the stains persist, clean it in
lukewarm water with ordinary soap. Then rinse
thoroughly, wipe it with a towel and dry naturally in a
shaded ventilated place away from sources of heat.
If needed, oil sparingly the moving joints of the
descender.
Temperatures
While it is permissible to use this product within the
temperaturerangefrom-30°C(140°F)to+60°C(-22
°F), it is advisable to stock it in a dry place at room
temperature.
Lifetime
Lifetime is set by the date of production and is
theoretically unlimited. Service time starts with the date
of rst use and depends on frequency and mode of
application, on environment where it is used (e.g.
marine, cave, corrosive atmosphere), and on
mechanical wear and damage. It is therefore very
difcult to determine the expected service time of a
particular device. Its due retirement is therefore left to
user‘s regular examinations and competent person‘s
annual inspections.
Guaranteeanditslimitations
This product is guaranteed for 3 years from purchase
against any faults in materials or manufacture. The
guarantee does not apply in cases of misuse using it
MAT-BA-0203-00_20191002.indd 17 29.10.2019 15:38:42

18
with components that may affect its function, normal
wearandtear,unauthorisedmodicationsoralterations,
improper use, improper maintenance, accidents,
negligence, damage or if the product is used for a
purpose it was not designed for. If you discover a defect,
you should return the product to the reseller you
purchased the product from or directly to SKYLOTEC.
SKYLOTEC is not responsible for the consequences
of direct, indirect, accidental or any other type of
damageresultingfromtheuseofitsproducts.
ThefullDeclarationofConformitycanbeaccessed
viathefollowinglink:www.skylotec.com/downloads
MAT-BA-0203-00_20191002.indd 18 29.10.2019 15:38:42

19
Vor dem Gebrauch muss diese Anleitung
aufmerksam
gelesen werden
Dieses Gerät wurde entwickelt, um Ihnen den
Sicherheitsgrad zu
gewährleisten, welcher von persönlicher
Schutzausrüstung gemäß
der PSA-VO (EU) 2016/425 erwartet wird.
SicherheitsmassnahmenundWarnungen
a) Es gibt unzählige und sogar unvorstellbar mögliche
Einsatz-möglichkeiten dieses Gerätes. Nur Techniken,
die auf den
Abbildungen dargestellt sind, welche nicht überkreuzt
sind oder
einen Schädel abbilden, werden empfohlen und von der
Garantie
gedeckt.
b) Dieses Produkt darf nur von entsprechend
ausgebildeten Personen benutzt werden, ansonsten
muss der Benutzer von geschultem Personal, welches
die Sicherheit gewährleisten kann, ständig überwacht
werden. Dies umfasst Haftungsansprüche gegen
Schäden, Verletzungen und Tod, welche durch
unsachgemäße oder missbräuchliche Verwendung des
Gerätes entstanden sind.
c) Dieses Produkt kann in Kombination mit persönlicher
Schutzausrüstung, entsprechend der PSA-VO (EU)
2016/425 und kompatibel mit relevanten Informationen
verwendet werden.
d) Kombinationen von Geräten können zu
unvorhergesehenen Risiken führen.
e) Bei Arbeiten in großer Höhe muss der Vorarbeiter für
eine ordnungsgemäße Verwaltung und Planung
(einschließlich Risikobewertung und Rettungsplan) der
ausgeführten Arbeiten sorgen.
f) Die Hauptfunktionen von Sirius sind das Fortschreiten
entlang einer Arbeitslinie, die Positionierung und der
Abstieg in der Rettung. Eventuell müssen Vorkehrungen
mit kollektiven oder persönlichen Mitteln zum Schutz
gegenAbsturz ergänzt werden. Bei Verwendung gemäß
EN 12841 Typ C muss das Gerät immer in Verbindung
mit einem Auffanggerät an einer unabhängigen
Sicherheitsleine verwendet werden.
DE Gebrauchsanleitung
MAT-BA-0203-00_20191002.indd 19 29.10.2019 15:38:42

20
g) Vermeiden Sie jegliches Spiel zwischen dem
Benutzer und dem Ankerpunkt des Ankerseils.
h) Die Lebensdauer dieses Produktes verlängert sich,
wenn es mit Sorgfalt verwendet wird. Insbesondere
muss Abreiben gegen rauhe Oberächen und/oder
scharfe Kanten vermieden werden.
i) Die Bremswirkung des Gerätes und somit Ihre
Sicherheit können erheblich verringert werden, falls das
Gerät oder das Seil verschmutzt, beölt, verschlammt
oder vereist sind.
j) Längere Verwendung in salzhaltiger Umgebung (z. B.
Seeklippen) kann die Leistung des Produktes
beinträchtigen.
k) Setzen Sie das Gerät nicht großer Hitze oder Kälte
aus (siehe Arbeits- und Lagertemperatur).
l) Jeden Kontakt mit chemischen Reagenzien
vermeiden, da diese die Leistung dieses Produktes
beeinträchtigen können. In Zweifelfällen den Hersteller
kontaktieren.
m)Dieses Gerät wurde nicht für den sicheren Gebrauch
in explosionsgefährdeten Bereichen getestet.
n) Vermeiden Sie den Kontakt mit elektrischen,
chemischen oder thermischen Gefahren. Verwenden
Sie keine Geräte in der Nähe von beweglichen
Maschinen.
o) Das Abseilgerät sollte nie an Ort und Stelle
(besonders im Freien), d. h. am Arbeitsplatz, wegen
Verwitterungsverschleiß des Seils zurückgelassen
werden.
Abbildung 1: BEZEICHNUNG DER TEILE
1 Gehäuse (1a – obere Gehäuseseite, 1b – untere
Gehäuseseite); 2 Griff; 3 Sicherheitsriegel des Griffs; 4
Anschlagöse; 5 Seilführung; 6 Öffnungsknopf; 7
Exzenter; 8 festes Klemmelement; 9 Seileinlauf (freies
Seil); 10 Seilauslauf (Arbeitsseil).
MAT-BA-0203-00_20191002.indd 20 29.10.2019 15:38:42
