Smanos X500 User manual

EN
X500
GSM/SMS/RFID Touch Alarm System
MULTILINGUAL
USER MANUAL
©2017 SMANOS HOLDING LTD. All Rights Reserved.
Printed in China
Ver: X500-UM-EN/IT/ES/PT-V1.0
EN ES PTIT
X500-UM-EN-IT-ES-PT-V1.0.indd 2-3 2016/12/9 9:27:44

EN
ContentsForeword
Overview of X500 Alarm System -------------------------------------------
Included accessories ------------------------------------------------------
Operating principle of the alarm system -----------------------------------
Sensors -------------------------------------------------------------------
Sensor placement ---------------------------------------------------------
Zone mode of sensors -----------------------------------------------------
Changing sensor name ----------------------------------------------------
Test mode alarm system ---------------------------------------------------
Record alarm message ----------------------------------------------------
Getting Started -----------------------------------------------------------
Inserting SIM card ---------------------------------------------------------
Turning on the control panel ----------------------------------------------
Network connection (indicator) -------------------------------------------
Settings inquiry by SMS ------------------------------------------------
Control Panel Operation ------------------------------------------------
Arming the system --------------------------------------------------------
Partially arming the system ----------------------------------------------
Disarming the system with the control panel --------------------------------
Disarming the system by RFID tag ----------------------------------------
Record and play back voice message -------------------------------------
Naming RFID tags -------------------------------------------------------
Speed dial ---------------------------------------------------------------
Phone dial ---------------------------------------------------------------
Changing the language ----------------------------------------------
Disarming the alarm system by SMS --------------------------------------
Arming the system by SMS -----------------------------------------------
Partially arming (home mode) the system by SMS -------------------------
Two-way talk ---------------------------------------------------------------
Leaving a message by phone call -----------------------------------------
Phone operation when receiving emergency call -------------------------
Apple and Android App ------------------------------------------------
Adding an account -------------------------------------------------------
X500 alarm App over view ------------------------------------------------
1~3
2
3
4~6
4
5
6
6
6
7~9
7
8
8
8~9
10~15
10
10
10
10
11
11
12
12
12~13
14
14
14
15
15
15
16~17
16
17
Congratulations on buying this smanos X500 alarm system. Installing the smanos X500
alarm system is easy and quick. Before using the product we recommend reading the
manual first. There are some parts of the installation which have to be done in the
right order to complete the installation successfully.
VIDEO
X500-UM-EN-IT-ES-PT-V1.0.indd 4-5 2016/12/9 9:27:45

EN
Test and Install the PIR Motion Detector --------------------------------------
Over view
Working mode
Test the PIR motion detector
Install the PIR motion detector
Installation Notices
Technical Specifications -------------------------------------------------------
Control Panel ---------------------------------------------------------------
MD2300 PIR Motion Detector -----------------------------------------------
DS2300 Door/Window Contact ----------------------------------------------
PR2600 RFID tag ------------------------------------------------------------
RE2300 Remote Control -----------------------------------------------------
Troubleshooting --------------------------------------------------------------
Caution and Warnings ---------------------------------------------------------
--------------------------------------
Setting up the Alarm System with the App --------------------------------------
Request alarm system status by SMS ---------------------------------------
Store emergency telephone numbers ---------------------------------------
Store emergency SMS numbers ---------------------------------------------
Store SMS number for RFID tags ---------------------------------------------
Store speed dial number ----------------------------------------------------
Change sensor name and zone mode ---------------------------------------
Change RFID tags name -----------------------------------------------------
Change entry/exit delay time -----------------------------------------------
Setting alarm volume --------------------------------------------------------
Setting alarm duration ------------------------------------------------------
disarm passwordSet --------------------------------------------------------
Setting single zone delay time ----------------------------------------------
Set duress code -------------------------------------------------------------
Set timing -----------------------------------------------------------------
Delete wireless sensors by SMS ----------------------------------------------
Delete all RFID tags by SMS --------------------------------------------------
Delete all remote controls by SMS -------------------------------------------
Restore system to default setting --------------------------------------------
Synchronize control panel time ---------------------------------------------
SMS notification low battery sensorsof
SMS notification of tampering sensors ---------------------------------------
SMS notification of AC power failure and recovery -----------------------------
Arm & Disarm by free phone call --------------------------------------------
Connect (new) wireless & RFID tagssensors, remote controls -----------------
Connect new wireless sensors and remote controls
Connect new RFID tags
Connect wireless siren -------------------------------------------------------
Delete all accessories -------------------------------------------------------
Delete wireless siren -------------------------------------------------------
Accessories -----------------------------------------------------------------
Remote Control -------------------------------------------------------------
Over view
Arm
Disarm
Home mode
SOS
Mute Operation
Test and Install the Door/Window Contact -----------------------------------
Overview
Test the door/window contact
Install the door/window contact
18~36
18
19~20
20
21
22
23~24
25
26
27
28
29
30
31
32
33
33
33~34
34
34
35
35
35
35
35~36
35
36
36
36
36
37~50
37
37
38
38
39
39
40
41
41
42
43
44
44
45
46
47~48
49~50
51~52
51
51
2
2
2
5
5
5
53~55
56
X500-UM-EN-IT-ES-PT-V1.0.indd 6-7 2016/12/9 9:27:46

EN
12
Overview of X500 Alarm System
Rear View
Tamper s witch
On/Off
SIM c ard s lot
Wired c onnection terminals
Adapter jack
Ser vice
Bottom View
Front View
SOS
Arm
Home mode
Disarm
Call
RFID t ag reader
Touch s creen
LCD s creen
Play v oice memo
Record v oice m emo
Included accessories
The smanos X500 Alarm System has the following accessories included in the box:
2 x Multifunctional
remote control
1x Desk stand
- English manual
- English quick guide
2 x Wireless door/window
contact
1 x Wireless PIR motion detector
2 x RFID tag
1x Wall mount
1 x Adapter
X500-UM-EN-IT-ES-PT-V1.0.indd 8-9 2016/12/9 9:27:46

EN
34
Operating principle of the alarm system
Sensor placement
The alarm system is more effective with well-placed and set sensors. Determine which
areas you want to monitor and with which sensor. In the picture below are potential
places shown for different types of sensors from which you can determine what the
best placing is for your space.
A. Alarm panel B. Remote control C. Siren
Front door : Door/window contact
Living area : PIR motion detector
Window: living area : Door/window contact
Window: living area : Door/window contact
Terrace door : Door/window contact
Window : Door/window contact
Bedroom : PIR motion detector
Kitchen : Gas detector
Wash room : Water flood detector
1.
2.
3.
4.
5.
6.
7.
8.
9.
Sensors
The alarm system will receive a signal when a sensor is triggered. The control
panel will sound the alarm and send a SMS to all stored phone numbers. When
texting is done it will call stored phone numbers. When an optional external
siren is, placed it will be send a signal to the siren.
sos
X500-UM-EN-IT-ES-PT-V1.0.indd 10-11 2016/12/9 9:27:47

EN
65
Changing sensor name
Test mode alarm system
The alarm system can be put in a testing mode. This will cause the alarm beep
three times when it getting a signal from a sensor which is triggered, instead of
ringing the siren.
The test mode can be started by sending “100” to SIM card which is inserted in
the control panel. After 10 minutes the system will automatically stop the test
mode. It is also possible to stop the test mode by pressing the button on [SOS]
the control panel.
Record alarm message
The supplied motion detector and door/window contact are by default paired with the
alarm system. Every sensor is called a zone and every sensor will get it’s own zone
number assigned. The door/window contact is by default assigned to zone 1. The
motion detector is by default assigned to zone 2. Each sensor that will be assigned
afterwards will become zone 3, zone 4... in the sequence of pairing order. Names can
be set up to 50 zones.
When the alarm is activated, the control panel will call the pre-stored
emergency numbers and play a message. This message can be changed by
pressing the button, press again the button and finally press the  [0]
button. From that point you have 10 seconds to leave a message.
Zone mode of sensors
Each sensor can be placed in a zone mode. Four different zone mode can be selected.
The home mode zone, normal zone, 24 hour zone or single delay zone. Please refer
to page 23 for setting the zone mode.
IMPORTANT: Determine before setting the alarm system which zone a sensor
should be placed.
Normal zone: The supplied door/window contact is by default set in the normal
zone. In the normal zone setting, a sensor is always activated when the alarm
system is armed.
Home mode zone: The supplied PIR motion detector is by default which set in
the home zone. When the alarm system is in home mode, the sensors set in
home zone will send a signal to the alarm system when triggered but does not
respond to the signal. Sensors in the normal zone will send a signal when
triggered and the alarm system will respond. With the home zone it is possible
to partially arm the house with the advantage of being able to walk around in it.
Single delay zone: One or more detectors can be set in single delay zone that
will alarm at the specified time after being triggered. The state is usually used
for door/window contact on entrance. For example, if the user does not want to
carry the remote control, he/she can set the door/window contact in single
delay zone and set the time to 30 seconds. When the user comes home, the
control panel will alarm after 30 seconds, so it leaves certain time for the user to
disarm the system.
24 hourzone: It is recommended to set smoke detector, gas leakage detector,
vibration detector, glass break detector, water flood detector and IR beams to
24 hour zone. When set to this zone the sensor is always active and will always
send a signal without delay to the control panel when triggered, regardless
whether the system is armed or disarmed.
X500-UM-EN-IT-ES-PT-V1.0.indd 12-13 2016/12/9 9:27:47

EN
87
1.
2.
3.
4.
Getting Started
Inserting SIM card
Before inserting the SIM card, please perform the following steps:
Make sure the alarm system is powered off.
IMPORTANT: remove the (default) code permanently from the SIM card.
Turn off the voice mail function if it is enabled.

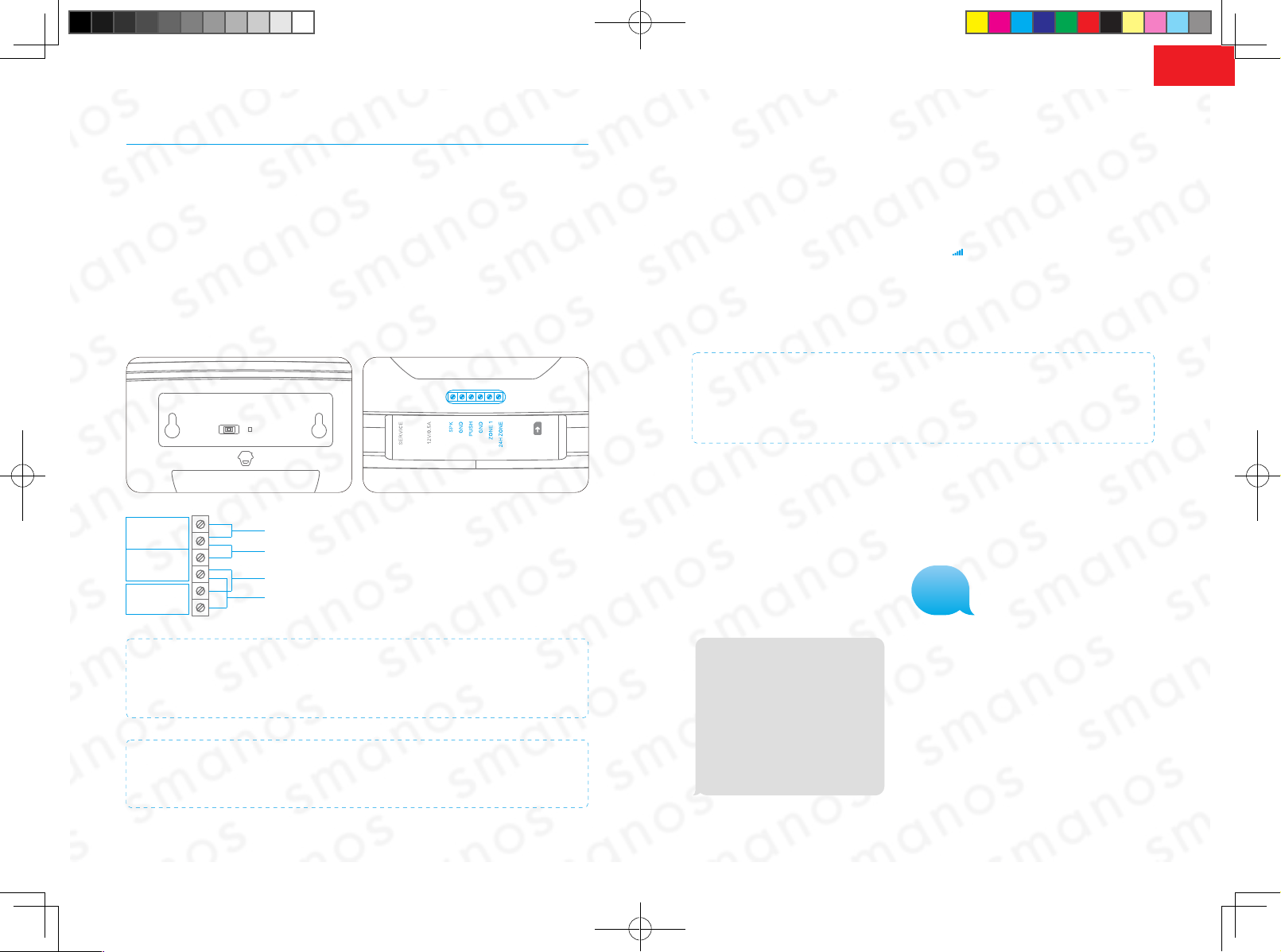

Insert the SIM card into the SIM card slot from the alarm system as shown in the
illustration below.
IMPORTANT: In order to use and set up the alarm system, SMS texting
will be used. The use of SMS texting cost money. Consult your carrier for
the costs.
IMPORTANT: The Android and/or Apple App both make use of SMS texting.
PUSH
GND
ZONE 1
24H ZONE
SPK
GND Wired connection (Siren 12V≤500mA)
Output for electronic lock
Wired sensor (Normal zone)
Wired sensor (24-H zone)
O FF ON
The settings of the alarm system can be changed by simply sending a SMS with a
mobile phone. You can request an entire menu for information on possible SMS
commands. The complete menu consists of three parts which can be requested by
sending one, two or three question marks as can be seen below.
Sending “ ? ”
Control panel replies:
Settings inquiry by SMS
Turning on the control panel
Connect the power adapter to the connector in the back of the control panel. Then
slide the power switch to “On“.
Network connection (indicator)
After switching on the system, the network icon will show on the LCD screen. This [ ]
indicates that the control panel is connected to a network.
IMPORTANT: If the network icon does not shown on the LCD screen, the control
panel has not connected to a network. Make sure the security code of the SIM
card is permanently deactivated.
‘0’ Disarm
‘1’ Arm
‘2’ Home mode
‘3’ Two-way talk
‘4’ Call-back voice memo
‘00’ Settings inquiry
‘??’ Store phone and SMS No.
?
X500-UM-EN-IT-ES-PT-V1.0.indd 14-15 2016/12/9 9:27:50

EN
910
Control Panel Operation
Arming the system
Press . All the sensors will be activated.
Partially arming the system
Press . Sensors which are set in the home mode zone will not active when home arm
is activated. All other sensors in other zones will remain active.
Disarming the system with the control panel
Disarming the system with the control panel can be done by entering the 4-digit
password (default 1234) and press the button. You will hear one beep and the
system will be disarmed. If you hear three beeps, the password is entered incorrectly.
Disarming the system by RFID tag
Hold the RFID tag close to the RFID reader. The system will beep as a confirmation it is
disarmed.
IMPORTANT: The control panel must be
connected to AC adapter when using a RFID
tag to disarm the system.
IMPORTANT: RFID tags can only be used to disarm the system.
‘901-950' Zone name
'101-120' RFID tags SMS notice
'11' Entry and exit delay time
'121' Siren volume
'122' Siren ringing time
'13' Disarm password
'14' Single zone delay time
‘15’ Duress code
‘16’ Timing
Sending “ ? ? ”
Control panel replies:
Sending “ ? ? ? ”
Control panel replies:
‘5’ Store alarm phone No.
‘6’ Store alarm SMS No.
‘7’ Store SMS No. for RFID tags
‘8’ Store speed dial phone No.
‘???’ System setups
???
??
X500-UM-EN-IT-ES-PT-V1.0.indd 16-17 2016/12/9 9:27:50

EN
11 12
Phone dial
Changing the language
English
Enter a phone number and press the button. The system dials out and you can
make the call via the built-in microphone and speaker of the alarm system. When you
press again the call is ended.
Send a SMS message with "0001" to the telephone number of the SIM card in the
control panel. The language of the alarm system will be changed into English. The
control panel will send a SMS message to confirm the language is set successfully.
Speed dial
When you press the button for 3 seconds, the system will dial the preset emergency
number immediately. The call ends when you press the button again. How to set the
speed dial number can be found at page 22.
Record and play back voice message
Naming RFID tags
Press the button for 2 seconds to record a
personal message of up to 10 seconds. If your
message is shorter than 10 seconds, press the 
button to stop recording. The voice message
can be played back by pressing the for 2
seconds.
Besides the ability to disarm the system, the RFID tags can be given a name. If
someone disarm the alarm system, a message with the name will be sent to the pre-
stored RFID text number.
Administrator
Mom
IMPORTANT: The administrator can only receive a notification if the RFID tag
has been assigned a SMS number for RFID tags is stored. (Settings can be found
at page 21 and 25.
Nancy came home
Nancy
X500-UM-EN-IT-ES-PT-V1.0.indd 18-19 2016/12/9 9:27:51

EN
13 14
Disarming the alarm system by SMS
Disarming
System disarmed.
Arming the system by SMS
If you want to arm the system, you only have to send a ”1” to the number of the SIM
card in the control panel.
Arming
System armed.
Home Mode (Stay)
System in home mode.
Partially arming (home mode) the system by SMS
If you want to partially arm the system you only have to send a ”2” to the number of
the SIM card in the control panel.
The main menu, which you receive after texting “?”, will display the command for
disarming the system (”0”). If you want to disarm the system, you only have to send a
”0” to the number of the SIM card in the control panel. You will receive a confirmation if
it succeeded as shown in the picture below.
Dutch
Send a SMS message with "0031" to the telephone number of the SIM card in the control
panel. The language of the alarm system will be changed into Dutch. The control panel
will send a SMS message to confirm the language is set successfully.
The language can also be set in the X500 Alarm App.
0
2
1
X500-UM-EN-IT-ES-PT-V1.0.indd 20-21 2016/12/9 9:27:51
