Sony HDCU3500 User manual

CAMERA CONTROL UNIT
HDCU3500
HDCU5500
UHB TRANSMISSION BOARD KIT
HKCU-FB50
ST 2110 INTERFACE KIT
HKCU-SFP50
SINGLE MODE FIBER EXTENSION KIT
HKCU-SM50
RECORDING OPTION
HKCU-REC55
SERVICE MANUAL
1st Edition (Revised 1)
利用条件:
① 本情報はソニー製品の販売、設置、設定、使用の目的でのみご利用ください。かかる目的以外での利用を禁止します。
② 著作者の事前の書面による許可なく、本情報の全部または一部の複写、複製、転載、改変、翻訳、送信等を禁止します。
情報改訂:
本情報は、当社の裁量により、予告なく変更されることがあります。ご使用される場合、本情報が最新の情報であることを確認のうえ、
ご使用ください。
Conditions of Use:
(1) Please use this information only for the purpose of sales, installation, configuration, and use of Sony products. Using this information
for any purpose other than the purpose described foregoing is forbidden.
(2) Do not copy, replicate, reproduce, alter, translate, transmit, sell, lease, or distribute this information in whole or in part without the prior
written permission of the author.
Revision of Information:
This information may be changed or updated at any time without any prior notice. Please confirm that this information is up-to-date before
using it.

警告
このマニュアルは，サービス専用です。
お客様が，このマニュアルに記載された設置や保守，点検，修理などを行うと感電や火災，
人身事故につながることがあります。
危険をさけるため，サービストレーニングを受けた技術者のみご使用ください。
WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
Model Name Serial No.
HDCU3500/L (SY): LEMO Op-
tical Fiber Connector
10001and Higher
HDCU3500/T (SY): Tajimi Op-
tical Fiber Connector
30001 and Higher
HDCU3500//UL (SY): LEMO
Optical Fiber Connector
100001 and Higher
HDCU5500/L (SY): LEMO Op-
tical Fiber Connector
10001and Higher
HDCU5500/T (SY): Tajimi Op-
ticalFiber Connector
30001 and Higher
HDCU5500//UL (SY): LEMO
Optical Fiber Connector
100001 and Higher
HDCU3500/HDCU5500

CAUTION
RISK OF ELECTRIC SHOCK
The fuse of the primary circuit of this product may be
connected on the neutral wire side.
Disconnect the unit from the power supply to prevent
electric shock when repairing.
ATTENTION
RISQUE D’ÉLECTROCUTION
Le fusible du circuit primaire de ce produit peut être
connecté sur le côté de fil neutre.
Déconnectez l’appareil de l’alimentation pour éviter
un choc électrique lors de la réparation.
注意
感電の危険があります。
本製品の一次回路のヒューズが，中性線側に接続さ
れる可能性があります。
修理時の感電を防ぐため，本機を主電源から切り離
してください。
This Baseband Processor Unit is classified as a CLASS 1 LASER PRODUCT.
CLASS 1 LASER PRODUCT
LASER KLASSE 1 PRODUKT
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
Use of controls or adjustments or performance
of procedures other than those specified herein
may result in hazardous radiation exposure.
CAUTION
For kundene i Norge
Dette utstyret kan kobles til et IT-strømfordelingssystem.
HDCU3500/HDCU5500

CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type rec-
ommended by the manufacturer.
When you dispose of the battery, you must obey the
law in the relative area or country.
ATTENTION
Il y a danger d’explosion s’il y a remplacement incor-
rect de la batterie. Remplacer uniquement avec
une batterie du même type ou d’un type équivalent
recommandé par le constructeur.
Lorsque vous mettez la batterie au rebut, vous devez
respecter la législation en vigueur dans le pays ou la
région où vous vous trouvez.
VORSICHT
Explosionsgefahr bei Verwendung falscher Batterien.
Batterien nur durch den vom Hersteller empfohlenen
oder einen gleichwertigen Typ ersetzen.
Wenn Sie die Batterie entsorgen, müssen Sie die
Gesetze der jeweiligen Region und des jeweiligen
Landes befolgen.
注意
指定以外の電池に交換すると，破裂する危険があり
ます。
必ず指定の電池に交換してください。
使用済みの電池は，国または地域の法令に従って
処理してください。
FÖRSIKTIGHET!
Fara för explosion vid felaktigt placerat batteri.
Byt endast mot samma eller likvärdig typ av batteri,
enligt tillverkarens rekommendationer.
När du kasserar batteriet ska du följa rådande lagar
för regionen eller landet.
PAS PÅ
Fare for eksplosion, hvis batteriet ikke udskiftes
korrekt.
Udskift kun med et batteri af samme eller tilsvarende
type, som er anbefalet af fabrikanten.
Når du bortskaffer batteriet, skal du følge
lovgivningen i det pågældende område eller land.
HUOMIO
Räjähdysvaara, jos akku vaihdetaan virheellisesti.
Vaihda vain samanlaiseen tai vastaavantyyppiseen,
valmistajan suosittelemaan akkuun.
Noudata akun hävittämisessä oman maasi tai
alueesi lakeja.
FORSIKTIG
Eksplosjonsfare hvis feil type batteri settes i.
Bytt ut kun med samme type eller tilsvarende
anbefalt av produsenten.
Kasser batteriet i henhold til gjeldende avfallsregler.
⌞ᝅ
⌞ᝅ
ྸ󰵳ᴪᦘⲺ⭫⊖у↙⺤θቧՐᴿ⠼⛮Ⲻধ䲟Ⱦ
ᴪᦘж㊱ශᡌ࡬䙖୼᧞㦆Ⲻ⭫⊖ශȾ
༺⨼⭫⊖ᰬθᗻ亱䚫ᆾ⴮ީ൦ᡌളᇬⲺ⌋ᗁȾ
HDCU3500/HDCU5500

Table of Contents
1. Service Overview

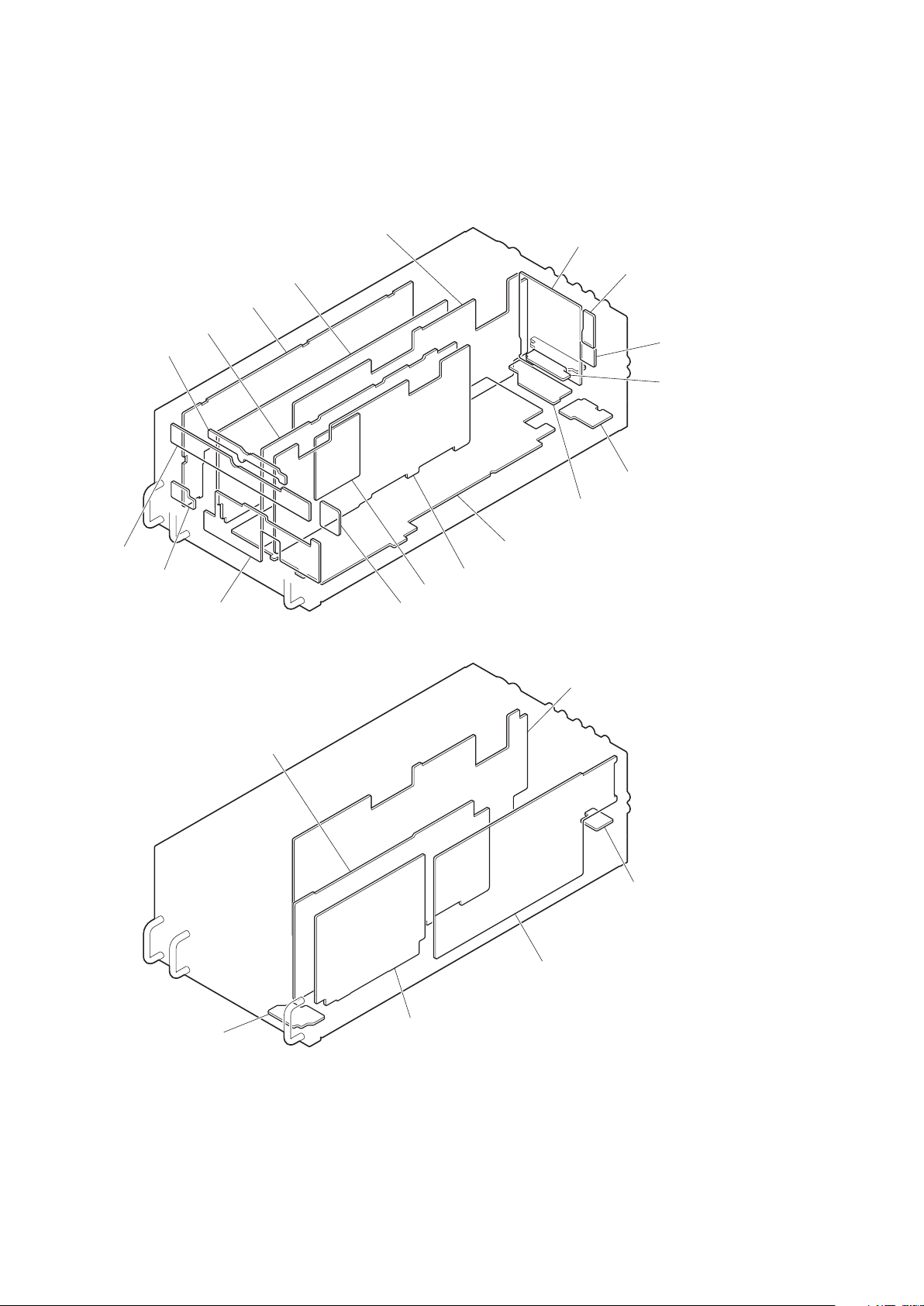

1-1. Location of Printed Wiring Boards............................................................................................1-1
1-2. Functions of Onboard Switches and LED Indicators......................................................................... 1-2
1-2-1. MB-1257 Board........................................................................................................ 1-2
1-2-2. NET-37 Board.......................................................................................................... 1-2
1-2-3. SY-467 Board...........................................................................................................1-4
1-2-4. TX-167A Board........................................................................................................ 1-5
1-2-5. TX-167B Board.........................................................................................................1-5
1-2-6. VIF-75 Board...........................................................................................................1-6
1-2-7. ENC-185 Board.........................................................................................................1-7
1-2-8. MDC-23 Board......................................................................................................... 1-8
1-3. Notes on Replacement of Circuit Board...................................................................................... 1-9
1-3-1. AT-195 Board, VIF-75 Board and Power Unit (RE-345 Board)....................................................... 1-9

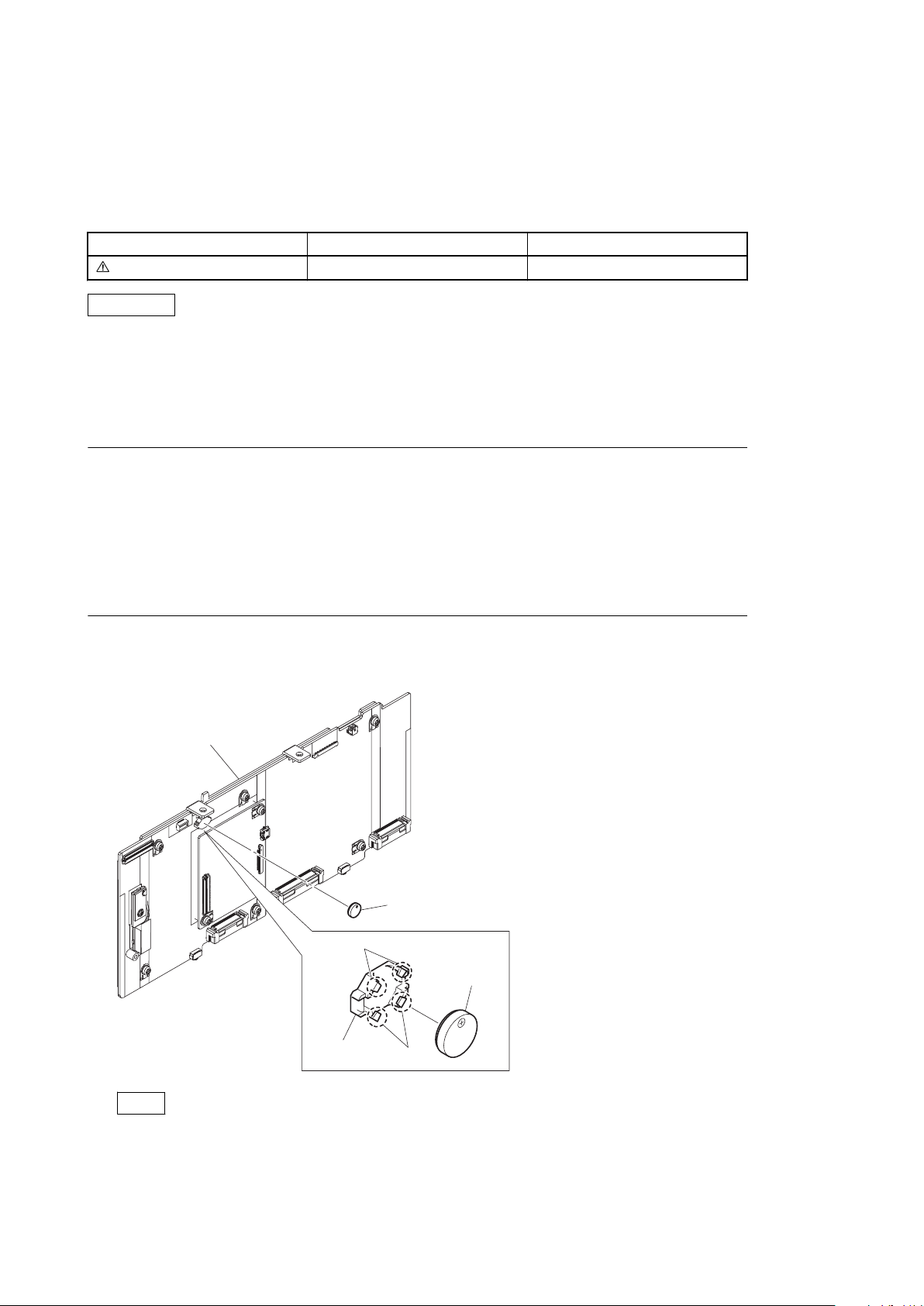

1-4. Cautions when Replacing the Lithium Battery.............................................................................. 1-10
1-4-1. Replacing Procedure.................................................................................................. 1-10

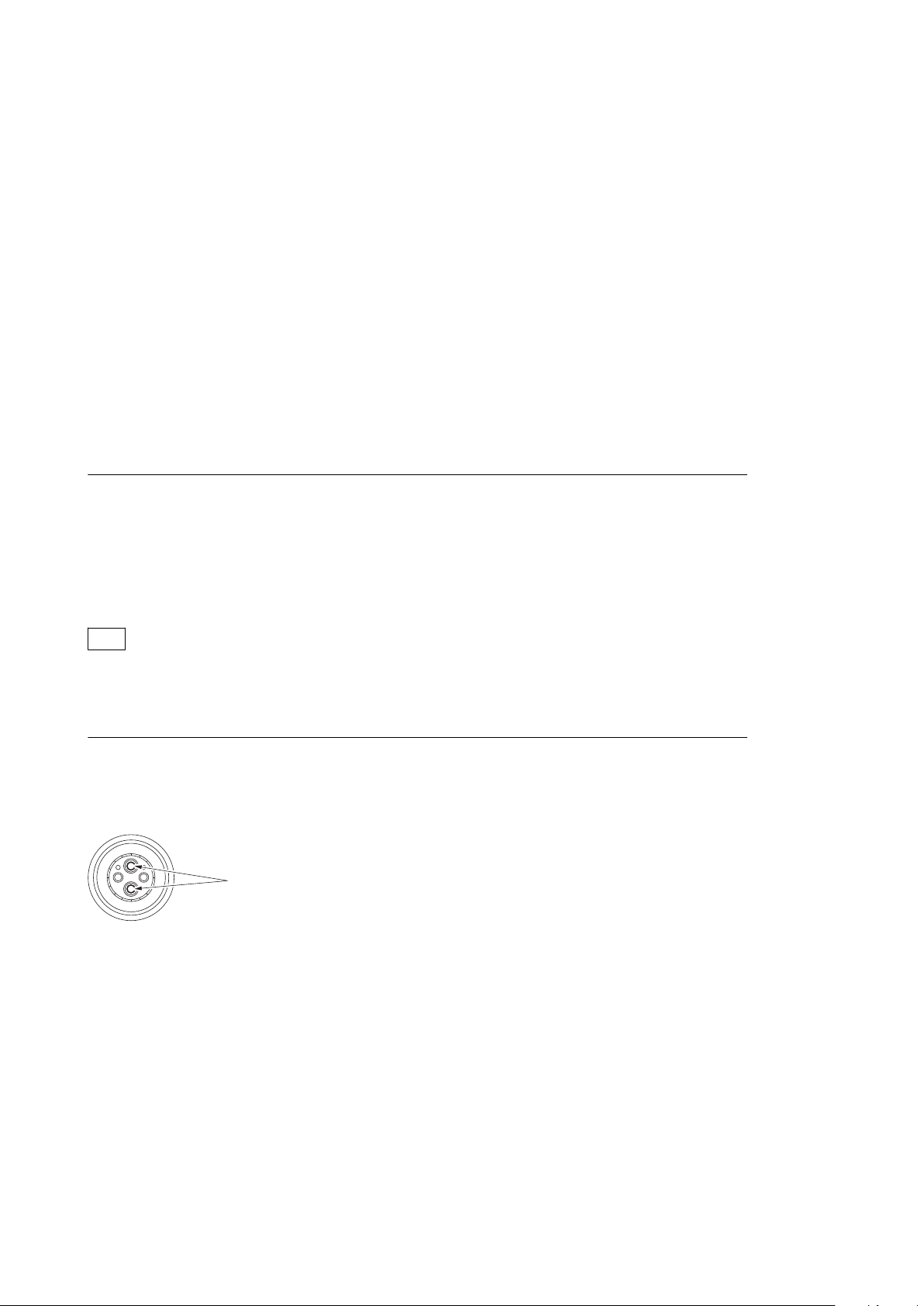

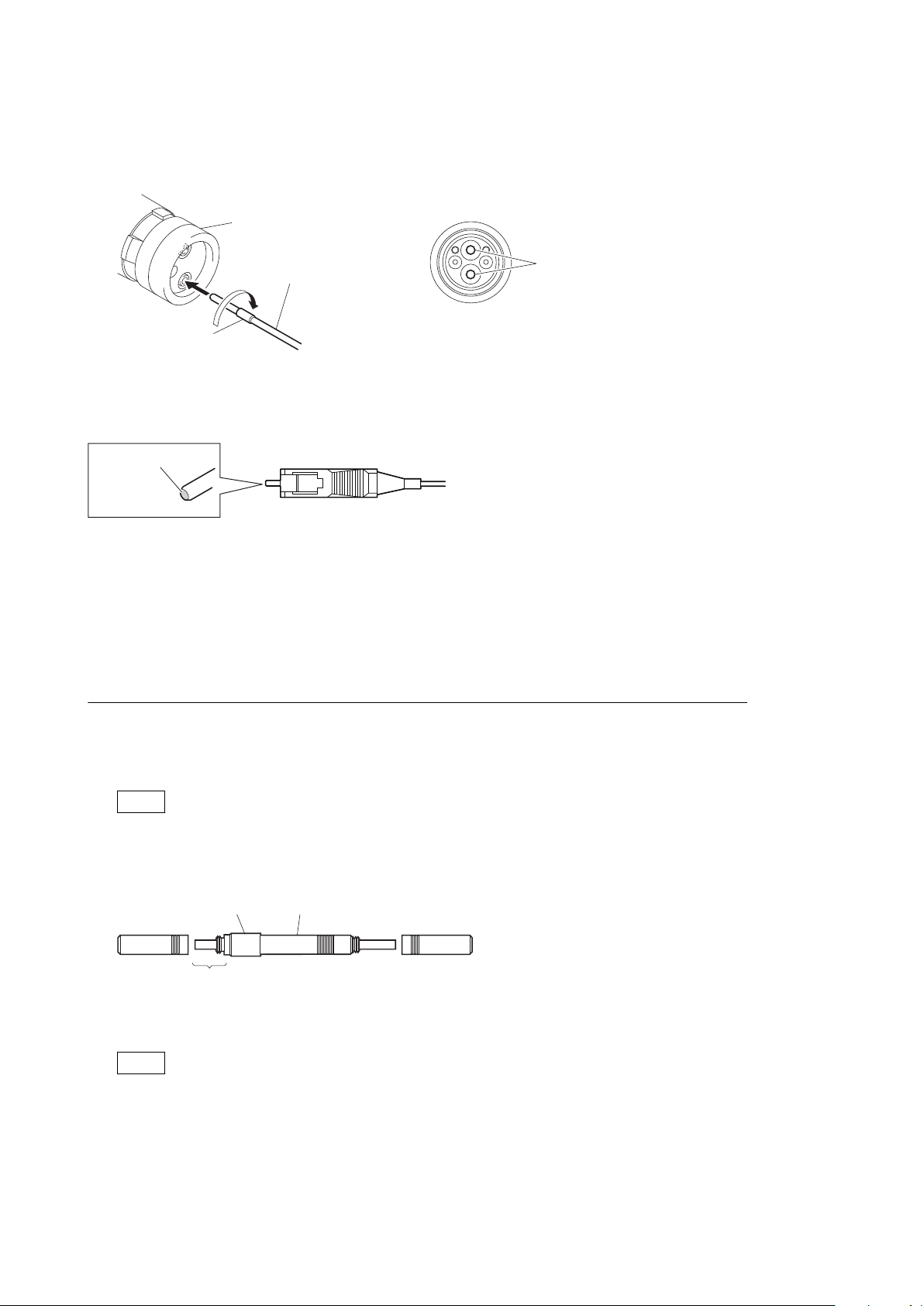

1-5. Cleaning of Connector/Cable................................................................................................ 1-11
1-5-1. When the Optical Connector Cleaner (Commercially Available) is Available....................................... 1-11
1-5-2. When the Optical Connector Cleaner (Commercially Available) is not Available (Connectors/Cables of LEMO) ...1-12
1-5-3. When the Optical Connector Cleaner (Commercially Available) is not Available (Connector of Tajimi
Electronics Co., Ltd./Cable)...........................................................................................1-13
1-5-4. When the Optical Connector Cleaner (Commercially Available) is not Available (Connector)......................1-15
1-6. Service Tools/Measuring Equipment List................................................................................... 1-16
1-6-1. Service Fixtures....................................................................................................... 1-16
1-7. PLD.......................................................................................................................... 1-17
1-7-1. Corresponding PLDs..................................................................................................1-17
1-7-2. Upgrading PLD Data..................................................................................................1-17
1-8. Flexible Flat Cable and Coaxial Cable.......................................................................................1-19
1-8-1. Disconnecting and Connecting Flexible Flat Cable...................................................................1-19
1-8-2. Disconnecting/Connecting Fine-Wire Coaxial Cable.................................................................1-20
1-9. Circuit Protective Devices................................................................................................... 1-24
1-9-1. Fuse....................................................................................................................1-24
1-9-2. Circuit Protection Element............................................................................................1-24
1-10. Lead-free Solder............................................................................................................. 1-25
2. Replacement of Main Parts
2-1. Notes on Replacing the Parts..................................................................................................2-1
2-2. Top Cover..................................................................................................................... 2-2
2-3. Front Panel.................................................................................................................... 2-3
2-3-1. Front Panel Assembly.................................................................................................. 2-3
2-3-2. FP-305 Board...........................................................................................................2-4
2-3-3. CN-4056 Board.........................................................................................................2-5
2-3-4. LE-425 Board...........................................................................................................2-6
2-3-5. LE-429 Board...........................................................................................................2-7
2-3-6. LE-427 Board...........................................................................................................2-8
2-4. Optical Multi Fiber Cable.....................................................................................................2-9
2-4-1. LEMO Connector Assembly........................................................................................... 2-9
2-4-2. TAJIMI Connector Assembly......................................................................................... 2-11
2-5. Top Chassis/Air Distributor Assembly ......................................................................................2-12
HDCU3500/HDCU5500 1

2-6. VIF-75 Board................................................................................................................ 2-14
2-7. SY-467 Board/AT-195 Board................................................................................................ 2-16
2-8. Lithium Battery.............................................................................................................. 2-18
2-9. DC Fan.......................................................................................................................2-19
2-10. DC Fan (60 Square)..........................................................................................................2-21
2-11. TX-167B Board (HDCU5500/HKCU-FB50)/TX-167A Board (HDCU3500)..............................................2-23
2-12. Power Block................................................................................................................. 2-26
2-12-1. Power Assembly.......................................................................................................2-26
2-12-2. RE-345 Board......................................................................................................... 2-28
2-12-3. DC Fan (Power).......................................................................................................2-31
2-12-4. PS-939 Board..........................................................................................................2-32
2-13. AC Inlet......................................................................................................................2-33
2-14. Power Switch Harness....................................................................................................... 2-34
2-15. Rear Panel....................................................................................................................2-35
2-15-1. Rear Panel Assembly..................................................................................................2-35
2-15-2. HIF-76 Board..........................................................................................................2-37
2-15-3. CN-4052 Board........................................................................................................2-39
2-15-4. CN-4055 Board........................................................................................................2-40
2-15-5. CN-4054 Board........................................................................................................2-41
2-15-6. CN-4053 Board........................................................................................................2-42
2-15-7. CN-4057 Board........................................................................................................2-43
2-16. MB-1257 Board..............................................................................................................2-44
2-17. NET-37 Board (HKCU-SFP50)..............................................................................................2-46
2-18. Optical Conversion Adaptor (HKCU-SM50)................................................................................2-48
2-19. HKCU-REC55...............................................................................................................2-51
2-19-1. ENC Assembly........................................................................................................2-51
2-19-2. IF-1371 Board.........................................................................................................2-55
2-19-3. INCOM-REC Panel Assembly........................................................................................2-56
2-19-4. Optical Conversion Adaptor.......................................................................................... 2-57
2-19-5. CN-4058 Board........................................................................................................2-59
3. Software Update
3-1. Upgrading Software Programs................................................................................................3-1
3-1-1. Upgrading Application................................................................................................. 3-1
3-1-2. Upgrading OS...........................................................................................................3-2
3-1-3. Upgrading Update Software............................................................................................3-2
3-1-4. Forced Version Update................................................................................................. 3-3
4. Menu Settings
4-1. Preparations................................................................................................................... 4-1
4-1-1. Display/Hide the Status Screen.........................................................................................4-1
4-1-2. Starting and Exiting the SERVICE Menu.............................................................................. 4-1
4-1-3. Changing Setting Values................................................................................................4-2
4-2. SERVICE Menu...............................................................................................................4-3
4-2-1. SERVICE Menu List................................................................................................... 4-3
4-2-2. Description of SERVICE Menu........................................................................................ 4-3
HDCU3500/HDCU5500 2

5. Web Maintenance Menu
5-1. Overview of Web Maintenance Menu........................................................................................ 5-1
5-1-1. Hierarchy of Web Maintenance Menu..................................................................................5-1
5-2. Maintenance Tab.............................................................................................................. 5-2
5-2-1. Version Menu...........................................................................................................5-2
5-2-2. Warning Menu..........................................................................................................5-2
5-2-3. Log Menu...............................................................................................................5-2
5-2-4. License Menu...........................................................................................................5-2
5-2-5. Others Menu............................................................................................................5-3
6. Circuit Description
6-1. Circuit Description of Each Board............................................................................................6-1
6-1-1. AT-195 Board...........................................................................................................6-1
6-1-2. CN-4052 Board.........................................................................................................6-1
6-1-3. CN-4053 Board.........................................................................................................6-1
6-1-4. CN-4054 Board.........................................................................................................6-1
6-1-5. CN-4055 Board.........................................................................................................6-1
6-1-6. CN-4056 Board.........................................................................................................6-1
6-1-7. CN-4057 Board.........................................................................................................6-1
6-1-8. FP-305 Board...........................................................................................................6-1
6-1-9. HIF-76 Board...........................................................................................................6-1
6-1-10. LE-425 Board...........................................................................................................6-2
6-1-11. LE-427 Board...........................................................................................................6-2
6-1-12. LE-429 Board...........................................................................................................6-2
6-1-13. MB-1257 Board........................................................................................................ 6-2
6-1-14. NET-37 Board.......................................................................................................... 6-2
6-1-15. TX-167A Board........................................................................................................ 6-2
6-1-16. TX-167B Board.........................................................................................................6-3
6-1-17. SY-467 Board...........................................................................................................6-3
6-1-18. VIF-75 Board...........................................................................................................6-5
6-1-19. CN-4058 Board.........................................................................................................6-5
6-1-20. IF-1371 Board.......................................................................................................... 6-5
6-1-21. MDC-23 Board......................................................................................................... 6-6
6-1-22. ENC-185 Board.........................................................................................................6-6
7. Spare Parts
7-1. Note on Repair Parts.......................................................................................................... 7-1
7-2. Exploded Views............................................................................................................... 7-2
Cover.................................................................................................................................7-2
Front Panel...........................................................................................................................7-3
DC Fan and Boards.................................................................................................................. 7-4
TX-167A Board......................................................................................................................7-5
Chassis............................................................................................................................... 7-6
Rear Panel............................................................................................................................7-7
Power Block......................................................................................................................... 7-8
TX-167B Board (HKCU-FB50).....................................................................................................7-9
NET-37 Board (HKCU-SFP50)(1/2)............................................................................................... 7-10
NET-37 Board (HKCU-SFP50)(2/2)............................................................................................... 7-11
HDCU3500/HDCU5500 3

HKCU-SM50.......................................................................................................................7-12
ENC Assembly (HKCU-REC55) (1/2).............................................................................................7-13
ENC Assembly (HKCU-REC55) (2/2).............................................................................................7-15
7-3. Supplied Accessories ........................................................................................................7-16
8. Diagrams
Overall..................................................................................................................................8-1
Frame Wiring...........................................................................................................................8-6
Revision History
HDCU3500/HDCU5500 4

Section 1
Service Overview
1-1. Location of Printed Wiring Boards
NET-37
(HKCU-SFP50)
MDC-23
(HKCU-REC55)
IF-1371
(HKCU-REC55)
ENC-185
(HKCU-REC55)
MB-1257
VIF-75
CN-4056
FP-305
LE-429
SY-467
RE-345
PS-939
TX-167B (HDCU5500)
TX-167A (HDCU3500)
LE-425
LE-427
CN-4053
CN-4052
CN-4054
CN-4055
HIF-76
CN-4057
AT-195
TX-167B (HKCU-FB50)
CN-4058
(HKCU-REC55)
HDCU3500/HDCU5500 1-1

1-2. Functions of Onboard Switches and LED Indicators
1-2-1. MB-1257 Board
S001
MB-1257 BOARD (A side)
Switch
Note
Do not change the setting of “Factory use” switch.
Ref. No. Bit Function Factory default set-
ting
S001 1-4 Factory use OFF (ALL)
1-2-2. NET-37 Board
D201 D202 D203 D204
D205
D2101
D0401
D1201
D206 D207 D208
D1604 D1603 D1602 D1601 D1608 D1607 D1606 D1605
D0604 D0603 D0602 D0601 D0608 D0607 D0606 D0605
NET-37 Board (A Side)
S1101 S0601
S0401
LED
Ref. No. Name Color Description Normal
State
(Power On)
D0201 TDIS_A Red Factory use Inconstant
Continued
HDCU3500/HDCU5500 1-2

Ref. No. Name Color Description Normal
State
(Power On)
D0202 TFAULT_A Red Factory use Inconstant
D0203 MOD ABS_A Red Factory use Inconstant
D0204 RX_LOS_A Red Factory use Inconstant
D0205 TDIS_B Red Factory use Inconstant
D0206 TFAULT_B Red Factory use Inconstant
D0207 MOD ABS_B Red Factory use Inconstant
D0208 RX_LOS_B Red Factory use Inconstant
D0401 PGOOD Green This LED lights when the power is supplied to the
board.
On
D0601 BiBi-LED7 Green Factory use Inconstant
D0602 BiBi-LED6 Green Factory use Inconstant
D0603 BiBi-LED5 Green Factory use Inconstant
D0604 BiBi-LED4 Green Factory use Inconstant
D0605 BiBi-LED3 Green Factory use Inconstant
D0606 BiBi-LED2 Green Factory use Inconstant
D0607 BiBi-LED1 Green Factory use Inconstant
D0608 BiBi-LED0 Green Factory use Inconstant
D1201 NET2_CONF_DONE Red This LED goes out when NET2_FPGA (IC002) is
normally completed configuration.
Off
D1601 NENE-LED7 Green Factory use Inconstant
D1602 NENE-LED6 Green Factory use Inconstant
D1603 NENE-LED5 Green Factory use Inconstant
D1604 NENE-LED4 Green Factory use Inconstant
D1605 NENE-LED3 Green Factory use Inconstant
D1606 NENE-LED2 Green Factory use Inconstant
D1607 NENE-LED1 Green Factory use Inconstant
D1608 NENE-LED0 Green Factory use Inconstant
D2101 NET1-CONF_DONE Red This LED goes out when NET1_FPGA (IC001) is
normally completed configuration.
Off
Switch
Note
Do not change the setting of “Factory use” switch.
Ref. No. Bit Function Factory default set-
ting
S0401 1 Factory use OFF
S0601 1-4 Factory use OFF (ALL)
S1101 1-4 Factory use OFF (ALL)
HDCU3500/HDCU5500 1-3

1-2-3. SY-467 Board
SY-467 Board (A Side)
S1200
D221
D1500 D212
LED
Ref. No. Name Color Description Normal
State
(Power On)
D212 4CH-1 Red The LED lights when the output voltage of IC004
is normally.
OFF
D221 2.5V Red The LED lights when the output voltage of IC007
is normally.
OFF
D1500 PLD-DONE Red This LED lights while configuration of the PLD OFF
Switch
Note
Do not change the setting of “Factory use” switch.
Ref. No. Bit Function Factory default set-
ting
S1200 1-4 Factory use OFF (ALL)
HDCU3500/HDCU5500 1-4

1-2-4. TX-167A Board
TX-167A BOARD (B side)
D101 D2001
A
1
2
B
C
DE
F
LED
Ref. No. Name Color Description Normal
State
(Power On)
D101 POWER Red Lit when the power to the TX-167A board is ab-
normal.
OFF
D2001 TX1_CONFDONE Red This LED goes out when TX1 PLD is normally
completed configuration.
OFF
1-2-5. TX-167B Board
TX-167B BOARD (A side)
TX-167B BOARD (B side)
S1002
D1101 D2001 D101
A
1
2
B
C
DE
F
HDCU3500/HDCU5500 1-5

LED
Ref. No. Name Color Description Normal
State
(Power On)
D101 POWER Red Lit when the power to the TX-167B board is ab-
normal.
OFF
D2001 TX1_CONFDONE Red This LED goes out when TX1 PLD is normally
completed configuration.
OFF
D1101 TX2_CONFDONE Red This LED goes out when TX2 PLD is normally
completed configuration.
OFF
Switch
Note
Do not change the setting of “Factory use” switch.
Ref. No. Bit Function Factory default set-
ting
S1002 1, 2 Factory use OFF (ALL)
1-2-6. VIF-75 Board
D206 D205
D1200
S1201
S2300
D2300 D2100
D2101
D2102
D2103
A
1
2
3
CD F
BE
VIF-75 BOARD (A side)
LED
Ref. No. Name Color Description Normal
State
(Power On)
D205 4CH-2 Red Lit when the output voltage to the IC003 is abnor-
mal.
OFF
D206 SDI_PW Red Lit when the output voltage to the IC3001/IC3002
is abnormal.
OFF
D1200 EXT Green Lit when the reference input signal from the out-
side is detected.
－
D2100 to
2103
DebugLED Green Factory use OFF
D2300 PLD2DONE Red This LED goes out when PLD2 IC (IC1700) is
normally completed configuration.
OFF
HDCU3500/HDCU5500 1-6

Switch
Note
Do not change the setting of “Factory use” switch.
Ref. No. Bit Function Factory default set-
ting
S2101 1-4 Factory use OFF (ALL)
S2300 1 Factory use OFF
1-2-7. ENC-185 Board
D811
D813
D814
D1701 D1702 D1703 D1704
S812
S901
S902
S1801
EMC-185 Board (B Side)
LED
Ref. No. Name Color Description Normal
State
(Power On)
D811 PS_DONE Red This LED goes out when ENC1_FPGA (IC001) is
normally completed configuration.
OFF
D814 PS_ERRORSTATUS Red Factory use Inconstant
D814 PS_ERROR_OUT Red Factory use Inconstant
D1701 LED0 Green Factory use Inconstant
D1702 LED1 Green Factory use Inconstant
D1703 LED2 Green Factory use Inconstant
D1704 LED3 Green Factory use Inconstant
Switch
Note
Do not change the setting of “Factory use” switch.
Ref. No. Bit Function Factory default set-
ting
S812 1 Factory use OFF
S901 1 Factory use OFF
Continued
HDCU3500/HDCU5500 1-7

Ref. No. Bit Function Factory default set-
ting
S902 1 Factory use OFF
S1801 1-4 Factory use OFF (ALL)
1-2-8. MDC-23 Board
D500
D800 D801
D802
D803
D804
D805
D806
D807
MDC-23 Board (A Side)
LED
Ref. No. Name Color Description Normal
State
(Power On)
D800 AG3_LED0 Green Factory use Inconstant
D801 AG3_LED1 Green Factory use Inconstant
D802 AG3_LED2 Green Factory use Inconstant
D803 AG3_LED3 Green Factory use Inconstant
D804 AG3_LED4 Green Factory use Inconstant
D805 AG3_LED5 Green Factory use Inconstant
D806 AG3_LED6 Green Factory use Inconstant
D807 AG3_LED7 Green Inconstant
D500 CON_ERR Red This LED goes out when ENC2_FPGA (IC401) is
normally completed configuration.
OFF
HDCU3500/HDCU5500 1-8

1-3. Notes on Replacement of Circuit Board
1-3-1. AT-195 Board, VIF-75 Board and Power Unit (RE-345 Board)
AT-195 board, VIF-75 board, and RE-345 board store the important information including the model name and serial
number.
After replacing the AT-195 board, VIF-75 board, and RE-345 board, perform RESTORE on the [04 <SERIAL
NUMBER>] page of the SERVICE menu. (Refer to “4-2-2. Description of SERVICE Menu”.)
HDCU3500/HDCU5500 1-9

1-4. Cautions when Replacing the Lithium Battery
The lithium battery is installed on the SY-467 board. This lithium battery is used to back up the real-time clock (RTC).
RTC stops operating when the battery life expires. Replace the battery and reset the DATE (M03) of the
MAINTENANCE menu. (Refer to OPERATION MANUAL.)
Part No. Name Usage
!
1-756-134-1X Lithium Battery (ML621 (U)) For internal clock
CAUTION
Ensure that the battery is installed with + and – poles connected to the correct terminals. An incorrect
connection may cause an explosion or leakage of fluid.
1-4-1. Replacing Procedure
Preparation
1. Remove the top cover. (Refer to “2-2. Top Cover”.)
2. Remove the optical cable. (Refer to step 1 in “2-4-1. LEMO Connector Assembly”.)
3. Remove the top chassis. (Refer to step 1 in “2-5. Top Chassis/Air Distributor Assembly”.)
4. Remove the SY-467 board. (Refer to steps 1 and 2 in “2-7. SY-467 Board/AT-195 Board”.)
Procedure
1. Replace the lithium battery on the SY-467 board.
Lithium battery
Hooks
Hooks
Lithium battery
Battery holder
SY-467 board
Note
When installing the lithium battery, install it to the orientation shown in the figure.
2. Install the removed parts by reversing the steps of removal.
HDCU3500/HDCU5500 1-10

1-5. Cleaning of Connector/Cable
• Lit in two green indicators (right): Receive signal condition is very good.
• Lit in one green indicator (2nd from right): Receive signal condition is OK.
• Lit in one yellow indicator (2nd from left): Receive signal level is weak.
• Lit in one red indicator (left): Receive signal level is severely degraded.
When lit in red, be sure to clean the optical contact portions.
When lit in yellow, cleaning is recommended.
The attenuation of the photo-receptive level may cause transmission error. Clean optical contact portions proceeding as
follows.
The optical contact portion exist in the optical connector on this unit or camera control, and in the optical/electrical
cables.
1-5-1. When the Optical Connector Cleaner (Commercially Available) is
Available
Fixtures
• Optical connector cleaner (commercially available)
-Product name: CLETOP ®
- 14100402 or 14100403 or equivalent (stick type)
- 14100402: 2.0 mm
- 14100403: 2.0/2.5 mm double ended
Tip
• Alcohol is not necessary during cleaning.
• Number of possible wipes is one cleaning per a piece. Do not reuse it.
Cleaning Procedure
Male connector
Clean the tip of the optical contacts (white) using the optical connector cleaner.
Optical contacts (white)
Female connector
1. Insert the optical connector cleaner straight.
2. Apply sufficient pressure (approximately 600 g to 700 g) to ensure that the optical contact is a little depressed.
HDCU3500/HDCU5500 1-11

3. While pressing the optical connector cleaner against the tip of the optical contact, rotate the optical connector
cleaner by 4 to 5 turns clockwise. Holding the optical connector cleaner at around its support facilitates to apply
the pressure.
Optical contacts (white)
Optical connector cleaner
Support
Alignment sleeve
Connector
Clean the tip of the optical contacts (white) using the optical connector cleaner.
Optical contact
(white)
1-5-2. When the Optical Connector Cleaner (Commercially Available) is not
Available (Connectors/Cables of LEMO)
Clean the LEMO connectors and cables using the following procedure.
Fixtures
• Alignment sleeve remover HC-001 (for female connector)
Sony Part No. : J-6480-010-A or DCC.91.312.5LA manufactured by LEMO, or equivalent
Note
Insert the shorter nose end when removing/installing the alignment sleeve. This fixture contains shock absorber
portion. Grasp not the shock absorber portion of the remover but the handle in use.
Shock
absorber portion
Insert the shorter nose end
Handle
• Alcohol (commercially available)
• Cotton swabs (commercially available)
Note
Use a cotton swab whose diameter is about 4 mm. If a cotton swab whose diameter exceeds 5 mm is used, the
cotton swab cannot be inserted into the end of the connector and the tip of the optical contact cannot be cleaned.
HDCU3500/HDCU5500 1-12
