Soundoff Signal MPOWER EMPS2QM Series User manual

1.800.338.7337 / www.soundoffsignal.com
mPOWER 5.16
1
INSTALLATION:

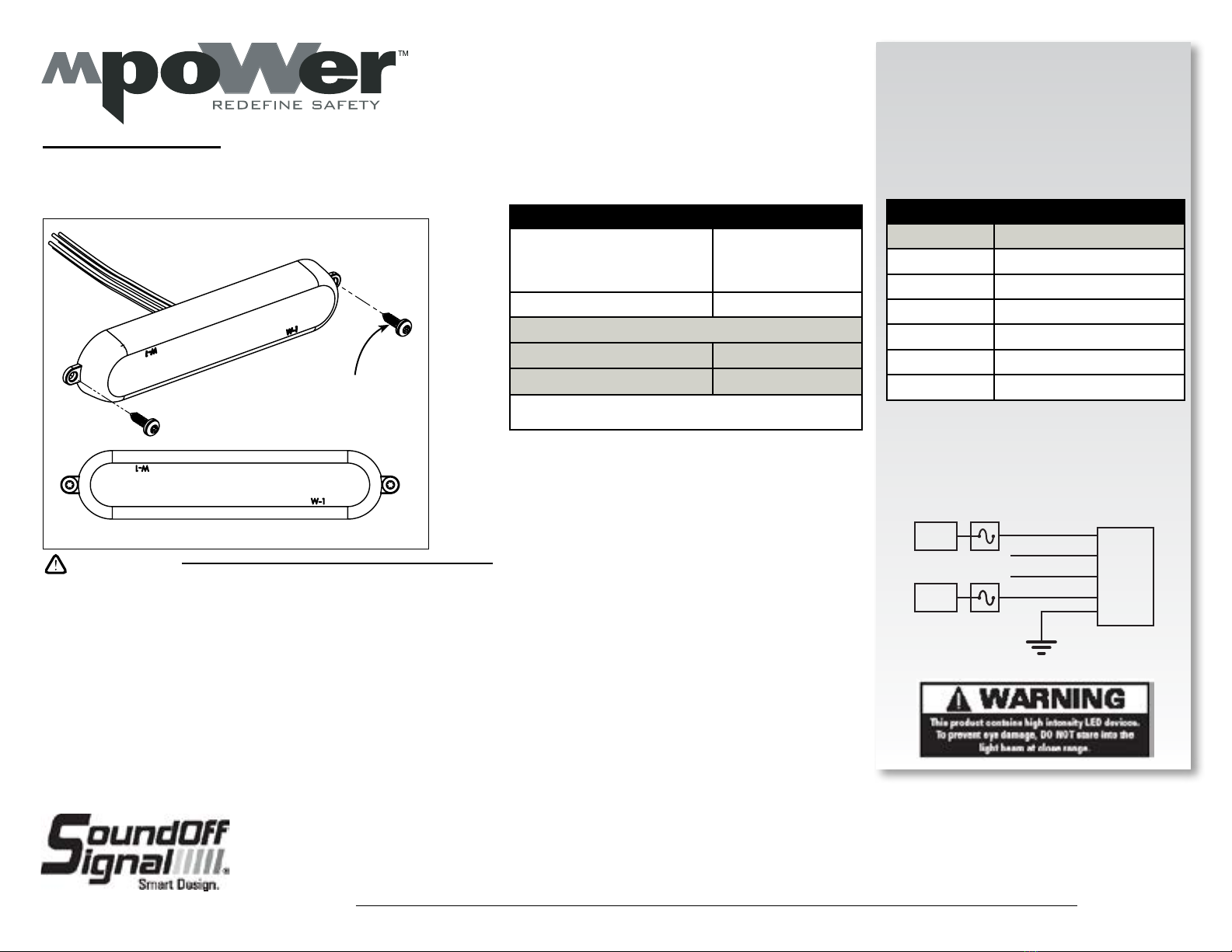

Screw Mount
1. Pre-Drill per screw mount pattern indicated on page 10.
2. Deburr and clean the surface as required.
3. Make wire connections and feed the wire through the
drilled wire hole.
4. Install light with 2x Torx drive screws and hand tighten
only until mount surface and light are ush.
FASCIA LIGHTS - 4”
EMPS2QM(x)(x) - QUICK MOUNT
EMPS2SMS(x)(xxx)- SCREW MOUNT
EMPS2STS(x)(xxx) - STUD MOUNT THREADED WIRE HOOK-UP TABLE
WIRE COLOR: FUNCTION:
RED Power (Primary)
BLACK Ground
GREEN** Sync2 *
WHITE to GROUND Wire Function (See pg. 7)
WHITE to POWER Function Wire
RED/WHITE Power (Secondary)
** To sync multiple mPower lights, connect the Green
wire from each light together.
* Will NOT work w/ other sync products such as
Ghost, LED3, & Intersector.
*Will Work with Sync 2 products nFORCE Secondary Lights,
nFORCE FIT and Dual Color Intersector Lights
NOTICE:
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage. To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at
www.soundoffsignal.com/sales-support. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. at 1.800338.7337 (press #4 to skip the
automated message). Questions or comments that do not require immediate attention may be emailed to [email protected].
SUPERIOR CUSTOMER RELATIONSHIPS. SMARTLY DESIGNED LIGHTING & ELECTRONIC SOLUTIONS.
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause
heat build-up and re. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to
vehicle Owner’s Manual for deployment zones.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or re.
•Installation must only be performed by trained technician. Installer must determine
vehicle wiring conguration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery
terminal or local chassis ground (-) must be sized to supply at least 125% of max. current
and properly fused at power source.
•Install protective grommets when routing wire through rewall or metal.
WARNING
BLACK
RED
WHITE
GREEN
Sync
Set-up/Function
RED/WHITE
+Vd c
A FUSE
5
+Vd c
+Vd c
A FUSE
5
TORX DRIVE SREWS x2
SCREW MOUNT
TECHNICAL SPECIFICATIONS
Dimensions (From Mounting Surface)
Screw Mount:
Stud,Threaded Mount:
Adhesive Mount:
4.52”L x 0.92”H x 0.42”D
4.04”L x 0.92”H x 0.42”D
4.04”L x 0.92”H x 0.42”D
Input Voltage: 9-32Vdc
CURRENT CONSUMPTION
12.8Vdc 25.6Vdc
<1.0A <0.5A
AFTER POWER IS ON, touching the WHITE wire to the ground will
allow you to change various settings on the module. (refer to pages 3 & 4)

1.800.338.7337 / www.soundoffsignal.com
mPOWER 5.16
2
INSTALLATION:
Stud Mount, Threaded (Figure 1)
1. Pre-Drill per stud mount pattern indicated on page 10.
2. Clean the surface as required.
3. Make wire connections and feed wire through the
drilled wire hole.
4. Install light, inserting 2 studs into the 2 drilled holes.
5. Install 2 lock nuts onto studs behind mount surface.
Hand tighten only until mount surface and light are
ush.
Quick Mount (Figure 2)
1. Pre-Drill per qick mount pattern indicated on page 10. (Wire
hole only).
2. Deburr hole as required.
3. Clean surface with 50% Isopropyl alcohol and 50% deionized
water.
4. Make wire connection and feed wire through the drilled wire
hole.
5. Remove adhesive backer and align light into desired position.
Apply to surface and hold rmly for 30 seconds. CAUTION!
APPLY UNIFORM PRESSURE ACROSS FULL
FACE OF LIGHT TO NOT OVERCOMPRESS
SILICONE LENS.
STUD MOUNT - THREADED FIGURE 1
WIRE HOLE
THREADED STUD x2
LOCKNUT x2
MOUNT SURFACE
QUICK MOUNT FIGURE 2
ADHESIVE SURFACE

1.800.338.7337 / www.soundoffsignal.com
mPOWER 5.16
3
INSTALLATION:
Edge-Mount Bracket
1. Install Heat Sink onto “mPOWER Stud Mount, Threaded” light
as ndicated. Wire passed through center hole.
2. Install bracket onto “mPOWER Stud Mount, Thread” light as
indicated. Wire passed through rear relief and into lower
edge grip relief.
3. Install 2 lock nuts onto “mPOWER Stud Mount, Thread” light.
Hand tighten until nal adjustment.
4. Place bracket over desired vehicle’s edge surface (i.e. rear
hood), ensure wire is fully seated in rear relief, wrapping
around edge lying at.
5. Tighten 2 setscrews to vehicle’s edge surface.
6. Adjust angle of light to desired direction and tighten 2 lock
nuts until secure.
7. Make wire connections.
HEAT SINK
THREADED
STUD x2
90°±15° EDGE
MOUNT BRACKET
SETSCREW x2
LOCKNUT x 2
STUD MOUNT - THREADED LIGHT

1.800.338.7337 / www.soundoffsignal.com
mPOWER 5.16
4
STUD MOUNT - THREADED LIGHT
HEAT SINK
LOCKNUT x 2
THREADED
STUD x2
90°±15° ADJUSTABLE
BRACKET
INSTALLATION:

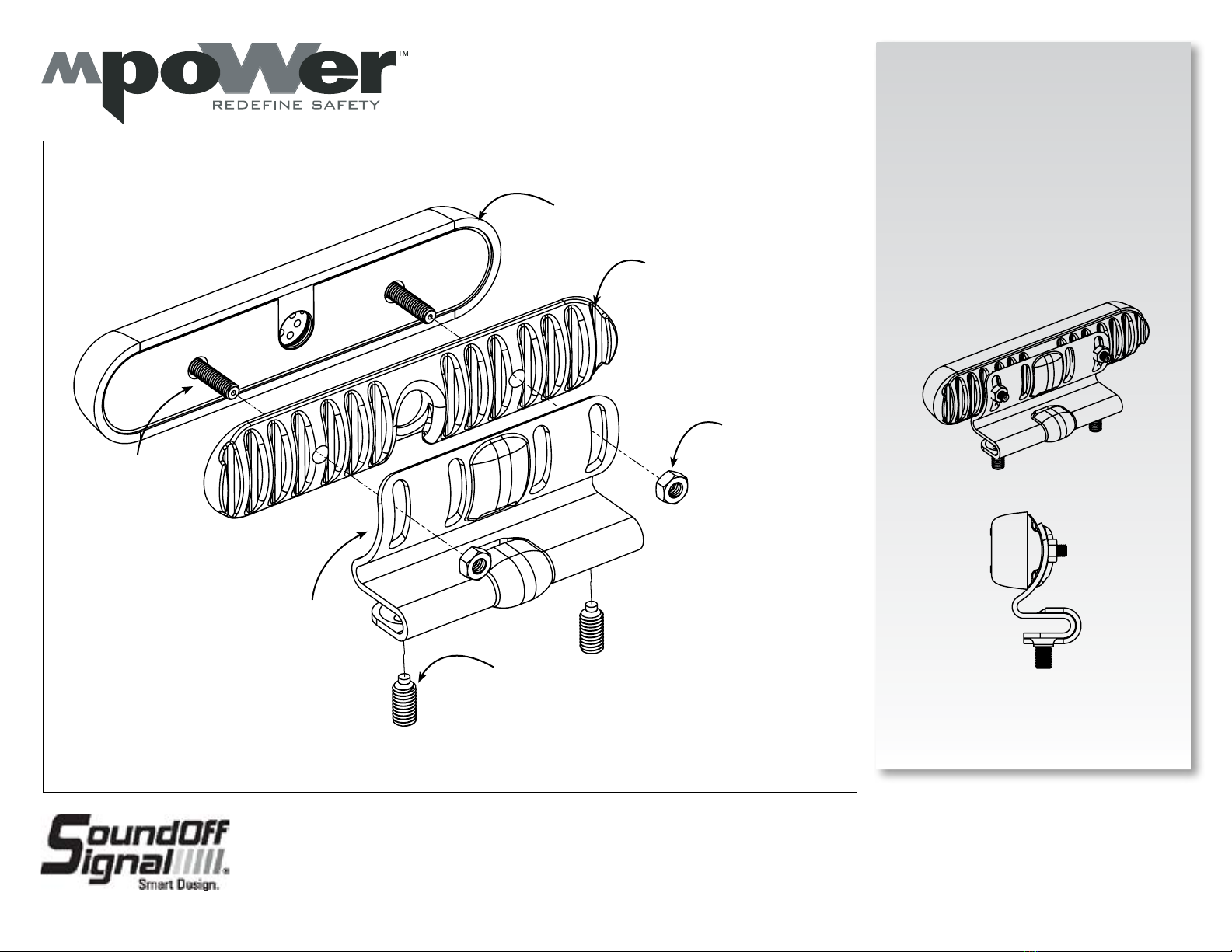

Multi-Mount Bracket
1. Pre-drill mount holes as required (bracket holes and spacing
are indicated on page 10).
2. Place bracket onto desired vehicle’s surface and secure with
screws (not provided).
3. Install Heat Sink onto “mPOWER Stud Mount, Threaded” light
as indicated. Wire passes through center hole.
4. Install “mPOWER Stud Mount, Thread” light onto bracket as
indicated. Wire passes though rear relief.
5. Install 2 lock nuts onto “mPOWER Stuf Mount, Thread” light
as indicated. Hand tighten until nal adjustment.
6. Adjust angle of light to desired direction and tighten 2 lock
nuts until secure.
7. Make wire connections.

1.800.338.7337 / www.soundoffsignal.com
mPOWER 5.16
5
INSTALLATION:

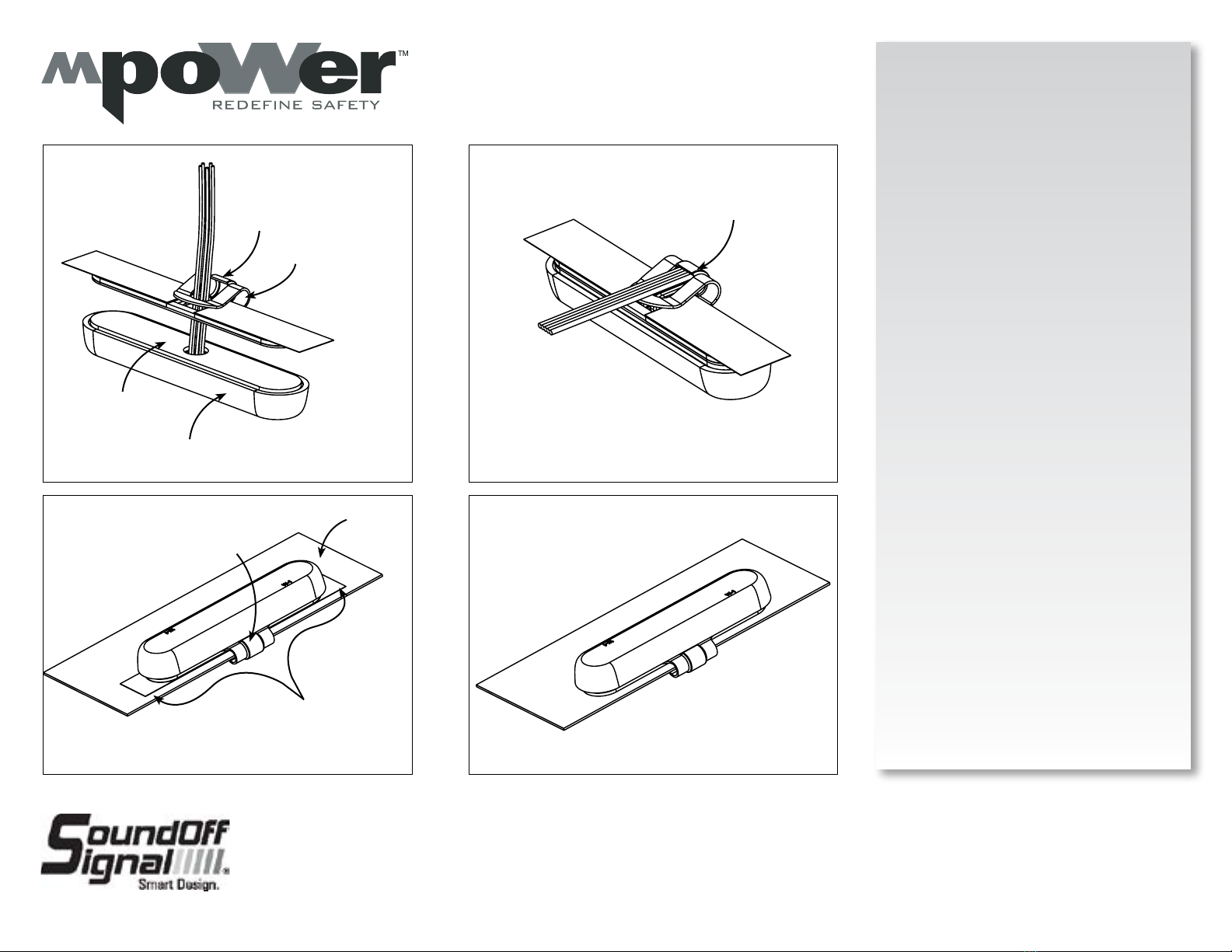

Quick Mount w/Quick Clip
1. Feed wires through quick clip as shown.
2. Remove adhesive liner on the light and install clip to light.
Make sure to properly align ends before placing down.
3. Route wires into recessed pocket lying at in pocket.
4. With red pull tabs still in place, clip light over edge of vehicle
surface. Be careful to make sure red pull tabs DO NOT PEEL,
FOLD UNDER OR WRINKLE. Make sure wire is lying
at and is not pinched.
5. With light properly oriented, pull tabs to secure light to
surface.
6. Make wire connections.
FEED WIRES THROUGH
REMOVE ADHESIVE
LINER
QUICK MOUNT LIGHT
QUICK CLIP KIT
STEPS 1 & 2
ROUTE WIRES INTO
RECESSED POCKET
STEP 3
VEHICLE
SURFACE
CLIP OVER EDGE OF VEHICLE
WITH PULL TABS STILL IN PLACE
PULL TABS TO SECURE
TO SURFACE
STEPS 4 & 5 FINAL ASSEMBLY

1.800.338.7337 / www.soundoffsignal.com
mPOWER 5.16
6
FLASH PATTERNS
PATTERN # SINGLE
COLOR DUAL COLOR TRI-COLOR
1 QUINT
2 WARP
3 INTER-CYCLE
4 DOUBLE
5 QUAD
6 POWER PULSE
7 ROAD RUNNER
8 Q-SWITCH
9
STEADY-BURN / ROADRUNNER
(SEQUENCE TYPE 1: STEADY BURN, SE-
QUENCE TYPE 2: ROADRUNNER)
10
STEADY-BURN DRIVER TITLE 13 QUAD
(SEQUENCE TYPE 1: STEADY BURN, SE-
QUENCE TYPE 2: TITLE 13 QUAD)
11 QUAD 2
12 DOUBLE 2
13 RANDOM 1
14 RANDOM 2
OVER-VOLTAGE PROTECTION
When an over-voltage condition is detected, the module will ash an over-voltage warning pattern of 50mS ON/950mS OFF to alert of the over-voltage condition and protect the electronics from damage due to heat/voltage.
THERMAL COMPENSATION PROTECTION
The LED module is designed to provide maximum power output while providing protection to the electronic components by reducing the output power at extreme temperatures.
SYNC 2
Syncronizing the ashing of multiple light modules is accomplished by connecting the Green wires of different light modules together. Up to 24 light modules can be connected for syncronized ashing. All light module ash patterns must be set to the
same ash pattern # to ensure proper operation. Refer to the Sequence Type section in Set-Up Table to setup light modules to ash in alternate or simultaneous ash pattern. NOTE: Will NOT work with non-Sync 2 products such as Ghost, LED3, and
Single Color Intersector. WILL WORK with Sync 2 products nFORCE Secondary Lights, nFORCE FIT and Dual Color Intersector Lights.

1.800.338.7337 / www.soundoffsignal.com
mPOWER 5.16
7
FUNCTION TABLE 1
WIRE LIGHT
RED R/W WHT SINGLE DUAL TRI
+9-32V FLASH FLASH DUAL FLASH TRI
+9-32V CRUISE STEADY CLR 2 STEADY CLR 3
+9-32V +9-32V FLASH STEADY CLR 2 STEADY CLR 3
+9-32V NO OP NO OP NO OP
+9-32V +9-32V LOW PWR FLASH FLASH CLR 1 FLASH CLR 1
+9-32V +9-32V CRUISE FLASH CLR 2 FLASH CLR 2
+9-32V +9-32V +9-32V LOW PWR FLASH FLASH CLR 1 & 2 FLASH CLR 3
FUNCTION TABLE 2
WIRE LIGHT
RED R/W WHT SINGLE DUAL TRI
+9-32V FLASH FLASH CLR 1 FLASH COLOR
1 & 2
+9-32V +9-32V CRUISE FLASH CLR 1 & 2 FLASH COLOR
1, 2 & 3
+9-32V STEADY CLR 1 STEADY CLR 2 STEADY CLR 3
+9-32V +9-32V STEADY CLR 1 STEADY CLR 2 STEADY CLR 3
+9-32V +9-32V +9-32V STEADY CLR 1 STEADY CLR 2 STEADY CLR 3
+9-32V NO OP NO OP NO OP
FUNCTION TABLE 3
WIRE LIGHT
RED R/W WHT SINGLE DUAL TRI
+9-32V FLASH FLASH DUAL FLASH CLR 1, 2 & 3
+9-32V FLASH LOW PWR FLASH CLR 1 & 2
LOW PWR
FLASH CLR 1, 2 & 3
LOW PWR
+9-32V +9-32V FLASH LOW PWR FLASH COLOR 1 & 2
LOW PWR
FLASH CLR 1, 2 & 3
LOW PWR
+9-32V NO OP NO OP NO OP
+9-32V +9-32V FLASH LOW PWR FLASH COLOR 1 & 2
LOW PWR
FLASH CLR 1, 2 & 3
LOW PWR
+9-32V +9-32V FLASH LOW PWR FLASH COLOR 1 & 2
LOW PWR
FLASH CLR 1, 2 & 3
LOW PWR
+9-32V +9-32V +9-32V FLASH LOW PWR FLASH COLOR 1 & 2
LOW PWR
FLASH CLR 1, 2 & 3
LOW PWR
FUNCTION TABLES
Changing the function table is only enabled when the LED module is in a ashing mode (disabled in cruise or steady ON functions). The functional operation of the LED module can be changed while applying the +V to the Red wire with the black wire
connected to ground. When the light is ashing, momentarily connect the White wire to ground for >4S and <5S (light will go steady high, steady low, off, steady high, steady low) then release. The function table will now advance to the next table (table 1
to table 2, table 2 to table 3, or table 3 to table 1). Repeat above process until required function table is active.

1.800.338.7337 / www.soundoffsignal.com
mPOWER 5.16
8
COLOR SWAP
This function is only valid for dual and tri-color light modules and can only be changed when the light module is in a ashing mode (disabled for single color modules and when light module is operating in cruise or steady ON functions). When the light is
ashing, momentarily connect the white wire to ground for >2S and <3S (light will go steady high, steady low, off) then release. The light module will switch between Color Swap OFF and Color Swap ON. When Color Swap is OFF, the 1st color will ash
1st on a dual/tri color pattern. When Color Swap is ON, the 2nd color will ash 1st on a dual/tri color pattern.
SIMULTANEOUS/ALTERNATE
This function can only be changed when the LED module is in a ashing mode (disabled in cruise or steady ON functions) and only has an effect when at least 2 LED modules have the green sync wire connected together. When the light is ashing,
momentarily connect the white wire to ground for >3S and <4S (light will go steady high, steady low, off, steady high) then release. The light module will switch between Simultaneous and Alternate each time this sequence is done. To have light modules
ash simultaneously, both light modules need to be set to the same sequence type (Set-Up Table). To have light modules ash alternately, the light modules need to be set to different sequence types (Set-Up Table).
ADVANCE PATTERN
Flash pattern can only be changed when the LED module is in a ashing mode (disabled in cruise or steady ON functions). When the light is ashing, momentarily connect the white wire to ground for >250mS and <1S (light will go steady high) then
release. The ash pattern will advance to the next pattern. If the light module was at the last pattern, the pattern will reset to the 1st pattern.
BACKUP PATTERN
This function is only valid when the LED module is in a ashing mode (disabled in cruise or steady ON functions). When the light is ashing, momentarily connect the white wire to ground for >1S and < 2S (light will go steady high, steady low) then
release. The ash pattern will backup to the previous pattern. If the light module was at the rst pattern, the pattern will change to the last pattern on the list.
PATTERN RESET
This function is only valid when the LED module is in a ashing mode (disabled in cruise or steady ON functions). When the light is ashing, momentarily connect the white wire to ground for >5S and <6S (light will go steady high, steady low, off, steady
high, steady low, off) then release. The ash pattern will reset to the 1st pattern in the list.
FACTORY RESET
This function is only valid when the LED module is in a ashing mode (disabled in cruise or steady ON functions). When the light is ashing, momentarily connect the white wire to ground for >6S and <7S (light will go steady high, steady low, off, steady
high, steady low, off, steady high) then release. The LED module will reset to: pattern=1, Function Table=1, Color Swap=OFF, Simultaneous.
SETUP TABLE
SECONDS USER INTERFACE
FROM TO VISUAL FEEDBACK ACTION TAKEN
0 1 STEADY-HIGH (60%) FORWARD ONE PATTERN
1 2 STEADY-LOW (30%) BACKWARD ONE PATTERN
2 3 OFF COLOR SWAP (OFF OR ON )
3 4 STEADY - HIGH (60%) SEQUENCE TYPE:
SIMULTANEOUS OR ALTERNATE
4 5 STEADY - LOW (30%) SEE FUNCTION TABLE
5 6 OFF RESET TO PATTERN 1
6 7 STEADY-HIGH (60%)
FACTORY RESET (PATTERN 1, COLOR SWAP:
OFF, SIMULTANEOUS)
SEPARATE COLOR CONTROL: OFF
If held longer than 7 seconds, the light will go back to ashing the
current pattern and no action will be taken.

1.800.338.7337 / www.soundoffsignal.com
mPOWER 5.16
9
REMOTE MODE: FOR USE WITH bluePRINT SYSTEM ONLY
Connecting the Green wire to ground before applying power to the Red or Red/White wires will place the LED module into remote mode and the light output color will be directly controlled by the input wires as shown below.
For Cruise mode or Low Power control of the LED module, the signal to the control wires must be 100 +/- 2Hz using the duty cycle inputs listed below to produce the light output.
Cruise Mode Duty Cycle
(@ 100Hz)
Input Light Output
40% OFF
50% 5%
60% 10%
Low Power Flash D.C. (@
100Hz)
Input Light Output
70% 30%
80% 40%
90% 50%
nFORCE Secondary LED Light Remote Mode Functionality
Red Wire Red/Wht
Wire
Single Color Dual Color Tri Color
Color
Swap=OFF
Color
Swap=ON
Color
Swap=OFF
Color
Swap=ON
Color
Swap=OFF
Color
Swap=ON
Cruise - Cruise Color 1 Cruise Color 1 Cruise Color 2 Cruise Color 1 Cruise Color 2
- Cruise Cruise Color 2 Cruise Color 1 Cruise Color 2 Cruise Color 1
Cruise Cruise Cruise Color 2 Cruise Color 1 Cruise Color 3 Cruise Color 3
Flash - Flash Color 1 Flash Color 1 Flash Color 2 Flash Color 1 Flash Color 2
- Flash Flash Color 2 Flash Color 1 Flash Color 2 Flash Color 1
Flash Flash Flash Color 2 Flash Color 1 Flash Color 3 Flash Color 3
Steady ON - Steady ON Color 1 Steady ON Color 1 Steady ON Color 2 Steady ON Color 1 Steady ON Color 2
- Steady ON Steady ON Color 2 Steady ON Color 1 Steady ON Color 2 Steady ON Color 1
Steady ON Steady ON Steady ON Color 2 Steady ON Color 1 Steady ON Color 3 Steady ON Color 3
Cruise Flash
Flash Color 2/Cruise
Color 1 during OFF
cycle of Flash
Flash Color 1/Cruise
Color 2 during OFF
cycle of Flash
Cruise Steady ON Steady ON Color 2 Steady ON Color 1
Flash Steady ON Steady ON Color 2 Steady ON Color 1

1.800.338.7337 / www.soundoffsignal.com
mPOWER 5.16
10
WIRE THRU-HOLE
DRILL Ø8mm
[Ø.315”]
QUICK MOUNT HOLE TEMPLATE
50mm
[1.97”]
20mm
[.787”]
10mm
[.394”]
4mm [.157”]
Ø 4mm x2
[Ø.157”]
MULTI-MOUNT BRACKET
IMPORTANT NOTE:
Due to variations in the printing process and environmental factors, the
sizes shown may not be accurate. If this document is used as a cutting
template, it is the installers responsibility to conrm the accuracy of the
dimensions shown and adjust accordingly.
25mm
[.98”±.01]
WIRE THRU-HOLE
DRILL Ø 8mm
[Ø.315”]
2x DRILL INSERT
HOLES Ø 4mm
[Ø.157”±.006]
STUD MOUNT THREADED HOLE TEMPLATE
25mm
[.98”±.01]
54.5mm
[2.145”]
PRE-DRILL
2x Ø1mm
[Ø.04”]
SCREW MOUNT HOLE TEMPLATE
WIRE THRU-HOLE
DRILL Ø 8mm
[Ø.315”]
54.5mm
[2.145”]
