OPERATION:
For details on operation see page with ‘Flash
Patterns’ table on last page.
Please see last page for
Technical Specifications
• Warning devices are strictly regulated and governed by Federal, State and Municipal ordinances.
These devices shall be used ONLY on approved vehicles. It is the sole responsibility of the user of these
devices to ensure compliance.
• DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to your vehicle
Owner’s Manual for the location of any air bag deployment zones.
• DO NOT connect this device to a strobe power supply. This product is self-contained and does not
require an external power supply.
Important Information:
The Intersector LED Light is designed to be
mounted under the vehicle’s side mirrors
and provide a warning signal to the front
and sides. It can also be surface mounted.
INSTALLATION:
Loosely assemble Intersector Light, correct
wedge block and curve block (P=Passenger,
D=Driver’s side, Crown Vic and Dodge
Charger only) and position assembly below
side rear view mirror as shown at left.
Carefully remove light from stack without
changing position of wedge block. Mark and
drill pilot holes for #6 sheet metal screw.
Drill Ø3/8” hole in mirror shell if wire is to
be routed internally. If wire will be routed
external of the mirror shell this step can be
ignored.
Dismount mirror from door.
The following is particular to the Ford Crown
Vic but can be applied to other vehicles as
well:
After pilot holes for #6 sheet metal screws
are drilled, a Ø3/8” bit should be used to
drill hole in race way next to mirror power
race. A Ø3/8” hole should then be made
between the pilot holes and then angled
toward the race way as shown in Figures
2-6 (second page). It is important to avoid
drilling through the power cable as this will
damage the mirror.
Using #6 machine screw, washer and
square nut assemble light and appropriate
wedge block, curve block (if required)
and gasket. Route wire carefully through
3/8” hole and into door. Use appropriate
#6 sheet metal screws to attach light to
underside of mirror. DO NOT OVERTIGHTEN
SCREWS AS THIS MAY DAMAGE THE
MIRROR OR LIGHT. Mirror may now be
replaced on vehicle.
Attach supplied female connector and make
other appropriate wiring connections inside
of door.
WIRE HOOK-UP TABLE
WIRE COLOR:
(ALL WIRES 20ga)
CONNECT TO:
(FROM FLASHER ONLY)
RED +10-16 Vdc
WHITE Pattern Select / Sync
BLACK Ground (-)
GREEN Cruise Mode
(+10-16 Vdc)
!
WARNING
This product contains high intensity LED devices. To
prevent eye damage, DO NOT stare into the light
beam at close range.

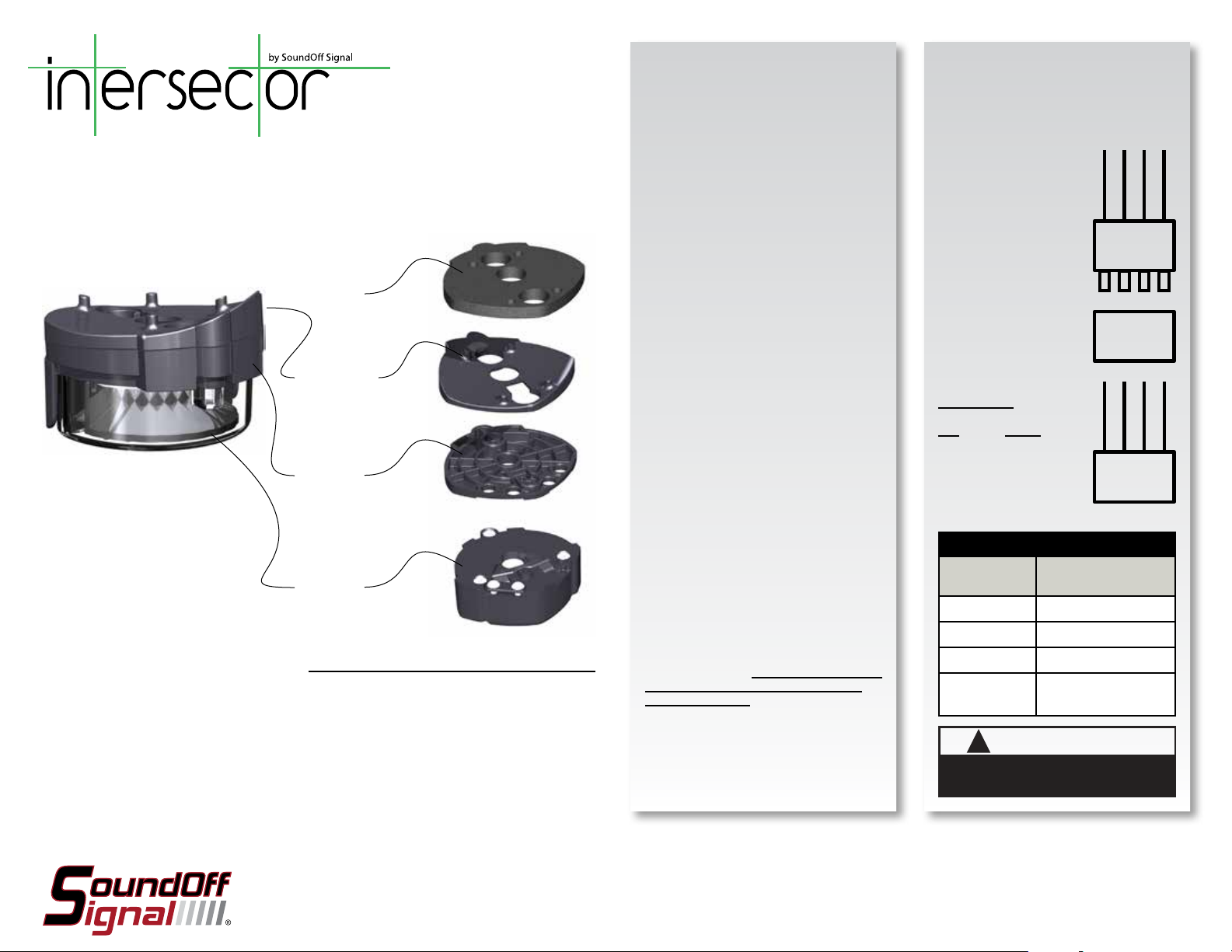

Light
(top view - shown
with optional cord
strain relief)
Wedge*
(0°, 5° or 10°)
Curved Surface
Adaptor*
Foam Gasket
IMPORTANT:
Power should only be
supplied through RED
WIRE of flasher harness
and must be fused with
a 3A, user supplied,
in-line fuse. Failure to
install this fuse will create
a fire hazard and will
damage the Intersector™
Light. Connecting the
Intersector™ light to any
power source directly
WILL permanently
damage the light and will
void warranty.
IMPORTANT! FOR
PROPER OPERATION
ALL WIRES MUST BE
CONNECTED FROM
FLASHER TO LIGHT
HEAD.
GREEN BLACK RED WHITE
1324
1324
GREEN
BLACK
RED
WHITE
FEMALE
CONNECTOR
MALE
CONNECTOR
FROM FLASHER
INTERSECTOR
LIGHT
ALL WIRES 22ga
US Design Patent No. D636,113
*Other Patents Pending*
*For Charger & Caprice 2011+
installations the Curved Surface
Adaptor (#PNTCRVØ1) and Angled
Wedge Block (#PNT1WDG) must
be replaced with Caprice 2011+
or Charger 2011+ Curved Surface
Adaptor Sets (purchased separately,
see last page for Part Numbers).

Intersector LED Light ENT2B3(x).pdf ~ Rev. 06.14 Pg. 2
INTERSECTOR LED LIGHT
#ENT2B3(x) Single Light Kit
#ENT2B3(x)-EU Single Light Kit w/ Xylex Lens
POWER HARNESS WITH IN-LINE FLASHER
Intersector™ LIGHT CABLE
CONNECTOR
SQUARE NUT WASHER 3/8” MACHINE
SCREW
USE TO JOIN LIGHT TO WEDGE BLOCK AFTER
CORD EXIT IS DETERMINED
3/4” SHEET
METAL SCREW
1/2” SHEET
METAL SCREW
USE WHEN
CURVE BLOCK IS
USED
USE WHEN
CURVE BLOCK IS
NOT USED
GASKET CURVED SURFACE ADAPTOR
(CROWN VIC OR CHARGER)
P=PASSENGER SIDE
D=DRIVER SIDE
WEDGE BLOCKS
UTILITY BLOCK
0° (HORIZONTAL)* 10° FOR TAHOE*
5° FOR CROWN VIC,
IMPALA, CHARGER &
CAPRICE*
DEGREE DESIGNATION IS EMBOSSED IN PART
PASSENGER OR
DRIVER SIDE
DESIGNATION IS
EMBOSSED IN PART
USER SUPPLIED 3A FUSE ON RED WIRE
DO NOT CONNECT DIRECTLY TO POWER
* INDICATES FOR WHAT PART WAS DESIGNED. INSTALLATION
ON OTHER VEHICLES IS INSTALLER’S RESPONSIBILITY.
RED
BLACK
GREEN
WHITE
FROM FLASHER
FROM LIGHT
COLORS AND LETTERS ON
CONNECTORS MUST MATCH
DO NOT INSTALL CONNECTOR
UNTIL LIGHT IS INSTALLED ON
MIRROR AND WIRE IS RUN TO
FINAL TERMINATION POINT
IMPORTANT! FOR PROPER OPERATION ALL
WIRES (INCLUDING GREEN WIRE) MUST BE
CONNECTED FROM FLASHER TO LIGHT HEAD.
1” SHEET
METAL SCREW
USE WHEN
THICKER CURVE
BLOCK IS NEEDED
& 3/4” SCREW
IS NOT LONG
ENOUGH
3/8” MACHINE SCREW
WASHER
SQUARE NUT (USE MASKING
TAPE TO HOLD IN PLACE)
GASKET IS ALWAYS
POSITIONED NEXT TO MIRROR
SHELL

INTERSECTOR LED LIGHT
#ENT2B3(x) Single Light Kit
#ENT2B3(x)-EU Single Light Kit w/ Xylex Lens
Intersector LED Light ENT2B3(x).pdf ~ Rev. 06.14 Pg. 3
Light should be positioned so that raised lines on lens is aligned
with long axis of vehicle.
VEHICLE LONG
AXIS
1 2 3
Drilling of inner part is only required on Crown Vic.
4 5 6

INTERSECTOR LED LIGHT
#ENT2B3(x) Single Light Kit
#ENT2B3(x)-EU Single Light Kit w/ Xylex Lens
Intersector LED Light ENT2B3(x).pdf ~ Rev. 06.14 Pg. 4
PATTERN RESET
1. Remove power.
2. Place WHITE (sync) wire to ground.
3. With sync wire grounded, re-power RED wire.
4. Maintain for one second (light will dim).
5. Remove power and ground (pattern 1 set).
SINGLE LIGHT HEAD SET UP AND PATTERN SELECTION
1. Disconnect WHITE wire from any connections if applicable.
2. Turn Intersector™ LED LIGHT ON by applying power to RED WIRE
from flasher. IMPORTANT NOTE: Power harness with in-line flasher
(PNT(x)FLA) MUST be used between power and light. Any other
flasher WILL cause permanent damage and void warranty.
3. Momentarily touching and removing the WHITE wire to ground
will advance the Intersector™ LED LIGHT to the next flash pattern.
Touching and removing the WHITE wire for more than a few seconds
will allow you to change the Intersector™ LED LIGHT to the previous
pattern. See flash pattern table. Continuing to touch and remove the
WHITE wire to ground will allow you to scroll through the pattern list.
After pattern #30 is reached the list will start over again at pattern
#1.
SINGLE COLOR CONFIGURATIONS
Follow the ID selection steps and set the Intersector™ LED LIGHT to
the following ID:
Simultaneous Flash Patterns:
- Set light heads to same ID (#2 or #4).
Alternating Flash Patterns:
- Set one light head to ID #2 and another to ID #4.
MULTIPLE LIGHT HEAD SET UP AND PATTERN SELECTION
1. Set ID#
a. Connections
i. RED: +10-16Vdc
ii. WHITE: +10-16Vdc (Note: you will need to disconnect after
power is applied)
iii. BLK: Ground
iv. GREEN: NO CONNECTION REQUIRED FOR ID SELECTION
b. Apply power to unit
c. Without disconnecting power from unit, disconnect WHITE wire
d. Momentarily connect WHITE to Ground to change ID #
i. Identify ID# by number of sequential flashes
ii. Possible ID#s: 2 or 4
e. Disconnect Power to exit ID mode
2. Set Pattern - Must be done individually to each light prior to
syncing
a. RED: +10-16Vdc
b. BLACK: Ground
c. While light is powered, tap WHITE wire to ground to advance to
the next pattern (SEE pattern table at right)
d. Disconnect Power
3. Sync Lights
a. Once desired pattern has been selected for all light heads
connect all white wires and insulate with electrical tape.
4. Connect Master Switch for Application.
Flash Patterns
Pattern Name 1 Light Alternating 2 Lights
Simultaneous
2 Lights
F.P.M.
(Flashes /
Minute)
1. Quint x x x 70
2. Warp x x x 350
3. Inter-Cycle Flash x x
4. Double Flash x x x 70
5. Quad Flash x x x 80
6. PowerPulse™ x x x 180
7. RoadRunner™ x x x 113
8. Q-Switch™ x x
9. RoadRunner™ Steady Burn x x 113
10. Quad Steady Burn x x 80
11. E-Ideal Single Flash x x x 200
12. E-Ideal Double Flash x x x 146
13. Quad2 Flash x x x 67
14. Double2 Flash x x x 95
15. PowerRunner x x x
16. LCR Quint x x x
17. Warp3 x x x
18. Ultra Warp x x x 545
19. Thunder & Lightning x x
20. Lite Speed x x x 85
21. SuperSonic x x 170
22. LCR Lite Speed x x x
23. SuperSonic Ultra x x x
24. Tempo Shift x x x
25. Tempo Shift Warp x x x
26. SBE2 x x x 67
27. C2 x x x 200
28. U2 x x x 176
29. Cyclone2 x x x
30. Chameleon2 x x x
Tech Specs Intersector™
Flash Patterns: 30 Flash Patterns
Light Sync: Yes
Technology: 9 Gen3 LEDs
Mounting: Under Mirror & Surface Mounts
Input Voltage: 10 - 16 Vdc
Current Draw: less than 1.5 amps
Dimensions:
Width x Height x Depth
2.9” (74 mm) W x 1.9” (48 mm) H
x 2.9” (74 mm) D
Operating Temp.: -40° to +65° C / -104° to +149° F
Patents: US Design Patent No. D636,113
*Other Patents Pending*
Parts & Accessories:
In-line Flasher #PNT2FLA
Univ. Curved Surface Adaptors #PNT1CRVØ1 (pair)
Chevrolet Caprice Adaptors #PNT1CRVØ2 (pair)
Dodge Charger Adaptors #PNT1CRVØ3 (pair)
Ford Interceptor Sedan Adaptors #PNT1CRVØ4 (pair)
Ford Interceptor SUV Adaptors #PNT1CRVØ5 (pair)
Wedges (0°, 5° & 10°) #PNT1WDG (set of 3)
Intersector™ (light only) #PENT2BØ(x)
