Soundoff Signal MPOWER EMPS2QM Series User manual

4" & 3" MPOWER®FASCIA LIGHTS
ENGLISH 0000JL 1223 REV C
1.800.338.7337 / www.soundoffsignal.com
FASCIA LIGHTS - 4"
EMPS2QM(x)(xxx) - QUICK MOUNT
EMPS2SMS(x)(xxx) - SCREW MOUNT
EMPS2STS(x)(xxx) - STUD MOUNT THREADED
FASCIA LIGHTS - 3"
EMPS1QM(x)(xxx) - QUICK MOUNT
EMPS1SMS(x)(xxx) - SCREW MOUNT
EMPS1STS(x)(xxx) - FORD GRILLE MOUNT
EMPS1SLS(x)(xxx)- STUD MOUNT THREADED
• HIGH CURRENT interconnects must be properly terminated. Poor crimp
quality can cause heat build-up and fire. Follow the crimp connector
manufacturer instructions.
• DO NOT install this product or route any wires in the Air Bag Deployment
Zone. Refer to vehicle Owner’s Manual for deployment zones.
• Do NOT use system to disconnect headlights, brake lights or other safety
equipment.
• Unit may become hot to touch during normal operation.
• Failure to properly install connectors, fuses or wiring may cause vehicle
failure or fire.
• Installation must only be performed by trained technician. Installer must
determine vehicle wiring configuration and proper integration of system.
• Use proper wire gauge. All power wires connecting to positive (+) or
negative (-) battery terminal or local chassis ground (-) must be sized to
supply at least 125% of max. current and properly fused at power source.
• Install protective grommets when routing wire through firewall or metal.
• Petroleum/silicone based lubricants will cause the silicone lens to discolor.
NOTICE:
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning
devices. Improper use or installation may void warranty coverage. To review our Limited Warranty Statement & Return Policy
for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/. If you have
questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press
#4). Questions or comments that do not require immediate attention may be emailed to [email protected].
ENHANCING SAFETY THROUGH INNOVATION
Scan for the latest version
of the instruction sheet.
WARNING
!
ROUTE WIRES ONLY IN LOCATIONS THAT ARE NOT SUBJECTED TO
POTENTIAL WEAR. MAKE SURE TO AVOID ROUTING WIRES IN THE
DEPLOYMENT AREA OF YOUR AIR BAG. REFER TO YOUR VEHICLE'S
OWNER'S MANUAL FOR AIRBAG DEPLOYMENT ZONES.
WARNING
Protected by U.S. Patent 10,703,260 and Patents Pending
https://soundoffsignal.com/legal/patent-notification/
4" DIMENSIONS / TECHNICAL SPECIFICATIONS . . . 2
3" DIMENSIONS / TECHNICAL SPECIFICATIONS . . . 3
QUICK / STUD MOUNT INSTALL . . . . . . . . . . . . . . . . . . 4
SCREW / EDGE MOUNT INSTALL . . . . . . . . . . . . . . 5
MULTI-MOUNT / BACK PLATE MOUNT INSTALL . . . 6
4" HOLE TEMPLATE INFORMATION . . . . . . . . . . . . 7
4" HOLE TEMPLATE INFORMATION . . . . . . . . . . . . 8
ELECTRICAL INSTALLATION / INFORMATION . . . 9 - 12

1.800.338.7337 / www.soundoffsignal.com
24" & 3" MPOWER®FASCIA LIGHTS
ENGLISH 0000JL 1123 REV C
4" & 3" MPOWER®FASCIA LIGHTS

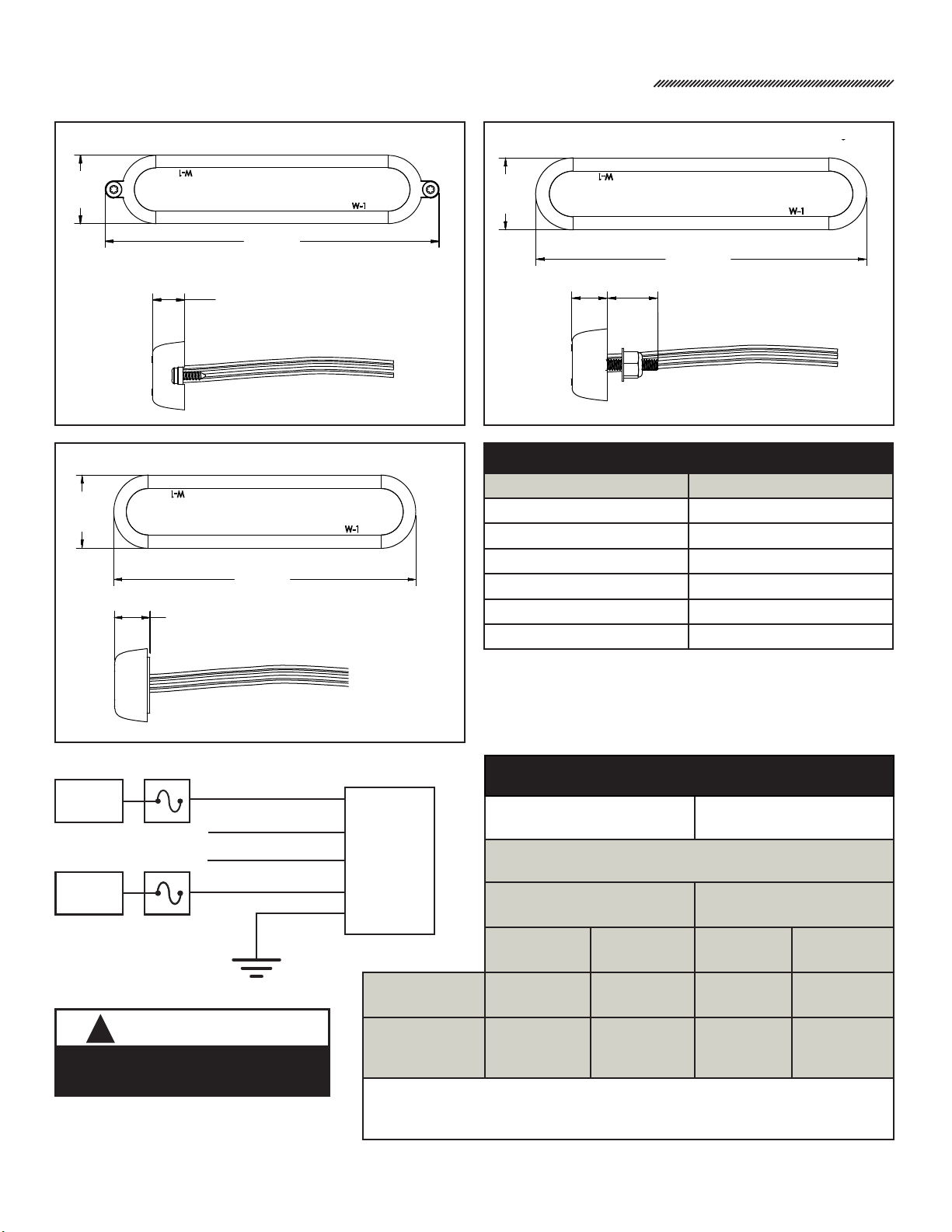

4" mpower®DIMENSIONS / SPECIFICATIONS:
4" SCREW MOUNT DIMENSIONS
4" QUICK MOUNT DIMENSIONS
4" STUD MOUNT DIMENSIONS
4.52"
0.92"
0.42"
4.04"
0.92"
0.49"
0.42"
0.92"
0.62"
4.04"
TECHNICAL SPECIFICATIONS
Input Voltage: 9-32Vdc
4” CURRENT CONSUMPTION (Amps)
12.8Vdc 25.6Vdc
Peak Average Peak Average
Red 0.62 0.36 0.31 0.18
Amber, Blue,
Green or
White 0.90 0.60 0.45 0.30
AFTER POWER IS ON, touching the WHITE wire to the ground will allow
you to change various settings on the module. (refer to page 8)
WIRE HOOK-UP TABLE
WIRE COLOR: FUNCTION:
RED Power (Primary)
BLACK Ground
GREEN** Sync2 *
WHITE to GROUND Setup Wire (See pg. 11*)
WHITE to POWER Function Wire
RED/WHITE Power (Secondary)
** To sync multiple mPower lights, connect the Green
wire from each light together.
* Will NOT work w/ other sync products such as
Ghost, LED3, & 4 wire Intersector w/external flasher.
* Will Work with Sync 2 products nFORCE Secondary Lights,
nFORCE FIT and 5 wire Intersector Lights.
!
WARNING
This product contains high intensity LED devices.
To prevent eye damage, DO NOT stare into the
light beam at close range.
Sync
Set-up/Function
BLACK
RED
WHITE
GREEN
RED/WHITE
+Vdc
+Vdc
5A FUSE
5A FUSE

1.800.338.7337 / www.soundoffsignal.com
34" & 3" MPOWER®FASCIA LIGHTS
ENGLISH 0000JL 1123 REV C
4" & 3" MPOWER®FASCIA LIGHTS
3" mpower®DIMENSIONS / SPECIFICATIONS:
3" SCREW MOUNT DIMENSIONS
3" QUICK MOUNT DIMENSIONS
3" STUD MOUNT DIMENSIONS
3.43"
0.92"
0.42" 2.97"
0.92"
0.49"0.42"
0.92"
0.62"
2.97"
TECHNICAL SPECIFICATIONS
Input Voltage: 9-32Vdc
3” CURRENT CONSUMPTION (Amps)
12.8Vdc 25.6Vdc
Peak Average Peak Average
Red 0.62 0.26 0.31 0.13
Amber, Blue,
Green or
White 0.90 0.38 0.45 0.19
AFTER POWER IS ON, touching the WHITE wire to the ground will allow
you to change various settings on the module. (refer to page 8)
!
WARNING
This product contains high intensity LED devices.
To prevent eye damage, DO NOT stare into the
light beam at close range.
3" FORD MOUNT DIMENSIONS
0.92"
0.66"
2.97"
0.58"
Sync
Set-up/Function
BLACK
RED
WHITE
GREEN
RED/WHITE
+Vdc
+Vdc
5A FUSE
5A FUSE

1.800.338.7337 / www.soundoffsignal.com
44" & 3" MPOWER®FASCIA LIGHTS
ENGLISH 0000JL 1123 REV C
4" & 3" MPOWER®FASCIA LIGHTS
QUICK MOUNT INSTALLATION:
Quick Mount (FIG. 1)
1. Pre-Drill per quick mount pattern indicated on page 7
(4") or page 8 (3"). (Wire hole only).
2. Deburr hole as required.
3. Clean surface with supplied alcohol wipe.
4. Make wire connection and feed wire through the drilled
wire hole.
5. Remove adhesive backer and align light into desired
position. Apply to surface and hold firmly for 30
seconds.
NOTE: APPLY UNIFORM PRESSURE ACROSS FULL FACE
OF LIGHT.
STUD MOUNT INSTALLATION:
Stud Mount (FIG. 2)
1. Pre-Drill per quick mount pattern indicated on page 7
(4") or page 8 (3").
2. Clean the surface, as required.
3. Deburr hole, as required.
4. Make wire connections and feed wire through the drilled
wire hole.
5. Install light, inserting 2 studs into the 2 drilled holes.
6. Install 2 lock nuts onto studs behind mount surface. After
the nut makes full contact with the mounting surface,
hand tighten 1/8th turn (torque no more than 15 in-lbs.)
!
PETROLEUM/SILICONE BASED
LUBRICANTS WILL CAUSE THE
SILICONE LENS TO DISCOLOR.
WARNING
!
PETROLEUM/SILICONE BASED
LUBRICANTS WILL CAUSE THE
SILICONE LENS TO DISCOLOR.
WARNING
FIG. 1FIG. 1
QUICK MOUNT
ADHESIVE SURFACE
WIRE HOLE
THREADED STUD x2
LOCKNUT x2
MOUNT SURFACE
FIG. 2FIG. 2
STUD MOUNT - THREADED (SHOWN)
FORD STUD MOUNT - THREADED (SIMILAR, NOT SHOWN)
DO NOT USE POWER
TOOLS TO TIGHTEN

1.800.338.7337 / www.soundoffsignal.com
54" & 3" MPOWER®FASCIA LIGHTS
ENGLISH 0000JL 1123 REV C
4" & 3" MPOWER®FASCIA LIGHTS
TORX DRIVE SCREWS x2
SCREW MOUNT INSTALLATION:
Screw Mount (FIG 3)
1. Pre-Drill per screw mount pattern indicated on page 7
(4") or page 8 (3".)
2. Deburr and clean the surface, as required.
3. Make wire connections and feed the wire through the
drilled wire hole.
4. Install light with 2x Torx drive screws and hand tighten
only until mount surface and light are flush.
!
PETROLEUM/SILICONE BASED
LUBRICANTS WILL CAUSE THE
SILICONE LENS TO DISCOLOR.
WARNING
FIG. 3FIG. 3
SCREW MOUNT
EDGE MOUNT INSTALLATION:
Edge-Mount Bracket (FIG. 4) P/N: PMP2BKEDGE
1. Install Heat Sink onto “mPOWER Stud Mount,
Threaded” light as ndicated. Wire passed through
center hole.
2. Install bracket onto “mPOWER Stud Mount, Thread”
light as indicated. Wire passed through rear relief and
into lower edge grip relief.
3. Install 2 lock nuts onto “mPOWER Stud Mount, Thread”
light. Hand tighten until final adjustment.
4. Place bracket over desired vehicle’s edge surface (i.e.
rear hood), ensure wire is fully seated in rear relief,
wrapping around edge lying flat.
5. Tighten 2 setscrews to vehicle’s edge surface.
6. Adjust angle of light to desired direction and tighten 2
lock nuts until secure. After the nut makes full contact
with the mounting surface, hand tighten 1/8th turn
(torque no more than 15 in-lbs.)
7. Make wire connections.
FIG. 4FIG. 4
EDGE MOUNT BRACKET
STUD MOUNT - THREADED LIGHT
HEAT SINK
LOCKNUT X 2
SETSCREW X 2
THREADED STUD X 2
90°±15° EDGE MOUNT BRACKET
DO NOT USE POWER
TOOLS TO TIGHTEN
DO NOT USE POWER
TOOLS TO TIGHTEN

1.800.338.7337 / www.soundoffsignal.com
64" & 3" MPOWER®FASCIA LIGHTS
ENGLISH 0000JL 1123 REV C
4" & 3" MPOWER®FASCIA LIGHTS
MULTI-MOUNT INSTALLATION:
Multi-Mount Bracket (FIG. 1) P/N: PMP2BKDGAJ
1. Pre-drill mount holes as required (bracket holes and
spacing are indicated on page 7 (4") or page 8 (3").
2. Place bracket onto desired vehicle’s surface and secure
with screws (not provided).
3. Install Heat Sink onto “mPOWER Stud Mount, Threaded”
light as indicated. Wire passes through center hole.
4. Install “mPOWER Stud Mount, Thread” light onto bracket
as indicated. Wire passes though rear relief.
5. Install 2 lock nuts onto “mPOWER Stuf Mount, Thread”
light as indicated. Hand tighten until final adjustment.
6. Adjust angle of light to desired direction and tighten 2
lock nuts until secure. After the nut makes full contact
with the mounting surface, hand tighten 1/8th turn
(torque no more than 15 in-lbs.)
7. Make wire connections.
GRILLE MOUNT BACKPLATE INSTALLATION:
Grille Mount Backplate (FIG. 2) P/N: PMP2BKGBPB
1. Pre-drill mount holes as required (bracket holes and
spacing are indicated on page 7 (4") or page 8 (3").
2. Place bracket onto desired vehicle’s surface and secure
with screws (not provided).
3. Install Heat Sink onto “mPOWER Stud Mount” light as
indicated. Wire passes through center hole.
4. Install “mPOWER Stud Mount” light onto bracket as
indicated. Wire passes though rear relief.
5. Install 2 lock nuts onto “mPOWER Stud Mount” light as
indicated. Hand tighten until final adjustment.
6. Adjust angle of light to desired direction and tighten 2
lock nuts until secure. After the nut makes full contact
with the mounting surface, hand tighten 1/8th turn
(torque no more than 15 in-lbs.)
7. Make wire connections.
FIG. 1FIG. 1
MULTI-MOUNT
WIRE HOLE
THREADED STUD x2
MOUNT SURFACE
FIG. 2FIG. 2
*FOR USE WITH STUF MOUNT MPOWERS ONLY
GRILLE MOUNT BRACKET
90°±15° EDGE MOUNT BRACKET
STUD MOUNT - THREADED LIGHT HEAT SINK
LOCKNUT X 2
THREADED STUD X 2
DO NOT USE POWER
TOOLS TO TIGHTEN
DO NOT USE POWER
TOOLS TO TIGHTEN

1.800.338.7337 / www.soundoffsignal.com
74" & 3" MPOWER®FASCIA LIGHTS
ENGLISH 0000JL 1123 REV C
4" & 3" MPOWER®FASCIA LIGHTS

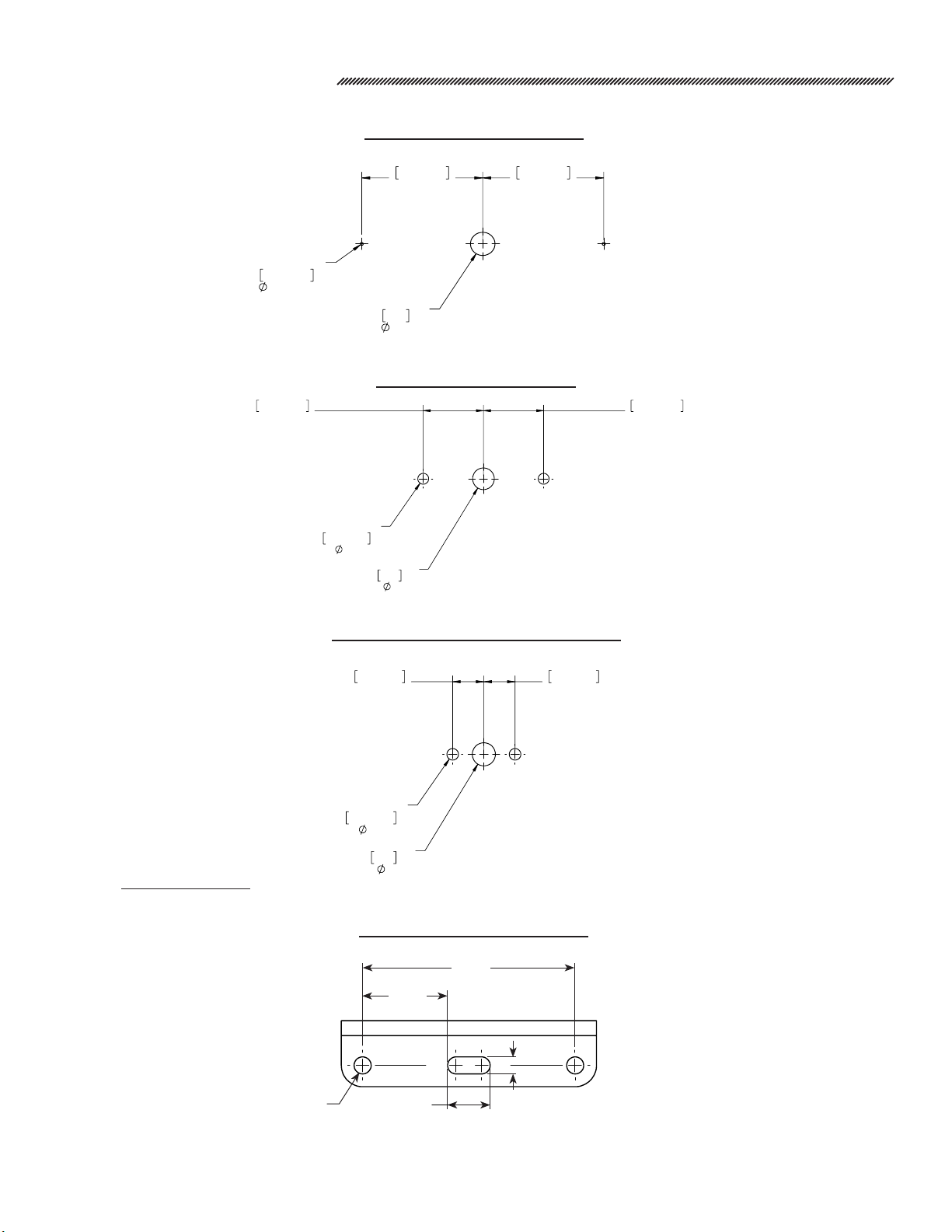

4" HOLE TEMPLATES:
0.92
23.5
4.52
114.9
WIRE THRU-HOLE
DRILL
7/16
11.00
2X DRILL
INSERT HOLES
0.04±0.01
1.00±0.15
2.15±0.01
54.50±0.25
2.15±0.01
54.50±0.25
WIRE THRU-HOLE
DRILL
7/16
11.00
2X DRILL
INSERT HOLES
0.16±0.01
4±0
0.98±0.01
25±0
0.98±0.01
25±0
0.92
23.5
4.07
103.5
WIRE THRU-HOLE
DRILL
7/16
11.00
0.92
23.5
4.07
103.5
0.42
10.77
0.42
10.77
0.49
12.3
0.48
12.2
SCREW MOUNT, 4" STUD MOUNT, THREADED, 4"
QUICK MOUNT, 4"
REVISION LOG
REV
DESCRIPTION
1
A A
B B
C C
D D
E E
F F
G G
H H
J J
K K
L L
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
EMPX2XXXXXXX-INSTALL
MATERIAL:
4" SCREW MOUNT
THIRD ANGLE
PROJECTION
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DRAWING IS THE SOLE
PROPERTY OF SOUNDOFF SIGNAL.
ANY REPRODUCTION IN PART OR
AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF
SOUNDOFF SIGNAL IS PROHIBITED.
®
A
REVISION:
DESCRIPTION:
SHEET
1 OF 3
DRAWING
SIZE:
DO NOT SCALE
TOLERANCES
EXCEPT AS NOTED
.X ± .020
.XX ± .012
.XXX ± .006
ANGLES ± .5°
PRIMARY DIMS:
MILLIMETERS
DUAL DIMS: [INCH]
D
DRAWING NO:
GD&T TO FOLLOW
ASME Y14.5M-1994
CAD DIMENSIONS ARE BASIC
UNLESS OTHERWISE SPECIFIED
0.92
23.5
4.52
114.9
WIRE THRU-HOLE
DRILL
7/16
11.00
2X DRILL
INSERT HOLES
0.04±0.01
1.00±0.15
2.15±0.01
54.50±0.25
2.15±0.01
54.50±0.25
WIRE THRU-HOLE
DRILL
7/16
11.00
2X DRILL
INSERT HOLES
0.16±0.01
4±0
0.98±0.01
25±0
0.98±0.01
25±0
0.92
23.5
4.07
103.5
WIRE THRU-HOLE
DRILL
7/16
11.00
0.92
23.5
4.07
103.5
0.42
10.77
0.42
10.77
0.49
12.3
0.48
12.2
SCREW MOUNT, 4" STUD MOUNT, THREADED, 4"
QUICK MOUNT, 4"
REVISION LOG
REV
DESCRIPTION
1
A A
B B
C C
D D
E E
F F
G G
H H
J J
K K
L L
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
EMPX2XXXXXXX-INSTALL
MATERIAL:
4" SCREW MOUNT
THIRD ANGLE
PROJECTION
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DRAWING IS THE SOLE
PROPERTY OF SOUNDOFF SIGNAL.
ANY REPRODUCTION IN PART OR
AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF
SOUNDOFF SIGNAL IS PROHIBITED.
®
A
REVISION:
DESCRIPTION:
SHEET
1 OF 3
DRAWING
SIZE:
DO NOT SCALE
TOLERANCES
EXCEPT AS NOTED
.X ± .020
.XX ± .012
.XXX ± .006
ANGLES ± .5°
PRIMARY DIMS:
MILLIMETERS
DUAL DIMS: [INCH]
D
DRAWING NO:
GD&T TO FOLLOW
ASME Y14.5M-1994
CAD DIMENSIONS ARE BASIC
UNLESS OTHERWISE SPECIFIED
50mm
[1.97”]
20mm
[.787”]
10mm
[.394”]
4mm [.157”]
Ø 4mm x2
[Ø.157”]
4" MULTI-MOUNT BRACKET
4" SCREW MOUNT
4" STUD MOUNT
4" MULTI - MOUNT
IMPORTANT NOTE:
Due to variations in the printing process
and environmental factors, the sizes
shown may not be accurate. If this
document is used as a cutting template,
it is the installers responsibility to confirm
the accuracy of the dimensions shown
and adjust accordingly.

1.800.338.7337 / www.soundoffsignal.com
84" & 3" MPOWER®FASCIA LIGHTS
ENGLISH 0000JL 1123 REV C
4" & 3" MPOWER®FASCIA LIGHTS
3" HOLE TEMPLATES:
3" SCREW MOUNT
3" STUD MOUNT
3" MULTI - MOUNT
3.34
85
0.92 23.5
WIRE THRU-HOLE
DRILL
0.31
8.00
2X DRILL
INSERT HOLES
0.04±0.01
1.00±0.15
1.56±0.01
39.50±0.25
1.56±0.01
39.50±0.25
WIRE THRU-HOLE
DRILL
0.31
8.00
2X DRILL
INSERT HOLES
0.16±0.01
4±0
0.43±0.01
11±0
0.43±0.01
11±0
2.89
73.5
0.92 23.5
WIRE THRU-HOLE
DRILL
0.31
8.00
2.89
73.5
0.92 23.5
0.42
10.7
0.30
7.7
0.58
14.6
0.66
16.7
0.48
12.2
WIRE THRU-HOLE
DRILL
0.31
8.00
2X DRILL
INSERT HOLES
0.16±0.01
4±0
0.875±0.01
22.23±0.25
0.875±0.01
22.23±0.25
2.89
73.5
0.92 23.5
0.43
10.9
0.63
16.0
SCREW MOUNT, 3"
STUD MOUNT, THREADED, 3"-FD
QUICK MOUNT, 3"
STUD MOUNT, THREADED, 3"-SL
REVISION LOG
REV DESCRIPTION
1
A A
B B
C C
D D
E E
F F
G G
H H
J J
K K
L L
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
EMPX1XXXXXXX-INSTALL
MATERIAL:
3" SCREW MOUNT
THIRD ANGLE
PROJECTION
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DRAWING IS THE SOLE
PROPERTY OF SOUNDOFF SIGNAL.
ANY REPRODUCTION IN PART OR
AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF
SOUNDOFF SIGNAL IS PROHIBITED.
®
A
REVISION:
DESCRIPTION:
SHEET
1 OF 3
DRAWING
SIZE:
DO NOT SCALE
TOLERANCES
EXCEPT AS NOTED
.X ± .020
.XX ± .012
.XXX ± .006
ANGLES ± .5°
PRIMARY DIMS: MILLIMETERS
DUAL DIMS: [INCH]
D
DRAWING NO:
GD&T TO FOLLOW
ASME Y14.5M-1994
CAD DIMENSIONS ARE BASIC
UNLESS OTHERWISE SPECIFIED
3.34
85
0.92 23.5
WIRE THRU-HOLE
DRILL
0.31
8.00
2X DRILL
INSERT HOLES
0.04±0.01
1.00±0.15
1.56±0.01
39.50±0.25
1.56±0.01
39.50±0.25
WIRE THRU-HOLE
DRILL
0.31
8.00
2X DRILL
INSERT HOLES
0.16±0.01
4±0
0.43±0.01
11±0
0.43±0.01
11±0
2.89
73.5
0.92 23.5
WIRE THRU-HOLE
DRILL
0.31
8.00
2.89
73.5
0.92 23.5
0.42
10.7
0.30
7.7
0.58
14.6
0.66
16.7
0.48
12.2
WIRE THRU-HOLE
DRILL
0.31
8.00
2X DRILL
INSERT HOLES
0.16±0.01
4±0
0.875±0.01
22.23±0.25
0.875±0.01
22.23±0.25
2.89
73.5
0.92 23.5
0.43
10.9
0.63
16.0
SCREW MOUNT, 3"
STUD MOUNT, THREADED, 3"-FD
QUICK MOUNT, 3"
STUD MOUNT, THREADED, 3"-SL
REVISION LOG
REV DESCRIPTION
1
A A
B B
C C
D D
E E
F F
G G
H H
J J
K K
L L
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
EMPX1XXXXXXX-INSTALL
MATERIAL:
3" SCREW MOUNT
THIRD ANGLE
PROJECTION
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DRAWING IS THE SOLE
PROPERTY OF SOUNDOFF SIGNAL.
ANY REPRODUCTION IN PART OR
AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF
SOUNDOFF SIGNAL IS PROHIBITED.
®
A
REVISION:
DESCRIPTION:
SHEET
1 OF 3
DRAWING
SIZE:
DO NOT SCALE
TOLERANCES
EXCEPT AS NOTED
.X ± .020
.XX ± .012
.XXX ± .006
ANGLES ± .5°
PRIMARY DIMS: MILLIMETERS
DUAL DIMS: [INCH]
D
DRAWING NO:
GD&T TO FOLLOW
ASME Y14.5M-1994
CAD DIMENSIONS ARE BASIC
UNLESS OTHERWISE SPECIFIED
3" FORD GRILLE MOUNT
3.34
85
0.92 23.5
WIRE THRU-HOLE
DRILL
0.31
8.00
2X DRILL
INSERT HOLES
0.04±0.01
1.00±0.15
1.56±0.01
39.50±0.25
1.56±0.01
39.50±0.25
WIRE THRU-HOLE
DRILL
0.31
8.00
2X DRILL
INSERT HOLES
0.16±0.01
4±0
0.43±0.01
11±0
0.43±0.01
11±0
2.89
73.5
0.92 23.5
WIRE THRU-HOLE
DRILL
0.31
8.00
2.89
73.5
0.92 23.5
0.42
10.7
0.30
7.7
0.58
14.6
0.66
16.7
0.48
12.2
WIRE THRU-HOLE
DRILL
0.31
8.00
2X DRILL
INSERT HOLES
0.16±0.01
4±0
0.875±0.01
22.23±0.25
0.875±0.01
22.23±0.25
2.89
73.5
0.92 23.5
0.43
10.9
0.63
16.0
SCREW MOUNT, 3"
STUD MOUNT, THREADED, 3"-FD
QUICK MOUNT, 3"
STUD MOUNT, THREADED, 3"-SL
REVISION LOG
REV DESCRIPTION
1
A A
B B
C C
D D
E E
F F
G G
H H
J J
K K
L L
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
EMPX1XXXXXXX-INSTALL
MATERIAL:
3" SCREW MOUNT
THIRD ANGLE
PROJECTION
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DRAWING IS THE SOLE
PROPERTY OF SOUNDOFF SIGNAL.
ANY REPRODUCTION IN PART OR
AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF
SOUNDOFF SIGNAL IS PROHIBITED.
®
A
REVISION:
DESCRIPTION:
SHEET
1 OF 3
DRAWING
SIZE:
DO NOT SCALE
TOLERANCES
EXCEPT AS NOTED
.X ± .020
.XX ± .012
.XXX ± .006
ANGLES ± .5°
PRIMARY DIMS: MILLIMETERS
DUAL DIMS: [INCH]
D
DRAWING NO:
GD&T TO FOLLOW
ASME Y14.5M-1994
CAD DIMENSIONS ARE BASIC
UNLESS OTHERWISE SPECIFIED
50mm
[1.97”]
20mm
[.787”]
10mm
[.394”]
4mm [.157”]
Ø 4mm x2
[Ø.157”]
IMPORTANT NOTE:
Due to variations in the printing process
and environmental factors, the sizes
shown may not be accurate. If this
document is used as a cutting template,
it is the installers responsibility to confirm
the accuracy of the dimensions shown
and adjust accordingly.

1.800.338.7337 / www.soundoffsignal.com
94" & 3" MPOWER®FASCIA LIGHTS
ENGLISH 0000JL 1123 REV C
4" & 3" MPOWER®FASCIA LIGHTS
OVER-VOLTAGE PROTECTION
When an over-voltage condition is detected, the module will
flash an over-voltage warning pattern of 50mS ON/950mS
OFF to alert of the over-voltage condition and protect the
electronics from damage due to heat/voltage.
THERMAL COMPENSATION PROTECTION
The LED module is designed to provide maximum power
output while providing protection to the electronic compo-
nents by reducing the output power at extreme tempera-
tures.
SYNC 2
Synchronizing the flashing of multiple light modules is ac-
complished by connecting the Green wires of different light
modules together. Up to 24 light modules can be connected
for synchronized flashing. All light module flash patterns
must be set to the same flash pattern # to ensure proper op-
eration. Refer to the Sequence Type section in Set-Up Table
(page 11) to setup light modules to flash in alternate or
simultaneous flash pattern. NOTE: Will NOT work with non-
Sync 2 products such as Ghost, LED3, and 4 wire Intersector.
WILL WORK with Sync 2 products nFORCE Secondary Lights,
nFORCE FIT and 5 wire Intersector Lights.
ELECTRICAL INSTRUCTIONS: FLASH PATTERNS
PATTERN # SINGLE
COLOR DUAL COLOR TRI-COLOR
1 QUINT
2 WARP
3 INTER-CYCLE
4 DOUBLE
5 QUAD
6 POWER PULSE
7 ROAD RUNNER
8 Q-SWITCH
9STEADY-BURN / ROADRUNNER (SEQUENCE TYPE 1: STEADY BURN,
SEQUENCE TYPE 2: ROADRUNNER)
10 STEADY-BURN DRIVER TITLE 13 QUAD (SEQUENCE TYPE 1: STEADY BURN,
SEQUENCE TYPE 2: TITLE 13 QUAD)
11 QUAD 2
12 DOUBLE 2
13 RANDOM 1
14 RANDOM 2
NOTES:

1.800.338.7337 / www.soundoffsignal.com
10 4" & 3" MPOWER®FASCIA LIGHTS
ENGLISH 0000JL 1123 REV C
4" & 3" MPOWER®FASCIA LIGHTS
FUNCTION TABLES
Changing the function table is only enabled when the LED module is in a flashing mode (disabled in cruise or steady ON
functions.) The functional operation of the LED module can be changed while applying the +V to the Red wire with the
black wire connected to ground. When the light is flashing, momentarily connect the White wire to ground for >4S and
<5S (light will go steady high, steady low, off, steady high, steady low) then release. The function table will now advance
to the next table (table 1 to table 2, table 2 to table 3, or table 3 to table 1. In the case that the custom table is pro-
grammed, the order is 1 to 2, 2 to 3, 3 to 7 (custom), and 7 to 1.) Repeat above process until required function table is ac-
tive. AFTER SELECTION: The light will "wink" to indicate which of the new tables is selected. Custom table will "wink" 7 times.
ELECTRICAL INSTRUCTIONS CONTINUED:
FUNCTION TABLE 1
WIRE LIGHT
RED R/W WHT SINGLE DUAL TRI
+9-32V FLASH FLASH DUAL FLASH TRI
+9-32V CRUISE STEADY CLR 2 STEADY CLR 3
+9-32V +9-32V FLASH STEADY CLR 2 STEADY CLR 3
+9-32V NO OP NO OP NO OP
+9-32V +9-32V LOW PWR FLASH FLASH CLR 1 FLASH CLR 1
+9-32V +9-32V CRUISE FLASH CLR 2 FLASH CLR 2
+9-32V +9-32V +9-32V LOW PWR FLASH FLASH DUAL FLASH CLR 3
FUNCTION TABLE 2
WIRE LIGHT
RED R/W WHT SINGLE DUAL TRI
+9-32V FLASH FLASH CLR 1 FLASH DUAL
+9-32V +9-32V CRUISE FLASH DUAL FLASH TRI
+9-32V STEADY CLR 1 STEADY CLR 2 STEADY CLR 3
+9-32V +9-32V STEADY CLR 1 STEADY CLR 2 STEADY CLR 3
+9-32V +9-32V +9-32V STEADY CLR 1 STEADY CLR 2 STEADY CLR 3
+9-32V NO OP NO OP NO OP
+9-32V +9-32V STEADY CLR 1 STEADY CLR 2 STEADY CLR 3
FUNCTION TABLE 3
WIRE LIGHT
RED R/W WHT SINGLE DUAL TRI
+9-32V FLASH FLASH DUAL FLASH TRI
+9-32V FLASH
LOW PWR FLASH DUAL LOW PWR FLASH TRI
LOW PWR
+9-32V +9-32V FLASH
LOW PWR FLASH DUAL LOW PWR FLASH TRI
LOW PWR
+9-32V NO OP NO OP NO OP
+9-32V +9-32V FLASH
LOW PWR FLASH DUAL LOW PWR FLASH TRI
LOW PWR
+9-32V +9-32V FLASH
LOW PWR FLASH DUAL LOW PWR FLASH TRI
LOW PWR
+9-32V +9-32V +9-32V FLASH LOW PW
RFLASH DUAL LOW PWR
FLASH TRI
LOW PWR

1.800.338.7337 / www.soundoffsignal.com
11 4" & 3" MPOWER®FASCIA LIGHTS
ENGLISH 0000JL 1123 REV C
4" & 3" MPOWER®FASCIA LIGHTS
COLOR SWAP
This function is only valid for dual and tri-color light modules
and can only be changed when the light module is in a flash-
ing mode (disabled for single color modules and when light
module is operating in cruise or steady ON functions). When
the light is flashing, momentarily connect the white wire to
ground for >2S and <3S (light will go steady high, steady
low, off) then release. The light module will switch between
Color Swap OFF and Color Swap ON. When Color Swap is
OFF, the 1st color will flash 1st on a dual/tri color pattern.
When Color Swap is ON, the 2nd color will flash 1st on a
dual/tri color pattern.
SIMULTANEOUS/ALTERNATE
This function can only be changed when the LED module is
in a flashing mode (disabled in cruise or steady ON func-
tions) and only has an effect when at least 2 LED modules
have the green sync wire connected together. When the
light is flashing, momentarily connect the white wire to
ground for >3S and <4S (light will go steady high, steady
low, off, steady high) then release. The light module will
switch between Simultaneous and Alternate each time this
sequence is done. To have light modules flash simultane-
ously, both light modules need to be set to the same se-
quence type (Set-Up Table). To have light modules flash
alternately, the light modules need to be set to different
sequence types (Set-Up Table).
ADVANCE PATTERN
Flash pattern can only be changed when the LED module is
in a flashing mode (disabled in cruise or steady ON func-
tions). When the light is flashing, momentarily connect the
white wire to ground for >250mS and <1S (light will go
steady high) then release. The flash pattern will advance to
the next pattern. If the light module was at the last pattern,
the pattern will reset to the 1st pattern.
ELECTRICAL INSTRUCTIONS CONTINUED:
BACKUP PATTERN
This function is only valid when the LED module is in a
flashing mode (disabled in cruise or steady ON func-
tions). When the light is flashing, momentarily connect
the white wire to ground for >1S and < 2S (light will go
steady high, steady low) then release. The flash pattern
will backup to the previous pattern. If the light module
was at the first pattern, the pattern will change to the last
pattern on the list.
PATTERN RESET
This function is only valid when the LED module is in a
flashing mode (disabled in cruise or steady ON functions).
When the light is flashing, momentarily connect the white
wire to ground for >5S and <6S (light will go steady high,
steady low, off, steady high, steady low, off) then release.
The flash pattern will reset to the 1st pattern in the list.
FACTORY RESET
This function is only valid when the LED module is in a
flashing mode (disabled in cruise or steady ON functions).
When the light is flashing, momentarily connect the white
wire to ground for >6S and <7S (light will go steady high,
steady low, off, steady high, steady low, off, steady high)
then release. The LED module will reset to: pattern=1,
Function Table=1, Color Swap=OFF, Simultaneous.
LOCKOUT CONFIGURATION WIRE
This function will disable the wire tap configuration mode
that is activated by holding the white wire to ground. The
lock out is activated by applying ground to the white wire
for >7 seconds and <8 seconds per the table below. The
function can be disabled by tapping the wire to ground
and releasing 8 times within 5 seconds. The light will
flash 8 times when the feature is enabled or disabled to
notify the user of a setting change.
SETUP TABLE
SECONDS USER INTERFACE
FROM TO VISUAL FEEDBACK ACTION TAKEN
0 1 STEADY-HIGH (60%) FORWARD ONE PATTERN
1 2 STEADY-LOW (30%) BACKWARD ONE PATTERN
2 3 OFF COLOR SWAP (OFF OR ON )
3 4 STEADY - HIGH (60%) SEQUENCE TYPE: SIMULTANEOUS OR ALTERNATE
4 5 STEADY - LOW (30%) SEE FUNCTION TABLE
5 6 OFF RESET TO PATTERN 1
6 7 STEADY-HIGH (60%) FACTORY RESET (PATTERN 1, COLOR SWAP: OFF, SIMULTANEOUS)
SEPARATE COLOR CONTROL: OFF
7 8 STEADY - LOW (30%) LOCK OUT WHITE CONFIGURATION WIRE
If held longer than 8 seconds, the light will go back to flashing the current pattern and no action will be taken.

1.800.338.7337 / www.soundoffsignal.com
12 4" & 3" MPOWER®FASCIA LIGHTS
ENGLISH 0000JL 1123 REV C
4" & 3" MPOWER®FASCIA LIGHTS
ELECTRICAL INSTRUCTIONS CONTINUED:
Connecting the Green wire to ground before applying power
to the Red or Red/White wires will place the LED module
into remote mode and the light output color will be directly
controlled by the input wires as shown below.
mpower® Secondary LED Light Remote Mode Functionality
Red Wire Red/White
Wire
Single Color Dual Color Tri Color
Color
Swap=OFF
Color
Swap=ON
Color
Swap=OFF
Color
Swap=ON
Color
Swap=OFF
Color
Swap=ON
Cruise - Cruise Color 1 Cruise Color 1 Cruise Color 2 Cruise Color 1 Cruise Color 2
- Cruise Cruise Color 2 Cruise Color 1 Cruise Color 2 Cruise Color 1
Cruise Cruise Cruise Color 2 Cruise Color 1 Cruise Color 3 Cruise Color 3
Flash - Flash Color 1 Flash Color 1 Flash Color 2 Flash Color 1 Flash Color 2
- Flash Flash Color 2 Flash Color 1 Flash Color 2 Flash Color 1
Flash Flash Flash Color 2 Flash Color 1 Flash Color 3 Flash Color 3
Steady ON - Steady ON Color 1 Steady ON Color 1 Steady ON Color 2 Steady ON Color 1 Steady ON Color 2
- Steady ON Steady ON Color 2 Steady ON Color 1 Steady ON Color 2 Steady ON Color 1
Steady ON Steady ON Steady ON Color 2 Steady ON Color 1 Steady ON Color 3 Steady ON Color 3
Cruise Flash
Flash Color 2/Cruise
Color 1 during OFF
cycle of Flash
Flash Color 1/Cruise
Color 2 during OFF
cycle of Flash
Cruise Steady ON Steady ON Color 2 Steady ON Color 1
Flash Steady ON Steady ON Color 2 Steady ON Color 1
Cruise Mode Duty Cycle (@ 100Hz)
Input Light Output
40% OFF
50% 5%
60% 10%
Low Power Flash D.C. (@ 100Hz)
Input Light Output
70% 30%
80% 40%
90% 50%
Cruise and Low Power Modes
For Cruise mode or Low Power control of the LED module,
the signal to the control wires must be 100 +/- 2Hz using
the duty cycle inputs listed below to produce the light
output.
REMOTE MODE: FOR USE WITH bluePRINT SYSTEM ONLY

1.800.338.7337 / www.soundoffsignal.com
13 4" & 3" MPOWER®FASCIA LIGHTS
ENGLISH 0000JL 1123 REV C
4" & 3" MPOWER®FASCIA LIGHTS
REMOTE MODE: FOR USE WITH bluePRINT SYSTEM ONLY
WARNING - DRILLING ANY HOLES INTO THE MPOWER LIGHT
IS NOT RECOMMENDED! THE RISK OF DAMAGING INTERNAL
COMPONENTS AND THE RESULTING FAILURE OF THE MPOWER
LIGHT WILL VOID ANY WARRANTY OF THIS PRODUCT.
WARNING - CARE MUST BE TAKEN WHEN DRILLING THROUGH
THE VEHICLE NOT TO DRILL INTO ANY EXISTING WIRING CHECK
BOTH SIDES OF THE MOUNTING SERVICE PRIOR TO DRILLING.
DE-BURR ANY HOLES AND REMOVE ANY METAL SHARDS OR
REMNANTS. INSTALL GROMMETS INTO ALL WIRE PASSAGE
HOLES.
WARNING - ROUTE WIRES ONLY IN LOCATIONS THAT ARE
NOT SUBJECTED TO POTENTIAL WEAR. MAKE SURE TO AVOID
ROUTING WIRES IN THE DEPLOYMENT AREA OF YOUR AIR BAG.
REFER TO YOUR VEHICLE OWNER’S MANUAL FOR AIR BAG
DEPLOYMENT ZONES.
WARNING - ALL CUSTOMER SUPPLIED POWER WIRES
CONNECTING TO THE POSITIVE (+) OR NEGATIVE (-) BATTERY
TERMINAL OR LOCAL CHASSIS GROUND (-) MUST BE SIZED
TO SUPPLY AT LEAST 125% OF THE MAXIMUM CURRENT AND
PROPERLYFUSEDATTHEPOWERSOURCEWITHAPPROPRIATELY
RATED FUSE.
WARRANTY RETURN PROCESS:
Please scan QR code or visit
https://soundoffsignal.com/support-page/returns/.
Alternatively contact your SoundOff Signal Sales Representative,
Customer Services staff or our Technical Department (800.338.7337)
for a RMA #, Return Merchandise Authorization Number.
The following information is required for issuance of the RMA #:
• Reason for returning the product*
• Address where replacement product is to be shipped*
• Telephone number where you may be reached*
• SoundOff Signal invoice number on which product was
purchased**
• SoundOff Signal part number and serial number**
• E-mail address where RMA # should be e-mailed**
• Fax number where RMA # should be faxed**
* RMA # will not be given without this information.
** If available, please provide this information.
SoundOff Signal will NOT accept returns without an RMA #. Each
RMA # is good for only one (1) return and will expire (30) days after
the date it was issued. Products must be shipped back to SoundOff
Signal and the RMA # clearly marked on the outside of the package
near the shipping label. Please use the following address on your
shipping label:
SoundOff Signal
ATTN: RMA # / Technical Services
3900 Central Parkway
Hudsonville, MI 49426
WARRANTY EXCLUSIONS:
Shipping & Handling, labor and service fees are non-refundable.
SoundOff Signal is not liable for any damage due to installation or
personal injury as a result of using SoundOff Signal product.
WARRANTY FORFEITURE:
Warranty will not be granted if the Warranty Return Policy &
Procedure rules are not strictly followed. Physical damage resulting
from customer abuse will void warranty. Warranty will also be
voided if any SoundOff Signal and/or manufacturer serial tags,
product stickers, seals, or the like, are removed, altered or tampered
with. Returned product that is damaged by shipping via the RMA #
procedure is not the responsibility of SoundOff Signal.
Document effective date on cover and below supersedes previously
dated policies and statements.
There are no other warranties, expressed or implied, including, but
not limited to, any implied merchantability or fitness for a particular
use. SoundOff Signal reserves the right to modify this warranty
statement at any time; or to discontinue, modify, or upgrade any
products of its manufacture with design improvements without
prior notice.
WARNING MESSAGES - PLEASE READ:
WARRANTY & RETURN GOODS PROCEDURE

4" & 3" MPOWER®FASCIA LIGHTS
SPANISH 0000JL 0823 REV B
1.800.338.7337 / www.soundoffsignal.com
LUCES SUPERFICIALES- 10,16 CM (4”)
EMPS2QM(x)(xxx) - MONTAJE RÁPIDO
EMPS2SMS(x)(xxx)- MONTAJE CON TORNILLOS
EMPS2STS(x)(xxx) - MONTAJE CON PASADORES ROSCADOS
LUCES SUPERFICIALES -7.62 CM (3”)
EMPS1QM(x)(x) - MONTAJE RÁPIDO
EMPS1SMS(x)(xxx)- MONTAJE CON TORNILLOS
EMPS1STS(x)(xxx) - FORD GRILLE MONTAJE
EMPS1SLS(x)(xxx)- MONTAJE DE PERNO
•ALTA CORRIENTE: las interconexiones deben estar debidamente termina-
das. La calidad deficiente del engarzado puede causar la acumulación de
calor e incendios. Siga las instrucciones del fabricante para el conector de
engarzado.
•NO instale este producto ni trace ningún cableado en la zona de
despliegue de la bolsa de aire. Consulte el manual del propietario del
vehículo para obtener información de las zonas de despliegue.
•Durante el funcionamiento normal la unidad podría estar caliente al tacto.
•La instalación incorrecta de los conectores, fusibles o cableado podría
causar la falla o el incendio del vehículo.
•La instalación debe ser realizada únicamente por un técnico capacitado. El
instalador debe determinar la configuración del cableado del vehículo y la
integración adecuada del sistema.
•Utilice un calibrador de cables adecuado. Todos los cables de alimentación
conectados a un terminal de batería positivo (+) o negativo (-) o a la masa
del chasis local (-) deben tener la dimensión adecuada para suministrar al
menos 125 % de la corriente máxima y deben estar correctamente unidos
con fusible a la fuente de energía.
•Instalar arandelas protectoras cuando se trace el cableado a través del
cortafuego o metal.
AVISO:
Los instaladores y usuarios deben cumplir todas las leyes federales, estatales y locales con respecto al uso y la instalación de
dispositivos de advertencia. El uso o la instalación incorrecta podrían anular la cobertura de la garantía. Para revisar nuestra
Declaración de garantía limitada y Política de devolución para este o cualquier producto de SoundOff Signal, visite nuestro
sitio web www.soundoffsignal.com/sales-support. Si tiene alguna consulta con respecto a este producto, comuníquese
con Servicios técnicos de lunes a viernes de 8 a. m. a 5 p. m. al 1.800.338.7337 (presione el n.° 4 para pasar el mensaje
automático). Las preguntas o comentarios que no requieren una atención inmediata pueden enviarse por correo electrónico a
[email protected].
RELACIÓN SUPERIOR CON LOS CLIENTES. SOLUCIONES DE ILUMINACIÓN Y
ELECTRÓNICA DISEÑADAS DE FORMA INTELIGENTE
ADVERTENCIA
Protegido por la patente de EE. UU. 10,703,260 y patentes pendientes
https://soundoffsignal.com/legal/patent-notication/
4" DIMENSIONES / ESPECIFICACIONES TÉCNICAS . . . . . . . 14
3" DIMENSIONES / ESPECIFICACIONES TÉCNICAS . . . . . . . 15
INSTALACIÓN RÁPIDA / CON MONTAJE EN ESPÁRRAGO . . . 16
INSTALACIÓN DEL MONTAJE CON TORNILLO/BORDE. . . . . . . 17
INSTALACIÓN DE MONTAJE MÚLTIPLE / PLACA TRASERA . . . 18
INFORMACIÓN DE LA PLANTILLA DE AGUJERO DE 4" . . . . . . 19
INFORMACIÓN DE LA PLANTILLA DE AGUJERO DE 4" . . . . . . 20
INSTALACIÓN ELÉCTRICA / INFORMACIÓN . . . . . . . . . . . 21 - 24
!ADVERTENCIA
Este producto contiene dispositivos LED de alta
intensidad. Para prevenir el daño ocular, NO mirar
directamente al rayo de luz a corta distancia. Busque la última versión de la
hoja de instrucciones

1.800.338.7337 / www.soundoffsignal.com
15 4" & 3" MPOWER®FASCIA LIGHTS
SPANISH 0000JL 0823 REV B
11.45CM & 7.36CM MPOWER®LUCES SUPERFICIALES
4" mpower®DIMENSIONES / ESPECIFICACIONES:
10.16CM (4") MONTAJE CON TORNILLOS
10.16CM (4") MONTAJE RÁPIDO
10.16CM (4") MONTAJE CON PASADORES - ROSCADOS (MOSTRADO)
11.48CM
4.52"
2.33CM
0.92"
1.06CM
0.42"
ESPECIFICACIONES TECNICAS
Voltaje de entrada: 9-32Vdc
10.16cm CONSUMO DE CORRIENTE (Amps)
12.8Vdc 25.6Vdc
Pico Promedio Pico Promedio
Rojo 0.62 0.36 0.31 0.18
Ambar, Azul,
Verde o
Blanco 0.90 0.60 0.45 0.30
DESPUÉS DEL ENCENDIDO, conectar el cable BLANCO a tierra le permitirá
modificar varias configuraciones en el módulo. (consulte las pág. 23)
TABLA DE CONEXIONES DE CABLES
WIRE COLOR: FUNCTION:
ROJO Potencia (primaria)
NEGRO Tierra
VERDE** Sync2*
BLANCO A TIERRA Función del cable (consulte la
pág. 23)
BLANCO a POTENCIA Cable de función
ROJO/BLANCO Potencia (secundaria)
**Para sincronizar luces mPower múltiples, conectar el cable verde de cada
luz juntos.
*NO funcionará con otros productos Sync2 como Ghost, LED3 e
Intersector cableado de 4 con intermitente externo.
*Funcionará con los productos Sync2 nFORCE luces secundarias, nFORCE
FIT y luces de intersección cableado de 5.
1.06CM
0.42"
2.33CM
0.92"
11.45CM
2.97"
1.24CM
0.49"
2.33CM
0.92"
11.45CM
4.04"
1.57CM
0.62"
!ADVERTENCIA
Este producto contiene dispositivos LED de alta
intensidad. Para prevenir el daño ocular, NO mirar
directamente al rayo de luz a corta distancia.
Sinc.
Conguración/Función
NEGRO
ROJO
BLANCO
VERDE
ROJO/BLANCO
+Vdc
+Vdc
FUSIBLE DE 5 A
FUSIBLE DE 5 A

1.800.338.7337 / www.soundoffsignal.com
16 4" & 3" MPOWER®FASCIA LIGHTS
SPANISH 0000JL 0823 REV B
11.45CM & 7.36CM MPOWER®LUCES SUPERFICIALES
ESPECIFICACIONES TECNICAS
Voltaje de entrada: 9-32Vdc
7.36cm CONSUMO DE CORRIENTE (Amps)
12.8Vdc 25.6Vdc
Pico Promedio Pico Promedio
Rojo 0.62 0.26 0.31 0.13
Ambar, Azul,
Verde o
Blanco 0.90 0.38 0.45 0.19
DESPUÉS DEL ENCENDIDO, conectar el cable BLANCO a tierra le permitirá
modificar varias configuraciones en el módulo. (consulte las pág. 23)
3" mpower®DIMENSIONES / ESPECIFICACIONES:
!ADVERTENCIA
Este producto contiene dispositivos LED de alta
intensidad. Para prevenir el daño ocular, NO mirar
directamente al rayo de luz a corta distancia.
7.36CM (3") MONTAJE CON TORNILLOS
7.36CM (3") MONTAJE RÁPIDO
7.36CM (3") MONTAJE CON PASADORES - ROSCADOS (MOSTRADO)
8.69CM
3.43"
2.33CM
0.92"
1.06CM
0.42"
2.33CM
0.92"
1.06CM
0.42"
1.24CM
0.49"
7.55CM
2.97"
2.33CM
0.92"
7.55CM
2.97"
2.33CM
0.92"
7.55CM
2.97"
1.57CM
0.62" 1.47CM
0.58"
1.67CM
0.66"
7.36CM (3") FORD MONTAJE CON PASADORES - ROSCADOS (MOSTRADO)
Sinc.
Conguración/Función
NEGRO
ROJO
BLANCO
VERDE
ROJO/BLANCO
+Vdc
+Vdc
FUSIBLE DE 5 A
FUSIBLE DE 5 A

1.800.338.7337 / www.soundoffsignal.com
17 4" & 3" MPOWER®FASCIA LIGHTS
SPANISH 0000JL 0823 REV B
11.45CM & 7.36CM MPOWER®LUCES SUPERFICIALES
MONTAJE RÁPIDO INSTALACIÓN:
Montaje rápido (FIG. 1)
1. El patrón de preperforación por montaje rápido se indica
en la página 19 (4") or página 20 (3"). (Orificio para el
cable únicamente).
2. Elimine las rebabas del orificio según sea necesario.
3. Superficie limpia con toallita de alcohol suministrada.
4. Realice la conexión del cable y pase el cable a través del
orificio para perforado para el cable.
5. Retire la tira adhesiva de respaldo y alinee con
cuidado en la posición deseada. Aplique a la superficie
y mantenga firmemente durante 30 segundos.
¡PRECAUCIÓN! APLIQUE PRESIÓN UNIFORME EN TODA
LA EXTENSIÓN DE LA LUZ.
MONTAJE CON PASADORES ROSCADOS INSTALACIÓN:
Montaje con pasadores roscados (FIG. 2)
1. El patrón de preperforación por montaje rápido se indica
en la página 19 (4") or página 20 (3"). (Orificio para el
cable únicamente).
2. Elimine las rebabas del orificio según sea necesario.
3. Limpie la superficie según sea necesario.
4. Realice las conexiones de cables y pase el cable a través
del orificio perforado para cables.
5. Instale la luz, inserte 2 pasadores en los 2 orificios
perforados.
6. Instale 2 tuercas de seguridad en los pasadores por
detrás de la superficie de montaje. Ajuste a mano
solo hasta que la superficie de montaje y la luz estén
alineados. Después de que la tuerca haga contacto
total con la superficie de montaje, apriete 1/8 de vuelta
(torque no más de 15 en libras.)
FIG. 1FIG. 1
MONTAJE RÁPIDO
SUPERFICIE ADHESIVA
ORIFICIO PARA
CABLES
2 PASADORES ROSCADOS
2 TUERCAS DE
SEGURIDAD
SUPERFICIE DE MONTAJE
FIG. 2FIG. 2
MONTAJE CON PASADORES - ROSCADOS (MOSTRADO)
FORD GRILLE MONTAJE- ROSCADOS (SIMILAR, NO SE MUESTRA)
NO USE HERRAMIENTAS
ELÉCTRICAS PARA
APRETAR

1.800.338.7337 / www.soundoffsignal.com
18 4" & 3" MPOWER®FASCIA LIGHTS
SPANISH 0000JL 0823 REV B
11.45CM & 7.36CM MPOWER®LUCES SUPERFICIALES
TORNILLOS TORX DRIVE x2
MONTAJE CON TORNILLOS INSTALACIÓN:
Montaje con tornillos (FIG 3)
1. El patrón de preperforación por montaje rápido se
indica en la página 19 (4") or página 20 (3"). (Orificio
para el cable únicamente).
2. Elimine las rebabas y limpie la superficie según sea
necesario.
3. Realice las conexiones de cables y pase el cable a través
del orificio perforado para cables.
4. Instale la luz con 2 tornillos sin fin Torx y ajuste a mano
solo hasta que la superficie de montaje y la luz estén
alineados.
FIG. 3FIG. 3
MONTAJE CON TORNILLOS
SOPORTE DE MONTAJE EN EL BORDE INSTALACIÓN:
SOPORTE DE MONTAJE EN EL BORDE (FIG. 4)
P/N: PMP2BKEDGE
1. Instale el disipador de calor en la luz “mPOWER Montaje
con pasador roscado” según se indica. Pase el cable por
el orificio central.
2. Instale el soporte en la luz “mPOWER Montaje con
pasador roscado” según se indica. Pase el cable por la
descarga trasera hacia la descarga del agarre del borde
inferior.
3. Instale 2 tuercas de seguridad en la luz “mPOWER
Montaje con pasador roscado”. Ajuste a mano hasta el
tope.
4. Coloque el soporte sobre la superficie deseada del
borde del vehículo (es decir, el capó trasero), asegúrese
de que el cable esté completamente asentado en la
descarga trasera, envuelto alrededor del borde y en
posición plana.
5. Ajuste 2 tornillos de fijación a la superficie del borde del
vehículo.
6. Ajuste el ángulo de la luz en la dirección deseada y
ajuste 2 tuercas de seguridad hasta que queden fijas.
Después de que la tuerca haga contacto total con la
superficie de montaje, apriete 1/8 de vuelta (torque no
más de 15 en libras.)
7. Realice las conexiones de cables.
FIG. 4FIG. 4
SOPORTE DE MONTAJE EN EL BORDE
LUZ DE MONTAJE CON PASADORES ROSCADOS
DISIPADOR
DE CALOR
2 TUERCAS
DE SEGURIDAD
2 TORNILLOS DE FIJACIÓN
2 PASADORES ROSCADOS
BORDE DE 90° ± 15°
SOPORTE DE MONTAJE
NO USE HERRAMIENTAS
ELÉCTRICAS PARA
APRETAR
NO USE HERRAMIENTAS
ELÉCTRICAS PARA
APRETAR

1.800.338.7337 / www.soundoffsignal.com
19 4" & 3" MPOWER®FASCIA LIGHTS
SPANISH 0000JL 0823 REV B
11.45CM & 7.36CM MPOWER®LUCES SUPERFICIALES
SOPORTE DE MONTAJE MÚLTIPLE INSTALACIÓN:
Soporte de montaje múltiple (FIG. 1)
P/N: PMP2BKDGAJ
1. Preperfore los orificios de montaje según sea necesario.
Los orificios del soporte y el espaciado se indican en la
página 19 (4") or página 20 (3").
2. Coloque el soporte sobre la superficie deseada del
vehículo y asegúrelo con tornillos (no provistos).
3. Instale el disipador de calor en la luz “mPOWER Montaje
con pasador roscado” según se indica. Pase el cable por
el orificio central.
4. Instale la luz “mPOWER Montaje con pasador roscado”
sobre el soporte según se indica. El cable pasa por la
descarga trasera.
5. Instale 2 tuercas de seguridad en la luz “mPOWER
Montaje con pasador roscado” según se indica. Ajuste a
mano hasta el tope.
6. Ajuste el ángulo de la luz en la dirección deseada y
ajuste 2 tuercas de seguridad hasta que queden fijas.
Después de que la tuerca haga contacto total con la
superficie de montaje, apriete 1/8 de vuelta (torque no
más de 15 en libras.)
7. Realice las conexiones de cables.
MONTAJE DE LA PARRILLA INSTALLATION:
Placa trasera de montaje en rejilla (FIG. 2)
P/N: PMP2BKGBPB
1. Taladre previamente los orificios de montaje según sea
necesario (los orificios de los soportes y el espacio se
indican en la página 19 (4") o en la página 20 (3").
2. Coloque el soporte en la superficie deseada del vehículo
y asegúrelo con tornillos (no incluidos).
3. Instale el disipador de calor en la luz “mPOWER Stud
Mount, Threaded” como se indica. El cable pasa por el
orificio central.
4. Instale la luz “mPOWER Stud Mount, Thread” en el
soporte como se indica. El cable pasa a través del alivio
trasero.
5. Instale 2 contratuercas en la luz “mPOWER Stuf Mount,
Thread” como se indica. Apriete a mano hasta el ajuste
final.
6. Ajuste el ángulo de la luz en la dirección deseada y
apriete las 2 contratuercas hasta que quede firme.
Después de que la tuerca haga contacto total con la
superficie de montaje, apriete a mano 1/8 de vuelta (un
par de torsión no superior a 15 in-lbs.)
7. Haga conexiones de cables.
FIG. 1FIG. 1
SOPORTE DE MONTAJE MÚLTIPLE
AGUJERO DE
ALAMBRE
SUPERFICIE DE MONTAJE
FIG. 2FIG. 2
*PARA USO CON STUF MOUNT PODERS ÚNICAMENTE SOPORTE DE
MONTAJE DE LA REJILLA
SOPORTE AJUSTABLE DE 90° ± 15°
LUZ DE MONTAJE CON PASADORES
ROSCADOS
DISIPADOR DE CALOR
2 TUERCAS
DE SEGURIDAD
2 PASADORES ROSCADOS
NO USE HERRAMIENTAS
ELÉCTRICAS PARA
APRETAR
NO USE HERRAMIENTAS
ELÉCTRICAS PARA
APRETAR
2 PASADORES ROSCADOS

1.800.338.7337 / www.soundoffsignal.com
20 4" & 3" MPOWER®FASCIA LIGHTS
SPANISH 0000JL 0823 REV B
11.45CM & 7.36CM MPOWER®LUCES SUPERFICIALES
LUCES SUPERFICIALES - 10.16CM
50mm
[1.97”]
20mm
[.787”]
10mm
[.394”]
4mm [.157”]
Ø 4mm x2
[Ø.157”]
4" MULTI-MOUNT BRACKET
0.92
23.5
4.52
114.9
WIRE THRU-HOLE
DRILL
7/16
11.00
2X DRILL
INSERT HOLES
0.04±0.01
1.00±0.15
2.15±0.01
54.50±0.25
2.15±0.01
54.50±0.25
WIRE THRU-HOLE
DRILL
7/16
11.00
2X DRILL
INSERT HOLES
0.16±0.01
4±0
0.98±0.01
25±0
0.98±0.01
25±0
0.92
23.5
4.07
103.5
WIRE THRU-HOLE
DRILL
7/16
11.00
0.92
23.5
4.07
103.5
0.42
10.77
0.42
10.77
0.49
12.3
0.48
12.2
SCREW MOUNT, 4" STUD MOUNT, THREADED, 4"
QUICK MOUNT, 4"
REVISION LOG
REV
DESCRIPTION
1
A A
B B
C C
D D
E E
F F
G G
H H
J J
K K
L L
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
EMPX2XXXXXXX-INSTALL
MATERIAL:
4" SCREW MOUNT
THIRD ANGLE
PROJECTION
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DRAWING IS THE SOLE
PROPERTY OF SOUNDOFF SIGNAL.
ANY REPRODUCTION IN PART OR
AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF
SOUNDOFF SIGNAL IS PROHIBITED.
®
A
REVISION:
DESCRIPTION:
SHEET
1 OF 3
DRAWING
SIZE:
DO NOT SCALE
TOLERANCES
EXCEPT AS NOTED
.X ± .020
.XX ± .012
.XXX ± .006
ANGLES ± .5°
PRIMARY DIMS:
MILLIMETERS
DUAL DIMS: [INCH]
D
DRAWING NO:
GD&T TO FOLLOW
ASME Y14.5M-1994
CAD DIMENSIONS ARE BASIC
UNLESS OTHERWISE SPECIFIED
PATRÓN DE ORIFICIO DE MONTAJE CON TORNILLOS
PREPERFORADO
ORIFICIO DE PASO
DEL CABLE
PERFORAR
0.92
23.5
4.52
114.9
WIRE THRU-HOLE
DRILL
7/16
11.00
2X DRILL
INSERT HOLES
0.04±0.01
1.00±0.15
2.15±0.01
54.50±0.25
2.15±0.01
54.50±0.25
WIRE THRU-HOLE
DRILL
7/16
11.00
2X DRILL
INSERT HOLES
0.16±0.01
4±0
0.98±0.01
25±0
0.98±0.01
25±0
0.92
23.5
4.07
103.5
WIRE THRU-HOLE
DRILL
7/16
11.00
0.92
23.5
4.07
103.5
0.42
10.77
0.42
10.77
0.49
12.3
0.48
12.2
SCREW MOUNT, 4" STUD MOUNT, THREADED, 4"
QUICK MOUNT, 4"
REVISION LOG
REV
DESCRIPTION
1
A A
B B
C C
D D
E E
F F
G G
H H
J J
K K
L L
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
EMPX2XXXXXXX-INSTALL
MATERIAL:
4" SCREW MOUNT
THIRD ANGLE
PROJECTION
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DRAWING IS THE SOLE
PROPERTY OF SOUNDOFF SIGNAL.
ANY REPRODUCTION IN PART OR
AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF
SOUNDOFF SIGNAL IS PROHIBITED.
®
A
REVISION:
DESCRIPTION:
SHEET
1 OF 3
DRAWING
SIZE:
DO NOT SCALE
TOLERANCES
EXCEPT AS NOTED
.X ± .020
.XX ± .012
.XXX ± .006
ANGLES ± .5°
PRIMARY DIMS:
MILLIMETERS
DUAL DIMS: [INCH]
D
DRAWING NO:
GD&T TO FOLLOW
ASME Y14.5M-1994
CAD DIMENSIONS ARE BASIC
UNLESS OTHERWISE SPECIFIED
PLANTILLA ROSCADA DE MONTAJE CON TORNILLOS
PREPERFORADO
ORIFICIO DE PASO
DEL CABLE
PERFORAR
SOPORTE DE MONTAJE MÚLTIPLE
NOTA IMPORTANTE:
Debido a las variaciones en el proceso de impre-
sión y a factores ambientales, los tamaños mos-
trados podrían ser imprecisos. Si este documento
se utiliza como patrón de corte, es responsabi-
lidad de los instaladores confirmar la precisión
de las dimensiones mostradas y ajustarlas de
manera correspondiente.
