Soundoff Signal ULTRALITE PLUS User manual

1.800.338.7337 / www.soundo󰀨signal.com
1EL3PHØ2AØ+(X) 0919
!
WARNING
This product contains high intensity LED devices.
To prevent eye damage, DO NOT stare into the
light beam at close range.
INSTALLATION:
Important: DO NOT over tighten
mounting screws or nuts. This could
cause permanent damage to the unit.
Use hardware supplied for mounting.

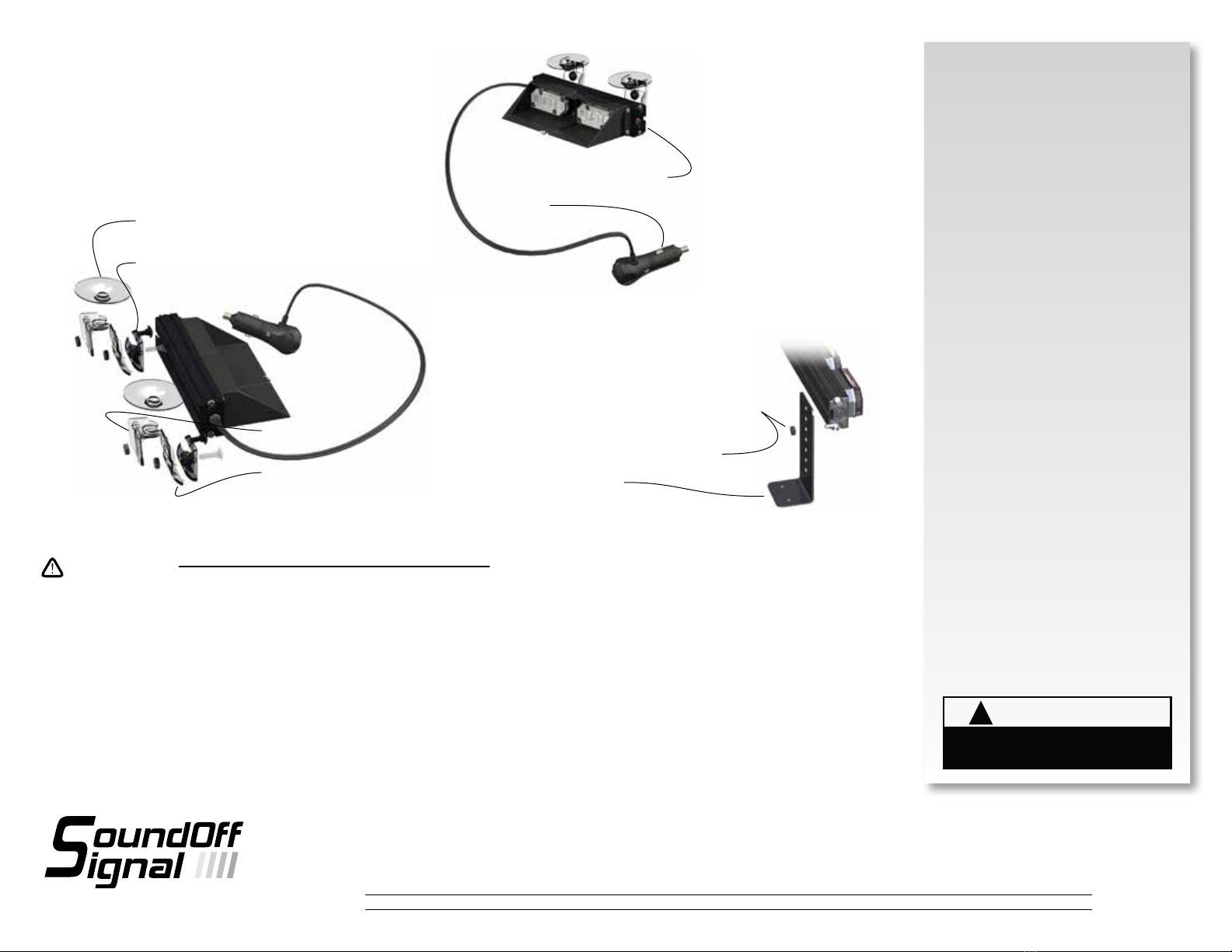

1. Assemble the UltraLITE as shown in
the exploded illustration by inserting
the carriage bolt in the channel on the
back of the light.
2. Install the pivot block and the angular
adjustment arm on the bolt and
loosely secure with a nut.
3. Install the head adjustment arm as
shown and lightly secure with nut.
4. Snap suction cups into place.
5. Press suction cups to windshield
assuring that unit is not located
where it obstructs the driver’s vision
or in the area of air-bag deployment.
6. Make sure the light is horizontal and
carefully tighten all nuts.
7. Plug cigarette plug into receptacle
and refer to operation instructions to
activate light.
For your convenience a universal
bracket is supplied if a deck mount
application is desired.
WINDSHIELD LIGHT
EL3PHØ2AØ+(x)
PATTERN SELECT - ON/OFF SWITCH
12V ADAPTOR
SUPPLIED BAR MOUNTING HARDWARE
UNIVERSAL BRACKET
SUCTION CUP
PIVOT BLOCK
ANGULAR ADJUSTMENT
HEIGHT ADJUSTMENT
ULTRALITE PLUS
INTERIOR WARNING BAR
NOTICE:
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage.
To review our Limited Warranty Statement & Return Policy for this or any SoundO Signal product, visit our website at www.soundosignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. or after hours 5 p.m. to 8 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundosignal.com.
SUPERIOR CUSTOMER RELATIONSHIPS. SMARTLY DESIGNED LIGHTING & ELECTRONIC SOLUTIONS.
Please see reverse for Technical Specications
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat build-up and re. Follow crimp connec-
tor manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle Owner’s Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or re.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring conguration and proper integration
of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal or local chassis ground (-) must be
sized to supply at least 125% of max. current and properly fused at power source.
•Install protective grommets when routing wire through rewall or metal.
WARNING

1.800.338.7337 / www.soundo󰀨signal.com
2EL3PHØ2AØ+(X) 0919
Flash Patterns
Alternating Patterns
FPM
(Flashes per Minute)
1. Quint 70
2. Warp 350
3. Inter-Cycle Flash
4. Double Flash 70
5. Quad Flash 80
6. Power Pulse 180
7. RoadRunner 113
8. Q-Switch
9. RoadRunner Steady Burn 113
10. Quad Steady Burn 80
11. E-Ideal Single Flash 200
12. E-Ideal Double Flash 146
13. Quad2 Flash 67
14. Double2 Flash 95
15. X-Warp
16. X-Double
17. PowerRunner
18. LCR Quint
19. Warp3
20. UltraWarp 545
21. Thunder and Lightning
22. LiteSpeed 85
23. SuperSonic 170
24. LCR LiteSpeed
25. SuperSonic Ultra
26. TempoShift
27. TempoShift Warp
28. SBE2 67
29. C2200
30. U2176
31. UltraGlow
32. Cyclone
33. Chameleon
WINDSHIELD LIGHT
EL3PHØ2AØ+(x)
TECHNICAL SPECIFICATIONS
Overall Dimensions: 6.9”L x 1.54”H x 3.56”D
Flash Patterns: 33 ash patterns
Input Voltage Range: 10 - 16 Vdc
Current Consumption: <1 amp*
# of LEDs: 6 Generation 3 LEDs
Operating Temperature: -40º to +65º C
*Pattern Dependent
ULTRALITE PLUS
INTERIOR WARNING BAR OPERATION:
1. Plug the 12V adaptor into the
appropriate receptacle and turn plug
switch ON.
2. Press the button for less than one
second (momentary) to move
forward one pattern.
3. Press and hold the button for one
second (until the lights dim) to move
to the rst pattern.
4. Press and hold the button for more
than two seconds (until the lights
turn off) to turn off the UltraLITE.
5. To turn the unit back on, press the
button again.
