1 About this product
1 About this product
The Flex Active Frames from Steelcase is subject to
continuous quality control during manufacture and dis-
tribution. This ensures fault-free functionality.
Steelcase applies a quality management system that meets
the requirements of DIN EN ISO 9001.
Flex Active Frames is GS-qualified.
1.1 Intended use
Flex Active Frames are designed exclusively as furniture for
commercial use (e.g. offices) and for use in publically
accessible interior spaces (e.g. cultural and educational
facilities). Any other use, or use beyond the specified intended
use is considered to be improper.
Intended use also includes following all instructions
in the Quick Reference Guide.
1.1.1 Foreseeable misuse
Improper use of the product can result in dangers to life and
limb as well as property damage. For this reason, improper use
is prohibited. In the event of improper use, Steelcase assumes
no liability for any damage that could occur and does not
guarantee that the components will function properly.
Possible improper use includes:
■Use as a climbing aid.
■Use as permanent placement surface for objects with
a total weight greater than the permissible load
capacity per shelf (see Technical data on page6).
4
EN

1 About this product
■Outdoor use.
■Use in damp rooms.
This list does not claim to be exhaustive.
5
EN

2 Product description
2 Product description
Flex Active Frames are highly flexible and multifunctional
solutions that provide space, storage space for teams and
individuals, which support dynamic collaboration and can be
equipped to meet individual needs.
2.1 Technical data
Configuration (Base Unit +
Extension Units) view from
above
Width (WK) = number of 400 units
x grid width/depth 400 + number
of the 800 units x grid width/depth
800 + 35 mm (at least 835 mm)
Depth (DK) = number of 400 units
x grid depth/width 400 + number
of 800 units x grid depth/width
800 + 35 mm (at least 435 mm)
Calculation example 1:
WK= (0 · 400) + (3 · 800) + 35
mm = 2435 mm
DK= (2 · 400) + (0 · 800) + 35
mm = 835 mm
Calculation example 2:
WK= (2 · 400) + (1 · 800) + 35
mm = 1635 mm
DK= (1· 400) + (1· 800) + 35 mm
= 1235 mm
Dimensions (Base Unit) Grid width (W): 400 / 800 mm
(Single unit: 435 / 835 mm)
Grid depth (D): 400 mm
(Single unit: 435 mm)
Height (H): 515 mm (1H), 915
6
EN

2 Product description
mm (2H), 1315 mm (3H), 1715
mm (4H), 2115 mm (5H)
Dimensions (Extension Unit) Grid width (W): 400 / 800 mm
Grid depth (D): 400 mm
Height (H): 515 mm (1H), 915
mm (2H), 1315 mm (3H), 1715
mm (4H), 2115 mm (5H)
Dimensions (Work Island) Width: 2042 mm
Depth: 442 / 842 mm
Height: 1050 mm (2H+)
Dimensions (Work Bridge) Width: 2042 mm
Depth: 442 / 842 mm
Height: 1050 mm (2H+)
Dimensions (Media Tower -
Internal Mount)
Grid width(3 Units): 1600 mm
Grid depth: 400 mm
Height: 1717 mm (4H), 2117 mm
(5H)
Worksurface Top (optional):
Seating height: 750 mm
7
EN

2 Product description
Standing height: 1050 mm
Maximum load capacity per shelf
(according to sizes)
400 x 400 mm = 24 kg
400 x 800 mm = 48 kg
800 x 800 mm = 96 kg
400 x 1600 mm = 30 kg
Maximum load capacity of table 75 kg
Temperature range at the place
of installation
+5°C to +40°C
Maximum permissible monitor
size
65'' / 162 cm
Maximum permissible monitor
weight
30kg
The product sticker is inside on a side panel of the
Base Plate.
}Lift out the lowest shelf and possibly also the coun-
terweights to access the inside.
2.2 Components
Flex Active Frames are available in these four variants:
Flex Active Frames Product parts
Base Unit and Extension Units Base Unit (frame structure):
1 Base Plates (powder-coated steel)
4 tubes (powder-coated steel) incl. top
cap (zinc-aluminium) + glides (plastic)
2 - 6 shelves (depending on the con-
figuration, composite wood with
melamine coating)
Extension Units (frame structure):
1 Base Plates (powder-coated steel)
8
EN

2 Product description
Flex Active Frames Product parts
2 tubes (powder-coated steel) incl. top
cap (zinc-aluminium) + glides (plastic)
2 - 6 shelves (depending on the con-
figuration, composite wood with
melamine coating)
Media Tower - Internal Mount
Variant with table
3 Base Plates (powder-coated steel)
8 tubes (powder-coated steel) incl. top
cap (zinc-aluminium) + glides (plastic)
1 Media Shroud Back Panel (composite
wood with melamine coating)
2 Media Shroud Side Panels (melamine
or PET)
1 Media Shelf with door (lockable)
1 Media Bracket internal (powder-
coated steel)
3 Media Fixed Boards (3H, 4H, 5H)
7-10 shelves (depending on the con-
figuration, composite wood with
melamine coating)
1 Worksurface Top (composite wood
with melamine or linoleum coating) in
these variants:
D-shape, rectangular, trapezoidal
The product meets the requirements
of Directive EN 15372 - Level 2.
Work Island 3 - 5 Base Plates (powder-coated steel)
8 - 12 tubes (powder-coated steel)+
glides (plastic)
6 - 15 shelves (depending on the con-
figuration, composite wood with
melamine coating)
9
EN

2 Product description

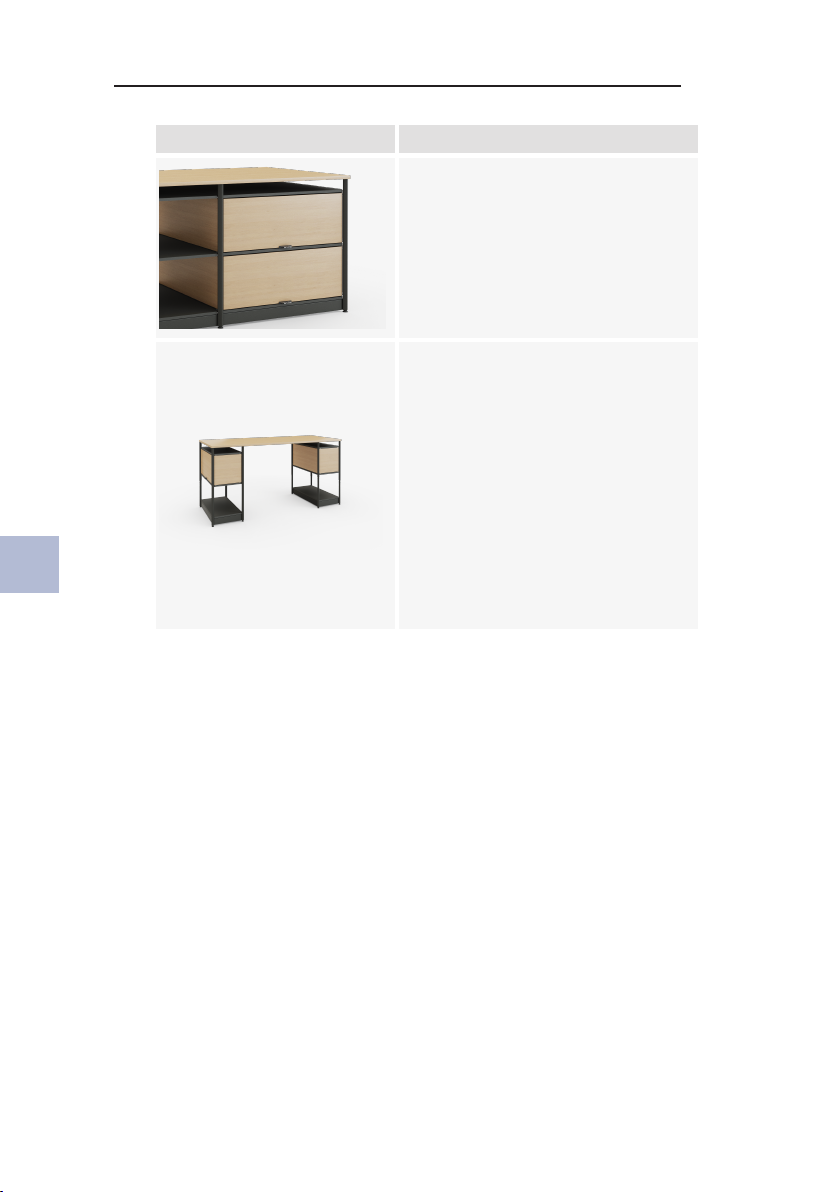

Flex Active Frames Product parts
1 Worksurface Top (composite wood
with melamine or linoleum coating or
plywood)
The product meets the requirements
of Directive EN 15372 - Level 2.
Work Bridge 2 Base Plates (powder-coated steel)
8 tubes (powder-coated steel) + glides
(plastic)
6 shelves (composite wood with
melamine coating)
1 Worksurface Top (composite wood
with melamine or linoleum coating or
plywood)
The product meets the requirements
of Directive EN 15372 - Level 2.
All available components are specified in the separate
technical description and in the price list.
For detailed product information and for additional orders and
subsequent deliveries, please contact our Customer Service
Department (see Service on page24).
2.3 Accessories
A wide range of accessories is available in various materials,
surfaces and dimensions. Please follow the instructions for
using the components and accessories (see Operating and
adjusting on page16).
The following accessories are available for Flex Active
Frames:
10
EN

2 Product description

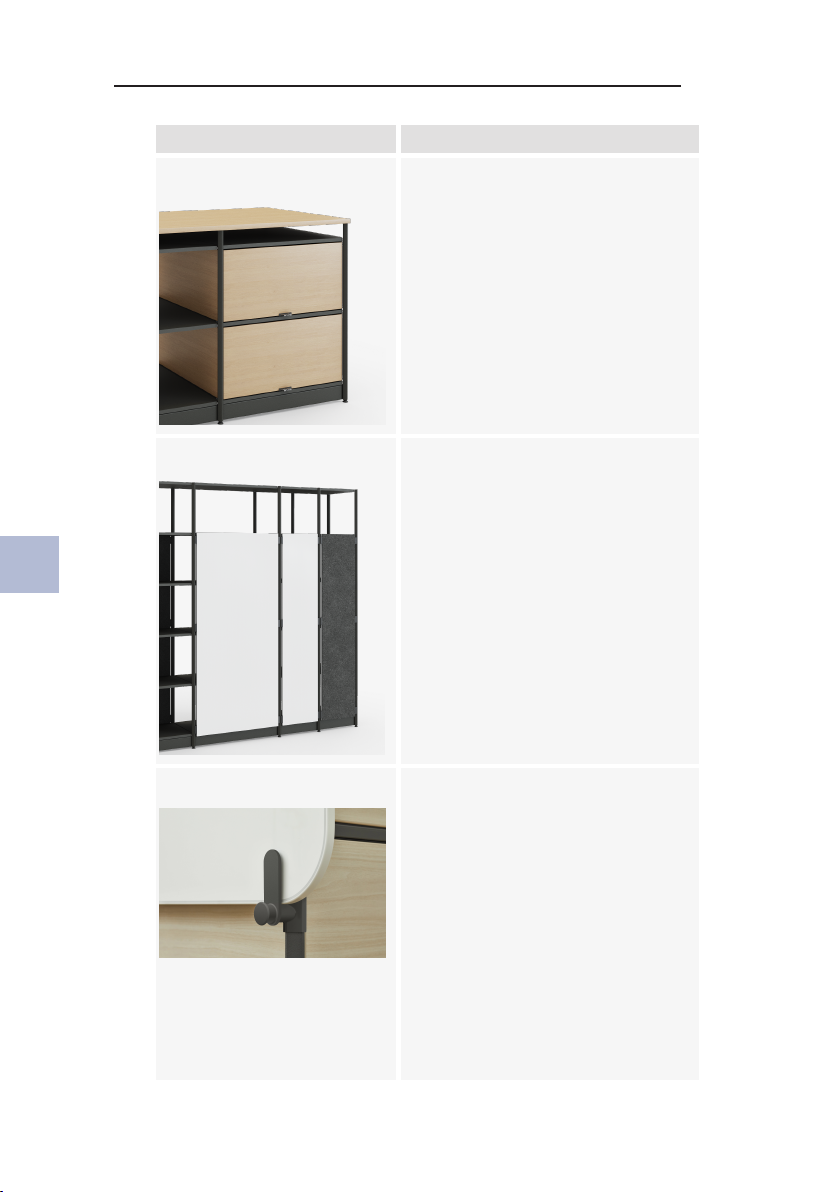

Optional accessories Characteristics

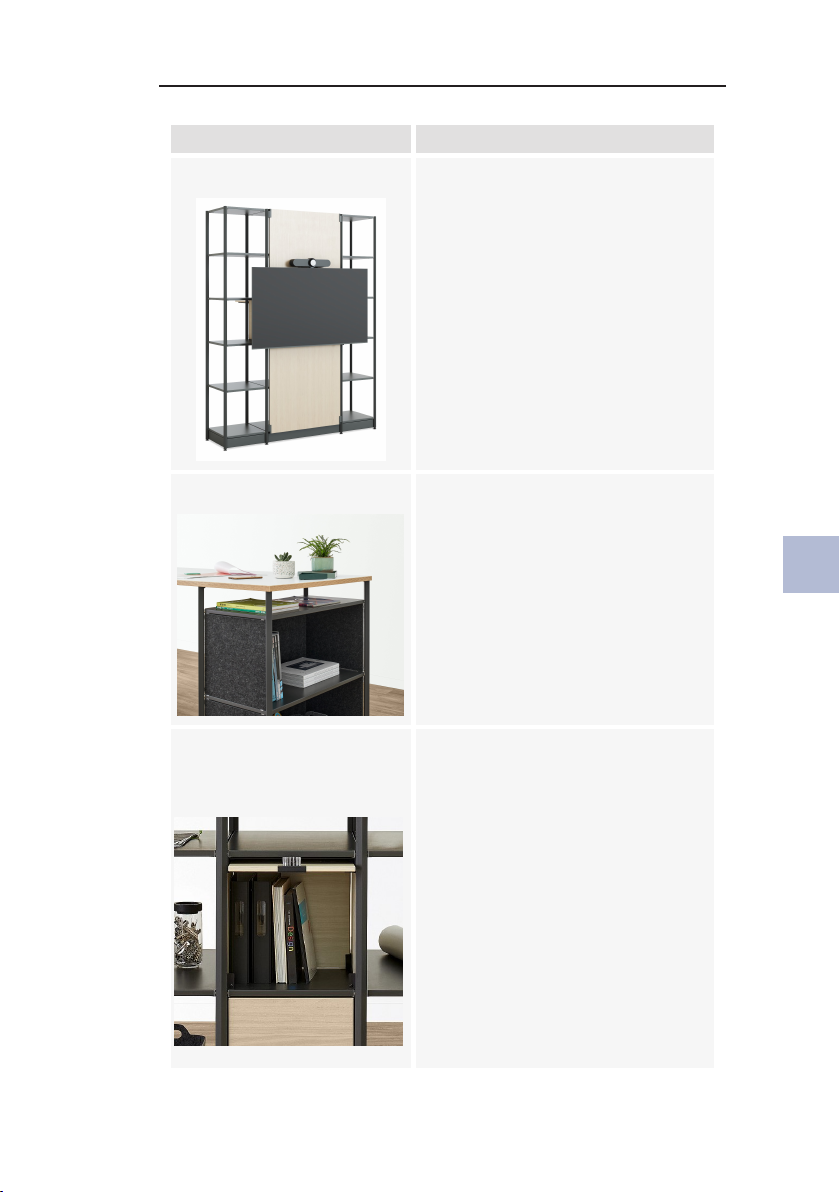

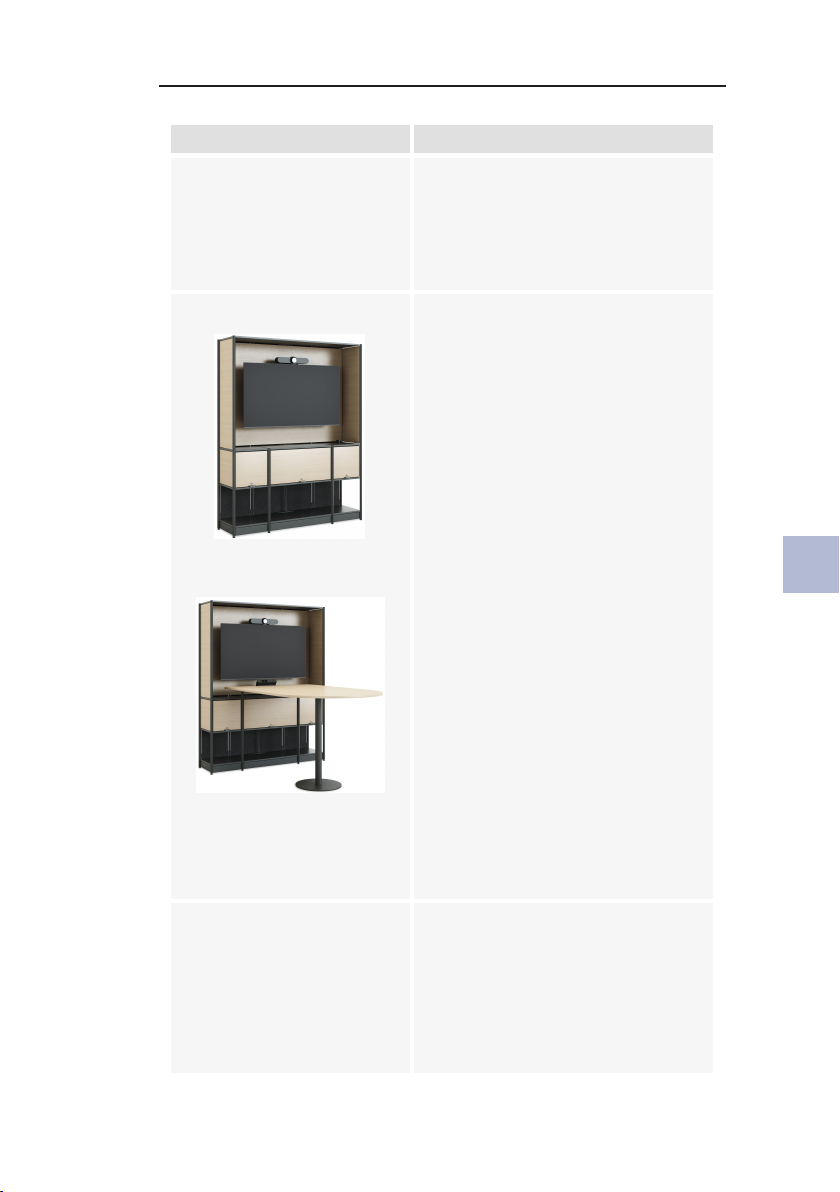

Media Tower - External Mount Media Brackets - external
Media Fixed Board
Media Shelf with door (lockable)
Infill Panel PET (soft) or composite wood with
melamine coating (hard)
Size: 400 x 400 mm, 800 x 400 mm
Center Infill Panel (only
available for Work Island and
Work Bridge)
PET (soft) or composite wood with
melamine coating (hard)
Size: 400 x 400 mm, 800 x 400 mm
Set of two Side Panels and one Inter-
mediate Panel
11
EN

2 Product description
Optional accessories Characteristics
Flap Door Composite wood with melamine
coating (hard) – can only be
combined with Infill Panels or Center
Panel
Size: 400 x 400 mm, 800 x 400 mm
Please note: For a Work Island and a
Work Bridge with a depth of 842 mm
the compartment must be divided by
a Center Panel, in order to attach a
Flap Door on both sides.
Fixed Board Variants: Whiteboard, Pin-
board/Whiteboard, melamine
(composite wood with melamine coating)
Width: 400 / 800 mm
Height: 1220 mm (3H), 1620 mm
(4H), 2020 mm (5H)
Mobile Board Clips 4 clips made of plastic
12
EN

2 Product description
Optional accessories Characteristics
Bookend 2 Bookends of powder-coated steel
Coat Rod Powder-coated steel
Width: 400 / 800 mm
Cable Clip 6 clips made of plastic
Cushion Size: 400 x 400 mm, 400 x 800 mm
Please contact our Customer Service Department for detailed
information on available system components and for additional
orders and subsequent deliveries (see Service on page24).
13
EN

3 Transport and assembly
3 Transport and assembly
3.1 Checking the delivery contents
After unpacking, check the product immediately for damage
sustained during transport and for completeness; inform the
manufacturer of any damage as soon as possible.
3.2 Assembly
Please follow the provided assembly directions for assembly of
the shelves or bridges Flex Active Frames.
Steelcase recommends having the authorised dealer
or an assembly company assemble the desk.
Assembly of the Frame Active Frames always starts with a
Base Unit followed by Extension Units.
The accessories are mounted in this sequence:
1. Coat Rod, 2. Fixed Board, 3. Infill Panel and Center Panel, 4.
Flap Door, 5. Media Tower - Components, 6. Board Clips and
Cable Clips, 7. Bookend and ToolBox
Attaching accessories
Please follow the provided assembly directions for attaching
accessories. The assembly directions are also available online
at:
www.steelcase.com/eu-en/ > Design Resources > Documents >
Assembly Directions > Search: Flex Active Frames
14
EN

3 Transport and assembly
Mounting the monitor
Please refer to the manufacturer's assembly
directions to mount the monitor to the supplied
monitor mount.
The monitor must not exceed 65'' / 165 cm in size, and it
should not weigh more than 30 kg.
15
EN

4 Operating and adjusting
4 Operating and adjusting
4.1 Safety instructions
The Units of the Flex Active Frames may only be used and
operated in a technically faultless condition and in compliance
with the Quick Reference Guide.
Before using the Flex Active Frames, ensure that:
■The product has been assembled in accordance with
the accompanying assembly directions.
Flex Active Frames accessories can be placed on the
shelves or frame units.
DANGER
The shelf structure or bridge structure can
be damaged if it tips over or is unstable!
Risk of severe injuries!
}Do not use improperly as a means of support.
}Do not climb onto the structure.
}Do not stand on the structure.
}Do not lean against the structure.
}Do not climb onto or sit on the shelves.
}Do not exceed the standard maximum limit.
}To move the structure, follow the relevant assembly
and disassembly directions.
16
EN

4 Operating and adjusting
DANGER
Danger due to voltage!
Failure to comply can cause serious injury and death!
}Do not earth electrical equipment at the Flex Active
Frames frame!
}Attach or detach connectors only in a de-energised
state.
}Rectify defects such as loose connections or
damaged cables immediately.
WARNING
Injury and damage due to falling objects!
}Do not keep objects that are too heavy on the shelves
or fasten them on the frame structure. Pay attention
to the maximum load capacity per shelf.
}Only put objects on the designated placement sur-
faces.
}Mount accessories properly as described in the
assembly directions.
WARNING
Cables lying around cause tripping hazards!
}Keep passages clear of cables.
}Route the cables so that they do not pose a risk of
tripping.
17
EN

4 Operating and adjusting
WARNING
Risk of injury due to monitors come crashing
down!
}Do not stay under the monitor.
}Check the monitor for secure attachment before use.
}Install the monitor mount in accordance with the
assembly directions.
PLEASE NOTE
Risk of material damage!
}Follow the assembly instructions.
}Pay attention to the maximum load capacity.
}Take the cleaning and care instructions into account.
For safety reasons, counterweights are to be installed
in the Base Plate in some configurations.
4.2 Operation
4.2.1 Rules for use of counterweights
If the purchased configuration is arbitrarily changed, the
following rules for use of the counterweights for the single
units must be applied:
18
EN

4 Operating and adjusting
Description of units
General rules for use of counterweights in the con-
figurations:
No counterweight is needed if the configuration
exceeds the total weight below, taking into account
the highest unit
1H 5 kg
2H 15 kg
3H 25 kg
4H 45 kg
5H 55 kg
Media Tower (monitor) 4H 117,5 kg
Media Tower (monitor) 5H 150kg
Otherwise, counterweights (7 kg) must be used to compensate
for the weight difference.
19
EN

4 Operating and adjusting
Unit width Unit
height
Number of
shelves
Number of
counterweights
1 W
1H 2 0
2H 2 1
30
3H 2 2
31
41
4H Caution: The Unit is unstable!
5H
2W
1H 2 0
2H 2 0
30
3H 2 1
30
40
4H 2 3
33
42
51
5H 2 4
34
43
52
62
20
EN
