Steelcase SERIES 8 User manual

SERIES 5
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE(888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©2015 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.
®
Page 1 of 38
939564909 Rev B
Single Sided Height Adjustable Benching
Long #2 Square
Drive Bit
Bit Holder
Power Drill
Hex Key - 3mm
10mm
Wrench
Ratchet
8mm & 10mm
Sockets
Level
Hex Key - 2.5mm
(Provided)
5mm
Hex Drive Bit
T-30
Torx Drive Bit
Socket Adaptor
(or)
SERIES 8

Page 2 of 38
939564909 Rev B
®
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
The power socket/outlet shall be installed near the equipment and shall be easily accessible.
GROUNDED
OUTLET
GROUNDED
OUTLET BOX
(A)
(B)
METAL
SCREW
ADAPTER
TAB FOR
GROUNDING
SCREW
When using an electrical furnishing, basic precautions should always be followed, including the following:
Read all instructions before using (this furnishing).
DANGER - To reduce the risk of electric shock:
1. Always unplug this furnishing from the electrical outlet before cleaning.
WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Always unplug this furnishing from the electrical outlet before cleaning.
2. Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.
3. Use this table only for its intended use as described in these instructions. Do not use attachments not
recommended by the manufacturer.
4. Never operate this table if it has a damaged cord or plug, if it is not working properly, if it has been dropped or
damaged, or dropped into water.
5. Keep the cord away from heated surfaces.
6. Never drop or insert any object into any opening.
7. Do not use outdoors.
8. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
9. For loading always put heavier items at the bottom and not near the top in order to help prevent the possibility
of the furnishing tipping over.
OPERATING INSTRUCTIONS - Please refer to the attached Installation Instructions and the provided User Guide.
USER-MAINTENANCE INSTRUCTIONS - The receptacle power block is equipped with a circuit breaker that will shut
off power in an overload condition. Press to reset the circuit breaker to restore power.
GROUNDING INSTRUCTIONS (Series 5 only) - This product must be grounded. Connect this appliance to a properly
grounded outlet only. If it should malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
POLARIZED PLUG INSTRUCTIONS (Series 8 only) - To reduce the risk of electrical shock, this furnishing has a
polarized plug (one blade is wider than the other) like the plug illustrated in Figure 1. This plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified
electricial to install the proper outlet. Do not change the plug in any way.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with
a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify
the plug provided with the product - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 120-V circuit and has a grounding plug that looks like the plug illustrated in
sketch A in Figure 2. Make sure that the product is connected to an outlet having the same configuration as the plug.
No adapter should be used with this product.
GROUNDING
PIN
SERIES 8 ONLY
SERIES 5 ONLY
Figure 1
Polarized Plug
Figure 2
Grounding methods
GROUNDED
OUTLET BOX

Page 3 of 38
939564909 Rev B
®
TABLE OF CONTENTS:
4
5
6 - 7
8
9
10 - 13
14
15
16
17
19
20
21
22
23
24
26 - 27
28
29 - 30
31
32 - 35
36 - 37
Lets Get Started!............................................................................................
Attaching Mounting Plate to Lifting Columns (Series 5 & 8)......................
Mounting Lifting Columns to Worksurfaces (Series 5 & 8)........................
Series 5 Table Assembly
- Determine Switch Position on your Table...............................................
- Identify the Master & Slave Motors.........................................................
- Installing Driveshafts..............................................................................
- Installing Switch & Power Supply............................................................
- Attaching Driveshaft Covers & Wire Managers......................................
- Connect and Route All Cables................................................................
- Connecting the Table Assemblies & Installing the Center Beam............
- Finishing the Table Assembly..................................................................
Series 8 Table Assembly
- Attaching Control Box & Wire Managers................................................
- Connecting & Routing Cables................................................................
- Attaching the Controller..........................................................................
- Finishing the Lifting Column Installation.................................................
- Connecting the Table Assemblies & Installing the Center Beam............
- Finishing the Table Assembly..................................................................
Installing the Inline Connector........................................................................
Assembling & Attaching the Modular Power Blocks......................................
Assembling & Attaching the Hardwire Power Blocks.....................................
STOP - Electrical Inspection Required before moving on!
Attaching the Power Trays & Data Tray.........................................................
Attaching Interior Covers...............................................................................
PAGE(S):

Page 4 of 38
939564909 Rev B
®
Prepare a large open space to assemble the table.
1
•Sweep the floor!Screwsand small parts can damage
the worksurface.
•Put down a CLEAN shipping blanket to protect the worksurfaces.
Unpack the worksurfaces and place on the shipping blanket upside-down.
2
•REMEMBER - You're looking at the UNDERSIDE of the worksurfaces.
Are you sure which sideis left or right and front or rear?

Page 5 of 38
939564909 Rev B
®

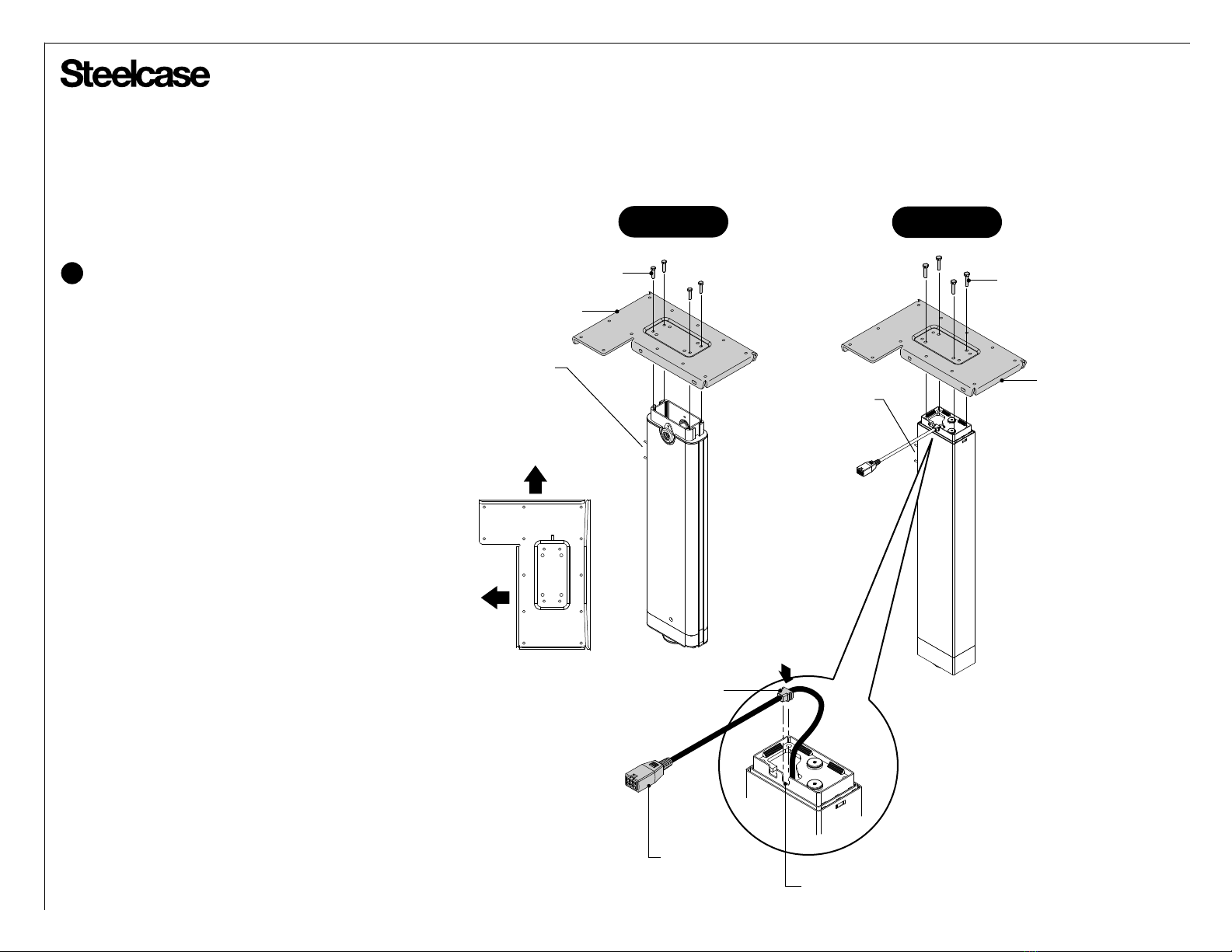

AttachingMounting Plate to Lifting Columns
Series 8 lifting columns are handed.
Securethe plastic strain relief block in
the notch provided in each lift column
before assembling mounting plate.
Locate and install each mounting plate
using 5mm (for Series 5) or 6mm (for
Series 8) hex head fastenersprovided.
Do not over-tighten.
3
8mm HEX HEAD M5x 25 BOLTS
WIRING
HARNESS,
NOTCH
MOUNTING PLATE
MOUNTING PLATE
10mm HEX HEAD M6 x 25 BOLTS
TOWARD CENTER
OF WORKSURFACE
TOWARD BACK
OF WORKSURFACE
PLASTIC STRAIN RELIEF
TOWARD CENTER
OF WORKSURFACE
STUDS ON BACK OF
LIFTING COLUMN
(TIGHTEN GENTLY WITH
3mm HEX KEY IF LOOSE)
Series 5 Series 8
STUDS ON BACK OF
LIFTING COLUMN
(TIGHTEN GENTLY WITH
3mm HEX KEY IF LOOSE)

Page 6 of 38
939564909 Rev B
®

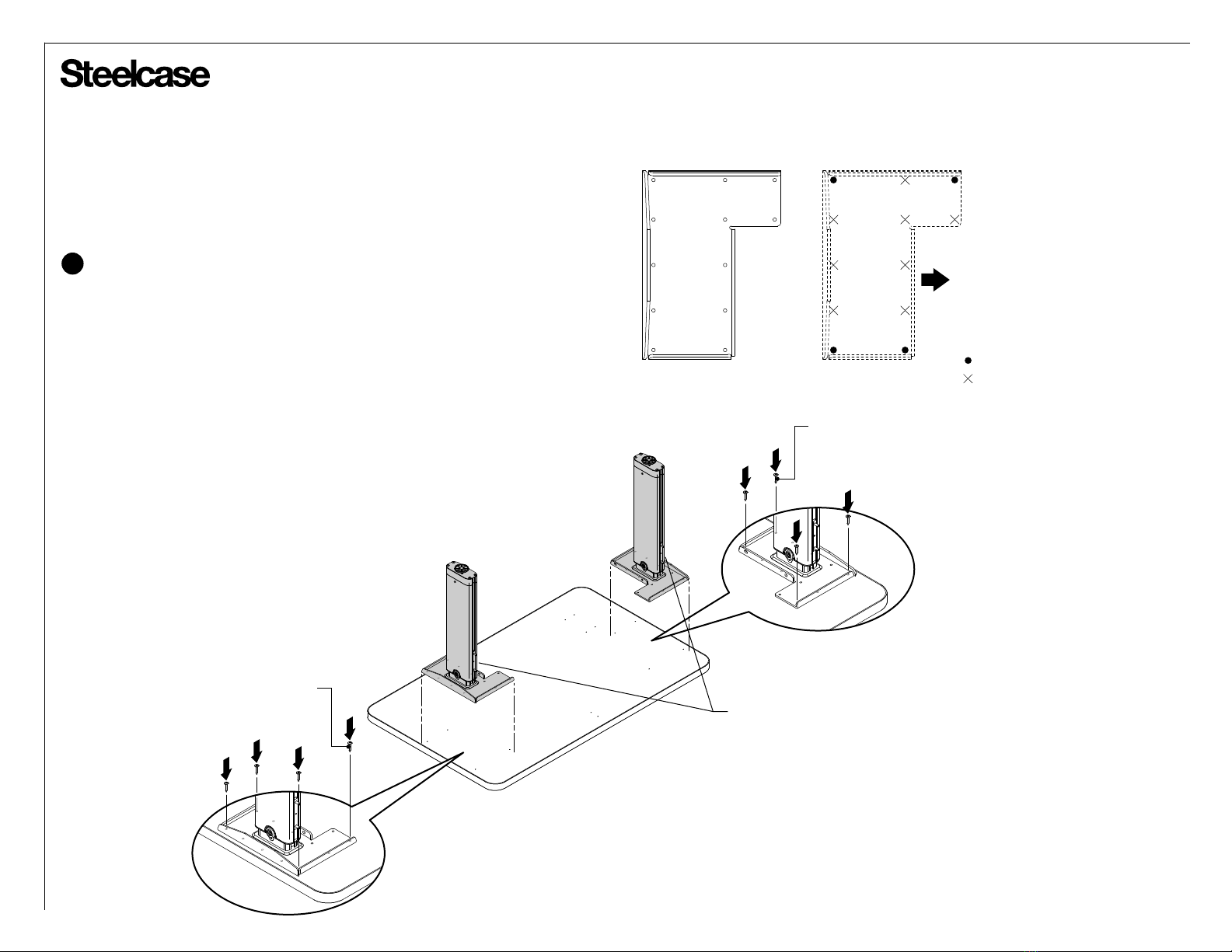

Mounting LiftingColumns to Worksurfaces
Mounting Plate
Worksurface
Pilot Holes
= PILOT HOLE
= NO PILOT HOLE PROVIDED
With the top still upside down on the floor,
turn each leg assembly over and align the
mounting plates to the pre-drilled holes in
the top.
Install one fastener in each of the
pre-drilled pilot holes.
4
TOWARD CENTER
OF WORKSURFACE
#2 SQUARE DRIVE
WORKSURFACE
SCREW
#2 SQUARE DRIVE
WORKSURFACE
SCREW
STUDS FACING BACK
OF WORKSURFACE

Page 7 of 38
939564909 Rev B
®

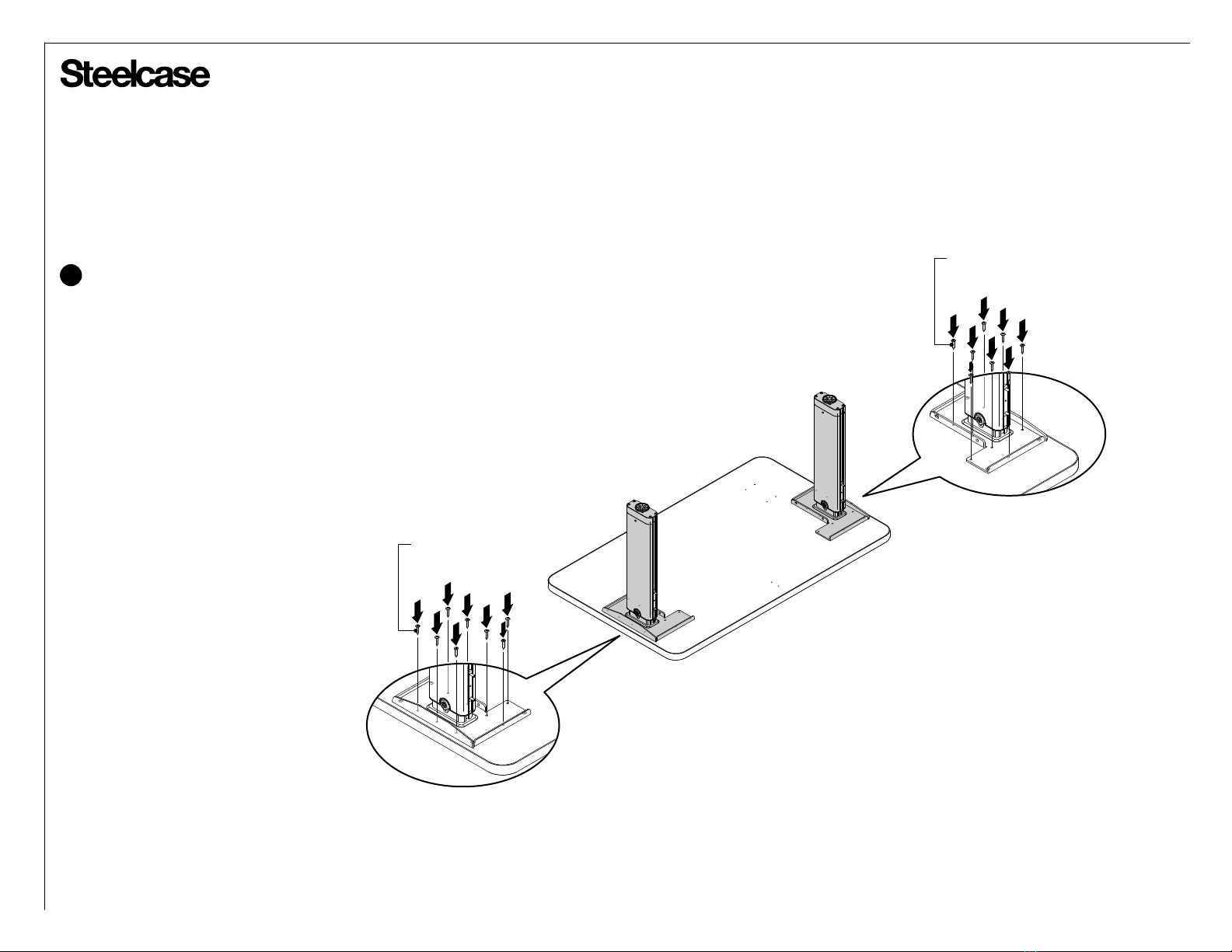

Mounting Lifting Columns to Worksurfaces (cont.)
Install one fastener in each of the
remaining holes inthe lifting column
mounting plate holes.
5
CAUTION: All holes in the lifting column mounting
plates MUST be filledwith screws.Failure to install
all screws may result instructural instability.
#2 SQUARE DRIVE
WORKSURFACE
SCREW
#2 SQUARE DRIVE
WORKSURFACE
SCREW

Page 8 of 38
939564909 Rev B
®
Determine Switch Position on your Table
•The switch can be located on either on either side of your table,
but the switch comes with a short cable to minimizeclutter. So,
be sure to always locate the master motor near the switch location.
NOTE:It does not matter which side of the table the master or
slave motor goes on.
Switch & Master Motor on Right:
MASTER MOTOR
SWITCH
SLAVE MOTOR
Switch & Master Motor on Left:
SLAVE MOTOR
MASTER MOTOR
SWITCH
Series 5 Table Assembly

Page 9 of 38
939564909 Rev B
®
It also has a hidden kill switch. This kill switchisinside the
IMPORTANT!The master motor has one other key difference.
The mastermotor and slave motor look the same,
Identify the Master andSlave Motors
except forthe connection panel at the back.
NOTE:The power supply converts 120V AC
from the wall outletto 24V DC. The series 5
motors operate on 24V DC.
front mounting hole.If the front mounting boltis not properly
installed, the table will not operate!
Slave
Master
SINGLE 4-WIRE
CONNECTOR FROM
Rear View
Slave
MASTER MOTOR
4-WIRE CONNECTOR
TO SLAVE MOTOR
RJ-11 SOCKET
FROM SWITCH
2-WIRE CONNECTOR
FROM POWER SUPPLY
Master
KILL SWITCH
WRONG!
(Table will not operate)
CORRECT!
FRONT MOUNTING HOLE
MOUNTING
BOLT
NO MOUNTING
BOLT
Series 5 Table Assembly (cont.)

Page 10 of 38
939564909 Rev B
®
Driveshafts areretained usingcap nuts, which

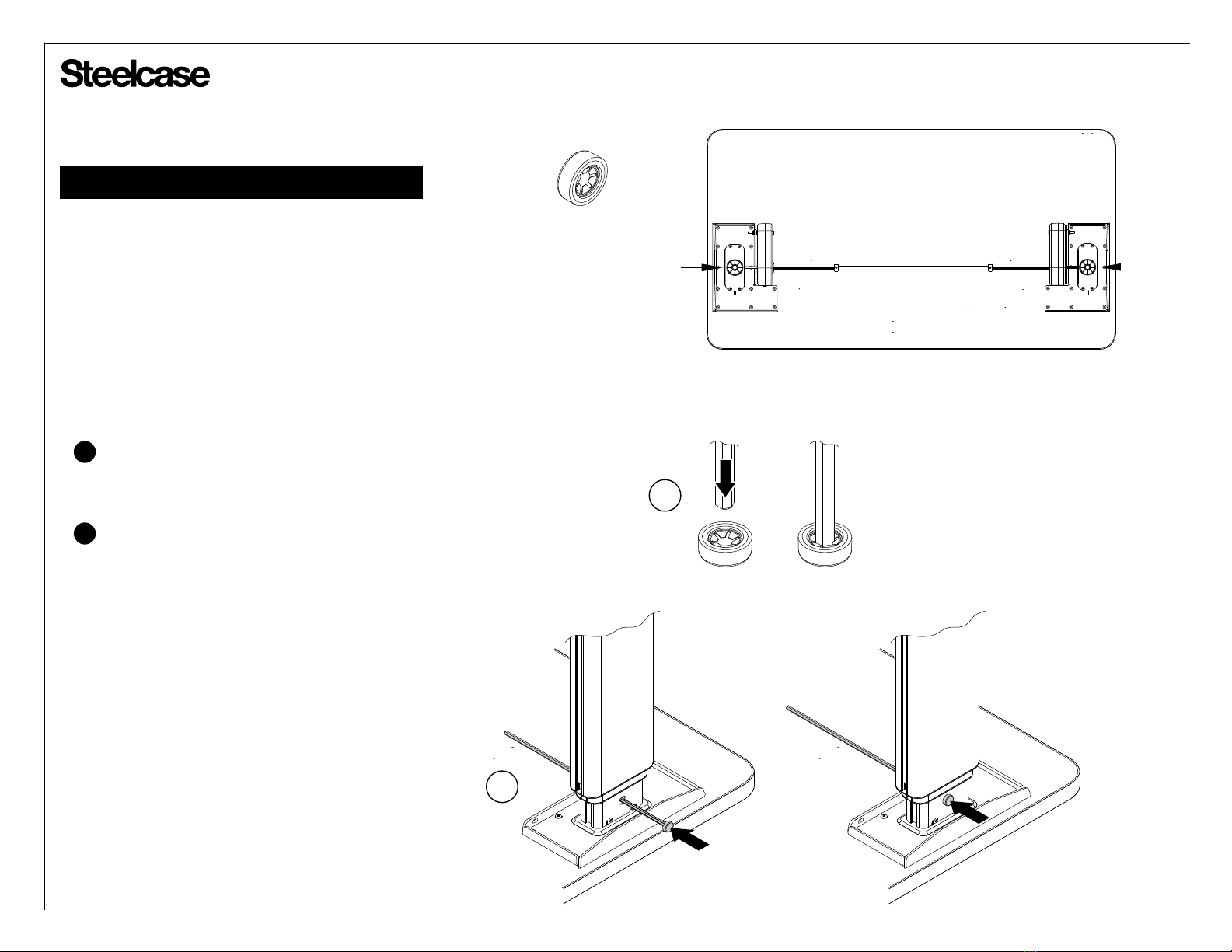

Installing Driveshafts
Tables require one cap nut mounted outside of
each liftingcolumn. The driveshaft assembly is
grip the driveshaft ends and prevent them from
backing out of the lifting columns.
thus retained in both directions.
CAP NUT
(with plastic cover)
Place cap nut on a flat, hard surface and push
driveshaftinto it.
1
1
With liftingcolumns pushed all theway down, feed
2
driveshaftthrough each lifting column, from outside,
until capnut bottoms out on each lifting column.
2
Series 5 Table Assembly (cont.)
CAP
NUT
CAP
NUT
FINISHED ASSEMBLY

Page 11 of 38
939564909 Rev B
®
Insert the exposed stud from each motor
5
Determine on which side of the table
3

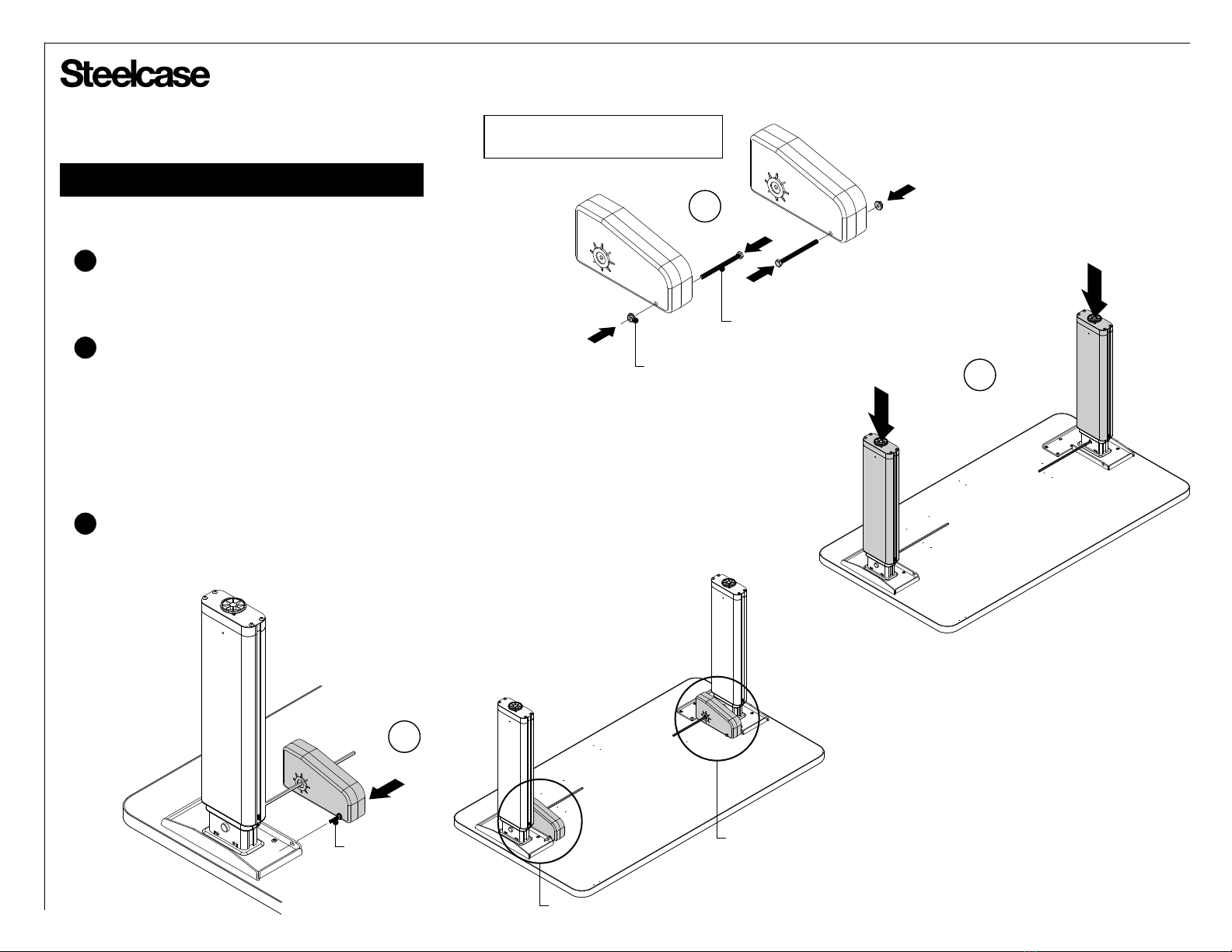

InstallingDriveshafts(cont.)
Install M6 x 80 bolts & M6 nuts to
each motor will go. (see page 16)
into theside mounting slot of the outboard
each motor as shown.
leg mountingplates.
Series 5 lifting columns and motors must be synchronized
before installing the driveshafts.
Series 5 motors are shipped fromthe factory in the
"all theway down" position.
Before inserting the driveshafts, ensure ALL
LIFTING COLUMNS are pushed all the waydown
5
EXPOSED STUD
10mm M6 x 80 HEX HEAD BOLT
10mm M6 HEX NUT
Slave Motor
Master Motor
Example: Master motor and switch
on user's right-hand side.
3
MOTOR
MOTOR
(fully compressed).
Series 5 Table Assembly (cont.)
Driveshafts and LiftingColumn Synchronization
4
4

Page 12 of 38
939564909 Rev B
®
Insert hex shafts into driveshaft tube.
6a
InstallingDriveshafts(cont.)
6b
Series 5 Table Assembly (cont.)
6b
If thehexagon openings are not perfectly aligned,
rotate themotorup and down to align the hex
shaft with the driveshaft tube, until the driveshaft
slides through withease.
6c
Ensure all driveshafts are inserted into driveshaft
tubes. Tighten set screws very tightly with
a 3mmhex wrench.
6c
NOTE:DO NOTovertighten the set screws.
Overtightening can strip the threads in the
driveshaft tube.
NOTE:DO NOTpound the hex shafts through with a
hammer. This will mushroom the end of the hex shaft.
6a

Page 13 of 38
939564909 Rev B
®

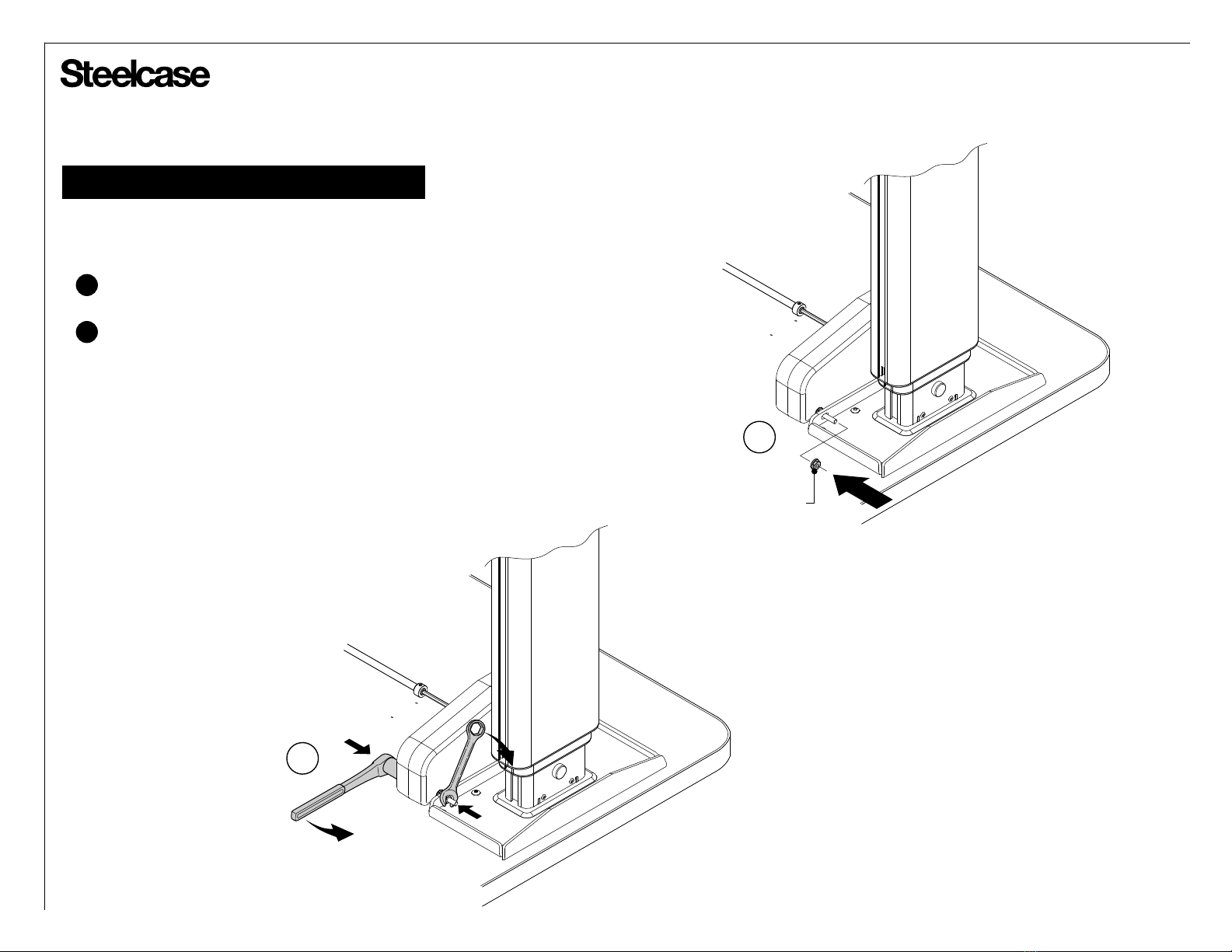

InstallingDriveshafts(cont.)
7b
Tighten the motor mounting nuts.
7b
7a
10mm M6 HEX NUT
7a
Install M6 hex nut to stud of motor.
Series 5 Table Assembly (cont.)

Page 14 of 38
939564909 Rev B
®
1

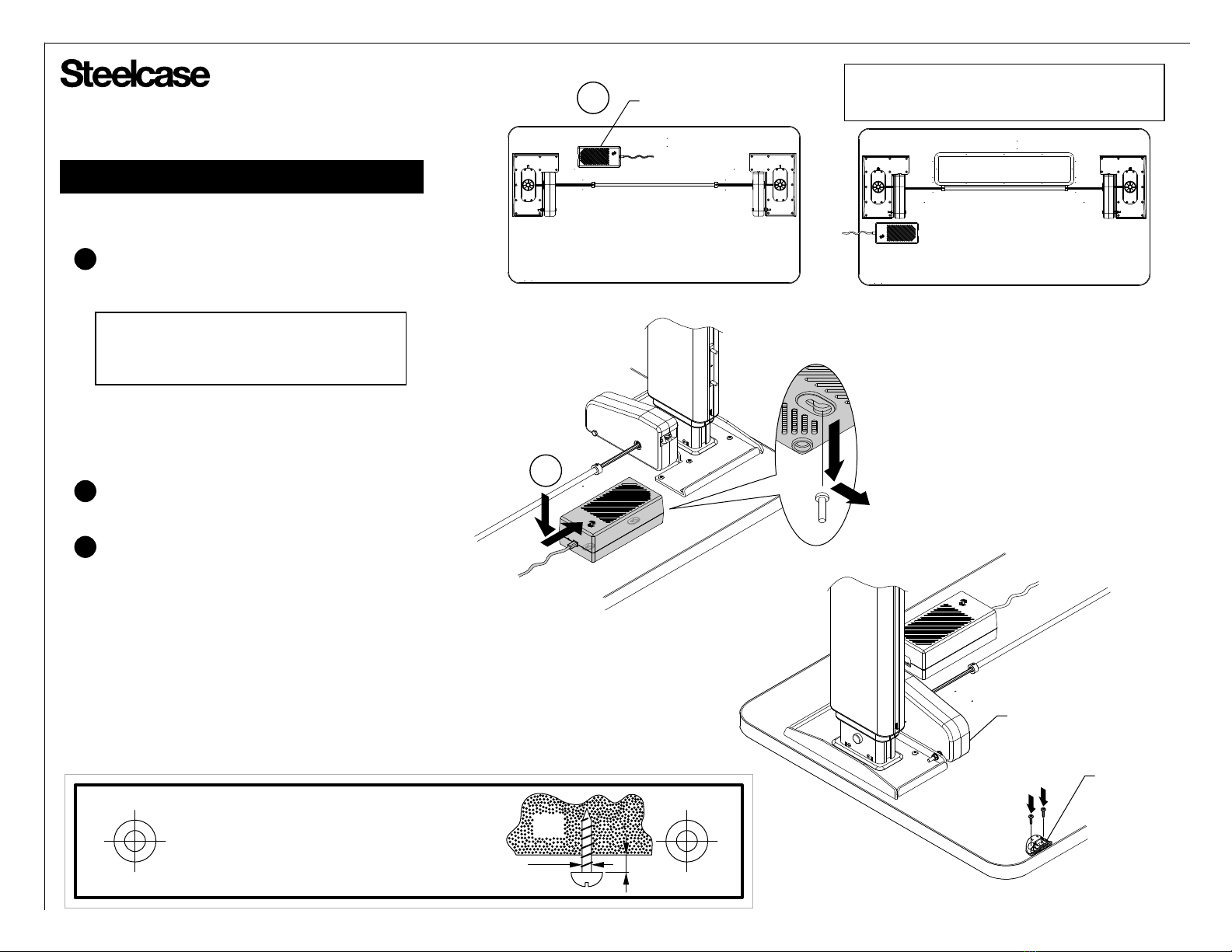

Locate the two (2) pilot holes for mounting the
1
InstallingSwitch & Power Supply
Fit the keyhole slots of the power supply over
2
the screws, andslide over into place.
powersupply. Partially install two (2) #8-15 x 5/8"
Attach the switch at the front of theworksurface,
3
adjacent to the leg with the master motor. Use
the pre-drilled pilot holes for proper switch position,
screws per the diagram shown below.
NOTE:Use the pre-drilled pilot holes to mount
the power supply in a way that assures
accessories can be clamped to the
worksurface,and allow all cables to reach.
If a different power supply location is desired,
use the template below, which matches the
the power supply's keyhole slots and122mm
hole spacing.
and affix with two (2) #8-15 x 5/8" screws.
<122mm>
Power S upply Templat e 2 x
Ø4mm4mm
Template for Power Supply:
POWER SUPPLY
NOTE:Assemblies with a Nexsis Power Access
Door Packagerequirethe Power Supply to be
installedat an alternate location as shown.
Series 5 Table Assembly (cont.)
2
SWITCH
MASTER MOTOR

Page 15 of 38
939564909 Rev B
®

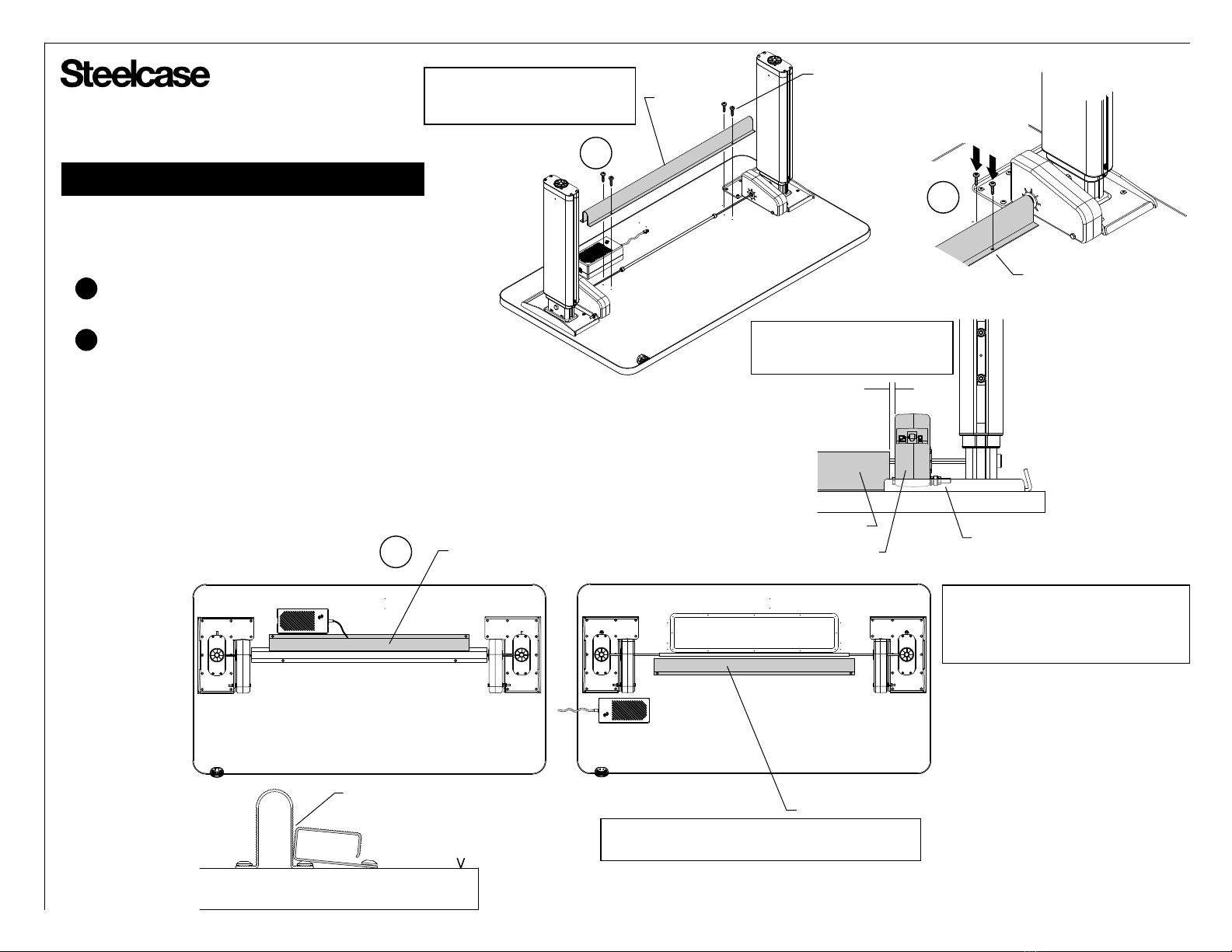

Attach driveshaft covers using four (4) screws
1
AttachDriveshaft Covers and
To maximizeavailable space on the back of the
2
each, into the pre-drilled pilot holes.
Wire Managers
worksurface forclamping accessories, place the
wire manager over the driveshaft cover as shown.
Attach with either two (2) or three (3) screws.
WIRE MANAGER IS
PUSHED UP AGAINST
DRIVESHAFT COVER.
BACK OF
WORKSURFACE
1b
ALIGN HOLES IN COVER
WITH PILOT HOLES IN
WORKSURFACE.
TWO SCREWS
PER SIDE
NOTE: There should beabout
1/4" between the motors and
the driveshaft covers.
~1/4"
MOTOR
DRIVESHAFT
COVER ROUTE SWITCH CABLE
THROUGH THIS AREA
NOTE:The cover is eliminated
on assemblies with a
Power& Data Tray.
2WIRE MANAGER
WIRE MANAGER
Series 5 Table Assembly (cont.)
NOTE: Assemblies with a Nexsis Power Access
Door Package do not use a driveshaft cover.
NOTE:Assemblies with a Nexsis
Power Access Door Package require
theWireManager tobe installed at
an alternate locationas shown.
1a
COVER
#2 SQUARE DRIVE
WORKSURFACE SCREW

Page 16 of 38
939564909 Rev B
®

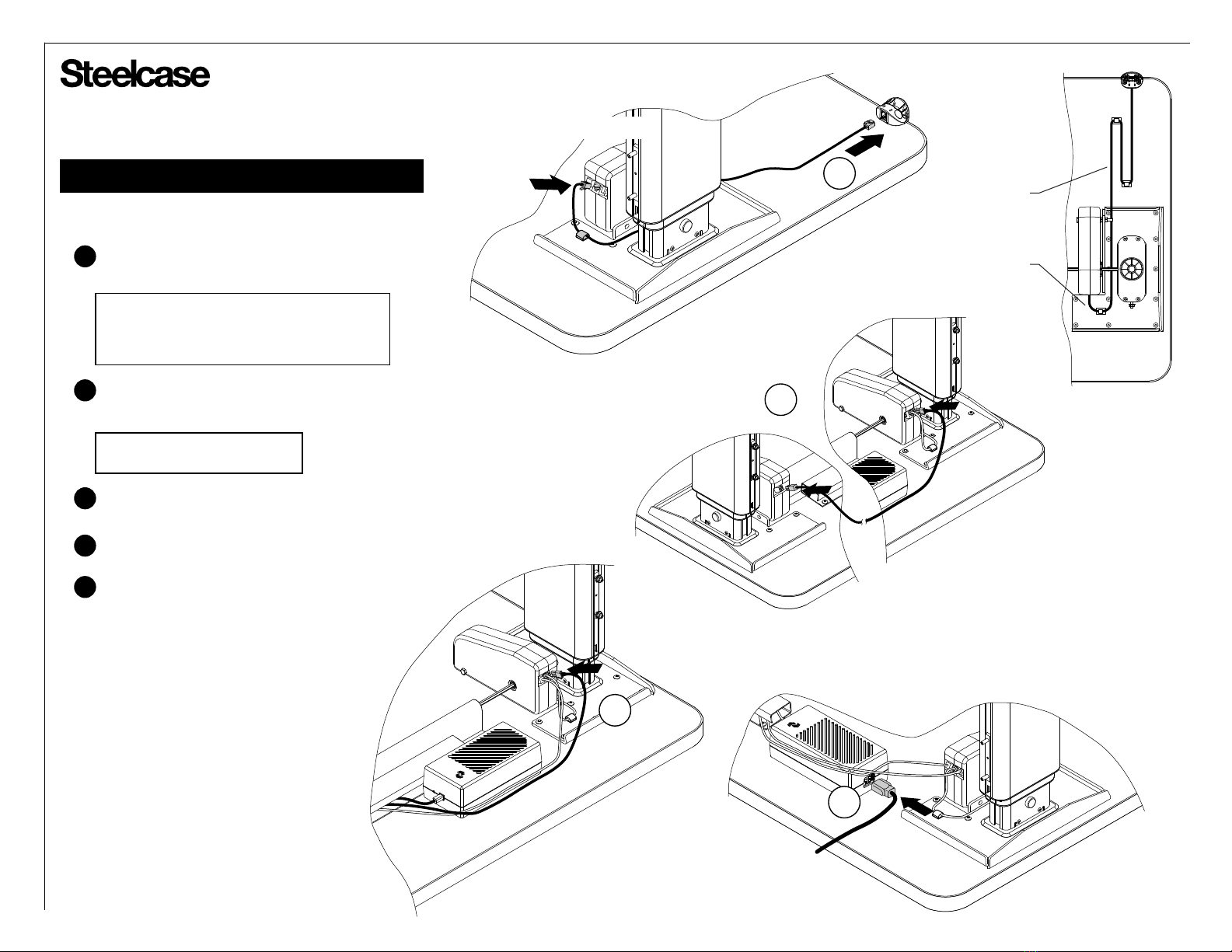

Connect andRoute All Cables
Route all cables through wiremanagers.
5
Keep allcables clear ofmoving parts!
Connect power cord to power supply.
4
3
Connect power supply to master motor with the
cable already attached to the power supply.
1
NOTE:To manage switch cable, use the
supplied cable clips as shown.Leave a little
slack in the cable to avoid damage to the
Connect switch to master motor using the
supplied RJ-11 cable.
2
Connect master motor to slave motor using
the supplied motor-to-motor cable.
NOTE:For best results, route
all cables carefully and neatly.
Switch
1
Master Motor
SEE NOTE
SEE NOTE
2
3
4
Series 5 Table Assembly (cont.)
connection point on the motor.

Page 17 of 38
939564909 Rev B
®

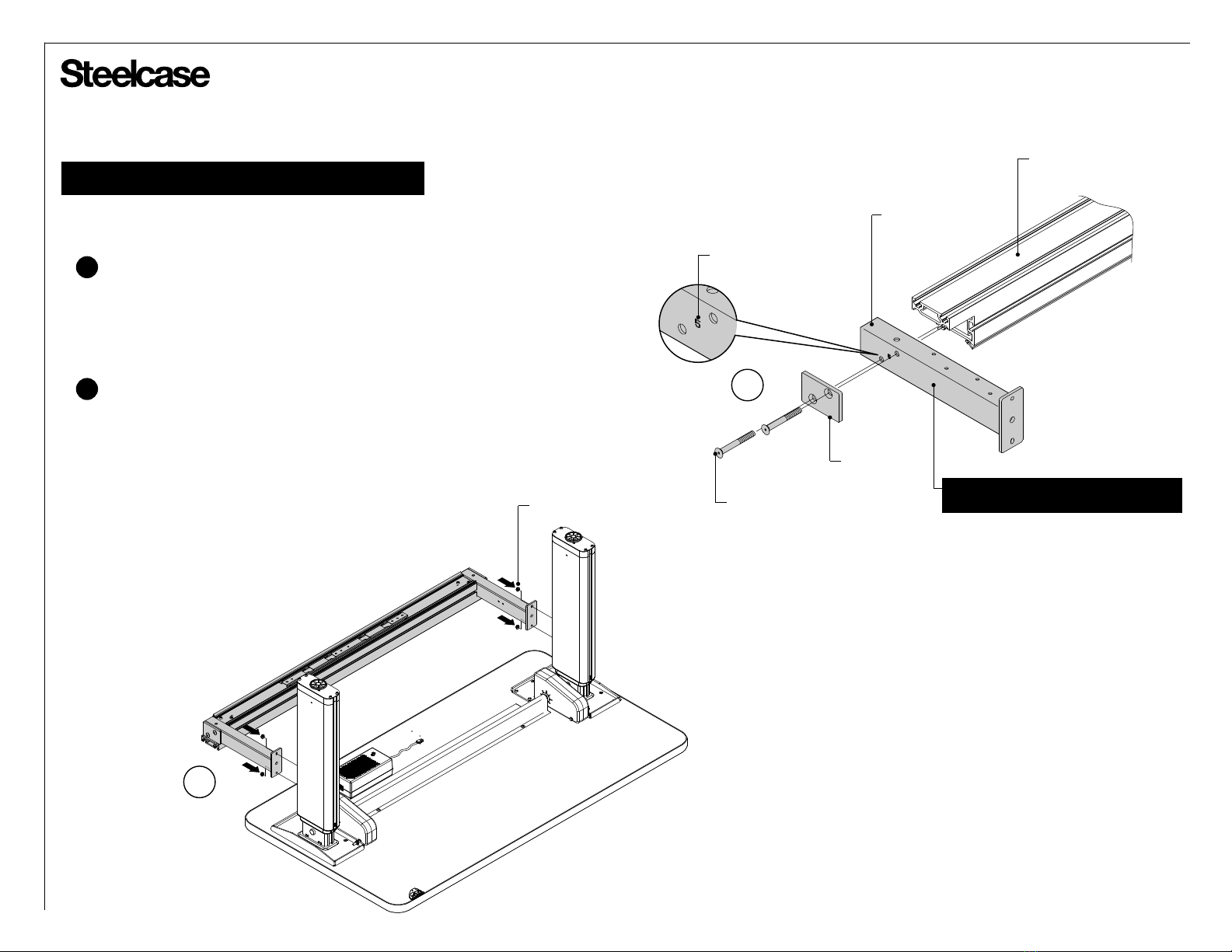

Install the lifting column connector tube to each end
of the aluminum beam as shown, making sure to use
the Series 5 connector tube for the lifting columns to
be joined with this super structure. Install the flat
head screws through the clamping plate, through the
tube, and into the bracket inside the beam as shown.
Tighten securely.
1
Fasten the assembled super structure to each
lifting column with two (2)nuts each.
2
TOP OF
ALUMINUM BEAM
LIFTING COLUMN
CONNECTOR TUBE
CLAMPING
PLATE
5mm ALLEN
M8 x 70 FLAT HEAD SCREWS
SERIES 5
INDICATOR
1
NOTE ORIENTATION:
- SERIES INDICATOR FACES OUTWARD
Connectingthe Table Assemblies &Installing the Center Beam
Series 5 Table Assembly (cont.)
2
10mm M6HEX NUT

Page 18 of 38
939564909 Rev B
®

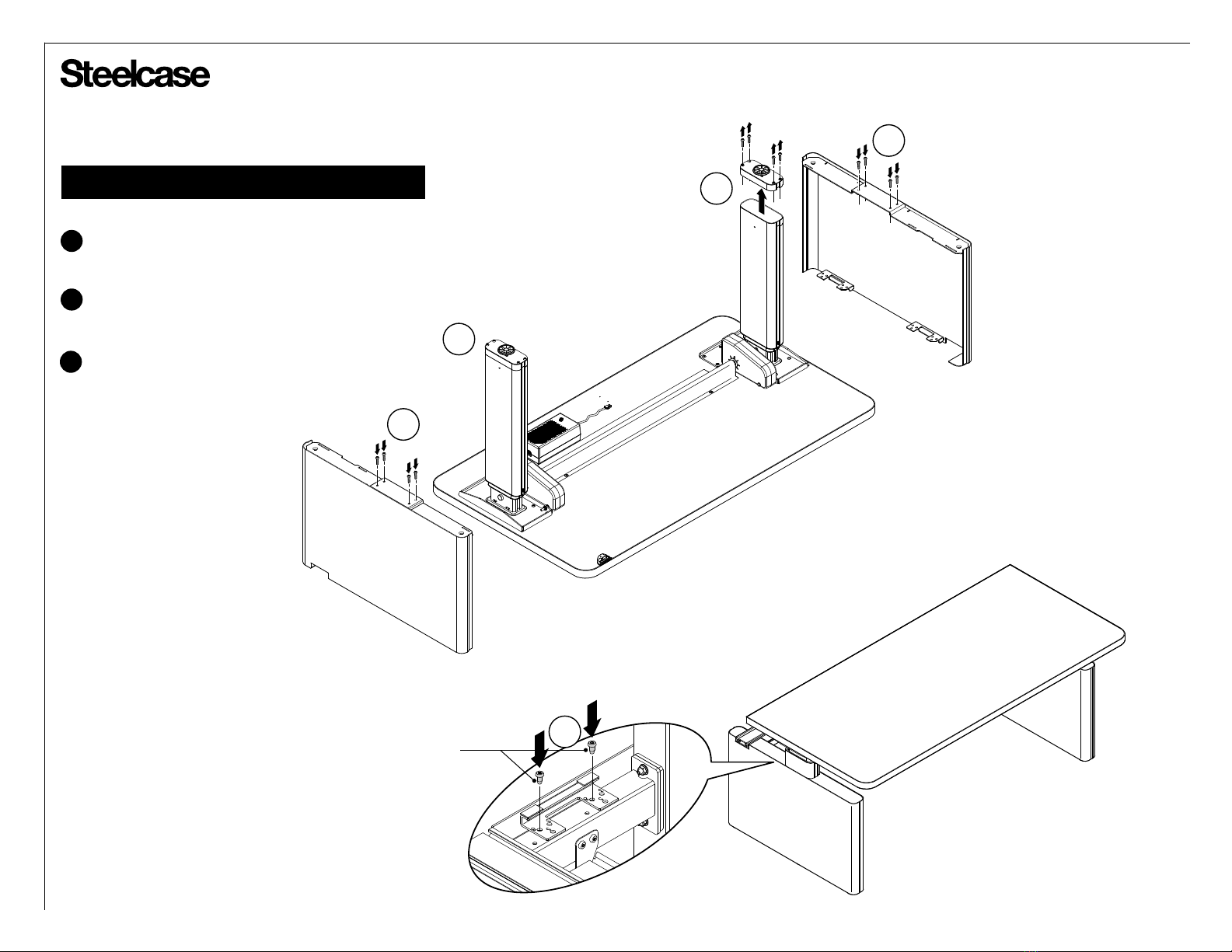

Remove (4) screws and the bottom plate
of leg, each side.
1
Assemble outer cover on each side, using
(4) screws removed in step 1.
2
1
Series 5 Table Assembly (cont.)
Carefully flip assembly over and install
(2) screws per outer cover.
3
2
1
2
2
3
T-30 TORX DRIVE
M6 SELF-TAPPING
SCREW

Page 19 of 38
939564909 Rev B
®
Test the function of the completed
table. Cycle the table all theway up
and down to test for correct function.
1
Series 5 Table Assembly (cont.)
2
PLEASE LEAVE THE USER GUIDE IN AN OBVIOUS
PLACE FOR THE END USER AFTER ASSEMBLY.
Finally, adjust glides tolevel the table,
3
both left to rightand frontto back.
USER GUIDE
1
3
2

Page 20 of 38
939564909 Rev B
®

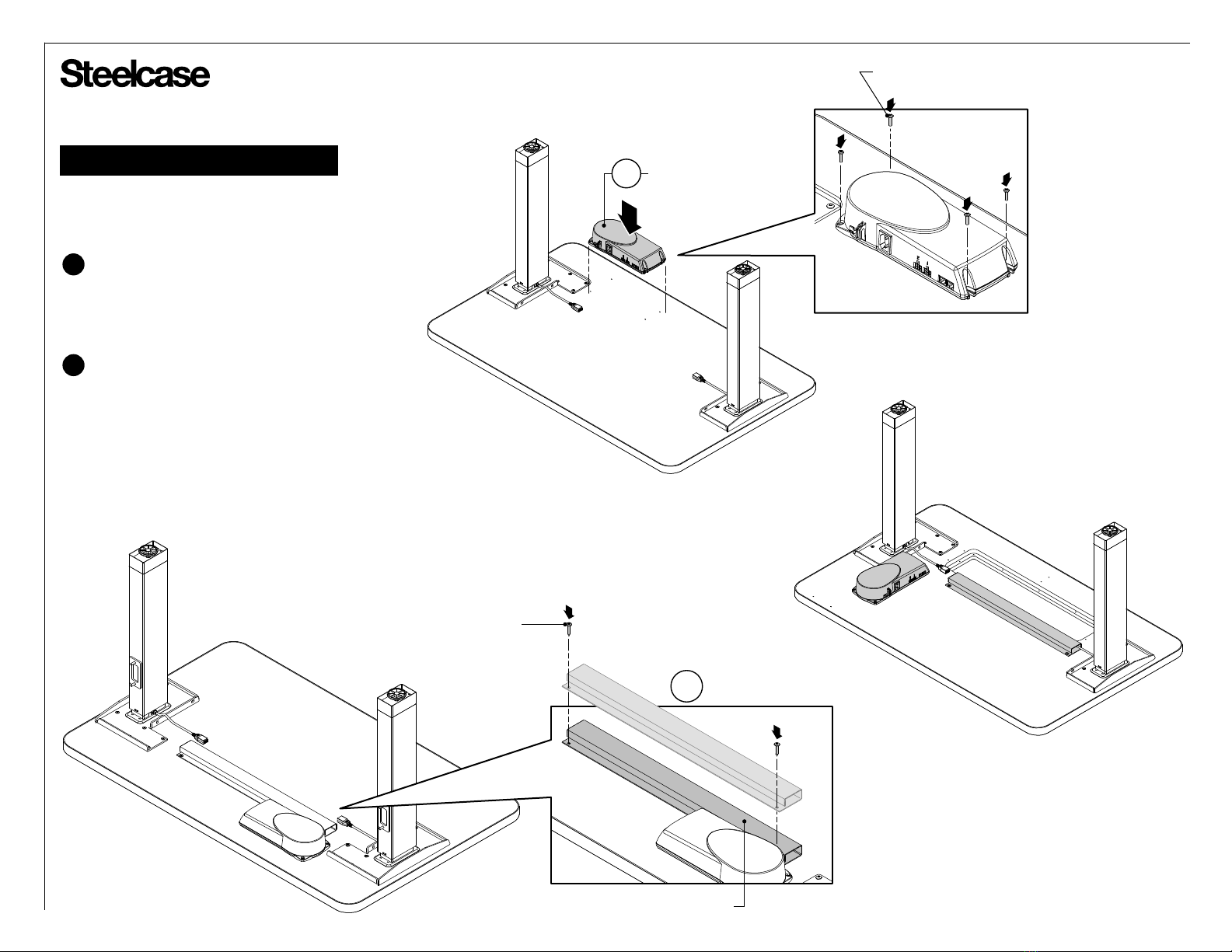

Install Control Boxin the
predetermined location,
using pre-drilled holes.
1
Install the wire management
cableway on the underside
of the worksurfaceatthe
rear using pre-drilled holes.
2
Attaching ControlBox& Wire Managers
NOTE:Assemblies witha Nexsis Power
Access Door Packagerequire the Power
Supply and WireManager to be installed
at alternate locations as shown.
WIRE MANAGER
#2 SQUARE DRIVE
WORKSURFACE SCREW
Series 8 Table Assembly
2
CONTROL BOX
#2 SQUARE DRIVE
#8 x 5/8 SCREW (SILVER)
1
