Stinger ELEV8 UN1880 User manual

Copyright © 2018
8" FLOATING MULTIMEDIA DISPLAY SYSTEM
MODEL NUMBER: UN1880
INSTALLATION GUIDE
StingerElectronics.com

Installation of this product requires technical skill
and experience. It is recommended to have it
professionally installed by a Stinger / Phoenix Gold
Dealer.
Read entire instructions thoroughly before starting.
Disconnect the vehicle's negative battery cable
before making any wire connections.
Protect all vehicle surfaces with tape or plastic
Do not install components in any location that will
hinder vehicle operation, such as steering wheel,
gearshift, air bags, hazard switch.
All wiring should be secured away from sharp
edges and moving parts.
CONTENTS
Precautions......................................................2
Parts List........................................................3
Mounting Options..........................................4
Double DIN Dash Kit Mounting.......................5
Double DIN Factory Bracket Mounting..............6
Single DIN Dash Kit Mounting..........................7
Final Assembly.................................................8
Wiring & Connections......................................9
PRECAUTIONS
AGREEMENT: End user agrees to use this product in
compliance with the instructions and terms of use and
with all State and Federal laws. STINGER provides
instructions and safety warnings with respect to this
product and disclaims all liability for any use not in
conjunction with those instructions or other misuse of
its product. If you do not agree, please discontinue use
and contact STINGER. This product is intended for off-
road use and passenger use only.
TECHNICAL SUPPORT:
800-477-2267
[email protected]
CUSTOMER SOLUTIONS:
800-477-2267
[email protected]
MODEL NUMBER: UN1880
Stinger is a Power Brand of AAMP Global
15500 Lightwave Drive, Suite 202
Clearwater, Florida 33760
INSTALLATION GUIDE
Visit StingerElectronics.com
for updates and further detailed information.

3
PARTS LIST
OPTIONAL ACCESSORIES (SOLD SEPARATELY)
QTY DESCRIPTION PART NO
1 Touch Panel Display UN1880-D
1 Radio Module UN1880-M
Mounting Brackets / Hardware
1 Plastic Dash Mounting Bracket
SE-1000
1 Display Mounting Clamp
1 Metal Mounting Bracket
1 Horizontal Display Angle Plate
1 Rubber Boot SE-1001
4 M4 X 6 Screw
SE-1002
4 M4 X 10 Screw
4 M4 X 12 Screw
2 M4 X 14 Screw
2 M4 x 18 Screw
6 M5 x 10 Screw
6 #10 x 3/8 Screw
2 Backstrap SE-1003
Cables / Harnesses
1 8 Pin Display Power Harness SE-1100
1 LVDS Display Video Cable SE-1101
1 16 Pin Power / Speaker Harness SE-1102
1 24 Pin AV / Rear Camera Harness SE-1103
1 10 Pin Multi Camera Harness SE-1104
1 6 Pin SWI / IR Harness SE-1105
1 4 Pin Mic / Camera Audio Harness SE-1106
1 SiriusXM Cable SE-1107
1 External Microphone SE-1108
1 GPS Antenna & Mounting Plate SE-1109
DESCRIPTION PART NO
IR Remote Control SE-1500
8 Pin Display Power Harness - 5FT SE-1501
LVDS Display Video Harness - 5FT SE-1502
PAC Dash Mount HDMI & USB Extension - 3FT HDMI-USB-CBL
PAC Dash Mount USB Adaptor - 3FT/6FT USDMA3 / USBDMA6
iGO North American Map (Micro SD Card) SE-P14

4

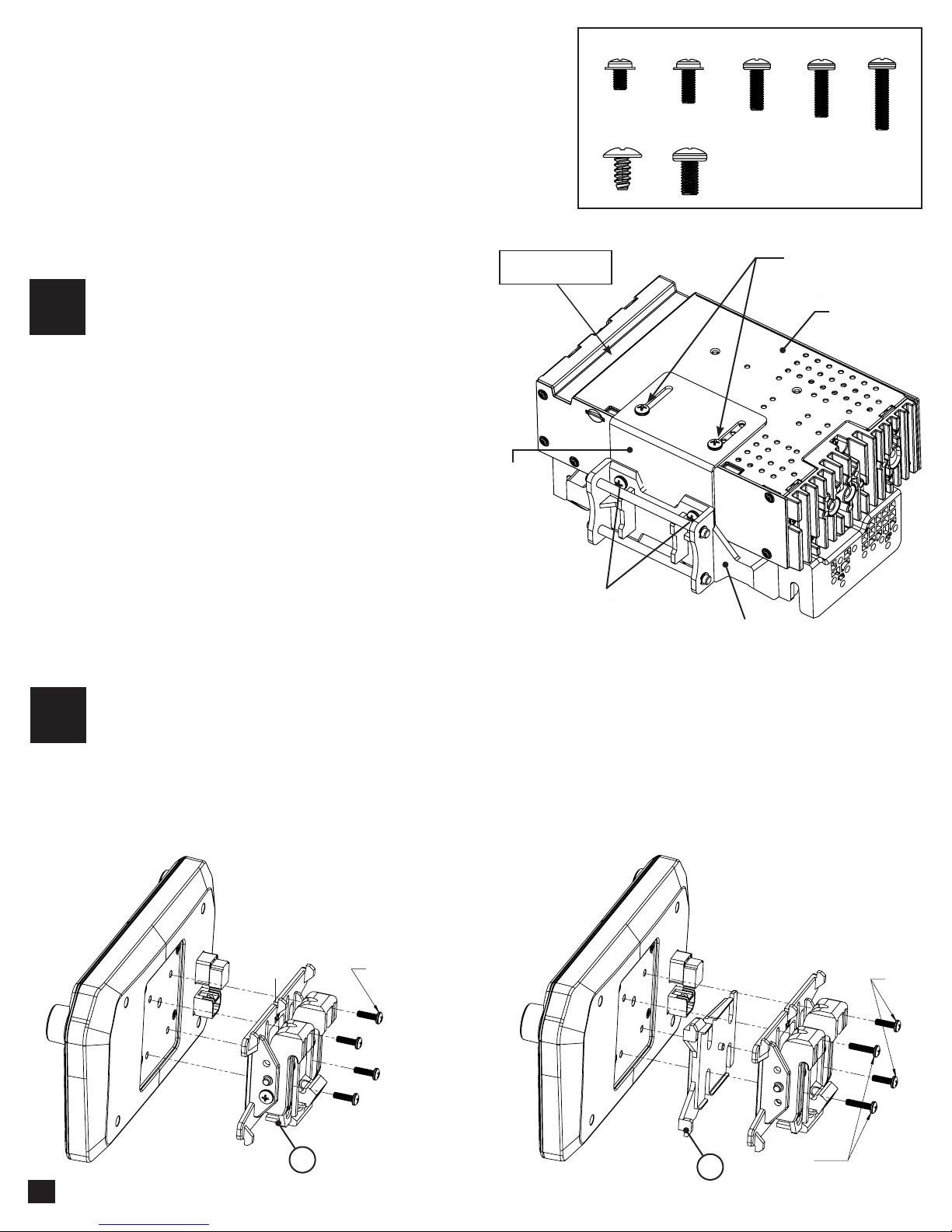

Double DIN: Attach the Metal Bracket to
the Plastic Dash Mounting Bracket using M4
X 6 screws. Attach metal bracket and plastic
dash mounting bracket assembly to the Radio
Module using M4 X 6 screws.
The display can be installed Flat or Angled towards the driver. For flat mounting, attach the
clamp assembly (6) to the display using M4 X 14 screws (FIG. A). If a horizontal angle is
desired, insert the angle plate (7) in between the clamp and display and replace 2 of the
M4 X 14 screws with M4 X 18 screws on the thicker side of the angle plate (FIG. B). Center
the bracket on the back of the display as a starting point, and if needed you can adjust up
or down.
MULTIPLE MOUNTING OPTIONS...
ELEV8 can be configured for different mounting applications:
• Using a Double DIN Dash Kit (3A)
• Using Double DIN Factory Radio Mounting Brackets (3B)
• Using a Single DIN Dash Kit (3C)
• Custom Mounting Applications
M4 X 18
(2X)
M4 X 14
(2X)
M4 X 14
(4X)
FIG. A FIG. B
7
6
1
2
M4 X 6
M4 X 6
TOP
Single DIN: For Single DIN installations,
you will be mounting the Plastic Dash
Mounting Bracket in the dash kit and the
Radio Module will be mounted remotely.
Before beginning the installation,
determine where the Radio Module will
be installed and make sure the Display
Cables are long enough. Longer, 5 foot
cables are available (SE-1501 & SE1502).
Metal
Bracket
Radio
Module
Plastic Dash
Mounting Bracket
Optional
Cable Channel
M4 X 12
(4X)
M4 X 6 M4 X 10 M4 X 12 M4 X 14 M4 X 18
#10 X 3/8 M5 X 10
NOTE: Depending on the
installation, not all screws
will be used.

5

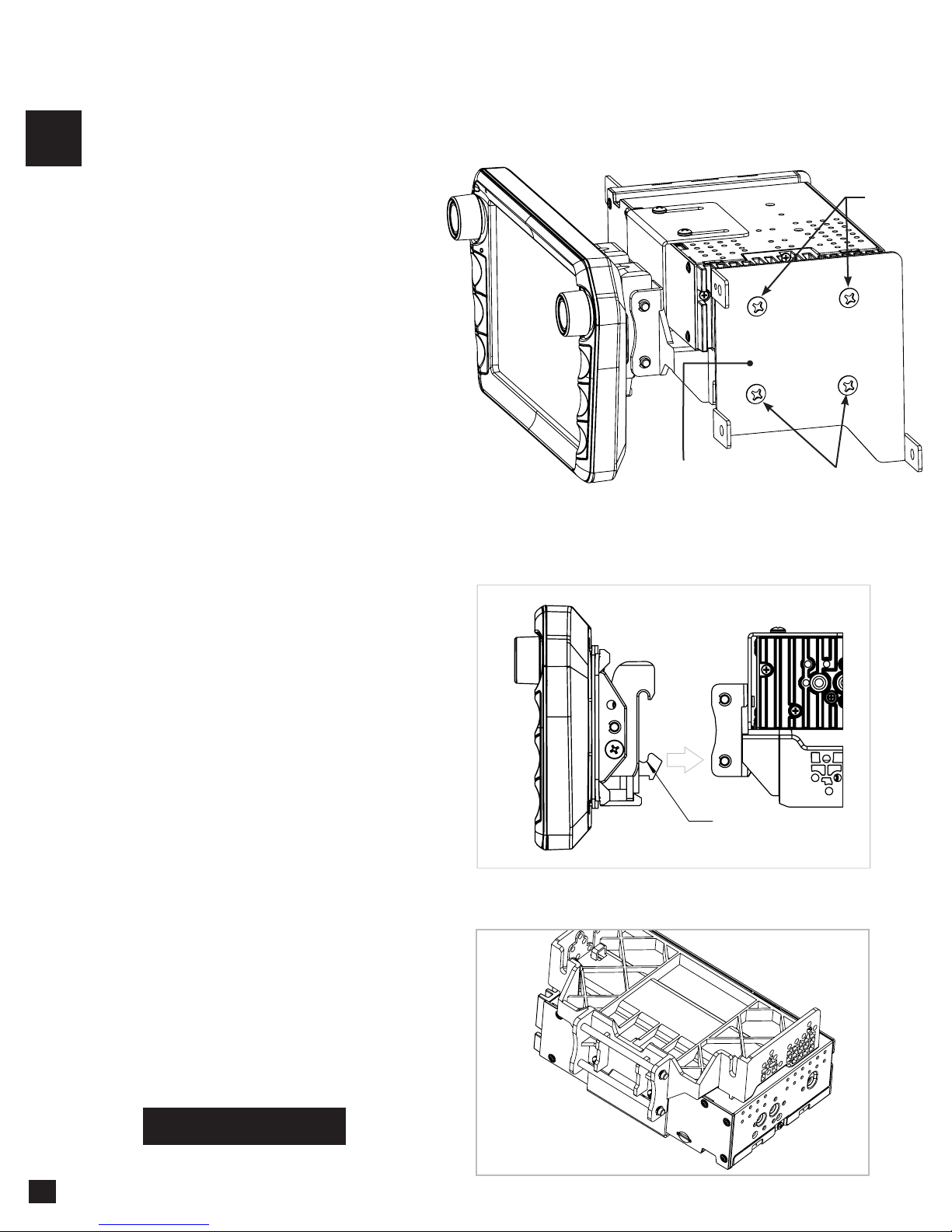

DOUBLE DIN DASH KIT MOUNTING
3A Display Adjustment & Mounting:
Making sure to use all 8 screws, loosely
attach the radio module and mounting
bracket assembly to the side brackets of the
aftermarket dash mounting kit using #10
X 3/8 screws for the bottom locations and
the M5 X 10 screws for the top locations
(radio chassis), do not tighten. (FIG. A)
Temporarily attach the display to the
bracket assembly. (FIG. B)
Using the main frame of the dash kit as
a guide, slide radio assembly forward
or backward to desired position. Tilt the
display vertically and determine if the
display should be flat or tilted up. If display
needs to move up or down, refer to Step 2.
Once in the desired position, tighten screws
to the radio chassis (top) and mounting
bracket assembly (bottom). See Step 4 for
vertical position.
Remove the display from the bracket
assembly by lifting upward and unhooking.
Note: There are multiple mounting holes
on the mounting bracket to allow adjusting
the mounting depth. You may drill
additional holes in the mounting bracket
and/or the dash kit brackets to align the
display in the best position and ensure you
can use all 8 mounting screws.
Note: If you encounter a depth issue with
the radio module in the top position, you
may move it to the bottom location by
inverting the mounting bracket assembly.
(FIG. C)
Note: If the installation requires the display
to be installed last, do not push the display
all the way up against the dash kit. Leave
enough bottom gap as the display's bottom
edge rotates towards the dash kit.
HOOK BOTTOM
FIRST, THEN TOP
#10 X 3/8
Coarse Thread Screw
M5 X 10
AFTERMARKET
DASH KIT
(NOT INCLUDED)
NOTE: BOOT AND DASH KIT (NOT SHOWN)
FIG. C
FIG. B
FIG. A
PROCEED TO STEP 4

6

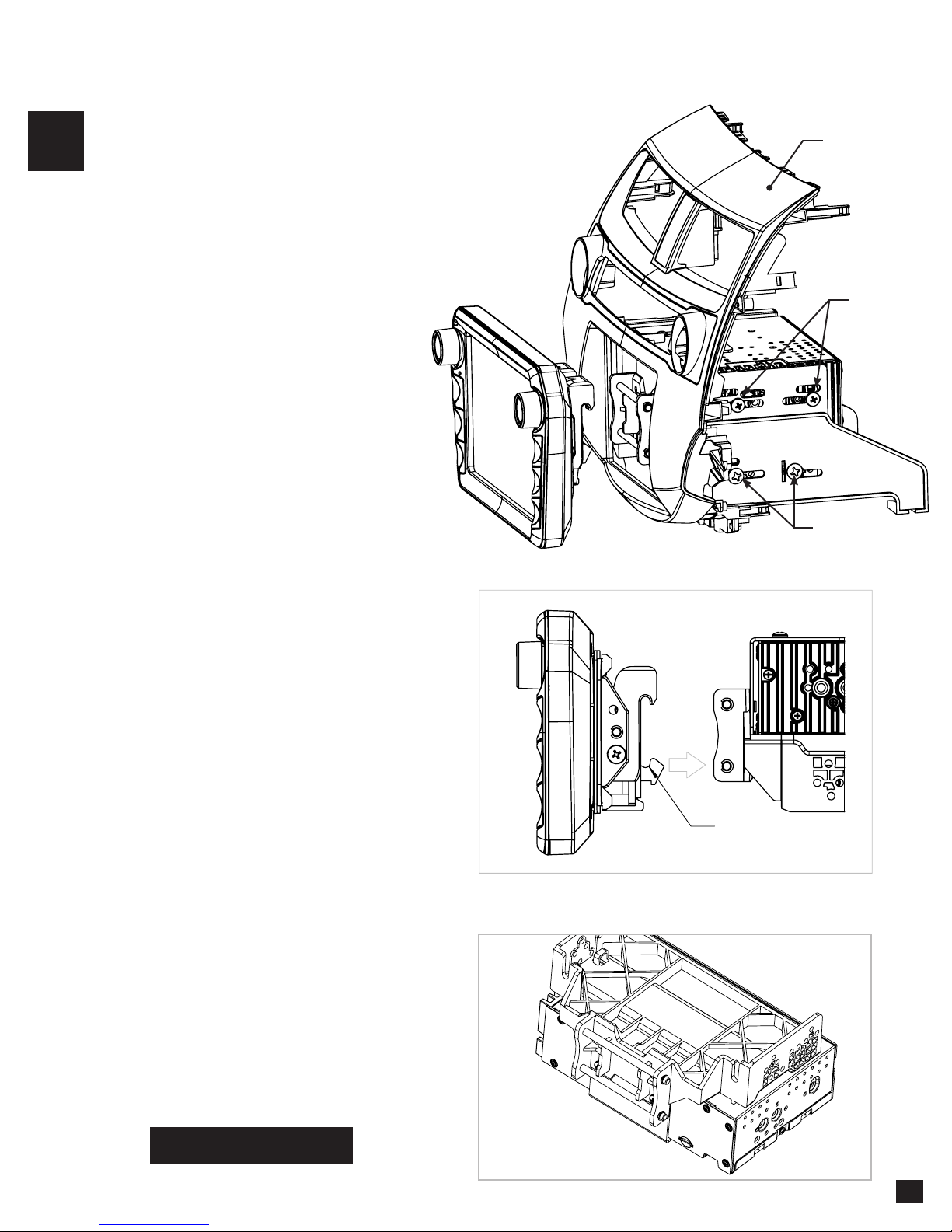

DOUBLE DIN FACTORY BRACKET MOUNTING
3B Display Adjustment & Mounting:
Making sure to use all 8 screws, loosely
attach the radio module and mounting
bracket assembly to the factory brackets
using #10 X 3/8 screws for the bottom
locations and the M5 X 10 screws for
the top locations (radio chassis), do not
tighten. (FIG. A)
Temporarily attach the display to the
bracket assembly. (FIG. B)
Using the dash panel as a guide,
determine the desired position and if
necessary create new mounting locations
in the factory brackets. Tilt the display
vertically and determine if the display
should be flat or tilted up. If display needs
to move up or down,refer to
Step 2.
Once in the desired position, tighten screws
to the radio chassis (top) and mounting
bracket assembly (bottom).
See Step 4 for vertical position.
Remove the display from the bracket
assembly by lifting upward and unhooking.
Note: It may be necessary to create new
mounting locations in the factory brackets.
Note: If you encounter a depth issue with
the radio module in the top position, you
may move it to the bottom location by
inverting the mounting bracket assembly.
(FIG. C)
Note: If the installation requires the display
to be installed last, do not push the display
all the way up against the dash. Leave
enough bottom gap as the display's bottom
edge rotates towards the dash.
HOOK BOTTOM
FIRST, THEN TOP
Factory Bracket
M5 X 10
NOTE: BOOT AND DASH KIT (NOT SHOWN)
FIG. B
FIG. C
FIG. A
PROCEED TO STEP 4
#10 X 3/8
Coarse Thread Screw

7
SINGLE DIN DASH KIT MOUNTING
M5 X 10
3C Display Adjustment & Mounting:
Making sure to use all 4 screws, loosely
attach the plastic mounting bracket
assembly to the side brackets of the
aftermarket dash mounting kit using
#10 X 3/8 screws, do not tighten.
(FIG. A)
Temporarily attach the display to the
bracket assembly. (FIG. B)
Using the main frame of the dash kit as
a guide, slide radio assembly forward
or backward to desired position. Tilt
the display vertically and determine if
the display should be flat or tilted up. If
display needs to move up or down,
refer to Step 2.
Once in the desired position, tighten
screws to the plastic mounting bracket
assembly. See Step 4 for vertical position.
Remove the display from the bracket
assembly by lifting upward and
unhooking.
Note: There are multiple mounting
holes on the mounting bracket to allow
adjusting the mounting depth. You may
drill additional holes in the mounting
bracket and/or the dash kit brackets to
alight the display in the best position.
Note: To align the display in the best
position, you may invert the plastic
mounting bracket assembly. (FIG. C)
Note: Note: If the installation requires
the display to be installed last, do not
push the display all the way up against
the dash kit. Leave enough bottom gap
as the display's bottom edge rotates
towards the dash kit.
HOOK BOTTOM
FIRST, THEN TOP
AFTERMARKET
DASH KIT
(NOT INCLUDED)
NOTE: BOOT AND DASH KIT (NOT SHOWN)
FIG. B
FIG. C
FIG. A
PROCEED TO STEP 4
#10 X 3/8
Coarse Thread Screw

8
Insert a M5 X 10 on each side of the clamp
assembly. Use Hole A for no vertical tilt
or Hole B for 8 degrees of vertical tilt as
determined in Step 3.
If needed, attach the rubber boot to
the display clamp assembly by aligning
the notch on the top edge as shown,
and hook the boot to the clamp at 5
locations.
Note: The boot is not required if display
sits very close to the dash/dash kit and
no large gap is seen.
A
B
6
BOOT ASSEMBLY PLASTIC "TAB"
HAS TO GO INTO A NOTCH
(DISPLAY UNIT NOT SHOWN)
BOOT ASSEMBLY HOOKS
AT 5 SPOTS
(RUBBER BOOT NOT SHOWN)
BOOT ASSEMBLY PLASTIC "TAB"
HAS TO GO INTO A NOTCH
(DISPLAY UNIT NOT SHOWN)
BOOT ASSEMBLY HOOKS
AT 5 SPOTS
(RUBBER BOOT NOT SHOWN)
FINAL ASSEMBLY
After all wiring connections are made
in the next section, the dash kit with the
radio chassis and bracket assembly,
should be installed and any factory
panels reinstalled. Connect the 8 Pin
Display Power Harness and the LVDS
Video Cable to the back of the display
and attach display to mounting bracket.
4
5
M5 X 10
M5 X 10

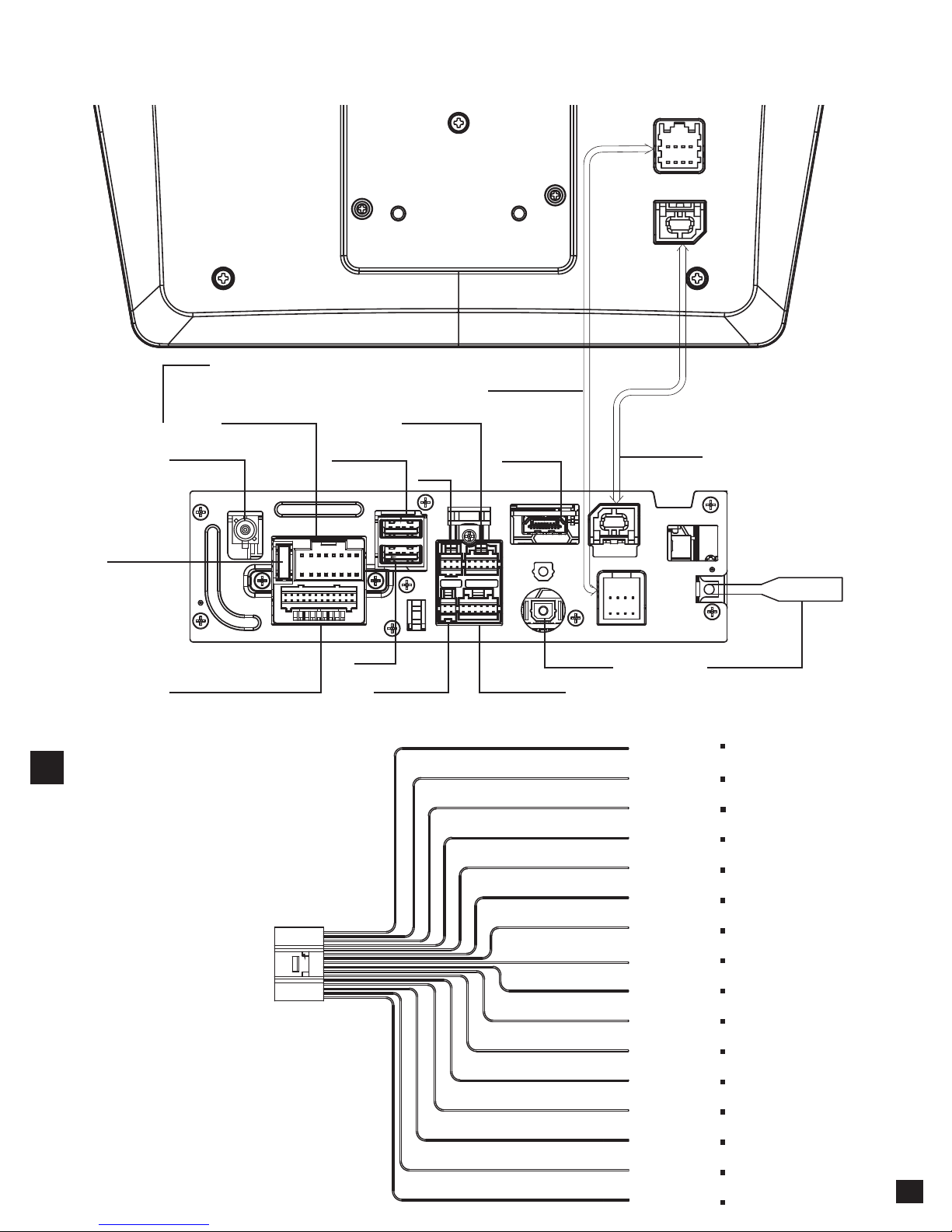

Connect radio power and
speaker connections to a vehicle
specific harness (sold separately)
referencing diagram at right.
WIRING & CONNECTIONS
9
16 Pin Power / Speaker Harness
Display Cable
Multi Camera
USB1 CP/AA1
Power / Speaker
GPS Antenna2 LVDS Cable
HDMI Input
USB2
SWI
AV In/Out - Rear Camera Microphone SiriusXM Tuner
Radio Antenna
TOSLINK
Green/Black Rear Left Speaker -
Green Rear Left Speaker +
Purple/Black Rear Right Speaker -
Purple Rear Right Speaker +
White/Black Front Left Speaker -
White Front Left Speaker +
Grey/Black Front Right Speaker -
Grey Front Right Speaker +
Green/White Reverse Trigger +
Pink Parking Brake -
Orange Illumination3+
Yellow Battery 12V +
Blue Power Antenna +
Blue/White Amp Remote +
Red Accessory 12V +
Black Ground -
3Illumination wire must be connected for
Day/Night and Auto Dimming to work.
2GPS Antenna must be installed for accurate
operation of CarPlay, Android Auto & internal
Navigation.
1The top USB1 must be used for CarPlay
and Android Auto.
15 Amp Fuse

10
A1 Brown / Black SWC Key 2
A2 Brown SWC Key 1
A3 Black SWC Ground
A4 Yellow RCA Video Input
A5 White RCA Audio Input Left
A6 Red RCA Audio Input Right
A7 Yellow RCA Camera Input
A8 Yellow RCA Video Output 1
A9 Yellow RCA Video Output 2
A10 White RCA Zone 2 Left
A11 Red RCA Zone 2 Right
A12 Red RCA Right front
A13 White RCA Left Front
A14 Red RCA Right Rear
A15 White RCA Left Rear
A16 Brown RCA Left Subwoofer
A17 Blue RCA Right Subwoofer
Analog Steering
Wheel Control Input
Audio / Video Input
Video Output
Audio Output

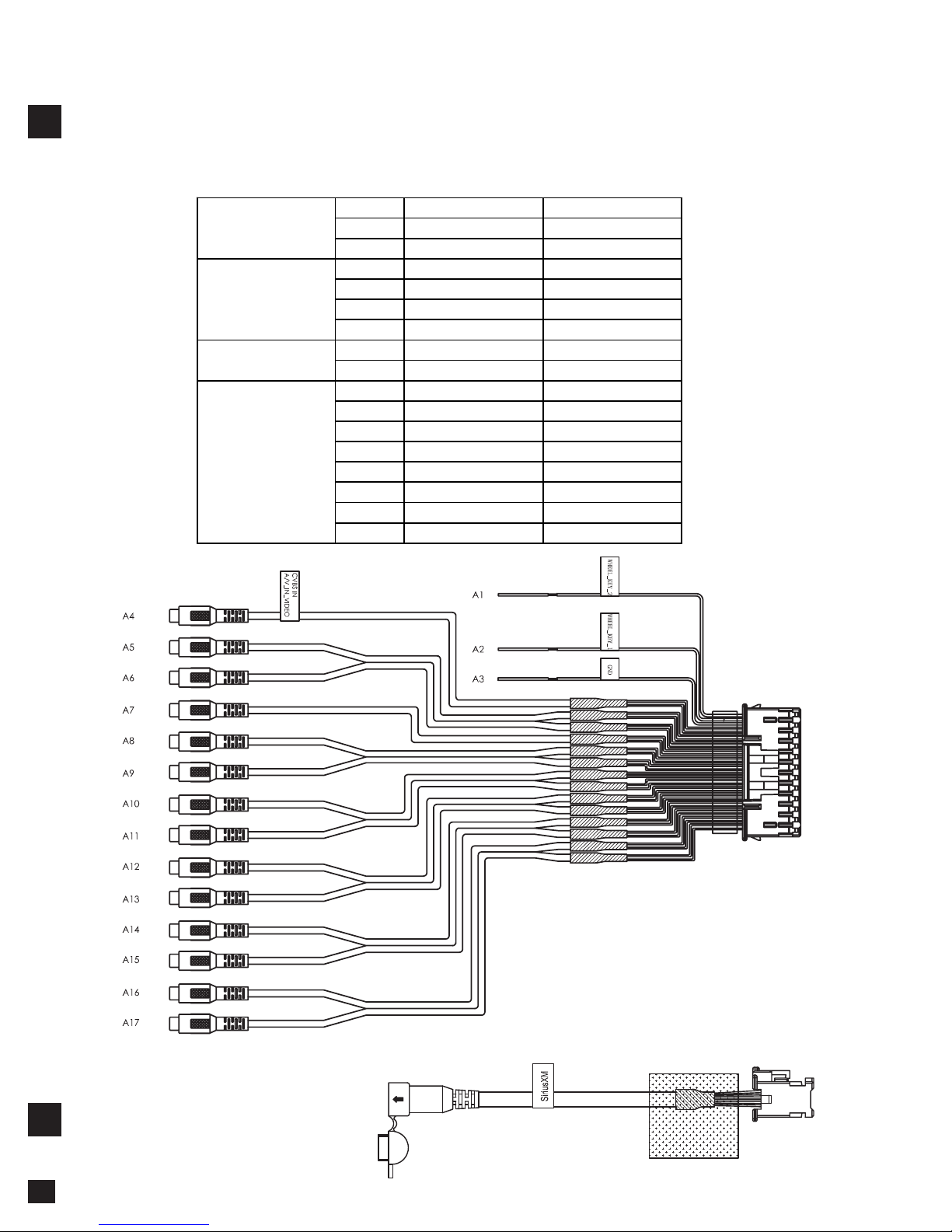

24 Pin AV / Rear Camera Harness
Audio/Video Inputs & Outputs / Rear Camera Video Input / Resistive Steering Wheel
Control Inputs - To program SWC, go to SETTINGS, then select the Gear Icon,
Passcode: 15500 > OK > SWC CUSTOM. Do not use if using a PAC SWI Interface.
SiriusXM®Harness
For connecting optional SiriusXM
SXV 300 satellite radio tuner.
WIRING & CONNECTIONS

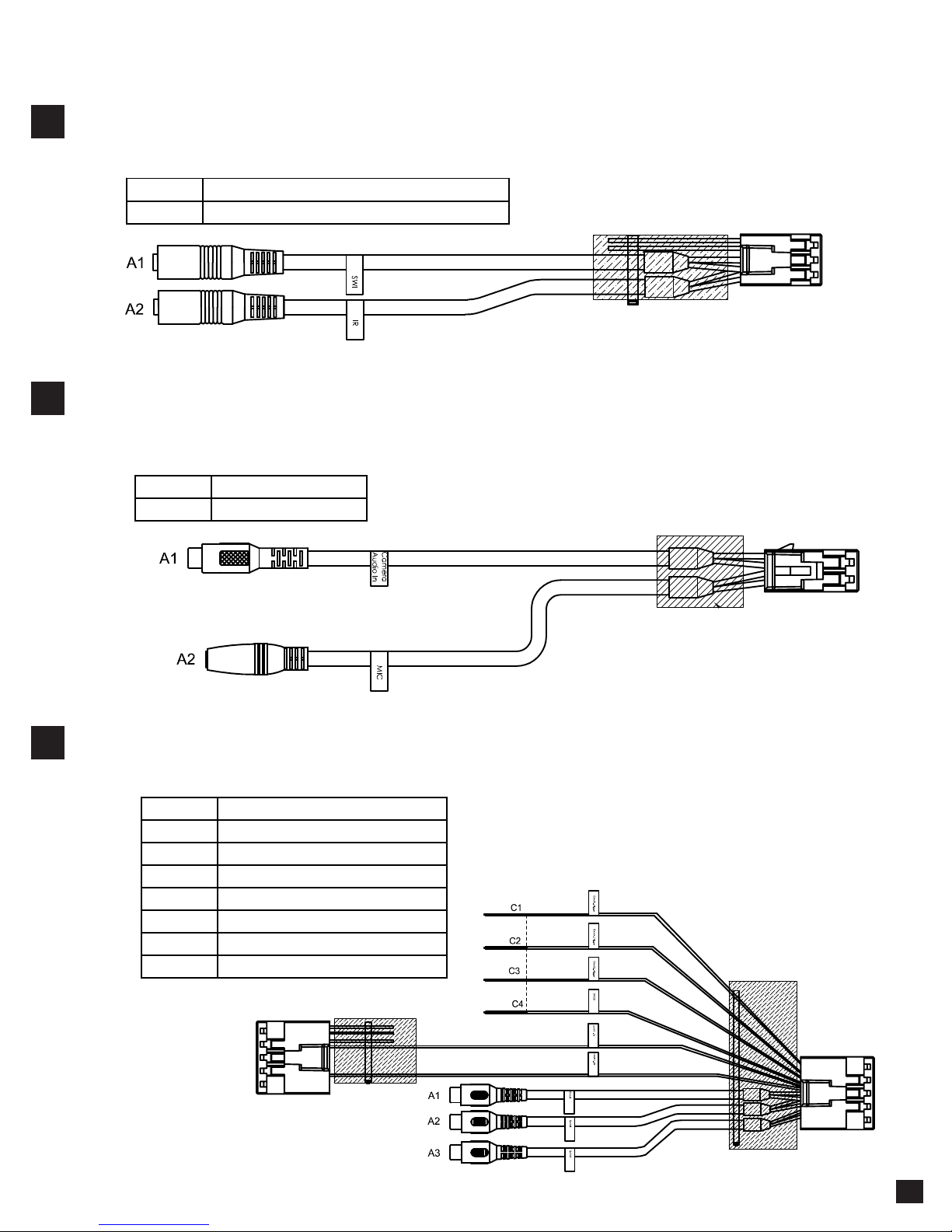

6 Pin SWI / IR Harness
3.5mm Input for optional Steering Wheel Control Interface
(PAC Audio SWI-CP2 is recommended for full compatibility and advanced features. Visit PAC-Audio.com)
A1 Steering Wheel Control Input
A2 IR Input
4 Pin Microphone / Camera Audio Harness
Input for External Microphone (included) used for hands-free calling, CarPlay and Android Auto
Optional rear camera audio input
A1 Camera Audio Input
A2 Mic Input
10 Pin Multi Camera Harness
3 additional camera inputs and triggers / VSS / Expansion Port
Camera Triggers 2 & 3 will accept a pulsing + trigger (turn signal).
D
A1 Camera 2 Input
A2 Camera 3 Input
A3 Camera 4 Input
C1 Camera 3 Trigger
C2 Camera 4 Trigger
C3 Camera 2 Trigger
C4 Vehicle Speed input
D Expansion Port (PAC Interface)
WIRING & CONNECTIONS
11
+
+
+
- Not Used
Microphone Input
Camera #1 Audio Input
Video
Video
Video

StingerElectronics.com
Copyright © 2018 IG-UN1880-REV.101718
Navigation Ready
Adding optional iGo Navigation (SE-P14) is
as easy as sliding a Micro SD card into the
front of the radio module. ELEV8 and iGO
are optimized for ease of use and driving
safety.
Best Kits
Dash kits, wire harnesses and antenna
adapters. PAC-Audio.com
PAC Audio
Retain the factory vehicle features with
RadioPRO Radio Replacement Modules,
Steering Wheel Interfaces, Factory Camera
and USB retention. PAC-Audio.com
EchoMaster
Add a Rear Camera, or Side and Front
Cameras. EchoMaster.com
Phoenix Gold
Take advantage of the 6 channel / 4v
outputs by adding an amp and speakers.
PhoenixGold.com.com
UPGRADES & OPTIONS
Navigation SD Card
Front of radio module
