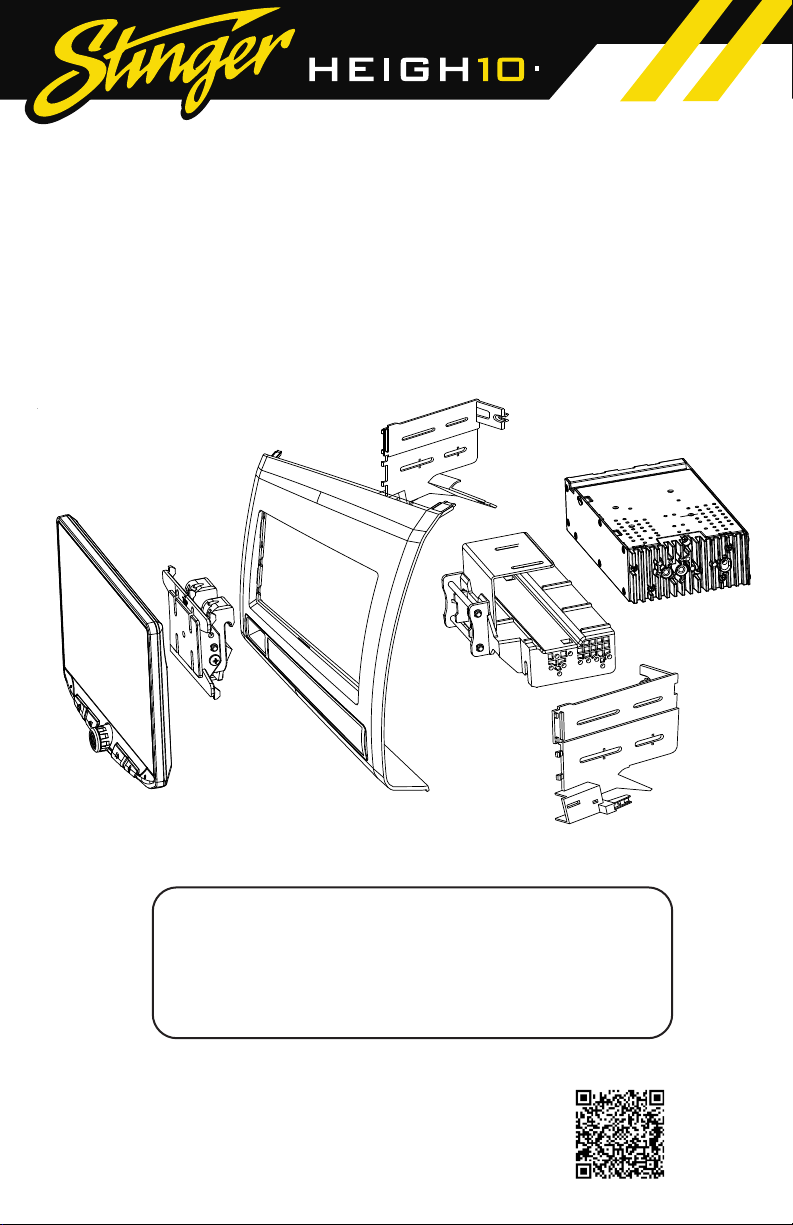

Stinger STH10TACOM User manual

2005-2011 Toyota Tacoma
10” Multimedia Infotainment System
Installation Guide
A video installation guide is available at:
https://stingerelectronics.com/installvideos
NOTE! Read this installation guide thoroughly before disassembling
the vehicle or making wire connections. Installation of this product
requires technical skill, experience, and specialized tools.
If you feel uncomfortable performing the steps outlined in this
manual, please have this product professionally installed by an
authorized Stinger or Phoenix Gold Dealer.
STH10TACOM
®

Disconnect the vehicle's negative battery cable before making any wire connections.
Protect all vehicle surfaces with tape or plastic.
Do not install components in any location that will hinder vehicle operation, such as
steering wheel, gearshift, air bags, hazard switch.
Bundle cables and harnesses with electrical tape or wire ties to prevent them from
interfering with moving parts.
Never attempt to disassemble or modify the product. Otherwise, an accident, re or
electric shock may result.
Exposed wires must be insulated with electrical tape. Otherwise, a short circuit, re, or
electric shock may result.
To prevent damage to the vehicle, conrm the locations of hoses, electrical wiring, and
the fuel tank prior to drilling holes to install this product.
When it is necessary to replace the fuse, always use a fuse of the correct rating
(number of amperes). Use of fuses with higher amperage ratings may cause a re.
PRECAUTIONS
Contents
Kit Components................................................................ 3
Vehicle Disassembly......................................................... 4
Wire Connections............................................................. 6
Radio & Display Assembly............................................... 8
MountingKitAssembly.....................................................12
OBD-2 Adapter...............................................................15
GPSAntenna...................................................................16
USBExtension.................................................................17
Harness Connections.....................................................18
VehicleInstallation...........................................................21
Function Test.................................................................. 24
Vehicle Reassembly....................................................... 25

3
Kit Components
Recommended Tools
Stinger HEIGH10®
(UN1810)
10” Multimedia System
RP4.2-TY11
Radio Replacement
Interface
TOYK972
Mounting Kit
Black & Silver
SSUSB2
Dual USB Extension
Plastic Trim Tool
10mm Socket
Socket Extension
Ratchet
Phillips Screwdriver
Wire Stripper / Crimper
Tin Snips
Pick Tool
Battery Terminal Wrench
Wire Connectors
Zip Ties
NOTE! This installation guide outlines basic installation. For any additional features,
adding a rear camera or amplier, please refer to the additional instructions included
with each component.
NOTE! Before starting disassembly, remove Negative Battery Cable.
Protect vehicle surfaces with removable tape and/or towels.
Place removed vehicle parts in a safe place.

4
Vehicle Disassembly

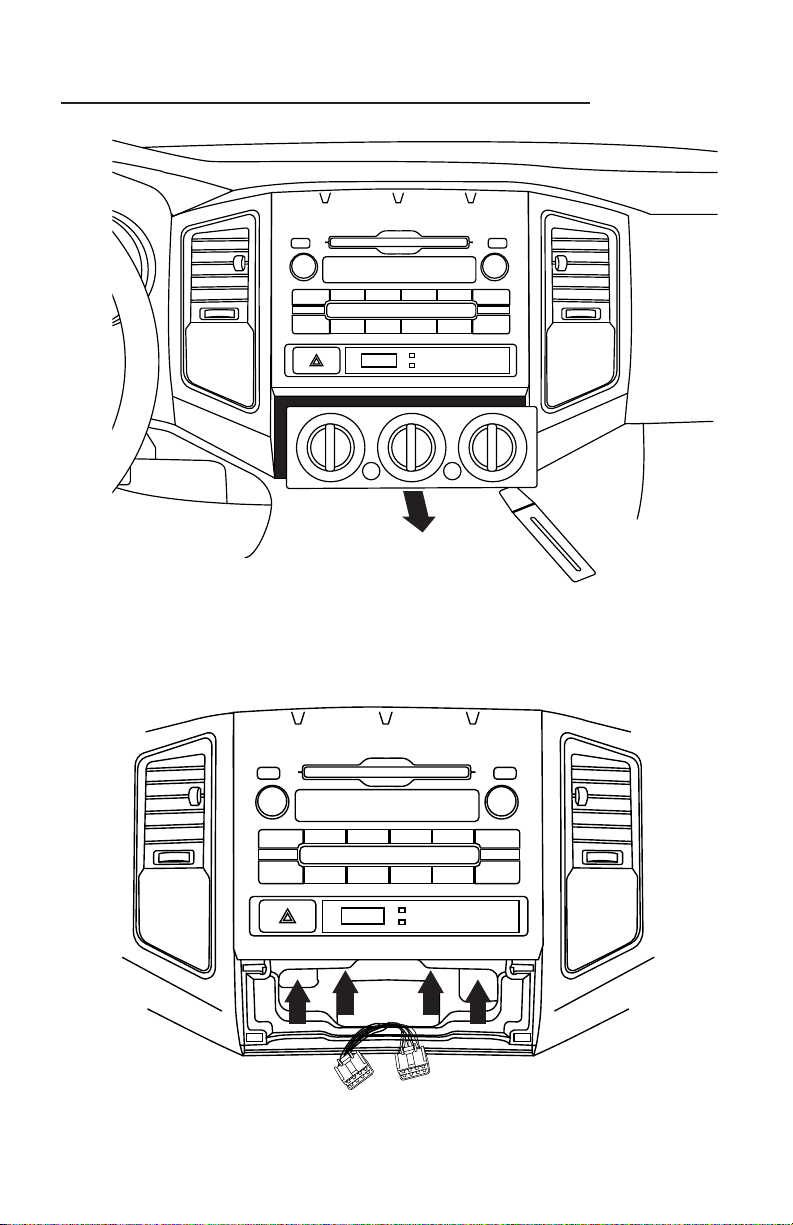

1. Insert a plastic trim tool along the bottom edge of the climate controls to release the
four retaining clips. Unplug the two connectors from the climate controls.
2. Remove the four 10mm bolts located below the Hazard/Clock panel.

5
Vehicle Disassembly
5. Remove and save both plastic clips (1)
from the lower mounting studs.
3. Using two hands behind the Hazard/Clock area, pull the radio assembly
outward to release the retaining clips on the sides and top. Pull entire radio
assembly forward, disconnect all wire harnesses from rear of radio and Hazard/
Clock panel and remove the radio assembly.
4. From the backside of the
factory radio assembly, use a
at blade screwdriver to care-
fully remove the Hazard/Clock
module. Apply light pressure to
the front of the Hazard/Clock
module while prying the thin
plastic strip around the module
housing outward to release the
module from the radio panel.
NOTE: There are two retaining
snaps on the top and bottom
edges, and one on each side.
NOTE: The metal side brackets
not shown. Removing the side
brackets from the radio will
make removing the Hazard/
Clock module easier, but
is not necessary.
1
1

6
Wire Connections

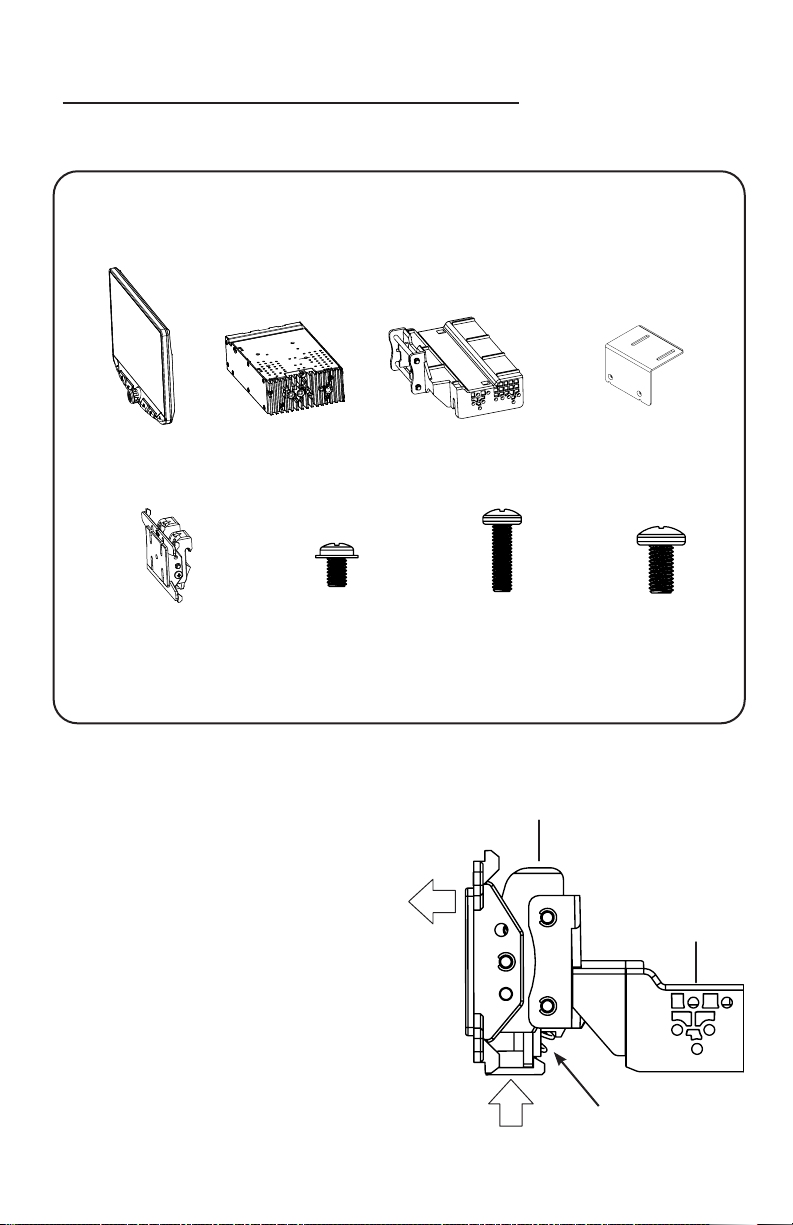

Parts Needed:
From the HEIGH10 Box:
16 Pin Power/Speaker Harness
10 Pin Multi Camera Harness (Optional)
6 Pin SWI*/IR Harness (Optional)
* Refer to pages 18-20 in the HEIGH10 Installation Guide for harness names and illustrations
From the RP4.2-TY11 Box:
Radio Harness (A109-RAD-HAR)
Vehicle/Interface Harness (RP4.2-TY11-HAR V5)
Referencing FIG A at right:
1. Connect the wires from the HEIGH10 16 Pin Power/Speaker Harness to the
RP4.2-TY11 harnesses as shown. The majority of the wire connections will
match color-for-color.
Note: The three Analog Navigation Output wires on the RP4.2-TY11-HAR V5 will
not be used and should be capped-off / insulated.
2. Optional Speed Sense Wire: If adding a front camera or HEIGH10 Navigation
Card, connect the Blue wire labeled SPEED on the HEIGH10 10 Pin Multi
Camera Harness to the Pink wire on the RP4.2 harness. Cap-off/insulate if not
using.
3. Optional Steering Wheel Controls: Plug the 3.5mm mini headphone jack on
the RP4.2 harness into the SWI socket on the HEIGH10 6 Pin SWI/IR Harness.
Insulate the Blue/Yellow and Brown wires on the SWC harness as they will not
be used.
Connect and insulate all connections either by using insulated crimp caps or by
soldering connection points and insulating with electrical tape or heat shrink.
Any unused wire ends should be insulated.
* SWI and SWC are Steering Wheel Control harnesses

7
Wire Connections
SPEED SEN
Red > ACC (+) < Red
Yellow > BAT (+) < Yellow
Black > Ground < Black
White > Front L+ < White
White/Black > Front L- < White/Black
Gray > Front R+ < Gray
Gray/Black > Front R- < Gray/Black
Green > Rear L+ < Green
Green/Black > Rear L- < Green/Black
Purple > Rear R+ < Purple
Purple/Black > Rear R- < Purple/Black
Blue > P Ant (+) < Blue
Blue/White > P Cont Amp (+) < Blue/White
Orange > Illumination (+) < Orange/White
Pink > Parking Brake (-) < Light Green
Green/White > Reverse (+) < Purple/White
Blue > SPEED < Pink
HEIGH10
16 Pin
Power/Speaker
Harness
RP4.2-TY11
A109-RAD-HAR
Blue/Yellow
Brown
Not Used
(Cap Off)
RP4.2-TY11
Vehicle Connectors
1-5
RP4.2-TY11
Analog Navigation Outputs
Not Used
(Cap Off)
RP4.2-TY11-HAR V5
HEIGH10
6 Pin SWI/IR
Harness
HEIGH10
10 Pin
Multi Camera
Harness
SWI
SPEED
FIG A

8
Parts Needed:
From the HEIGH10 Box:
HEIGH10 Display Radio Module Plastic Mounting Bracket Metal Mounting Bracket
Display Mounting Clamp M4 x 6 Screws (4) M4 x 14 Screws (4) M5 x 10 Screws (2)
NOTE! The Display Mounting Clamp
is shipped connected to the Plastic
Mounting Bracket. To remove the
clamp assembly from the plastic
mounting bracket push up from the
compression spring side (1) and
swing out to unhook top (2).
1
2
Compression Spring
Plastic
Mounting
Bracket
There is a Hardware Guide on Page 5 of the HEIGH10 Installation Guide
Radio & Display Assembly
Display Mounting Clamp

9
Compression Spring

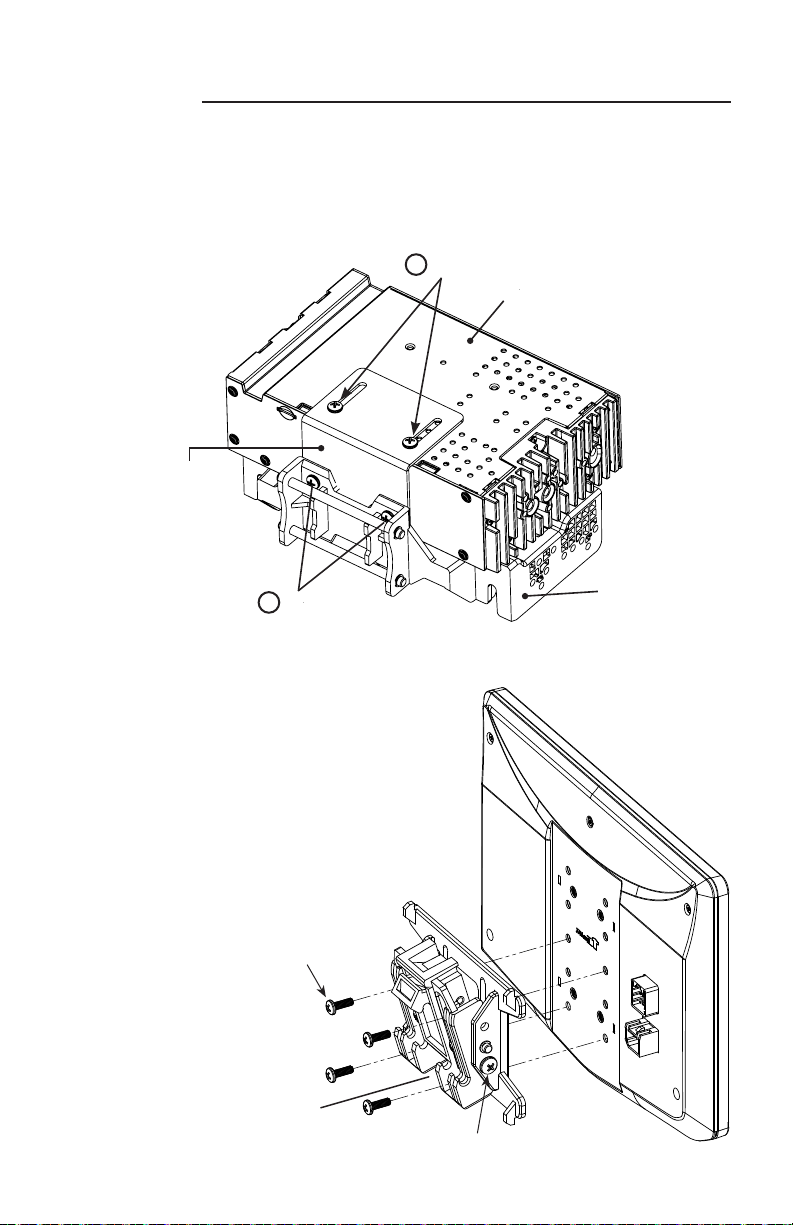

Start by attaching the Metal Bracket to the Plastic Mounting Bracket using
two M4 X 6 screws (1). Slide the Radio Module in between and align the
two holes with the metal bracket. Attach using two M4 X 6 screws (2).
M4 X 6
M4 X 6
Metal Bracket
Plastic
Mounting
Bracket
Radio
Module
Using the lowest set of holes on the back of
the display, attach the Clamp Assembly to the
display using four M4 X 14 screws. The clamp
assembly should be approximately 2 7/8” from
the top edge of the display, and approximately
1 1/4” from the bottom edge of the display.
TOP
M4 X 12 (4X)
To achieve the proper
display angle for the
Tacoma, ensure the TOP
indicator on the Clamp
Assembly is facing
DOWN.
M5 x 10 (1X)
Lower Hole
Attaching The Display Mounting Clamp
1
2
Radio & Display Assembly

10

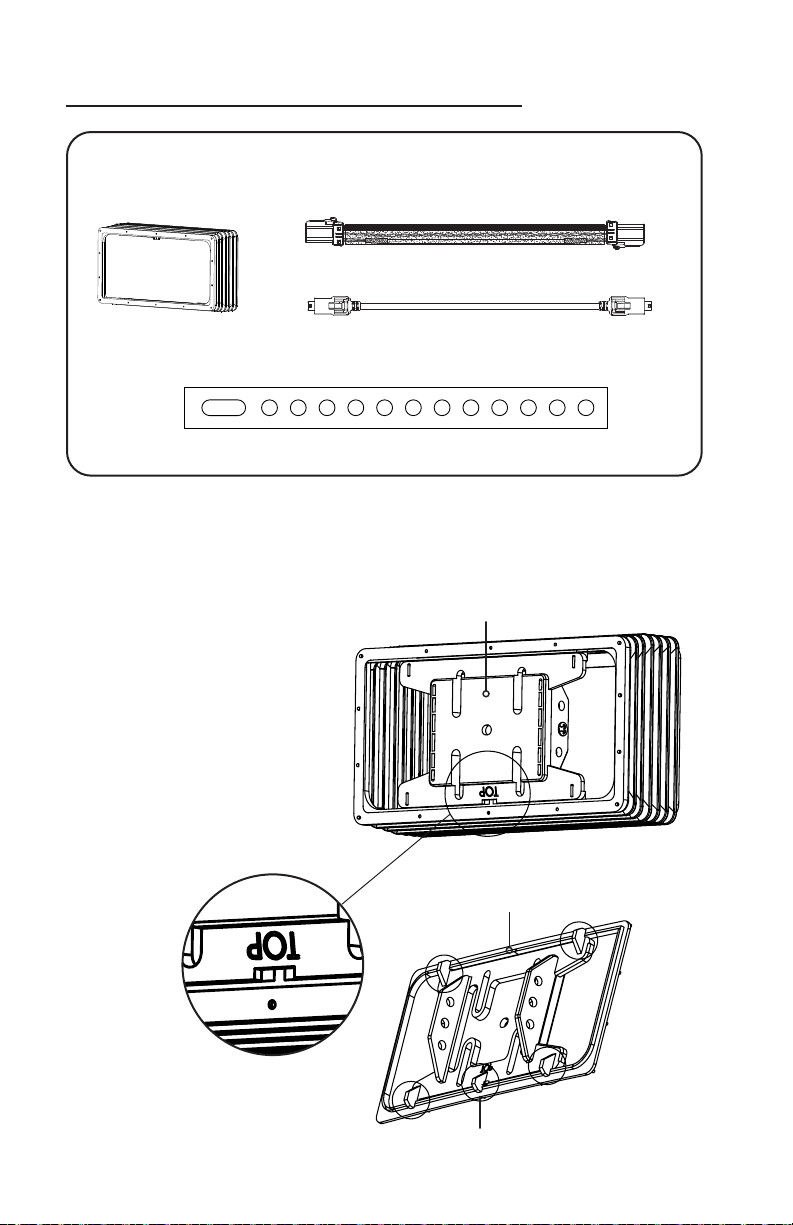

Attaching The Rubber Boot
Radio & Display Assembly
Display Mounting Clamp
(Display not shown)
Boot hooks in
5 spots
Plastic Boot Frame
(Rubber removed)
The boot attaches to the
display mounting clamp
on the back of the display.
Align the TAB on the plastic
boot frame with the NOTCH
on the bottom of the display
bracket.
Pull over the upper bracket
hooks snapping it into place.
Parts Needed:
From the HEIGH10 Box:
Rubber Boot LVDS Display Cable (Blue USB)
Metal Back Strap
8 Pin Display Harness

11
Attaching The Display
Radio & Display Assembly
(Rubber boot not shown)

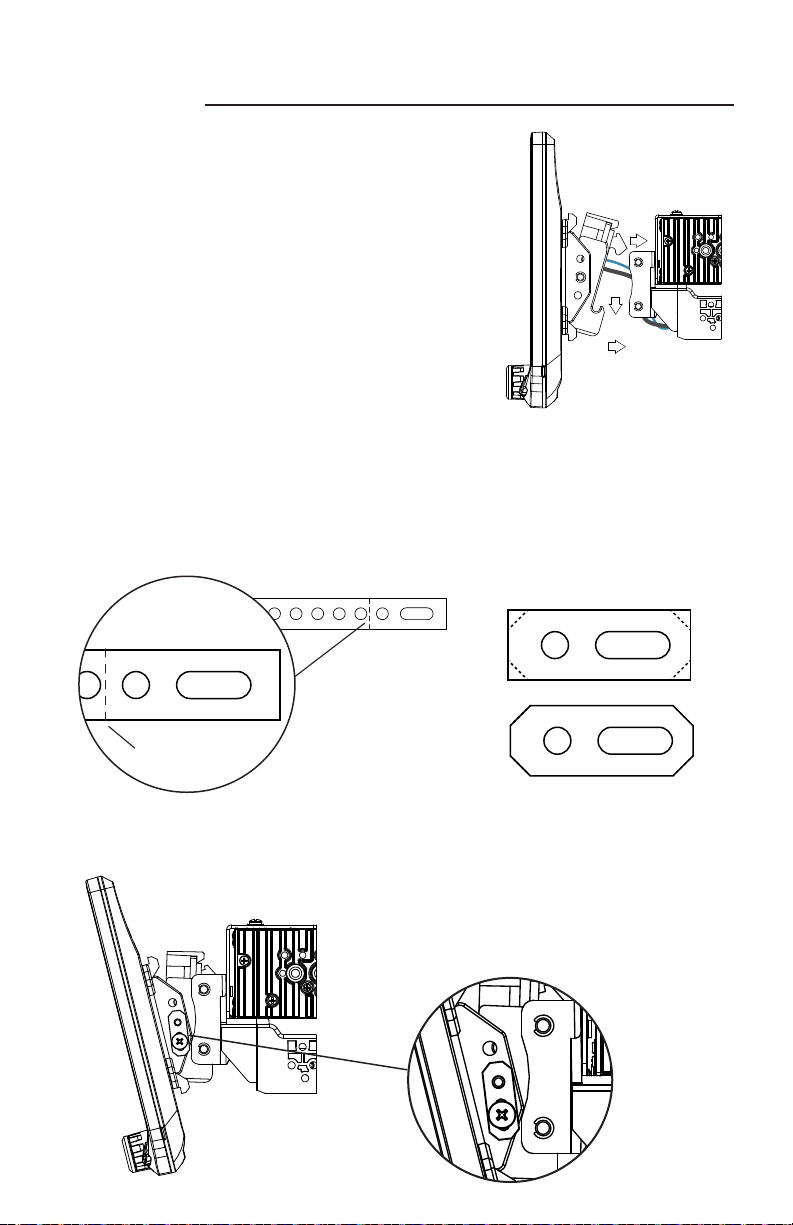

To attach the display, plug in both display
cables into the back of the display and
feed the cables under the plastic mounting
bracket and plug into the back of the Radio
Module.
A - Hook the top hook to the top rail
B - Push downward to compress spring
C - Hook the lower hooks on the lower rail
Rubber Boot LVDS Display Cable (Blue USB)
1. Using tin snips or similar, cut the metal back strap included in the
HEIGH10 kit, as shown in FIG. B.
2. Cut the four corners as shown in FIG. C
3. Place the remaining M5 x 10 screw through
the slotted hole on the locking clip and screw
it into the bottom hole on the display mounting
clamp, ensuring the hole on the locking clip
goes over the stud above the screw.
Display Locking Clip
CUT
A
B
C
FIG. B
FIG. C
M5 x 10 (1X)
Lower Hole
(Rubber boot not shown)

12
Mounting Kit Assembly
TOYK972
Mounting Kit
#10 X 3/8
Screws (4)
M5 X 10
Screws (4)
From the HEIGH10 Box:
1. Remove the shaded tabs from
both left and right side brackets.
2. Align the pins on the slotted spac-
ers with the holes on the inside of the
side brackets and snap into place.
Spacers must read upright:
(This side up for single DBL ISO install)
Select the correct Main Frame
(Black or Silver) that matches the
vehicle.
3. Remove the center rib from the
main frame.
Left
Right
CUT
CUT
1
2
3
MAIN FRAME

13
Mounting Kit Assembly
5. Position the Hazard/Clock module
into the main frame.
6. Align the notches in the side brackets
with Hazard/Clock module (FIG. D) and
attach the side brackets to the main
frame in the orientation shown above.
7. Install the two plastic clips removed
from the factory radio assembly onto the
mounting studs on both side brackets.
4. Place the main frame face down. From the TOYK972 mounting kit hardware,
install the three metal spring clips on the mounting studs along the top of main
frame.
FIG. D
(2X)

14
Mounting Kit & Radio Assembly
  
9. With the radio
assembly’s side mounting
holes positioned as
shown, loosely install the
specied screws in each
location marked in Red
on both sides. Ensure
the radio assembly is
straight and positioned
correctly and then tighten
all screws.
8. Slide the complete radio assembly into the mounting kit from the front.
Plastic Mounting
Bracket on bottom
M5 x 10 (4X)
Upper Holes Both Sides
10 x 3/8 (4X)
Lower Holes
Both Sides

15
1. The Yellow and Black wires on the OBD-2 Adapter will not be used.
These wires can be shortened and the ends must be insulated.
2. Plug the OBD-2 adapter into the vehicles OBD port located on the
lower edge of the dash above the parking brake / clutch (1).
3. Route the wires behind the panel, across the lower dash towards the
radio opening. Secure the wires away from metal or moving parts.
4. Feed the 2-pin plug up to the radio opening where it will be connected
to the RP4.2-TY11 harness.
OBD-2 Adapter
OBD-2 Adapter
Parts Needed:
From the RP4.2-TY11 Box:
10 x 3/8 (4X)
Lower Holes
Both Sides
The OBD-2 Adapter provides vehicle data for the radio to operate properly. The
adapter can be unplugged for service access to the OBD-2 port. If the OBD-2
port is being used by another accessory, the CAN wires can be professionally
soldered behind the port and the adapter eliminated.
1

16

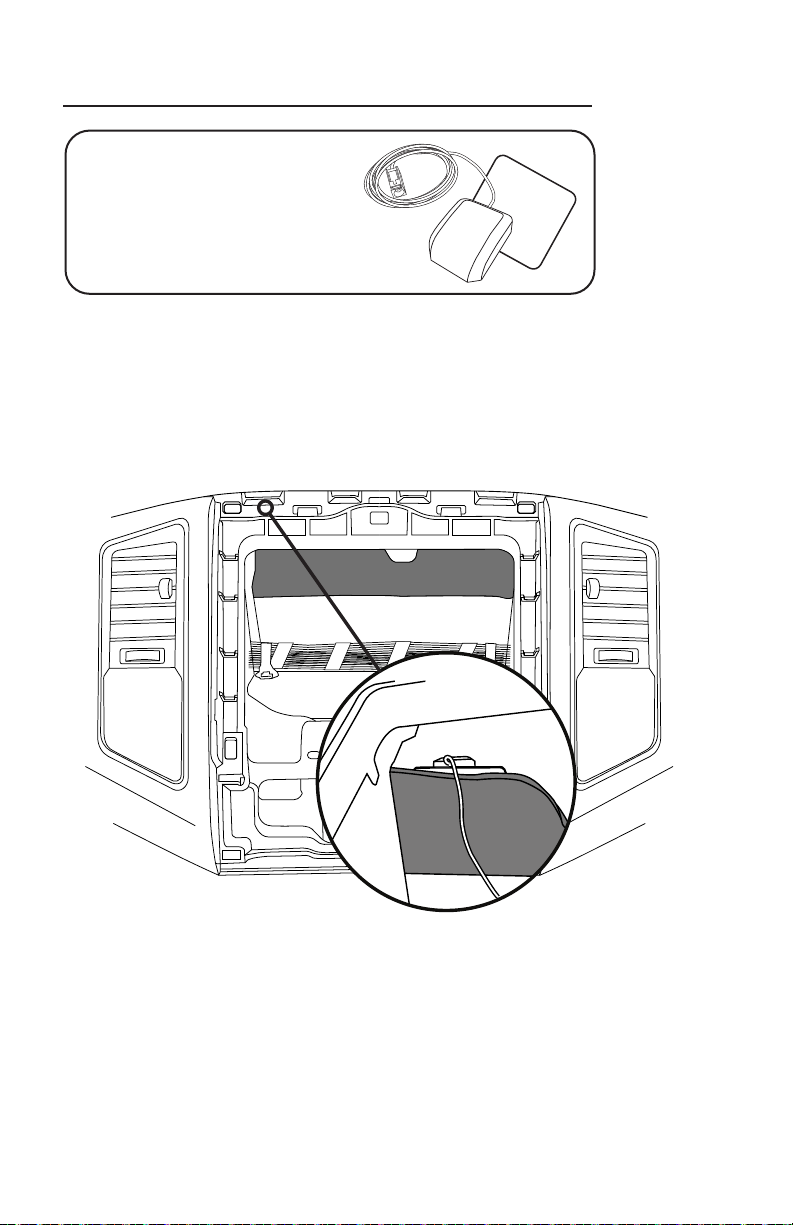

GPS Antenna
From the HEIGH10 Box:
GPS Antenna
GPS Mounting Plate
Parts Needed:
The GPS antenna is required for proper operation of Apple CarPlay and Android
Auto. Along the back of the inner dash opening, there is a air duct (shown shaded
in gray below) running across the top. The metal mounting plate can be attached
to the top of the air duct on the left side.
1. Clean the top of the air duct.
2. Remove the backing paper from the adhesive tape on the mounting plate.
3. Position the mounting plate roughly as shown in FIG. E above. Once positioned,
press and hold for about 10 seconds.
5. Place the magnetic GPS Antenna on top of the mounting plate.
6. The blue connector on the end of the GPS Antenna cable will be plugged into
the back of the radio and the remaining cable should be bundled and secured.
FIG. E

17
1. On the inside of the metal socket there are two plastic clips engaged into the
metal, normally top and bottom.
2. Using a bent pick tool, push in on the clips while turning the socket counter-
clockwise and pushing outward from the back of the socket.
3. Once the metal socket is removed and unplugged, there are two retaining clips
on the side of the plastic trim/cover. Depress the clips while pushing outward.
5. Route the two USB cables through the front of the panel and up to the radio
opening.
6. Thread the two USB cables through the two locking nuts and thread the locking
nuts onto the back of the USB socket.
USB Extension
Apple CarPlay, Android Auto, and any Firmware Updates require access to a
USB port. The SSUSB2 is designed to extend the USB ports on the back of the
HEIGH10 to where they are accessible once the radio is installed.
For this installation, one of the factory 12V power outlets will be replaced with the
SSUSB2. You may chose to follow these steps, or mount the USB port somewhere
else in the vehicle.
SSUSB2 Dual USB Extension
Parts Needed:

18
Harness Connections
1. Plug the 16 Pin Power/Speaker Harness into the radio module
2. Plug in the optional 6 Pin SWI/IR Harness
3. Plug in the optional 10 Pin Multi Camera Harness (SPEED)
4. Ensure the LVDS Display Video Cable (Blue USB type) is connected.
5. Ensure the 8 Pin Display Power Harness is connected.
6. Plug the A109 Radio Harness into the RP4.2-TY11 control module.
7. Plug in Vehicle Conn #1 into the RP4.2 module
8. Plug in Vehicle Conn #2 into the RP4.2 module
Note: Ports are labeled on the bottom of the RP4.2-TY11 control module
.............
............. 1 2 3 4
ON
1 2 3 4
ON
.............
............. 1 2 3 4
ON
1 2 3 4
ON
On the side of the RP4.2-TY11 module, set dip switch 3 down into the ON
position. Leave all other dip switches up and off.
Parts Needed:
All Harnesses from Pages 6-7
From the HEIGH10 Box:
24 Pin A/V Harness (Optional)
From the RP4.2-TY11 Box:
RP4.2-TY11 Control Module

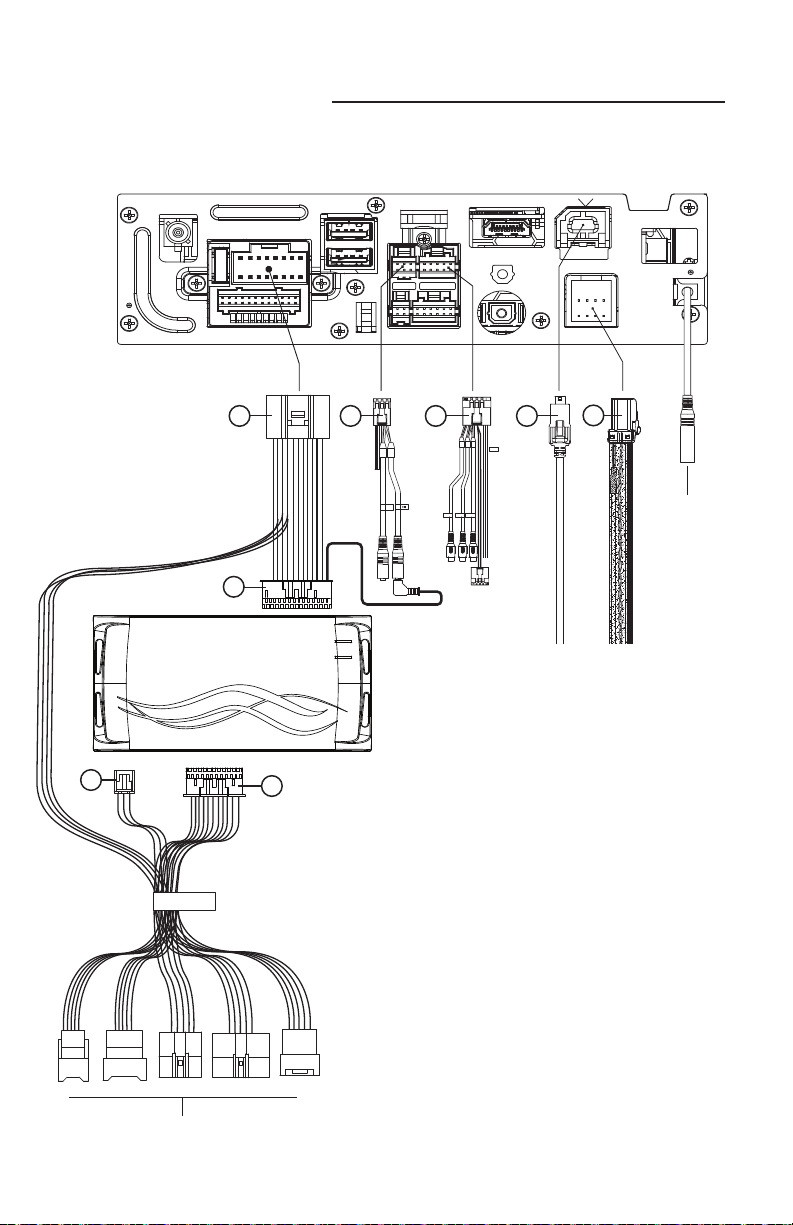

Referencing FIG. F at right, make the following connections:

19
Harness Connections
Vehicle plugs will be
connected to the matching plugs
removed from the factory radio
Antenna will be
connected to the
vehicles antenna
15
6
7
42 3
FIG. F
SPEED
A109-RAD-HAR
8
Radio Module
Note: Mounting kit and plastic bracket
not shown for illustration purposes.

20
Harness Connections
A109-RAD-HAR
1. Plug in the HEIGH10 24 Pin AV Harness
2. Unplug the small white 2 Pin connector disconnecting the twisted
White/Red and White/Black Wires
3. Referencing the label on the bottom of the RP4.2-TY11, plug in
Interface Connector #3 into the Amplied Audio Output port if the
vehicle has a factory amplier (JBL) or the Non Amplied Audio
Output port for all non amplied vehicles
4. For vehicles with a factory AUX input, connect the AUX AUDIO RCA
cable from the TY11 into the LINE IN RCA cable on the 24 Pin AV
Harness
Referencing FIG. G below, make the following connections:
1
4
2
3
FIG. G
