Subaru H1010SL010 User manual

1
△ 00

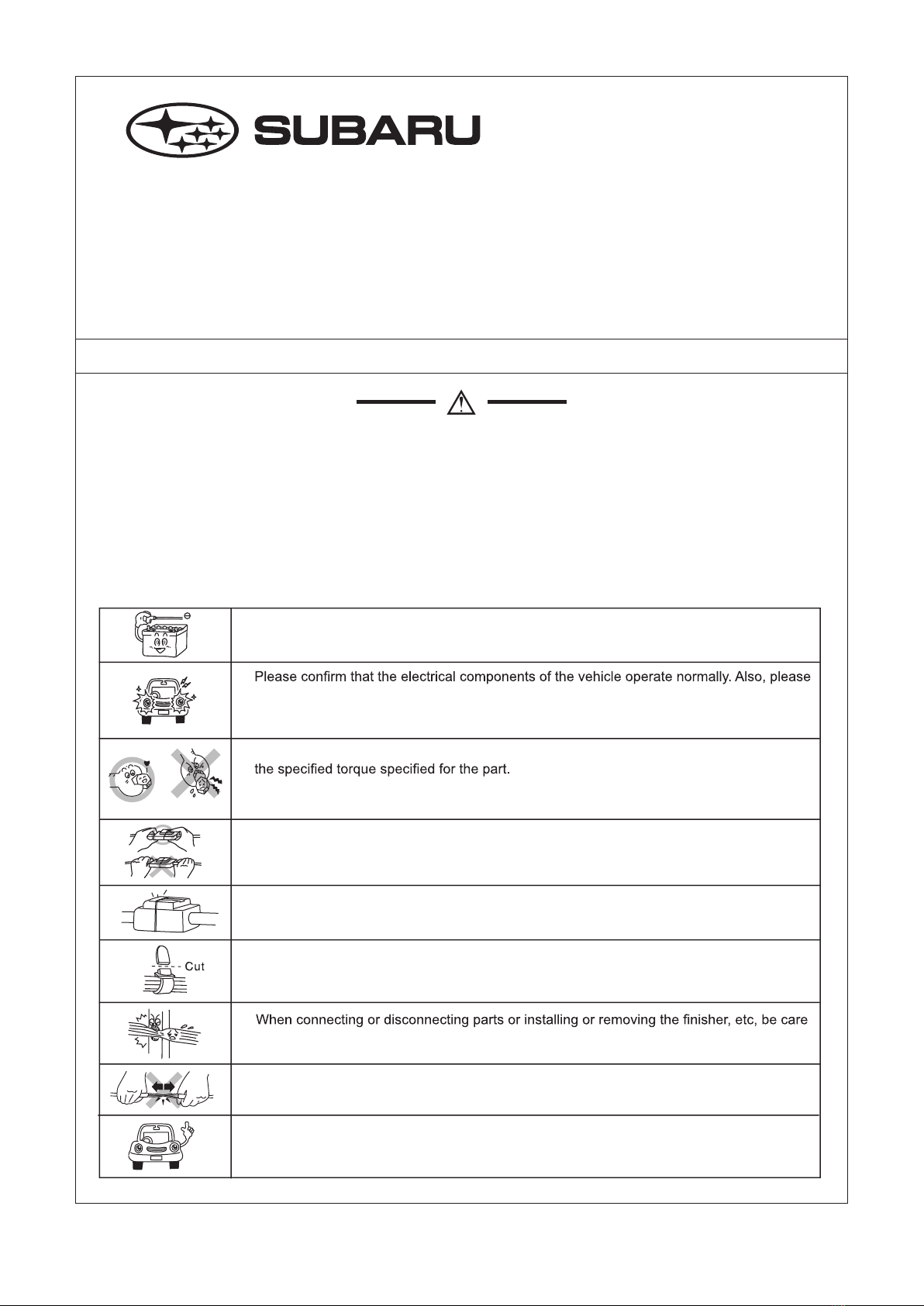

WIRELESS CHARGER KIT INSTALLATION INSTRUCTION
FORESTER (2025MY and after)
PART No. H1010SL010
IMPORTANT
1. The installation should be carried out by an authorized Subaru dealer.
2. Pay special attention not to damage vehicle components when removing / installing them.
3. Route the wiring so that it cannot be abraded against any sharp edges.
4. Refer to the vehicle service manual.
5. Check that the vehicle's electronic devices are operating normally. Be sure to make note of the contents of the
memory of electronic devices such as the preprogrammed radio channels.
ATTENTION
• Please disconnect the battery cable while conducting wiring operations. Failure to do so
may result in electrical shock or injury.
•
make an note of data in the memory of the electrical components such as the radio. This
will help avoid problems that may arise when performing the repair check after the instal-
lation.
• When tightening bolts or screws, use the proper tools and the proper size, and comply for
Failure to securely tighten the bolt and nut may cause them to loosen and fall off, causing
damage.
• When removing the connector from the vehicle, remember to remove the lock that holds
the main body of the connector, instead of pulling the lead line.
This protects against a lead wire cuts, etc.
• Please be sure to properly connect the connector and terminal. This helps to avoid a poor
connection.
• When wiring the harness(wiring), clamp the wires together along with the wiring harness
of the vehicle. This protects the harness from becoming entangled or causing strange
sounds.
• -
ful not to let the harness be hooked or pulled from the back. This protects against a cut
wire or shorts.
• Be careful not to forcefully pull the wiring harness of the vehicle. This helps prevent the
connector from being disconnected, and the wires from being cut or damaged.
• After installing the wiring, perform an operations check on the newly installed parts before
reassembling. This helps prevent mis-wiring.

2
① ②
No. Name Qty
①Wireless charger 1
②Cable ties 2
COMPONENTS
TOOLS ・ Driver (-) ・ M asking tape
1. Before Starting Work
(1) Before unpacking, check that the key specifications on the package are the same as those on the vehicle.
(2) Securely apply the parking brake and set the select lever to N.
1-1. Removing Battery Terminals
Disconnect the ground terminal from the battery sensor and wait at least 60 seconds before starting work.
Follow the latest service manual instructions for removing and installing the negative (ground)
battery terminal.
CAUTION

3
(Fig. 3)
(Fig. 4)
(3) Pull out the existing wireless charger harness
on the vehicle side and remove the vinyl tape
holding the harness in place. (Fig. 3)
Remove the white connector.Wireless
charger connector is covered by dummy
connector.
(4) Routing vehicle harness as shown in the
figure and fix cable ties at 30mm from both
end side of floor carpet. (Fig. 4)
Vinyl tape
Harness
Dummy
connecter
Harness fixation point
Harness length from harness fixation point:
Approx. 460mm
(Fig. 2) (2) Remove the clip joints and hooks first. Then
remove the tray assembly center LWR.
(Fig. 2)
C22
C22(W):x2
(Fig. 1) 2. Installing Wireless Charger
2-1. Removal of Related Parts
(1) Insert a flat-head screwdriver or similar tool
with protective tape wrapped around the (A)
section of the tray assembly center LWR.
(Fig. 1)
To prevent damage to vehicle parts, apply
protective tape to the tool before use.
CAUTION
(A)

4
(6) Securely attach the power connector (8-pole
connector) to the terminal of the wireless
charger. (Fig. 6)
(7) Install the wireless charger. (Fig. 7)
*The removed tray ASSY center LWR is not
used. Return it to the customer.
When installing the wireless charger, make
sure that the surrounding parts do not bite
the harness.
CAUTION
(Fig. 6)
(Fig. 7)
(5) Check that the key specifications on the label
on the back of the wireless charger match the
vehicle key specifications. (Fig. 5)
(Fig. 5)

5
2. Operation Check
(1) Connect the battery.
(2) Check that the wireless charger is compatible with the vehicle key specifications.
Follow the flowchart below to perform the check.
Do the
vehicle key specifications
match the key specifications on the
package and the label on the back
of the wireless
charger?
Start
The wireless charger
specifications must match the
vehicle key specifications.
No
Yes
Turn the engine switch to ACC and
turn on the wireless charger.
No
Yes
Does the
indicator on the wireless
charger light up green?
Place a mobile device compatible with
wireless charging in the charging area of
the wireless charger to perform charging.
End
(3) Start the engine (or the hybrid system) and check that the wireless charger operates properly.
(4) Set the clock and settings for audio system, etc.and complete the procedure by cleaning the vehicle.
△Contents Creation date
Revised history
△ 00 Newly created Oct. 27, 2023
