Sunjoy SummerCove A102012121 User manual

Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
A
SSEMBLY IN
S
TRUCTION
I
tem
/Article #
：
A10
20121
2
1
WE HAVE YOU IN MIND, LET US SERVE YOU!
Nous pensons en vous, laissez nous vous aider!
Questions? Issues? / Questions? Problèmes?
CONTACT US / Contactez-nous
[e-mail]
www.sunjoyonline.com

2 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
 This product is intended for domestic outdoor use only.
 The product should be placed on flat, horizontal ground.
 Ensure enough clearance around the product. Before assembling the product, find level
ground not less than 6' (1.8 m) away from any structures or obstructions, such as fences,
garages, houses, overhanging branches, laundry lines, or electrical wires.
 This gazebo is not to be regarded as part of a building/house structure. The gazebo is to be
anchored onto the ground for added safety. Do not assemble the gazebo onto soil/earth
ground. It is best advisable to have the gazebo built onto a wooden deck or concrete ground
for stability. If it is to be build onto a wooden deck/ground, do ensure that the wooden
deck/ground has a strong foundation. It is advisable to use appropriate floor plugs (not
provided) to anchor the gazebo onto the wooden/concrete ground.
 Some structures may require two or more people to install safely. Check for underground
utilities before digging or driving stakes into the ground.
 During installation, follow all safety warnings provided with your tools, and use safety glasses.
 In case you set up more than one gazebo, keep a minimum distance of 10' (3 m) between the
gazebos.
 Any assembly or maintenance of the product must be carried out by adults only.
 Arrange necessary manpower when assembling or moving the product.
 Some parts may contain sharp edges. Wear protective gloves if necessary.
 Keep children and pets away while setting up the gazebo.
 Check all nuts and bolts periodically to ensure bolts/nuts are tightened.
 Repairing and replacing parts should be done by a qualified technician.
 This gazebo is intended for decorative and sunshade purposes only, and it is not designed to
withstand harsh weather, including high winds, rain, and snow.
 Do not light any fires inside or near the product！
 Stay calm if fire breaks out. Search for the nearest exit. Do not return to the gazebo before
 firemen allow you to do so.
 Do not hang heavy weights on the roof frame.
 Do not climb onto the roof of the gazebo. Falling off the gazebo can result in serious injury.
 Retain the original packaging to store the gazebo.
Important Safety Instructions
Warning! To reduce the risk of serious injury, read the following safety instructions
before assembling and using the gazebo.
Please check with your local governing authority/local municipal codes regarding
installation of structures before assembly.
Caution! Proper placement of your gazebo is essential.
Do not place the product underneath electrical lines.
Keep children away during assembly.
This product contains small parts which can be swallowed by children.
Keep fingers away from the places where they can be pinched or trapped.
Do not attempt to assemble the gazebo if any parts are missing.

3 / 33
Country of Origin: China
Pais d’origine: Chine
•
•
•



•





•

•

•

•
•
•
•
•

•
•

•
•

•
•

•
Consignes de sécurité importantes
ATTENTION!





Avertissement!



Production Number: XXXXXXXXXX
Numéro de fabrication: XXXXXXXX

4 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX


 • Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging
contents list.
 •When assembling wooden parts, do not overtorque the bolts to avoid splitting the
wood. See image illustration.
 •Place all parts from the box in a cleared area and position them on the floor in front of you.
 •Remove all packing materials and place them back into the box. Do not dispose of
the packing materials until assembly is complete.

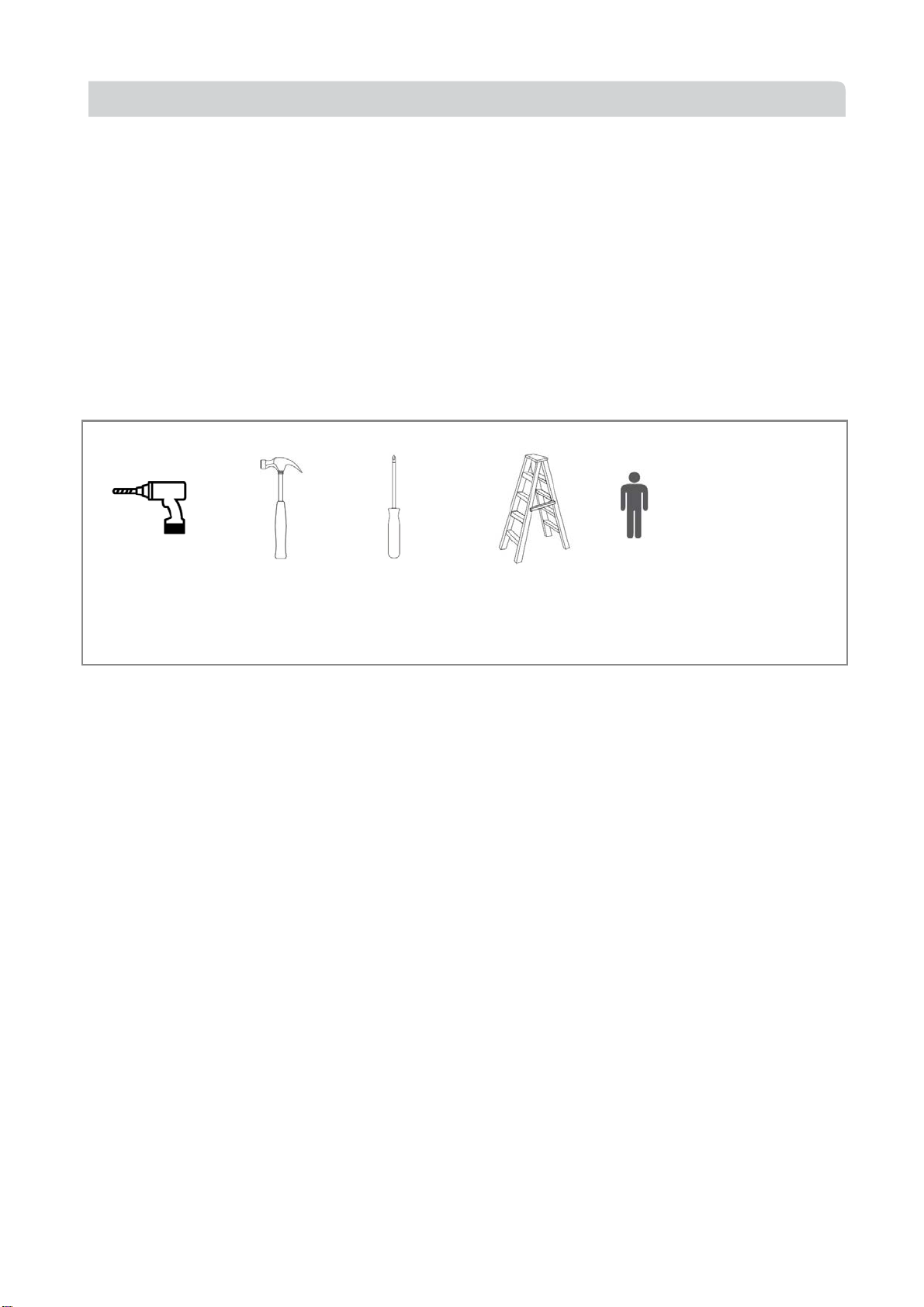

 •Needed for assembly:（The following tools are not included）
IMPORTANT:
Cordless drill Hammer Screwdriver Ladder 4 people

5 / 33
IMPORTANT:
•

•
•

•

•

Utilisez un niveau






Véfifiez avec un équerre


Serrer les boulons Mesurer la distance




   4personnes
Country of Origin: China
Pais d’origine: Chine
Production Number: XXXXXXXXXX
Numéro de fabrication: XXXXXXXX

6 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX

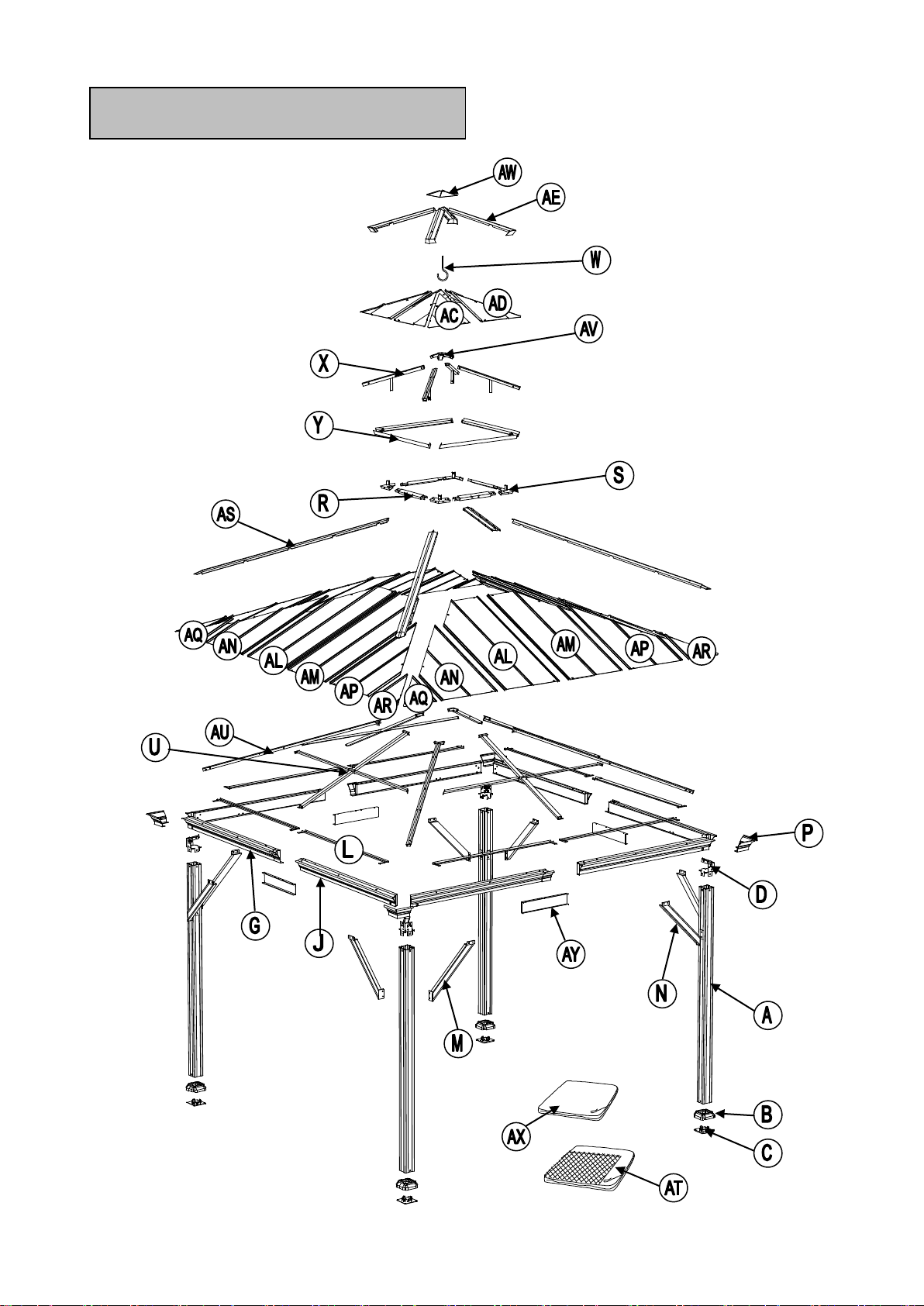

EXPLODED DRAWING/ DESSIN CLAT

7 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX

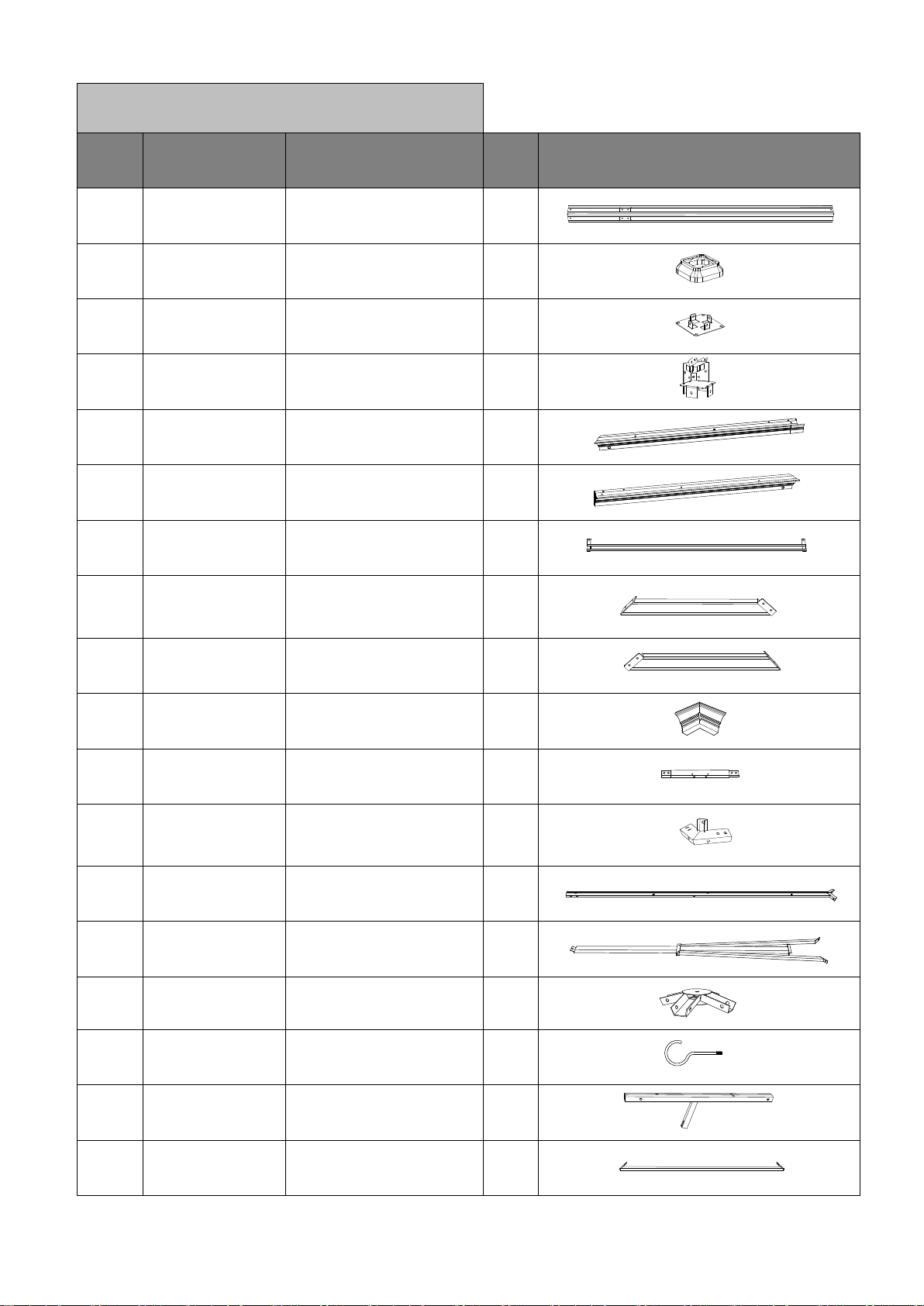

Parts List
Label Part Number Description Qty Part Image
A P00020060001 Post 4
B P00610021701 Base Cover 4
C P00010024201 Base 4
D P00050025901 Connector for
Lower Slanting Bar 4
G P00040115501 Short Cross Beam(Left) 4
J P00040115601 Short Cross
Beam(Right) 4
L P00570034201 Short Netting Tube 8
M P00500057201 Slanting Bar 1 4
N P00500057301 Slanting Bar 2 4
P P00220019201 Corner Card 4
R P00050157201 Short Tube for Big
Frame 4
S P00050157502 Corner for Big Top 4
AU P00060216101 Slanting Beam 4
U P00060216201 Middle Crossbeam 4
AV P00050156503 Conncetor for Small Top 1
W P005800001 Hook 1
X P00060023401 Slanting Bar for Small
Top 4
Y P00060201901 Small Roof Panel
Flashing 4

8 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
Liste de Pièces
Étiquette Numéro de
la Pièce
Description Quantité Numéro de la Pièce Diagramme
A P00020060001 Poteau 4
B P00610021701 Capuchon de pied 4
C P00010024201 Base 4
D P00050025901 Connexion de la Barre
Inclinée Inférieure 4
G P00040115501 Poutre transversale
courte (gauche) 4
J P00040115601 Poutre transversale
courte (droite) 4
L P00570034201 Tuyau du Filet Court 8
M P00500057201 Barre Inclinée 1 4
N P00500057301 Barre Inclinée 2 4
P P00220019201 Segment du Coin 4
R P00050157201 Tuyau Court de la
Structure Grande 4
S P00050157502 Coin du Grand Toit 4
AU P00060216101 Poutre inclinée 4
U P00060216201 Traverse Centrale 4
AV P00050156503 Connexion du Petit Toit 1
W P005800001 Crochet 1
X P00060023401 Barre Inclinée du
Petit Toit 4
Y P00060201901 Solin du Panneau du
Petit Toit 4

9 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
AC P00070021901
Side Cover
for Small Top 1 4
AD P00070022101
Side Cover
for Small Top 2 4
AE P00080003901 Slanting Beam for Small
Top 4
AW P00090015403 Small Top Cover 1
AL P00070101801
Middle Cover
for Big Top 2 4
AM P00070102301
Middle Cover
for Big Top 3 4
AN P00070101301
Small
Cover
for Left Middle o
f
Big Top
4
AP P00070101501
Small Cover for
Right Middle of
Big Top
4
AQ P00070100901 Left Small Cover for Big
Top 4
AR P00070101101 Right Small Cover for
Big Top 4
AS P00080002001 Cover for Slanting Bar 4
AT P00120027801 Netting 1
AY P00050167201 Middle Beam
Connector 4
AX P00130014401 Curtain 1

10 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
AC P00070021901 Toiture Latérale du
Petit Toit 1 4
AD P00070022101 Toiture Latérale du
Petit Toit 2 4
AE P00080003901 Poutre Inclinée du Petit
Toit 4
AW P00090015403 Toiture du Petit Toit 1
AL P00070101801 Toiture Centrale du
Grand Toit 2 4
AM P00070102301 Toiture Centrale du
Grand Toit 3 4
AN P00070101301
Toiture Petite
Centrale Gauche du
Grand Toit
4
AP P00070101501
Toiture Petite
Centrale Droite du
Grand Toit
4
AQ P00070100901 Toiture Petite Gauche
du Grand Toit 4
AR P00070101101 Toiture Petite Droite
du Grand Toit 4
AS P00080002001 Revêtement de la Barre
Inclinée 4
AT P00120027801 Filet 1
AY P00050167201 Connexion de la
Poutre Centrale 4
AX P00130014401 Rideau 1

11 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX

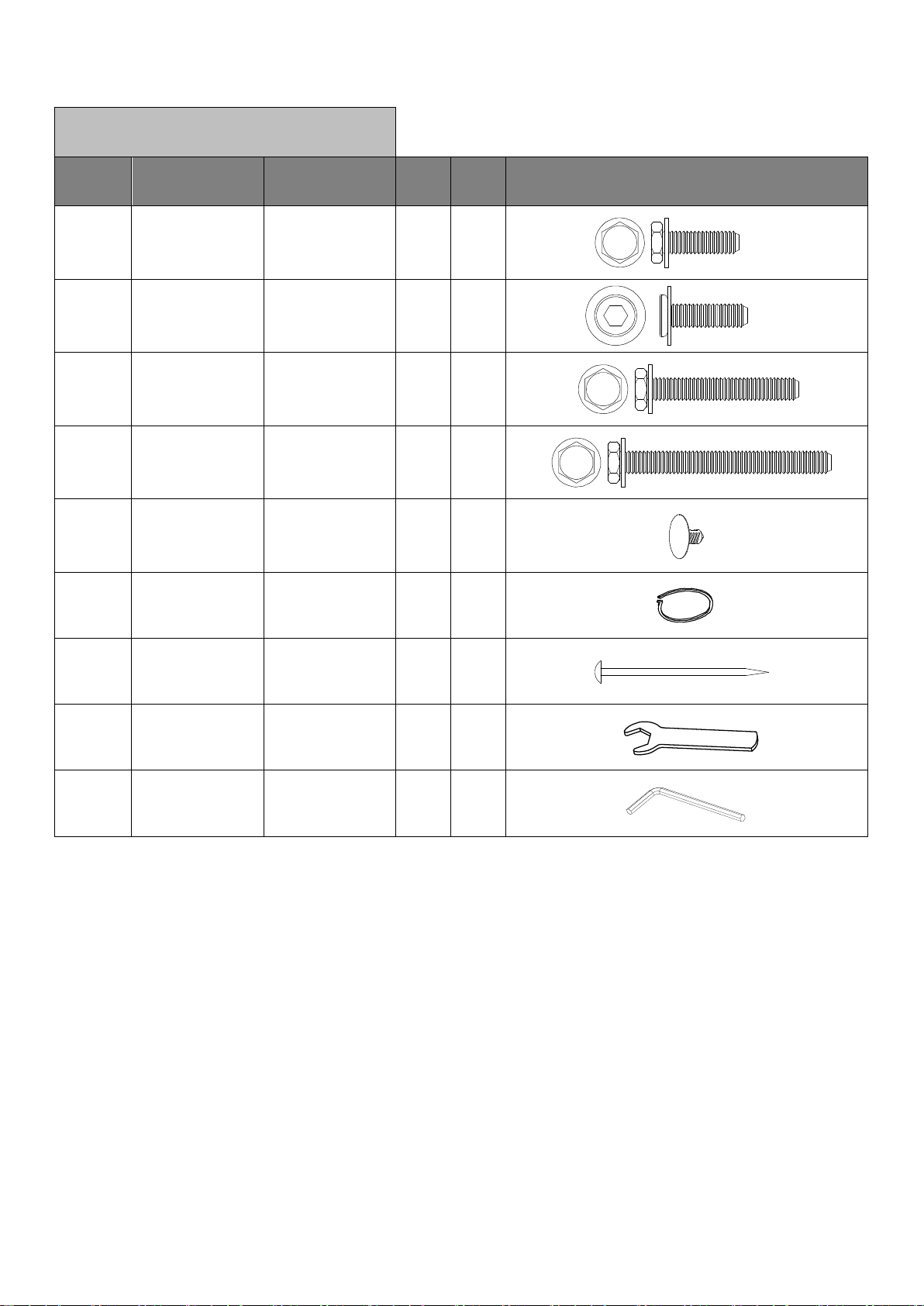

Hardware Pack
Label Part Number Description Qty Add Part Image
H1 H100010047 Bolt M6*20 224 12
H2 H100010050 Bolt M6*20 12 1
H3 H100010046 Bolt M6*40 12 1
H4 H100010059 Bolt M6*45 1 1
HH P00220034001
Black Plastic
Buckle 8 1
HR P005100264 Ring
HS H070010003 Stake Φ8*180 8 0
HW1 H090010017 M6 Wrench 1 0
HW2 H090030002 Allen Key M6 1 0
96 5

12 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
Pack Quincaillerie
Étiquette Numéro de
la Pièce Description Quantité Add Numéro de la Pièce Diagramme
H1 H100010047 Boulon M6*20 224 12
H2 H100010050 Boulon M6*20 12 1
H3 H100010046 Boulon M6*40 12 1
H4 H100010059 Boulon M6*45 1 1
HH P00220034001
Boucle en
plastique noir 8 1
HR P005100264 Bague 96 5
HS H070010003 Piquet Φ8*180 8 0
HW1 H090010017 Clé M6 1 0
HW2 H090030002 Clé Allen M6 1 0

13 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX

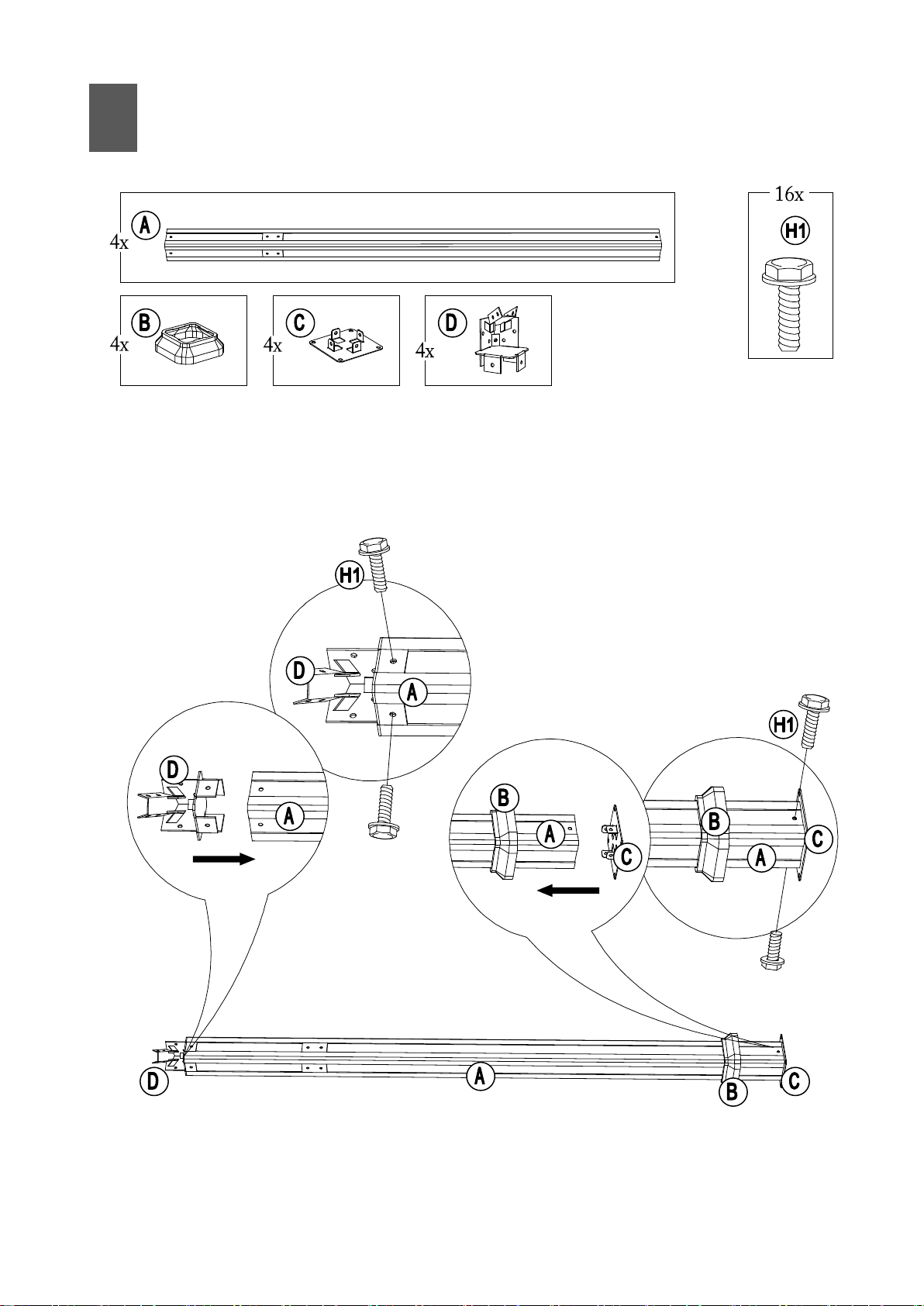

1

14 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX

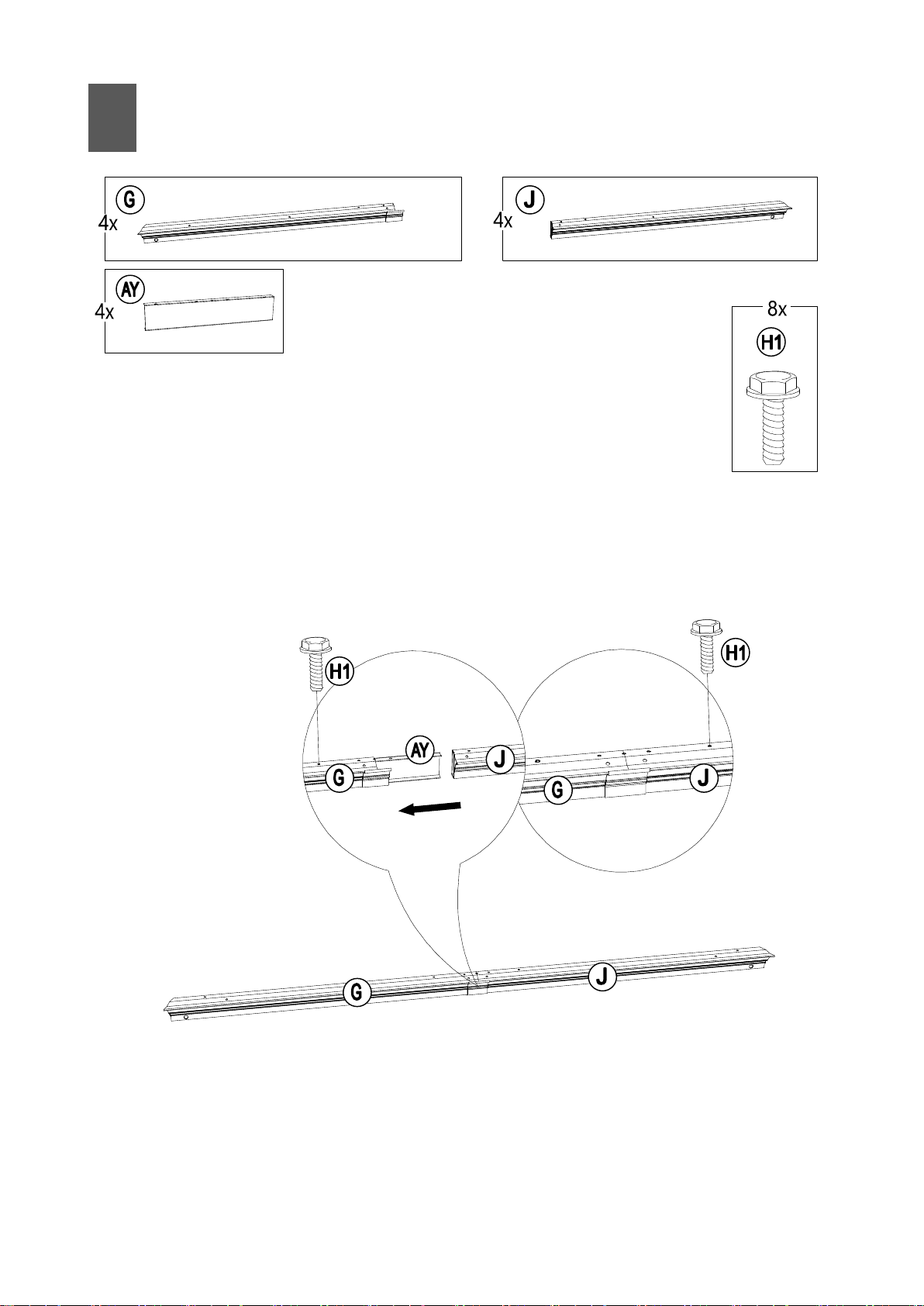

2

15 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX

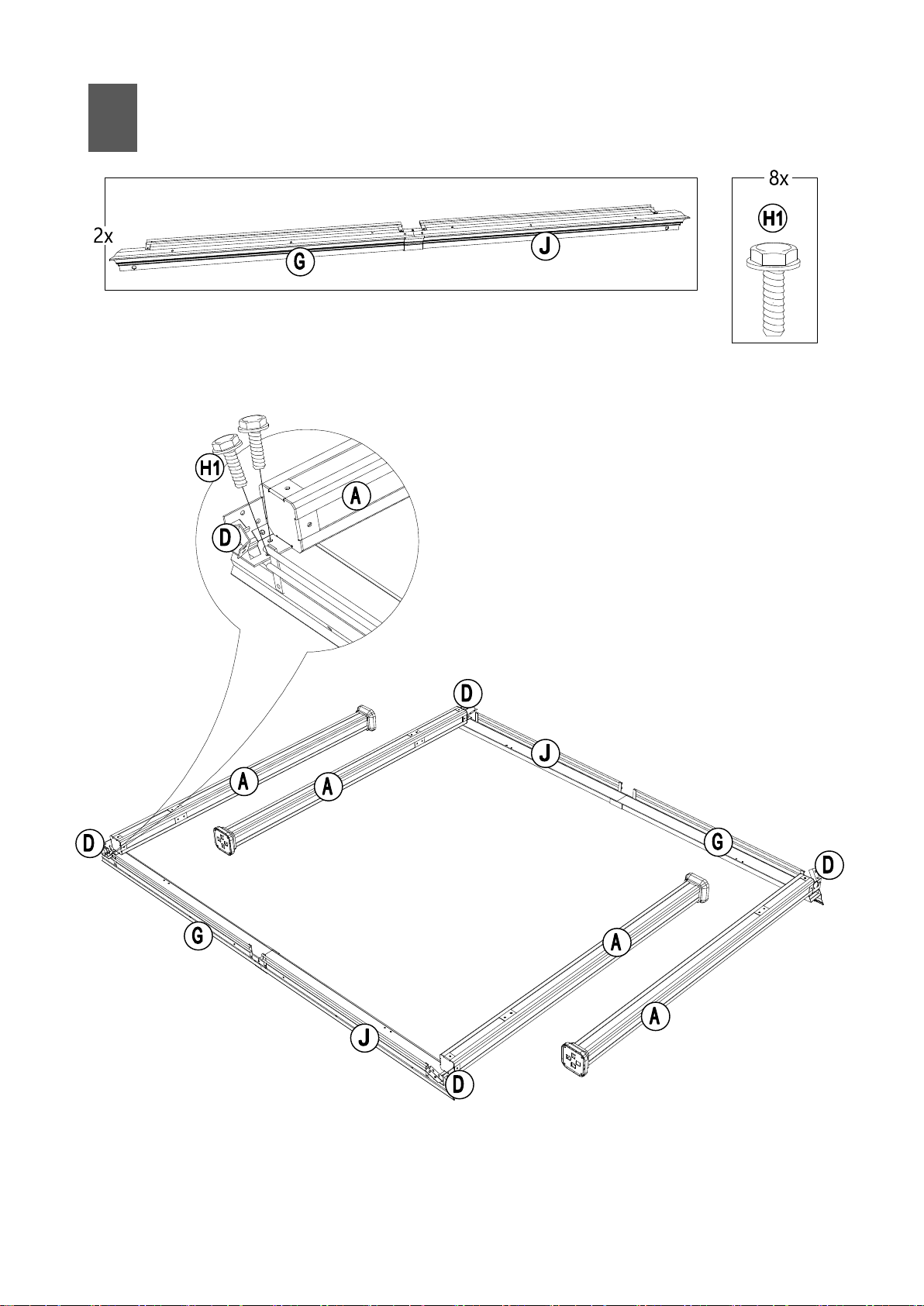

3

16 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
4

17 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
5
Wrong Assembly Step/Mauvaise étape d'assemblage Correct Assembly Step/Étape d'assemblage correcte

18 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX

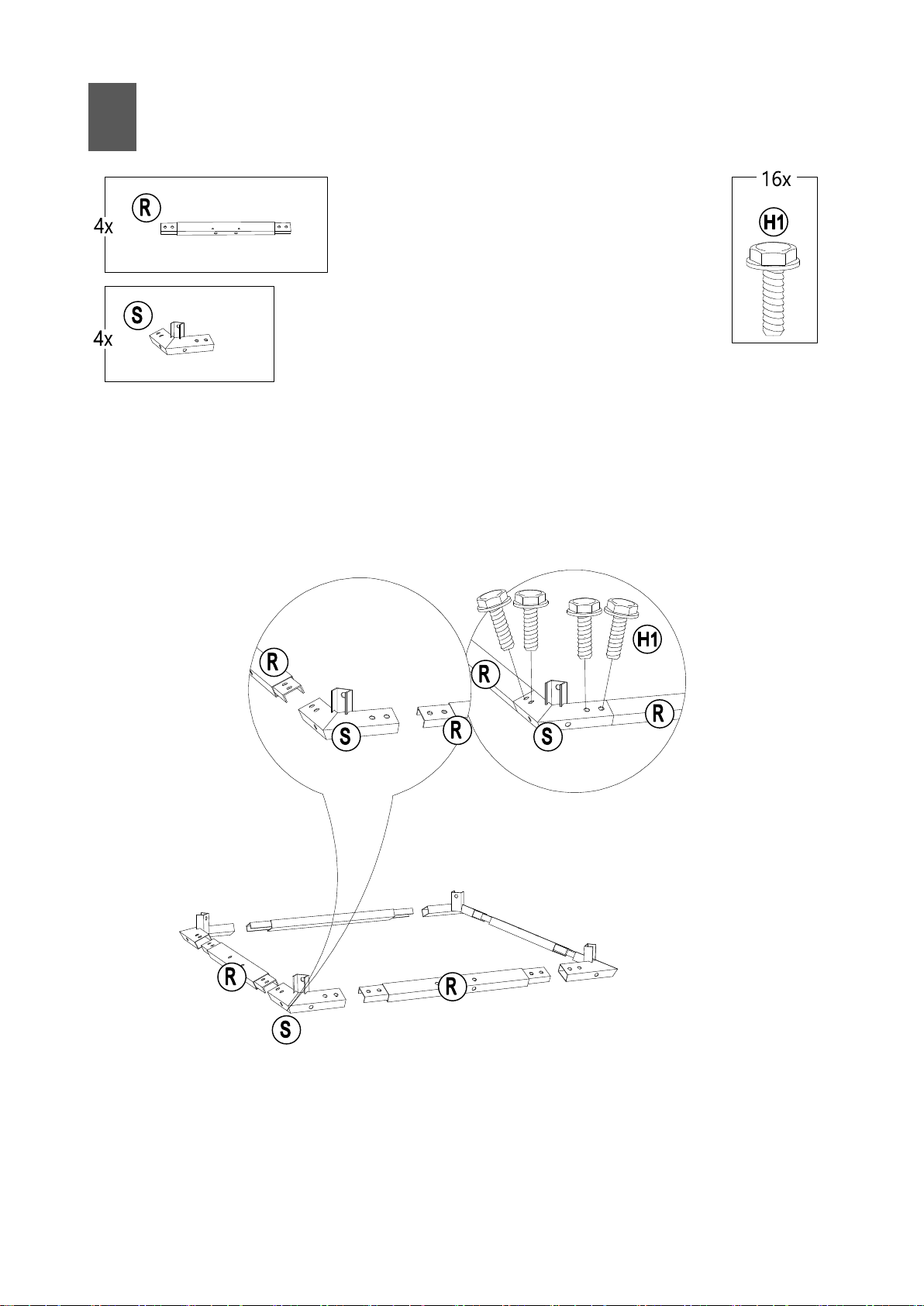

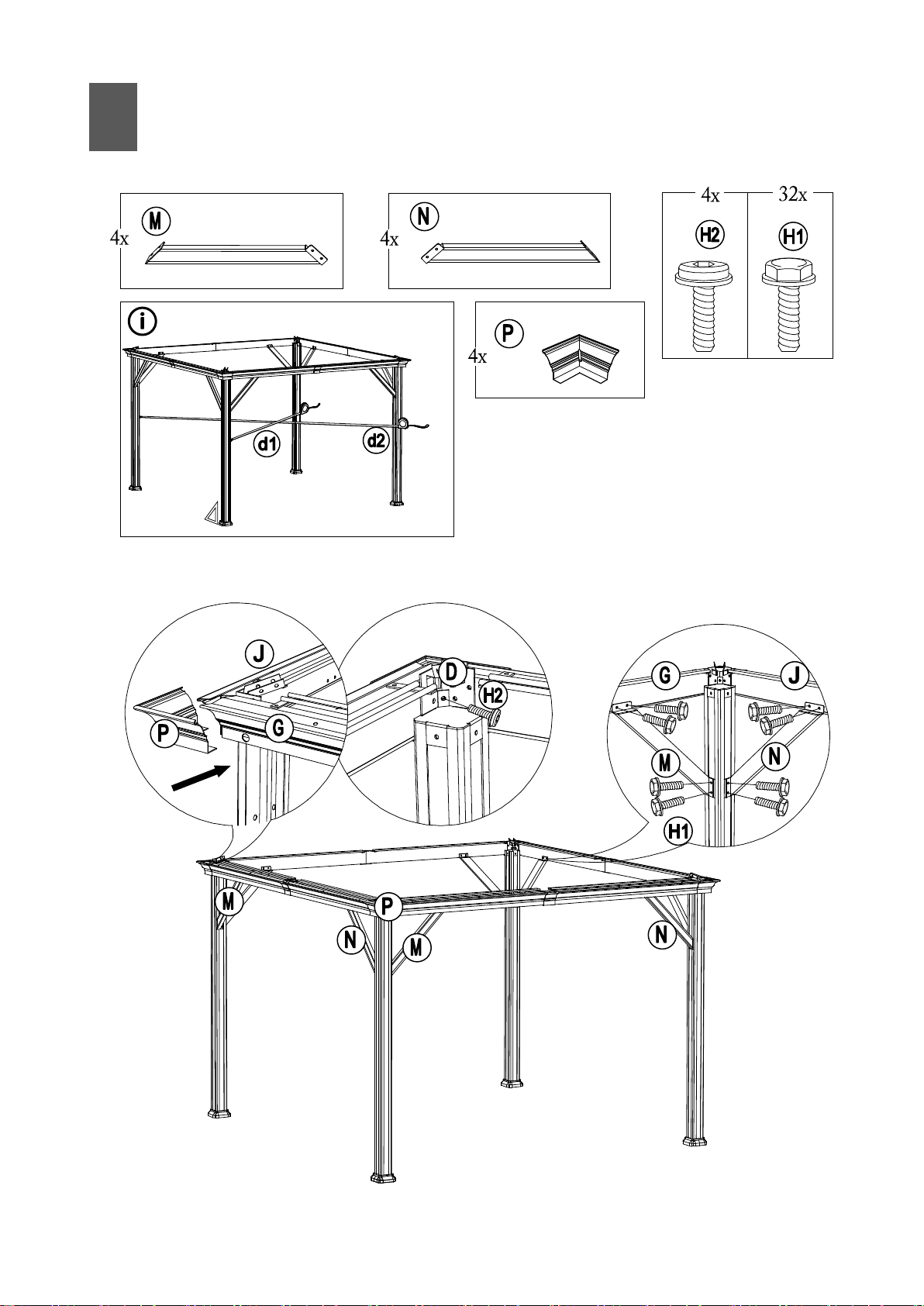

6
d1=d2
Rt∠90

19 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
7

20 / 33
Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
8
