ASSEMBLY INSTRUCTIONS
Item#: D-GZ845PCO-AS-134/D-GZ845PCO-H (Black Top)
D-GZ845PCO-AS-234/D-GZ845PCO-H1 (Faux Copper Top)
Thank you for your purchase!
Our clear, easy-to-follow, step-by-step instructions will guide you through the project from start
to finish. The final product will be a quality piece that will go together smoothly and give years
of enjoyment. All you will need is a screwdriver, a hammer and two ladders (not included)
whose height is no less than 2.5m (8 ft.)
Note: THIS UNIT IS HEAVY!
Do NOT assemble this item alone for safety. Six people are necessary.
Item Identification: For ease of identification, all parts are labeled to correspond to the Step
number in which the part is used.

2/ 15
Safety information
•Keep all children and pets away from assembly area. Children and pets should be supervised
when they are in the area of the production construction.
•This package contains small items and plastic bags that should be kept away from children.
•Keep assembly area at least 6 ft. from any obstruction such as a fence, garage, house,
overhanging branches, laundry line or electrical wires.
•Proper placement of your product is essential. Do not place the product underneath electrical
lines.
•Keep fingers away from places where they can be pinched or trapped.
•Some parts may contain sharp edges, wear protective gloves if necessary during assembly.
•When assembling and using this product, basic safety precautions should always be followed
to reduce the risk of personal injury and damage to equipment. Please read all instructions
before assembly and use.
•Check all screws for tightness before and during usage. Ensure that all connectors and poles
are firmly and fully secured into position. It is important to do so before use so as to avoid a
possible collapse or damage to the item, which could also result in injury.
• This product is intended for outdoor use only. Install on flat, level ground.
•Stakes are provided to secure the gazebo in grass ground. If you wish to secure the gazebo
to a wood deck or concrete surface, you will need to purchase fasteners appropriate (such as
expansion bolt) for these surfaces. These are readily available at your local hardware store or
home center.
•The gazebo’s roof and structure are not guaranteed against extreme weather conditions
(storms, high winds, etc.). If the gazebo is not dismantled for the winter, snow must be cleaned
off regularly. Any damage caused by snow accumulation is not covered by the warranty.
•Do not use the unit during an electrical storm, as there is a remote chance of getting struck by
lightening.
•Do not leave the gazebo assembled when there is a risk of high wind, as possible damage will
occur to the structure.
•Warranty does not cover damage due to extreme weather conditions.
•Please check your state and local regulations prior to purchasing. Some jurisdictions may
require permits for, or otherwise regulate, installation and use.
Assembly Preparation
• Please read and understand this entire manual before attempting to assemble or install the
product. Keep this manual for future reference.
• Keep the original packaging to store the product.
•Before beginning assembly of product, make sure all parts are present. Do not attempt to
assemble the product if any parts are missing.
•For technical assistance on assembly or replacement parts please call our customer service
department at 1-866-578-6569 for help.

3/ 15

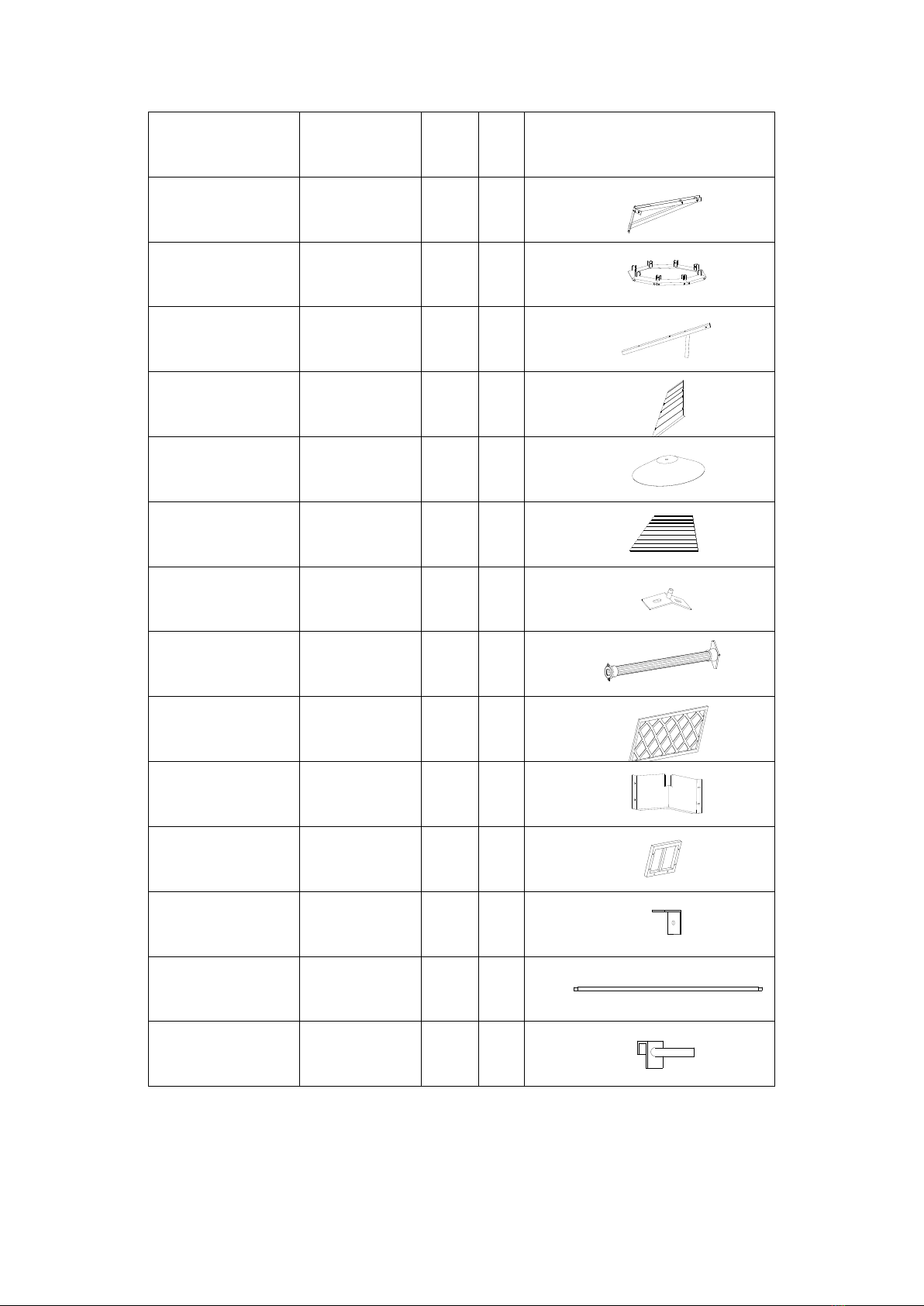

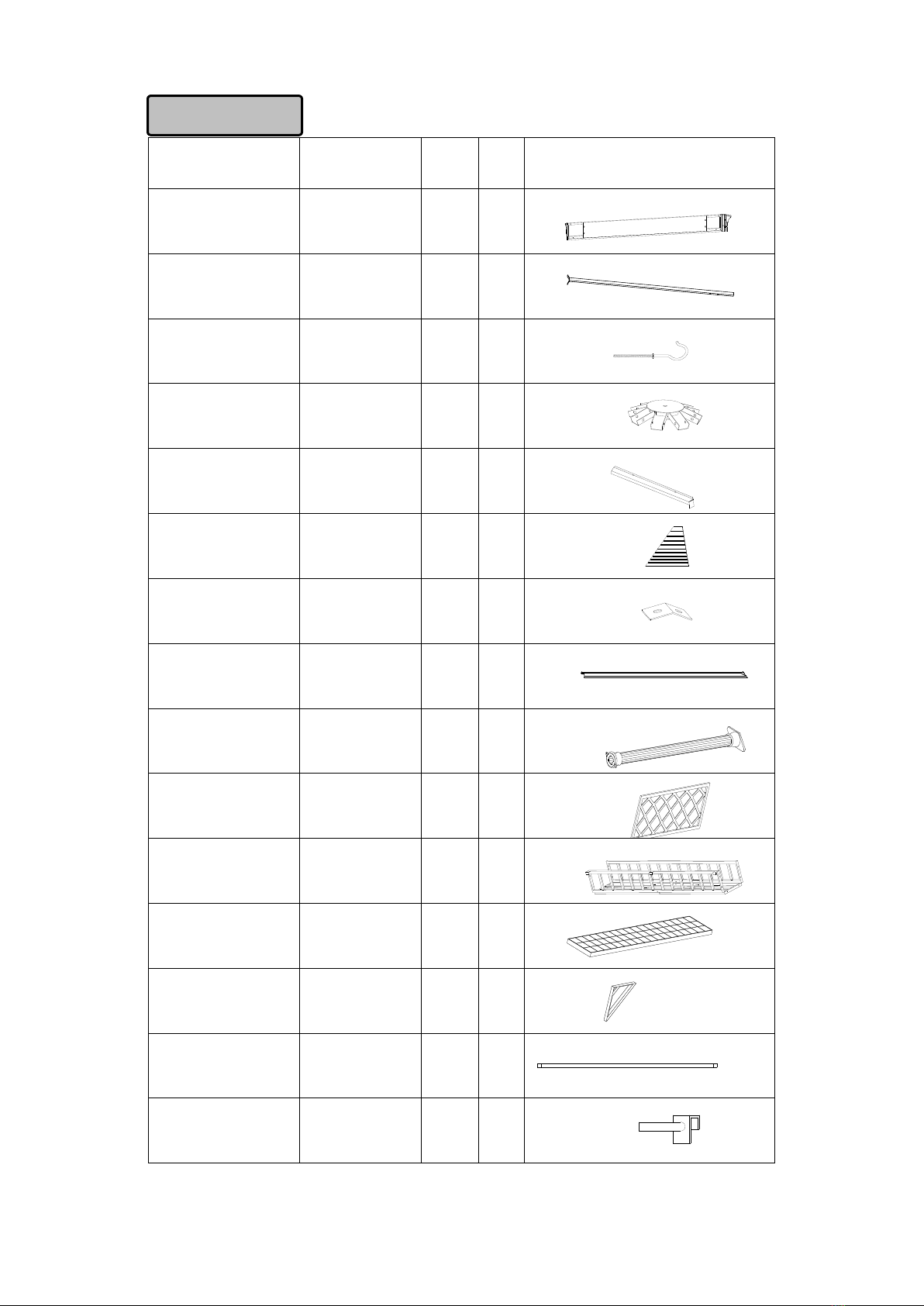

Description
Part
Label
Qty.
Gutter
GZ0845XXH01
A1
8
Large top roof bar
GZ0845XXH03
C1
8
Center hook
GZ0845XXH05
H1
1
Top connector
GZ0845XXH07
J1
1
Top roof covering
GZ0845XXH09
C2
8
Large roof panel 1
GZ0845XXH11
F2
8
Baffle 1
GZ0845XXH13
H2
16
Upper covering
for large roof
GZ0845XXH15
I2
8
Post 2
GZ0845XXH17
B3
4
Side panel 2
GZ0845XXH19
C3-2
2
Planter box
GZ0845XXH21
E3
2
Slate table top
GZ0845XXH23
G3
2
Top bracket
GZ0845XXH25
I3
4
Long netting bar
GZ0845XXH27
T2
8
Right connector
GZ0845XXH29
S2
16
Parts List

4/ 15
Description
Part
Label
Qty.
Corner connector
GZ0845XXH02
B1
8
Roof connection
GZ0845XXH04
D1
1
Top roof bar
GZ0845XXH06
I1
8
Roof panel
GZ0845XXH08
B2
8
Top roof
GZ0845XXH10
D2
1
Large roof panel 2
GZ0845XXH12
G2
8
Baffle 2
GZ0845XXH14
A2
16
Post 1
GZ0845XXH16
A3
4
Side panel 1
GZ0845XXH18
C3-1
2
Baffle
GZ0845XXH20
D3
8
Side panel of
planter box
GZ0845XXH22
F3
4
Plate
GZ0845XXH24
H3
2
Short netting bar
GZ0845XXH26
T1
8
Left connector
GZ0845XXH28
S1
16

5/ 15
Description
Part
Label
Qty.
M6*35 Bolt
BM06035C
a
16
M6”Flat washer
UD06C
b
152
M6*20 Bolt
BM06025C
g
64
M6*15 Bolt
BM06015C
i
40
M6*55 Bolt
SM06055C
d
16
M6*55 Bolt
BM06055C
h
16
M6 Nut
LM06C
e
16
M6 Wrench
W10D
w1
2
Ф8*260 Stake
DD08260C
j
16
Ф10*70 Expansion
bolt
PZM10070C
o
16
Hardware pack 1

6/ 15
Fig.1: Attach Gutter (A1) to Post A3 & B3 with Bolt (g) and Washer (b).
Fig.2: Attach Side panel C3-1(C3-2) to Post A3 & B3 with Bolt (h) and Washer (b). (Make sure the side with hole
is outside)
Fig.3: Two person set up the assembled post and another person raises Gutter (A1), the fourth person
attaches (A1) to the assembled post with Bolt (g & a) and Flat washer (b). Assemble all gutters and tighten.
Fig.4: Use Stake (j) to secure the post to the ground if it is soft surface.
Fig.5: Use Expansion bolt (o) to fasten the post to the ground if it is hard surface.

7/ 15
Description
Part
Label
Qty.
M6 Flat
washer
UD06C
b
152
M6*45 Bolt
SM06045C
f
16
M6*15 Bolt
SM06015C
c
56
M6*15 Bolt
BM06015C
i
64
M6*55 Bolt
BM06055C
h
8
M6 Nut
LM06C
e
8
M10 Wrench
W16D
m
1
M10 Nut
XM10C
k
1
M10 Flat washer
UD10C
l
1

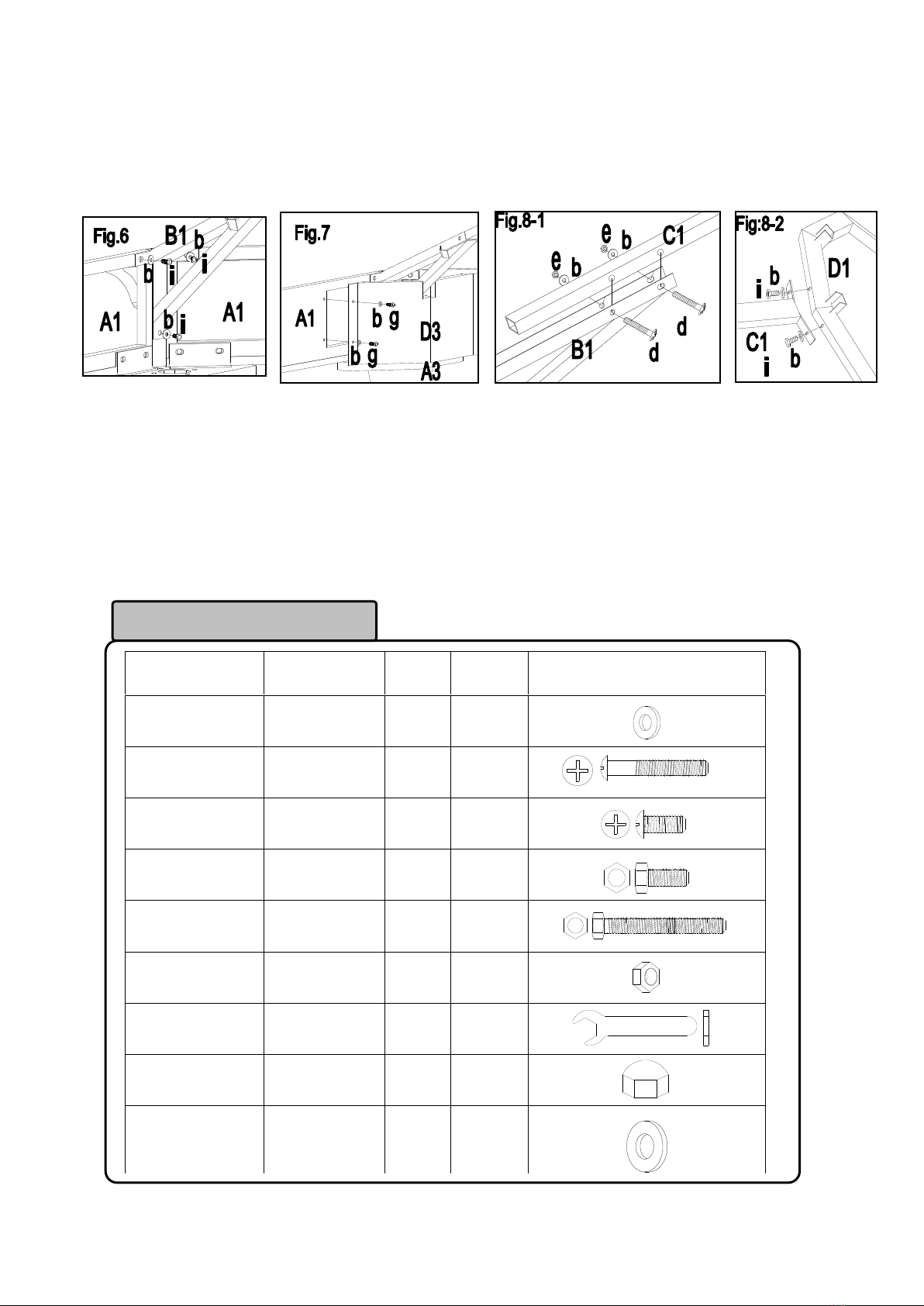

Fig.6: Attach Corner connector (B1) to Gutter (A1) with Bolt (i) and Washer (b).
Fig.7: Attach Baffle (D3) to Gutter (A1) with Bolt (g) and Washer (b).
Fig.8-1: Attach Corner connector (B1) to Large top roof bar (C1) with Bolt (d), Flat washer (b) and Nut (e).
Fig.8-2: Attach Large top roof bar (C1) to Roof connection (D1) with Bolt (i) and Flat washer (b).
Hardware pack 2

8/ 15

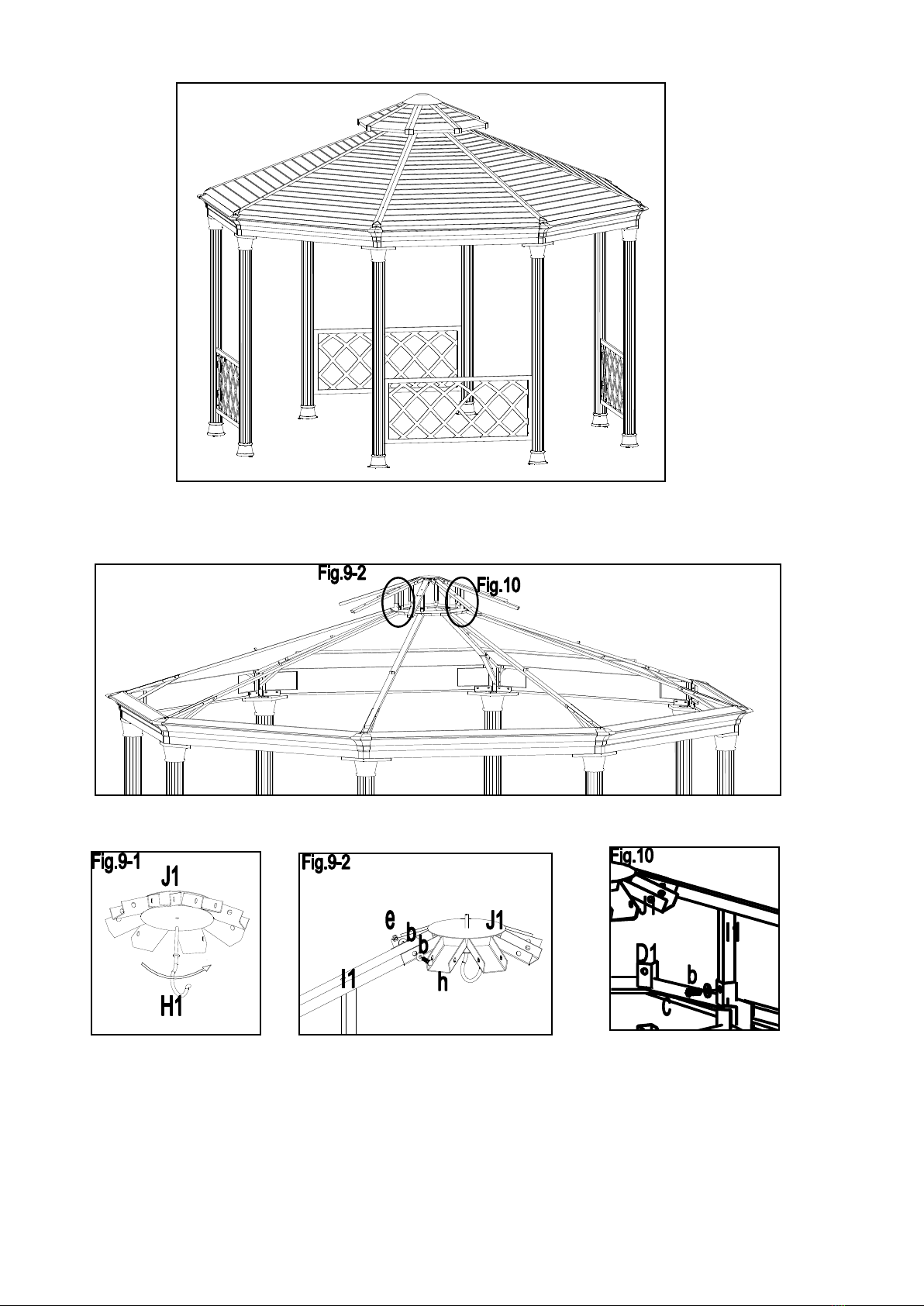

Fig.9-1: Attach Center hook (H1) to Top connector (J1).
Fig.9-2: Attach Top roof bar (I1) to Top connector (J1) with Bolt (h), flat Washer (b) and Nut (e).
Fig.10: Attach Top roof bar (I1) to Roof connection (D1) with Bolt (c), flat Washer (b).

9/ 15

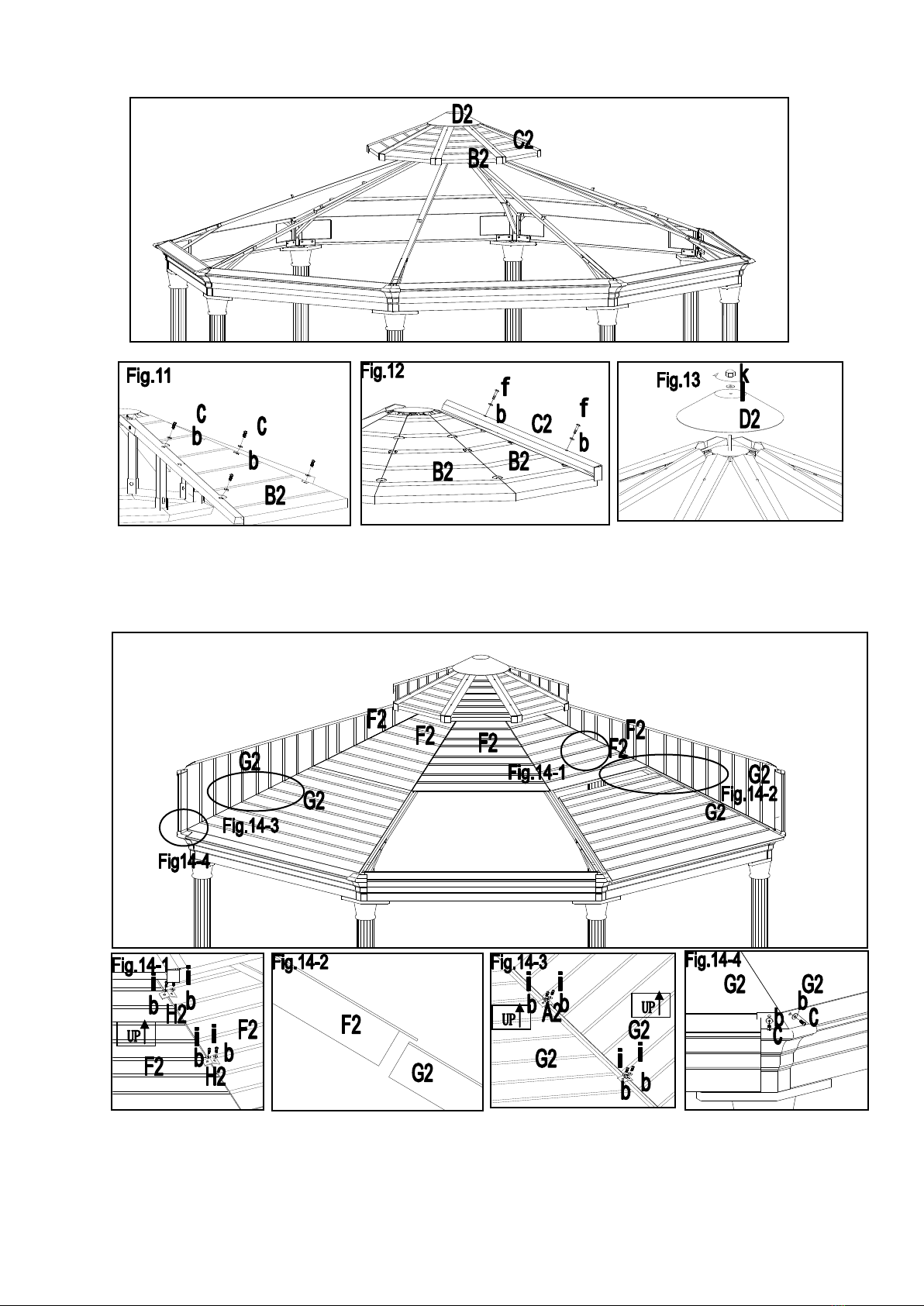

Fig.11: Attach Roof panel (B2) to Top roof bar (I1) with Bolt (c) and Flat washer (b).
Fig 12: Attach Top roof covering (C2) to Top roof bar (I1) with Bolt (f) and Flat washer (b).
Fig 13: Attach Top roof (D2) to Top connector (J1) with Nut (k) and Flat washer (l).
Fig.14-1: Attach Baffle 1 (H2) to Large roof panel 1(F2) with Bolt (i) and Flat washer (b). Back surface is
labeled UP.
Fig.14-2: Slide Large roof panel 2 (G2) under Large roof panel 1 (F2).

10 / 15
Description
Part
Label
Qty.
M6 Flat washer
UD06C
b
44
M6*15 Bolt
BM06015C
i
20
M6*25 Bolt
BM06025C
n
24
Fig.15-1: Insert Upper covering for large roof (I2) into the hole of Top roof bar (I1).
Fig.15-2: Attach Upper covering for large roof (I2) to Baffle 2 (A2) with Bolt (c) and Flat washer (b).
Fig.14.3: Attach Baffle 2 (A2) to Large roof panel 2 (G2) with Bolt (i) and Flat washer (b).
Fig.14.4: Attach Large roof panel 2 (G2) to the corner of Gutter (A1) with Bolt (c) and Flat washer (b).

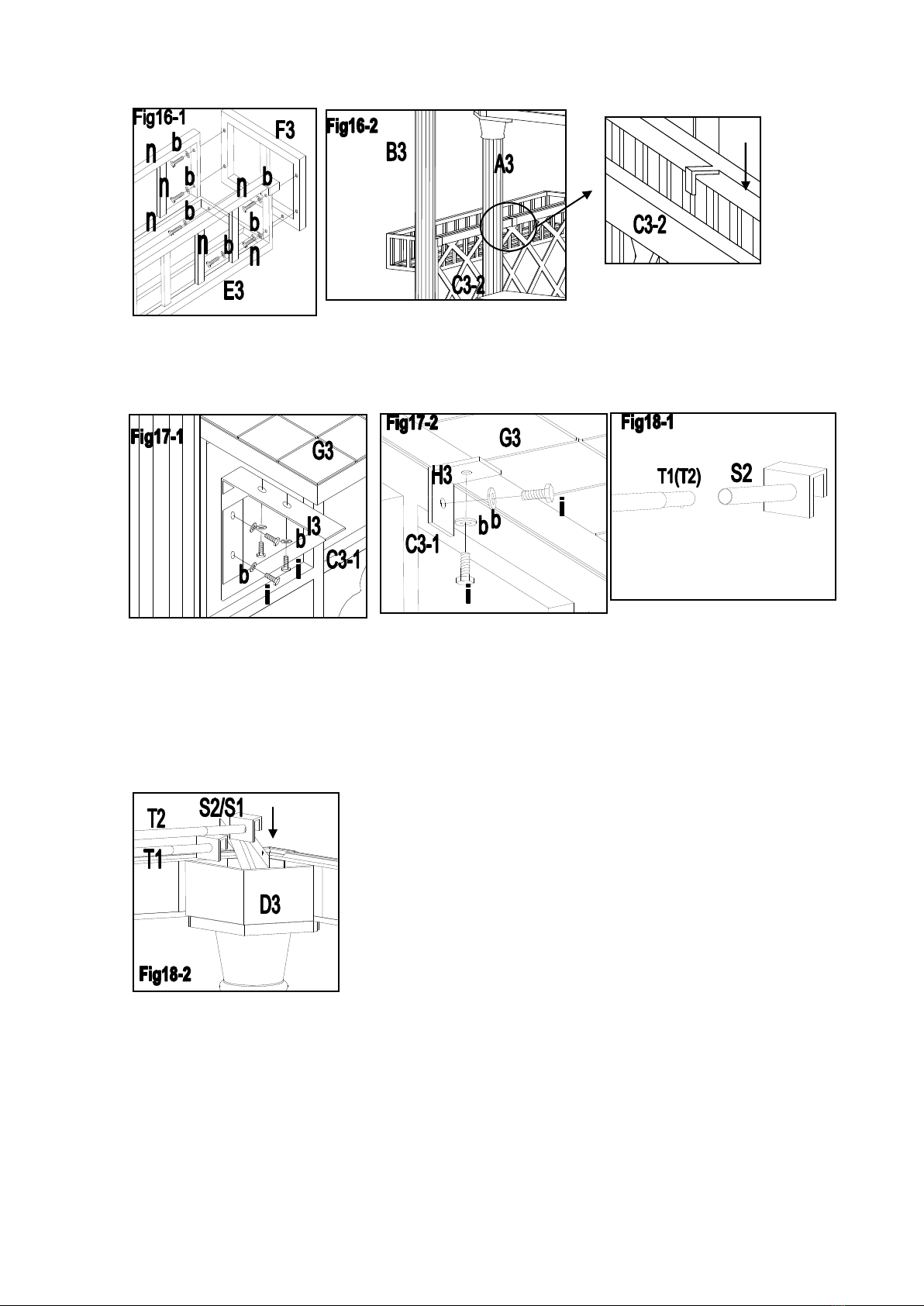

Hardware pack 3
