Tally T2033S User manual

Maintenance Manual Matrix Printer
Dr_ges.iso
T2033
T2133
T2033S
Addendum
Base: Maintenance Manual MT 15x

7.1

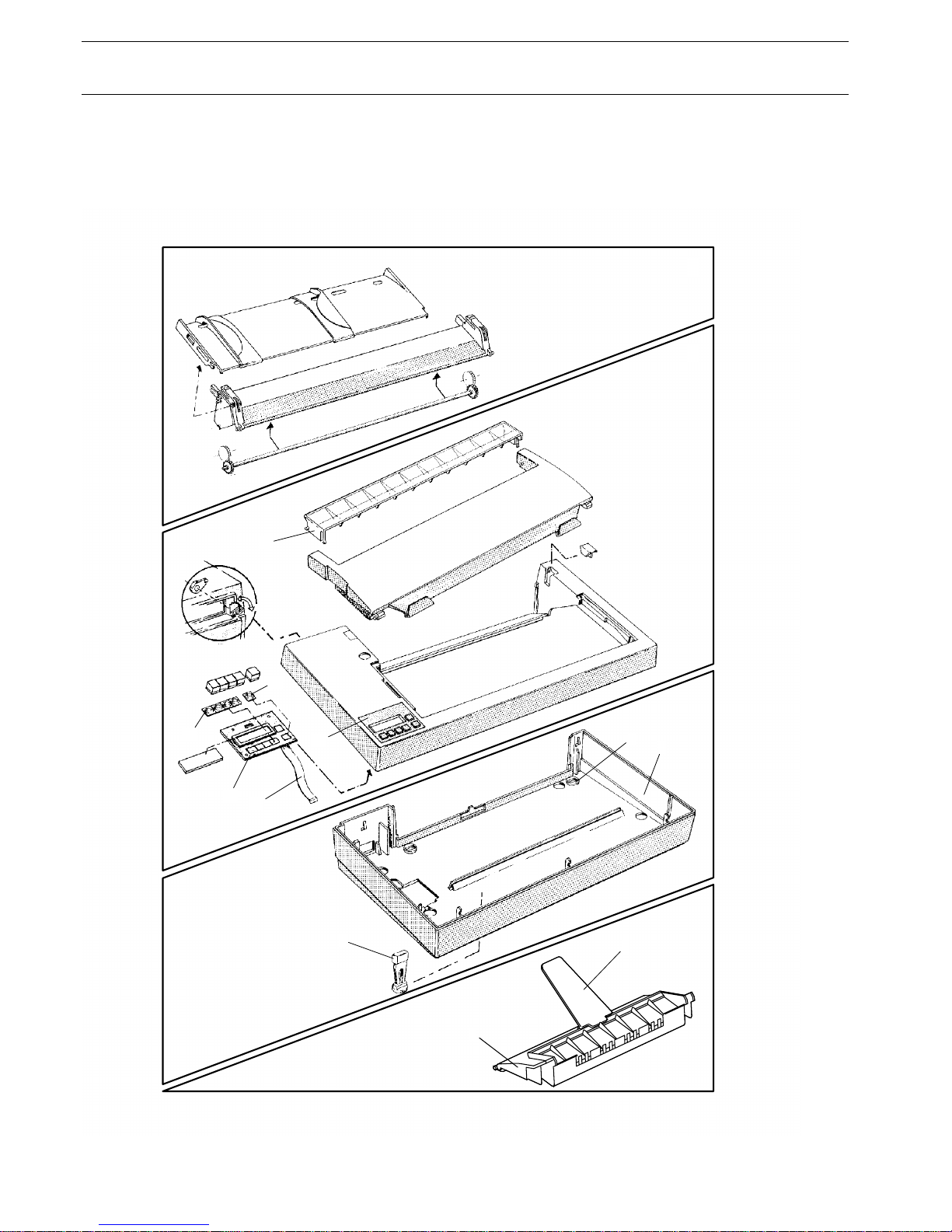

Casing
1
2
43
2b 2a
2c
2d
2e
5
2f
7
6
Spare parts and drawings
7-2

item name T2033 T2133 T2033S Qty. status
1 paper guide cpl. 054 099 054 100 054 928 1 B
2 casing, top cpl 054 731 054 732 054 948 1 B
2a jumber flat cable 10P 710 060 X X 1 A/B
2b panel cpl. 046 970 X X 1 A/B
2c rubber button, 4times (13x60) 707 109 X X 1 C
2d single rubber button 706 874 X X 2 C
2e panel foil 054 744 054 743 054 763 1 B
2f cover I small 054 040 054 039 — 1 B
3 casing, bottom 054 001 054 000 054 001 1 B
4 foot 052 025 X X 4 B
5 suspension 052 026 X X 4 B
6 paper output assy — — 054 926 1 B
7 paper support — — 052 127 1 B
Spare parts and drawings
7-3

7.2

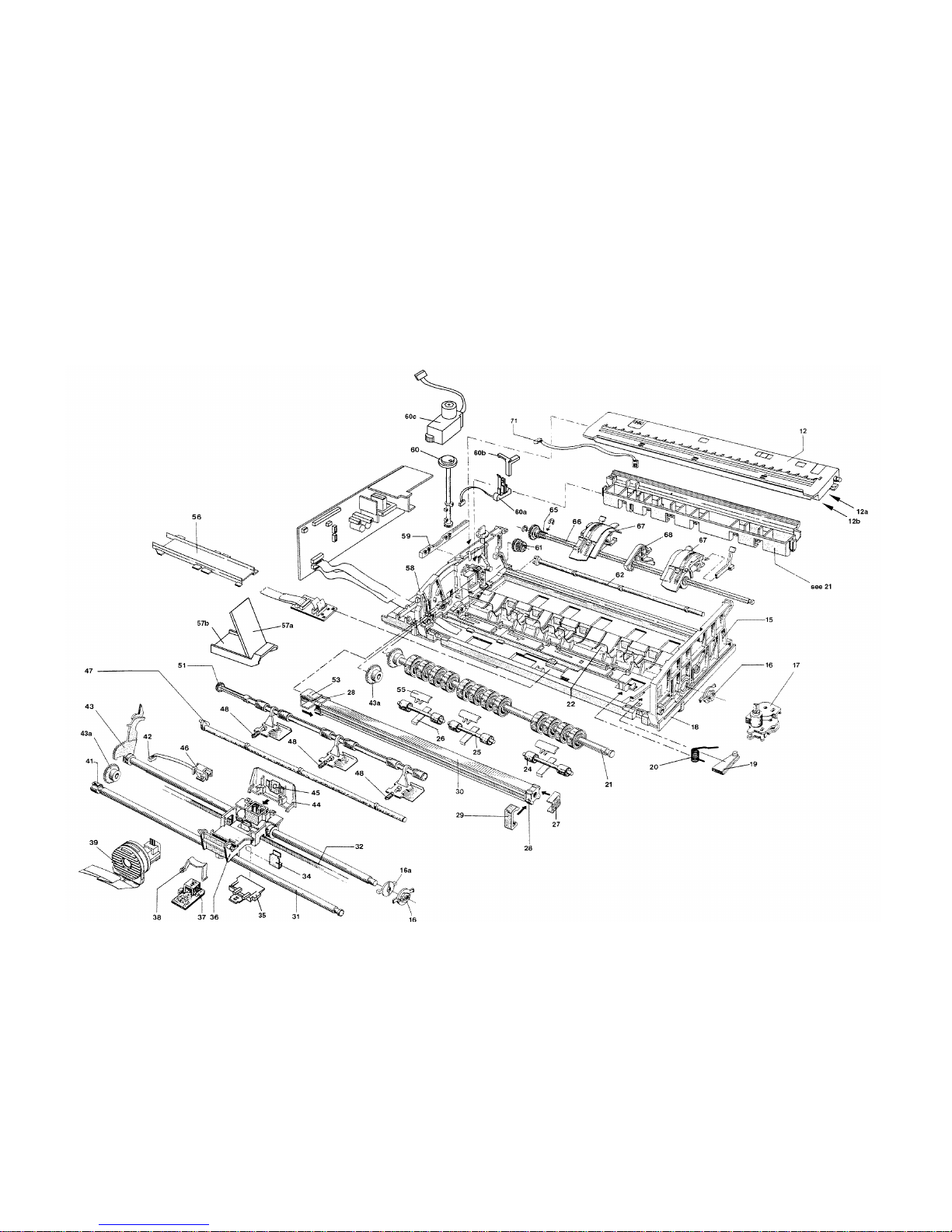

General arrangement (sheet 1)
Spare parts and drawings
7-4

item name T2033 T2133 T2033S Qty. status
12 flap mounted 054 746 054 259 054 927 1 B
12a foil, rear, U-form 054 228 054 227 054 228 1 B
12b foil, front, V-form 054 673 054 674 054 673 1 B
15 side plate RH 052 023 X X 1 B
16 eccenter rear 052 018 X X 1 A/B
16a distance part 054 224 X X 1 A/B
17 ribbon drive compl. MT 13X 052 223 052 099 052 223 1 A/B
18 cover, base 053 791 053 790 053 791 1 B
19 key 052 011 X X 1 B
20 torsion spring 052 090 X X 1 B
21 driving shaft cpl. with paper guide 054 823 054 824 054 823 1 B
22 foile, coverbase 052 214 052 072 052 214 1 B
24 roller 054 057 X X 4/6 B
25 straight pin 4M6x80 706 554 X X 2/3 C
26 leaf spring 052 054 X X 2/3 B
27 corner 053 010 X X 1 B
28 printing bar bearing 052 042 X X 2 B
29 clamp, printing bar 052 051 X X 1 B
30 printing bar compl. 052 211 052 047 052 211 1 B
31 carriage shaft, front 052 205 052 004 052 205 1 B
32 toothed belt Z=270 T=1/9Z B=6 MT 130 706 633 — 706 633 1 A/B
32 toothed belt Z=371 T=1/9Z B=6 MT 131 — 706 628 — 1 A/B
34 clamp (toothed belt) 052 021 X X 1 A/B
35 cable clamp cpl. 054 481 X X 1 B
36 carriage 054 479 X X 1 A/B
37 headbearing 054 929 X X 1 B
38 clamb, print head 052 014 X X 1 B
39 printhead NDK 9/24 055 370 055 368 055 370 1 A/B
41 eccenter front 052 017 X X 1 A/B
42 light barrier sensor HP compl. 046 109 X X 1 A/B
43 adjusting lever with carriage shaft BG 054 932 054 933 054 932 1 B
43a toothed wheel Z=42/20 054 651 X X 1 B
44 support 052 824 X X 1 B
45 ribbon mask 052 823 X X 1 B
46 light barrier holder HP 052 079 X X 1 A/B
47 shaft, front 052 215 052 053 052 215 1 B
48 spring (roller carriage) 052 877 054 059 054 059 2/3 B
51 Lower Shaft cpl. 054 736 054 737 054 942 1 B
53 ESD spring 054 285 X X 1 B
55 support 052 892 X X 2/3 B
56 cable guide (long) 052 889 X X 1 B
57a cable clamp pull 1 054 316 X X 1 B
57b cable clamp pull 2 054 317 X X 1 B
58 side plate LH 054 659 X X 1 B
59 push bar 054 920 X X 1 B
60 clutch shaft (paper knob) 054 157 X X 1 B
60a ASF-Recognition 047 655 X — 1 B
60b Lever SF- Recognition 054 652 X — 1 B
60c APS unit 054 153 X X 1 A/B
61 toothed wheel Z=24/16 SF 052 273 X X 1 B
62 shaft, rear 052 275 X X 1 B
66 tractor shaft BG 054 829 054 830 054 829 1 B
67 sparepart group tractors LH and RH 054 803 X X 1 A/B
68 support 054 038 X X 1 B
71 light barrier sensor PE cpl. (T2033S incl. AFI sensor) 045 791 X 047 373 1 A/B
Spare parts and drawings
7-5

7.3
General arrangement (sheet 2)
Spare parts and drawings
7-6

item name T2033 T2133 T2033S Qty. status
83 serial Interface RS 232 047 669 X — 1 A/B/D
83 serial Interface RS 232, RAM, Barcode 047 670 X 047 681 1 A/B/D
83 serial Interface RS 232, RAM, Barcode, MT50-Emul. — — 047 691 1 A/B/D
83 parallel Interface 047 637 X — 1 A/B/D
83 parallel Interface, RAM, Barcode 047 668 X 047 680 1 A/B/D
83 serial Interface RS422, RAM, Barcode 047 672 X 047 683 1 A/B/D
83 parallel Interface, RAM, Barcode, MT50-Emulation — — 047 692 1 A/B/D
84 logic board cpl. 047 630 X X 1 A/B/D
85 clip 706 726 X X 1 C
86 rubber profile 054 869 X X 1 B
89 ESD spring with foil 053 076 X X 1 B
90 driver board compl. 047 620 X X 1 A/B/D
91 guide, interface 054 007 X X 1 B
92 sheet casing compl. 053 009 X X 1 B
93 driver board AGA / APS 047 617 X X 1 A/B
94 AGA motor cpl. (D=36/7,5°DEG) 047 686 X X A/B
95 toothed belt Z=38 052 157 X X 1 B
96 bearing CR-Motor 052 015 X X 1 B
97 carriage motor comp. 052 142 X X 1 A/B
98 paper feed motor compl. 052 285 X X 1 A/B
99 intermediate timing gear Z=24/16 052 035 X X 2 B
100 intermediate timing gear Z=60/16 052 280 X X 2 B
103 power supply board MT 15X 120/230/240V 047 725 X X 1 A/B
105 cable clamp 052 139 X X 1 B
106 screw M4x8 707 482 X X 1 C
108 toothed washer 4.3 706 428 X X 1 C
109 Guide LF axle 054 186 X X 1 B
111 cover 054 832 X X 1 B
113 fan bearing 054 056 X X 1 B
114 fan 047 046 X X 1 A/B
Spare parts and drawings
7-7

7.4
Cutter
1
2
3
4
13
5a
6
7
8
9
10
11
13
14 15
12
17
16
5b
Spare parts and drawings
7-8

item name T2033 T2133 T2033S Qty. status
1 casing cover — — 054 713 1 B
2 drive unit cpl. — — 054 946 1 B
3 logic board cpl. — — 047 623 1 A/B/D
4 cut sensors LH / RH cpl. — — 047 663 2 A/B
5a connection cutter internal — — 047 661 1 B
5b connection cutter to printer external — — 047 662 1 A/B
6 bottom casing — — 054 720 1 B
7 lever LH cpl. — — 054 850 1 B
8 lever RH cpl. — — 054 851 1 B
9 connector holder plate — — 054 837 1 B
10 carriage shaft — — 054 680 1 B
11 carriage BG cpl. — — 054 725 1 A/B
12 axle, top — — 054 681 1 B
13 side plate plastic RH & LH (bearing axle) — — 054 709 1 B
14 roller — — 054 686 1 B
15 paper guide cpl. — — 054 721 1 B
16 paper out axle cpl. — — 054 947 1 B
17 cutting bar cpl. — — 054 722 1 A/B
