Technogym element leg extension User manual

E L E M E N T
E S S E N T I A L S T R E N G T H
1
Leg Extension
User manual
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment

2LegExtension
ABD
C
E
04199002
Identificationofthemanufacturerandtheequipment

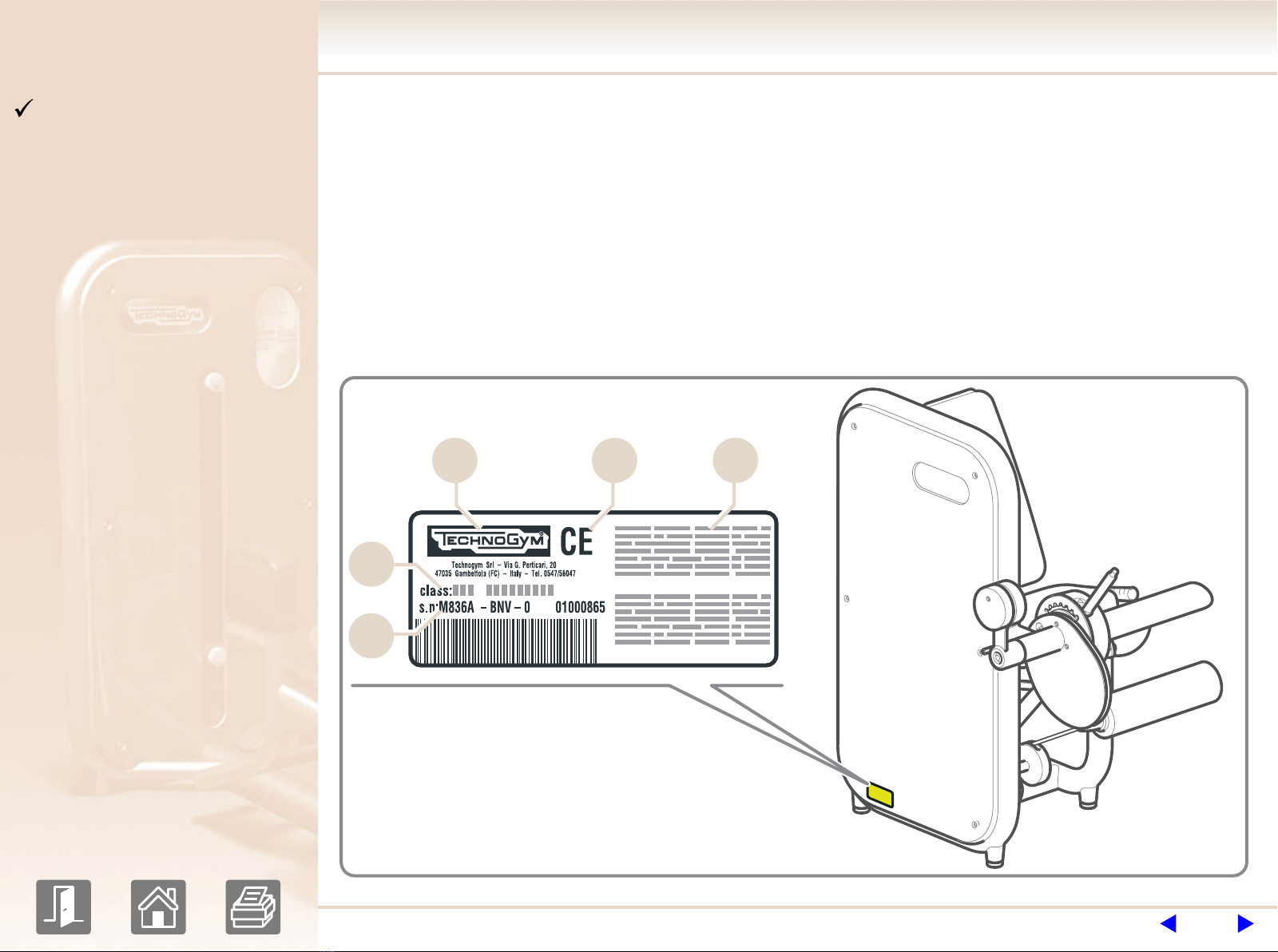

The identification plate of the equipment and manufacturer, affixed on the back
panel of the weight stack, gives the following details:
AName and address of the manufacturer
BCE Mark
CSerial number
DCautions
EEquipment classification
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

3
LegExtension
04199003
Description of the equipment
Seat
Seat lever
Exercise lever
Roller pad
ROM device
ROM lever
Side handgrips
Weight stack
Pin
Knob
Seat: where the user sits to perform the exercise. Its position can be adjusted
using the seat lever.
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

4LegExtension
04199004
Description of the equipment
Seat
Seat lever
Exercise lever
Roller pad
ROM device
ROM lever
Side handgrips
Weight stack
Pin
Knob
Seat: where the user sits to perform the exercise. Its position can be adjusted
using the seat lever.
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

5LegExtension
04199005
Description of the equipment
Seat
Seat lever
Exercise lever
Roller pad
ROM device
ROM lever
Side handgrips
Weight stack
Pin
Knob

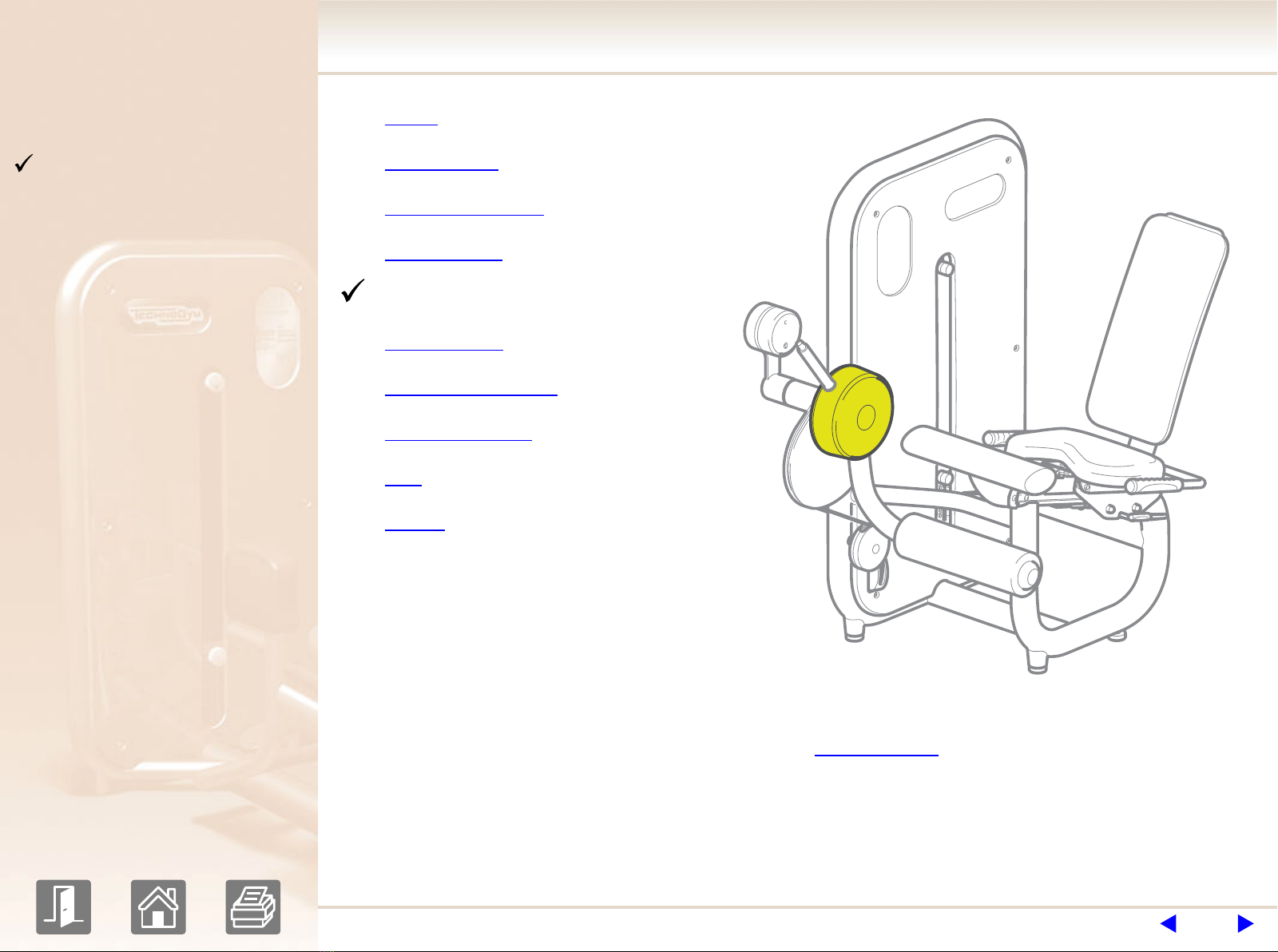

Exercise lever:operated by the user by means of the roller pad; before starting to
exercise, or between one set and the next, the starting position can be adjusted so
as to modify the range of motion by using the ROM device.
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

6LegExtension
04199006
Description of the equipment
Seat
Seat lever
Exercise lever
Roller pad
ROM device
ROM lever
Side handgrips
Weight stack
Pin
Knob
Exercise lever:operated by the user by means of the roller pad; before starting to
exercise, or between one set and the next, the starting position can be adjusted so
as to modify the range of motion by using the ROM device.
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

7LegExtension
04199007
Description of the equipment
Seat
Seat lever
Exercise lever
Roller pad
ROM device
ROM lever
Side handgrips
Weight stack
Pin
Knob
ROM device: system for adjusting the Range of Motion and the starting position.
Adjustments are made by means of the ROM lever after having released it by
operating the button positioned on it.
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

8LegExtension
04199008
Description of the equipment
Seat
Seat lever
Exercise lever
Roller pad
ROM device
ROM lever
Side handgrips
Weight stack
Pin
Knob
ROM device: system for adjusting the Range of Motion and the starting position.
Adjustments are made by means of the ROM lever after having released it by
operating the button positioned on it.
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

9LegExtension
04199009
Description of the equipment
Seat
Seat lever
Exercise lever
Roller pad
ROM device
ROM lever
Side handgrips
Weight stack
Pin
Knob
Side handgrips: the user can enhance the comfort by holding them during the
exercise.
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

10LegExtension
04199010
Description of the equipment
Seat
Seat lever
Exercise lever
Roller pad
ROM device
ROM lever
Side handgrips
Weight stack
Pin
Knob

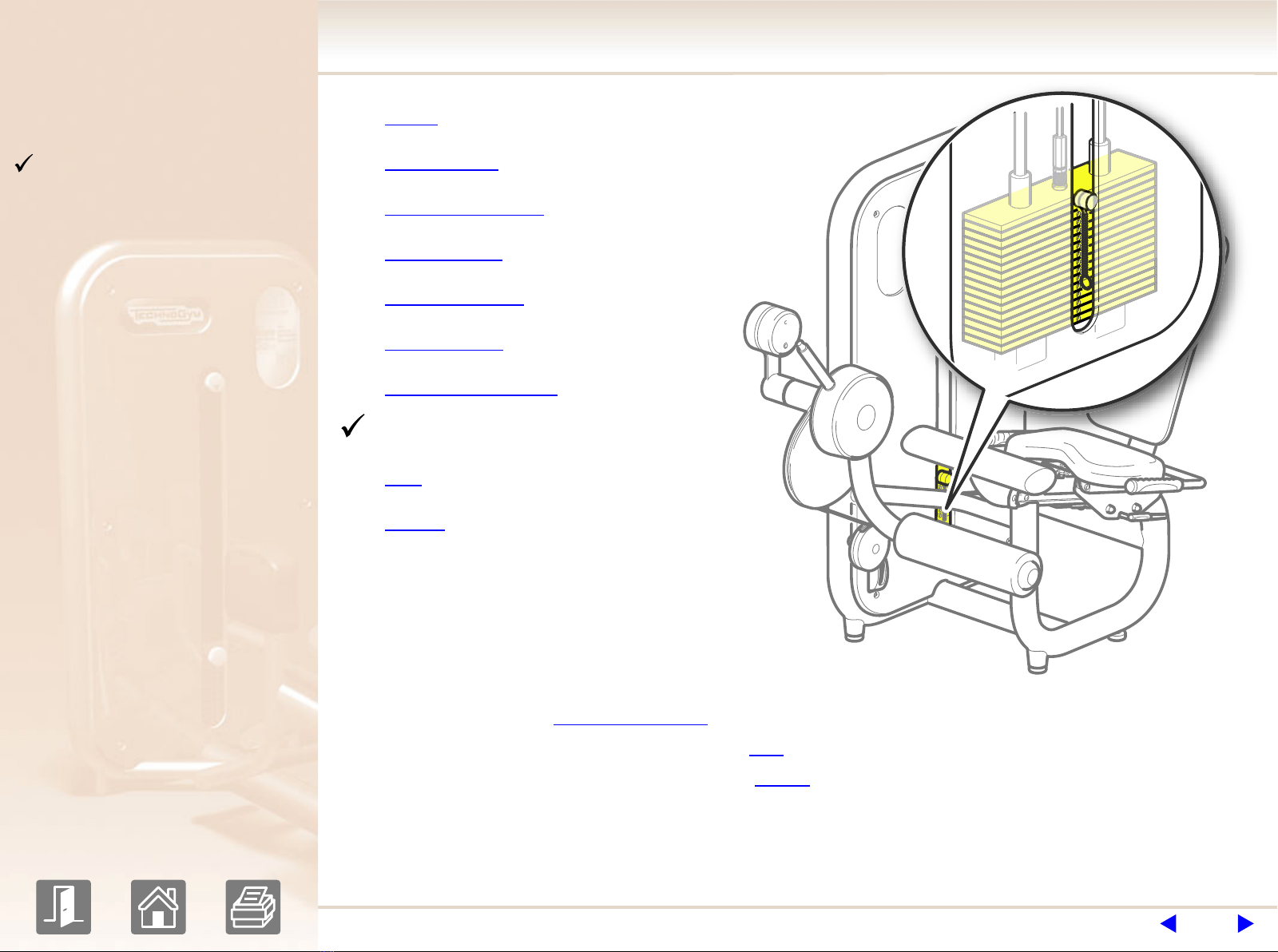

Weight stack: the exercise lever, operated by the user, moves the weights along
two guides by means of a cable. A pin is used for selecting the load in order to
adjust the exercise effort level. The knob can be used to increase the selected
workload by 2.5 kg.Pull on the knob and lower it until the extra weight rests on the
first plate in the weight stack.To remove this extra weight, simply return the knob
to its original position.
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

11LegExtension
04199011
Description of the equipment
Seat
Seat lever
Exercise lever
Roller pad
ROM device
ROM lever
Side handgrips
Weight stack
Pin
Knob
Weight stack: the exercise lever, operated by the user, moves the weights along
two guides by means of a cable. A pin is used for selecting the load in order to
adjust the exercise effort level. The knob can be used to increase the selected
workload by 2.5 kg.Pull on the knob and lower it until the extra weight rests on the
first plate in the weight stack.To remove this extra weight, simply return the knob
to its original position.
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

12LegExtension
04199012
Description of the equipment
Seat
Seat lever
Exercise lever
Roller pad
ROM device
ROM lever
Side handgrips
Weight stack
Pin
Knob
Weight stack: the exercise lever, operated by the user, moves the weights along
two guides by means of a cable. A pin is used for selecting the load in order to
adjust the exercise effort level. The knob can be used to increase the selected
workload by 2.5 kg.Pull on the knob and lower it until the extra weight rests on the
first plate in the weight stack.To remove this extra weight, simply return the knob
to its original position.
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

13LegExtension
04199013
04194014
04194015_iconapaccopesi
1262 mm
(50") 1036 mm
(41")
205 kg (453 lb)
80 kg (160 lb)
1421 mm
(56")
1460 mm
(58")
Technical data
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

14LegExtension
04194016_targ_schiacciamento

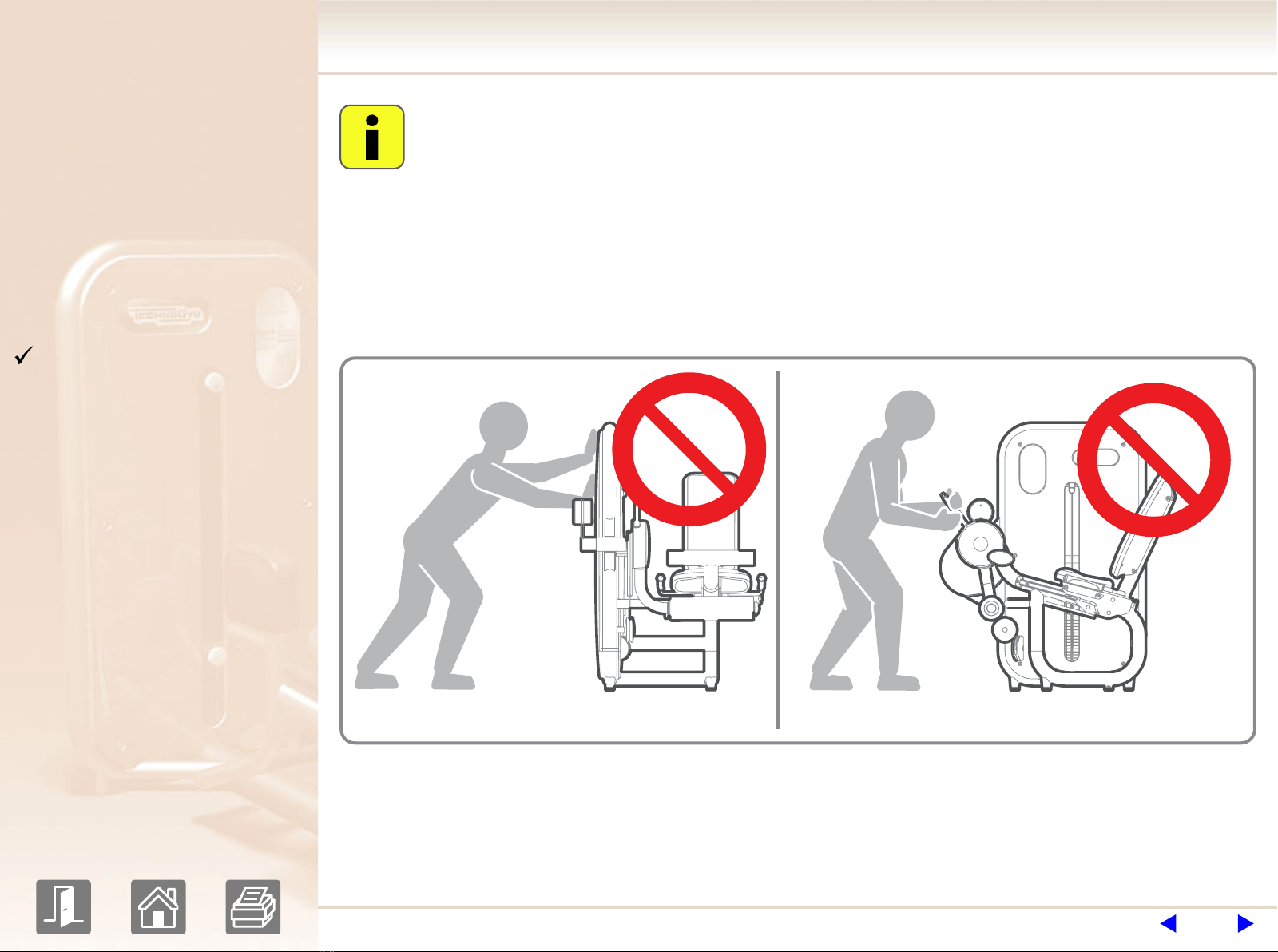

Safety labels and devices
The equipment does not have any sharp corners.
All the parts which come into contact with the body are adequately protected with
rubber coverings or padding.
The weight stack is enclosed in protective panels.
WARNING
It is important to pay attention to the labels affixed to the equipment,
as they provide information about possible risks and hazards.
Pay particular attention to the parts of
the equipment with labels indicating the
“DANGER OFSQUASHING”.
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

15LegExtension
04194017

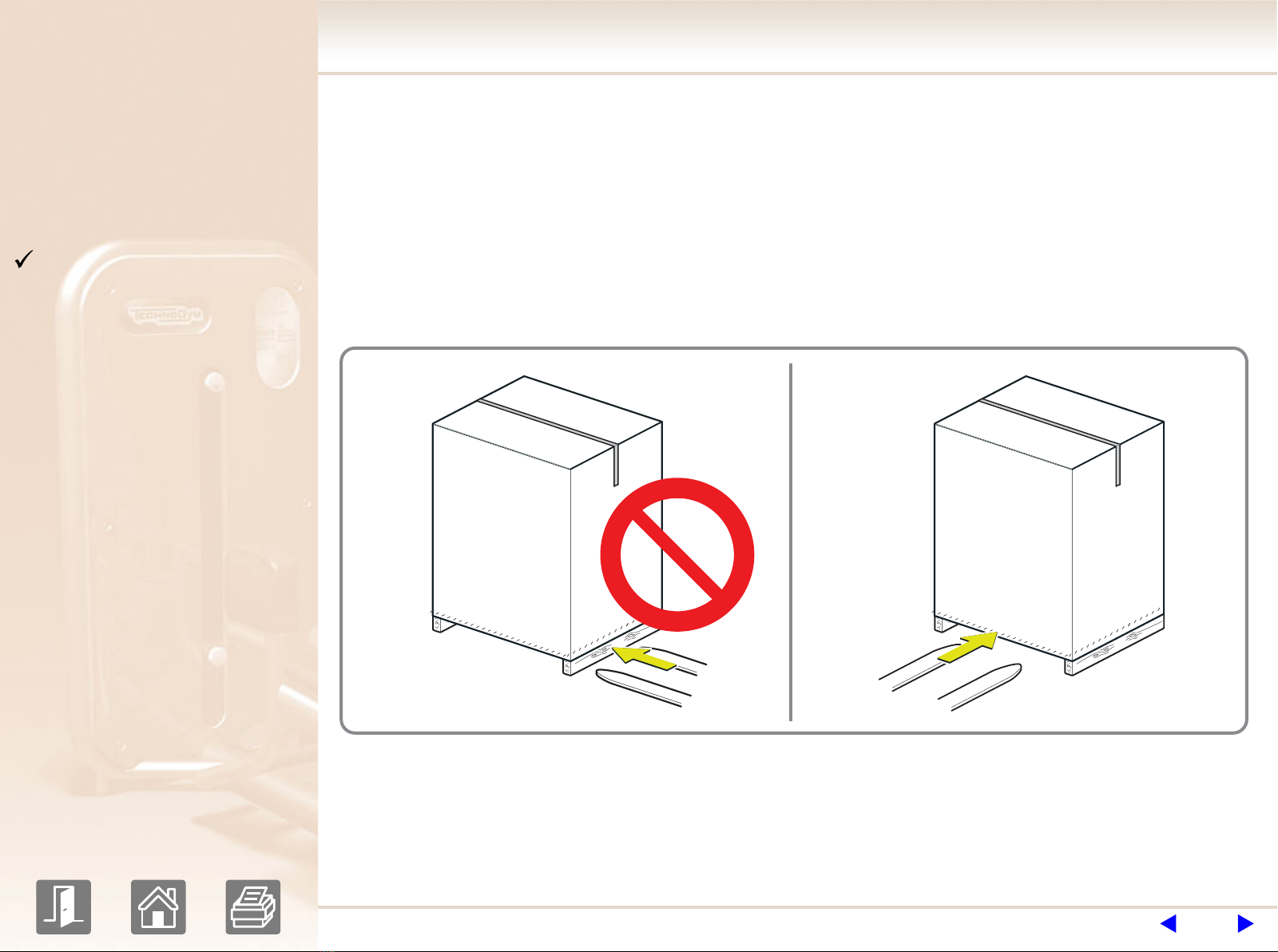

Packing
The equipment is supplied fully assembled in a carton and protected by cellophane
wrapping, and secured to a wooden pallet.
The equipment can be lifted and handled using normal lifting machine.
In order to ensure the safety of persons and property, carefully determine the
lifting and handling machine used as a function of the place of installation.
OK
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

16LegExtension
Place of installation
To guarantee safe, comfortable and effective use of the equipment, the place of
installation must comply with certain specific requirements; in particular, before
choosing where to install the equipment it is recommended to check the following:
-temperature between +10°C and +25°C;
- sufficient ventilation to maintain a humidity level between 20% and 90%, when
the equipment is in use;
- adequate lighting, so that the physical exercise takes place in pleasant and
relaxing conditions;
- sufficient clearance on all sides of the equipment, taking into account its
maximum dimensions during the movements, necessary for safety reasons;
- a flat, stable and vibration-free floor surface, with adequate carrying capacity
for the equipment’s weight.
If the equipment is installed in a public recreational area, the place must conform
to all the requirements prescribed by the regulations in force.
WARNING
The equipment must be installed and used in a place whose access
and supervision are specifically controlled by the owner.
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

17LegExtension
04199018

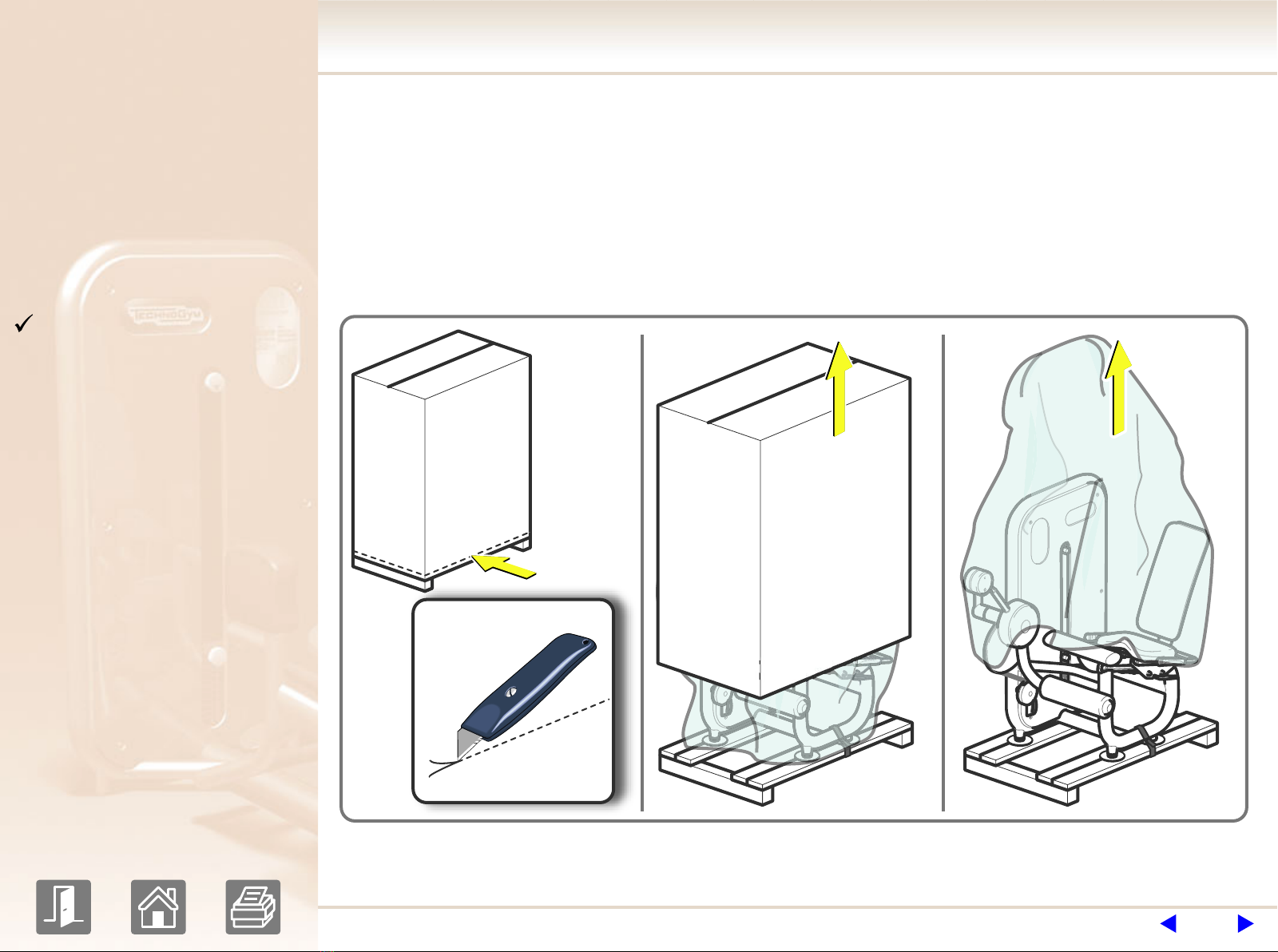

Unpacking
The equipment is supplied on a pallet, to which it is secured by means of straps.
To remove the equipment from the packing:
- cut the carton along the bottom and pull it away from the top;
- remove the cellophane by pulling it away from the top;
cont.
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

18LegExtension
04199019
Unpacking

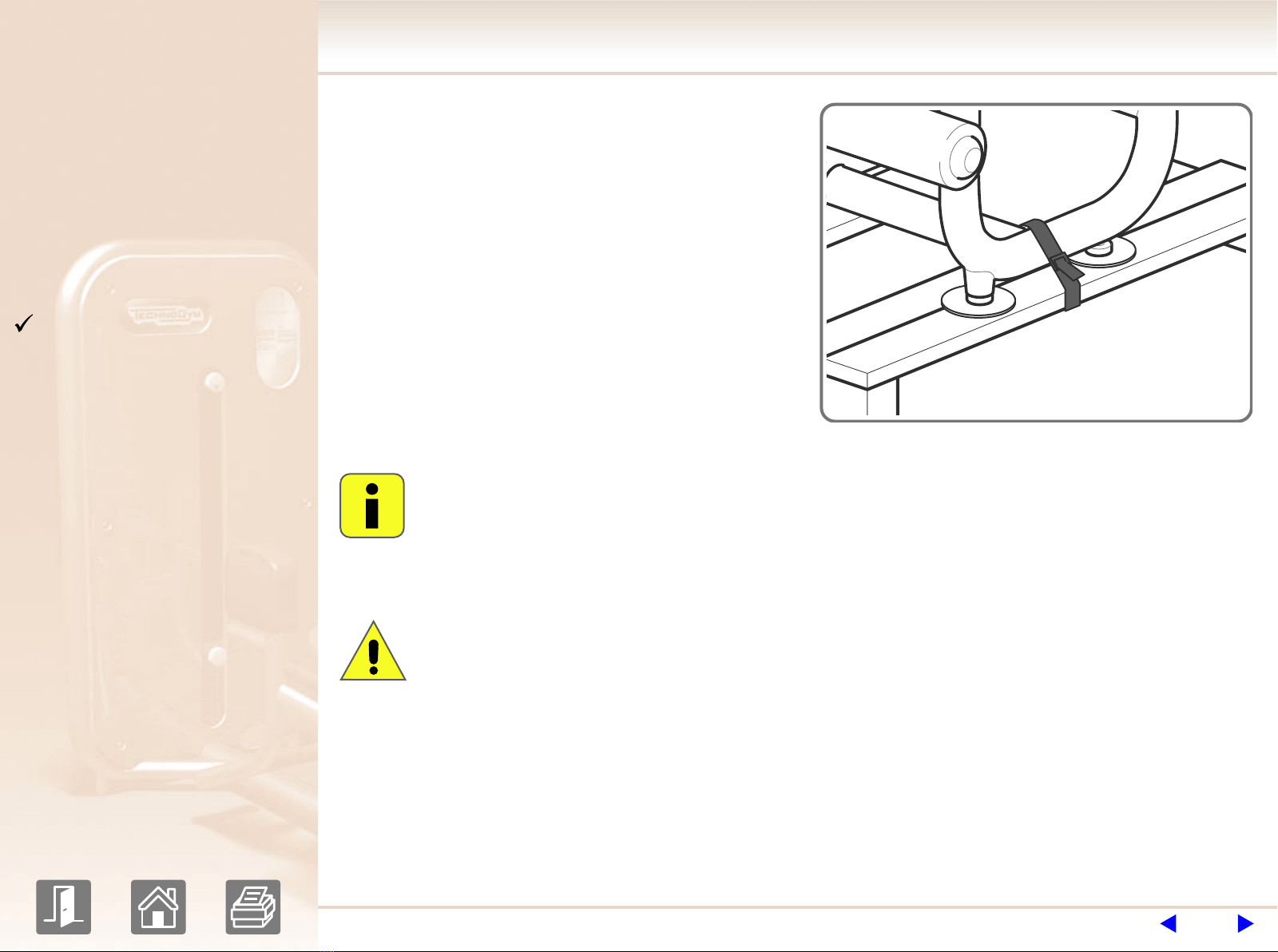

- untie the straps securing the
equipment to the pallet;
- lift the equipment from the weight
stacksideandplaceitontheground.
WARNING
Given the weight of the equipment, we recommend that more than one
person be involved in lifting it.
DANGER
The packing materials (boxes, bags, etc.) must not be left within the
reach of children, as they constitute a possible hazard; nor must they
be disposed of in the environment.
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

19LegExtension
04199020
Lifting and handling the equipment
To move the equipment, use normal lifting and handling machine.
DANGER
The equipment must be moved with great care, due to the risk of it
tipping over.
Lift the equipment from the weight
stack side, as shown in the figure.
WARNING
Given the weight of the
equipment, we recommend
that more than one person be
involved in lifting it.
It is recommended to place
somepadded material between
the frame and the lifting
machine.
cont.
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents

20LegExtension
04199021
Lifting and handling the equipment
WARNING
When lifting the equipment, do not exert pressure against the weight
stack guards.
Do not use the range of movement (ROM) lever to try to move the
equipment: danger of HARM and instability.
Identification of the manufacturer
and the equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Lifting and handling
the equipment
Adjusting the equipment
Routine maintenance
Replacing
the padded components
Replacing the cable
Adjusting cable tension
Removing
the weight stack panel
Technical Service
Storage
Disposing of the equipment
Using the equipment
Contents
